HDC211 - Security Camera Clover Electronics - Free user manual and instructions

Product Type	Day/Night Vari-focal Color Dome Camera
Brand	Clover Electronics
Model	HDC211
Image Sensor	1/3" Sony Super HAD CCD
Effective Pixels	768 (H) x 494 (V)
Resolution	550 TV Lines (Color), 600 TV Lines (B/W)
Day/Night	True Day/Night with ICR (IR Cut Filter Removal)
IR LEDs	33 Infrared LEDs, range up to 100 ft (depends on scene reflection)
Lens	DC Auto Iris Vari-focal 2.8-12mm
Minimum Illumination	0.000006 Lux (IR LED ON)
Signal-to-Noise Ratio	52 dB (AGC Off, Weight On)
Wide Dynamic Range	D-WDR (Digital Wide Dynamic Range)
Noise Reduction	3D DNR (Digital Noise Reduction) with 3D filter
Mounting Bracket	3-Axis Gimbals Bracket
Weatherproof Rating	IP67
Housing Material	Die cast Aluminum alloy
Voltage	AC 24V / DC 12V (Dual voltage)
Power Consumption	480 mA (LED On), 170 mA (LED Off)
Dimensions	140 (Φ) x 100 mm
Weight	2 lbs
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Warranty	2 years limited (parts and labor)
Cleaning	Use a soft, clean cloth to clean lens and dome; avoid fingerprints
Safety Precautions	Do not open case; use recommended power supply; avoid strong magnetic fields

Frequently Asked Questions - HDC211 Clover Electronics

What is the resolution of the Clover Electronics HDC211 camera?

The camera provides 550 TV lines in color and 600 TV lines in black and white, ensuring clear and detailed images.

Does the HDC211 support day/night recording?

Yes, it features True Day/Night functionality with an IR Cut Filter Removal (ICR) mechanism, automatically switching between color and B/W modes.

What is the IR range of this camera?

It has 33 infrared LEDs with a range of up to 100 ft, though actual distance depends on scene reflectivity.

What type of lens does the HDC211 use?

It uses a DC Auto Iris Vari-focal lens with a focal length of 2.8-12mm, allowing adjustments for different viewing angles.

Is the camera weatherproof?

Yes, it has an IP67 rating, making it suitable for outdoor installations and resistant to dust and water.

What power supply is required?

The camera supports dual voltage (AC 24V or DC 12V). A regulated DC 12V 1A power supply is recommended, and a UL listed adapter should be used.

How do I adjust the viewing angle?

The 3-axis gimbals bracket allows pan, tilt, and rotation adjustments. Loosen the tilt screws to move the camera up/down, turn the bracket left/right for pan, and rotate the camera body clockwise/counterclockwise to level the image.

What is the minimum illumination required?

With IR LEDs on, the camera requires only 0.000006 Lux, enabling clear images in near-total darkness.

What accessories are included in the package?

The package includes: 1 Day/Night dome camera, hardware accessories kit, instruction manual, OSD control manual, and warranty registration card.

How do I clean the camera lens?

Use a soft, clean cloth to gently wipe the lens and dome. Avoid fingerprints, as they can affect picture quality. Do not use harsh chemicals.

USER MANUAL HDC211 Clover Electronics

• To avoid electrical shock, do not open the case of this product.
- Do not stamp fingerprints on the lens.
- Operate this product using only the recommended AC Power supply.
- Do not overload electrical outlets or extension cords; this can result in fire or electric shock.
- Keep this product away from strong magnetic fields.
- Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
- Do not change or modify this product, the warranty will be voided.

FEATURES

• Weatherproof (IP67)
  • 1/3" Sony Super HAD CCD
  • High Resolution 550 TV Lines (Color), 600 TV Lines (B/W)
  • True Day/Night (Built-in ICR: IR Cut Filter Removal)
  • 3D DNR (Digital Noise Reduction) with 3D filter
  • D-WDR (Digital Wide Dynamic Range)
  • 3-Axis Gimbals Bracket
  • Total 33 Infrared LEDs with a CDS sensor
• Up to 100^ IR range (depends on scene reflection)
  • DC Auto Iris Vari-focal Lens (2.8-12mm)
  • Dual Voltage(AC 24V/DC 12V)

INSTALLATION

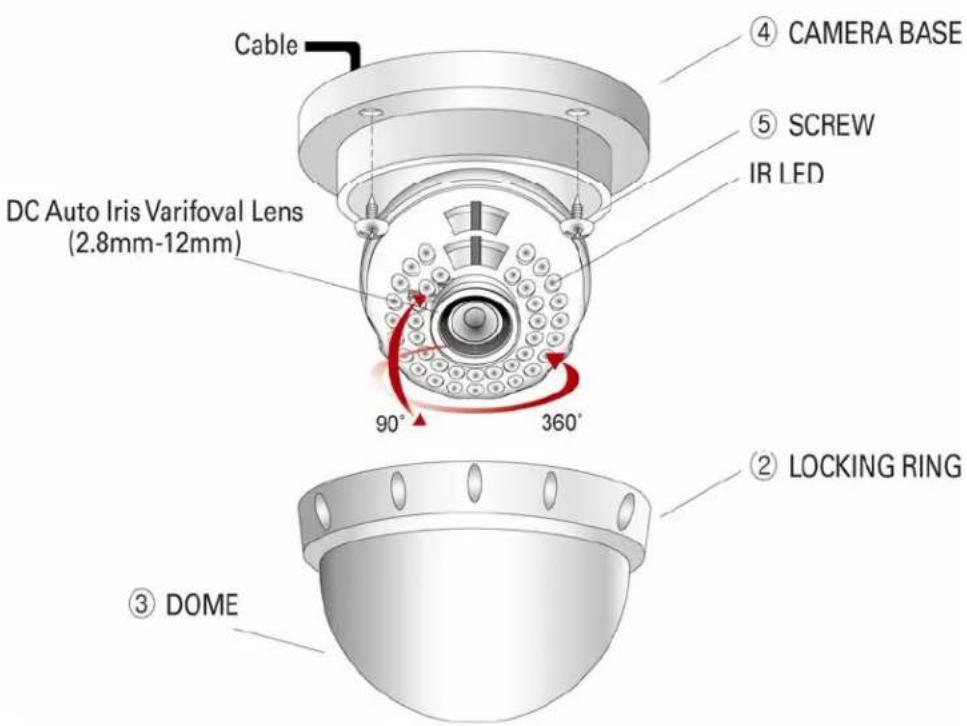

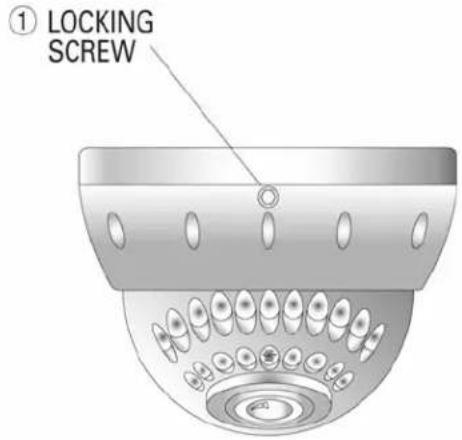

1. Loosen the locking screw① with the provided hex-head wrench and turn the locking ring② counter-clockwise to remove the transparent dome③.
2. Attach the camera base④ to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joist and secure the camera base④ using the supplied screws⑤.
3. How to set angle of view:

- Loosen the screws⑥ for tilting and adjust the camera direction by moving the camera body⑧ up or down, then fix the screws firmly.

- Turn the mounting bracket (metal part) covering the camera body⑧ left or right for panning adjustment.

- Loosen the locking knob⑦ and turn the camera body⑧ clockwise or counterclockwise to upright images on the screen.

1. If necessary, change the settings to get the best images depending on your application by using the buttons in the camera (refer to the instruction manual for OSD control).
2. Assemble the transparent dome③ by turning the locking ring② clockwise. The locking ring② should be securely fastened so that water can not leak into the camera.
3. Connect the one end of BNC cable (not supplied) to the BNC (F) of 5' cable attached to the camera and the other end (BNC) of cable to the video devices such as DVR, monitor/TV. Plug an AC power supply (not supplied) to the DC jack (red) on the camera.

HOW TO ADJUST ANGLE OF VIEW

1. Vari-focal lens①

Easily changeable angle of view: 2.8 to 12mm

1. T↔W (Tele ↔ Wide)③

Turn this adjustment knob③ clockwise or counter-clockwise to set the focal length.

1. N②

Turn this adjustment knob② clockwise or counter-clockwise to set the focus.

1. After setting the focus and focal length, the adjustment knob② and ③ should be securely fastened.

2. Do not stamp your fingerprint on the lens and dome, which may affect picture quality.

Technical illustration of a mechanical component with concentric spherical features and a labeled section (1), no text or symbols present.

Note:

• Apply DC12V 1 A regulated power supply (not included).
• To avoid fire or shock hazard, use a UL listed power supply.

TROUBLE SHOOTING

If the camera does not function properly, check the following points before contacting the service center.

Troubles	Remedies
No video Check the AC adapter and video	cablebetween the camera and a monitor
The image on the screen is dark Check the	brightness control on themonitor
The image on the screen is dim Check if the	lens is stained. If dirty,clean it with soft and clean cloth
The camera is not working properly, andthe surface of the camera case is hot	Check if you have connected theprovided AC adapter
The contrast on the screen is too weak Adjust	just the contrast feature of themonitor. If the camera is exposed undertoo strong light, change the position
The image on the screen flickers Does the	camera face to directly to thesunlight or fluorescent light? Change thecamera position
Picture rolls and jumps, scrambledpicture	Improper V-hold control. Setting on yourmonitor
Picture smaller than screen House current	may be too low

SPECIFICATIONS

• Image sensor 1/3" SONY Super HAD CCD
• Total pixels 811(H) x 508(V)
• Effective Pixels 768(H) x 494(V)
- Scanning system 2:1 Interlace
• O.S.D Available
- Backlight Off / HSBLC / BLC selectable
• Resolution 550TV Lines(color),600TV Lines(B/W)
• S/N (Y signal) 52dB (AGC Off, Weight On)
• Min.illumination 0.000006Lux(IR LED ON)
- White Balance ATW / AWB / Manual / AWC→SET
- Sense-up Off / Auto / (Selectable limit x2 \~ x258)
• 3 DNR Off / On (1\~50 level adjustable)
• D-WDR Indoor / Outdoor / Off
• D&N selection Color / BW / Auto
- Digital zoom On(x32) / Off
- Hosing material Die cast Aluminum alloy
- Dome material Polycarbonate
• Voltage AC 24V / DC 12V(Dual voltage)
• Current consumption 480 mA( LED: On), 170 mA(LED: Off)
• L e n s DC Auto Iris Varifocal Lens (2.8mm-12mm)
- Operating temperature/Humidity -10°C \~ +50°C. RH 95% Max.
- Storage temperature/Humidity -20°C \~ +60°C. RH 95% Max.
- Dimensions 140 (Φ) x 100mm
- Weight 2 Lbs

LIMITED 2 YEAR WARRANTY

This warranty gives the original purchaser specific legal rights and you may also have other rights, which vary from state to state. If our products do not function because of any defect in material or workmanship, we will repair free of charges for 2 years on parts and labor from the date of original purchase. This warranty does not cover modification, abuse, incidental or consequential damages unless the state of owner's residence specially prohibits limitations on incidental or consequential damages.

HOW TO OBTAIN FACTORY SERVICE

1. Original purchaser must fill out a warranty card and mail it to the factory with model number, serial number and the date of purchase.
2. We will repair or replace, and return to the owner the system under this limited warranty.
3. Please pack the system carefully and securely using the original packing materials, and send it prepaid and insured to: 13073 E. 166 ^th St, Cerritos, CA 90703.
4. Please include a check for \$20.00 to cover the cost of return postage and handling. If the system is returned within the warranty period, please include a proof of purchase. If the system is out of warranty, you will receive an estimate of the repair cost for your approval before repair work will be begun.

AVAILABLE ACCESSORIES

CDR0460 Stand-alone 4 CH Digital Video Recorder (DVR)

CDR4450 Stand-alone 4 CH Digital Video Recorder (DVR)

CDR0860 Stand-alone 8 CH Digital Video Recorder (DVR)

CDR1660 Stand-alone 16 CH Digital Video Recorder (DVR)

CDR0850 Stand-alone 8 CH Digital Video Recorder (DVR)

CDR1650 Stand-alone 16 CH Digital Video Recorder (DVR)

CA100BP 100' BNC/Power to BNC/Power Extension cable and coupler

ADT121500 AC Power Supply DC12V 1.5 A Regulated

PACKAGE INCLUDES

1-Day & Night Vari-focal Color Dome Camera
1-Hardware Accessories Kit
1-Instruction Manual
1-Instruction Manual for OSD Control
1-Warranty Registration Card
