HDC365 - Security Camera Clover Electronics - Free user manual and instructions

Product Type	Security Camera
Model	HDC365
Brand	Clover Electronics
Image Sensor	1/3" CMOS
Resolution	1080p (1920 x 1080)
Lens	3.6mm fixed lens
Night Vision	Up to 30m infrared
Video Output	HD-TVI / AHD / CVBS
Power Supply	12V DC, 500mA
Power Consumption	6W (max)
Dimensions	160 x 70 x 70 mm
Weight	0.4 kg
Weatherproof Rating	IP66
Mounting Type	Wall or ceiling mount
Operating Temperature	-10°C to 50°C
Main Functions	Motion detection, IR cut filter, auto gain control
Maintenance & Cleaning	Clean lens with soft cloth; avoid water jets
Safety	Use only supplied power adapter; install securely
Spare Parts	Power adapter, mounting screws available separately
Repairability	Limited; consult technician for lens or sensor issues
General Information	Analog HD security camera for indoor/outdoor use

Frequently Asked Questions - HDC365 Clover Electronics

How do I connect the HDC365 camera to a DVR?

Use a coaxial cable (RG59) to connect the BNC video output to the DVR's BNC input. Ensure the DVR supports HD-TVI or AHD format.

Can the HDC365 be used outdoors?

Yes, the camera has an IP66 weatherproof rating, making it suitable for outdoor use in rain or dust.

What is the maximum distance for night vision?

The built-in infrared LEDs provide night vision up to 30 meters in complete darkness.

Does the camera support audio?

No, the HDC365 is a video-only camera. You will need a separate audio pickup for sound.

What power adapter is required?

The camera requires a 12V DC 500mA power adapter with a 2.1mm center positive barrel jack.

How do I clean the camera lens?

Use a soft, lint-free cloth slightly dampened with water or lens cleaning solution. Avoid abrasive materials.

Is the camera compatible with 4K DVRs?

The HDC365 outputs up to 1080p. It will work with 4K DVRs if they support HD-TVI 1080p input.

What is the field of view?

With a 3.6mm lens, the camera offers an approximate 80° horizontal field of view.

Can I mount the camera on a ceiling?

Yes, the camera comes with a mounting bracket for both wall and ceiling installations. Use the included screws and anchors.

What do I do if the image is blurry?

First, clean the lens. Then adjust the focus ring on the camera (if available). If the problem persists, check cable connections or consult the manual.

USER MANUAL HDC365 Clover Electronics

Copyright © 2009 Clover Electronics U.S.A. All Rights Reserved.

PRECAUTIONS

• To prevent fire or shock hazard, do not expose the product to rain or moisture.
• To avoid electrical shock, do not open the case of this product.
- Operate this product using only the supplied AC Power supply.
- Do not overload electrical outlets or extension cords; this can result in fire or electric shock.
- Keep this product away from strong magnetic fields.
- Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
- Do not change or modify this product, the warranty will be voided.

FEATURES

• 1/3" Sony Super HAD CCD
• High Resolution 540 TV Lines
• Rugged Steel Construction
- 4mm Fixed Board Lens
- Attached Mounting Bracket and 100' cable
• DC 12V Power Source

INSTALLATION

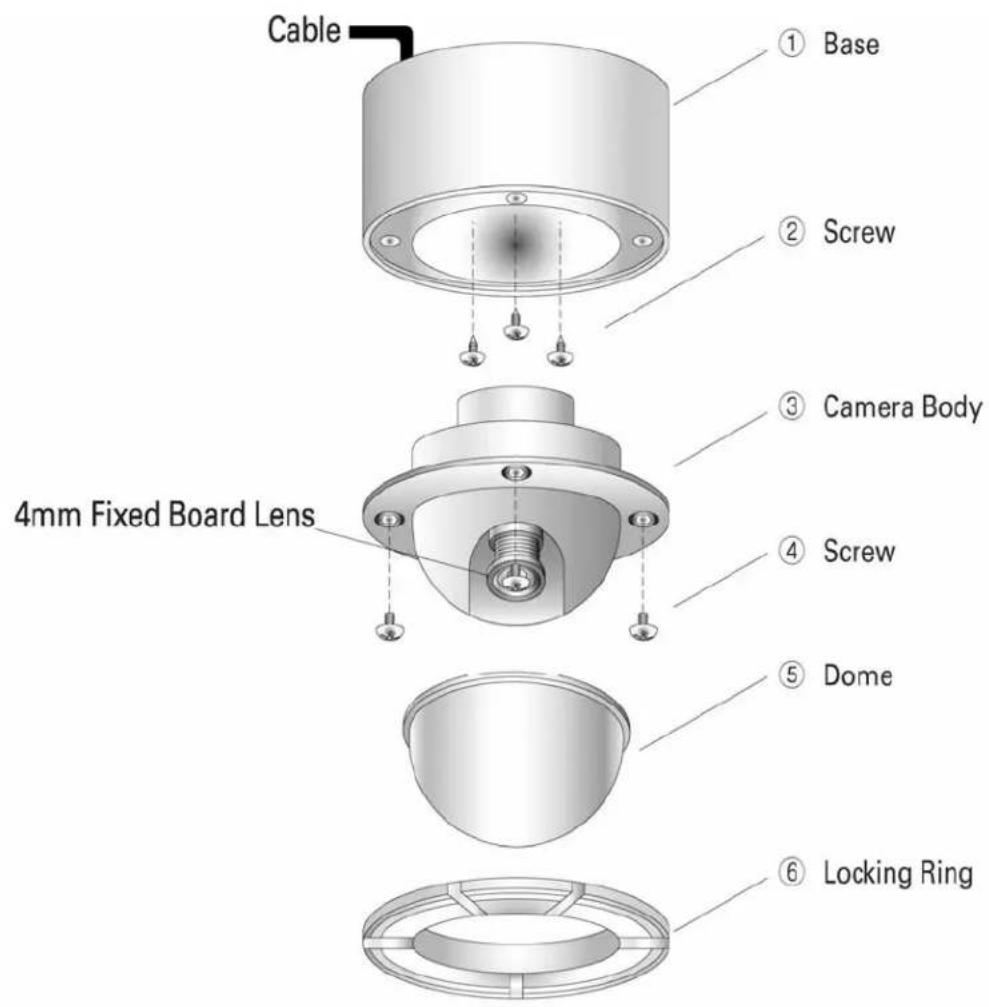

1. Attach the mounting base① to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joist and secure the mounting base using the supplied screws②.
2. Set the desired angle of camera toward objects by pushing and moving the camera body③ right /left and up/down.
3. Attach the camera body③ to the mounting base① and secure them with the supplied screws④.
4. Put the transparent dome⑤ on to the camera body③ and then turn the locking ring⑥ clockwise to secure.
5. Connect the one end of 100' cable (supplied) to the BNC (F) of 5' cable attached to the camera and the other end (BNC) of cable to the video devices such as DVR, monitor/TV. Plug the provided AC power supply to the DC jack (red) on the end of 100' cable.

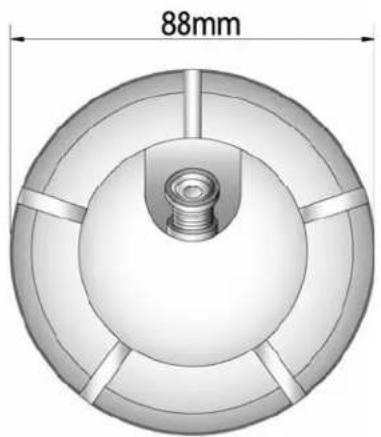

FRONT

Technical drawing of a circular mechanical component with a central threaded bolt and radial grooves (no text or symbols)

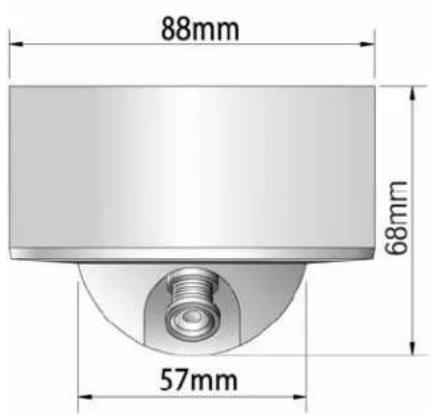

SIDE

Note:

• Apply the provided AC power supply only.
• The total length of cable must not exceed 300' including extension cable.

TROUBLE SHOOTING

If the camera does not function properly, check the following points before contacting the service center.

Troubles	Remedies
No video Check the AC adapter and video	cable between the camera and a monitor
The image on the screen is dark Check the	brightness control on the monitor
The image on the screen is dim Check if the lens is stained. If dirty, clean it with soft and clean cloth
The camera is not working properly, and the surface of the camera case is hot	Check if you have connected the provided AC adapter
The contrast on the screen is too weak Adjust	just the contrast feature of the monitor. If the camera is exposed under too strong light, change the position
The image on the screen flickers Does the	camera face to directly to the sunlight or fluorescent light? Change the camera position
Picture rolls and jumps, scrambled picture	Improper V-hold control. Setting on your monitor
Picture smaller than screen House current may be too low

SPECIFICATIONS

• Image sensor 1/3" SONY Super HAD CCD
• Effective Pixels 768(H) x 494(V)
- Scanning system 2:1 Interlace
- Sync system Internal
• Resolution 540TV Lines
• S/N Ratio More than 46dB
• Min.illumination 0.1Lux
• Gamma characteristic r=0.45
• Video output CVBS:1.0Vp-p 75 ohm
• Electronic shutter speed 1/60sec to 1/100,000sec
- Voltage DC12V
• Current consumption 80 mA
- L e n s 4mm fixed board lens
- Operating temperature/Humidity -10°C \~ +50°C. RH 95% Max.
- Storage temperature/Humidity -20°C \~ +60°C. RH 95% Max.
- Dimensions 88 (Φ) x 59(H)mm
- Weight 1.3 Lbs

LIMITED 2 YEAR WARRANTY

This warranty gives the original purchaser specific legal rights and you may also have other rights, which vary from state to state. If our products do not function because of any defect in material or workmanship, we will repair free of charges for 2 years on parts and labor from the date of original purchase. This warranty does not cover modification, abuse, incidental or consequential damages unless the state of owner's residence specially prohibits limitations on incidental or consequential damages.

HOW TO OBTAIN FACTORY SERVICE

1. Original purchaser must fill out a warranty card and mail it to the factory with model number, serial number and the date of purchase.
2. We will repair or replace, and return to the owner the system under this limited warranty.
3. Please pack the system carefully and securely using the original packing materials, and send it prepaid and insured to: 13073 E. 166 ^th St, Cerritos, CA 90703.
4. Please include a check for \$15.00 to cover the cost of return postage and handling. If the system is returned within the warranty period, please include a proof of purchase. If the system is out of warranty, you will receive an estimate of the repair cost for your approval before repair work will be begun.

AVAILABLE ACCESSORIES

CDR0460 Stand-alone 4 CH Digital Video Recorder (DVR)

CDR4450 Stand-alone 4 CH Digital Video Recorder (DVR)

CDR0860 Stand-alone 8 CH Digital Video Recorder (DVR)

CDR1660 Stand-alone 16 CH Digital Video Recorder (DVR)

CDR0850 Stand-alone 8 CH Digital Video Recorder (DVR)

CDR1650 Stand-alone 16 CH Digital Video Recorder (DVR)

CA100BP 100' BNC/Power to BNC/Power Extension cable and coupler

PACKAGE INCLUDES

1-Mini Color Dome Camera
1-Mounting Bracket & 100' BNC/Power to BNC/Power cable
1-UL Approved AC Power Supply
1-Hardware Accessories Kit
1-Instruction Manual
1-Warranty Registration Card
