Product Type	Bullet Security Camera
Image Sensor	1/3" Sony Super HAD CCD (811H x 508V)
Effective Pixels	768H x 494V
Horizontal Resolution	560 TV Lines
Minimum Illumination	0.01 Lux @ F1.2
Lens	DC Auto Iris Vari-focal 4-9mm
IR Distance	Up to 80 ft (depends on scene reflection)
Weatherproof Rating	IP67
Video Output	Composite 1.0Vp-p @ 75 Ω
Scanning System	525 lines, 2:1 interlace
Shutter Speed	Auto, Manual (1/60 to 1/120,000 sec)
Signal-to-Noise Ratio	More than 50 dB (AGC off)
Power Supply	DC 15V, 1.5A (UL Approved AC Adapter included)
Current Consumption	650 mA Max @ DC15V
Operating Temperature	-10°C to 50°C
Dimensions	100(W) x 120(H) x 255(D) mm
Weight	1.8 kg
Construction	Rugged Steel
Cable Length	100 ft (6-pin Din cable included)
Mounting	Wall or ceiling mount with universal bracket
Cleaning	Use soft, clean cloth; avoid fingerprints on window
Safety	Do not open case; use only supplied AC adapter; keep away from strong magnetic fields
Warranty	2 years limited (parts and labor)
Spare Parts / Accessories	CA100H 100' extension cable, CDR series DVRs

Frequently Asked Questions - HDC577 Clover Electronics

What is the resolution of the Clover Electronics HDC577 camera?

The HDC577 has a horizontal resolution of 560 TV lines and uses a 1/3" Sony Super HAD CCD sensor.

Is the HDC577 camera weatherproof?

Yes, it has an IP67 weatherproof rating, making it suitable for outdoor use.

What type of lens does the HDC577 have?

It features a DC Auto Iris Vari-focal lens with a focal length range of 4-9mm.

How far can the infrared LEDs see?

The 22 infrared LEDs provide an IR range of up to 80 feet, depending on scene reflection.

What power supply does the HDC577 require?

It requires a DC 15V, 1.5A power supply. The package includes a UL-approved AC adapter.

How do I adjust the angle of view?

Loosen the locking knob on the lens with a flathead screwdriver, then adjust the telephoto (T↔W) and focus (N) rings. Re-secure the knobs after adjustment.

What should I do if there is no video output?

Check the AC adapter connection and the video cable between the camera and monitor. Ensure the power supply is working.

Can I extend the cable length?

The total cable length including extension must not exceed 200 feet. Use the CA100H extension cable for longer runs.

How do I clean the camera lens?

Use a soft, clean cloth to wipe the lens. Avoid fingerprints on the window as they may affect picture quality.

What is covered under the warranty?

The camera has a 2-year limited warranty covering defects in material and workmanship, parts and labor. It excludes modification and abuse.

USER MANUAL HDC577 Clover Electronics

• To avoid electrical shock, do not open the case of this product.
• Operate this product using only the supplied AC Power supply.
• Do not overload electrical outlets or extension cords; this can result in fire or electric shock.
• Keep this product away from strong magnetic fields.
• Do not expose this product in direct sunlight or strong reflected rays.
  • Refer servicing to qualified personnel only.
• Do not change or modify this product, the warranty will be voided.

FEATURES

• Weatherproof (IP67)
  • 1/3" Sony Super HAD CCD
  • High Resolution 560 TV Lines
  • Rugged Steel Construction
  • Total 22 Infrared LEDs with a CDS sensor
• Up to 80' IR range (depends on scene reflection)
  • DC Auto Iris Vari-focal Lens (4-9mm)
• Attached Universal Mounting Bracket and 100' cable
• DC12V Power Source

INSTALLATION

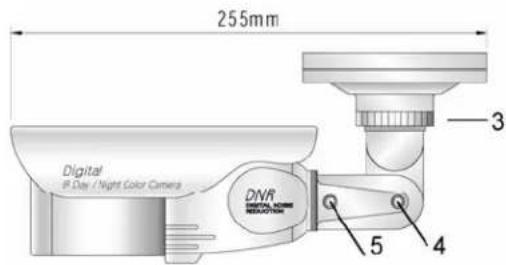

1. Attach the mounting bracket base ring① to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joist and secure the bracket base ring using the supplied screws. Attach the mounting bracket② to the base ring① and secure them using the supplied screws.
2. Lock the mounting bracket with the locking ring③.
3. Turn the pivot locking screw ^④ with the provided hex-head wrench counterclockwise to set the desired angle of camera toward objects and turn it clockwise to secure. It can be used for wall-mount or ceiling-mount application depending on setting this pivot locking screw.
4. Loosen the locking screw ^⑤ with the provided hex-head wrench and turn the camera clockwise or counter-clockwise to upright images on the screen and turn it clockwise to secure.
5. Connect the one end of 100' cable (supplied) to the Din jack of 5' cable attached to the camera. Make sure that two arrows on the top of them should be aimed at each

other. Connect the other end (BNC or RCA) of cable to the video devices such as DVR, monitor/TV. Plug the provided AC adapter to the DC jack (red) of the end of 100' cable.

CEILING-MOUNT

WALL-MOUNT

HOW TO ADJUST ANGLE OF VIEW

1. Vari-focal lens①

Easily changeable angle of view: 4 to 9mm

1. Unplug the power supply and remove the sun-visor.

Turn the front cover② and ③ counter-clockwise to open and adjust angle of view. Do not stamp your fingerprint on the window, which may affect picture quality.

1. T↔W (Tele ↔ Wide)⑤

Loosen the locking knob⑤ with a (-) driver (not included) and turn this adjustment knob⑤ clockwise or counter-clockwise to set the focal length. Secure the locking knob⑤ after setting.

1. N④

Loosen the locking knob④ with a (-) driver (not included) and turn this adjustment knob④ clockwise or counter-clockwise to set the focus. Secure the locking knob④ after setting.

1. Assemble the cover ③, ② and sun-visor. They should be securely fastened so that water can not leak into the camera.

Note:

■ Apply the provided AC adapter only.

- The total length of cable must not exceed 200' including extension cable.

TROUBLE SHOOTING

If the camera does not function properly, check the following points before contacting the service center.

Troubles	Remedies
No video Check the AC adapter and video	cable between the camera and a monitor
The image on the screen is dark Check the	brightness control on the monitor
The image on the screen is dim Check if the	lens is stained. If dirty, clean it with soft and clean cloth
The camera is not working properly, and the surface of the camera case is hot	Check if you have connected the provided AC adapter
The contrast on the screen is too weak Adjust	just the contrast feature of the monitor. If the camera is exposed under too strong light, change the position
The image on the screen flickers Does the	camera face to directly to the sunlight or fluorescent light? Change the camera position
Picture rolls and jumps, scrambled picture	Improper V-hold control. Setting on your monitor
Picture smaller than screen House current	may be too low

SPECIFICATIONS

- Image sensor 1/3" Sony Super HAD CCD, 811H x 508V

• Effective pixels

768H x 494V

- Scanning system

525 lines, 2:1 interlace

• Horizontal resolution 560 TV lines

- Shutter speed Auto, Manual (1/60 to 1/120,000 sec)

- Sync. System

Internal

- S/N ratio

more than 50db (AGC off)

• Minimum illumination 0.01 Lux @F1.2

- Video output

Composite 1.0Vp-p @75 Ω

- AGC

Auto

• Digital Noise Reduction Auto

- White balance

Auto

- Lens

DC Auto Iris Vari-focal Lens 4mm to 9mm

- Current consumption

650mA Max @DC15V

- Power supply

DC 15V, 1.5A

- Operating temperature

-10°C to 50°C

- Dimensions

100(W) x 120(H) x 255(D) mm

- Weight

1.8Kg

LIMITED 2 YEAR WARRANTY

This warranty gives the original purchaser specific legal rights and you may also have other rights, which vary from state to state. If our products do not function because of any defect in material or workmanship, we will repair free of charges for 2 years on parts and labor from the date of original purchase. This warranty does not cover modification, abuse, incidental or consequential damages unless the state of owner's residence specially prohibits limitations on incidental or consequential damages.

HOW TO OBTAIN FACTORY SERVICE

1. Original purchaser must fill out a warranty card and mail it to the factory with model number, serial number and the date of purchase.
2. We will repair or replace, and return to the owner the system under this limited warranty.
3. Please pack the system carefully and securely using the original packing materials, and send it prepaid and insured to: 13073 E. 166 ^th St, Cerritos, CA 90703.
4. Please include a check for \$25.00 to cover the cost of return postage and handling. If the system is returned within the warranty period, please include a proof of purchase. If the system is out of warranty, you will receive an estimate of the repair cost for your approval before repair work will be begun.

AVAILABLE ACCESSORIES

CDR4010	Stand-alone
CDR4170	Stand-alone
CDR1610	Stand-alone
CDR0850	Stand-alone
CA100H 100' 6pin Din Extension cable

4 CH Digital Video Recorder (DVR).

4 CH Digital Video Recorder (DVR).

16 CH Digital Video Recorder (DVR).

8 CH Digital Video Recorder (DVR).

PACKAGE INCLUDES

1-Vari-focal Bullet Day & Night Color Camera

1-100' 6pin Din Cable

1-UL Approved AC Adapter

1-BNC to RCA Adapter
1-Hardware Accessories Kit
1-Instruction Manual
1-Warranty Registration Card
