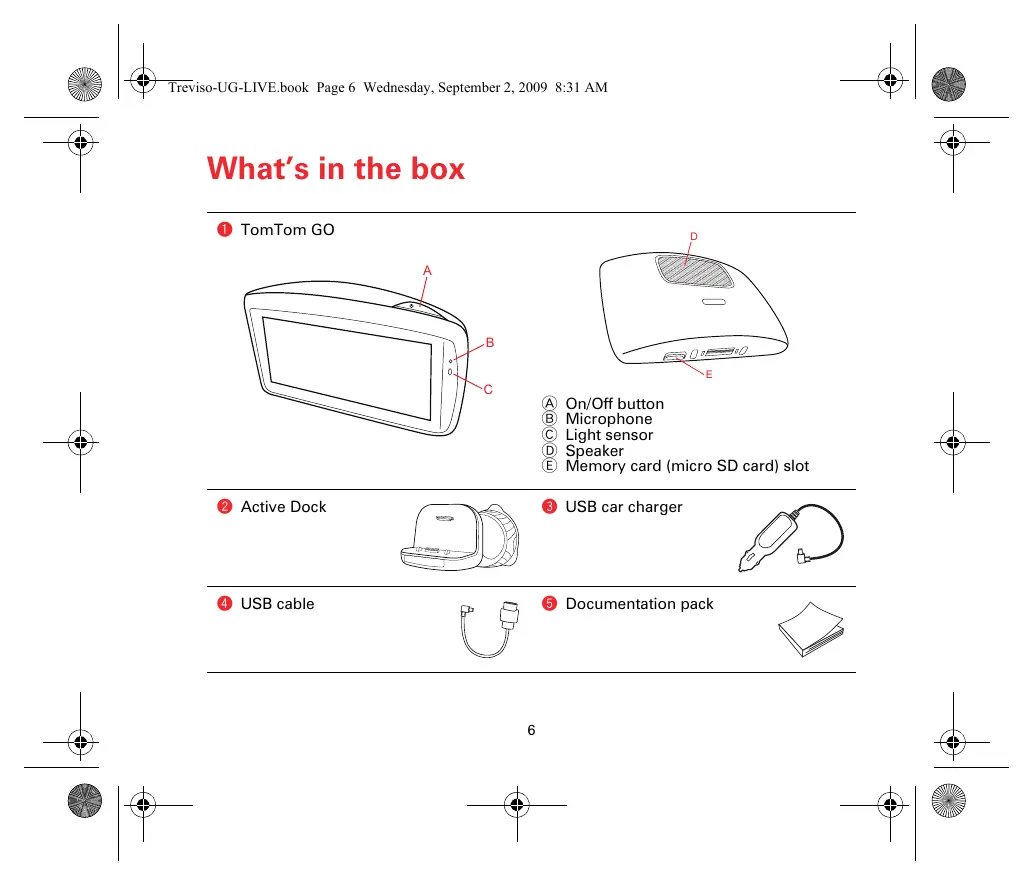

jt PS PS & d- Treviso-UG-LIVE.book Page 6 Wednesday, September 2, 2009 8:31 AM NA æ & Æ& né What's in the box T © TomTom GO On/Off button Microphone Light sensor ds Speaker EE — Memory card (micro SD card) slot © Active Dock © USB car charger © USB cable g 5 © Documentation pack

Là Treviso-UG-LIVE.book Page 7 Wednesday, September 2, 2009 8:31 AM

Switching on and off Install your TomTom GO navigation device in your car following the instructions in the installation section at the start of this book. To switch on your navigation device, press and hold the On/Off button until you see the start-up screen. The first time you switch on your device, it may take a short time to start. Setting up When you first switch on your device, you have to answer a few questions to set up the device. Answer the questions by tapping the screen. You are asked whether you make regular trips to the same locations. If you tap YES, you can enter these destinations as your favourite destinations. Every time you switch on your device, you can immediately select one of these locations as your desti- nation. To change these destinations or select a new destination, tap Start-up preferences in the Preferences menu, then select Ask for a destination. Getting started Device not starting In rare cases, your TomTom GO navigation device may not start correctly or may stop responding to your taps. First, check that the battery is properly charged. To charge the battery, connect your device to the car charger. lt can take up to 2 hours to fully charge the battery. this does not solve the problem, you can reset the device. To do this, press and hold the On/Off button for 15 seconds and release the button when your device begins to restart.

Là Treviso-UG-LIVE.book Page 8 Wednesday, September 2, 2009 8:31 AM

Getting started Battery notes The battery in your TomTom GO navigation device charges when you connect it to the car charger or to your computer. When you connect your device to a compu- ter, you are asked if you want to connect to the computer. I you select No and then do not tap the screen within three minutes, the device will automatically switch off. This happens so that the battery can charge faster. Note: You should plug the USB connector di- rectly into a USB port on your computer and not into a USB hub or USB port on a keyboard or monitor. GPS reception When you first start your TomTom GO nav- igation device, the device may need a few minutes to determine your GPS position and show your current position on the map. In future, your position will be found much faster, usually within a few seconds. To ensure good GPS reception, you should use your device outdoors. Large objects such as tall buildings can sometimes inter- fere with reception. The TomTom GO 950 includes Enhanced Positioning Technology or EPT. EPT auto- matically estimates your position when the GPS signal is lost while you are driving, such as when you are in a tunnel. When EPT is in use, the EPT symbol is shown in the Driving View.

Là Treviso-UG-LIVE.book Page 9 Wednesday, September 2, 2009 8:31 AM

Positioning the dock Consider carefully where to attach the dock in your car, The dock should not block or interfere with any of the following: + Your view of the road + Any ofthe controls in your car + Any of your mirrors + The airbag When your navigation device is in the dock, you should be able to reach the device eas- ily without leaning or stretching. The dia- grams show where you can safely attach the dock. You can attach the dock to the windscreen, side window or use a Dashboard Mount Disk to attach the dock to your dashboard. TomTom also offers alternative mounting solutions for your TomTom navigation device. For more information about Dash- Safety board Mount Disks and alternative mount- ing solutions, go to tomtom.com/ accessories. Installing the Active Dock Make sure that both the Active Dock and your window are clean and dry.

1. Press the suction cup firmly against the

window on an area where the glass is flat.

2. Twistthe rubber grip near the base ofthe

Active Dock in a clockwise direction until vou hear a click. The Active Dock is now installed.

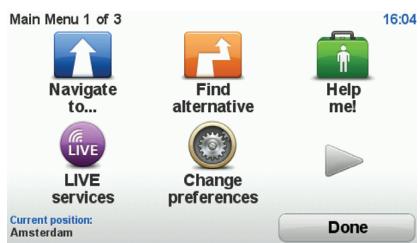

7 AD Là Treviso-UG-LIVE.book Page 10 Wednesday, September 2, 2009 8:31 AM KY7 4 u Making your first journey Main Menu 4 of 3 1604 Planning a route with your TomTom GO navigation device is easy. To plan a route, Fa Fi] follow the steps below. Navigate Find GE for shernative) Important: For safety reasons, you should always plan a route before you start your journey. LIVE Change Less services preferences Care eat: ———— Tap the screen to bring up the Main Frs Done Ménu, Navigate to. 1605 Note: The buttons on your navigation device are shown in full colour unless a button is cur- rently unavailable. Home Favourite Address

2. Tap Navigate to...

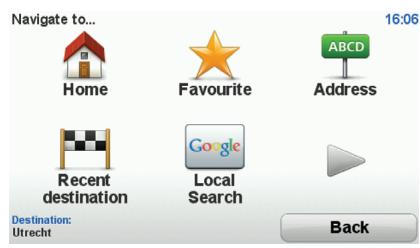

Fes | Google] 3. Tap Address. Recent In this example, we will enter an address. destination res 2 ; A 7 U7 7

FPS 7 Là Tieviso-UG-LIVE.book Page 11 Wednesday, September 2, 2009 8:31 AM DA æ A Æ&

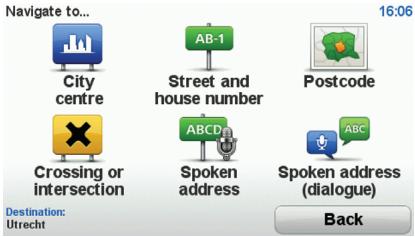

4. Tap Street and house number. Naviate ta 1606

Note: When planning a trip for the first time cp a your navigation device asks you to choose à state or country. Your choice is saved and used ET GET, RES or all routes you plan. Vou can change this setting at any time by tap- ping the flag. Crossing or Spoken Spoken address intersection address (dialogue)

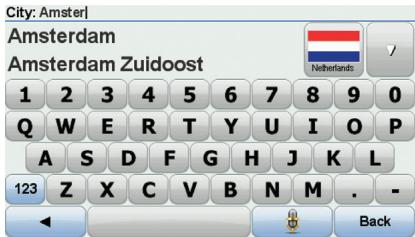

5. Starttotypethe name ofthe town where past ms

you want to go. Tap the name when it is nt shown in the list. ass Tip: Instead of typing the name, AmSterdam Co) 7 tap this button to say the ad- Amsterdam Zuidoost = 4 dress by speaking to your navi- gation device.

6. Start to type the street name. Tap the

name when it is shown in the list.

SE PS PS & d- Treviso-UG-LIVE.book Page 12 Wednesday, September 2, 2009 8:31 AM NA

Making your first journey House number: a6o 7. Enter the house number and then tap Done. .… Your navigation device asks if you need to arrive at a particular time. For this ex- ercise, tap NO. The route is calculated by your device using IQ Routes". 1Q Routes is used to plan the best possi- ble route using information about the average speeds measured on the roads. When the route has been calculated, tap Done. Your TomTom GO navigation device warns you about any traffic delays and begins to guide you to your destination.

Là Treviso-UG-LIVE.book Page 13 Wednesday, September 2, 2009 8:31 AM

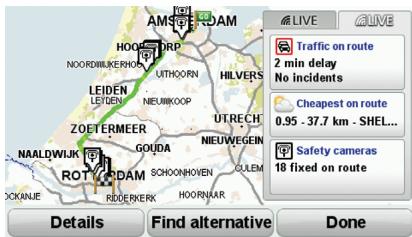

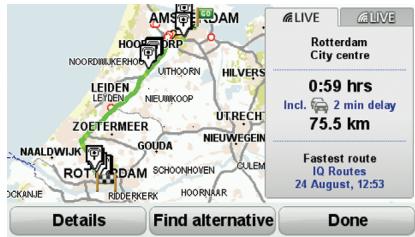

Route summary After planning a route, you see a summary of your route. The route summary shows an overview map of your route and the total journey time including delays caused by both incidents and busy roads. You can see the route summary at any time by tapping the right side of the status bar. LIVE snapshot LIVE snapshot shows an overview of the information provided by LIVE services for your planned route. To explore LIVE snap- shot, open the LIVE tab on the route sum- mary screen, then tap each panel for more detailed information. Note: Not al! services are available in all coun- tries or regions. Go to tomtom.com/services to check which services are available where you live. AUvE Rotterdam Cay centre 0:59 hrs. Inc. 2 min deg

& Treviso-UG-LIVE.book Page 14 Wednesday, September 2, 2009 8:31 AM

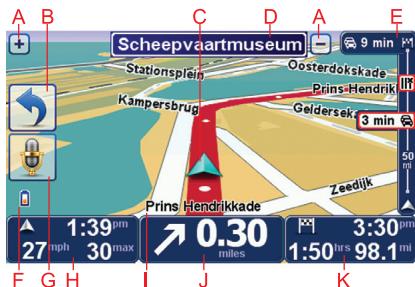

Driving View When your TomTom GO starts, you are shown the Driving View along with detailed information about your current position. Tap the centre of the screen at any time to open the Main Menu. Note: The Driving View is shown in black and white until your GO locates your current posi- Scheepvaartmuseum]

F1 3:30 1:50: 98.1 &) Tap + and - to zoom in and out. ® Quick menu - you can enable the quick menu in the Preferences menu. ©) Your current position. D) Road sign information or the next street name. © Traffic sidebar. () Battery level indicator. @ Microphone button for voice command and control. ‘#) The time, your current speed and the speed limit, if known. Tap this part of the status bar to change the volume and hear the next spoken instruction. {D The name of the street you are on.

Là Treviso-UG-LIVE.book Page 15 Wednesday, September 2, 2009 8:31 AM

@ Navigation instruction for the road ahead. Tap this part of the status bar to change between 2D and 3D views of the Driving View. The remaining journey time, the remain- ing distance and your estimated arrival time. Tap this part of the status bar to open the route summary screen. To change the information shown in the sta- tus bar, tap Status bar preferences in the Preferences menu. Driving View Driving view symbols Several symbols are shown in the bottom left hand corner of the Driving View. Here are a few examples: tery level. When the battery is low and requires charging, the battery symbol is empty. You should charge your navigation device as soon as possible. û Battery - this symbol shows the bat- EPT - this symbol is shown when your device is using EPT to esti- mate our current location. EPT is only used when you have no GPS reception. Note: EPT is not supported on all devices. Sound off - this symbol is shown when the sound is switched off. To switch on the sound, open the preferences menu and tap Turn on sound. For more information, see the Reference Guide.

Là Treviso-UG-LIVE.book Page 16 Wednesday, September 2, 2009 8:31 AM 7

LIVE Services Regional availability Note: As well as using LIVE services in your own country, you may also be able to use LIVE services when travelling abroad. Not all LIVE services are available in all countries. For more information on available services, go to tom- tom.com/services. Safety Notice Your TomTom navigation device contains a GSM/GPRS module which can interfere with electrical devices such as cardiac pacemak- ers, hearing aids and aviation equipment. Interference with these devices may endan- ger the health or life of others. Do not use near unprotected electrical units nor in areas where the use of mobile tele- phones is prohibited, such as hospitals and airplanes. TomTom HD Traffic HD Traffic is a unique Tom- Tom LIVE Service for receiv- ing up-to-date traffic information. For more infor- mation about services and subscriptions, go to tomtom.com/services. In combination with IQ Routes, HD Traffic helps you plan the best possible route to your destination taking into account the lat- est traffic information.

Treviso-UG-LIVE.book Page 17 Wednesday, September 2, 2009 8:31 AM Using TomTom HD Traffic The traffic sidebar is shown on the right side of the Driving View. It warns you about traf- fic incidents on your planned route. The top of the traffic side- bar represents your desti- nation and shows the total delay time for any inci- dents on your route. The central section of the traffic sidebar shows indi- vidual traffic incidents in the order they occur on your route. The bottom of the traffic sidebar represents your current position and shows the distance to the next incident. LIVE Services Taking the fastest route Your device constantly looks for a faster route to your destination, as the traffic situ- ation changes. [fit finds one, it asks you if you want to change to that route. You can set your navigation device to always change to the fastest route without asking you in the Traffic preferences in the Traffic menu. Open the Traffic menu by tap- ping the traffic sidebar. Fuel Prices The Fuel Prices service sends up-to-date informa- tion about fuel prices directly to your device or via TomTom HOME when the device is con- nected to your computer.

Là Treviso-UG-LIVE.book Page 18 Wednesday, September 2, 2009 8:31 AM

LIVE Services Search for the best fuel prices To search for the cheapest fuel prices, do the following. In this example, you plan a route to the cheapest petrol station nearby.

1. Tap the screen to bring up the Main

3. Select the type of fuel used in your vehi-

4. Tap Cheapest nearby, then tap the name

at the top of the list. The location is shown on the map.

. Tap Select. You are asked if you want to navigate to the petrol station.

You are asked if you need to arrive at a particular time, if this option is enabled. The route is planned and a summary of the route is shown on the map. TomTom local search with Google Google Using local search, you can search the Google listings to find shops and businesses, then plan a route to the destina- tion you choose. Using local search To find a location using local search and plan a route there, follow the steps below. In this example, you search for a supermarket near to your current position. Tap the screen to bring up the Main Menu, then tap Navigate to.

2. Tap the Google button.

3. Tap Search near you.

4. Type ‘supermarket’ then tap OK.

The locations that match your search are shown in a list.

Là Treviso-UG-LIVE.book Page 19 Wednesday, September 2, 2009 8:31 AM

5. Tap one of the locations in the list.

The location is shown on the map. Tap Details to see more information about this location.

6. Tap Navigate there to plan a route to the

location. Your TomTom GO plans a route to the loca- tion you selected. LIVE Services TomTom Safety Alerts The TomTom Safety Alerts service warns you about a variety of locations includ- ing: + Safety camera locations. Accident blackspot locations. Mobile safety camera locations. Average speed camera locations. Toll road camera locations. Traffic light camera locations. Important: Regularly connect your naviga- tion device to TomTom HOME to update the list of locations for all types of safety alerts. The locations of mobile cameras are sent di- rectly to your device. When a safety camera location is shown on the map, a warning sound is played to warn you that you are approaching an area where a safety camera is located. If you discover a location that has a safety camera but you receive no warning, you can report the new location to TomTom using your GO. a 2]

jt PS PS & d- Trviso-UG-LIVE.book Page 20 Wednesday, September 2, 2009 8:31 AM NA

LIVE Services Other services The following services are also available on your TomTom GO: TomTom Weather TomTom Weather gives you five-day weather reports for any location on your map. QuickGPSfix7 QuickGPSfix contains infor- mation about GPS satellite positions which helps your TomTom GO find your posi- tion faster.

My Services To check your subscription, tap LIVE Services in the Main Menu and then tap My Services. Your TomTom GO informs you when your LIVE Services subscription is due for renewal. You can use your GO to inform TomTom that you wish to renew your cur- rent subscription. For more information about LIVE Services subscription and payment terms, go to tom- tom.com/services.

jt PS PS & d- Treviso-UG-LIVE book Page 22 Wednesday, September 2, 2009 8:53 AM NA æ

Là Treviso-UG-LIVE.book Page 23 Wednesday, September 2, 2009 8:53 AM

Là Treviso-UG-LIVE.book Page 24 Wednesday, September 2, 2009 8:53 AM

Là Treviso-UG-LIVE.book Page 25 Wednesday, September 2, 2009 8:53 AM

FPS 7 Là Tieviso-UG-LIVE.book Page 26 Wednesday, September 2, 2009 8:53 AM DA

FPS 7 Là Tieviso-UG-LIVE.book Page 27 Wednesday, September 2, 2009 8:53 AM DA æ A Æ&

Là Treviso-UG-LIVE.book Page 29 Wednesday, September 2, 2009 8:53 AM

Snotte route 10 Routes 24 august 1253

& Treviso-UG-LIVE.book Page 30 Wednesday, September 2, 2009 8:53 AM

Là Treviso-UG-LIVE.book Page 31 Wednesday, September 2, 2009 8:53 AM

Là Treviso-UG-LIVE.book Page 33 Wednesday, September 2, 2009 8:53 AM

7 PS Là Treviso-UG-LIVE.book Page 34 Wednesday, September 2, 2009 8:53 AM 7

Là Treviso-UG-LIVE.book Page 36 Wednesday, September 2, 2009 8:53 AM 7

Là Treviso-UG-LIVE.book Page 39 Wednesday, September 2, 2009 9:04 AM

Là Treviso-UG-LIVE.book Page 40 Wednesday, September 2, 2009 9:04 AM

FPS 7 Là Tieviso-UG-LIVE.book Page 41 Wednesday, September 2, 2009 9:04 AM DA æ A Æ&

Là Treviso-UG-LIVE.book Page 43 Wednesday, September 2, 2009 9:04 AM 7

FPS 7 Là Tieviso-UG-LIVE.book Page 44 Wednesday, September 2, 2009 9:04 AM DA æ A Æ&

Là Treviso-UG-LIVE.book Page 45 Wednesday, September 2, 2009 9:04 AM

& Treviso-UG-LIVE.book Page 46 Wednesday, September 2, 2009 9:04 AM

Là Treviso-UG-LIVE.book Page 47 Wednesday, September 2, 2009 9:04 AM

Là Treviso-UG-LIVE.book Page 48 Wednesday, September 2, 2009 9:04 AM

7 AD Là Treviso-UG-LIVE.book Page 49 Wednesday, September 2, 2009 9:04 AM KY7

Là Treviso-UG-LIVE.book Page 51 Wednesday, September 2, 2009 9:04 AM

TAddendum-EU-LIVE.fm Page 54 Wednesday, September 2, 2009 9:07 AM

Addendum Important Safety Notices and Warnings Global Positioning System The Global Posiioning System (GPS) is a satellite-based system hat provides location and timing Information around the globe. (GPS oparated and controlled underthe sole responsibility ef the Govemment of the United States of America while respèa Use of a TomTom device for navigation still means that you need Lo drive with due care and attention. Aireraft and Hospitals Use of devices with an antenna is prohibited on most aircrat in many hospials and in many other locations. À TomTom device must not Be oi Enane environmants Battery This product uses a Lithium Polymer battery. Do not use it in à bumid, wet andfor corrasive environment. Do not pu, store or ave Your product in or mar 8 het source ia Mgh tomparature location, contact with he lea seek mechcal aertion mmedlatey. Fr saley reasons, an bralang the lfetime of the battery, charging wi mot oceur at low alow 0 C2 F or high lover 49 É/113 4 lemperatures. Temperatura: Standard operation: 10 CAF) 1 +85 C HAN + short ui -20 C4 Fita à 60 C 1140}; long period Storage: 20 C A} to +25 C(77FI

CHARGING. your TomTom unit please sea your local approved Tor Tom service center. The stated battery life is a maximum possible batery fe. The maximum battery le wa oniy ba achaved under spectfe. Simospharc conditions, Tha éstimated maximum battery fe is based on an average usage profile. er ips on extending the batery life, go 10 the FAQ listed boot or YOur country. AU: wwwtomtom.com/8703 CZ: wunn tomtom com/7508 US: ww tomtom. com/7510

TAddendum-EU-LIVE.fm Page 55 Wednesday, September 2, 2009 9:07 AM CE Marking ‘This equipment compl vihen dsed n a residantial comm. industrial environment. Ce0168 à the requiremente Jr GE marking il vahicuiar or lt RBTTE di Hereby, TomTom declares that his personal navigation device is in complance with the essential requirements and othorrelovant. provisions of tre EU Directive 1898I8/EC. The declaration of Conformity can bo found here: wunw-tomtom.com/legal WBEE directive This symbol on the product or is packaging that his prorluct shall not be treated as old we th EU Directive 2002 SBIEC for vaste elec equipment (WÉEE), this electrical product must 4 of ae unsorte münicipal nd electron Def M Punicipal collection point for recycling Connected networks Devices that contain a GSM module are intended for connection to the following networks: (GSM/GPRS 900/1800/1800

Addendum ‘This Document Great care was takon in preparing this manual. Constant product development may mean that some information is not enûrely up formation in this document is subject to change Ko date, The out notice. omiem shall not be liable for technical or ediorial errors or omasfons contained herein: nor fr incldental or consoquent damages sui rom tn performance or usa of mater. fécument contains information protected by copyright. No fn AE document y be PROS 0 rem Se in en RD Ÿ ”
