USER MANUAL GO 950 TOMTOM

7 , DA What's in the box © TomTom GO On/Off button Microphone Light sensor ds Speaker EE — Memory card (micro SD card) slot © Active Dock © USB car charger © USB cable © Documentation pack ro | 2 E Ps

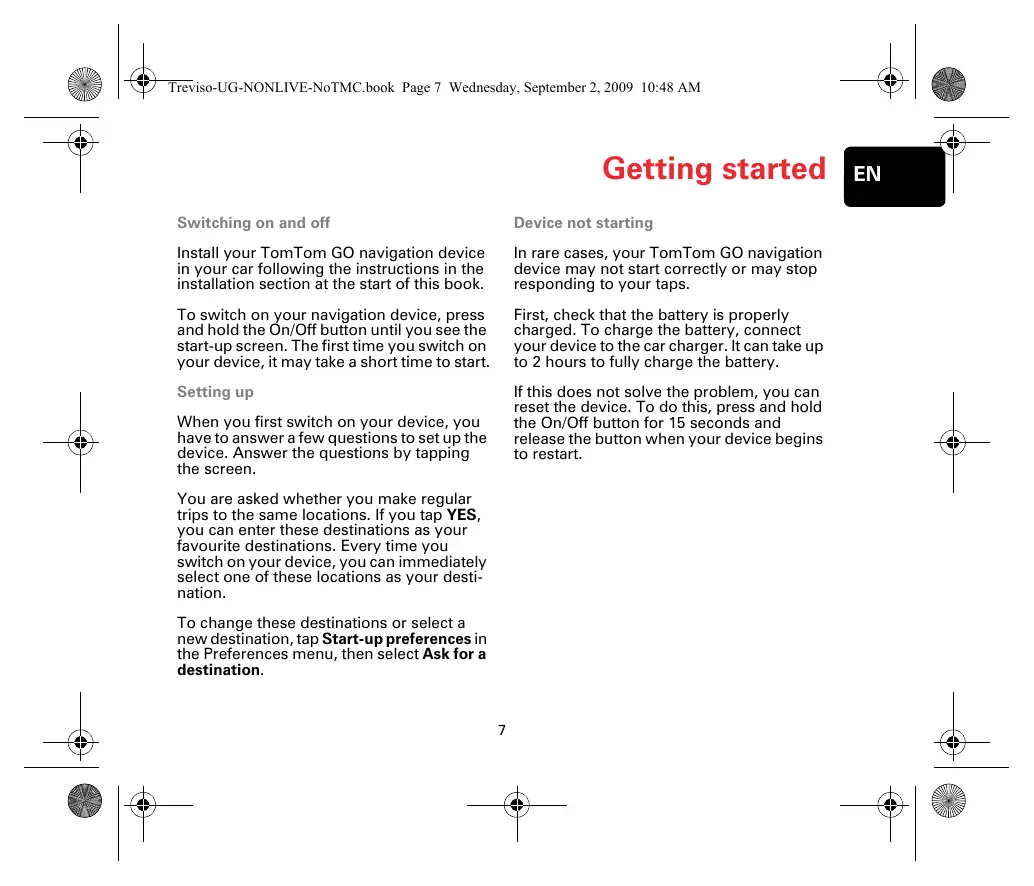

Switching on and off Install your TomTom GO navigation device in your car following the instructions in the installation section at the start of this book. To switch on your navigation device, press and hold the On/Off button until you see the start-up screen. The first time you switch on your device, it may take a short time to start. Setting up When you first switch on your device, you have to answer a few questions to set up the device. Answer the questions by tapping the screen. You are asked whether you make regular trips to the same locations. If you tap YES, you can enter these destinations as your favourite destinations. Every time you switch on your device, you can immediately select one of these locations as your desti- nation. To change these destinations or select a new destination, tap Start-up preferences in the Preferences menu, then select Ask for a destination. Getting started Device not starting In rare cases, your TomTom GO navigation device may not start correctly or may stop responding to your taps. First, check that the battery is properly charged. To charge the battery, connect your device to the car charger. lt can take up to 2 hours to fully charge the battery. this does not solve the problem, you can reset the device. To do this, press and hold the On/Off button for 15 seconds and release the button when your device begins to restart.

Getting started Battery notes The battery in your TomTom GO navigation device charges when you connect it to the car charger or to your computer. When you connect your device to a compu- ter, you are asked if you want to connect to the computer. If you select No and then do not tap the screen within three minutes, the device will automatically switch off. This happens so that the battery can charge faster. Note: You should plug the USB connector di- rectly into a USB port on your computer and not into a USB hub or USB port on à keyboard or monitor. GPS reception When you first start your TomTom GO nav- igation device, the device may need a few minutes to determine your GPS position and show your current position on the map. In future, your position will be found much faster, usually within a few seconds. To ensure good GPS reception, you should use your device outdoors. Large objects such as tall buildings can sometimes inter- fere with reception. The TomTom GO 950 includes Enhanced Positioning Technology or EPT. EPT auto- matically estimates your position when the GPS signal is lost while you are driving, such as when you are in a tunnel. When EPT is in use, the EPT symbol is shown in the Driving View.

Positioning the dock Consider carefully where to attach the dock in your car, The dock should not block or interfere with any of the following: + Your view of the road + Any ofthe controls in your car + Any of your mirrors + The airbag When your navigation device is in the dock, you should be able to reach the device eas- ily without leaning or stretching. The dia- grams show where you can safeiy attach the dock. You can attach the dock to the windscreen, side window or use a Dashboard Mount Disk to attach the dock to your dashboard. TomTom also offers alternative mounting solutions for your TomTom navigation device. For more information about Dash- Safety board Mount Disks and alternative mount- ing solutions, go to tomtom.com/ accessories. Installing the Active Dock Make sure that both the Active Dock and your window are clean and dry.

1. Press the suction cup firmly against the

window on an area where the glass is flat.

2. Twistthe rubber grip near the base ofthe

Active Dock in a clockwise direction until vou hear a click. The Active Dock is now installed.

PSN Treviso-UG-NONLIVE-NoTMC.book Page 10 Wednesday, September 2, 2009 10:48 AM 7 Making your first journey Main Menu 4 of 3 a2m Planning a route with your TomTom GO navigation device is easy. To plan a route, follow the steps below. Navigate Find Help > CRE (nel Important: For safety reasons, you should always plan a route before you start your journey. TomTom Chaï Services preferences are poto: RE Tap the screen to bring up the Main Et munnommw) ‘ Menu, EE 8 Note: The buttons on your navigation device are shown in full colour unless a button is cur- _ rate LT rently unavailable.

2. Tap Navigate to...

Fes el . 3. Tap Address. Recent Point of Let TA [Rtaraee In this example, we will enter an address.

D 2 Treviso-UG-NONLIVE-NoTMC.book Page 11 Wednesday, September 2, 2009 10:48 AM

Making your first journey

4. Tap Street and house number.

Note: When planning a trip for the first time your navigation device asks you to choose à state or country. Your choice is saved and used or all routes you plan. Vou can change this setting at any time by tap- ping the flag.

5. Start to type the name ofthe town where

you want to go. Tap the name when it is shown in the list. tp this button to say the ad- dress by speaking to your navi- gation device. n Tip: Instead of typing the name,

6. Start to type the street name. Tap the

4 : Making your first journey House number: 1509 7. Enter the house number and then tap Done. 1 8. Your navigation device asks if you need to arrive at a particular time. For this ex- ercise, tap NO. et 2 5 4 5) The route is calculated by your device 9° 0 using IQ Routes". IQ Routes is used to plan the best possi- EC RC, ble route using information about the average speeds measured on the roads. When the route has been calculated, tap Done. Your TomTom GO navigation device begins to guide you to your destination.

& Tréviso-UG-NONLIVE-NoTMC.book Page 13 Wednesday, September 2, 2009 10:48 AM SA œ Making your first journey Route summary After planning a route, you see a summary of your route. The route summary shows an overview su À € nc 2 min dus map of your route and the total journey time 18.3 km including delays caused by both incidents and busy roads. ses route Ta Routes 20 August at You can see the route summary at any time by tapping the right side of the status bar.

Driving View When your TomTom GO starts, you are shown the Driving View along with detailed information about your current position. Tap the centre of the screen at any time to open the Main Menu. Note: The Driving View is shown in black and white until your GO locates your current posi-

mans Gars arsag=| A_ 16:07 F1 16:41 0:34" 25.3 Tréviso-UG-NONLIVE-NoTMC.book Page 14 Wednesday, September 2, 2009 10:48 AM &) Tap + and - to zoom in and out. ® Quick menu - you can enable the quick menu in the Preferences menu. ©) Your current position. D) Road sign information or the next street name. © Traffic sidebar. ® Battery level indicator. @ Microphone button for voice command and control. ‘#) The time, your current speed and the speed limit, if known. Tap this part of the status bar to change the volume and hear the next spoken instruction. {D The name of the street you are on.

D 2 Treviso-UG-NONLIVE-NoTMC.book Page 15 Wednesday, September 2, 2009 10:48 AM

@ Navigation instruction for the road ahead. Tap this part of the status bar to change between 2D and 3D views of the Driving View. The remaining journey time, the remain- ing distance and your estimated arrival time. Tap this part of the status bar to open the route summary screen. To change the information shown in the sta- tus bar, tap Status bar preferences in the Preferences menu. Driving View Driving view symbols Several symbols are shown in the bottom left hand corner of the Driving View. Here are a few examples: tery level. When the battery is low and requires charging, the battery symbol is empty. You should charge your navigation device as soon as possible. û Battery - this symbol shows the bat- EPT - this symbol is shown when your device is using EPT to esti- mate your current location. EPT is only used when you have no GPS reception. Note: EPT is not supported on all devices. Sound off - this symbol is shown when the sound is switched off. To switch on the sound, open the preferences menu and tap Turn on sound. For more information, see the Reference Guide.

D 2 Treviso-UG-NONLIVE.book Page 17 Wednesday, September 2, 2009 11:04 AM

D 2 Treviso-UG-NONLIVE.book Page 18 Wednesday, September 2, 2009 11:04 AM

D 2 Treviso-UG-NONLIVE.book Page 21 Wednesday, September 2, 2009 11:04 AM SA

D 2 Treviso-UG-NONLIVE.book Page 25 Wednesday, September 2, 2009 11:04 AM

D 2 Treviso-UG-NONLIVE.book Page 26 Wednesday, September 2, 2009 11:04 AM

D 2 Treviso-UG-NONLIVE.book Page 29 Wednesday, September 2, 2009 11:10 AM

D 2 Treviso-UG-NONLIVE.book Page 30 Wednesday, September 2, 2009 11:10 AM

D 2 Treviso-UG-NONLIVE.book Page 31 Wednesday, September 2, 2009 11:10 AM

& Treviso-UG-NONLIVE.book Page 36 Wednesday, September 2, 2009 11:10 AM

D 2 Treviso-UG-NONLIVE.book Page 38 Wednesday, September 2, 2009 11:10 AM

D 2 Treviso-UG-NONLIVE-NoTMC.book Page 41 Wednesday, September 2, 2009 11:25 AM

D 2 Treviso-UG-NONLIVE-NoTMC.book Page 42 Wednesday, September 2, 2009 11:25 AM

D 2 Treviso-UG-NONLIVE-NoTMC.book Page 43 Wednesday, September 2, 2009 11:25 AM

D 2 Treviso-UG-NONLIVE-NoTMC.book Page 49 Wednesday, September 2, 2009 11:25 AM

D 2 Treviso-UG-NONLIVE-NoTMC.book Page 53 Wednesday, September 2, 2009 11:29 AM

CAddendum-EU-nonLIVE.fm Page 60 Wednesday, September 2,

Addendum Important Safety Notices and Warnings Global Positioning System The Global Posiioning System (GPS) is a satelite-based system {hat provides location an timing information around the globe. ‘operation of our TomTom device. TomTom loes not accapt any ty Tor the avalablty and accuraey of GPS. peer Use with Ca Use of a TomTom device for navigation still means that you need Lo drive with dus car Aireraft and Hospitals Use of devices with an antenna is prohibited on most aircrat in many hospials and in many other locations. À TomTom device Must not Peu in Enane environmants Battery This product uses a Lithium Polymer battery. Do not use tin à Puf, et andfor corrasive environment Do not pu, store or ave Your produel in of mar 8 het saura Mn Lomparature Location, in strong direct sunlighl in a microwave oven or in a 04 container, and do noi expose lo tomperaturez Over seck medical attention immediately. For safety reasons, and to ralong the lfetime of the battery, charging wi mot oceur at low below C/32 FI or igh lover 45 €/113 F1 temperatures. Temperatures: Standard operation: -10 C (14 F) to +85 C {11 FJ: short period storage: -20 € (4 F} to + 60 C (140 F); long period Storage: 20 € (A Flo +25 CTP.

CRARGN ur TomTom unit please see your local approved TT SV ane The stated battery fe is a maximum possible battery fe. The maximum battery ble wi ony De achaved under specific aimospharc conditions, Tha sstimated maximum battery fe is Based on an average usage profil. Fer ips on extending the batery life, go 10 the FAQ listed boot or YOur country. AU: aa tomtom com/9703 US: M tomiom com 2510

cAddendum-EU-nonLIVE.fm Page 61 Wednesday, September 2, 2009 11:57 AM Addendum CE Marking This Document ‘This equipment complies with the requirements for CE marking Great care was taken in preparing this manual. Constant product when used in a residential,commareial, vhicular or light development may mean that some infor ot entre Mdustrial environment ° 10 date, Te information in hs document Subject 10 change tout notice ‘TomTom shall not be lisble for technical or editoral errors or rnissions contained hereinz nor for ncidental or consoquental Sarapesresuing from ha prlormanca or ua this material. The document contains information protected by copyright. No RÉTTE directive rt of this document may be photacopied or reproduced in any rm withoutpror written congant from Tor om Her, TomTom declars Late personal naigaon device is in compliance with re iraments and ner relevant provisions ofihe EU Directive 1909/9/EC. he declaration of Éonlormiy can be found here: wuwn-tomtom. com’ WIBEE directive Th symbol on the produt or ts pacaging indicates 1hatthis produetshal not be treated as ousahoid waste. na with EU Directe 2002) SBIEC for waste electrical and electron aquipment NÉE) his electrical product must nat be dhoposee af as unsorted municipal waste. Plage dispose oÙ the produet by. retuming it {he point of sale or Lo your local municipal collection point for recyeling.

cAddendum-EU-nonLIVE.fm Page 62 Wednesday, September 2, 2009 11:58 AM SA œ

cAddendum-EU-nonLIVE.fm Page 64 Wednesday, September 2, 2009 11:59 AM

& | cAddendum-EU-nonLIVE.fm Page 65 Wednesday, September 2, 2009 11:59 AM

CAddendum-EU-nonLIVE.fm Page 66 Wednesday, September 2,

cAddendum-EU-nonLIVE.fm Page 67 Wednesday, September 2, 2009 12:00 PM

cAddendum-EU-nonLIVE.fm Page 68 Wednesday, September 2, 2009 12:02 PM

& <-Copyrights-EN-DE-IT-ES-TR.fm Page 70 Wednesday, September 2, 2009 12:02 PM

& <-Copyrights-EN-DE-IT-ES-TRfim Page 71 Wednesday, September 2, 2009 12:02 PM LA œ

Copyright notices Suppiy of this product does nat convey a license nor impiy any right to distibute content ereated with this product in revenue. generating broadeast systems (terrestral, satellte, cable andior other distribution channels), streaming applications (via Internet, intranets and/or other networks}, other content distribution systems (pay-audio or audie-on-demand applications and'the like) or on physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the Ike). An independent license for such use is required. For details, please visit mpälicensing.com Some images are taken from NASA's Earth Observatory. The purpose of NASA's Earth Observatory is to provide à freeiy- accessible publication on the Internet where the public can obtain now satellte imagery and scientific information about our home planet. The focus is on Earth climate and environmental change: earthobservatory.nasa.gou! D eh ; TE
