Product Type	Tablet PC
Brand	Brigmton
Model	BTPC-9070-DC
Screen Size	9.7 inches
Processor	Dual Core
Operating System	Android
Storage	Internal flash memory, expandable via MicroSD (TF) card
Connectivity	Wi-Fi, Bluetooth 4.1, USB 2.0 OTG, Ethernet via USB adapter, 3G via external dongle
Camera	Front and rear cameras (photo and video modes)
Audio/Video	Supports music and video playback; built-in speaker
Battery	Rechargeable lithium-ion battery; charging via included charger
Power	Power switch for on/off/sleep; low battery indicator
Expansion	MicroSD card slot; USB OTG for external drives, mouse, keyboard
Special Features	Brightness adjustment; date/time setting; sleep mode; supports external 3G dongle
Compliance	CE; meets EMC and safety standards (EN60950-1, EN62311, etc.)
Maintenance	Keep away from water, dust, extreme temperatures; do not use alcohol or solvents; avoid drops and shocks
Safety	Do not disassemble; avoid short circuits; backup data regularly; do not disconnect during formatting/transfer
Repairability	No user-serviceable parts; contact professional service for repairs or OS upgrade
Included Accessories	AC charger, USB cable, user manual
Warranty	Manufacturer warranty (check with seller)

Frequently Asked Questions - BTPC-9070-DC BRIGMTON

How do I turn on the tablet?

Press and hold the power switch for 5 seconds to power on. To turn off, press and hold for 3 seconds.

How do I charge the tablet?

Connect the provided AC charger to the device and a power outlet. The battery indicator shows charging status. It is recommended to charge for an extra 15 minutes after reaching full capacity.

How do I connect to Wi-Fi?

Go to Settings > Wireless & network > Wi-Fi. Turn on Wi-Fi and select your network. Enter the password if required.

How do I install apps?

Use File Explorer or Apkinstaller to locate an APK file, then tap Install. You can also download apps from the Google Play Store if available.

How do I use Bluetooth?

Enable Bluetooth in Settings > Wireless & network > Bluetooth. Tap Search for devices, select a device, and confirm pairing.

How do I connect a 3G dongle?

Connect the 3G dongle via the external transfer cable. Once the dongle indicator lights, you can use the 3G network normally.

How do I connect the tablet to a PC?

Use the USB cable to connect the tablet to the PC. The PC will detect two new drives: one for the internal storage and one for the TF card.

How do I use the camera?

Open the Camera app from the main menu. Switch between photo and video modes using the cursor. Adjust settings like scene mode, picture size, and white balance.

What should I do if the tablet freezes or is unresponsive?

Try rebooting the device by holding the power switch. If the battery is low, charge it first. For persistent issues, consider a firmware upgrade by a professional.

How can I extend battery life?

Avoid extreme temperatures. Reduce brightness and minimize heavy usage like gaming or video playback. Use sleep mode when not in use.

USER MANUAL BTPC-9070-DC BRIGMTON

Black-and-white photo of a tablet displaying a futuristic, curved architectural or digital tunnel with light trails (no text or symbols visible)

BTPC-9070-DC

TABLET PC 9.7"-DUAL CORE-WIFI-BLUETOOTH-A 4.1

2.1 Fecha y Hora

2.2 Brillo

3. Wi-Fi

Night sky with a full moon and silhouetted trees, no text or symbols visible

7. Visor de Vídeo

Grid of 12 colorful and textured images including kiwi, candy, fruits, and a sprouting seedling (no text or symbols)

8. DONGLE 3G

9. Cámara

Black-and-white photo of a tablet device with abstract digital artwork on screen, shown from front and back sides (no text or symbols visible)

BTPC-9070-DC

TABLET PC 9.7"-DUAL CORE-WIFI-BLUETOOTH-A 4.1

Instruction Manual

Preface

Thank you for buying the MID. We wish you enjoy using it.

Please read and retain all the operating instructions before operating the unit, we do not assume any liability arising out of improper operation or incidental damages.

For better services, the content of this operation manual may be changed.

If the actual setup and usage of the unit are different from this operation manual, please view the website of our company to inquire about the latest product information.

Do not allow water or foreign objects to enter the unit.

Note:

1. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual.
2. Do not use metal object to touch the device to prevent it from short circuit.
3. Please backup your data in case your important data is lost, especially before you upgrade the firmware. The company will not take charge in any loss that caused by lost of data.
4. Do not disassemble. Do not wipe the surface of the unit by alcohol, thinner or benzene.
5. Do not disconnect the unit while it is formatting or uploading/downloading, or the procedures may lead to errors
6. We do not take responsibility to the flash damage caused by product broken, repair or other reasons. Please operate strictly as per the user guide.
7. Avoid water or foreign objects enter the unit.
8. Do not use the unit in places that are extremely hot, cold, dusty, or humid.
9. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual.
10. Specifications are subject to change and improvement without notice

1. Basic Operation

1.1. Power on/Power off

Power on:

Press and hold the power switch for 5 seconds; the unit displays the start-up logo and enters the working mode.

Power off:

Press and hold the power switch for 3 seconds to turn the unit off.

Sleep:

While the device is at working status, press the power switch, it enters the sleeping mode, and the screen will be off then. Press the power switch again, it shift to the normal mode. You may use this function when you don't' use the device temporary to save power.

1.2. Charging

When the device prompts low battery, please charge it by provided charger.

Note:

To improve the longevity of the battery, you may charge for another 15

minutes after it prompts the battery is full.

1.3. Main menu

Click the 📄 on in the main interface, the main menu is appeared. It including the system setting, music playback, video playback, web browser and other applications you installed in the main menu.

2. Settings

Click "Settings" main interface to enter the setting interface. Click the corresponding setting items to operate.

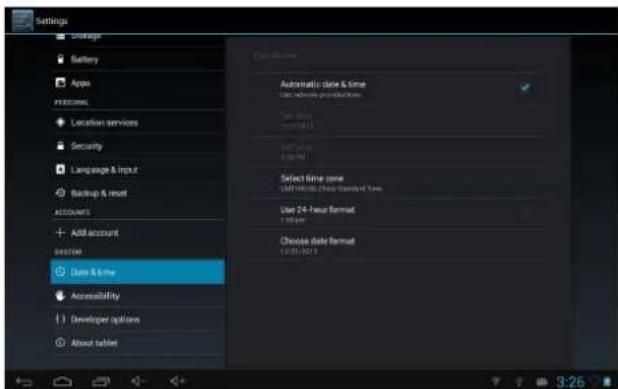

2.1. Date and Time Setting

Click "Date & Time" in the setting interface to set the date and time. You may set the date, time zone, time, time format and date format etc. in the menu.

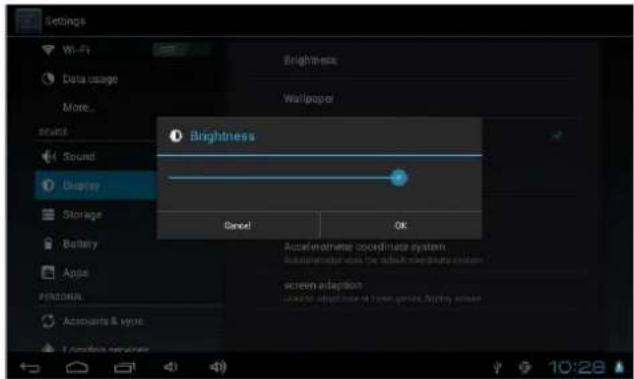

2.2. Brightness

Select "Display" in the setting interface. Click "Brightness" to enter, and slide the bar to adjust the brightness.

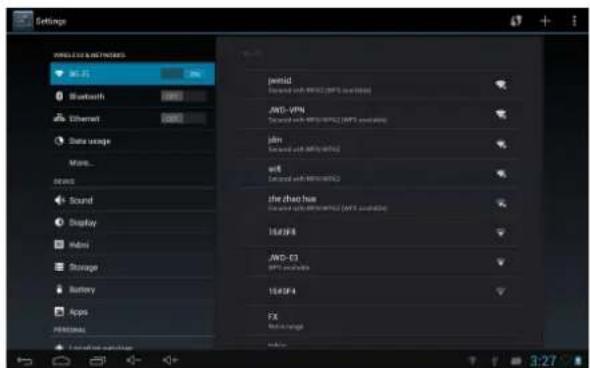

3. Wi-Fi connection

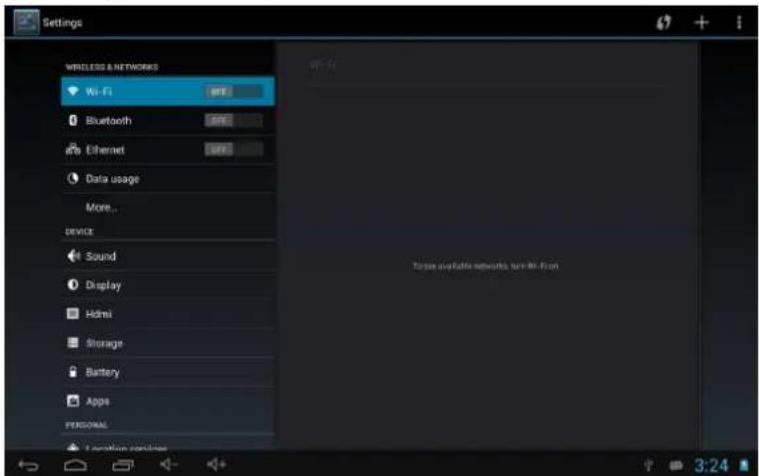

Click "Settings" in the main interface and click "Wireless & network" to enter the wireless and network setting interface. Click Wi-Fi to turn on the WIFI. Click Wi-Fi setting to set and manage wireless access.

Click "Network Notification", it lists the open network it searched. Click the name of the network; it pops up the setting window. You may connect it to WIFI according to the prompts. You need to input the user name and password if networks are encrypted.

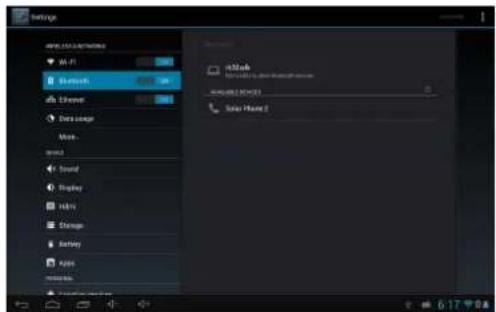

3.1 Bluetooth

Turn on the Bluetooth, Click Bluetooth setting to set and manage Bluetooth Devices access. Click "SEARCH FOR DEVICES", it lists the open devices. Click the name of the devices; it pops up the setting window. Choose the device, pairing it, and then you can transfer pictures, movies, music, etc.

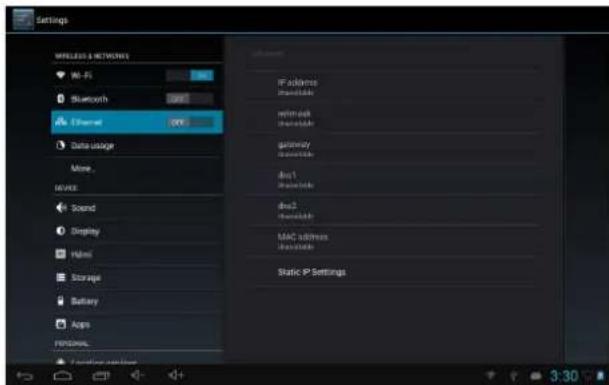

3.2 Ethernet configuration

The Unit support USB-Net-Card.

4. Install, Uninstall and Run applications

4.1 Install

There are many ways to install applications under Android, such as via USB, by third party program. We introduce installation by Apps Installer here.

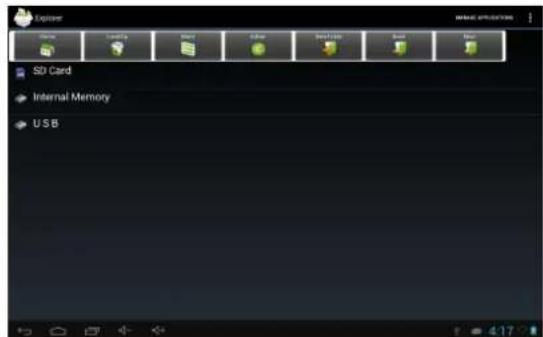

Click the "Explorer" or "Apkinstaller" in the main interface.

Select the APK file you want and enter the application installation interface. Click "Install" to install the application automatically. After installation, it prompts "Open" and "Finish". Click "Open" to open the application. Click "Finish" to exit.

4.2 Uninstall

You may use the corresponding third party software management tool or the installed application management software of the device to install applications.

Select "Setting/Applications/Manage applications" to select the installed applications and check the attribute of it or uninstall it.

5. Connect to internet

5.1. After connecting with WIFI, open the browser and input the web address, you can browse the web then.

5.2. Click the icon to enter the bookmark to view the browse history. Click the web page you want to open it.

To save the web page into bookmark, you may click enter and click "add" to save it.

6. Audio and video playback

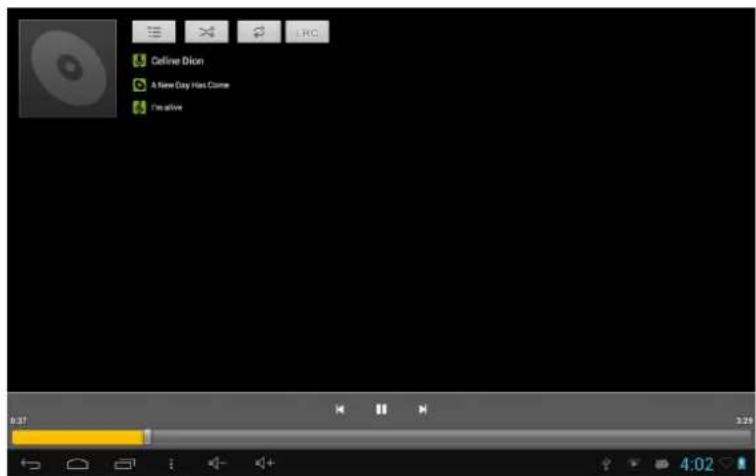

6.1. Audio playback

Click the "Music" in the main menu to enter the audio playback interface. It lists the audio files in the device, and you may click the file name to play it. In the audio playing interface, click the icons to play/pause/increase volume/decrease volume/FF/REW....

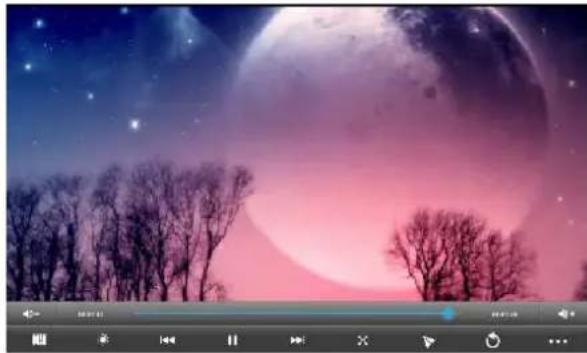

6.2. Video Playback

Click the "Video" in the main menu to enter the video playback interface. It lists the video files in the device, and you may click the file name to play it. In the video playing interface, touch the screen to pop-up the operation icons and click the icons to play/pause/ increase volume/ decrease volume/ skip to next file/skip to previous file....

Night sky with a full moon and silhouetted trees, no text or symbols visible

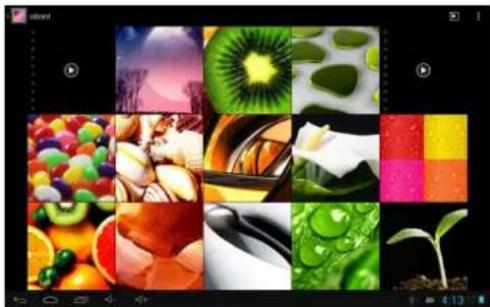

7. Picture viewing

Click "Gallery" in the main menu to enter the picture folder list. Select and click the folder you want to enter, it displays the click the thumbnail of the picture to view it. Touch the screen to pop-up the operation icons while viewing the picture, you may zoom in/zoom out/ skip to next picture/skip to previous picture/ rotate/ delete the picture...

Grid of nine colorful and abstract images including fruits, vegetables, and plant (no text or symbols)

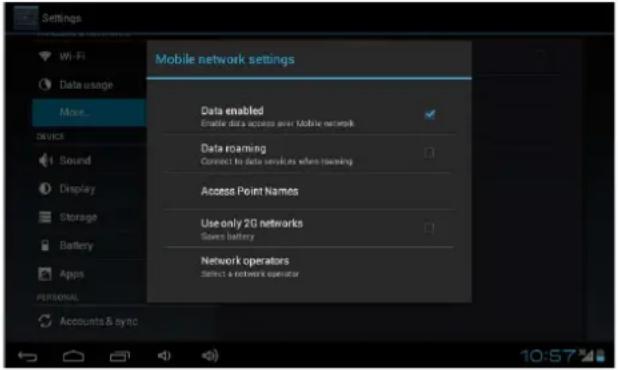

8. 3G DONGLE

The device supports external 3G Dongle, connect the 3G dongle to the device via the external transfer cable, after the dongle indicator lights, you may use the 3G network normally.

9. Camera

Click "Camera" in the main interface.

Camera screen interface showing adjustment knob and control buttons (no readable text or symbols)

9.1 Camera

If the cursor is at position, the device is at Camera mode.

Click to take picture.

Click 📄 to set the scene mode, Picture size, Picture quality, and color effect.

Click to set white balance.

Click 📄 to select back or front camera.

9.2 DV If the cursor is at position, the device is at DV mode.

Click to take picture.

Click 📄 to set the color effect or restore to default settings.

Click 📄 to select back or front camera.

10. Connect with external device

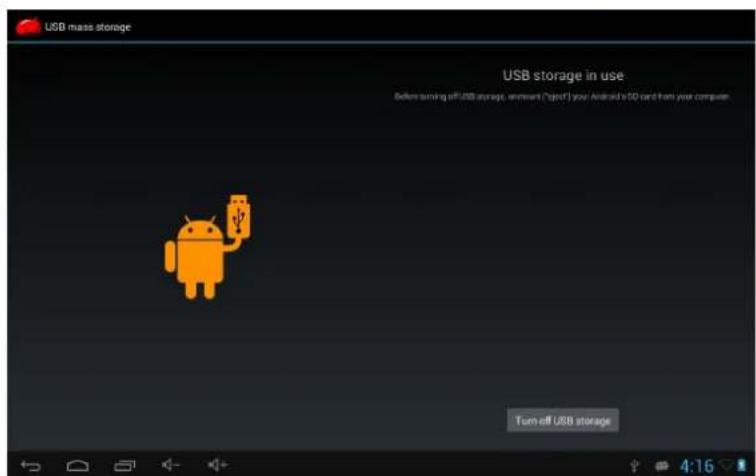

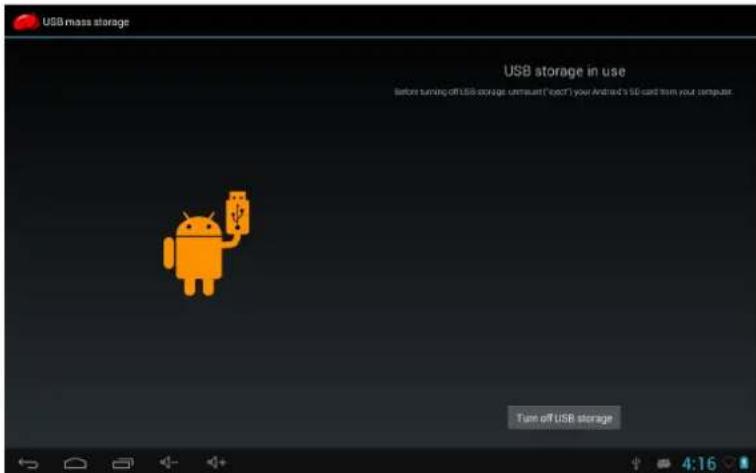

10.1. Connect with PC

Connect the device with the PC via the USB cable. The PC appears two new disk symbols after connected successfully. One is the TF card, and the other is the built-in flash.

10.2. Use of OTG and USB host

It supports the movable device with FAT32 format, such as U disk and MP3.

Connect the movable device to the MID. (Note: only OTG could support USB mouse and keyboard, USB HOST only support USB2.0 High speed device)

10.3. Applications

For convenient usage, we installed some third party software in the MID. For detailed operation methods, please check the corresponding instruction. Some of the software may be able to be used in some area because of network service.

Troubleshooting

1. What if the device is abnormal during operation?

Answer: 1). Reboot the device to see if it works OK.

2). Charge the device by the charger to activate the battery. Make sure it has power before you operate it.

3). It is suggested to upgrade the OS of the device by professional.

1. Why the standby time is so short sometimes?

Answer: the use time of the battery is all depend on the temperature and use instance. If the temperature is too high or too low, the use time of the battery might be effected. It is suggest using the device in normal temperature.

The using time is also affected by increased volume and frequently operation.

"Features can change without notice"

Imported: I.R.P., S.L.

DECLARATION OF CONFORMITY

I.R.P., SL declare under our responsibility that the equipment meets the requirements indicated in the following directives:

EMC DIRECTIVES

EN60950-1:2006/A11:2009/A1:2010

EN 62311: 2088

EN 301 489-1 V1.9.2:2011-09

EN 301 489-17 V2.1.1:2009-05

EN 300 328 V1.7.1: 2006-10

ETSI EN 301 489-1 V1.9.2(2011-09)

ETSI EN 301 489-17 V2.1.1(2009-05)

Description of apparatus:

BRIGMTON Model BTPC-9070-DC

Movile Internet Device

Importer: I.R.P., SL

Address: Avenida Santa Clara de Cuba 5, 41007, Sevilla.
