Label, POS and RFID Printers, Digital Presses and Accessories

Product Selection Guide

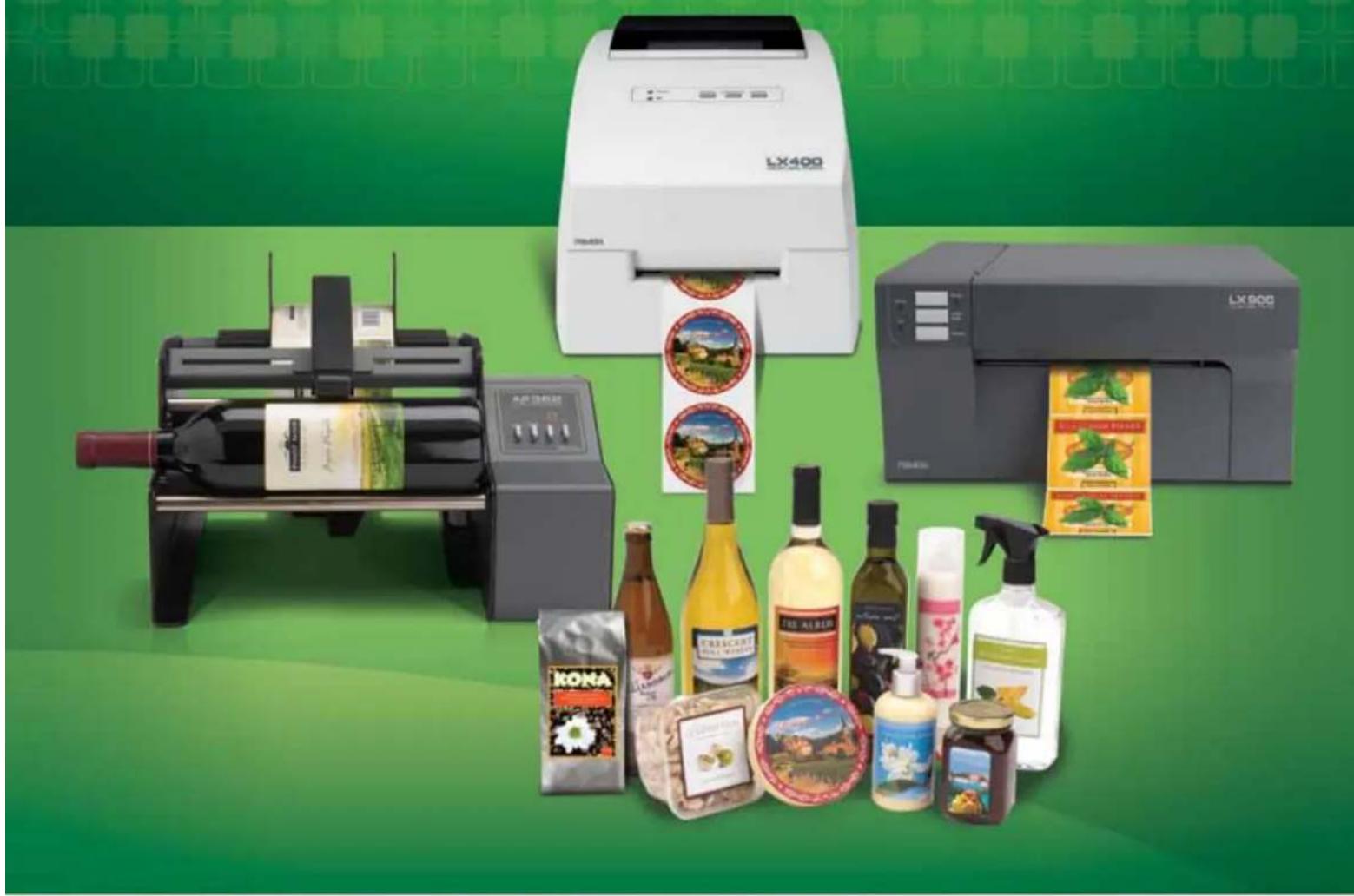

Product display featuring LR400 printer, LR900 printer, and various bottled products on a green background (no visible text or symbols)

PRIMERA

TECHNOLOGY, INC.

www.primeralabel.com

Color Label Printers

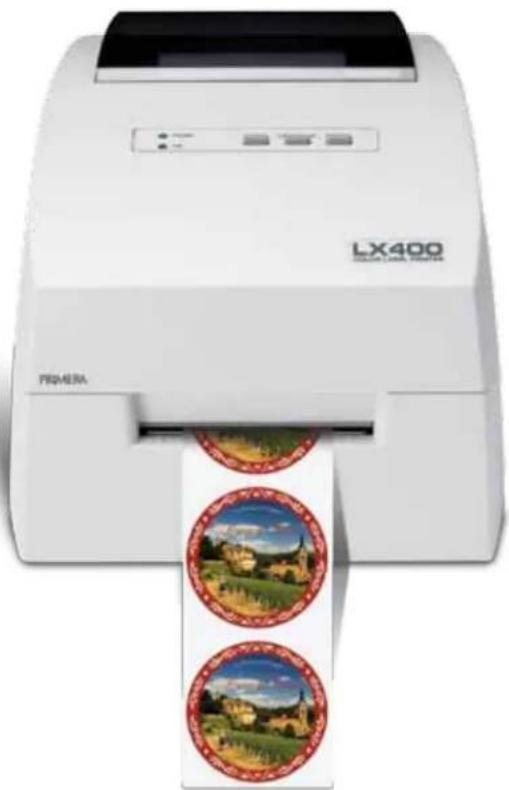

LX400

COLOR LABEL PRINTER

LX400 produces gorgeous, professional-quality labels for all your short-run, specialty products. It's ideal for industries such as gourmet foods, wine and water bottles, personal care and natural products.

Other Uses:

» Proofing before going to press on longer runs

» Test marketing

» Name badges

» Contract manufacturing

» Private label goods

» Promotional labels

» Full-color box-end labels with bar codes

Produces gorgeous, professional-quality labels for all your short-run, specialty products.

FEATURES INCLUDE:

» Color inkjet printing at up to 4800 dpi
» Maximum print width of 0.75" to 4.25" (19mm to 101.6mm)
» Maximum print length of 0.75" to 24" (19mm to 609.6mm)
» One ink cartridge

Exterior view of a PRIMERA printer with two circular print designs (no visible text or symbols on the device body)

Assorted beverage products including wine bottles, beverages, and containers (no visible text or labels)

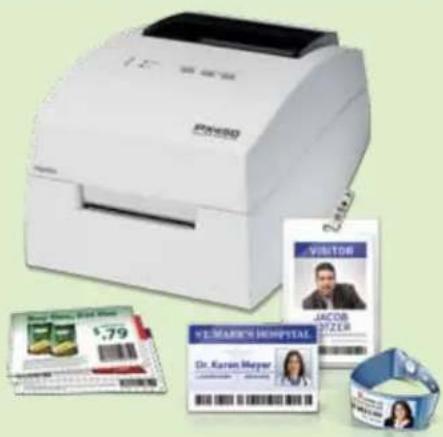

PX450

COLOR PRINTER

PX450 is a compact, full-color POS printer designed for use at retail point-of-sale and other point-of-issue applications.

FEATURES INCLUDE:

» Full-color inkjet printing at up to 4800 dpi
» Maximum print width of 0.75" to 4.25" (19mm to 101.6mm)
» Maximum print length of 0.75" to 24" (19mm to 609.6mm)
» Easy connection to most POS systems and computers
»Prints coupons, wristbands, and other narrow-format stocks

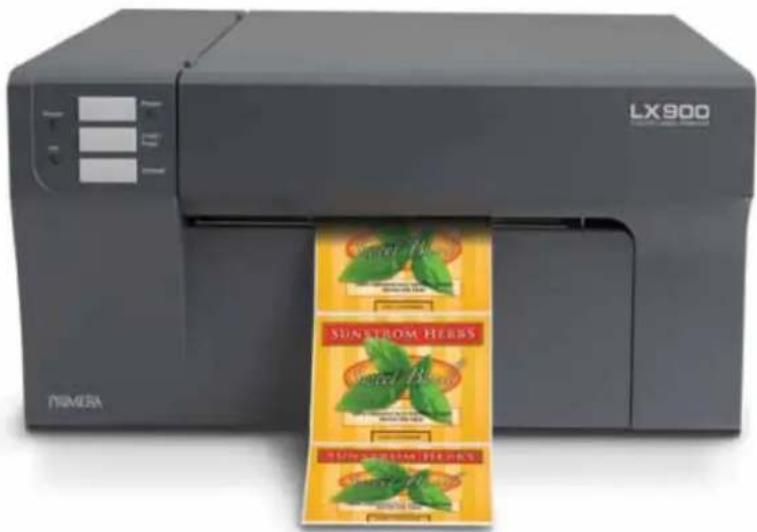

LX900

COLOR LABEL PRINTER

LX900 is Primera's newest, fastest and most economical to operate color label printer. It utilizes the latest in high-resolution inkjet technology to print brilliant, full-color labels for your products, boxes and packaging. Individual ink cartridges for each color let you replace only the colors that need replacing. You'll save time and money on every job you print.

Close-up of a black electronic device with multiple colored buttons and icons (no readable text or symbols)

Outstanding Print Quality

LX900 incorporates the most advanced inkjet technology called Primera Imaging Perfection™. This all-new printing technology delivers razor-sharp text, graphics and the most photo-realistic printing possible.

PRIMERA IMAGING PERFECTION™

Color droplet size is just 4 pL and black is 5.5 pL – the smallest available on an industrial-grade color label printer. Print resolution is up to 4800 dpi versus just 1200 dpi on other printers.

Exterior view of a LX900 printer with green leaf packaging (no visible text or symbols on the device itself)

The Fastest Desktop Label Printer in the World!

With LX900, you'll produce full-color labels at up to 4.5" per second in draft mode. Short runs are printed fast and efficiently, helping you to increase the production of your products.

FEATURES INCLUDE:

» Prints full-color at up to 4.5" per second
» Color inkjet printing at up to 4800 dpi
» Individual CMYK ink cartridges
» Maximum print width of 0.75" to 8.25" (19mm to 210mm)
» Maximum print length of 0.75" to 24" (19mm to 609.6mm)

RX900

COLOR RFID PRINTER

RX900 is the world's first on-demand full-color RFID label & tag printer. It prints, encodes, verifies and dispenses labels one at a time. Built-in automatic RFID encoding is ideal for applications that need both color and RFID, including file folders, asset tracking, garment & retail tags, data storage tapes, lab specimens, wristbands, oversized identification badges, pharmaceuticals and much more.

Exterior view of a modern printer with visible circuitry and printed graphics (no readable text or symbols)

Label Applicators, Dispensers and Rewinders

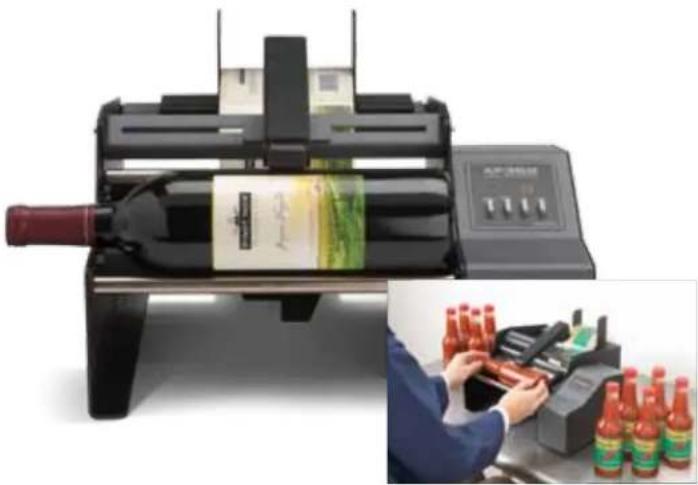

AP362

LABEL APPLICATOR

AP360

LABEL APPLICATOR

Primera's AP-Series Label Applicators are

the perfect semi-automatic labeling solution for cylindrical containers as well as many tapered containers, including bottles, cans, jars and tubes.

» Quick set-up and easy operation

» Accurately applies labels to the front (AP360) or front and back (AP362) with variable spacing

» Fast – labels are applied at 5.3" (135mm) per second – up to 1200 containers per hour

Exterior view of a black industrial printing machine with packaged packaging (no visible text or symbols)

» Easy to use – no screws or clamps to adjust
» Left or right justification of labels is not necessary; operator can adjust to the most convenient position

Product photo of a wine machine with a bottle and control panel, alongside a close-up of hands handling red bottles on a conveyor (no visible text or symbols)

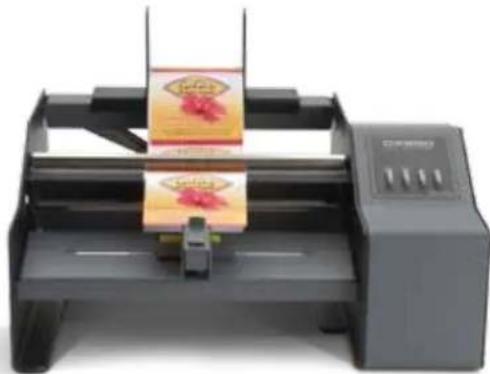

DX850

LABEL DISPENSER

The DX850 Label Dispenser automatically peels and presents self-adhesive labels one at a time. It replaces manual label peeling, making your production lines faster and more efficient.

» High-precision, reliable micro-switch activation – nothing to clean or get dirty; works with virtually any label including clear labels
» LED display – with built-in up/down counter for labels dispensed

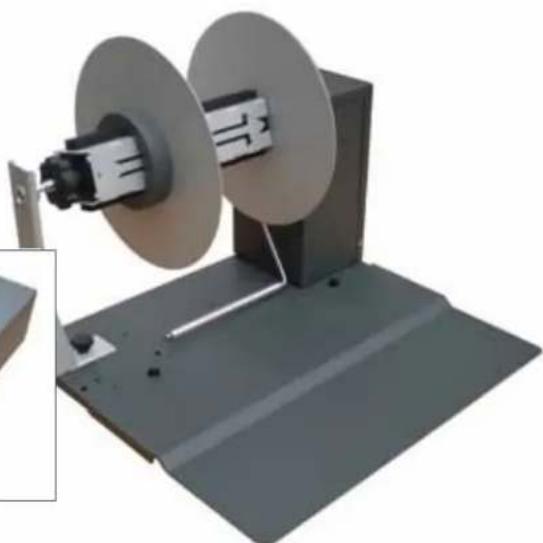

RW-12

LABEL REWINDER

RW-12 Label Rewinder makes it easy to rewind large quantities of labels. It's perfect for use with virtually any direct thermal, thermal transfer or inkjet-based desktop label printer, including Primera's popular LX-Series Color Label Printers.

LX900 Color Label Printer sold separately.

Mechanical device with two circular components mounted on a base, no visible text or symbols

Industrial machine with two large spools and a central shaft, no visible text or symbols

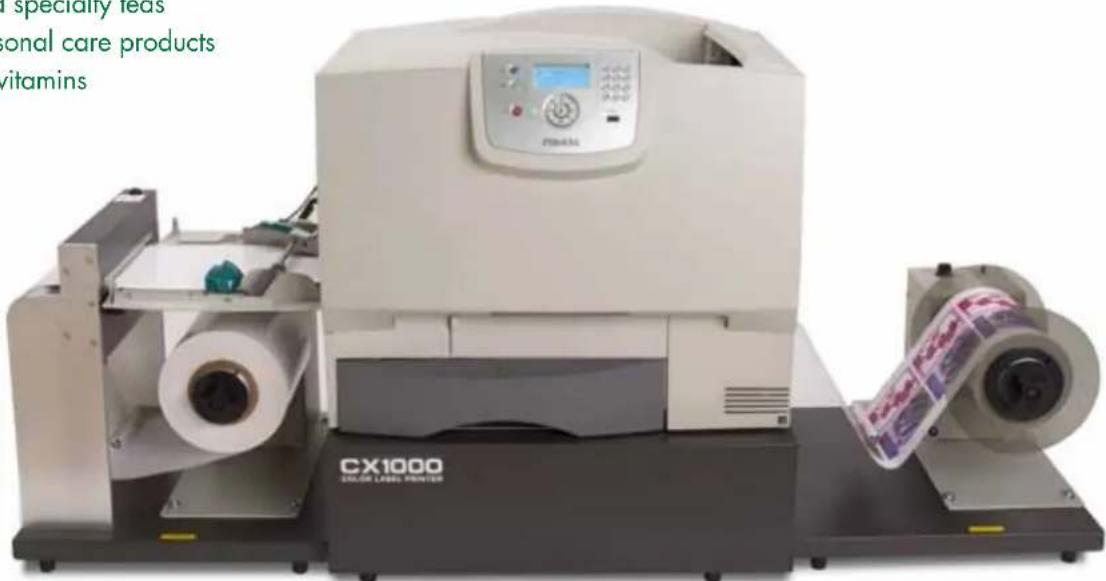

CX1000

COLOR LABEL PRINTER

Primera's new CX1000 Color Label Printer is an industrial-grade short- to medium-run desktop color label printer. It allows manufacturers of all types to produce full-color, highly-professional labels in-house. You'll save time and money by printing only the labels you need, when and where you need them.

With 2400 dpi print resolution, print quality exceeds that of virtually all other desktop printing solutions. Compared to 1200 dpi or 1600 dpi alternatives, you'll notice a striking difference in color depth. Colors are more vibrant. Text and graphics are sharper. Pantone® spot-color support is included for precise color matching.

CX1000 is fast at up to 16.25 fpm (5m/minute). Once a job is started it can be left unattended. A built-in cutter automatically cuts the web once the job is completed. Discover the convenience, cost savings and higher print quality you'll get with CX1000!

Product display of various wine and beverage items including bottles, glasses, and a coffee container (no visible text or labels)

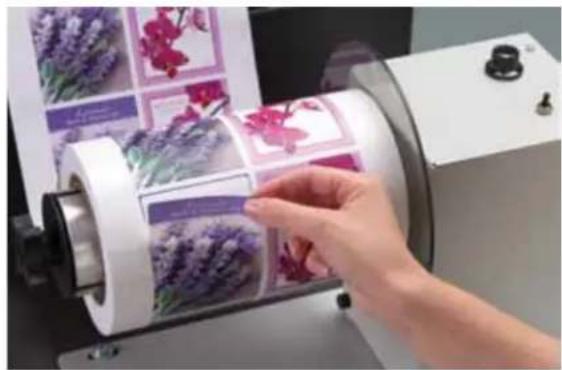

Hand pressing a rolled roller with purple lavender and flower patterns, next to a machine (no visible text or symbols)

APPLICATIONS:

» Specialty, organic and gourmet foods and beverages
» Wineries, breweries and distilleries
» Coffee roasters and specialty teas
» Cosmetics and personal care products
» Nutraceuticals and vitamins
» Private labeling
» And more

Digital Label Printing and Finishing

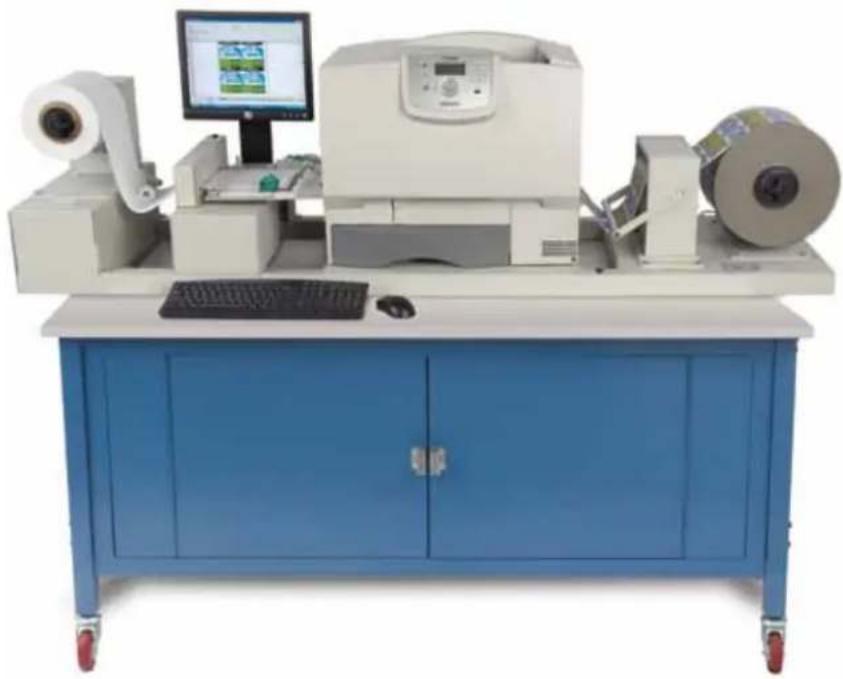

CX1200 COLOR LABEL PRESS

Primera's CX1200 Digital Color Label Press

provides professional-grade short-run label printing for label houses and manufacturers who need complete flexibility with size and shape. Ideal for runs of 1,000 to 25,000 labels at a time.

Utilizing one of the highest-resolution color laser engines available, CX1200 gives you the professional quality, speed and flexibility of digital presses costing many times more. You'll be able to produce from one to tens of thousands of labels at a time quickly and with a high ROI.

Primera's CX1200 produces output that is Pantone® spot-color matched at up to a 2400 dpi print resolution. Print speed is impressive at 16.25 fpm (5m).

With its heavy-duty, 12" (305mm) O.D. unwind and rewind capacity, 8.5" web width, extra high-yield toner cartridges and affordable acquisition cost, CX1200 is your best way to start making new profits with short-run digital label printing!

ADVANTAGES OF PRODUCING LABELS IN-HOUSE ON THE CX1200 COLOR LABEL PRESS AND FX1200 DIGITAL FINISHING SYSTEM:

»Lower cost per label = higher profits

»Fast and flexible

*React quickly to market changes

»Superior print quality

»Simple operation – includes software that matches your workflow

»Opens up new markets

»Supports roll and sheet fed input

Roll of packaged food items including a banana, cheese, and candy (no visible text or labels)

Laboratory setup with digital monitor, computer, and spool on a blue cabinet (no visible text or symbols)

APPLICATIONS:

»Specialty, organic and gourmet foods and beverages

»Wineries, breweries and distilleries

»Coffee roasters and specialty teas

»Cosmetics and personal care products

»Nutriceuticals and vitamins

»Private labeling

»And more

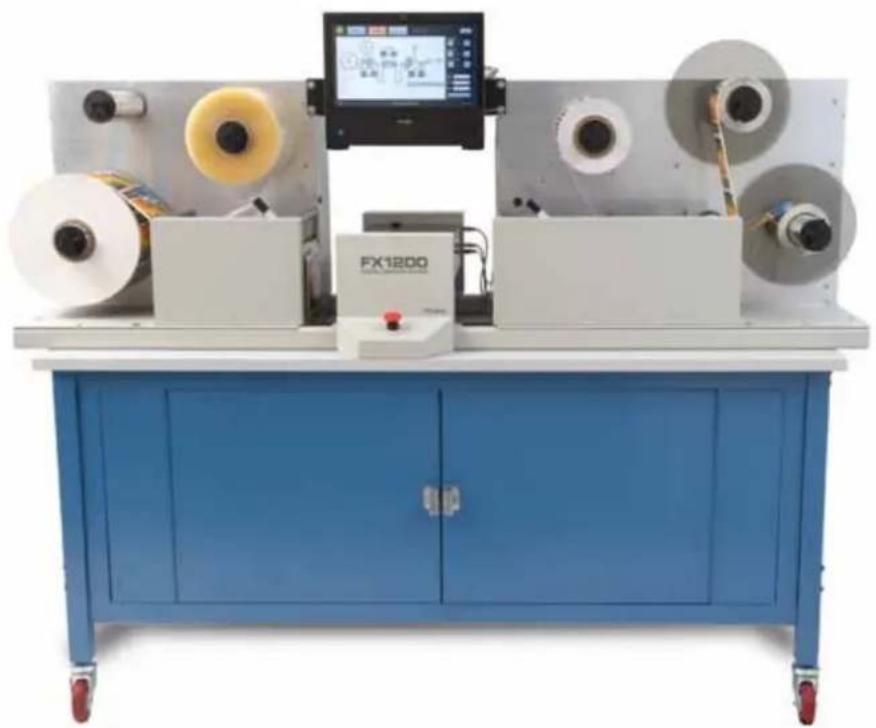

FX1200 DIGITAL FINISHING SYSTEM

Digital Label Finishing Has Never Been This Fast, Easy and Affordable!

Until now, digital label finishing has been expensive, complicated, and not particularly well-refined. But no longer.

Primera's FX1200 Digital Finishing System is here!

This innovative new machine is ready to meet the demands of converters and manufacturers who need reliable, professional-grade finishing equipment to complete their digital label production. FX1200 is an "all-in-one" off-line solution that laminates, digitally die-cuts, removes waste, slits and rewinds labels to finished rolls.

With the FX1200 you can cut simple shapes to complex contour designs without expensive plates and dies all with easy to use touch screen controls for optimum efficiency and step-and-go operation. FX1200 can finish labels printed from a variety of narrow web output devices including the CX1200 Color Label Press at a rate of up to 20 fpm (6.1m).

Industrial printing machine setup with blue cabinet and control panel (no visible text or symbols)

With FX1200, you'll be able to quickly and easily perform all of these label finishing steps in a single, integrated and automated process:

Close-up of a mechanical printing or paper roll with roller and plastic film (no visible text or symbols)

Laminating

Interior view of a computer monitor with visible ports and screen (no text or symbols)

Digital die-cutting

Close-up of a cylindrical mechanical component with a metallic ring, possibly a printer or scanner, in operation (no visible text or symbols)

Waste matrix removal

Close-up of electronic components or connectors with no visible text or symbols

Slitting

Close-up of industrial machinery with rollers and shafts (no visible text or symbols)

Rewinding to finished rolls

Label Printer Supplies

Label printer ink and toner cartridges, accessories and supplies are available through our channel of authorized resellers and distributors.

Stack of white paper rolls with one open showing a closed lid (no text or symbols visible)

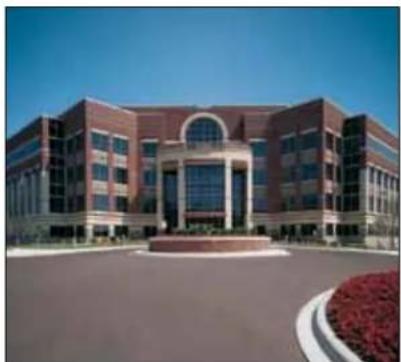

About Primera Technology

Headquartered in Plymouth, Minnesota, Primera Technology, Inc. is a leading developer and manufacturer of specialty printing equipment including the Bravo-Series CD/DVD/BD duplicators and printers and the LX-Series label printers and accessories.

Primera distributes its products in over 179 countries with support for European customers in Wiesbaden, Germany through Primera Europe. Primera Asia Pacific, registered in Hong Kong, serves customers throughout the Asia

Exterior view of a modern multi-story office building with a central entrance and landscaped grounds (no signage or text visible)

Pacific region. Primera Latin America services customers in South America and Central America through their office in São Paulo, Brazil.

READ MORE ABOUT OUR PRODUCTS FROM YOUR SMARTPHONE

Download a QR Reader app, then take a picture with your smartphone.

FOR MORE INFO, VISIT US AT PRIMERALABEL.COM

PRIMERA TECHNOLOGY, INC

Two Carlson Parkway North Plymouth, MN 55447-4446 USA 800-797-2772 (U.S.A and Canada only) Ph: 763-475-6676 Fx: 763-475-6677 www.primeralobel.com email: [e-mail]

PRIMERA TECHNOLOGY EUROPE™

Mainzer Strasse 131 65187 Wiesbaden / Germany Ph: +49 (0)611 - 92777-0 Fx: +49 (0)611 - 92777-50 www.primera.eu email: [e-mail]

©2012 Primera Technology, Inc. All rights reserved. TuffCoat is a trademark and Bravo and Primera are registered trademarks of Primera Technology, Inc. All other trademarks are the property of their respective companies. Specifications are subject to change without notice. All data and company names used in sample output are fictitious. Product warranty may be different in Europe and Asia. 510742-081011
