USER MANUAL V-AVM651F VARTA

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents 2

Important safeguards .... 3

Multizone device description....5

Accessories....6

Installation/connection....7

Unit controls....10

Monitor operations ....16

General operations....19

Radio (digital tuner) operations....20

Disc operations 23

SD/MMC card 34

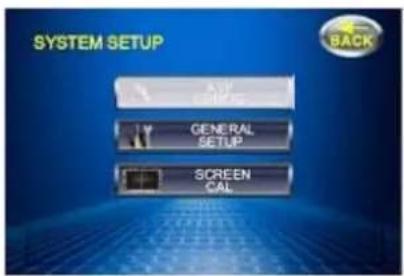

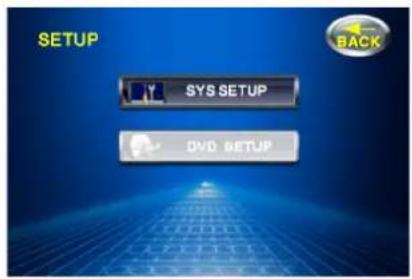

System setup menu....36

DVD setup menu 40

Other playback modes 46

Handling and cleaning discs 48

Troubleshooting guide....50

Specification 52

Important safeguards

• Using the device at temperature below -10^ may cause the breakage of the device.
• Before using, please, heat up the passenger compartment to the recommended temperature!
- Read carefully through this manual to familiarize yourself with this high-quality car stereo system.
- Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
- When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
- Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
- If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
- Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
- Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
- Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
- The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
- Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
- Install the unit horizontally. Install the unit more than 30 degree vertically may result in worse performance.

V-AVM651F

- Do not block the cooling fan exit to ensure sufficient heating dissipation of this unit, failure to do this may result in damage to this unit.

Multizone device description

Multizone definition means the ability of using the head device as the two synchronous signals source.

For example by means of the two different signals distribution the user can listen to the radio or see the navigation information on the screen (the first zone), and the back passengers can look the DVD film at the same time (the second zone). In first case the audio signal will be reproduced by front speaker, and in second case – by rear speaker.

The variants of distributing are different and its amount depends on used audio and video sources.

No.	Item	Diagram	Quantity	No.	Item	Diagram
1	DVD player		1	7	Glasses
2 ISO power line			1	8	Remote control for front zone
3	Harness cable		1	9	Remote control for rear zone
4	Audio output cable		1	10	Owner's manual
5	Navigation cable		1	11	Warranty
6	Rubber cover		1	12	Consumer information

Installation/connection

DVD/CD/MP3 receiver V-AVM651F is recommended to be installed in following model of car: Ford Focus 2 and also for cars which have 2-Din slot for the unit.

Parking brake


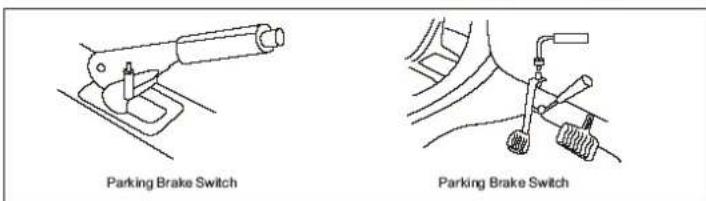

Parking Brake Switch Parking Brake Switch

Rear View Video Camera

V-AVM651F

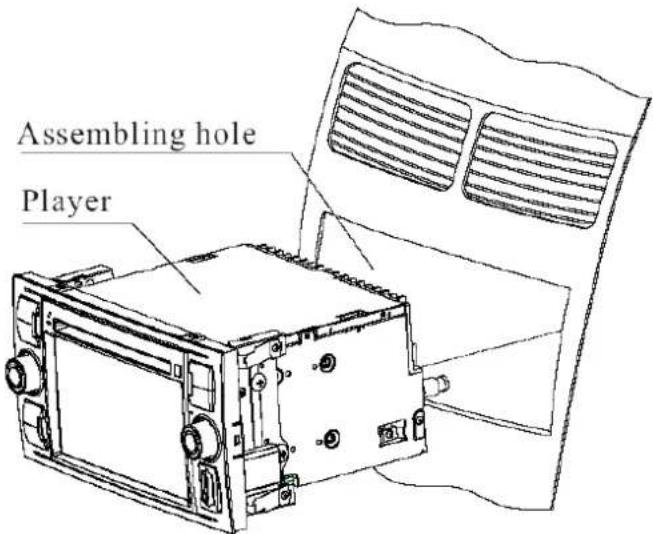

Installation procedure

1. Ring the assembling rubber sheath to the screw bolt in the back of the unit, plug the power connector and radio antenna plug into the unit correctly and connect them with the according plugs in your car.

2. Push the unit along the mounting hole until you hear a crack that means the unit has been assembled correctly.

Assembling hole Player

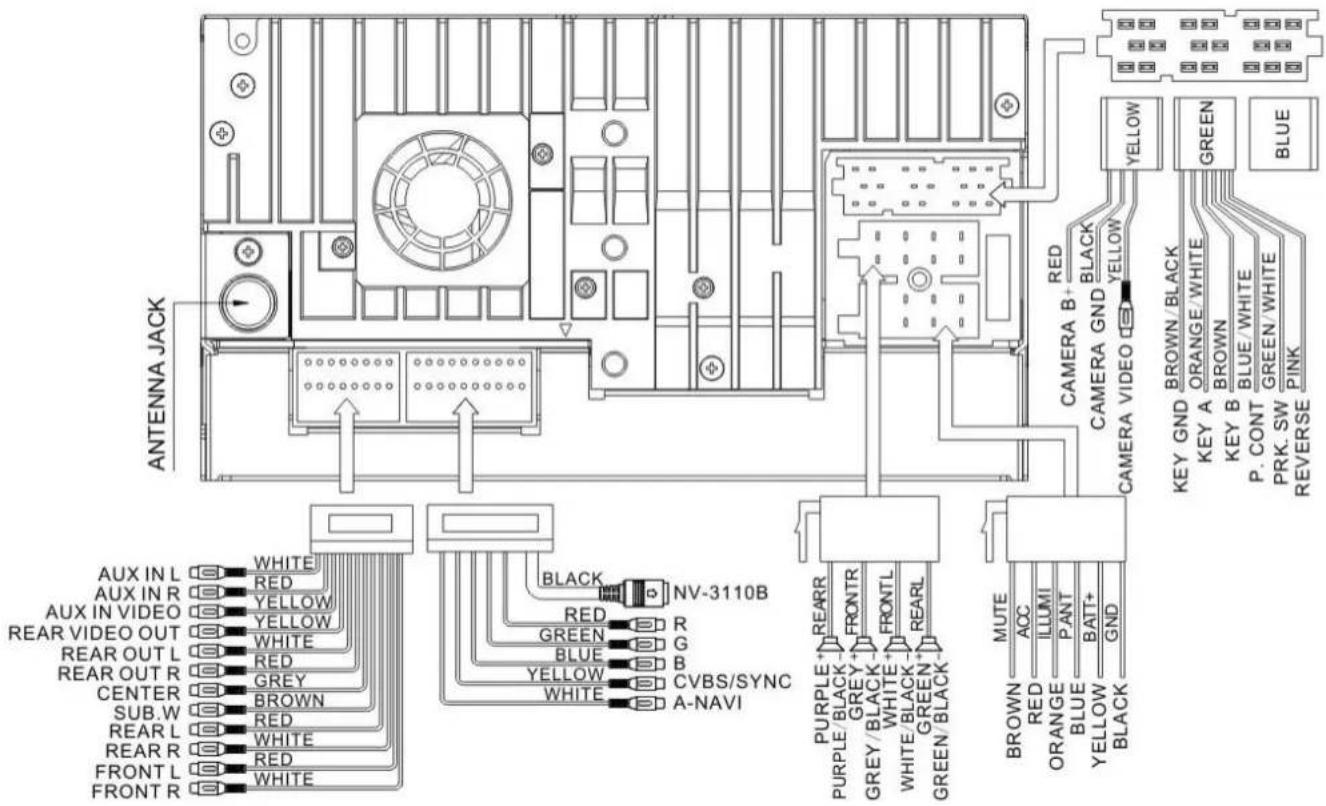

Electrical Connection

ANTENNA JACK AUX IN L WHITE AUX IN R RED AUX IN VIDEO YELLOW REAR VIDEO OUT YELLOW REAR OUT L WHITE REAR OUT R RED CENTER GREEN SUB.W BROWN REAR L WHITE REAR R RED FRONT L WHITE FRONT R WHITE BLACK NV-3110B RED R GREEN G BLUE B YELLOW CVBS/SYNC WHITE A-NAVI REARR FRONTR FRONTL REARL PURPLE GREEN BLACK PURPLE BLACK GREEN BLACK GREY/WHITE WHITE/BLACK GREEN/BLACK MUTE ACC ILLUM PANT BATT+ GND BROWN RED ORANGE BLUE YELLOW BLACK YELLOW YELLOW BROWN BLACK YELLOW GREEN PINK YELLOW GREEN BLUE BROWN BLACK YELLOW GREEN PINK YELLOW GREEN PINK

Unit controls

Monitor

1. POWER/MUTE button
2. SRC button
3. VOL/SEL knob
4. MENU button
5. NAVI button
6. Disc slot
7. Infra red sensor
8. EJECT button
9. WIDE/PIC button
10. RESET button
11. TUNE/ENT knob
12. SD slot

V-AVM651F MPIA WMA DVD MUTE SRC VOL MENU NAVI S200x4 WIDE TUNI ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫

V-AVM651F

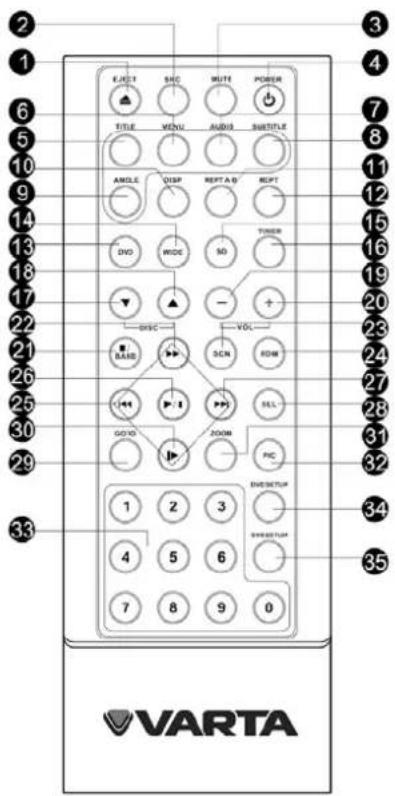

Remote control 1 (general)

1. EJECT button – Press it to eject the disc.
2. SRC button - Select the playback source.
3. MUTE button - Turn on/off volume output.

4. POWER button - Turn on/off the power.

5. TITLE button - Enter the title menu of the disc (in DVD source).

6. MENU button - Enter the main menu of the disc (in DVD source). Turn on PBC when playing VCD.

7. AUDIO button - Change the audio language during playback DVD. Change the channel during playback VCD.

8. SUBTITLE button - Change subtitle language during playback a DVD disc.

9. ANGLE button - Playback a DVD disc in different angle of a scene. Playback Picture CD with different angles of picture displayed.

10. DISP button - Display playback information.

11. REPT A-B button - Press to repeat playback from time frame A to time frame B (in DVD source).

12. REPT button - Press to repeat playback each chapter/title disc (in DVD mode).

13. DVD button – Enter the DVD mode.

14. WIDE button - Select aspect ratio mode.

15. SD button - Enter the SD mode.

EJECT SAC MUTI POWER TITLE MENU AUDIO SUBTITLE ANGLE OISP REPT-A-B REPT DVO WIDE SO PUMER DISC VOL BAND SCN ROM GND DOOM SELL PNC ENDSETUP 1 2 3 4 5 6 7 8 9 0 VARTA

V-AVM651F

1. TUNER button - Enter the radio mode.

2. DISC ▼ button - Select the next disc to playback in DVDC source (Not supported by this unit).

3. DISC ▲button - Select the previous disc to playback in DVDC source (Not supported by this unit).

4. VOL-button-Decrease volume.

5. VOL+ button - Increase volume.

6. STOP/BAND button - stop playback, select FM/AM band.

7. ▶ button - Fast forward the current disc in DVD source. During menu setup, move to upper selection.

8. SCN button - Play the first ten second of each chapter in DVD player.

9. RDM button - Play all chapters in random order in DVD player.

10. ◀ button - Select the previous track/chapter for playback. During menu setup, move to left selection. Searching an available FM/AM radio station by decreasing tuning frequency.

11. PLAY/PAUSE button - Pause playback. Start playback. This button is also used to enter the menu setup. Scan tuning FM/AM radio station playback.

12. ➤ button - Select the next track/chapter to playback. During menu setup, move to the right selection. Searching an available FM/AM radio station by increasing tuning frequency.

13. SEL button - Enter/Exit the audio adjustment mode.

14. GOTO button - Go to specific time frame and playback.

15. ▶ button - Slow playback the disc in DVD source. Slow rewind playback the disc in DVD source. During menu setup, move to the lower selection.

16. ZOOM button - Zoom in image during playback DVD/VCD disc.

17. PIC button - Press it to enter setting mode. To adjust the setting press the ◀/▶ buttons. Press it again to exit the mode.

V-AVM651F

1. Numeric keypad
2. DVD SETUP button - Playback function setup for DVD player.
3. SYS SETUP button - System function setup of the unit.

V-AVM651F

Remote control 2 (kid zone)

1. MUTE button - Turn on/off volume output.
2. R.SRC button - Playing source selection for rear zone.
3. TITLE button - Enter the title menu of the disc (in DVD Player).

4. MENU button - Enter the main menu of the disc (in DVD Source). Turn on PBC when playing the VCD disc.

5. AUDIO button - Change the audio language during playback DVD. Change the channel during playback VCD.

6. SUBTITLE button - Language selection for subtitle (in DVD source).

7. button - Select the previous track/chapter for playback. During menu setup, move cursor to the left selection.

8. ▶ button - Select the next track/chapter for playback. During menu setup, move cursor to the right selection.

9. ▶ button - In DVD source, fast forward the disc content.

10. ▶ button - Slow playback (in DVD source). Slow rewind playback (in DVD source). During menu setup, move to the lower selection.

11. PLAY/PAUSE button - Pause playback. Start playback. Act as ENTER for menu setup.

12. Numeric keypad

13. REPT button - Setup to repeat playback each chapter/title/disc.

14. GOTO button - Go to specific time frame and playback.

MUTE R. SRC TITLE MENU AUDIO SUBTITLE 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 0 NEXT GOTO VARTA

V-AVM651F

Changing the battery

1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 x lithium battery, type CR2025 (3V) battery with the stamped
   (+) mark facing upward. Insert the battery tray into the RC.

+2V (CR 2025)

Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

Do not recharge, short, disassemble or heat the battery or dispose it in a fire.

Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

Monitor operations

Aspect ratio

The aspect ratio alters according to the following while pressing the WIDE/PIC button on the panel or the WIDE button on the RC: CINEMA => WIDE => NORMAL => STANDBY.

CINEMA - The screen is extended horizontally as a whole to the aspect ratio of 16 to 9. The extension ratio is the same at any point of the screen.

WIDE - The screen is extended horizontally to the aspect ratio of 16 to 9. The extension ratio increases toward the right and left edge of the screen.

NORMAL - The conventional display image has a 4 to 3 ratio of horizontal to vertical. In this case, a blank area remains on the right and left sides of the display.

Image setting

The video output format for the each playing source is listed as below:

Playing source Video output format
TUNER	RGB mode
DVD
SD Card
NAVI
AUX IN	CVBS mode
CAMERA

1. Press the PIC button on the RC or press and hold the WIDE/PIC button on the panel to open the image adjustment menu.

In RGB mode, only BRIGHT is available for adjustment.

V-AVM651F

In CVBS mode, PICTURE, COLOR, CONTRAST, BRIGHT and TINT are available for adjustment.

1. Press the ▶buttons on the remote control to select the needed value.
2. Press the ◀/▶ buttons on the remote control or rotate the TUNE/ENT knob on the panel to adjust the selected setting.
3. Press the PIC button on the remote control or the WIDE/PIC on the panel to save settings.

Audio Setting

Audio control allows you to easily adjust the audio system to meet the in-car acoustic characteristics that vary depending on the type of car and its measurement.

1. Press and hold the VOL/SEL knob on the panel or press the SEL button on the RC to enter audio setting mode.
2. Rotate the TUNE/ENT knob on the panel or press the ◀◀/▶◀ buttons on the RC to select a setting item: EQ – Bass – Mid – Treble – Bal – Fade – SUB.W – Center. You can also perform this operation by pressing the corresponding menu item button on the display.
3. To adjust the value rotate the VOL/SEL knob on the panel or press the ▶/▶ buttons on the RC. You can also perform this operation by pressing the +/- buttons corresponding to each menu item on the display.
4. Press and hold the VOL/SEL knob on the panel or press the SEL button on the RC to exit audio setting mode.

Notes: EQ modes: User, Flat, Danc, Pop, Latin, Rock, Acou. Bass, Mid and Treble items can be adjusted only in User mode.

V-AVM651F

When parking brake applied

If “PRK SW” cable is connected to hand brake switch, the video picture of the TFT display will be controlled by driving status, system setup and video sources.

- When "Parking" is set to "Off" or the car is parking or the video input source is "Camera", the video picture of the TFT display will be normal.

- When “Parking” is set to “On” and the car is moving ahead, blue screen will be displayed with warning information to prevent the driver from watching other content when driving. The passengers at the rear can watch normally.

ATTENTION DO NOT USE THIS FUNCTION WHILE DRIVING!

Auto brightness control

To avoid the display being too bright at night time, if the cable for headlight is connected to ILLUMI (for more details, please refer to “Electrical Connection” diagram), turning on the headlight dims the backlight of TFT display and vice versa.

Line mute

If the MUTE is connected, other audio outputs are closed when a call is received by the car phone (for more details, please refer to “Electrical Connection” diagram).

Reverse Driving

If the rear view video camera is connected, the unit automatically switches to CAMERA source during reverse driving. The unit returns to the original work mode after the reverse driving is done.

General operations

Reset the unit

When operating the unit for the first time or after replacing the car battery, or if the unit is working abnormally, you should reset the unit. Press the RESET button on the panel to restore the unit to the default factory settings.

Power on/off

Press POWER/MUTE button on the panel or the POWER button on the RC to turn the unit on. Press and hold the POWER/MUTE button or press the POWER button on the RC to turn the unit power off.

Note: After the unit is off, the volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status that you set.

Volume control

Press the VOL +/- on the RC or rotate the VOL/SEL knob on the panel to increase/decrease the volume level.

Mute function

When the unit power is on press the POWER/MUTE button on the panel or the MUTE button on the RC to turn off the sound. Press it again or press the VOL +/- button to resume the volume.

Mode selecting

Short press the SRC button on panel or on the RC to enter playback source menu, and press this button repeatedly to select and enter a playback source (or press the sensor button): TUNER => DVD => SD => NAVI => AUX IN => CAMERA.

Radio (digital tuner) operations

Mode selecting

Press the TUNER button on the RC to switch to radio mode directly, or press the SRC button on the panel or on the RC repeatedly to switch to Radio mode, or press the MENU button on the panel or the left top corner of the screen to open the sources menu and then press the TUNER button on the display.

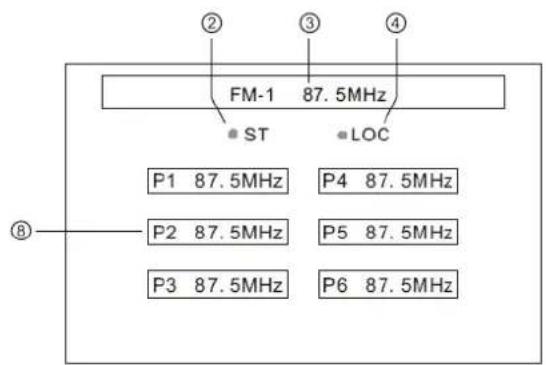

User interface (UI) of Radio mode

When the unit is switched to Radio mode, the following user interface will be displayed:

TUNER FM-1 87.5MHz 00:58 AUTO Mode ST LOC Multi-zone P1 87.5MHz P4 87.5MHz P2 87.5MHz P5 87.5MHz P3 87.5MHz P6 87.5MHz BAND AS

② FM-1 87.5MHz • ST • LOC P1 87.5MHz P4 87.5MHz ⑧ P2 87.5MHz P5 87.5MHz P3 87.5MHz P6 87.5MHz

1. Source name
2. Stereo broadcast indicator

V-AVM651F

1. Current radio band and frequency
2. Local function indicator
3. Clock
4. Enter rear zone
5. Radio function buttons
6. Preset radio station
7. Radio search mode indicator

To return to main menu press the TUNER button in the top left corner of the display.

Note: The second window is opened when the multizone function is activated or when the display doesn't show the video files.

Band selection

Press STOP/BAND button on the RC or press BAND button on the touch screen to switch to the bands among FM1, FM2, FM3, AM1 and AM2 band.

Manual/automatic tuning

• Manual tuning: Rotate the TUNE/ENT knob on the panel, or press ▶/▶ buttons on the RC repeatedly, or press ◀/▶ buttons on the touch screen repeatedly to select a station upward or downward step by step. Press and hold number buttons (1-6) to store the found station.
• Automatic tuning: Press and hold ◀/▶ buttons on the RC or press ◀/▶ button on the touch screen to start automatic seeking for an available radio station by increasing tuning frequency. Another method is to press the TUNE/ENT knob on the panel to enter the Auto search mode and then rotate the TUNE/ENT knob on the panel. Press and hold number buttons (1-6) to store the found station. Press these buttons again to stop the searching.

V-AVM651F

AMS (Auto Memory Store) function

Select the band. Long press TUNE/ENT knob on the panel or press AS button on the touch screen to tune all the radio stations in range from the current frequency, and auto store 6 radio stations with the strongest radio signals in P1 to P6 respectively according to frequency from low to high. To stop auto store, press AS button again.

Scan preset stations

Press the ▶/II button on the RC to scan all the preset stations in the memory of the current band and play each station for 5 seconds. To stop scanning, press any radio function button.

Local radio station seeking (LOC)

When the LOCAL function is on only the stations with strong radio signal can be received and played. Press LOC button on the touch screen to turn the LOCAL function on or off.

Disc operations

Glossary

PBC (Playback Control)

Playback Control is a menu recorded on the disc with SVCD or VCD2.0 format. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the search functions.

Chapter

A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

V-AVM651F

Discs for playback

• This unit can play disc types: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/SD.
• Compatible with formats: DVD/SVCD/VCD/HDCD/MPEG4/MP3/WMA/CDDA/Picture-CD/JPEG.
  • The following file types are supported:

Audio files: MP3 (*.mp3)

WMA (*.wma)

Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID)

MPEG 2(*.vob)

MPEG 1(*.dat)

Picture file: JPEG (*.jpg)

• ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters
• Max. Track number is 448
• Max. nested directory is 8 levels
• The max. album number is 99
• The max. length of each track is 99 minutes 59 seconds
• Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably)
• Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
- Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
- Open session discs are NOT supported.

V-AVM651F

Touch screen operations

A B C D E F

A - Open front sources menu

B - Display playback information

C - Open rear sources menu

D - Play previous file

E - Play next file

1. Turn the power on and insert the disc into the slot with the printed side facing upward.
2. The unit will enter DVD mode automatically.
3. Press the EJECT button on the panel or on the RC to eject the disc and the unit will switch to radio mode automatically.

Play/Pause

It will take some seconds to load the disc. When the playback starts, press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC to stop the playback temporarily. To resume the playback, do the operation again.

Stop playback

During playback, press the STOP/BAND button on the RC, the playback will stop and the current playback point will be memorized. To resume the playback, press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC. Press the STOP/BAND button again to stop playback fully. If you start playback now, the playback will start from the very beginning.

V-AVM651F

Fast Forward (FF)/Fast Reverse (FR)

Press ▶ button on the RC repeatedly to select the speed of FF or FR: X2 => X4 => X8 => X20. To resume normal playback, press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC.

Slow Forward (SF)/Slow Reverse (SR)

Press II▶ button on the RC repeatedly to select the speed of SF or SR: X1/2 => X1/4 => X1/6 => X1/7. To resume normal playback, press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC.

Playback the previous/next file

Rotate the TUNE/ENT knob on the panel or press the ◀/▶ button on the RC.

Repeat playback

Press the REPT button on the RC repeatedly to select repeat mode.

For DVD: Repeat Chapter => Repeat Title => Repeat Off.

For VCD (PBC Off)/CD: Repeat Single => Repeat Off

For MP3: Repeat Single => Folder Repeat => Repeat Off.

Repeat A-B function(for DVD/VCD/CD)

During playback, the playback between point A and B is repeated when this function is on.

Press the REPT A-B button on the RC to set the start point (A) and repeat this operation to set the end point (B) of the section you want to repeat.

Press the REPT A-B button for the third time to cancel the A-B repeat function and normal playback is resumed.

Random playback

During playback, press the RDM button on the RC to start random playback. Press it again to turn off this function.

V-AVM651F

Note: PBC function is closed automatically when random playback is on.

Intro playback

You can play the first 10 seconds of each file. Press the SCN button on the RC to start intro playback.

To cancel this function, repeat the operation again.

Note: This function may be unavailable for some disks.

GOTO search function

The unit can go to the track/chapter or the time point you need.

Enter GOTO search mode

Press the GOTO button on the RC and the search menu will be displayed on the screen. For VCD, press the GOTO button repeatedly to select the Track Search or the Disc Search.

For DVD		For MPEG4/VCD
Search		Track	search	Disk	search
Time	--:--:--	Time	--:--:--	Time
Title/Chapter	---/---	Track	---/---	Track

Select a type of search

Press cursor buttons on the RC to select search option: Time/Title Chapter/Track.

Search

- For time search

Press the numeric buttons to enter the time you want to start playback from (hh:mm:ss). For example, to enter time 18:20:00, press 1 => 8 => 2 => 0 => 0 => 0.

V-AVM651F

Press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC to start playback.

• For Title/Chapter search

Press the numeric buttons and ▶ button on the RC to enter the title and chapter number you need. For example, to search the 8th chapter of the 20th title, press 2 => 0 => ▶ => 8.

Press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC to start playback.

- For Track search

Press the numeric buttons to enter the track number. For example, to enter the 13th track, press 1 => 3. Press the TUNE/ENT knob on the panel or the PLAY/PAUSE buttons on the RC to start playback.

Exit GOTO search mode

To exit GOTO search mode, press the GOTO button repeatedly until the search menu disappears.

Direct track selection (for CD/VCD)

During playback, press the numeric buttons on the RC to go to the track needed. For example, if you want to play the 15th track, press 1 and then 5.

Audio channel selection

- For DVD

Press the AUDIO button repeatedly on the RC to change the dialogue language.

- For VCD/CD

Press the AUDIO button repeatedly on the RC to select one audio channel output mode: Left, Right and Stereo.

Disc Menu (for DVD only)

1. Disc menu

- Press the MENU button on the RC to enter the disc menu.

V-AVM651F

• Rotate the TUNE/ENT knob on the panel or press cursor buttons on the RC to select the item.
• Press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC to start playback.

2. Title menu

• Press the TITLE button on the RC to enter the disc menu.
• Rotate the TUNE/ENT knob on the panel or press cursor buttons on the RC to select the item.
• Press the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC to start playback.

PBC (Playback Control) function (for VCD only)

If you insert a VCD disc with PBC function, playback starts from the first track automatically.

Press the MENU button on the RC to activate PBC menu.

If the menu consists of list of tracks, you can select a needed one by pressing the numeric buttons or the cursor buttons on the RC and then pressing the TUNE/ENT knob on the panel or the PLAY/PAUSE button on the RC to start playback.

To deactivate PBC function, press the MENU button again.

Note:

• When PBC function is activated, fast playback, slow playback, and previous/next track are available. Repeat playback and direct track selection are invalid.
• When PBC function is activated, if random playback or intro playback is performed, PBC function is deactivated automatically.

Subtitle language selection (for DVD only)

Press the SUBTITLE button on the RC to change the subtitle language among the languages supported by the DVD disc.

V-AVM651F

View angle selection

Press the ANGLE button repeatedly on the RC to play back images in different camera angles. If the disc does not support multi-angle playback, this function will not work.

Zoom

During playback, press the ZOOM button on the RC to zoom in images. Images will be enlarged accordingly: X1 => X2 => X3 => X4 (DVD only) => OFF.

Playback information

During playback, press the DISP button on the RC, the playback information will be displayed on the screen.

For DVD disc

Playback information

DVD T: 5/8 C: 2/16 00:41:28 .... 2/6 Eng ① ② ③ ④

1. This DVD has 8 titles and
2. The current title has 16 chapters and the chapter playing back now is the second chapter.
3. Elapsed time
4. The subtitle of this DVD has been recorded in 6 languages and the language displayed now is the second, which is English.

Playback status

Front:DVD Rear:AUX IN Dolby Digital ByPass ① ② ③ ④

V-AVM651F

1. Front source is DVD mode
2. Rear source is AUX IN
3. Decode method
4. No Pro Logic is being used

For VCD disc

VCD2.0 T:6/18 00:02:18 ① ② ③

1. Disc format
2. This VCD has 18 tracks and the track playing back now is the 6th title
3. Elapsed time

MP3/WMA file playback

Insert the music disc into the disc slot. The display will show the files list. To go to another chapter use the DIR +/- buttons on the touch screen, to select another page with files press the PAGE +/- buttons on the touch screen. To go to previous/next file/track press the ◀/▶ sensor buttons, to fast backward/forward press the ◀/▶ buttons. Press the AUDIO button on the RC to select the audio language or the channel. Press the REPEAT or RANDOM buttons to select the mode of the playback.

V-AVM651F

MP3 overview

Notes on MP3:

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on DVD-R/-RW, DVD+R/+RW, CD-ROM, CD-R/-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

- The unit can not read an MP3 file that has a file extension other than “.mp3”.

- If you play a non-MP3 file that has the “.mp3” extension, you may hear some noise.

- In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.

- Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 448.

- The unit may not play tracks in the order of Track numbers.

• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.

- When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

Notes on creating your own CD-R or CD-RW containing MP3 files:

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
  • DO NOT store more than 448 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs, which have been finalized.

V-AVM651F

• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.
  • Note that the unit may not play Tracks in the order that you wrote them to the disc.

SD/MMC card

Mode selecting

Insert an SD card. Press the SD button on the panel or on the RC to switch to SD CARD mode directly or press the SRC button on the panel or on the RC repeatedly to switch to SD CARD mode. Or press the left top corner of the display to open the source menu and press the SD CARD button. The unit will start to playback the contents of the card automatically. To enter the User Interface of SD CARD mode, press STOP/BAND button on the RC.

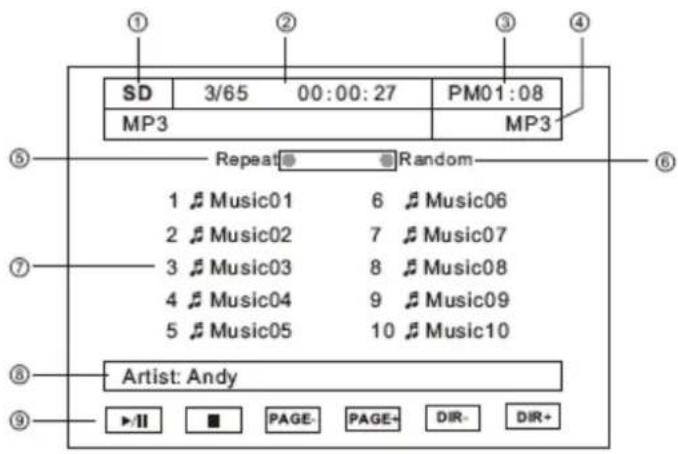

User touch screen interface

1. Source name.
2. Current file/total files and elapsed time.
3. Clock.
4. File folder name and file format.
5. Repeat mode.
6. Random mode button.
7. File list.
8. ID3 tag information.
9. Play control buttons.

① ② ③ ④ SD 3/65 00:00:27 PM01:08 MP3 MP3 ⑤ Repeat●● Random— ⑥ 1 Music01 6 Music06 2 Music02 7 Music07 3 Music03 8 Music08 4 Music04 9 Music09 5 Music05 10 Music10 ⑦ ⑧ Artist: Andy ⑨ ▶/II ■ PAGE- PAGE+ DIR- DIR+

V-AVM651F

SD card operations

Play/pause

The operation is the same as with DVD mode.

Stop playback

The operation is the same as with DVD mode.

Playback previous/next file

The operation is the same as with DVD mode.

Repeat playback

The operation is the same as with DVD mode. Or press the REPEAT button on the display.

Random playback

The operation is the same as with DVD mode. Or press the random button on the display.

Direct chapter/track selection

The operation is the same as with DVD mode.

Audio track selection

The operation is the same as with DVD mode.

Change direction

Press DIR+/DIR- button on the touch screen to change direction.

Change page

Press PAGE+/PAGE- button on the touch screen to switch to the previous/next page.

System setup menu

Note: System setup menu is available in TUNER, DVD, AUX IN, SD CARD modes only.

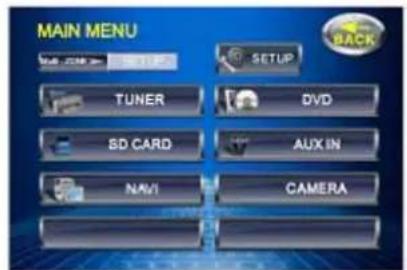

MAIN MENU TUNER SD CARD NAV1 SETUP SETUP DVD AUX IN CAMERA

In any mode press the left top corner of the display to display the MAIN MENU. Use the cursor buttons or press the SETUP button on the display to open the SETUP menu.

SETUP SYS SETUP DVD SETUP BACK

In SETUP menu rotate the TUNE/ENT knob on the panel or press >>/▶ buttons on the RC or press the needed button on the display to select the SYS SETUP. Press the TUNE/ENT knob on the panel or PLAY/PAUSE button on the RC or press the button on the display to open it. Or press the SYS SETUP button on the RC to open the SYS SETUP menu window.

SYSTEM SETUP Any Setup GENERAL SETUP SCREEN CAL

In SYSTEM SETUP menu rotate the TUNE/ENT knob on the panel or ▶/▶ or ◀/▶ buttons on the RC or press the needed button on the display to select the desired menu: ASP CONFIG, GENERAL SETUP, SCREEN CAL. Press PLAY/PAUSE button on the RC or TUNE/ENT knob on the panel or press the needed button on the display to enter the menu selected.

1. Enter the needed menu

2. Rotate the TUNE/ENT knob on the panel or ▶/ ▶▶ buttons on the RC or press the needed button on the display to select the needed setting.

3. Press the TUNE/ENT knob on the panel or ◀/▶ buttons on the RC or press the needed button on the display to enter the list of values.

4. Press ▶buttons on the RC or press the needed button on the display to select the needed value.

5. Press PLAY/PAUSE button on the RC or TUNE/ENT knob on the panel to confirm.

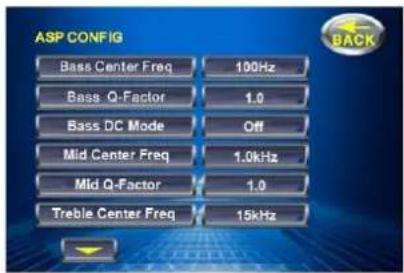

Audio sound processing (ASP) configuration

ASP CONFIG Bass Center Freq 100Hz Bass Q-Factor 1.0 Bass DC Mode Off Mid Center Freq 1.0kHz Mid Q-Factor 1.0 Treble Center Freq 15kHz

Bass center frequency: select the Bass center frequency according to the audio source disc: 40 Hz, 50 Hz, 60 Hz, 70 Hz, 80 Hz, 100 Hz, 120 Hz, 150 Hz.

Bass Q-factor: when the Bass center is selected and adjusting the Q-factor alters the sharpness of the Bass output, the larger the Q-factor, the sharper the bass. Select the Bass Q-factor: 1.0, 1.25, 1.5, 2.0.

Bass DC Mode: the gain of bass below bass center frequency will increase and the Bass Q-Factor will decrease if you select On.

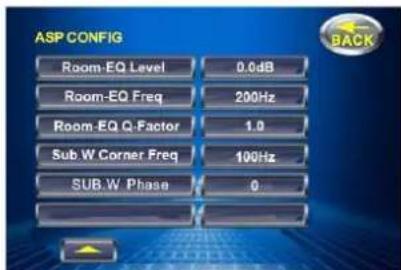

ASP CONFIG Room-EQ Level 0.0dB Room-EQ Freq 200Hz Room-EQ Q-Factor 1.0 Sub W Corner Freq 100Hz SUB.W Phase 0

Mid Center Freq: you should select different Mid Center Frequency according to different sources to get a better Mid effect (500Hz, 1.0kHz, 1.5kHz, 2.0kHz).

Mid Q-Factor: change the sharpness of the Mid output (1.0, 2.0). The larger the Q-Factor is, the sharper the Mid.

Treble Center Freq: according to audio source disks, select the treble center frequency to get the best treble effect (10kHz, 12.5kHz, 15kHz, 17.5 kHz).

Room-EQ Level: adjust the gain of Room EQ (0.0dB, 1.0dB, 2.0dB, 3.0dB, 4.0dB, 5.5dB, 7.0dB, 9.0dB).

Room-EQ Freq: adjust the center frequency of Room EQ (180Hz, 200Hz, 220Hz, 240Hz).

Room-EQ Q-Factor: adjust the Q-factor of Room EQ (1.0, 2.0).

Sub. W Corner Freq: Set a cut-off frequency of the subwoofer's low pass filter (50, 60, 80, 100, 120Hz).

Sub. W Phase: Set an output phase of the subwoofer's low pass filter (0D, 180D).

General setup

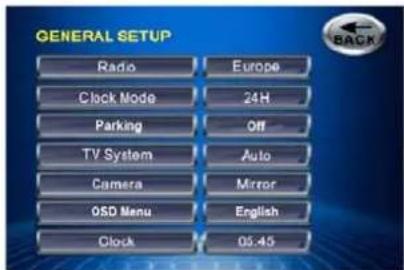

GENERAL SETUP Radio Europe Clock Mode 24H Parking Off TV System Auto Camera Mirror OSD Menu English Clock 05:45

Radio: select the radio system: USA, S. America 1, Arabia, China, S. America 2, Europe, Korea, OIRT.

Clock mode: select the time format: 12 hours, 24 hours.

Parking: select the parking image mode: On (image is displayed when the car has been parked only), Off (image is displayed all the time).

TV system: Auto (the color signal output is switched automatically according to the recording system of the current disc), NTSC, PAL.

V-AVM651F

Camera: Normal (actual scenes shot by the rear view camera), Mirror (the mirror images of actual scenes shot by the rear view camera), OFF.

OSD menu: select the menu language: English, Chinese, Russian.

Clock: set the clock.

Method 1: Press the hour or minute. Press the +/- buttons on the display to adjust the clock.

Method 2: Use the TUNE/ENT knob on the panel or ▶/▶ buttons on the RC to select hour or minute. Rotate the TUNE/ENT knob on the panel or ◀/▶ buttons on the RC to adjust it.

Screen CAL

Use the CAL screen when the touch screen is not sensitive or valid. Calibrate it following the clew displayed on the screen after entering the SCREEN CAL mode.

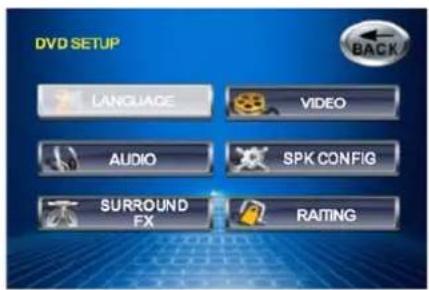

DVD setup menu

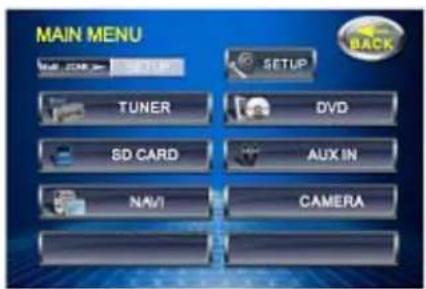

MAIN MENU TUNER DVD SD CARD AUX IN NAV CAMERA

In any mode press the left top corner of the display to display the MAIN MENU. Use the cursor buttons or press the SETUP button on the display to open the SETUP menu.

SETUP SYS SETUP DVD SETUP BACK

In SETUP menu rotate the TUNE/ENT knob on the panel or press >>/▶ buttons on the RC or press the needed button on the display to select the DVD SETUP. Press the TUNE/ENT knob on the panel or PLAY/PAUSE button on the RC or press the needed button on the display to open it. Or press the DVD SETUP button on the RC to open the DVD SETUP menu window.

V-AVM651F

1. Enter the needed menu.
2. Rotate the TUNE/ENT knob on the panel or ▶/▶ buttons on the RC or press the needed button on the display to select the needed setting.
3. Press the TUNE/ENT knob on the panel or ◀/▶ buttons on the RC or press the needed button on the display to enter the list of values.
4. Press ▶▶ buttons on the RC or touch the needed button on the display to select the needed value.
5. Press PLAY/PAUSE button on the RC or TUNE/ENT knob on the panel to confirm.

Language

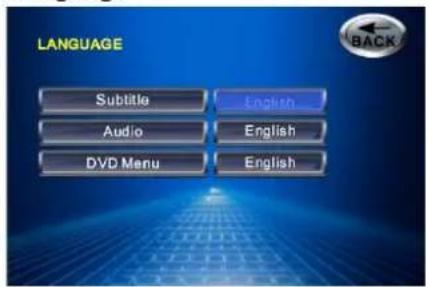

LANGUAGE Subtitle English Audio English DVD Menu English

Subtitle: set the subtitle mode: English, Russian, Chinese, Auto (if chosen, the subtitle is displayed in the language appointed by the DVD disc automatically), Off (No subtitle is displayed).

During playback press the SUBTITLE button on the RC to change the subtitle.

Audio: select the audio language.

V-AVM651F

During playback press the AUDIO button on the RC to change the audio language (English, Chinese, Russian).

DVD menu: select the DVD menu language (English, Chinese, Russian). When the language is selected if you press the TITLE button the menu will be in this language.

Video

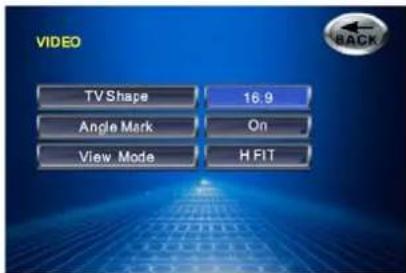

VIDEO TV Shape 16.9 Angle Mark On View Mode H FIT

TV shape: select the width/height of the image: 16:9 (wide screen), 4:3 (normal view).

This function is not available for some discs.

Angle mark: set the angle indicator mode (when the DVD has multi-angle content): On (view indicator), Off (don't view indicator).

Press the ANGLE button on the RC to change the angle.

View mode: select the viewing mode: Fill (fill the screen with the picture), Original (original mode), H fit (fit horizontally), W fit (weight fit), Fit to scrn (fit to screen), Pan Scan (Pan and scan mode).

Audio

AUDIO Pink Noise Off DRC Off CNTR CTRL Cms REAR CTRL Cms DownSampling Off

Pink Noise: use the built in pink noise to adjust each channel output volume or verify if audio output quality is normal by adjusting the output volume during listening. Select among: Off (don't use pink noise), Left (left channel pink noise), Center (center channel pink noise), Right (right channel pink noise), Left surr (left surround channel pink noise), Subwoofer (subwoofer pink noise).

V-AVM651F

DRC: set the DRC (dynamic range control) for better playback for low volume playback: On (use bass to have a more dynamical audio), Off (normal playback).

CNTR CTRL: the time difference between center and front speakers. The time delay makes audio signal more accurate. Select the time delay: 0 ms (same time output with front speakers), 1 ms (1 millisecond delay), 2ms, 3ms, 4ms, 5 ms.

REAR CTRL: the time difference between rear and front speakers. The time delay makes surround effect more better. Select the time delay: 0 ms (same time output with front speakers), 3 ms (3 milliseconds delay), 6, ms, 9ms, 12ms, 15 ms.

Note: REAR CTRL may be adjusted only when center speaker is set as small or large.

Down Sampling: Select the mode: On (all the signals will be 48 kHz), Off (all the signals will be normal).

SPK configuration

Multi-Ch: set up the front speakers: Large (suitable for speakers with good bass output), Small (for speakers with bad bass output).

Stereo: set up the rear speakers: Large (suitable for speakers with good bass output), Small (for speakers with bad bass output), None (rear speaker is not employed).

SW: set up the subwoofer: Large (subwoofer is employed), None (subwoofer is not employed).

Center: set up the center speaker: Large (suitable for speaker with good bass output), Small (for speaker with bad bass output), None (center speaker is not employed).

V-AVM651F

Surround FX

Pro Logic II is a dramatically improved matrix surround system based on the original Dolby Pro Logic system. In the case of Pro Logic, there were four channels: front left, center and front right, plus a mono surround channel that was usually split between two rear speakers. Compared to DPL, DPL II offers two full-range stereo surround channels, more sophisticated steering logic, high channel separation and an exceptionally stable sound field. DPL II uses a simple servo circuits used to derive the five channels. And, unlike the synthetic Jazz club, Hall and Stadium modes found on many AV receivers, DPL II introduces no phony delay-induced echoes, reverb, or tonal coloration.

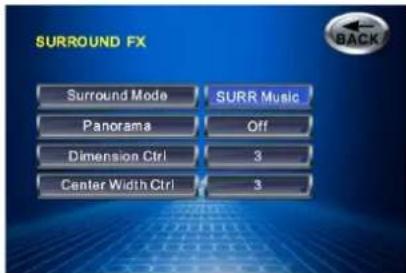

SURROUND FX Surround Mode SURR Music Panorama Off Dimension Ctrl 3 Center Width Ctrl 3

Surround mode: select the surround sound effect: Off ( playback as the original audio output), Surround I (using the DPL as the decoding method), Surr matrix (from mono output to surround effect), Surr movie (enhance movie surround effects), Surr music (surround music effects).

Panorama: extend the audio from the front to the rear to achieve a better audio surrounding effect. Panorama is available for adjustment only when Surround music mode is activated. Select the mode: On, Off.

Dimension Ctrl: adjusting the distribution the front and rear audio output to achieve a better balanced audio surrounding effect. Dimension control is available for adjustment only when Surround music mode is activated. Select the audio output shift between front and rear: 0, 1, 2, 3, 4, 5, 6.

Center Width Ctrl: the audio output from center may come directly from center speaker, or from left and right speakers - an illusion effect, or from all three speakers by adjusting the center width. Adjusting the central width provides a better balance of audio surround effect.

Center width control is available for adjustment only when Surround music mode is activated.

Select the audio output shift between front and center: 0, 1, 2, 3, 4, 5, 6.

Rating

This unit has the built in parental lock feature to prevent authorized persons to view restricted disc contents.

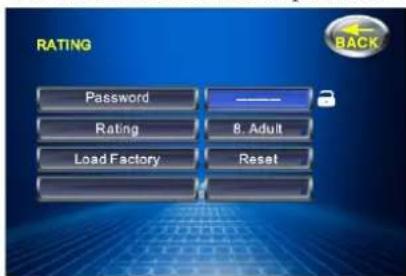

RATING Password Rating Load Factory 8. Adult Reset BACK

Password: first set the rating (in RATING setting). Then select the Password setting, press the numeric buttons on the RC to set the 4-digit password to protect the parental lock from being changed.

When the password is set enter the correct password into the field to release parental lock.

- the parental control is locked. - the parental control is unlocked.

To change the password first enter the correct password to unlock the parental control, then enter the new one.

Rating: when the parental control is unlocked set the rating: 1. Kid safe (with the most limit when playing), 2. G, 3. PG, 4. PG-13, 5. PG-R, 6. R, 7. NC-17, 8. Adult (with the least limit when playing).

When the rating is set go to PASSWORD setting and insert the password to lock the parental control.

Load factory: select RESET to restore the factory default. But Password and Rating will remain unchanged.

Other playback modes

AUX-IN mode

External AV devices can be connected with the unit through AUX IN function. For more details, please refer to “Electrical Connection” diagram. Press the SRC button on the panel or on the remote control repeatedly to switch to AUX IN mode, or press the left top corner of the display to open the source menu. Press the AUX IN button on the display or press PLAY/PAUSE button on the remote control to enter the AUX-IN mode.

MAIN MENU TUNER SD CARD NAV SETUP DVD AUX IN CAMERA

Rear view camera mode

A rear view camera can be connected to the unit. For more details, please refer to “Electrical Connection” diagram. Press the SRC button on the panel or on the remote control repeatedly to switch to CAMERA mode, or press the left top corner of the display to open the source menu. Press the CAMERA button on the display or press PLAY/PAUSE button on the remote control to enter the CAMERA mode.

Note: The front source will change to CAMERA mode automatically when you reverse the car.

NAVI mode

The suited navigation can be connected to the unit. For more details, please refer to “Electrical Connection” diagram. Press the SRC button on the panel or on the remote control repeatedly to switch to NAVI mode, or press the left top corner of the display to open the source menu. Press the NAVI button on the display or press PLAY/PAUSE button on the remote control to enter the NAVI mode.

Note: The NAVIGATION function is optional. Only navigation systems (not included) with appropriate cables can be supported by the unit.

Rear zone

If a monitor is installed in the rear seat and connected with the rear zone AV output of the unit, passengers at the backseats are able to enjoy a live entertainment and do multifarious playing control operations using the remote control for rear zone.

Press the R.SRC button on the rear remote control repeatedly to select one playing mode, or touch the left top corner of the screen to open the sources menu and then press the Multi-zone sensor button to enter source menu for the rear zone and select the needed mode.

Note: If you select STANDBY, the rear zone will be closed.

Handling and cleaning discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.

- Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).

- Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.

- DO NOT touch the unlabeled side. DO NOT attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Two-step illustration showing hand positioning of a mechanical component (no text or symbols)

V-AVM651F

Never use thinner benzene, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom	Cause	Solution
No power. The car ignition is	not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition button to “ACC”.Replace the fuse.
Disc cannot be loaded. Presence of disc inside the player.		Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.		Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound. Volume is in minimum.Wiring is not properly connected.		Adjust volume to a desired level.Check wiring connection.
The operation buttons do not work.	The built-in microcomputer is not operating properly due to noise.Panel is not properly fixed into its place.	Press the RESET button.Reinstall the panel.
Sound skips. The disc	is extremely dirty or defective.	Clean the compact disc/try to play a new one.

V-AVM651F

VARTA

The radio does not work.The radio station automatic selection does not work.

The antenna cable is not connected.The signals are too weak.

Insert the antenna cable firmly.Select a station manually.

Specification

General
Power supply: 12 V DC
Current consumption: max. 15 A
Maximum power output:	50 W x 4 channels
Compatible formats: DVD/SVCD/VCD/HDCD/MPEG4/MP3/WMA/CDDA/Picture-CD/JPEG
Supported disks: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/SD
Dimensions (L x W x H)/weight:	185 x 178 x 100 mm / 2.98 kg
Working temperature range:	-20°C - +70°C
ESP function: 40 sec. for Audio-CD, 120 sec. For MP3
TFT display
Screen diagonal: 6.5 inch
Resolution: 400 x 234
Aspect ratio: 16:9 or 3:4
Contrast ratio: 300:1
Brightness:	400 cd/m2
View angle: V: 90°, H: 120°
FM Stereo Radio
Frequency range: 65.0 – 74.0 / 87.5 –	108.0 MHz
Usable sensitivity: 20 dB uV
Preset memory stations:	18
AM section

V-AVM651F
VARTA

Frequency range: 522 kHz - 1620 kHz
Preset memory stations: 12
Audio specification
Output: 4 Vrms
Frequency response: 20 Hz - 20 KHz
S/N ratio(A-vtd): 75 dB
Line out
Output:	2 V

Specifications are subject to change without notice. Mass and dimension are approximate.

V-AVM651F

V-AVM651F MPIA WMA DVD MUTE SRC VOL MENU NAV WIDE INC TUNI CNC ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫

V-AVM651F

② ③ ④ FM-1 87.5MHz •ST •LOC P1 87.5MHz P4 87.5MHz ⑧ P2 87.5MHz P5 87.5MHz P3 87.5MHz P6 87.5MHz

V-AVM651F

Front: DVD Rear: AUX IN Dolby Digital By Pass

V-AVM651F
