USER MANUAL DBI243IBS ASKO

Front view of a gray appliance with a rectangular panel and two circular buttons (no text or symbols)

Contents

	2Your dishwasher	16Trouble
	3Safety instructions	19Techni
Before washing for the first time	4	20Installa
	5Loading the dishwasher	24ASKO
	8Using the dishwasher	24Informa
	12Settings	25Your no
	14Care and cleaning	28Quick g

Your dishwasher

Open the door and press the main power switch.

*Welcome to your ASKO. First time set-up.* is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4.

Main power switch Display Start/Stop I Eco 2:15 PROG Start/Stop Navigation buttons for selecting a program Option Delayed Start Option Extra Dry Program mode selector >> Speed mode C Night mode Child lock Top up rinse aid

• Read the operating instructions and keep them in a safe place!
  • Number of place settings: 14
• Never use the dishwasher for any purpose other than that specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with anything other than dishes.
• Never leave the dishwasher door open as someone may trip on it.
• Use only dishwasher detergent!
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Damaged mains cables must only be replaced by a qualified electrician.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Nor may dishes that contain ash, wax or lubricants be washed in the dishwasher.
• Children must be watched. Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open. Some detergent may remain inside! After adding detergent, always start the dishwasher immediately.

WARNING!

Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

WARNING!

Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open. Seek medical attention if swallowed.

Check that the detergent compartment is empty after completion of the wash cycle.

→ Activate child lock (Kid Safe™)

You can activate the child lock (button lock) to prevent children from starting the dishwasher. See the chapter Settings.

Installation

See the chapter Installation.

Winter storage/Transport

Store the dishwasher above freezing temperature and avoid long transport distances in very cold weather. Transport the dishwasher upright or laying on its back.

Overflow guard function

The overflow protection starts pumping out the machine and turns off the water supply if the water level in the dishwasher exceeds the normal level. If the overflow protection is triggered, turn off the water supply and call the service department.

Packing material

The packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of:

• Corrugated cardboard made from up to 100% recycled material.
- Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).

Disposal

The dishwasher is manufactured and labelled for recycling.

When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible.

Contact your local authority for information about where and how your dishwasher should be correctly recycled.

Before washing for the first time

1. Checking water hardness

Contact the local water utility to check the water hardness in your area. This is important with regard to how much detergent and rinse aid to use.

2. Basic settings

Open the door and press the main power switch.

"Welcome to your ASKO. First time set-up." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results.

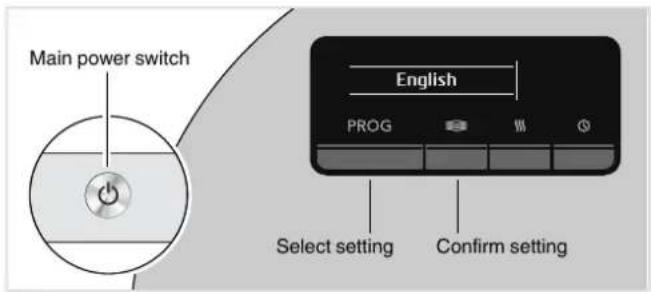

Main power switch English PROG Select setting Confirm setting

Settings

Language1.

Select the language to be shown on the display.

By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result with glassware and dishes.

Select rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage).

Pre-selectedatfactory:5

Topuprinseaid

Press to open

max

1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked max.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.

For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known as acid rinse aid).

Tochangethechosensetting,seethechapterSettings.

Greener dishwashing

Donotrinseunderrunningwater

Simply scrape off large food particles before loading the dishwasher.

Chooseagreendetergent

Read the environmental declaration on the packaging!

Runprogramsonlywithafullload

Wait to run a program until the dishwasher is full. This way you save energy. Use the Rinse & hold program to rinse the dishes if there are any unpleasant odours while you wait for the dishwasher to become fully loaded.

Runprogramsatalowertemperature

If the dishes are only slightly dirty, you can select a program with a low temperature.

SelectEco

Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.

This dishwashing program is designed for an effective wash using as little energy and water as possible. The program washes at a low temperature for a long time.

Openthodooralittleoncetheprogramhasfinished

Better drying results are achieved if you open the door a little once the program has ended. (If the dishwasher is built-in, the surrounding cabinets must be resistant to any condensation from the dishwasher.)

Connecttocoldwater

Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.

Connectiontohotwatersupply

Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption.

NOTE!

Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand high heat.

Fragile dishes

Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent.

Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.

Fragiledecoration

Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a dishwasher.

Crystal/Glass

By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result with glassware and dishes.

Hand-paintedglassware, as well as antique and very fragile items, should not bewashed in adishwasher.

Silver

Silver and stainless steel items should not come into contact, as the silver can become discoloured.

Aluminium

Aluminium can lose its shine if washed in a dishwasher. However, good quality aluminium pans can be washed in a dishwasher, even if some of the shine will be lost.

Cutlerywithgluedhandles

Some types of glue are not dishwasher safe. In such cases, the handles may loosen.

Points to consider

• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.
• Make sure small items cannot fall through the dishwasher basket; place them in the cutlery basket.

NOTE!

Check that the spray arms can rotate freely.

The dishwasher's baskets

The dishwasher is equipped with an upper basket and a lower basket with a cutlery basket.

Theappearanceofthebasketsmaydifferdependingonthedishwasher setup.

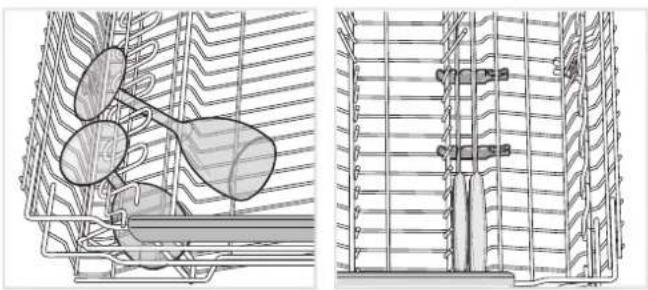

Upper basket

Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right.

Interior view of a multi-tiered kitchen appliance with circular components and a coiled spring (no text or symbols visible)

Technical line drawing of a mechanical component with internal components and grid structure (no text or symbols)

Lower basket

Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.

Place pots and pans in the rear right part of the lower basket to achieve the best dishwashing results from the rear of the two spray nozzles (WideSpray™), which are intended for these types of dishes.

Cross-sectional diagram of a multi-tiered kitchen appliance with no visible text or labels

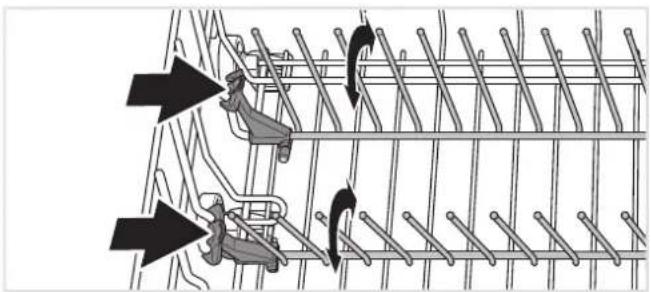

Foldabletines

Lower the foldable tines (plate supports) when washing pots and pans. Release the foldable tines by pressing the catch inwards before adjusting their position.

1) Height:max.25cm, Diameter:max.7.5cm

Diagram showing two workers installing or maintaining a grid-like structure with directional arrows (no text or symbols)

Washinglargeplates

Move the foldable lines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 25 cm.

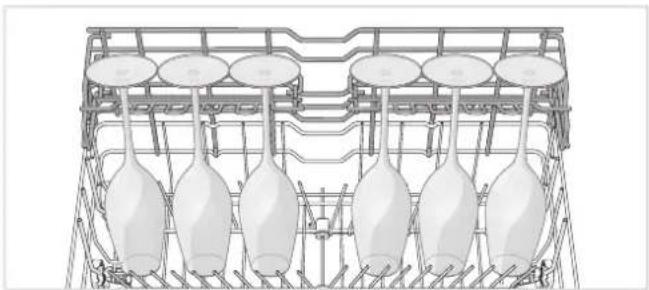

Accessory

Buy a wine glass shelf with space for six tall ^1) wine glasses. The wine glass shelf is designed to ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in the rear section of the lower basket. This accessory can be purchased by calling ASKO.

Illustration of a multi-tiered rack with six identical bottles, each mounted on a metal frame (no text or symbols visible)

Cutlery basket

Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. Ensure that spoons do not stack inside each other.

The cutlery basket is best placed in the middle at the front of the lower basket to achieve the best dishwashing performance from the unique spray nozzle (Power Zone Cutlery™), which is intended for the cutlery basket.

WARNING!

Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

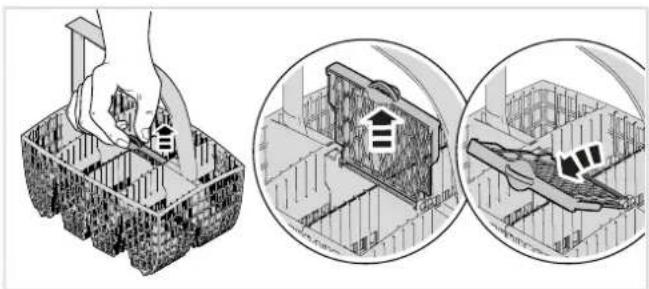

Fold-downsectionforsmallitems

The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments.

Illustration showing a hand placing a component into a container with arrows indicating movement, alongside two circular insets illustrating the same components (no text or symbols present)

Cutlerybasketwithlid

Technical illustration of a mechanical assembly with two views: top shows internal components, bottom shows a simplified structure (no text or symbols)

The cutlery basket lid can be removed and used, for example, as an extra cutlery basket in the upper basket (see below).

Technical line drawing of a structural framework with an inset magnified detail showing internal components (no text or symbols)

Accessory

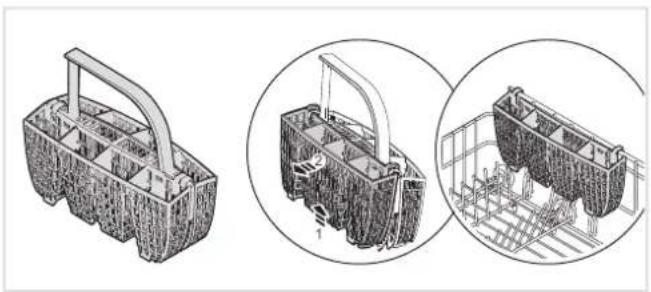

Buy an extra cutlery basket. The extra cutlery basket is flexible and can be dismantled and attached to the lower basket or the large cutlery basket to make an extra large cutlery basket. This accessory is available where you purchased your dishwasher.

Technical line drawings of a mechanical device with internal components and structural details (no text or symbols)

Using the dishwasher

Add detergent

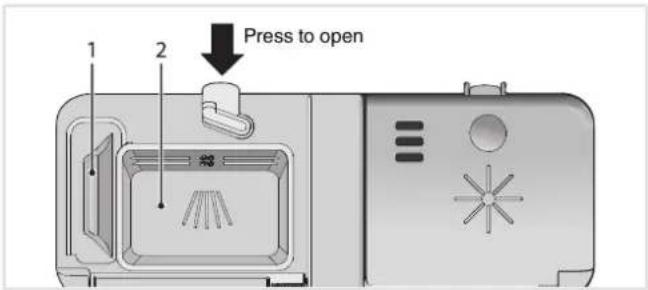

Press to open 1 2

1. Prewash detergent compartment
2. Main wash detergent compartment

Detergent is added according to water hardness.

Follow the instructions on the detergent packaging.

Too much detergent can result in less effective dishwashing and also entails greater environmental impact.

The detergent compartment must be dry when adding detergent. There is one compartment for the prewash and one for the main wash. If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the prewash compartment. Contact the detergent manufacturer if you have questions about the detergent.

NOTE!

Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effectively.

Dishwashertablets

Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly.

NOTE!

Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder or liquid dishwasher detergent instead.

All-in-onedetergent

There are many types of all-in-one detergents on the market. Read the directions for these products carefully.

NOTE!

Optimum washing and drying results are achieved by using normal dishwasher detergent together with separately dispensed rinse aid.

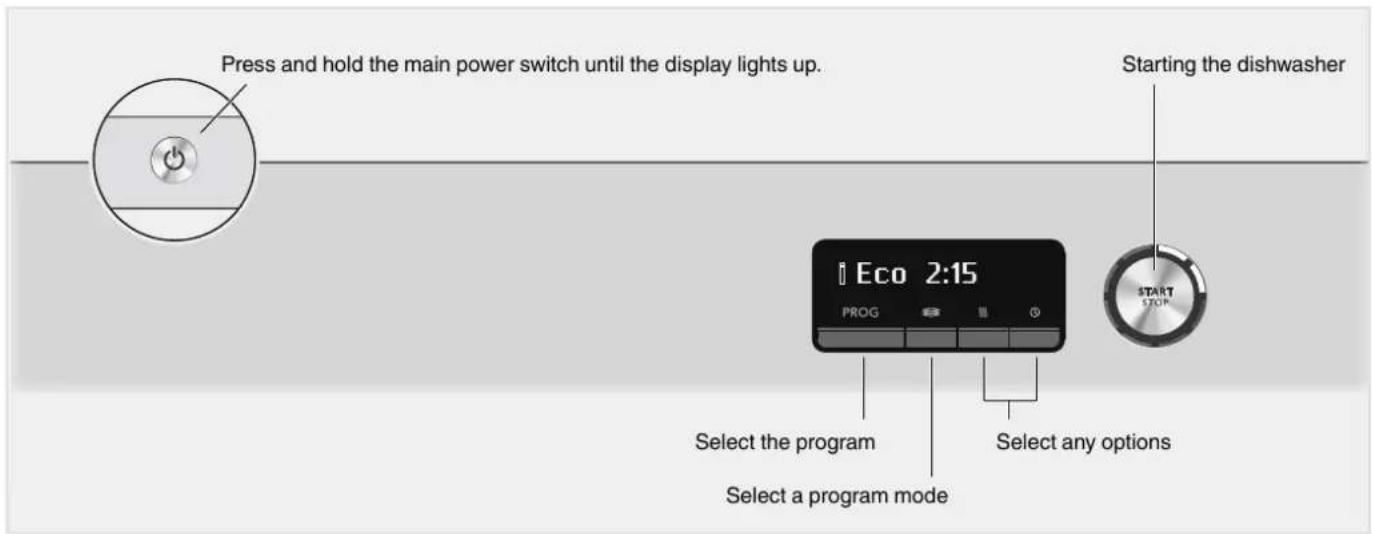

Press and hold the main power switch until the display lights up. Starting the dishwasher Eco 2:15 PROG START STOP Select the program Select any options Select a program mode

The main power switch

Open the door and press the main power switch. Close the door. Also turn on the water tap if it is turned off.

Select a program

To select a program, press the navigation button PROG the desired program is shown on the display.

Select a programme to suit the type of dishes and how dirty they are.

Eco Eco

Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.

You can read more about greener dishwashing in the chapter Loading the dishwasher.

Heavy

Use to wash normally soiled load, such as plates, serving dishes, cups, glasses and so on.

Timeprogram

The program adapts to the specified running time or finish time. With this program it is important to choose a time suited to how dirty the dishes are.

Slightly dirty dishes0:15-0:45

Normally dirty dishes1:00-1:30

Very dirty dishes2:00-2:30

Press the ⏻ option button to set the desired program time.

Rinse&hold

Used to rinse dishes while you wait for the dishwasher to become fully loaded.

Hyg Hygiene

This program is designed to meet strict hygiene demands.

Quick

A short program for slightly soiled dishes. (This program is not intended for burnt food, such as on oven dishes.)

Intensive

Program for very dirty dishes, such as pans, casserole dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and the like.

Select a program mode

To select a program mode, press the program mode selector until the desired mode is shown on the display. The available program modes vary between programs.

>> Speedmode

The program time is shortened, but the dishwasher uses more energy.

Nightmode

Lower noise level during the dishwashing program. The program time is extended.

Select an Option

To select an option, press the option button until the desired option is shown on the display. The available options vary between programs.

ExtraDry

A higher temperature in the final rinse and a longer drying cycle improve the drying results if you activate this option. Energy consumption is slightly increased.

DelayedStart

When you select Delayed Start, the dishwasher will start in 1-24 hours after you have pressed the button Start/Stop and closed the door.

1. Press the button once to activate Delayed Start. Press the button several times – or hold it in – to set the desired number of hours.
2. Press Start/Stop and close the door. The timer counts down and the dishwasher starts after the selected delay.

If you want to cancel the Delayed Start option, open the door then press and hold Start/Stop for three seconds.

START STOP Starting the dishwasher

Close the door properly, otherwise the dishwasher will not start. Press Start/Stop until the display shows "Program started".

If the dishwasher is not started within 2 minutes of the last button press, the machine switches off.

Time remaining

Once you have chosen a program, a program mode and options, the time the program took when last used is displayed.

Once you have started the dishwasher, the display shows the remaining program time. The remaining time is updated after the water for the final rinse has been heated.

This may differ somewhat from time to time depending on the temperature of the water supply, the amount of dishes, the ambient temperature and other factors.

During the first run of each program, the remaining time displayed can be slightly misleading, as the dishwasher is estimating the time. When you run the program a second time, the dishwasher will calculate the remaining time based on the previous duration of the program.

Stopping or changing a program

In order not to accidentally press a button and cancel the current program, you must press and hold Start/Stop for five seconds if you want to change programs after starting the dishwasher. Add more detergent if the lid of the detergent dispenser has opened. Then choose a new program and press Start/Stop.

If you want to load more dishes

Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while, the dishwasher continues the program.

If the dishwasher is turned off due to a power failure

If the dishwashing program was not finished, the interrupted program continues when power is restored.

NOTE!

During drying, the program is interrupted if the power is cut or the door is open for more than 2 minutes.

Once the program has finished

Once the program has finished, "END" appears on the display.

At the end of the program, you will hear a short beep. Chapter Settings describes how to change this function.

The dishwasher switches off automatically after the program ends. Turn off the water tap after each use.

How to get the best drying results

• Fully load the dishwasher.
- Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.
- Top up with rinse aid or increase the rinse aid dosage level.
- Activate the Extra Dry option.
- Activate the High temperature setting. See the chapter Settings.
- Activate the Extra Dry setting. See the chapter Settings.
- Open the door a little once the program has finished.
- Allow the dishes to cool before unloading the dishwasher.

Unloading the dishwasher

Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.

Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket.

Program chart

Program	Detergent, compartment 2 (ml)	/Option		MainwashPrewashesProgrammo ofrinses	FinalrinseNumber	Consumptionvalues 1)
						Coldwater 2)		Hotwater 3)		Watercons. (liter)
						Dishwashing time (approx. hrs:min)	Energy (approx.kWh)	Dishwashing time (approx. hrs:min)	Energy (approx.kWh)
Eco Eco4)										12.70.42:240.72:3548 °C346 °C225
										130.62:051.22:2565 °C260 °C225Heavy
Time program	25		0-2	<65 °C	2-3	<65 °C	0:15-2:30	0.5-1.6	0:15-2:30	0.4-1.2	11-19
Rinse & hold					1	--- °C	0:07	0.01	0:07	0.01	3
Hyg									25Hygiene		100.91:001.41:1070 °C270 °C
											150.91:201.41:3065 °C365 °C125Quick
											141.32:351.72:5570 °C270 °C225Intensive

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.
2) Connection to cold water, approx. 20^ C.
3) Connection to hot water, approx. 60 °C. (The hot water connection figures do not include the energy used to heat the inlet hot water before entering the dishwasher.)
4) The energy label performance figures are based on this program which is recommended for normally soiled load at the rated capacity. No options.

Settings

Open the dishwasher's Settings menu

To open the dishwasher's Settings menu, press the navigation button your selection using the mode selector .

until Settings menu is shown on the display and confirm

To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector

OptionsSettings

Language1.		EnglishAU/Svenska/Dansk/Norsk/Suomi/Nederlands/Français/Deutsch/Italiano/Pyccni/Espanol/Português/Sloven./Eesti/Latviešu/Lietuviu/Hrvatski/Polish/简体中文/繁體中文/日本語	You can choose the language used for the display.
		On/OffChildlock2.	You can activate the child lock (button lock) to prevent children from starting the dishwasher.To temporarily deactivate or activate the child lock, press and hold the mode selector and the option button Delayed Start for 3 seconds.
3. Display		Logotype On/OffContrast 1/2/3/4Prog. Info screen T/S	Setting to hide the logo shown on the display.For adjusting the contrast of the display.You can select which information is shown on the display.T-Text (Text) S-Symbol (Symbol)
4. Sound		Feedback 0/1/2/3Volume 0/1/2/3	This sound is used to confirm each button press.The buzzer indicates when a dishwashing program has ended.Error messages are always indicated by a loud buzzer.
5. Rinseaid		0/1/2/3/4/5	Setting for rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage).Increase the rinse aid dosage:If the dishes have water marks.Decrease the rinse aid dosage:If the dishes have a sticky white/blue film.If the dishes are streaked.Build-up of foam. If you have very soft water, the rinse aid can be diluted 50:50 with water.
6. Super rinse		On/Off	Super rinse adds two extra rinses.Activatedin thefollowing programs:HeavyIntensive
		OptionsSettings
		On/OffHightemperature7.	Activate the setting High temperature to improve the dishwashing results. Energy consumption is slightly increased.Activatedinthefollowingprograms:HeavyIntensive
	Exit		To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector ≈.

Care and cleaning

Top up rinse aid

When the rinse aid needs topping up, the above symbol lights on the display.

Press to open

max

1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked max.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.

After topping up, it may take a while before the symbol goes out.

NOTE!

For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known as acid rinse aid).

Coarse filter

The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter when necessary.

Coarse filter

1. Lift the coarse filter by the handle.
2. Empty the coarse filter. Remember to refit it!

Fine filter

Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine filter when necessary.

Fine filter

1. Turn the handle anticlockwise.
2. Lift the filter straight up using the handle. Free the coarse filter to clean the fine filter.
3. Refit in reverse order. Check that the edges seal properly when refitting the fine filter.
4. Lock the filter in place by turning the handle clockwise to the stop position. The handle should point straight out from the dishwasher.

NOTE!

Diagram of a mechanical or electrical component with curved arrows indicating rotation or direction (no text or symbols)

Dishwashing results may be affected if the filters are incorrectly fitted. Note that the dishwasher must not be used without the filters in place.

NOTE!

Technical diagram of a mechanical component with cross-sectional view (no text or labels)

Check that the coloured stop on the right in the bottom drain is in place.

Spray arms

Holes and bearings can sometimes become blocked. Remove any debris using a pin or something similar. The spray arms also have holes on their undersides.

Mechanical component with three black arrows pointing to a curved metallic part (no text or symbols visible)

To facilitate cleaning, you can remove the spray arms. Remember to fit them firmly back into place after cleaning.

Uppersprayarm

- The upper basket must be removed before the upper spray arm can be released. Pull out the upper basket and turn the basket catch on each runner outwards (see illustration). The basket can now be removed.

Technical diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

- Pull the upper spray arm straight up to release it.

Lowersprayarm

• Pull the lower spray arm straight up to release it.

Mechanical assembly diagram showing a rotating blade mounted on a base with an arrow indicating motion (no text or symbols present)

The door and the door seal

Regularly clean the sides of the door and the door seal. Use a slightly damp cloth (with a little cleaner if necessary).

Front panel

Keep the buttons clean and free from grease. Wipe them clean with a dry or slightly damp cloth. Never use cleaners – they can scratch the surface. Use the main power switch to turn off the dishwasher before cleaning the buttons to avoid activating any buttons unintentionally.

The dishwasher tub

The dishwasher tub is made of stainless steel and is kept clean through normal use.

Limescaledeposits

If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the Intensive program with two tablespoons of citric acid in the detergent compartment (with no dishes in the machine). Special dishwasher cleaners are also available on the market.

Unblocking the drainage pump

If the dishwasher still contains water after the programme has finished, something may be blocking the drainage pump. Such items are easily removed.

1. Turn off the machine using the main power switch and unplug it from the wall socket.
2. Remove the coarse filter and the fine filter.
3. Scoop out the water from the dishwasher tub.
4. In order to inspect the drainage pump, remove the coloured stop on the right in the bottom drain.
5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any items.

6. Refit the drainage pump stop along with the fine and coarse filters.

7. Plug the machine in again.

If the dishwasher still does not start and a whirring sound is heard, the overflow protection has been activated.

• Shut off the water.
• Remove the plug from the wall socket.
• Call the service department.

Drainage pump stop

NOTE!

Do not forget to refit the drainage pump stop.

Unblocking the inlet hose filter

If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in Water inlet fault.

1. Turn off the machine using the main power switch and unplug it from the wall socket.
2. Turn off the water tap.
3. Unscrew the inlet hose.
4. Carefully remove the outer filter from the inlet hose and clean it.
5. Refit the filter and check that the gasket is correctly positioned.
6. Screw the inlet hose firmly into place.
7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for a while and check that the connection is watertight.

Outer filter on inlet hose Gasket

		ActionTypeoffaultonthedisplay
	Overfilling water 1F10	Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department.
	Water outlet faultF11	See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department.
	Water inlet faultF12	Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure limiting valves may restrict the supply of water to the dishwasher).Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call for service.
F40	Inlet valve leakage	Turn off the water tap and call the service department.
	Water level faultF52	Clean the coarse and fine filters. Check that the outer filter on the inlet hose is not blocked. If the problem persists, call the service department.
F54	Overfilling water 2	Turn off the water tap and call the service department.
F56	Circ. pump fault	Call the service department.

Press any button to clear the error message.

		ActionPossiblecausesProblem
Pressing the main power switch has no effect.	The door is closed.	Open the door. The main power switch only works when the door is open.
The buttons do not react when pressed.	You have pressed the buttons too soon after opening the door.	Wait a moment then try again.
	Child lock (button lock) activated.	See the chapter Settings.
	The buttons are dirty.	Clean with a dry or slightly damp cloth.
Cannot close door.	The baskets are not correctly positioned.	Check that the baskets are correctly positioned horizontally.
		Check that the dishes are not blocking the baskets from sliding properly into place.
The dishwasher does not start.	The Start/Stop start button has not been pressed for long enough.	Press and hold Start/Stop until the display shows "Program started".
	The door is not properly closed.	Check.
	You have opened the dishwasher to add more dishes while a program is in progress.	Close the door and wait. After a while, the dishwasher continues the program.
	A fuse/circuit breaker has been tripped.	Check.
	The plug is not plugged into the wall socket.	Check.
	The water tap is turned off.	Check.
	Overflow/leaks	Check.
	A whirring sound (the drainage pump) is heard from the dishwasher and does not stop when the main power switch is turned off.	Turn off the water tap. Pull out the plug and call the service department.
	Check that the Delayed Start option has not been selected.	Press and hold Start/Stop for three seconds if you want to cancel the Delayed Start option.
The dishes are not clean.	The spray arms do not rotate.	Check that the dishes are not blocking the spray arms.
	Spray arm holes or bearings blocked.	Clean the spray arms. See Chapter Care and cleaning.
	Unsuitable dishwashing program.	Choose a longer programme.
	Incorrect detergent dosage.	Dose according to water hardness. Far too much or far too little detergent results in poorer dishwashing results.
	Old detergent. Detergent is a perishable product.	Avoid large packages.
	Dishes loaded incorrectly.	Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets.
	Glasses and cups have toppled over during the program.	Place dishes to sit steady.
	The filters are not fitted correctly.	Check that the filter handle is locked in the stop position. The handle should point towards the back of the dishwasher.
	Drainage pump stop missing.	Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning.
Spots on stainless steel or silver.	Some foodstuffs, such as mustard, mayonnaise, lemon, vinegar, salt and dressings, can mark stainless steel if left for too long.	Rinse off these types of foodstuffs if not starting the dishwasher immediately. Use the Rinse & hold program.
	All stainless steel can cause spots on silver if they come into contact during dishwashing. Aluminium can also cause spots on dishes.	In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver, stainless steel and aluminium.
Spots or films on the dishes.	Incorrect rinse aid dosage setting.	See the chapter Settings.
	Too high temperature and/or too much detergent can cause etching on crystal. Unfortunately, this cannot be repaired, only prevented.	Wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer.
The dishes have a sticky white/blue film.	Rinse aid dosage setting too high.	Reduce the dosage. See the chapter Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water.
Spots left after washing.	Lipstick and tea can be difficult to wash off.	Use a detergent with a bleaching agent.
Detergent residue in the detergent compartment after dishwashing.	The detergent compartment was damp when adding detergent.	The detergent compartment must be dry when adding detergent.
	The detergent compartment is blocked.	Check that the dishes are not preventing the detergent compartment from opening.
Rattling sound when dishwashing.	The dishes are not correctly placed or the spray arms are not rotating.	Check that the dishes are placed securely. Spin the spray arms to make sure they can rotate.
1 minute appears in the display.	The program is taking longer than estimated.	No action. The programme time is stored and next time the programme is run the corrected time will be displayed.
Water remains in the dishwasher.	The filters are blocked.	Clean the coarse and fine filters.
	The filters are not fitted correctly.	Check that the filter handle is locked in the stop position. The handle should point towards the back of the dishwasher.
	Debris in the drainage pump.	Clean the drainage pump. See the chapter Care and cleaning.
	Drainage pump stop missing.	Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning.
	Kink in drainage hose.	Check that the hose is free from kinks and sharp bends.
	Blocked drainage hose.	Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diameter of at least 14 mm.
Bad odour in dishwasher.	Dirt around the seals and in corners.	Clean with washing-up brush and low foaming cleaner.
	Low temperature programs have been selected for a prolonged period.	Run a program with a higher temperature once or twice a month.
The dishes are not dry enough.	Depending on the load, the programme's drying cycle may be insufficient.	Activate the Extra Dry option.
	The dishwasher is not fully loaded.	Fully load the dishwasher.
	Rinse aid needs topping up or dosage is set too low.	Top up with rinse aid or increase the rinse aid dosage level. See the chapter Settings.
		Open the door a little once the program has finished.

Information on energy labelling

Energylabelling

AS/NZS 2007 Australian standard:

14Number of place settings:

Eco ^1) , no optionsDishwashing programs:

2:35 hours:minutesProgram time:

Cold water 20 °CConnection:

Test method for noise measurement: IEC 60704-2-3

1) This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirtydishesandisthemosteeffectiveprogramintermsofcombinedenergyandwaterconsumption.

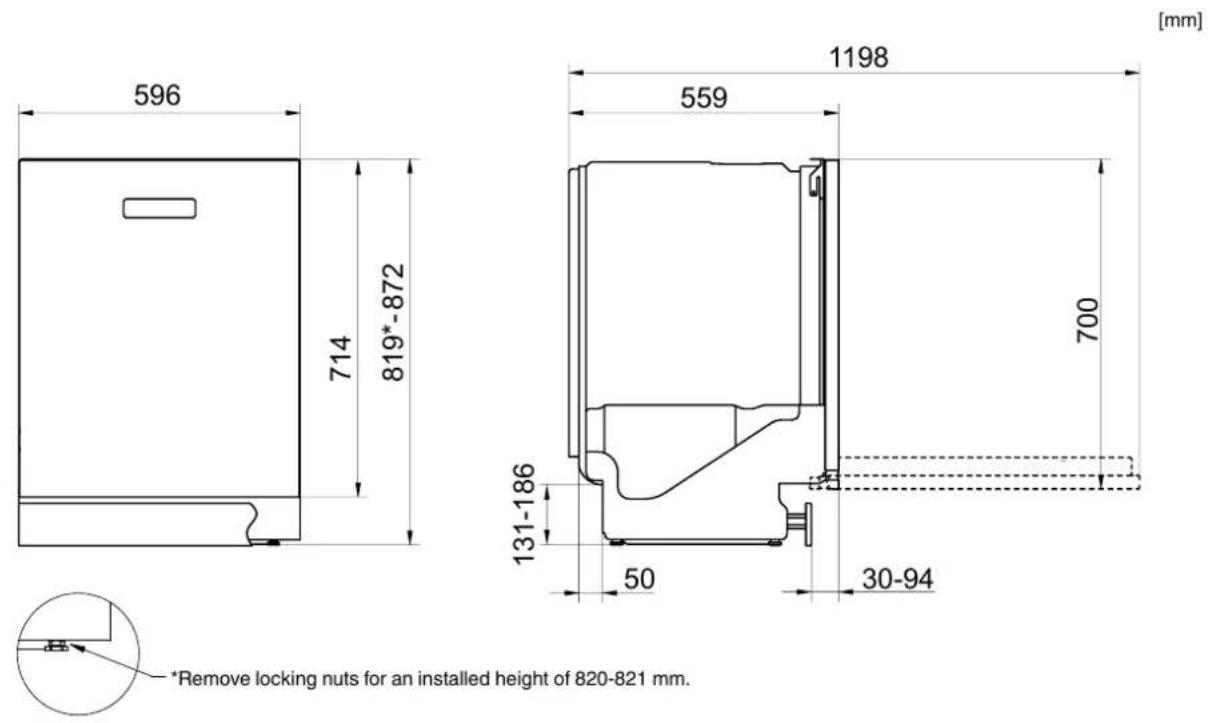

Technical data

819-872 mmHeight:

596 mmWidth:

559 mmDepth:

Weight: 45 kg ^1)

0.03–1.0 MPaWater pressure:

See compliance plateElectrical connection:

See compliance plateRated power:

1) Weightcanvaryduetodifferentspecifications.

Nominal dimensions. Actual measurements may vary.

Safety instructions

• Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
  • Take care during installation! Wear protective gloves! There must always be two people!
• Before screwing the dishwasher into place, test the dishwasher by running the Rinse & hold program. Check that the dishwasher fills with water and drains. Check also that none of the connections leak.

WARNING!

Turn off the water supply when installing the dishwasher!

The plug must be disconnected or power to the socket turned off while the work is carried out!

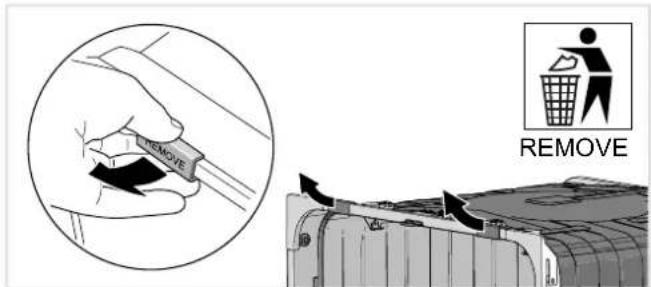

Transport protection for the door

Do not forget to remove the transport protection for the door when unpacking the dishwasher.

REMOVE REMOVE

Placing the dishwasher

The dishwasher can be installed built-in, completely freestanding or partially built-in.

A.Built-in

The dishwasher is intended for installation under a worktop. The recess dimensions are illustrated. Holes for wires/cables need not be larger than 38 mm in diameter. Make sure the edges of such holes are even to prevent damage to the drainage and inlet hoses and the power cable.

820-875 >560 600 131 50 Ø 38 [mm]

If the dishwasher is built-in the surrounding cabinetry must be resistant to any condensation from the dishwasher.

B.Freestanding

A freestanding dishwasher must be fitted with anti-tip brackets. This comprises two brackets, which are screwed into place as illustrated.

The dishwasher is then pushed in so that the brackets engage the rear feet. Now the dishwasher will not topple if pressure is put on the open door. If the dishwasher is installed completely on its own, side panels and a worktop must both be fitted. Accessories can be purchased where you bought the dishwasher.

413

WARNING!

A completely freestanding dishwasher must be fitted with anti-tip brackets.

C. Partiallybuilt-in

If the dishwasher is located so that one of its sides is visible, a side panel must be fitted. Accessories can be purchased where you bought the dishwasher.

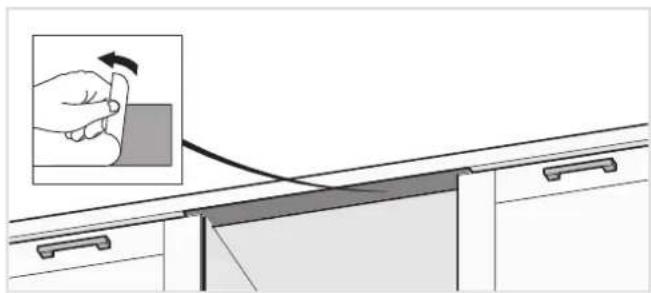

Affix the protective film

Attach the protective film (packed in the document bag) to the underside of the worktop. The protective film is to protect the worktop from moisture.

NOTE!

The surface to which the protective film is affixed must be clean and dry.

Diagram showing a hand holding a rectangular object above a cabinet, with an inset magnified view of the handle (no text or symbols present)

Adjust the height and slide the dishwasher into place

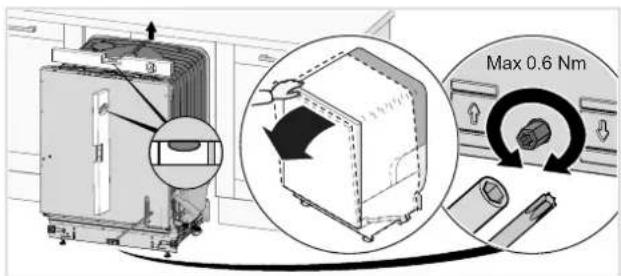

1. Start by measuring the height from the floor to the bottom edge of the worktop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Lean the dishwasher forwards a little and adjust the rear foot with the screw at the front of the dishwasher. Turn clockwise to lower or anticlockwise to raise.

4.

Max 0.6 Nm

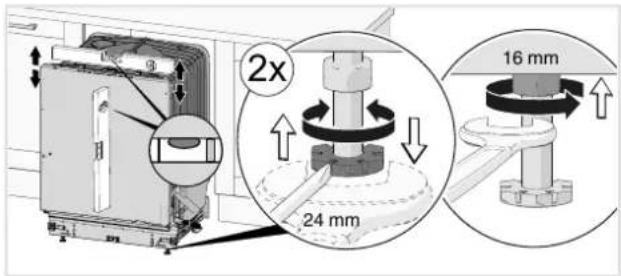

1. Adjust the front feet by turning them clockwise to raise and anticlockwise to lower the dishwasher.

2x 24 mm 16 mm

1. Check that there is an air gap of at least 3 mm between the underside of the worktop and the top edge of the dishwasher.
2. Slide the dishwasher into place.

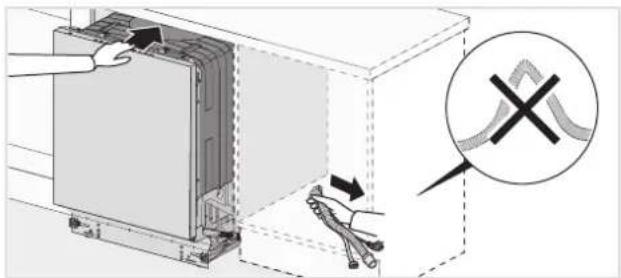

- Pull through the drainage and supply hoses when the machine is slid into place.

- Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage the hoses.

Diagram illustrating a mechanical assembly or mounting process with labeled components and a magnified cross-section view.

1. Make any final adjustments to the feet (the dishwasher may lean no more than 5 mm) and tighten the lock nuts on the front feet.

Drainage connection

This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height). This means that the dishwasher can be placed so that the drainage hose runs to a lower level than the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted with an integrated anti-siphon device to prevent the machine from being emptied of water during the wash cycle.

Technical line drawing of a kitchen sink with pipes and fixtures (no text or symbols)

min. 14 mm

Pure diagram of a pipe with a coiled tube and a cylindrical connector, no text or symbols present

Technical line drawing of a mechanical component with two cylindrical parts, one showing internal features and the other a curved handle (no text or symbols)

Max. 950 mm

The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 14 mm.

The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose must not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm. However, the drainage hose should ideally be replaced with a new hose without joins.

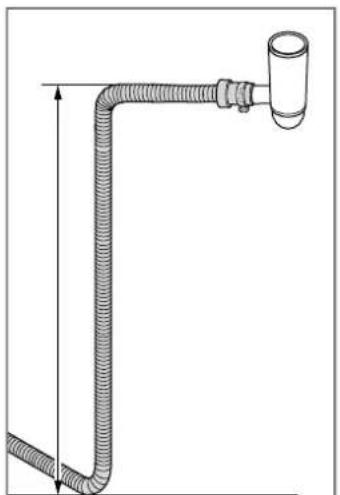

No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.

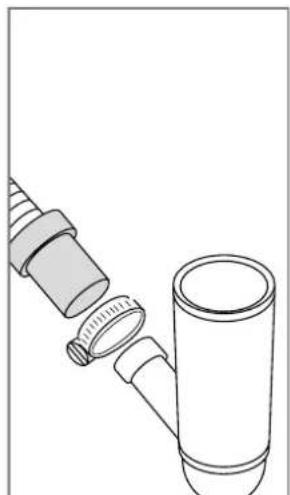

Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.

Connection to water supply

Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.

The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible, so that the water can be shut off if the dishwasher has to be moved.

Once the installation is complete, turn on the water tap and allow the pressure to settle for a while. Check that all connections are watertight.

Connectiontocoldwatersupply

Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.

Connectiontohotwatersupply

Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption.

NOTE!

Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.

NOTE!

The water pressure must be between 0.03 and 1.0 MPa.

Connecting a dishwasher to the water supply via certain types of pressure limiting valves may restrict the water supply! This may cause the error message "Water inlet fault" to be displayed.

If the water pressure is higher than 1.0 MPa a pressure limiting valve must be fitted.

Electrical connection

Information about the electrical connection can be found on the compliance plate. This specification must match the electricity supply.

The dishwasher must be connected to an earthed wall socket.

The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord!

NOTE!

Repairs and maintenance must be carried out by a qualified professional.

Screwing the dishwasher into place

(Applicable only to built-in dishwashers.)

Technical diagram showing a door opening with circular components and a magnified inset of a mechanical component (no text or symbols)

After fastening the machine, check that the front feet still touch the floor.

Screwthedishwasherintoplacewithtwoextrascrews

If there is an air gap of more than 3 mm between the underside of the worktop and the top of the dishwasher, the dishwasher should be screwed into place with two extra screws.

KNOCK OUT 2x

Dishwasher kick panel

The dishwasher is supplied with a kick panel.

3D rendering of a rectangular metal tray or shelf with cutouts and side edges (no text or symbols)

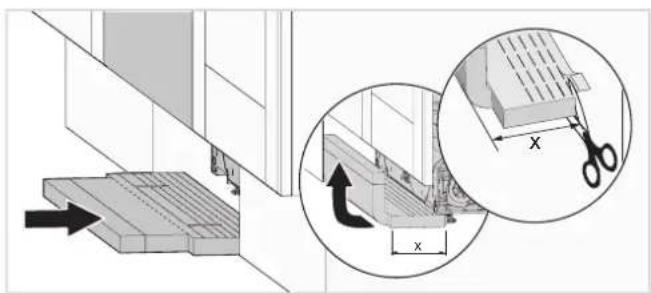

Installthesoundinsulation

(only certain models)

Technical diagram showing a door mechanism with a magnified inset illustrating the process with scissors and coordinate axes.

Installthekickpanel

2x

ASKO Service

Information for test institute

Information about your product

There is a QR code on the compliance plate. Scan the code to view information about your product.

Contact the service department

Read the chapter Troubleshooting before contacting the service department. If you have encountered a problem that you cannot resolve, please contact your nearest dealer, see www.asko.com.

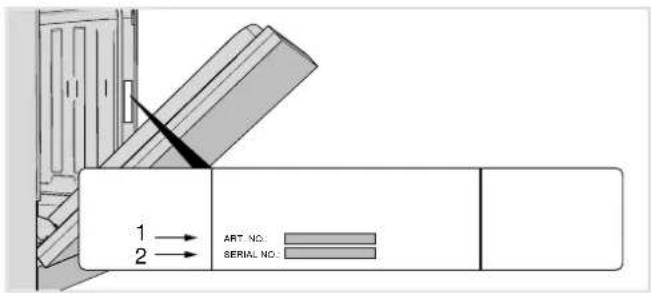

When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2).

1 2 ART. NO. SERIAL NO. QR code

Request test institute information via e-mail [e-mail].

The request should include the details on the product's serial number plate. Include the article number (1) and the serial number (2).

1 → 2 → ART NO. SERIAL NO.

Your notes

Your notes

Your notes

Quick guide

1.

Cross-sectional diagram of a mechanical or electrical component with layered components (no visible text or symbols)

Load the baskets

(See page 5.)

Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher.

2.

Mechanical component diagram showing a rotating shaft and housing with circular motion arrows (no text or symbols)

Check that the spray arms can rotate freely

Check also that the water tap is on.

Don't forget! Empty the coarse filter and clean the fine filter when necessary. (See page 14.)

3.

Illustration of a printer with a screen and antenna (no text or symbols)

Add detergent

The detergent compartment has one smaller compartment for the prewash and one for the main wash. (See page 8.)

4.

Open the door and press the main power switch, close the door

5.

Check/Add rinse aid

Use rinse aid to achieve good washing and drying results. (See page 4.)

Refill rinse aid indicator.

6.

PROG

Select a program, a program mode and any options

(See page 9.)

7.

START STOP

Press Start/Stop
