USER MANUAL Kick Panel RetroSound

Kick Panel

Installation Guide

The information enclosed in this installation guide is intended to provide a general outline to assist you during the process of installation. This guide does not cover every installation possibility, vehicle, or aspect of the installation process.

Retro Manufacturing, LLC, or its subsidiaries assume no responsibility for proper or improper installation. Every attempt has been made to make this installation guide as informative as possible. This guide may be updated from time to time, and specifications are subject to change without notice. Please check our website (www.retromanufacturing.com) for the latest updates.

Line drawing of a classic 19th-century sports car (no text or symbols)

INSTALLATION

Thank you for purchasing RetroSound® Kick Panels. RetroSound® Kick Panels are expertly molded for a perfect fit. The speaker mounts are angled to direct sound upwards towards the listener for better stereo imaging.

Precautions

It is best to consult a professional installation specialist to help with your installation.

Important Installation Guidelines:

• Carefully read and understand the instructions before attempting installation.
• Always disconnect the negative (-) battery terminal before beginning any work. Failure to do so may result in damage to the unit, fire, injury, or death.
• Use high-quality connectors to prevent fire or damage to the unit.
• Carefully check the installation area before drilling to ensure you won't drill into the gas tank, fuel lines, brake lines, hydraulic lines, vacuum lines, or electrical wiring.
• Never run the speaker wires underneath the vehicle.
• Avoid running speaker wires over sharp edges and use rubber grommets to protect wires when routed through metal panels.

Step #1 Remove Existing Kick Panels

Remove the existing kick panels by removing any screws or press clips holding the panels in place. It may be necessary to remove the rubber door seal first to remove the kick panels.

Step #2 Route Speaker Wires

Route the speaker wires before installing your speakers. Always avoid sharp edges that could fray or cut the wiring and use rubber grommets to protect the speaker wires that need to be routed through metal. For the best quality connection and to minimize signal loss, always use high-quality connectors. Never run wires outside the vehicle.

Step #3 (Optional) Cut Speaker Holes

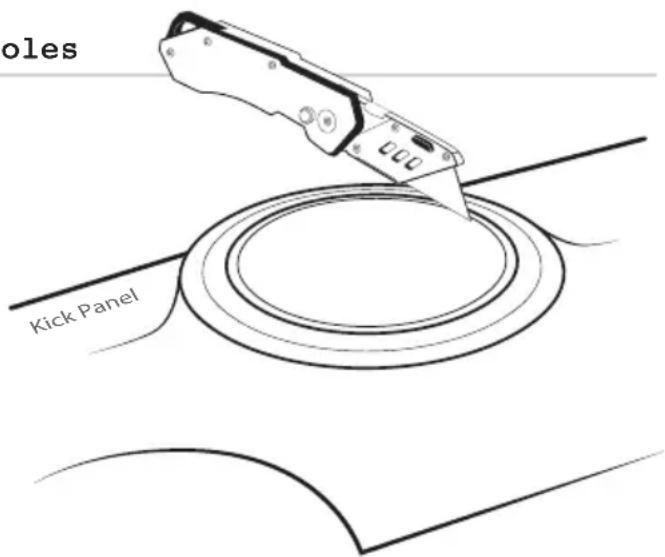

If you are using larger speakers, you will need to enlarge the speaker opening in the kick panels. Use a speaker grill ring as a template to mark the size of the space required and the locations for the speaker's mounting screws. Use a razor knife or Dremel tool to carefully enlarge the opening and a 1/8-inch drill bit to drill the mounting holes.

oles Kick Panel

Step #4 Mount Kick Panels

Mount the new kick panels using the fasteners from the factory kick panels. You may need to drill new mounting holes in the kick panels before mounting.

Kick Panel

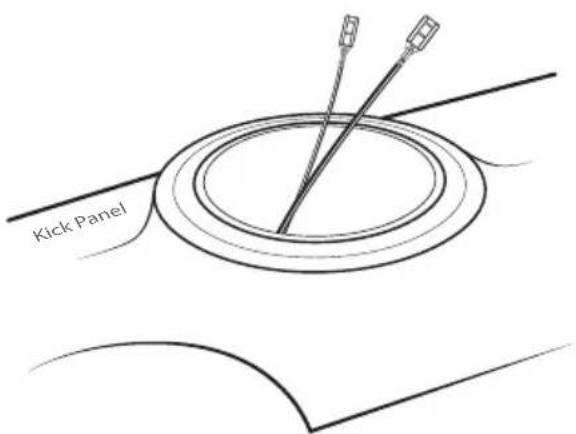

Feed the speaker wires through the speaker opening and connect to the speaker terminals.

RetroRadio Positive NEGATIVE

Connect the negative wire to the negative (-) speaker terminal and positive to the positive (+) speaker terminal.

TIP: How to Remove Speaker Grills

To remove speaker grills either pull up on the grill's ring (Type A) or push down on the grill's ring (Type B).

Two views of a speaker cover showing top and side views with arrows indicating motion (no text or symbols)

Two views of a mechanical component with circular parts and mounting holes, showing internal structure (no text or symbols)

Type B: Push down to removeType A: Pull up 1

Step #6 Mount the Speakers

Kick Panel

Fit the speaker into the cutout and secure it using the supplied screws. If needed, place a speed clip over each drilled hole before mounting the speaker. (Some models may require placing the grill base before placing the speaker.)

Simple curved line drawing without any text, numbers, or symbols

Step #7 Complete the Installation

Tighten all screws until the speaker is snug and in place to prevent rattling. Be careful not to overtighten the screws. Complete the installation by placing the grill (if included) over the installed speaker.

Kick Panel

Simple curved line drawing without any text, numbers, or symbols

IMPORTANT: RetroSound® Kick Panels are designed to be modified to fit your particular mounting requirement. However, once modified, they are not covered by this warranty. Therefore, verify the speaker/vehicle fit before modification or installation.
