USER MANUAL BP64S BAUMATIC
INSTRUCTIONS FOR THE INSTALLATION AND USE OF BUILT-IN &2 2 . 72 3
Baumatic
MODEL: BP64S
MODEL: BP75S
MODEL: BP95S
Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For example, should you want to learn more about recommended cooking temperatures, the various cooking functions available, how to set and program your LED clock, and importantly taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to familiarize yourself with the installation and operation requirements of your appliance to ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look forward to being of service to you.
Kind regards
Management
Think Appliances
GENERAL NOTICE
We invite you to read this instruction booklet carefully, before installing and using the equipment.
It is very important that you keep this booklet together with the equipment for any future consultation.
If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that they can learn how to operate the appliance and read the corresponding notice.
This is a Class 3 appliance.
This appliance complies with the following Directives:
EEC 2009/142/CE (Gas) EEC 2004/108/CE (Electromagnetic Compatibility)
EEC 2006/95/CE (Low Voltage) EEC 89/109 (Contact with foods)
WARNING
– The installation must be carried out by authorised personnel, in conformity with the regulations in force.
- CAUTION: The surface temperature of underbench components exceeds 95^ . To avoid a hazard, underbench access must be restricted. Refer to the installation instructions.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
–Before powering the equipment, check that it is properly adjusted for the type of gas at disposal (see the “installation” paragraph).
- If the supply cord is damaged it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
–Before carrying out the maintenance or cleaning the equipment, cut off power supply and allow it cool down.
– Make sure that air circulates around the gas equipment. Insufficient ventilation produces a lack of oxygen.
–In case of an intense or prolonged use of the equipment, it may be necessary to improve aeration, for example by opening a window or increasing rangehood venting power, if it exists.
– The products of combustion must be discharged outside through a suction hood or an electric fan (see the “installation” paragraph).
- For any possible operation or modification, apply to an authorized Technical Assistance Centre and demand original spare parts.
- Where this appliance is installed in marine craft or in caravans, it shall not be used as a space heater.
- Not for use in marine craft, caravans or mobile homes unless each burner is fitted with a flame safeguard.
- Do not spray aerosols in the vicinity of the appliance while it is in operation.
- Do not store or use flammable materials or items in the vicinity of this appliance.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorised personnel.
The product label, with the serial number, is fixed to the underside of FRRNWS.
An additional label should be adhered to adjacent cabinetry for easy access- refer installation instructions.
The manufacturer refuses all responsibility for possible damages to things or people, resulting from incorrect installation or from an improper, incorrect or unreasonable use of this equipment.
INSTRUCTIONS FOR THE USER
It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by authorised personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer.
Conditions of Use.
This appliance is intended to be used IRU□GRP HVWLF□□□KRXVHKROG□XVH□RQ0\ □7KLV□DSSOLDQFHV□LV□QRW□WR□EH□XVHG□IRU□FRP P HUFLDO□SXUSRVHV□
USING THE BURNERS

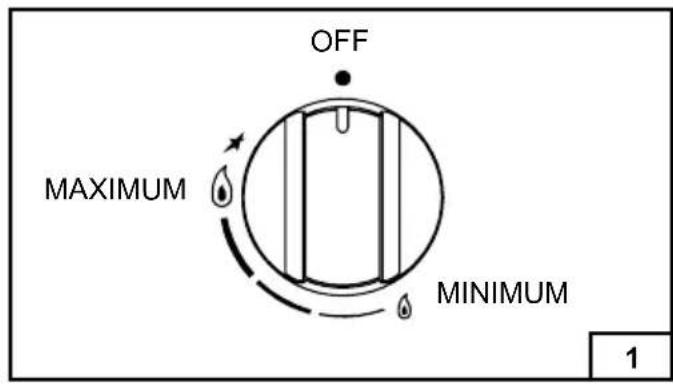

The silk-screen V\ P ER ^0 printed on the side of the knob indicate the correspondence between the knob and the burner.
Automatic start-up with valves
Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig. 1) and press the knob.
Once the burner has been started up, keep the knob pressed for about 6 seconds.
ATTENTION: the triple ring burner switches on only RQ the maximum flame position
Using the burners
In order to obtain the maximum yield without waste of gas, it is important that the diameter of the pot is suitable for the burner potential (see the following table), so as to avoid that the flame going out (fig. 2□□SDJH□□).
Use the maximum capacity to quickly make liquids reach boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.
The gas supply can be interrupted by turning the knob clockwise up to the closing position. If there is no power supply, it is possible to light the burners with matches, setting the knob to the start-up point (large flame, fig. 1□□SDJH□□).
| BURNERS | Power (MJ/h) | ∅ of cookware (*) | |
| NG LPG | |||
| Auxiliary 3,4 3,4 | 10 - 14 cm | ||
| Semi-rapid 6,3 | 5,6 16 - 18 cm | ||
| Rapid 11,5 9,6 | 20 - 22 cm | ||
| Triple crown 13 | 0 12,0 24 - | 26 cm | |
| Double crown | 10,3 9,6 24 - | 26 cm | |

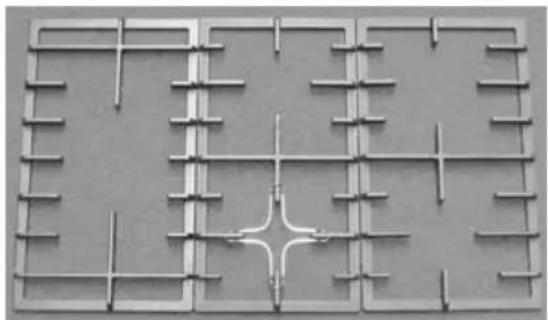

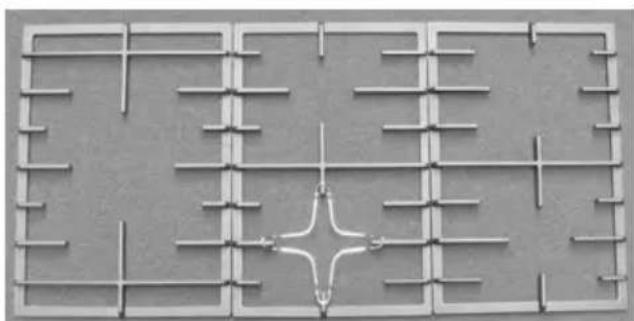

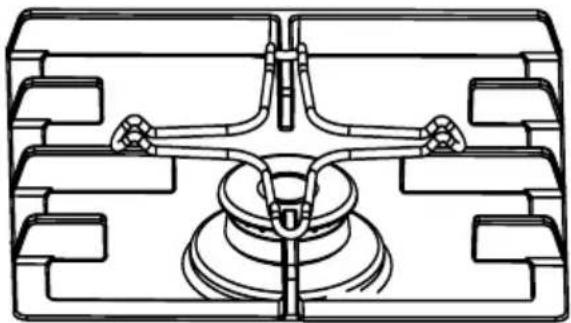

(*) For cookware with diameter 120mm or below use mini-trivet supplied, refer fitment instructions on page 13.
It is important to use cookware with the sizes specified and ensure the cookware is always correctly centred over the burner. Using oversize cookware can potentially cause heat damage to your benchtop and/or control knobs which will not be covered under warranty.
Notice
- When the equipment is not working, always check that the knobs are in the closing position (see fig.1□□SDJH□□).
- If the flame should blow out accidentally, the safety valve will automatically stop the gas supply, after a few seconds. To restore operation, set the knob to the lighting point (large flame, fig. 1) and press.
- While cooking with fat or oil, pay the utmost attention as these substances can catch fire when overheated.
- Do not place unstable or deformed pots on the burner, so as to prevent them from overturning or overflowing.
- Handles should be turned away from the front of the bench to avoid accidents.
- When the burner is started up, check that the flame is regular and, before taking pots away, always lower the flame or put it out.
INSTRUCTIONS FOR THE USER


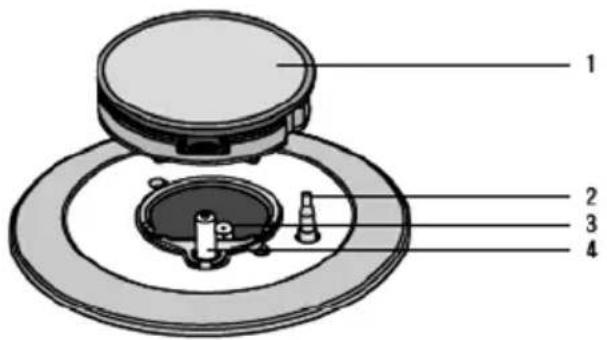

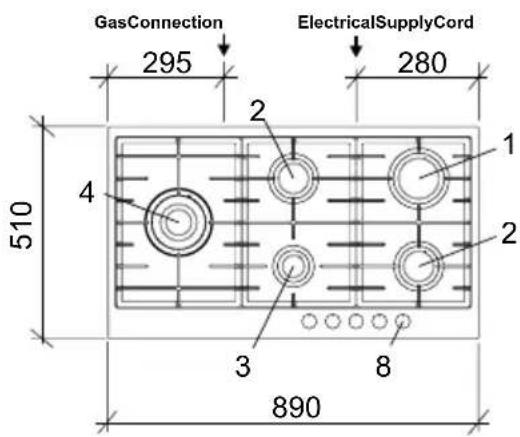

1 2 3 41 Burner
2 Flame safeguard sensor (where fitted)
3 Injector
4 Ignition spark plug
If you have a problem with the cooktop, check the table below. You may be able to solve the problem and this will save you from paying for a service call. You will have to pay for a service call even in the warranty period if the problem is one listed below
| FAULT POSSIBLE CAUSES REMEDY | ||
| Burner will not light even though the LJQUILRQ VSDUN is working. | Knob not held down long enough in ‘High’ position for flame safeguard (where fitted) to engage | Repeat lighting procedure and hold knob down for 6 seconds in ‘High’ position (refer page 3) |
| Gas supply valve turned off Turn on gas | supply to appliance | |
| Wrong knob turned Ensure the knob | b you are turning corresponds to the burner you want to light | |
| %lockage in ignition area | Ensure that ports in ignition area are clean and dry | |
| Ignition spark plugs wet or dirty Dry or c | ean ignition spark plugs | |
| No spark is obtained when control knob is activated | Electricity supply is disconnected or switched off" | Switch on electricity or check fuses |
| Ignition spark plugs wet or dirty Dry or c | ean ignition spark plugs | |
| Flames uneven or tending to lift | Flame ports blocked or wet Clean or dry | flame ports |
| Burner incorrectly fitted Ensure this com | ponent is fitted correctly | |
| Flames not staying on when knob released | Knob not held down long enough in ‘High’ position for flame safeguard (where fitted) to engage | Repeat lighting procedure and hold knob down for 6 seconds in ‘High’ position (refer page 3) |
| Knob not set between ‘High’ and ‘Low’ | Knob MUST be set between these positions | |
| Dirt or spillage on flame safeguard sensor (where fitted) | Clean flame safe guard sensor tip | |
| Low heat, slow cooking | Incorrect cooking pot or pan being used | Refer to table page 3 |
| Benchtop or knobs overheating | Incorrect cooking pot or pan used Check | table on page 3 for correct pot or pan to be used |
| Pot or pan not located on burner properly | Ensure pot or pan is centrally located on burner | |
If the above points have been checked and there is still a problem with the cooktop, please call the Service Centre.
INSTRUCTIONS FOR THE USER
CLEANING
Before any operation, disconnect the appliance from the electrical supply.
Don't use a steam cleaner for the cleaning the hob.
It is advisable to clean the appliance when it is cold.
Enamelled parts
The enamelled parts must be washed with a sponge and soapy water or with a light detergent.
Do not use abrasive or corrosive products.
Do not leave substances, such as lemon or tomato juice, salt water, vinegar, coffee and milk on the enamelled surfaces for a long time.
Stainless steel parts
Stainless steel can be stained if it remains in contact with highly alkaline water or aggressive detergents for an extended period of time.
All grades of stainless steel may stain, discolour or attain an adhering layer of grime in normal operation.
To achieve optimum surface appearance stainless steel must be kept clean regularly using the following cleaning procedures, this ensuring good performance and long service life.
Wash with warm soapy water and rinse with clean water. Where the stainless steel has become extremely dirty with signs of surface discolouration (due to periods of neglect or misuse) use a stainless steel cleaner
DO NOT use abrasive scourers or steel wool. When removing these stains be sure to follow the polish of brushing lines.
Burners and racks
These parts can be removed to make cleaning easier.
The burners must be washed with a sponge and soapy water or with a light detergent, wiped well and placed in their housing perfectly. Make sure that the flame-dividing ducts are not clogged. Check that the VHQVRU of the safety valve and the start-up electrode are always cleaned, so as to ensure optimum operation.
Gas taps
The possible lubrication of the taps must be carried out by authorised personnel, exclusively.
In case of hardening or malfunctions in the gas taps, SOHDVH□FRQWDFWWKH□&XVWRP HU□&DUH□' HSDUWP HQW
INSTRUCTIONS FOR THE INSTALLER
Important notice:
The operations indicated below must be followed by authorised personnel exclusively, in conformity with the regulations in force.
The manufacturing firm refuses all responsibility for damages to people, animals or things, resulting from the failure to comply with such provisions.
This appliance shall be installed only by authorised persons and in accordance with the manufacturer's installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, and any other statutory regulations. For Australia and New Zealand this appliance must be installed by an authorised person in compliance with AS/NZS 5601.1 Gas installations part 1: general installations, and AS/NZS 5601.2 Gas installations part 2: LP GAS installations in caravans and boats for nonpropulsive purposes. For outside of Australia/New Zealand refer to the relevant installation code for gas appliances in your country.
INSTALLATION
The installation kit contains the following:
- 1 natural gas regulator
- 1 elbow
- 1 manifold
- 2 fibre sealing washers
- 4 brackets for assembly
- 4 bracket screws
- 1 pack of cooktop to benchtop seals
- 1 duplicate rating label
- LPG conversion kit
- 1 Universal LPG sticker
- 4 or 5 injectors

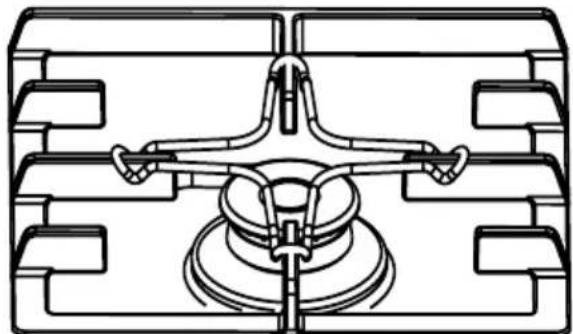

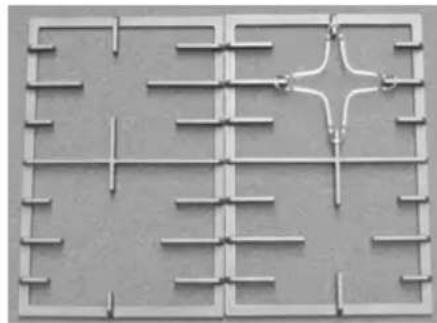

Additional accessory for cooking with vessels diameter 120mm or below
- 1 mini trivet
Installing the top
The appliance is designed to be embedded into heat-resistant benchtop capable of withstanding 85°C.
INSTRUCTIONS FOR THE INSTALLER
Adjacent walls, cupboards and protection for combustible materials.
Ensure that the appliance is installed in accordance with clauses 6.2.5 and 6.10.1.1 of AS/NZS 5601.1, or clauses 6.9.1 and 6.9.5 of
AS/NZS 5601.2 with regard to clearances to combustible surfaces and materials, and clearances to rangehoods and exhaust fans.
Clearance of 200mm from the periphery of burners to vertical combustible surfaces is required. Clearances to combustible surfaces may be reduced only if combustible surfaces are protected in accordance with clause 6.10.1.2 of AS/NZS 5601.1, or clause 6.9.2 of AS/NZS 5601.2.
The equipment must not be installed near inflammable materials, such as curtains, cloths, etc. Make a cut out in the benchtop, with the dimensions indicated below (see fig.3, page 10) at a distance of at least 50 mm from the appliance boarder to the adjacent walls.

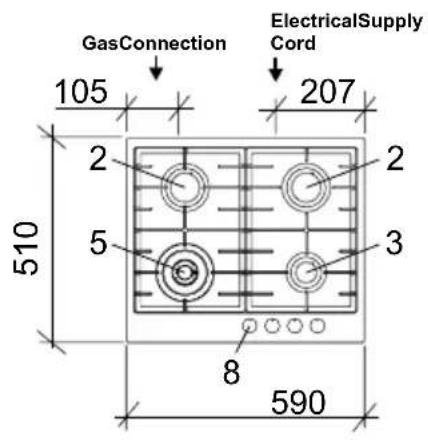

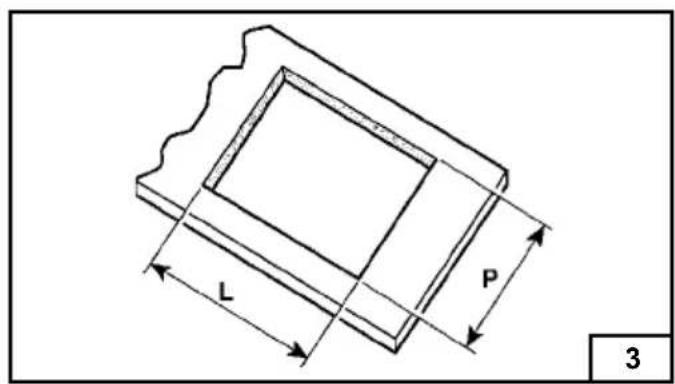

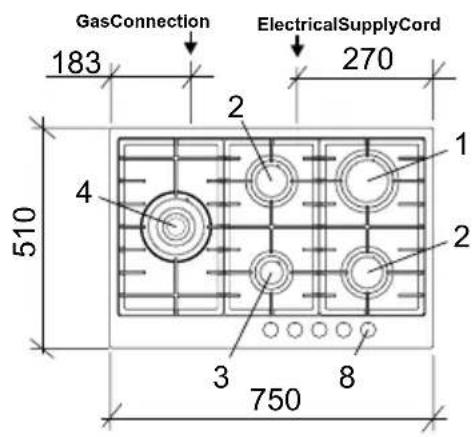

| MODEL L (mm) P (mm) D (mm) | |||
| BP64S | 560 480 | 55 | |
| BP75S | 625 480 | 55 | |
| BP95S | 805 480 | 55 | |
Any possible wall unit over the cook-top must be placed at a distance of at least 760 mm from the top.
IMPORTANT:
A separation panel at least 10mm from the bottom of the cooktop must be included during installation to prevent access to the underside of the appliance. This panel can be made of any non-combustible rigid material. Refer (fig. 4).
If the hob is going to be installed on the top of an oven, precautions must be taken to guarantee an installation in accordance with current accident prevention standards. Pay particular attention to the position of the electric cable and gas pipe: they must not touch any hot parts of the oven.
Moreover, if the hob is going to be installed on the top of a built in oven without forced cooling ventilation, proper air vents must be installed to guarantee an adequate ventilation, with the lower air entering with a cross section of at least 200 cm^2 , and the higher air exiting with a cross section of at least 60 cm^2 .
Fastening the top

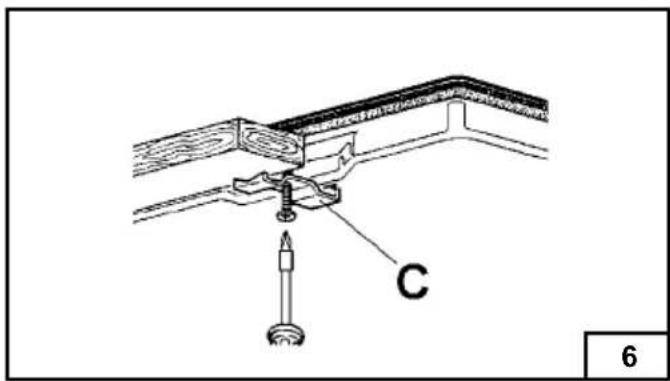

Every cook-top is equipped with a special washer. A set of hooks is also supplied for mounting the cook-top.
Depending on the type of mounting surface, the suitable type of mounting hook is supplied (hook A or hook B).
For the installation proceed as follows:
- Remove all loose components from the top. - Turn the appliance upside down lay it's edges on foam packaging blocks to prevent damage to the ignition spark plugs and lay the seal S along the external border (fig. 5 ^1 SDJH ^2 ).
-3 lace the cooktop in the DSHUWXUH□hole PDGH in the ZRUNWRS furniture, then fasten it with the screws and fastening brackets supplied (fig.6□SDJH□□).
WARNING: Failure to fix the cooktop to the bench could result in loosening of the gas connection through movement of the cooktop and a gas leak may result.
A duplicate rating label is included with these instructions. Ensure this is attached to a readily accessible surface, so that the cooktop can be easily identified in the case of a service call.
INSTALLATION ROOM
This appliance is not provided with a device for exhausting the products of combustion.
Therefore, it is necessary to discharge these outside.
The room where this appliance is installed must have a natural air inflow, so as to ensure a regular gas combustion and room ventilation: the necessary air volume must not be lower than 20m^3 .
Air must come from permanent openings made on the room walls that communicate with the outside.
The section of these openings shall correspond to at least 200 cm ^4 .
An appliance regulator is provided. The regulator must be positioned so that the pressure test nipple is accessible when the appliance is installed.
Connect the gas supply to the 1/2" B.S.P. internal thread inlet of the regulator. Refer to page 8 for connection point position.
Regulators are supplied pre-adjusted and configured by the component maker for use with Natural Gas. The appliance installer is not required to make an adjustment to obtain the correct outlet pressure setting.
An arrow on the base of the regulator indicates the direction of gas flow when the inlet and outlet of the regulator is orientated correctly. When the regulator has been fitted check for leaks from the connections with soapy water.
INSTRUCTIONS FOR THE INSTALLER
Gas Connection
This appliance is supplied for use with Natural Gas. However, it can be converted for use with LPG. Refer to LP conversion chapter.
Supply pipe sizing
The total hourly gas consumption for the appliance is shown on the data label. The required supply pressure (i.e. at inlet to appliance regulator) for each gas type is shown on the data label, and given in page "TECHNICAL CHARACTERISTIC TABLES". Use this information in conjunction with the length of run, number of elbows, tees and bends, the available service pressure and the supply requirements of other installed appliances to determine a suitable pipe size. For assistance in this matter refer to the appropriate section of the Installation Code AS5601.
An AGA certified class B or D flexible connection may be used to connect the cooktop in accordance with the AS5601 and in particular section 4.8. Where a hose assembly is used and the cooktop is in the installed position, the hose assembly shall be suitable for connection to a fixed consumer piping outlet located at a point 800 - 850mm above the floor and in the region outside the width of the appliance to a distance of 250mm. The point of connection to consumer piping must be accessible with appliance installed.
Elbow positioning
It is possible to reposition the elbow if required by loosening the locking nut and elbow by using two spanners. Re-tighten the entire assembly after the elbow has been repositioned. When fitting elbow to appliance, ensure that the sealing washer is fitted.
Regulator
An appliance regulator is provided. The regulator must be positioned so that the pressure test nipple is accessible when the appliance is installed. Connect the gas supply to the 12 " B.S.P. internal thread inlet of the regulator. Refer page 10 for connection point position.
Assembly of Regulator
The assembly of the regulator to the cooktop manifold is achieved via the elbow union and sealing washersupplied.
The 12 " parallel thread connects to the manifold, and the sealing washer is placed between the manifold end and the flat face on the elbow.
The 12 " tapered thread connects to the outlet of the regulator, and is sealed on the thread using approved thread sealing tape or approved thread
sealing compound.
The inlet of the regulator is a 12 " parallel thread and is connected to consumer piping or hose assembly. Regulators are supplied pre-adjusted and configured by the component maker for use with Natural Gas.
The appliance installer is not required to make an adjustment to obtain the correct outlet pressure setting.
An arrow on the base of the regulator indicates the direction of gas flow when the inlet and outlet of the regulator is orientated correctly. When the regulator has been fitted check for leaks from the connections with soapy water.
Checking the gas supply
- Check the manometer zero point is correct.
- Connect the manometer to the cooktop pressure point. This is located on the regulator.
- Turn on the gas supply and electricity and try to ignite the gas. NOTE! It will take additional time to light the gas for the first time as air needs to be purged from the pipes.
- With the appliance operating check the outlet pressure
- when all burners of the appliance are operating at maximum,
- when the smallest burner of the appliance is operating at minimum.
Under these conditions the outlet pressure should not vary from the nominal outlet pressure of 1.00kPa by more than ± 0.20kPa
If the regulator appears to not perform satisfactorily, then check the following points:
-
If the outlet pressure is consistently too low then the inlet pressure may be too low and adjustment of an upstream regulator may be needed, or an upstream regulator or valve with insufficient flow capacity may be present in the gas supply line. If this is suspected then it may be necessary to repeat the checks whilst measuring both the inlet and outlet pressure to determine if the inlet pressure is in the range 1.13 - 5kPa.
-
Check that the regulafor has been fitted to the gas supply line in the correct orientation, the arrow on the base of the body indicates the direction of gas flow.
Once these checks have been completed, if the regulator still fails to perform in a satisfactory manner it should be replaced.
INSTRUCTIONS FOR THE INSTALLER
Electrical connection

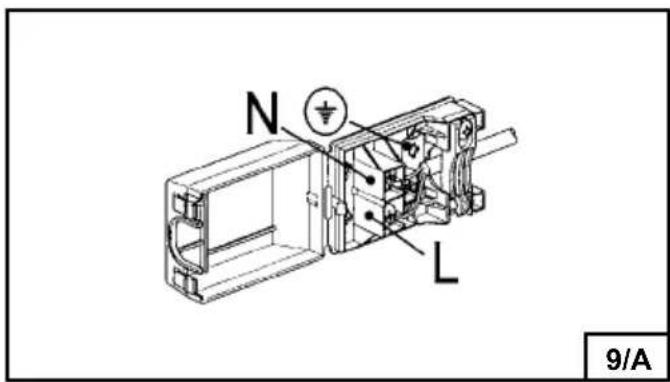

The appliance is supplied with a standard 10 Amp service cord terminated by a 3-pin plug for connection to a standard household socket. The electrical supply is required to power the electronic ignition system.
NOTE: It will be necessary for servicing purposes to disconnect the electrical power supply. The power point should therefore be accessible after the appliance is installed, as specified in the local wiring regulations.
After installation the installer must fully test the appliance and ensure it operates correctly before handing it over to the customer.
GAS CONVERSIONS AND ADJUSTMENTS
Data Label
This appliance is suitable for Natural Gas and Universal LPG; ensure that the available gas supply matches the Data Label.
When converting from Natural Gas to Universal LPG ensure that the NG regulator is removed and replaced with the Test Point Assembly. An AGA Approved gas regulator suitable for a supply pressure of 2.75kPa should be part of the gas tank supply and the test point pressure should be adjusted to 2.75kPa.
Replacing the injectors
If the equipment is adjusted for a type of gas that is different from the one available, it is necessary to replace the burner injectors.
The choice of the injectors to replace must be made according to the table of the “technical characteristics” as enclosed.
Act as follows:
– remove the racks and burners.
-by means of a straight spanner L , unscrew the injectors U (fig. 7) and substitute it with the corresponding one.
– tighten the injectors strongly.
After changing the injectors, it is necessary to eliminate residual natural gas in the system.
To do this you have to turn to the maximum position then press the knob of each burner and wait few seconds.
Adjusting the burners
The lowest flame point must always be properly adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the minimum position.
If this is not so, it is necessary to adjust the lowest flame point as follows:
- start the burner up
- turn the tap up to the minimum position (small flame)
- remove the knob from the tap rod

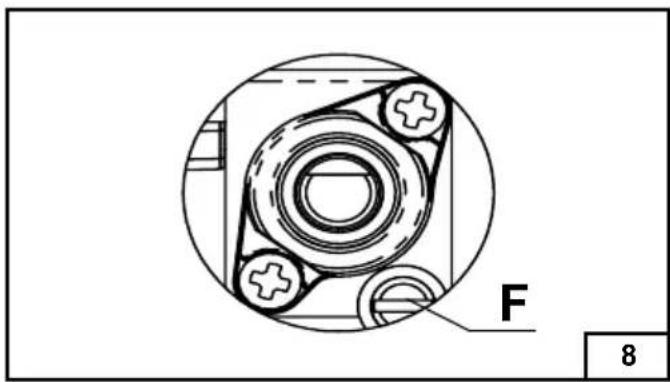

- introduce a flat-tip screwdriver in the hole F of the tap (fig. 8) and turn the by-pass screw up to a proper adjustment of the lowest flame point.
As regards U-LPG gas burners, the by-pass screw must be tightened completely.
MAINTENANCE
Maintenance Schedule
No regular maintenance is required for the FRRNIRS except cleaning.
Replacing the power supply cable
If the power supply cable should be replaced, it is necessary to use a cable with a section of 3 × 0.75 mm^2 , type H05VV-F or H05RR-F, complying with the regulations in force.
The connection to the terminal board must be effected as shown in fig.9 - 9/A:
brown cable L (live)
blue cable N (neutral)
green-yellow cable ⏻ (ground)
Reference figures ("fig.") list
1 Rapid burner 11,5 MJ/h 9.6 MJ/h
2 Semi-rapid burner 6.3 MJ/h 5.6 MJ/h
3 Auxiliary burner 3.4 MJ/h 3.4 MJ/h
4 Triple ring burner 13.0 MJ/h 12.0 MJ/h
5 Double ring burner 10.3 MJ/h 9.6 MJ/h
8 Control knob for burner
MODEL: BP64S
Depth of cooktop casing from benchtop surface : 44 mm
MODEL: BP75S
Depth of cooktop casing from benchtop surface : 44 mm
MODEL: BP95S
Depth of cooktop casing from benchtop surface : 44 mm
Universal
LPG
TECHNICAL CHARACTERISTIC TABLES
| BURNERS | GAS | NORMAL PRESSURE | INJECTOR DIAMETER | TAPE BY PASS DIAMETER | NOMINAL HEAT INPUT (MJ/h) | |
| N° | DESCRIPTION KPa 1/100 mm 1/100 mm | |||||
| 1 | RAPID | Universal LPG 2 Natural 1.00 | .75 85 40 9.6 155 Adjust. 11.5 | |||
| 2 | SEMI-RAPID | Universal LPG 2 Natural | .75 65 31 5.6 1.00 | 110 | Adjust. | 6.3 |
| 3 | AUXILIARY | Universal LPG 2 Natural 1.00 | .75 52 27 3.4 80 Adjust. | 3.4 | ||
| 4 | TRIPLE CROWN | Universal LPG 2 Natural 1.00 | .75 95 60 160 Adjust. | 12.0 13.0 | ||
| 5 | DOUBLE CROWN | Universal LPG 2 Natural 1.00 | .75 85 60 9.6 145 Adjust. | 10.3 | ||

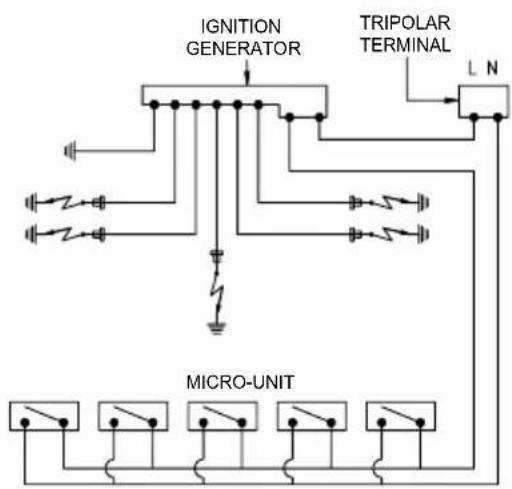

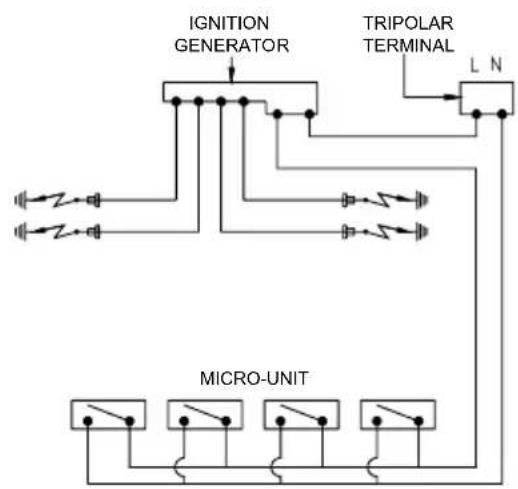

WIRING DIAGRAM
MODEL: BP64S
MODEL: BP75S / BP95S
The mini-trivet included with this cooktop is to be used for cooking vessels of diameter 120mm or smaller
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
The appliance must be accessible for the service technician to perform any necessary repair. If your appliance is installed in such a way that a service technician is concerned that damage will be caused to the appliance or your kitchen, then he will not complete a repair.
This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance, like plinths. Or any installation other than the one specified by the manufacturer has been completed.
IMPORTANT: The manufacturer operates a policy of continuous improvement and reserves the right to adjust and modify its products without prior notification.
Baumatic®
Think Appliances Pty Ltd.
416-424 Barry Rd
Coolaroo VIC 3048
Sales Telephone
1300 132 824
Service Telephone
1800 444 357
Website
www.thinkappliances.com
Applico Ltd.
P.O. 92900
Onehunga, Auckland 1061
New Zealand
Website
www.baumatic.co.nz
United Kingdom
Baumatic Ltd.,
Baumatic Buildings,
6 Bennet Road,
Reading, Berkshire
RG2 0QX
United Kingdom
Sales Telephone
(0118) 933 6900
Website:
www.baumatic.co.uk
