CLASSIC TREND 90 SVART - Range hood Cylinda - Free user manual and instructions

Brand	Cylinda
Model	CLASSIC TREND 90 SVART
Product Type	Range Hood
Color	Black (Svart)
Width	90 cm
Depth	50 cm
Height	60-100 cm (adjustable chimney)
Weight	Approx. 15 kg
Power Supply	230 V ~ 50 Hz
Total Power Consumption	150 W
Motor Power	120 W
Extraction Rate (Max)	650 m³/h
Noise Level (Max)	65 dB(A)
Number of Speeds	3 + Boost
Control Type	Push buttons
Lighting	2 x 1.5 W LED
Filter Type	Aluminum grease filter (dishwasher safe)
Carbon Filter	Optional (sold separately)
Installation	Wall-mounted, chimney
Mode	Ducted or recirculating (with carbon filter)
Energy Class	A+
Annual Energy Consumption	45 kWh/year
Grease Filter Efficiency	Class B
Fluid Dynamic Efficiency	Class A
Lighting Efficiency	Class A
Warranty	2 years

Frequently Asked Questions - CLASSIC TREND 90 SVART Cylinda

How do I install the CLASSIC TREND 90 SVART range hood?

Installation must be done by a qualified professional. Ensure the hood is mounted at least 65 cm above electric hobs and 75 cm above gas hobs. Follow the installation manual for proper ducting and electrical connection.

How often should I clean the grease filters?

Grease filters should be cleaned every 2-3 months, or more frequently if you cook heavily. They are dishwasher safe; wash at 60°C and dry thoroughly before reinstalling.

Can the hood be used in recirculation mode?

Yes, the hood can be used in recirculation mode by installing a carbon filter (sold separately). This is ideal when ducting to the outside is not possible.

Why is the hood noisy?

Noise can increase due to blocked filters or improper ducting. Clean the grease filters and ensure ducting is smooth and not too long. The maximum noise level is 65 dB(A) at highest speed.

How do I replace the LED lights?

The hood uses integrated LED modules. If they fail, contact Cylinda service for replacement. Do not attempt to replace them yourself unless instructed.

What is the recommended duct diameter?

Use a duct with a diameter of 150 mm (6 inches). Ensure the duct is as short and straight as possible to maintain optimal airflow.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the boost button (or specific button) for 3 seconds until the indicator light turns off. Refer to the manual for exact procedure.

Can I use a remote control with this hood?

No, the CLASSIC TREND 90 SVART is controlled via push buttons on the front panel. It does not come with a remote control.

What is the energy efficiency class?

The hood is rated energy class A+, meaning it is highly efficient. It consumes approximately 45 kWh per year.

Where can I find spare parts?

Contact Cylinda customer service or an authorized dealer. Common spare parts include grease filters, carbon filters, and LED modules.

USER MANUAL CLASSIC TREND 90 SVART Cylinda

Exterior view of a modern kitchen appliance set with front panels, front washing machine, refrigerator, and oven (no text or symbols visible)

Classic Trend, Stella Trend Triton Trend, Thea Trend Nova Trend, Pollux Trend

Cylinda

år efter år

Bästa kund!

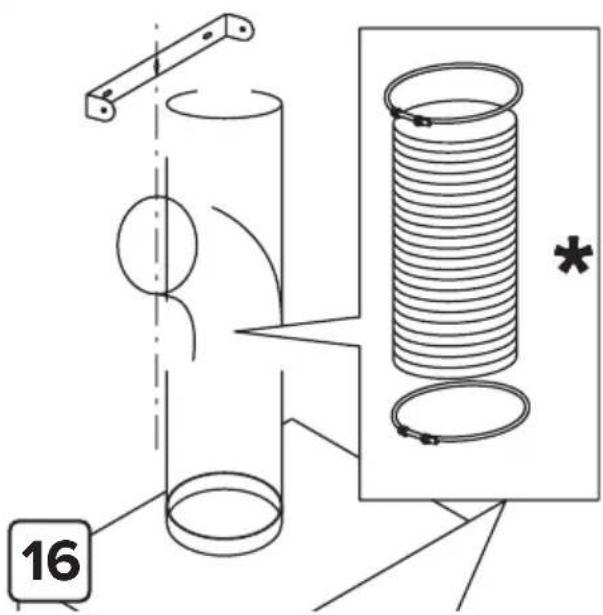

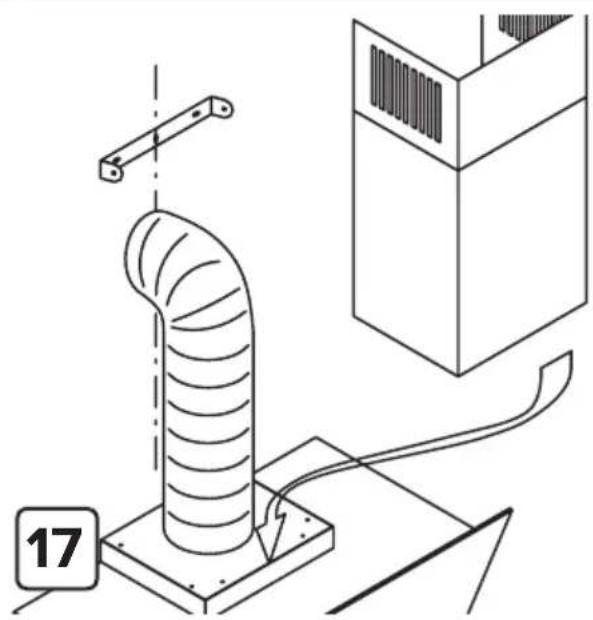

Technical diagram showing a coiled duct installation with a bracket and a cabinet, no text or symbols present

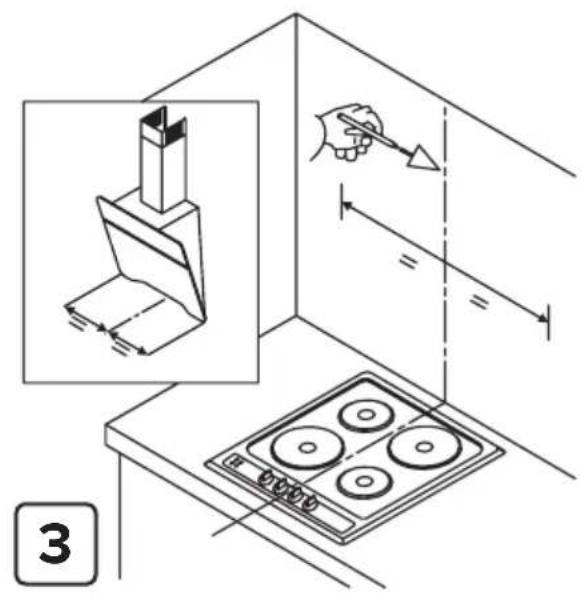

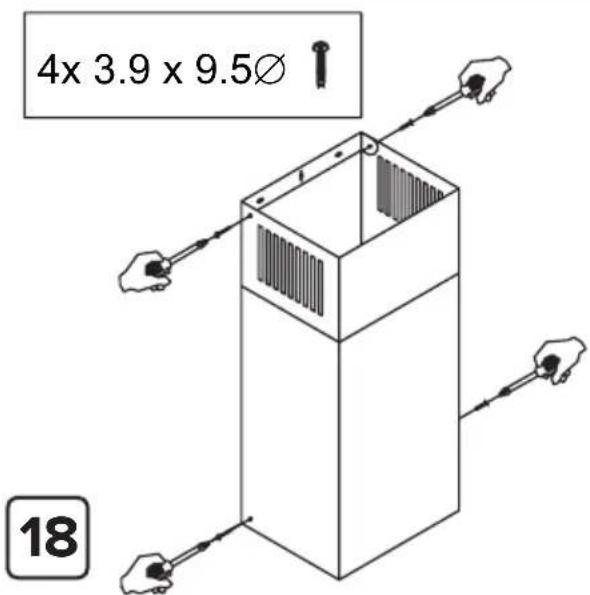

Installation

Thank you for choosing this high quality cooker hood made by Cylinda. Please read this manual carefully. In it you will find important information that will help you to install and use this appliance in a proper manner resulting in long-term reliable operation of the device.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Ducting version

Information on how to protect the environment.

Filter version

ere using the appliance, please carefully read this manual!

This manual applies to the following products:

Classic Trend E9004320, E9004321, E9004322, E9004323, E9004324, E9004325

Stella Trend E9004331

Triton Trend E9004349, E9004350, E9004353, E9004354

Thea Trend E9004386, E9004387, E9004388, E9004389

Nova Trend E9004390, E9004391, E9004392

Pollux Trend 60 E9004344

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

! It is important to conserve this booklet for reference at any moment. In case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

For technical drawings please turn to page 19 to find your product

CautioN

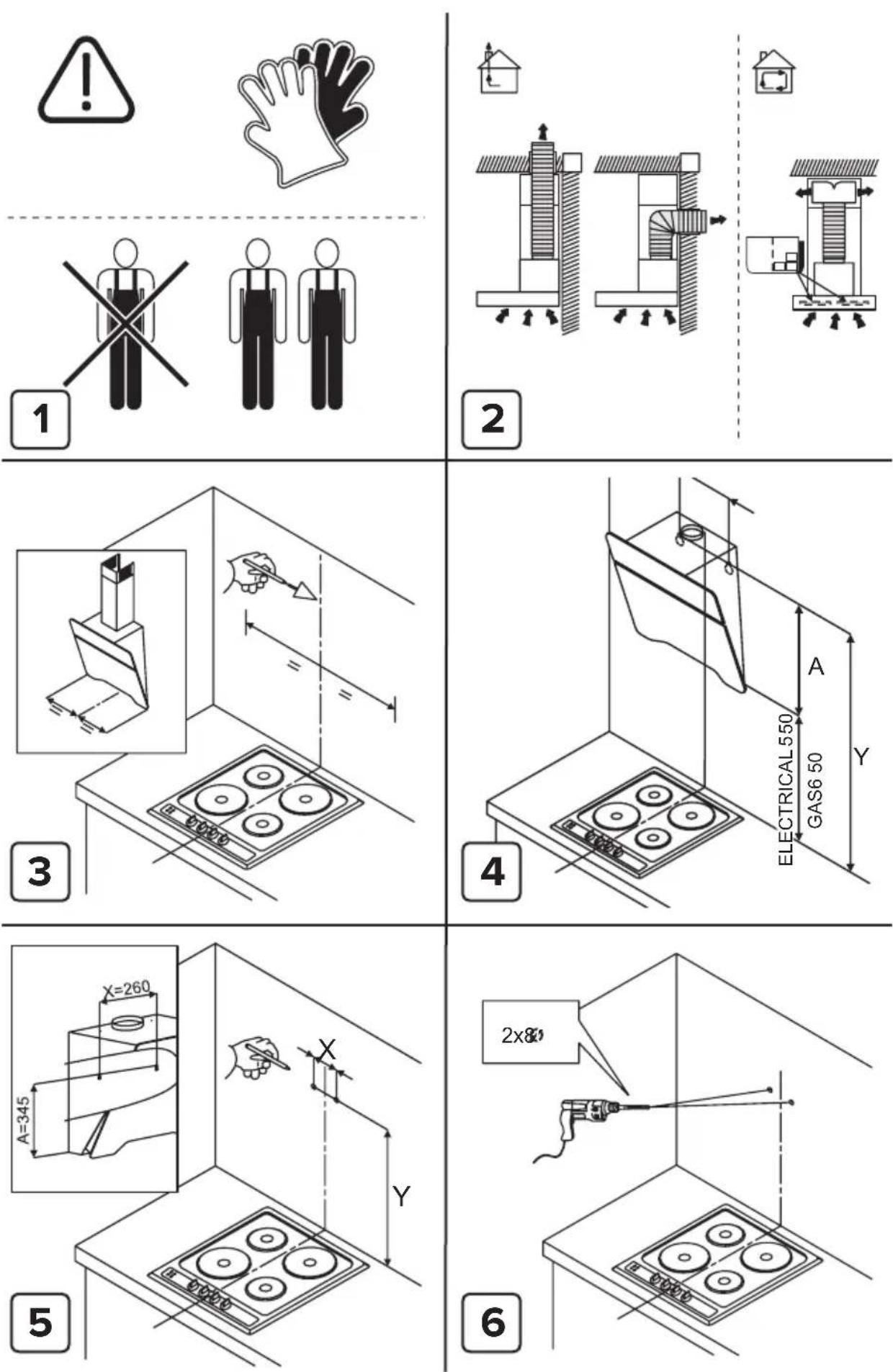

WARNING! Do not connect the

appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the device from the power supply by removing the plug or switching off the power circuit.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental abilities, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is strictly prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and

must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with the cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned both on the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

The manufacturer hereby declares that the appliance fulfills the requirements of the following European Directives:

• Low Voltage Directive 2006/95/EC
• Electromagnetic Compatibility Directive 2004/108/EC

This device is marked with mark and the appropriate declaration of conformity is available to the market supervising authorities.

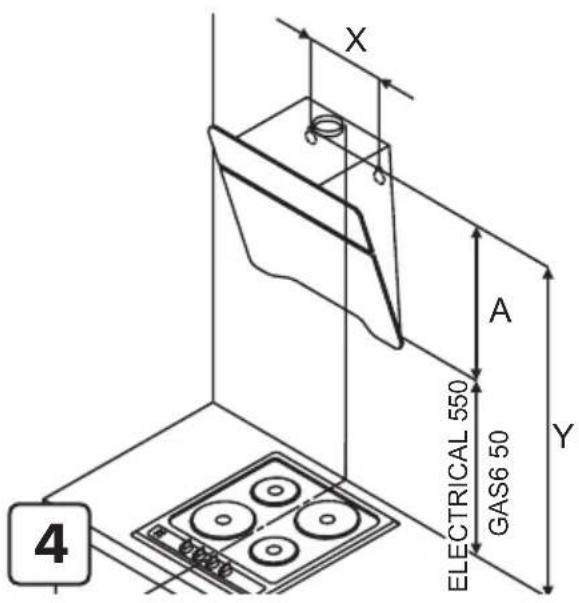

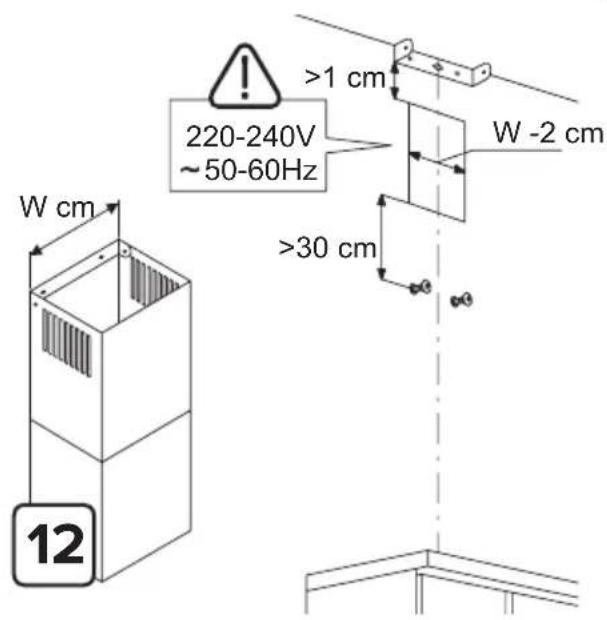

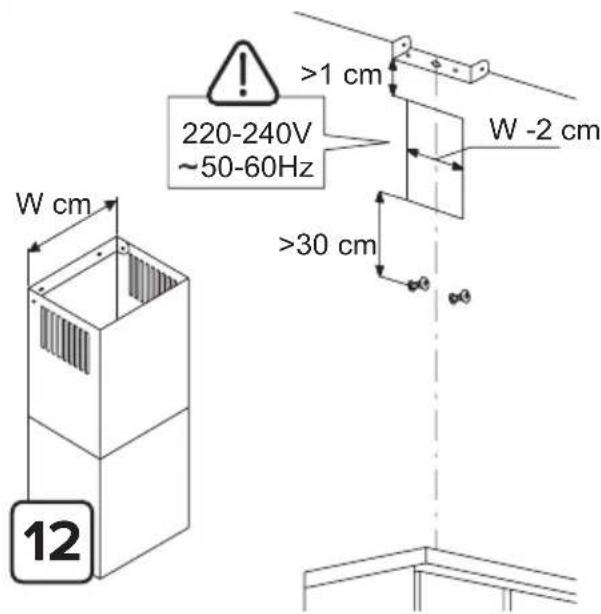

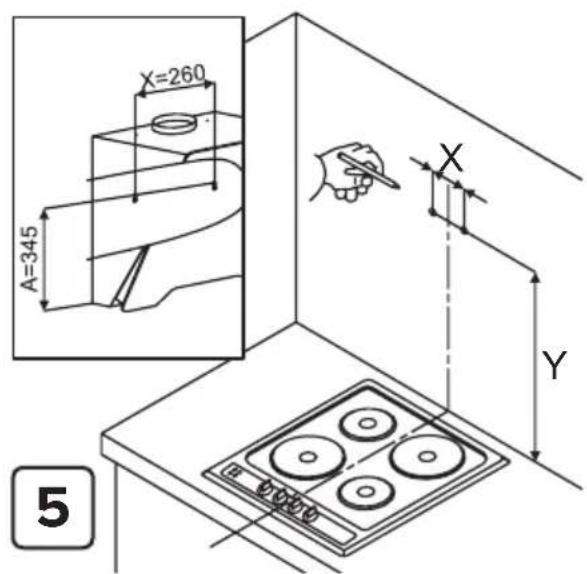

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must not be less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate located inside the hood. If provided with a plug connect the hood to a socket which is in compliance with current regulations and located in an easily accessible area. If it is not fitted with a plug (direct mains connection) or if after installation the plug is not located in an accessible area, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

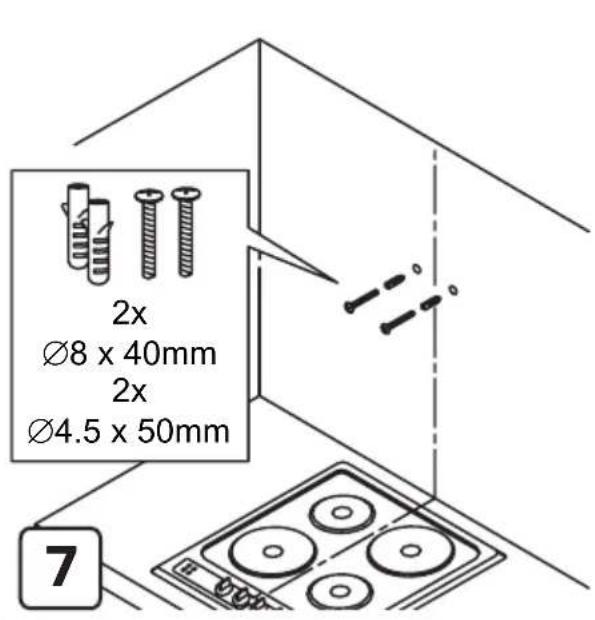

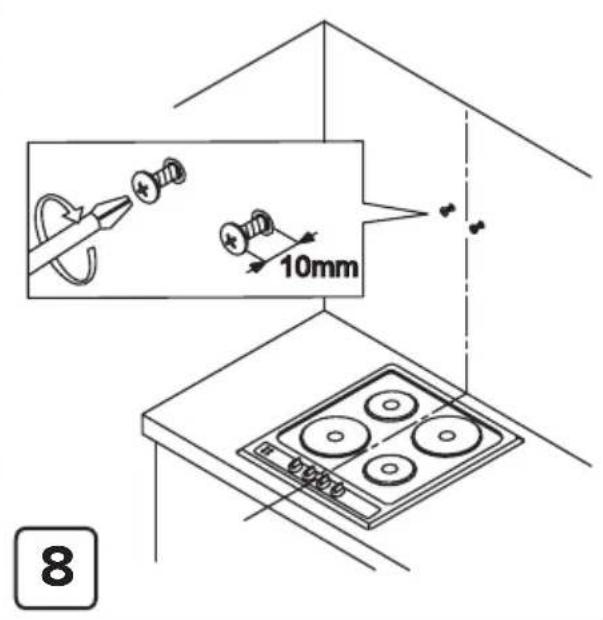

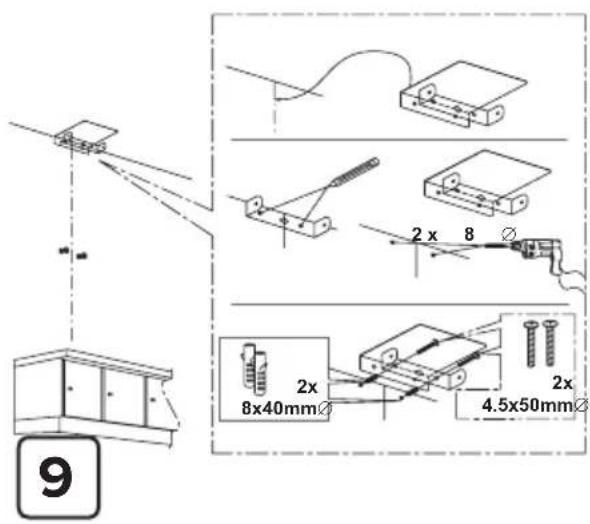

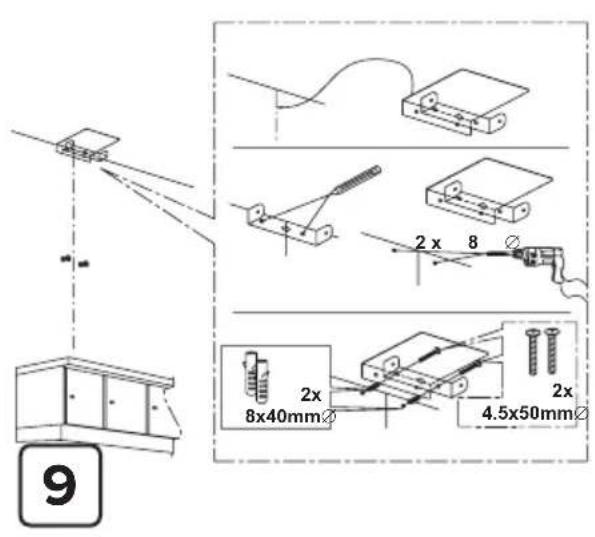

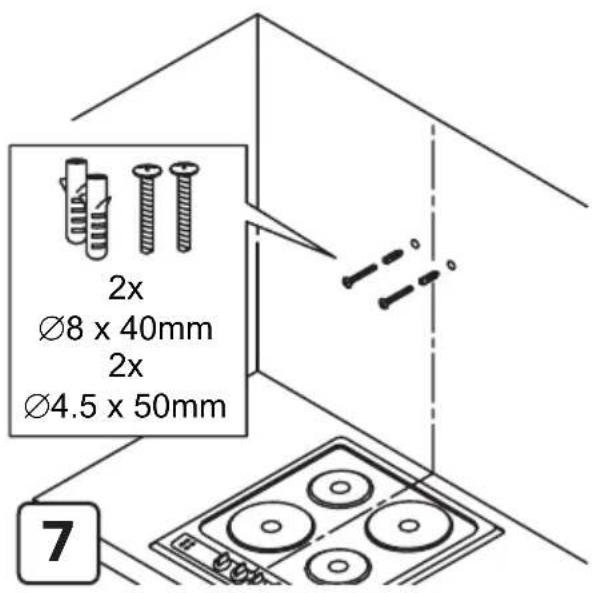

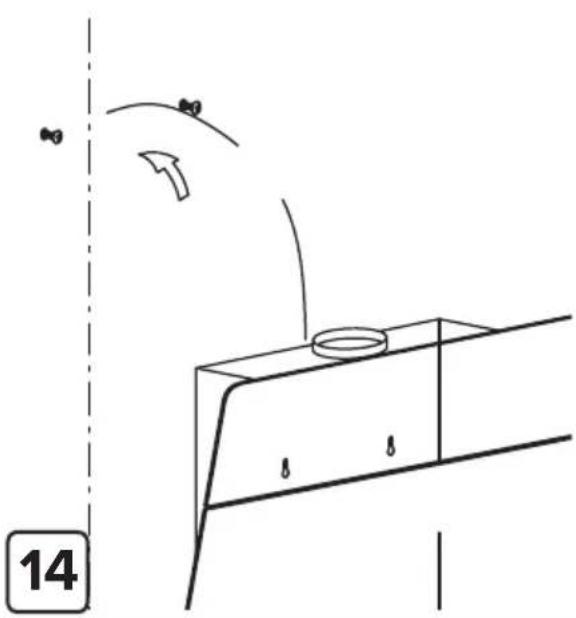

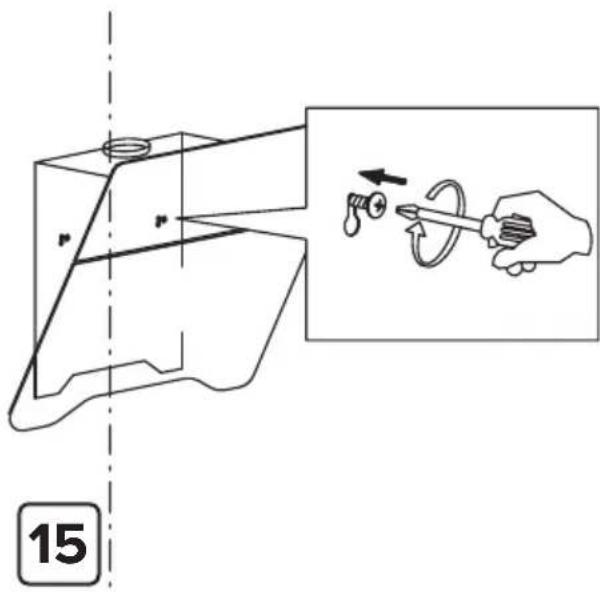

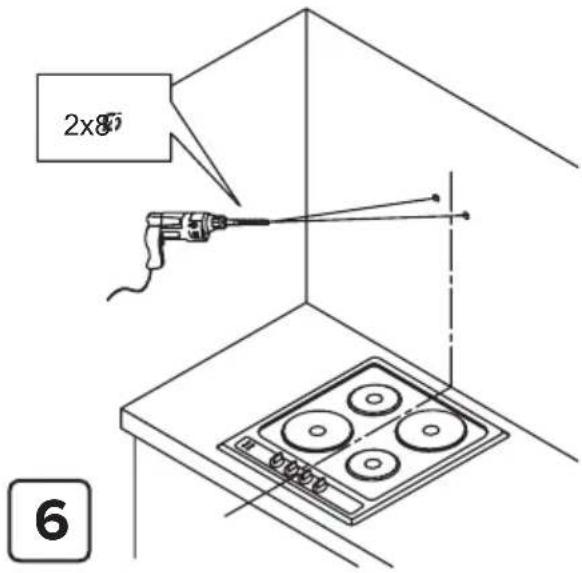

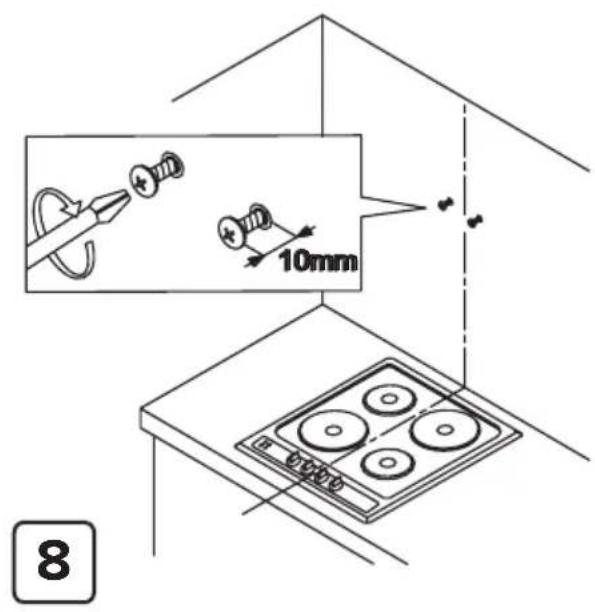

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

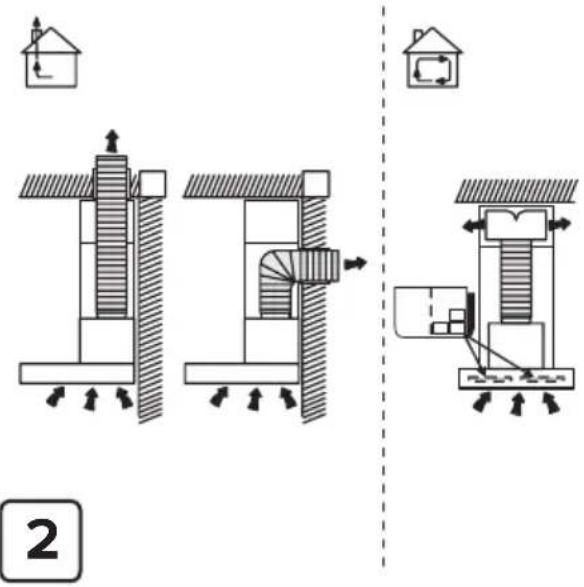

This appliance is designed to be used either for exhausting or filter version. The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

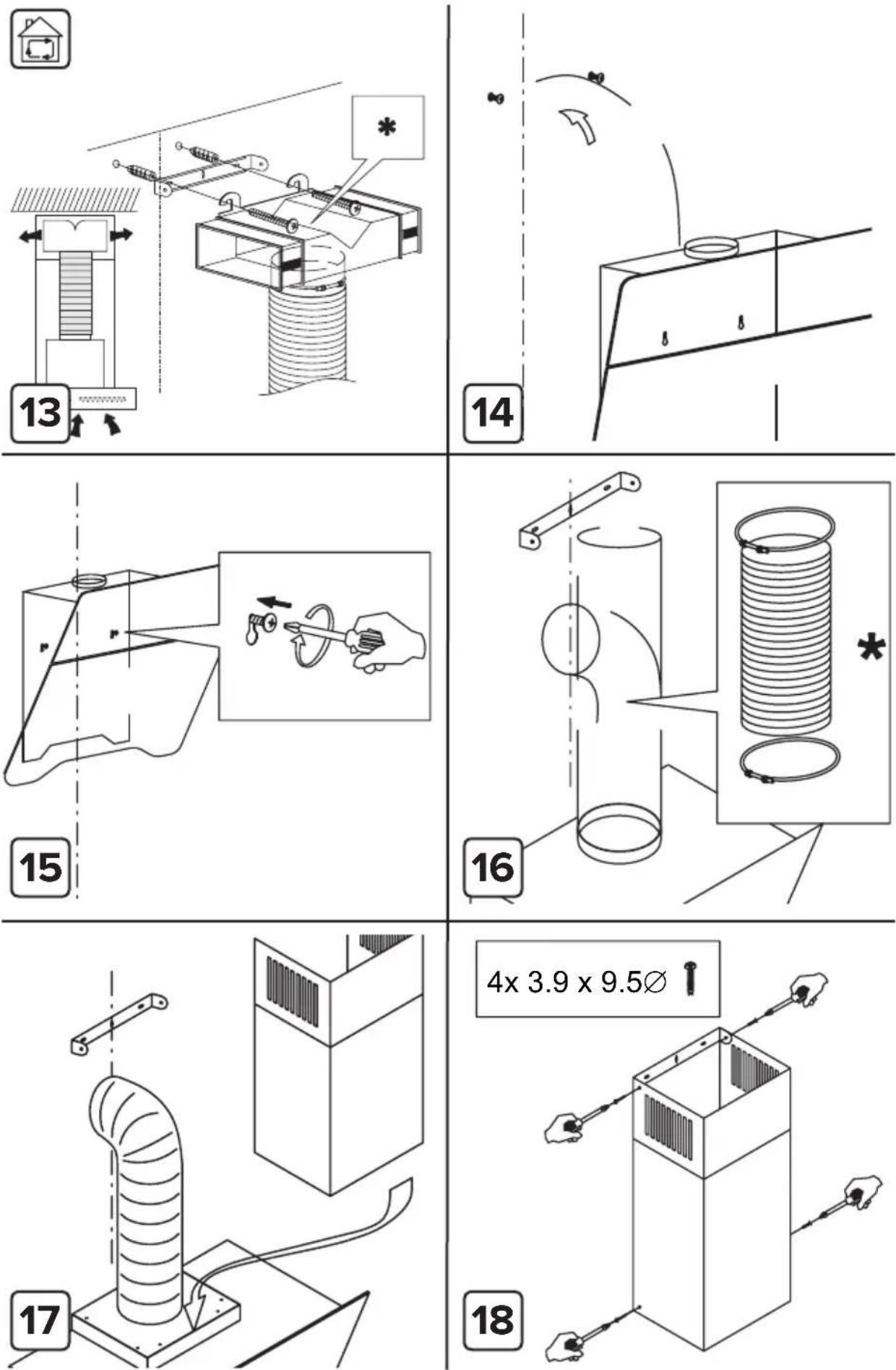

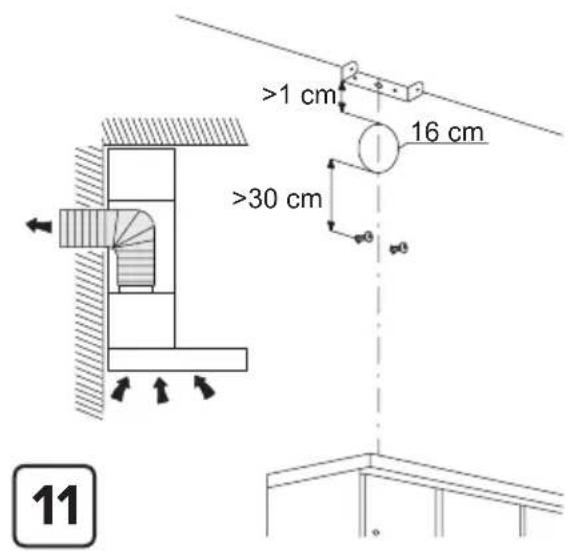

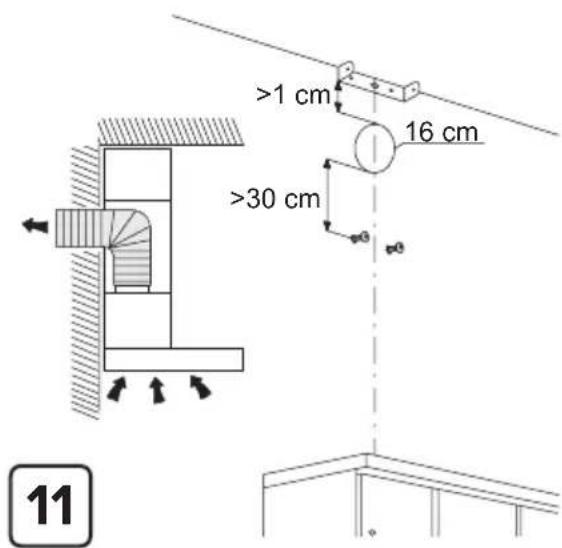

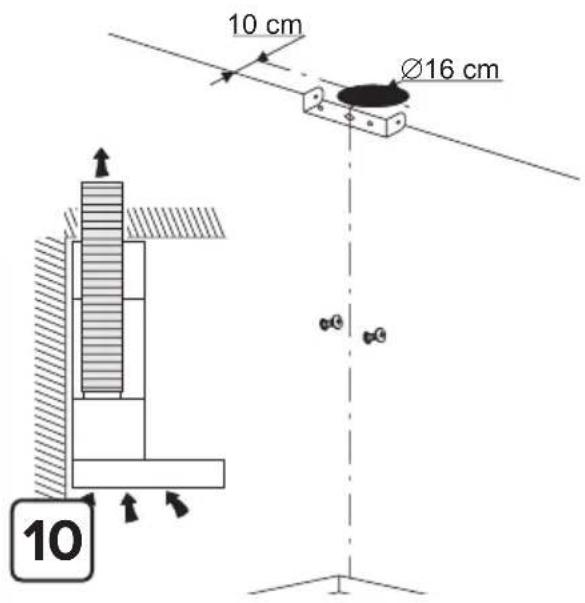

Ducting version

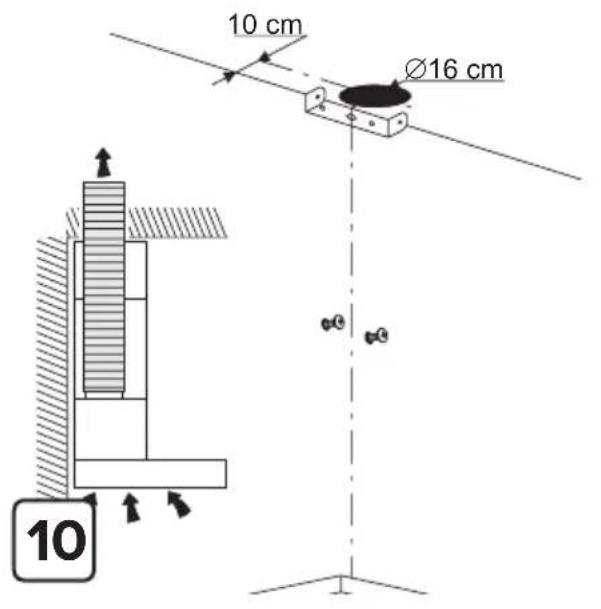

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased separately.

Diameter of the exhausting pipe must be equal to that of the connection ring. In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside. Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.

! The duct must be made of certified material.

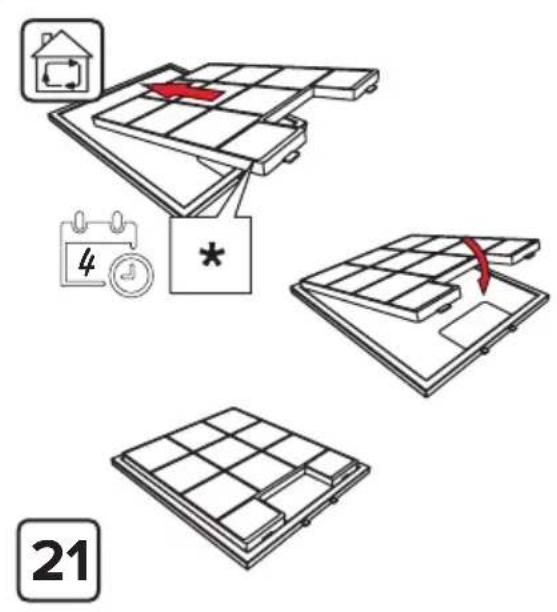

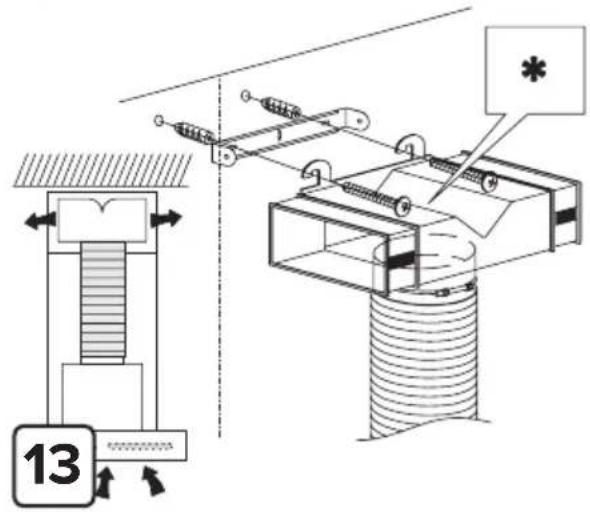

Filter version

In this work mode the hood extracts and cleans the air from the kitchen and after that the air is sent back to the room. In order for the device to work properly an additional filter (or filters) must be installed. The filter utilizes active charcoal for air purification and can be obtained from your nearest retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

Operation

The cooker hood is operated by using the Touchcontrol panel.

Touchcontrol panel

1. Speed decrease / switching off

This button is used to decrease the speed of the motor. Press and hold this button to switch off the appliance

2. Speed increase / switching on

In the off - mode press this button to switch on the motor in speed one.

Pressing this button while the appliance is in operation will increase the speed one step higher (up to speed 4)

The speed of the motor is shown on the LED display. The digit on the display corresponds to the speed of the motor (i.e. "1" indicates first speed, "2" indicates second speed etc.)

3. LED display

Indicates the current function / mode of the hood

4. Timer

Enables to set automatic switch off of the hood

5. Lights on/off

Timer: to enable programming automatic switch off at any given time between 10 and 90 minutes, with 10-minute increments.

• To enable programming function, turn the engine on using the "+" button to the level you want, and then press the button to program the switch-off time. The display will show a blinking 0, which means, that the time programming mode was entered.
• Select the automatic switch-off time using the “+” button, keeping in mind, that the number on the display, multiplied by the 10-minut interval, means the time of automatic switch-off (e.g. 1=10 min, 2=20 min, 3=30min, etc.)
• With the auto switch-off timer set, confirm the setting using the timer button, the display will stop blinking and will show the previously selected speed, and the blinking dot next to the speed will show the switch-off time. You can cancel the automatic switchoff function by pressing the timer button again while the time is counted down.

Caution: Timer programming should be completed within 20 seconds, otherwise no action will be taken, and the hood will resume operation in normal mode.

Maintenance

Cleaning

Grease filter

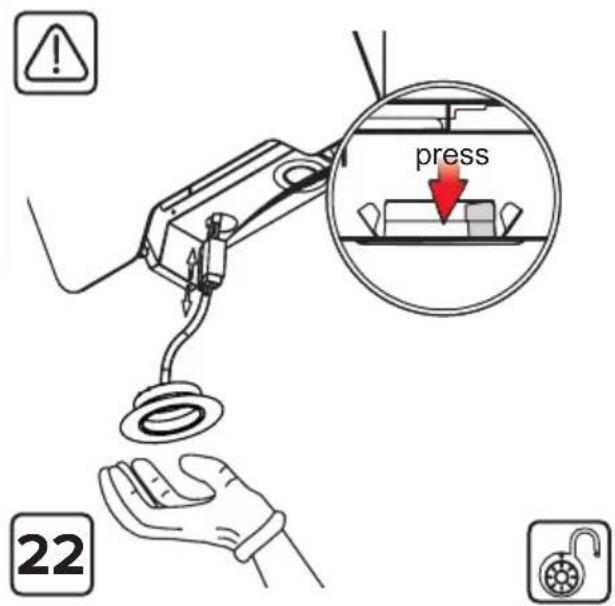

Replacing lamps

ATTENTION! Before performing any maintenance operation, disconnect the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Alternatively if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if this option is available in the model you own – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering ability.

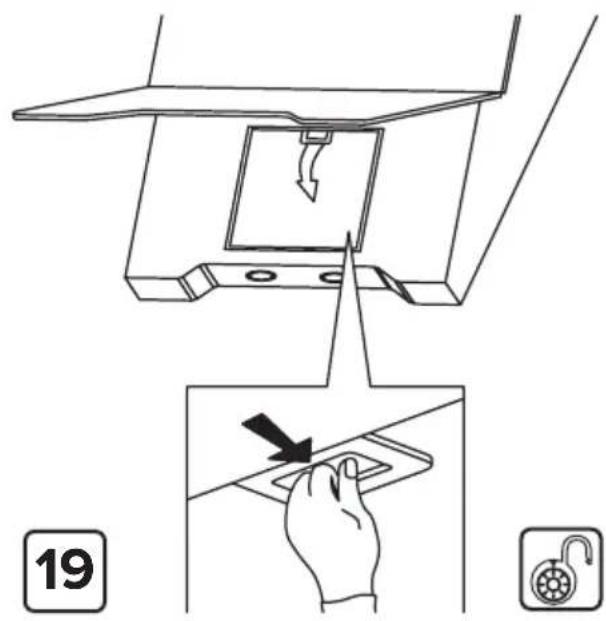

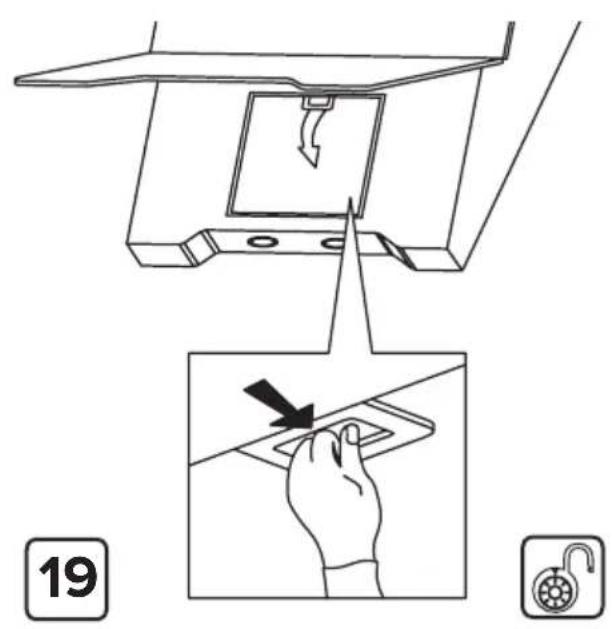

To remove the grease filter, pull the spring release handle

Determine if your product is equipped with LED or halogen lights. The easiest way to do it is to check the attached energy label. If the lighting efficiency class is "B" or better the appliance has LED bulbs. In all other cases it is equipped with halogen lights.

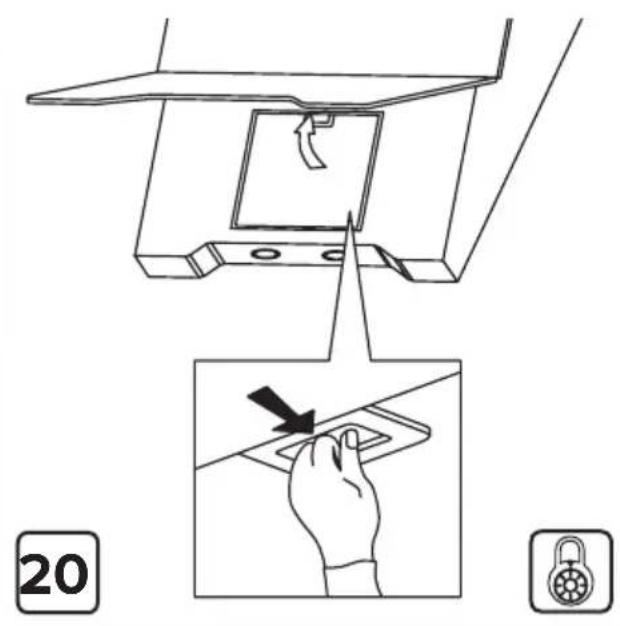

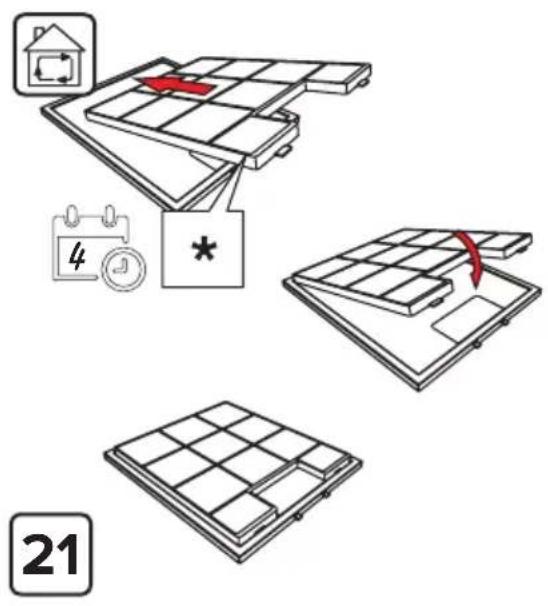

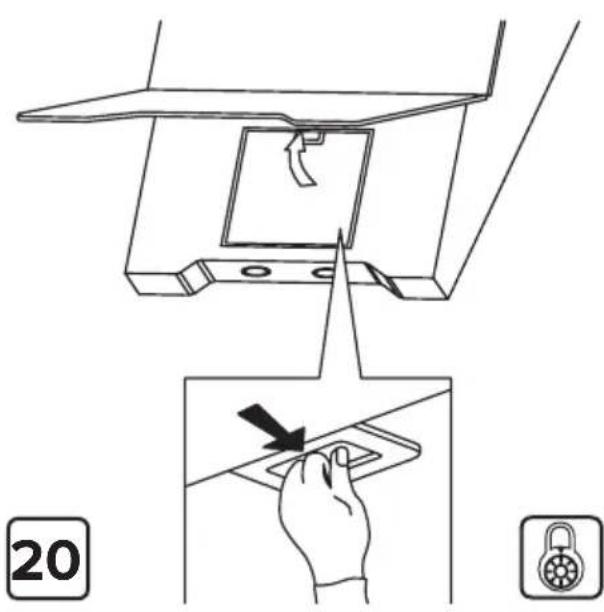

Refer to the drawing on page 9, as shown on the drawing 20, 21. Disassemble the aluminium filters (as shown on the drawing 19, 20) then using your hand push the lighting downwards. Using your other hand grab the lighting from the outside. Dis-

connect the complete element and replace it with a new part. Proceed in reverse order to install the lighting.

IMPORTANT!! Always use the lighting of the same type as installed by the manufacturer. If you are not sure which part to use contact your nearest Cylinda dealer.

Namn Name

Classic	Trend	60
Classic	Trend	90
Stella	Trend	90
Triton Svart Vit 60	29
Triton Svart Vit 90	30
Thea Trend V 60	31
Thea Trend V 90	32
Nova Trend V 60	33
Nova Trend V 80	34
Nova Trend V 90	35
Pollux	Trend	60

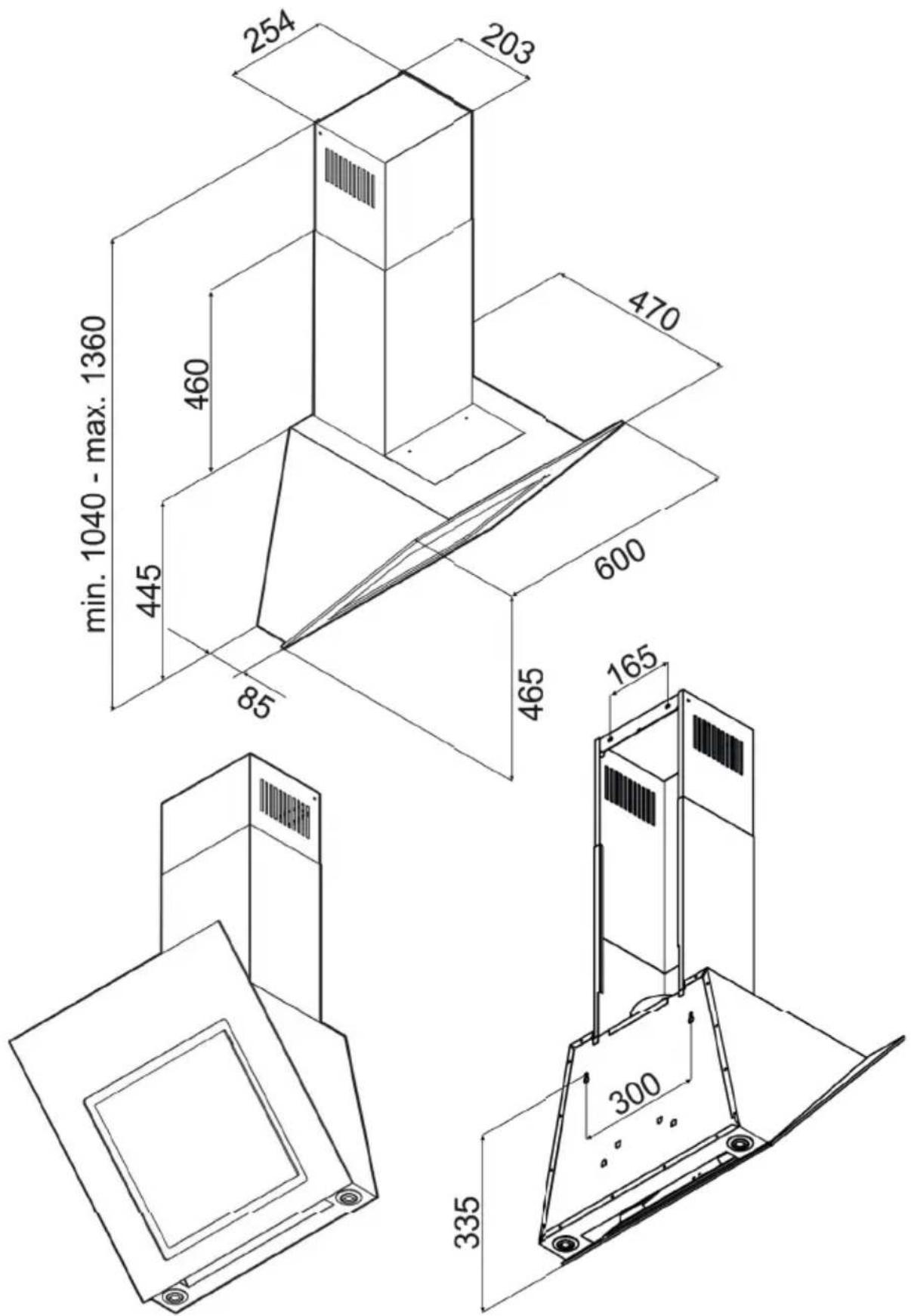

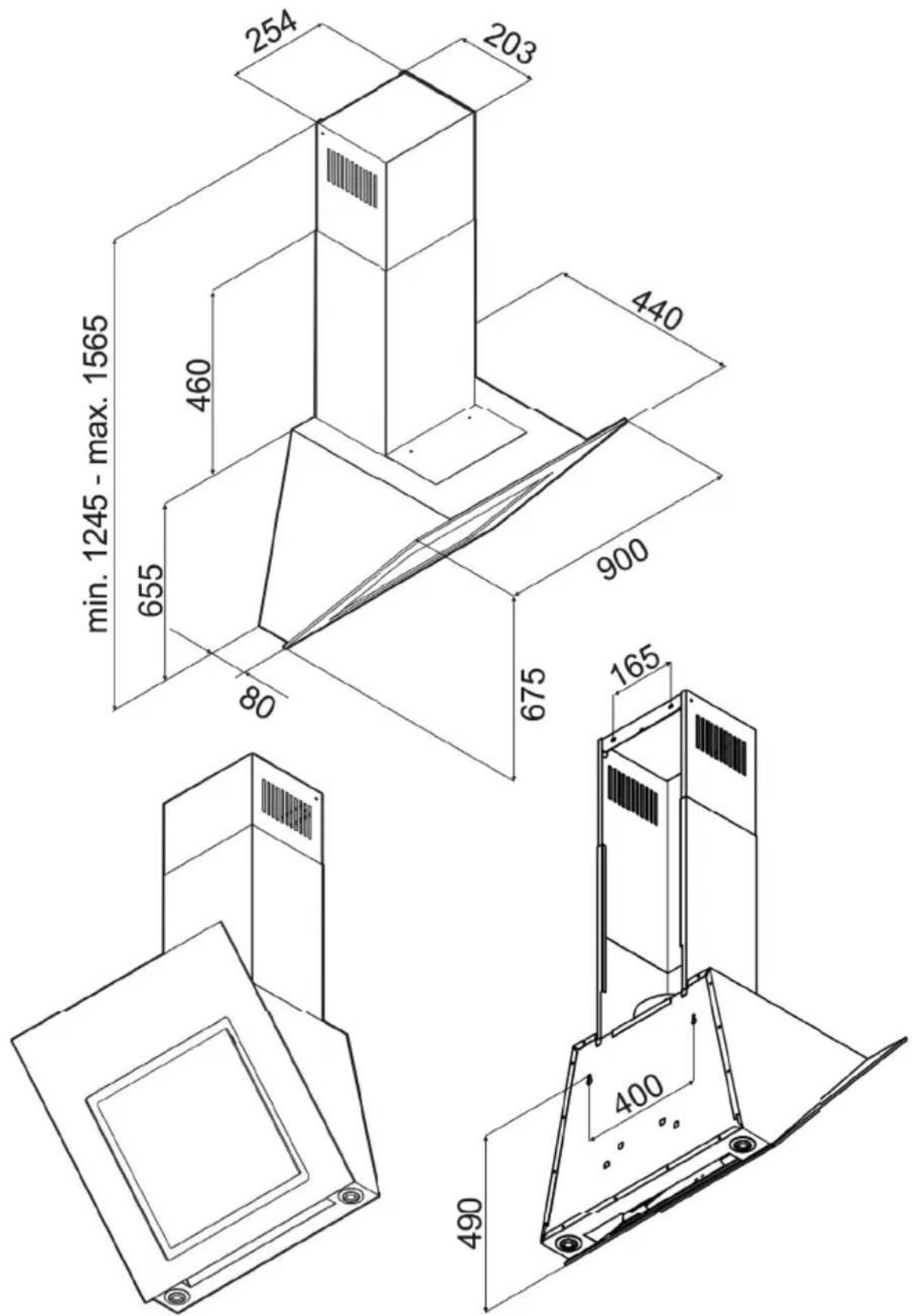

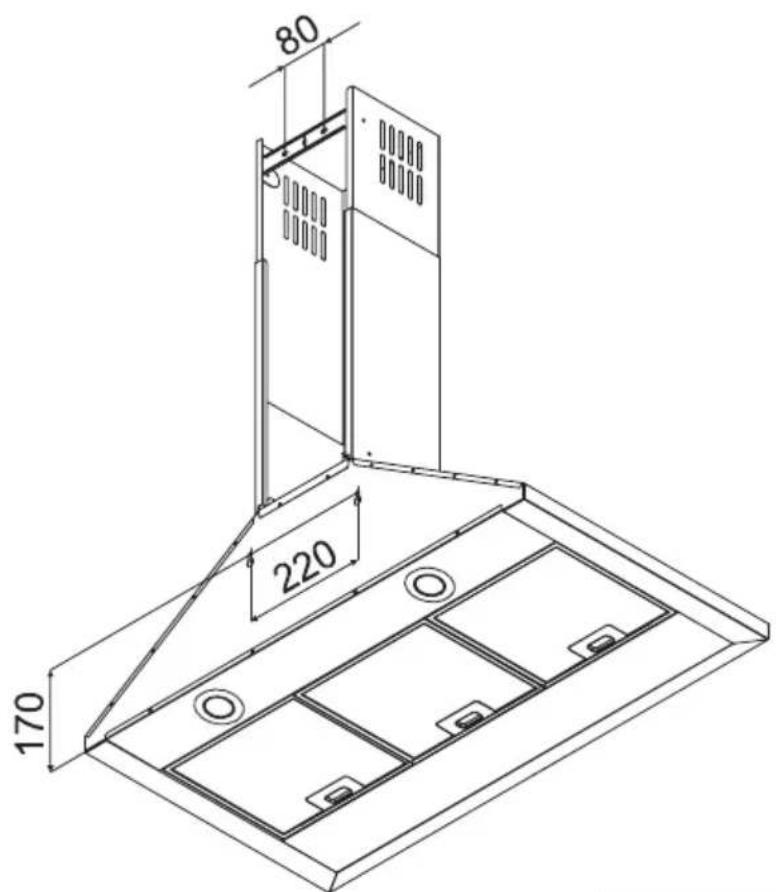

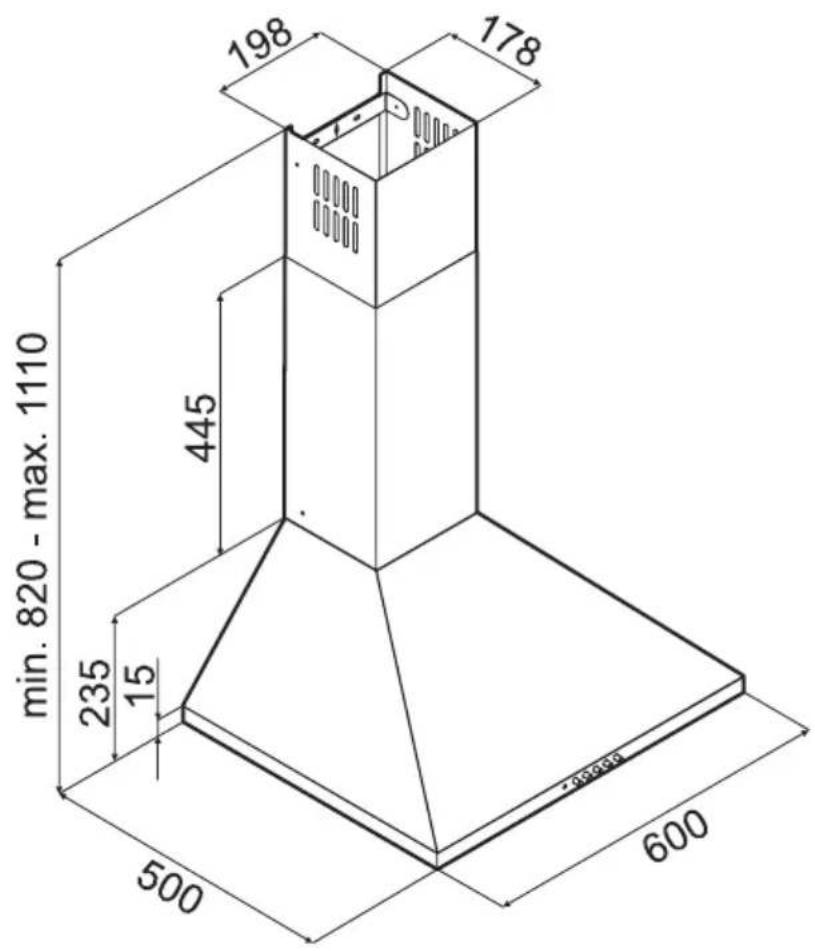

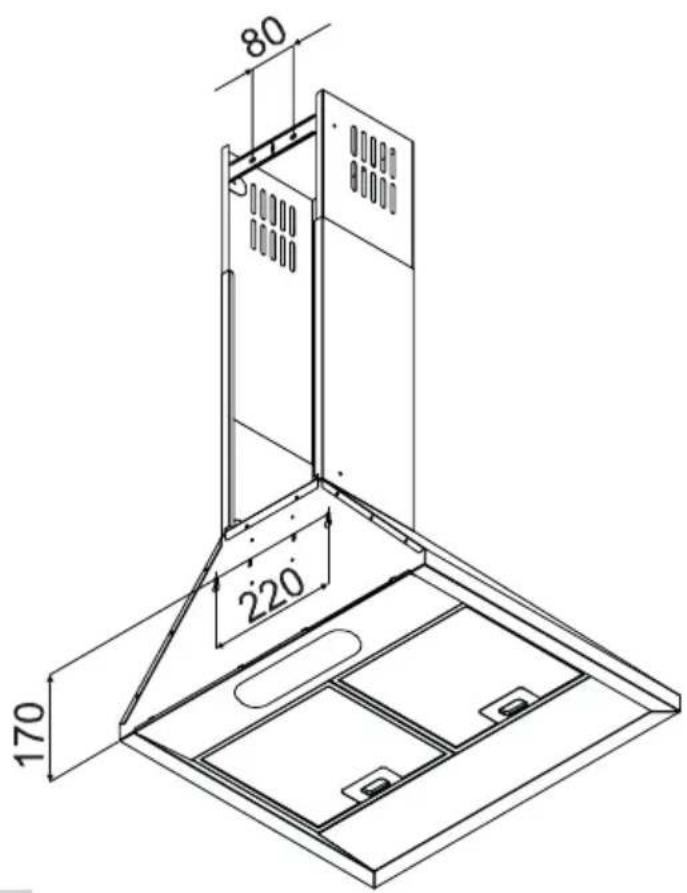

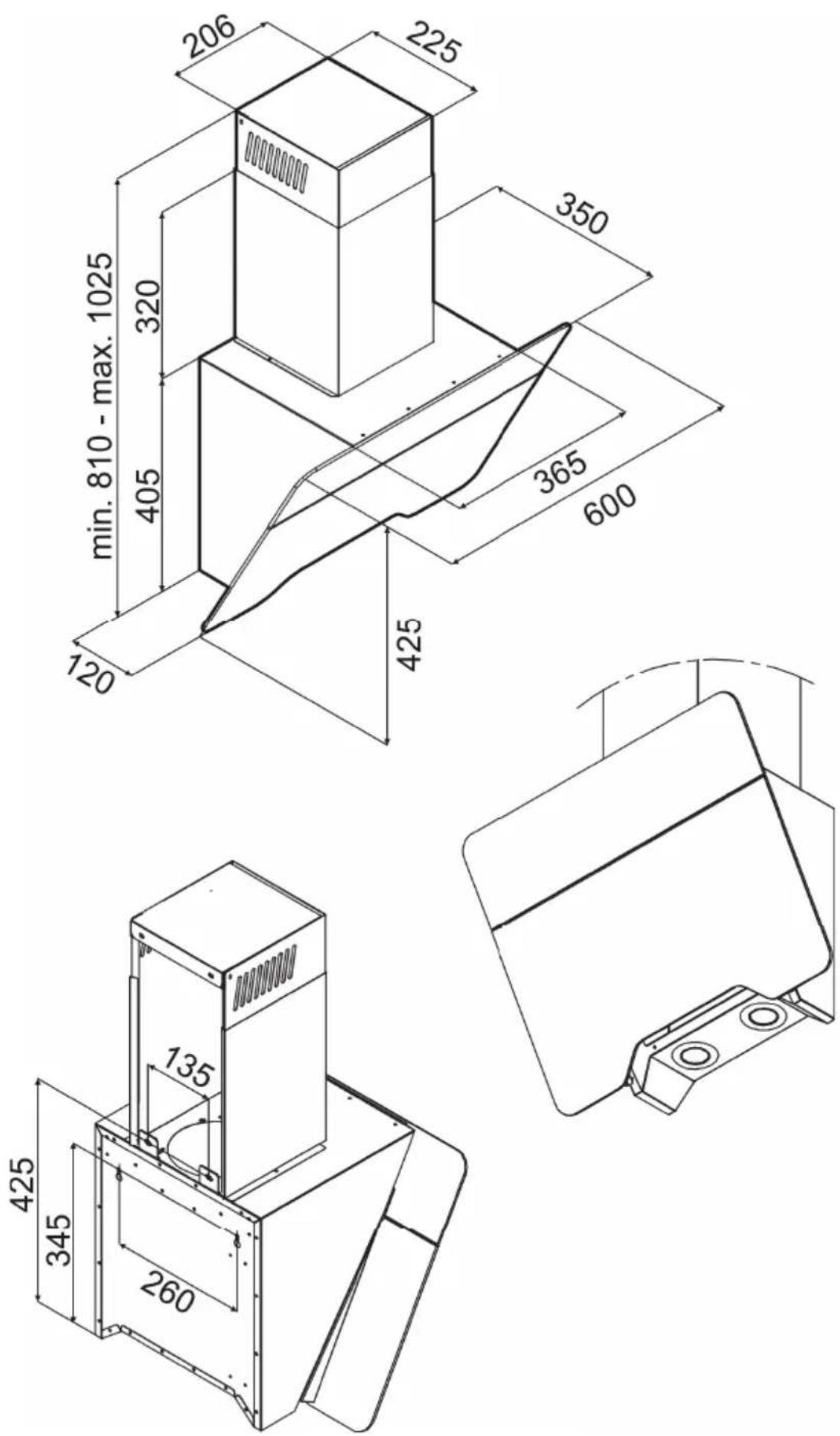

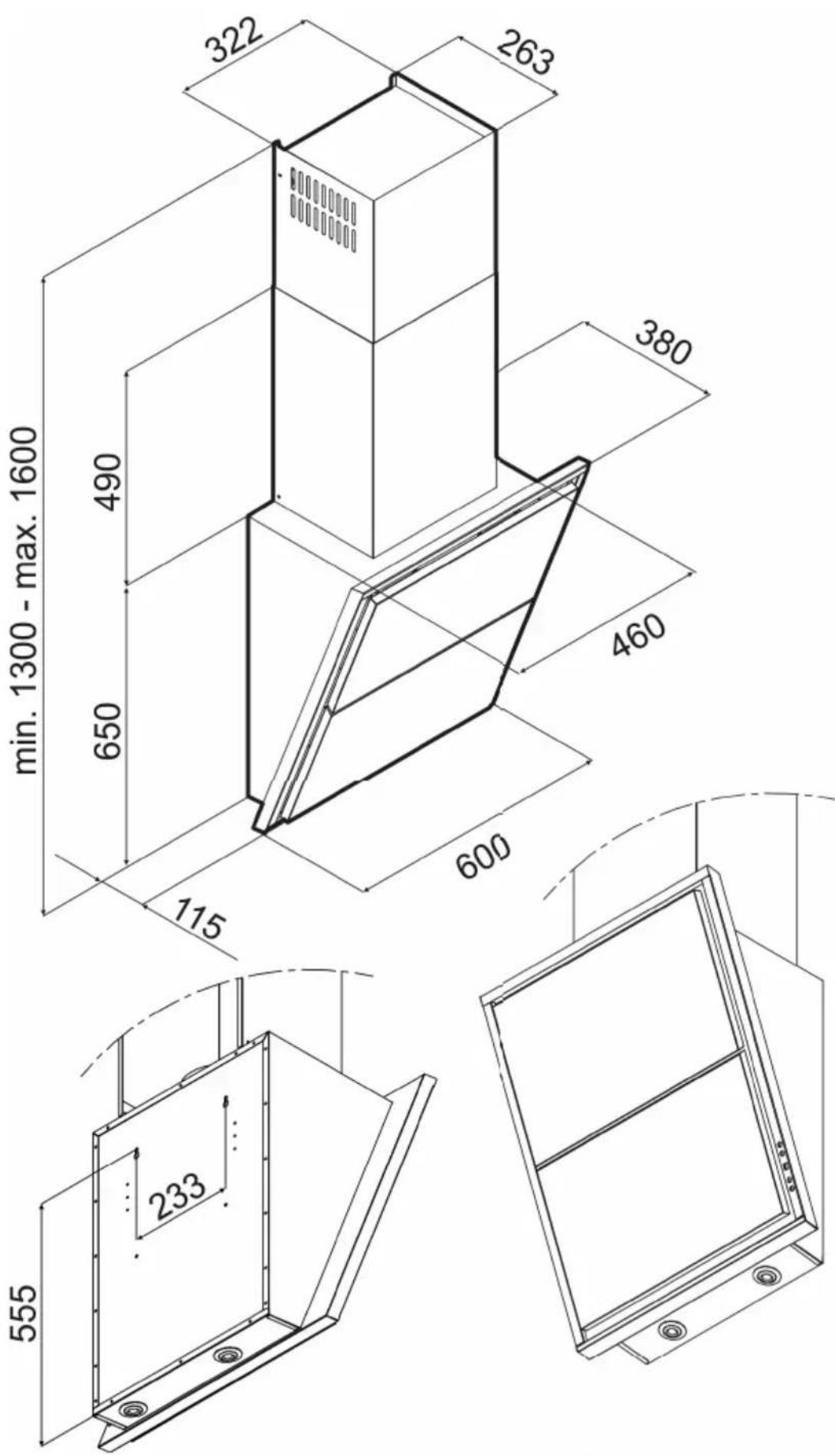

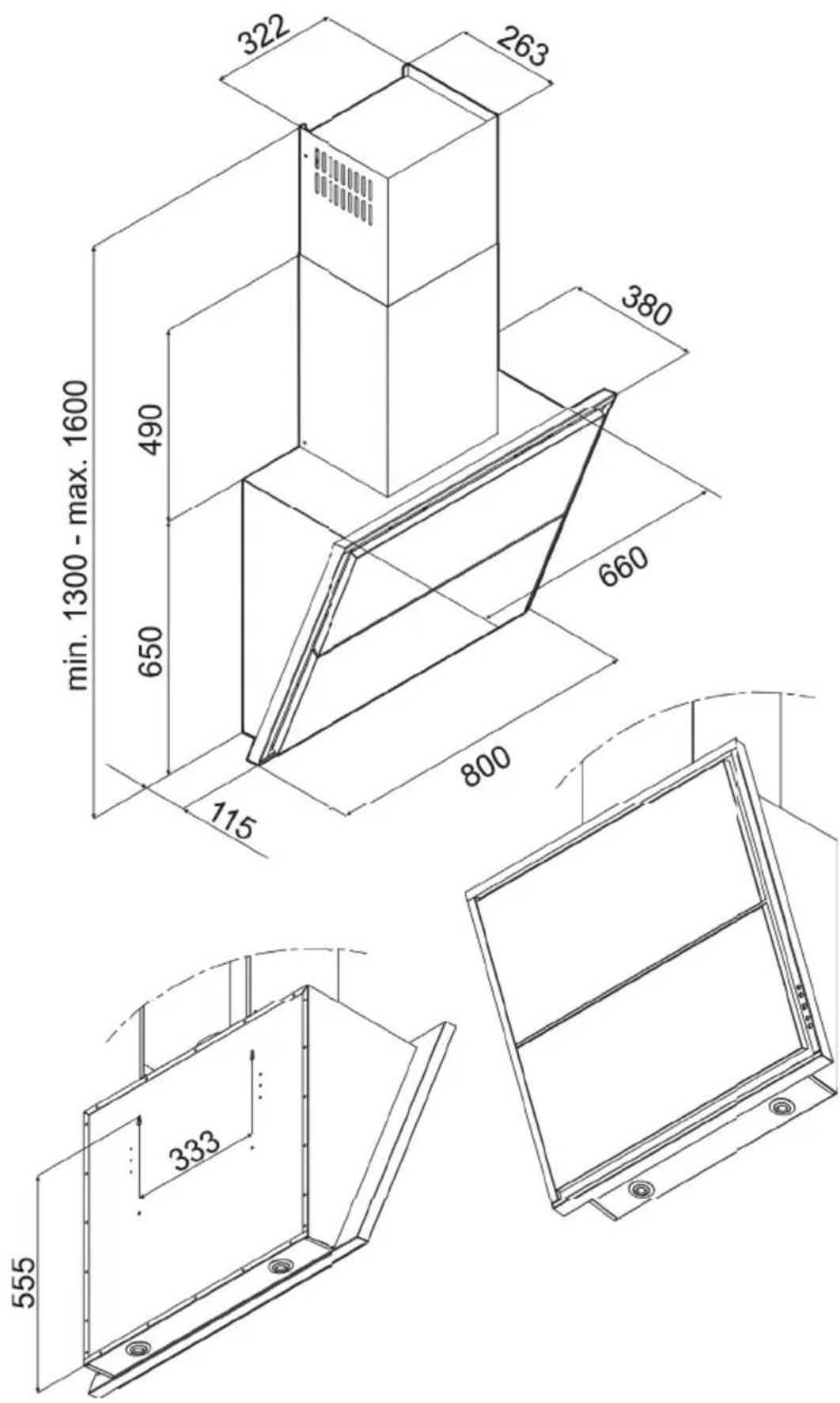

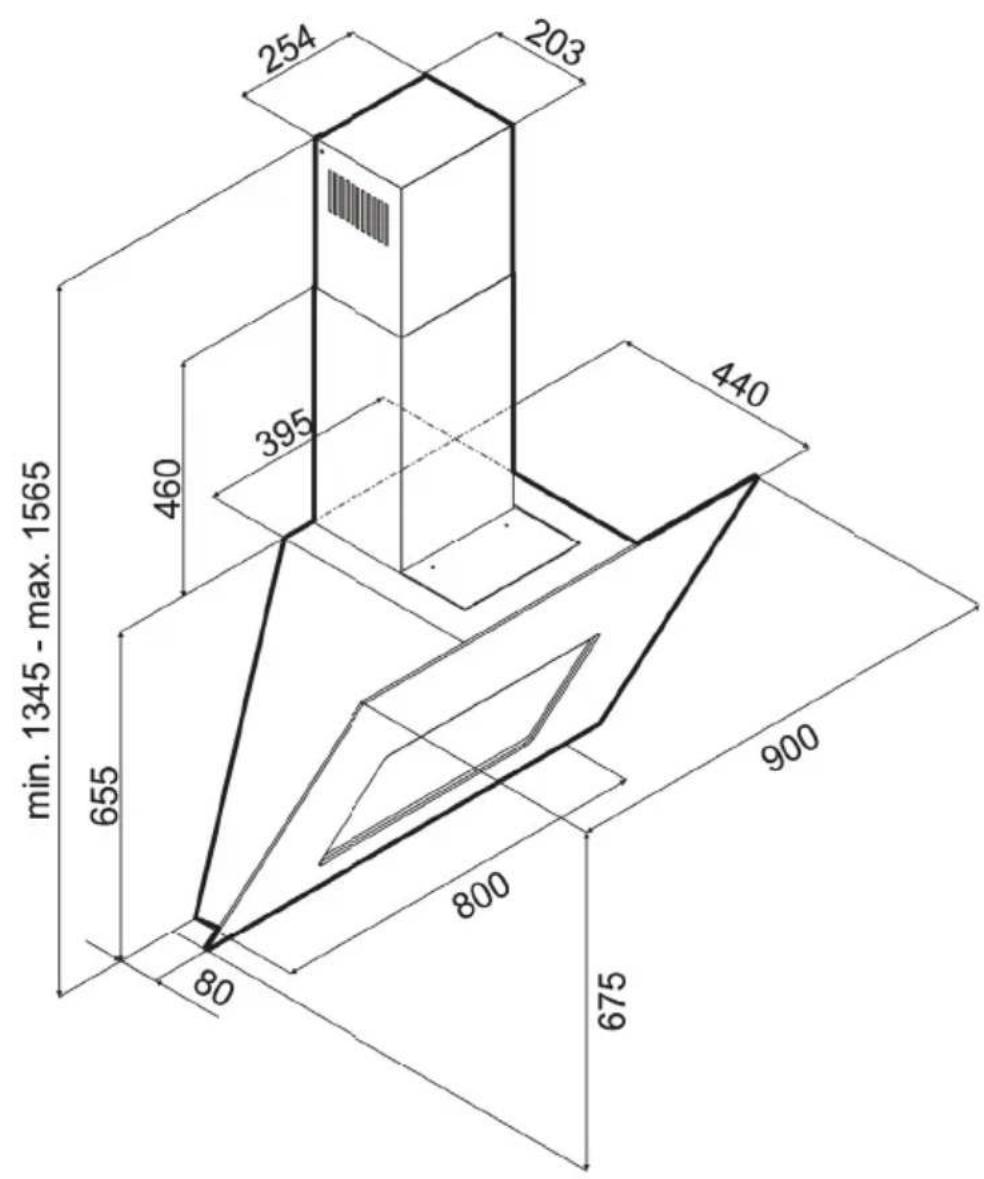

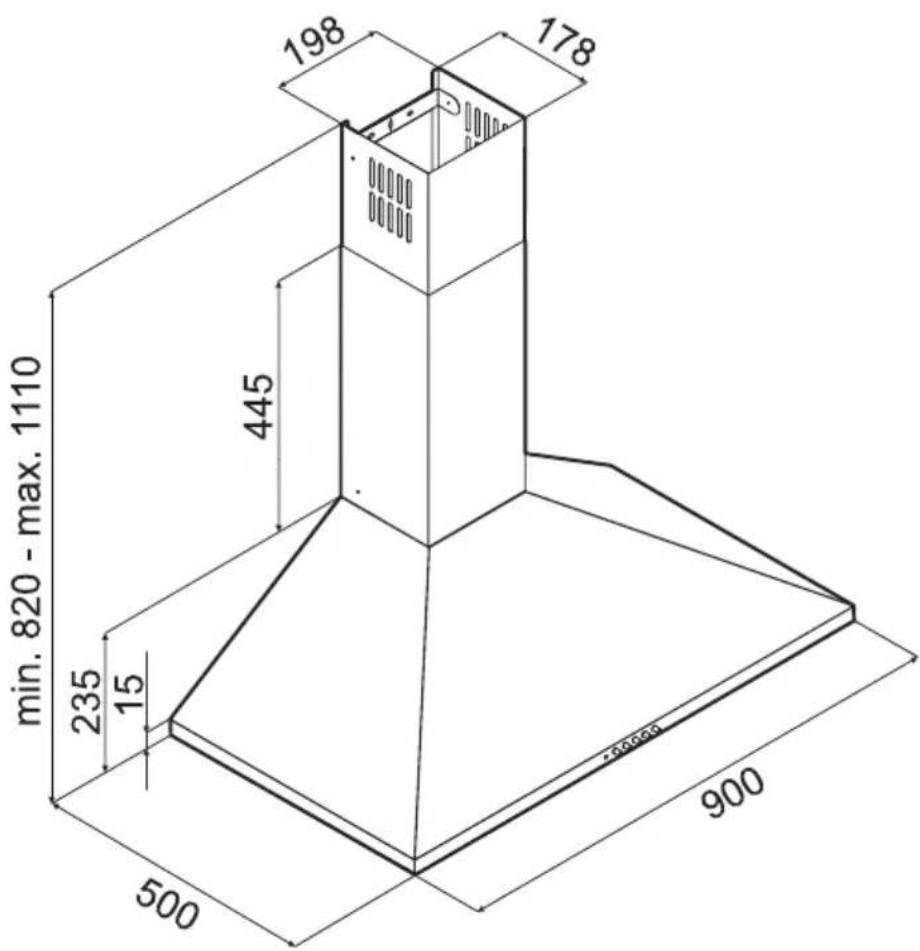

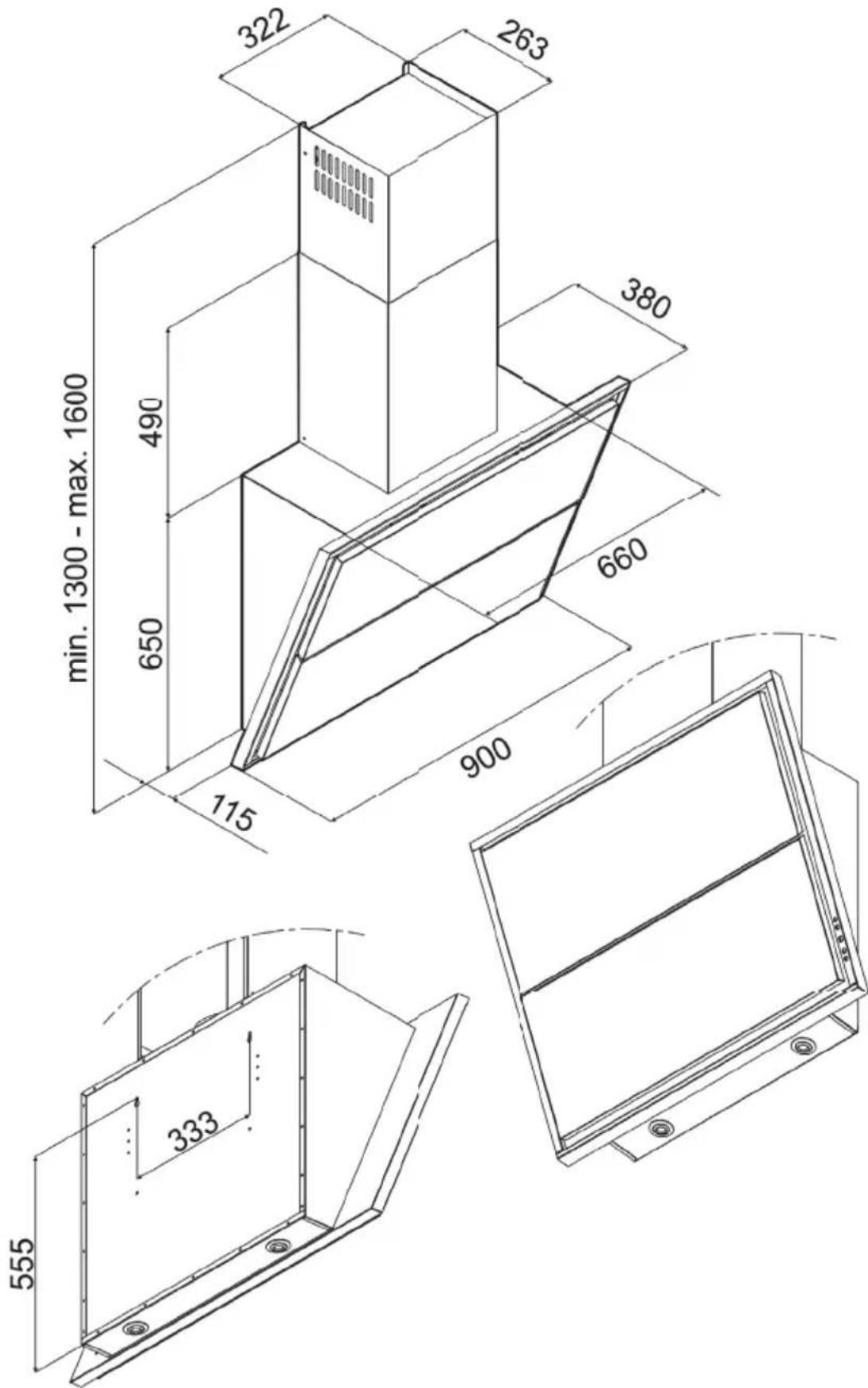

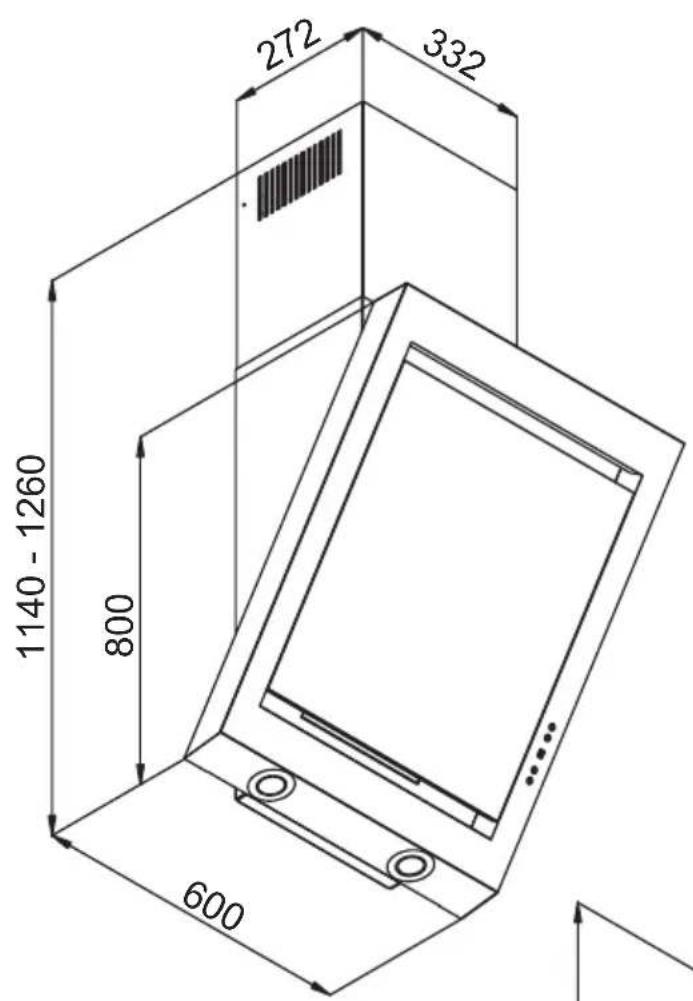

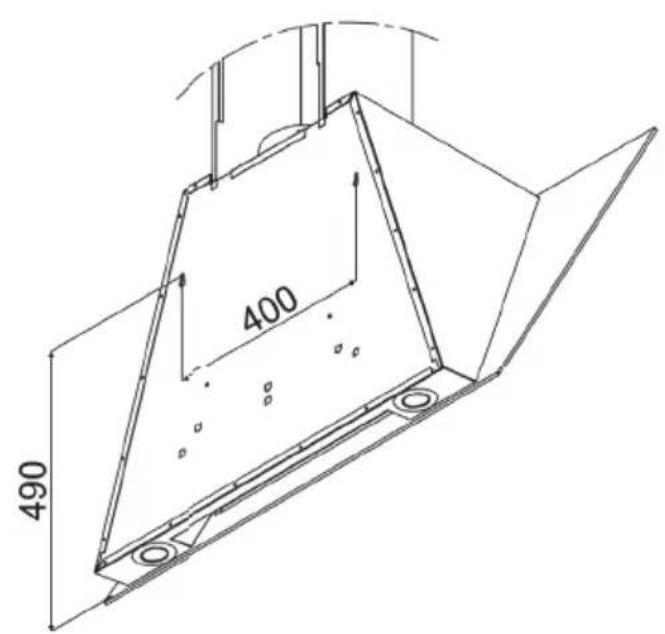

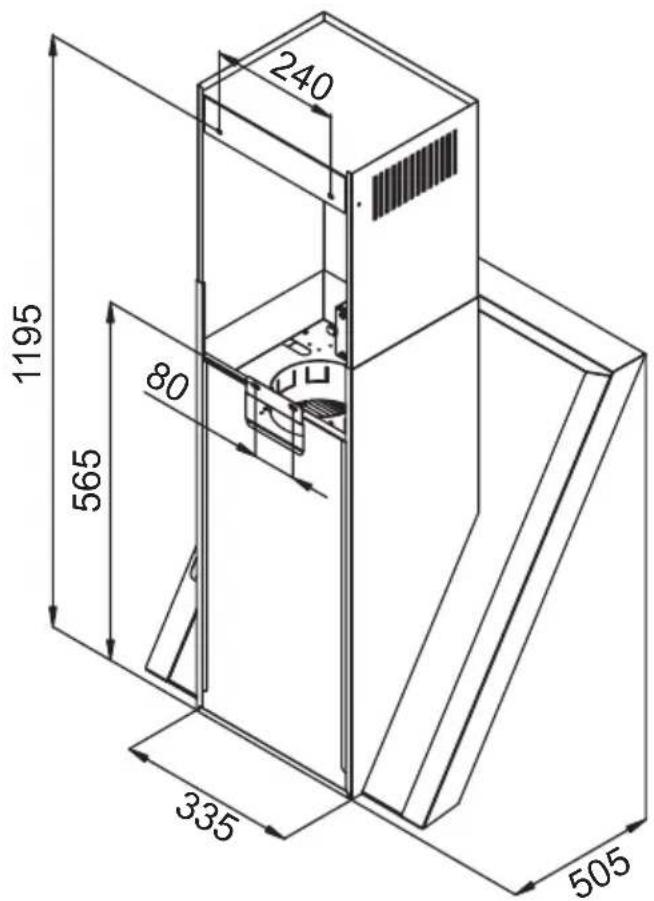

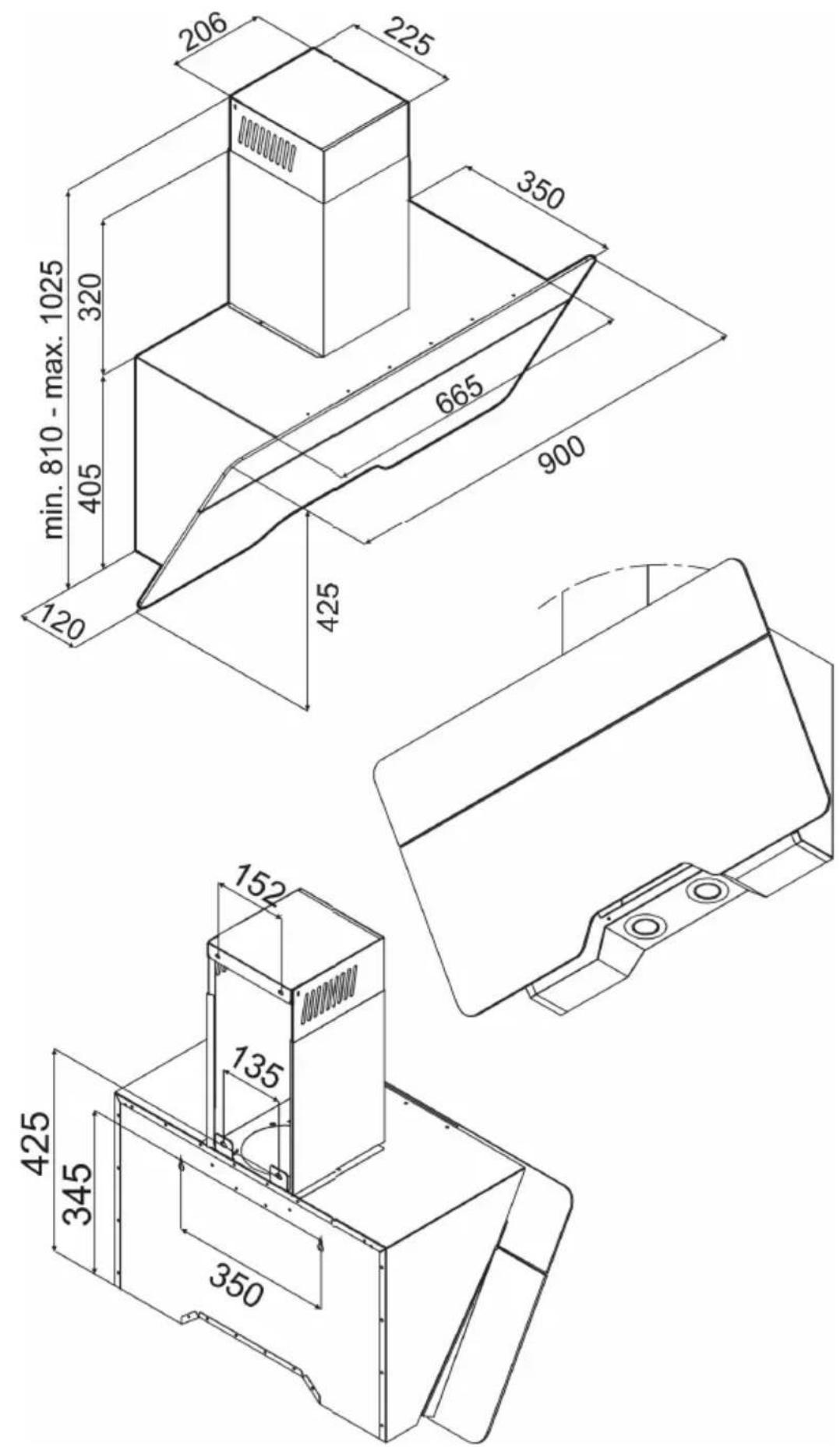

Tekniska ritningar Technical drawings

26

27

28

36

?

service

• Vi har service i hela landet
• Gå in på www.cylinda.se eller
• Ring 0771-25 25 00 (endast lokaltaxa)

uppge

• Maskintyp
• Serienummer
  • Inköpsdatum
