Product Type	Dresser / Dressing
Brand	BDI
Model	Sola 6817
Overall Dimensions (H x W x D)	60" x 36" x 18" (152 x 91 x 46 cm)
Weight	100 lbs (45 kg)
Material	Engineered wood with durable laminate finish
Number of Drawers	6
Drawer Glides	Full-extension ball bearing glides
Finish	Available in multiple finishes (check product listing)
Assembly Required	Yes
Tools Included	Yes, hex key and instructions
Safety Features	Anti-tip kit included
Cleaning	Wipe with a soft, damp cloth; avoid harsh chemicals
Warranty	Limited lifetime warranty
Spare Parts Availability	Contact BDI customer service or visit bdi.com
Country of Origin	Designed in USA, made in China

Frequently Asked Questions - Sola 6817 BDI

How do I assemble the BDI Sola 6817 dresser?

Assembly is required. Follow the step-by-step instructions included in the box. You will need a Phillips head screwdriver (not included). A hex key is provided. Ensure you attach the anti-tip bracket to the wall for safety.

What is the weight capacity per drawer?

Each drawer can hold up to 15 lbs (6.8 kg) of evenly distributed weight. Avoid overloading to prevent damage.

Can I place a TV on top of this dresser?

Yes, the top surface is rated to support up to 50 lbs (22.7 kg). Use the provided anti-tip kit to secure the dresser to the wall if placing a TV.

How should I clean the dresser?

Clean with a soft, damp cloth and dry immediately. Do not use abrasive cleaners, ammonia, or alcohol-based products as they may damage the finish.

Is the anti-tip kit necessary?

Yes, the anti-tip kit is included and must be installed to prevent tipping, especially if the dresser is used with a TV or in homes with children.

What is the warranty coverage?

BDI offers a limited lifetime warranty against defects in materials and workmanship. Normal wear and tear or damage from misuse is not covered.

Can I order replacement parts?

Yes, replacement parts such as drawer glides, handles, or the anti-tip kit can be ordered by contacting BDI customer service or visiting bdi.com.

What are the exact dimensions?

The dresser measures 60 inches tall, 36 inches wide, and 18 inches deep (152 x 91 x 46 cm). Verify clearance in your room before assembly.

Does the Sola 6817 come with a mirror?

No, a mirror is not included. This model is a standalone dresser. Separate mirrors may be available from BDI.

How long does assembly typically take?

With two people, assembly usually takes about 1 to 2 hours. Lay out all parts and follow the manual carefully for best results.

USER MANUAL Sola 6817 BDI

Product Registration

Registering your new BDI product allows us to send you important product updates, service information and helpful hints related to your BDI products. Register today and you will be entered to win free a BINK table from BDI. www.bdiusa.com/product-registration/

Placement and Maintenance

Sola™ Office furniture is designed for indoor use on level floors. Clean surfaces with a moist cloth.

Your Sola™ Office furniture is engineered for easy assembly. Carefully follow this procedure to prevent any damage. Do not use power tools for assembly of this product.

Step 1

Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at: [e-mail].

For all other concerns, please contact your BDI retailer.

Line drawing of a two-door refrigerator with labeled cabinet A1 (no text or symbols on the diagram itself)

Tool Required:
Phillips screwdriver

H5 Phillips Machine Screw x 20

C5 Large File Ba

C5 Large File Bar x 1

C6 File Bar Clip x 2

C7 Small Swivel Caster × 1

Technical line drawing of a mechanical component with a wheel and frame (no text or symbols)

C8 Locking Swivel Caster x 4
C11 Drawer liner

Step 2 - Lay Cabinet on its back side. Attach 4 swivel locking casters C8 to the corners of the cabinet bottom panel using 16 screws H5 and tighten with a Phillips screwdriver. Attach small swivel caster C7 to the drawer block as shown using 4 screws H5.

H5 drawer block C8 C7 C8 C8 C7 C8

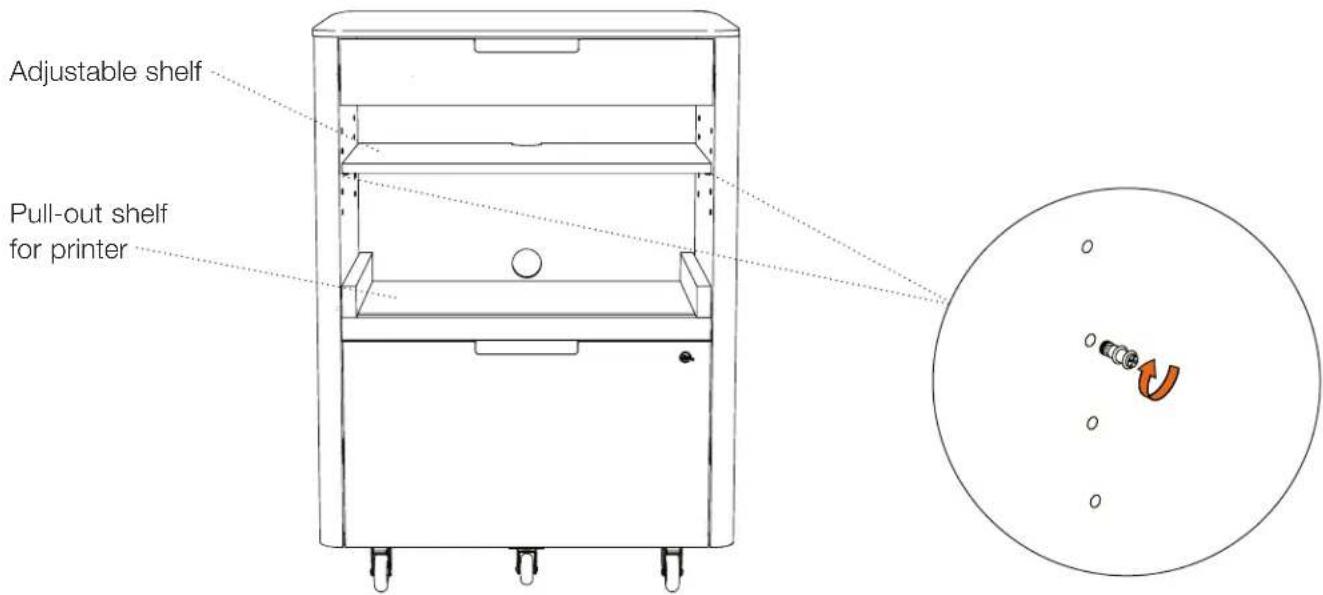

Step 3 - Adjust shelf if needed

The shelf position can be adjusted by unscrewing the 4 shelf pins and moving them up or down to the desired level.

Adjustable shelf Pull-out shelf for printer

Step 4 - File Bar Installation (Letter File)

For letter files facing sideways, attach File Bar Clip C6 to both ends of Large File Bar C5 as shown. Place the file bar assembly in the notches located on the left and right drawer side panels. For legal files, remove the Large File Bar and hang file folders on the front and rear rails.

C6 C5

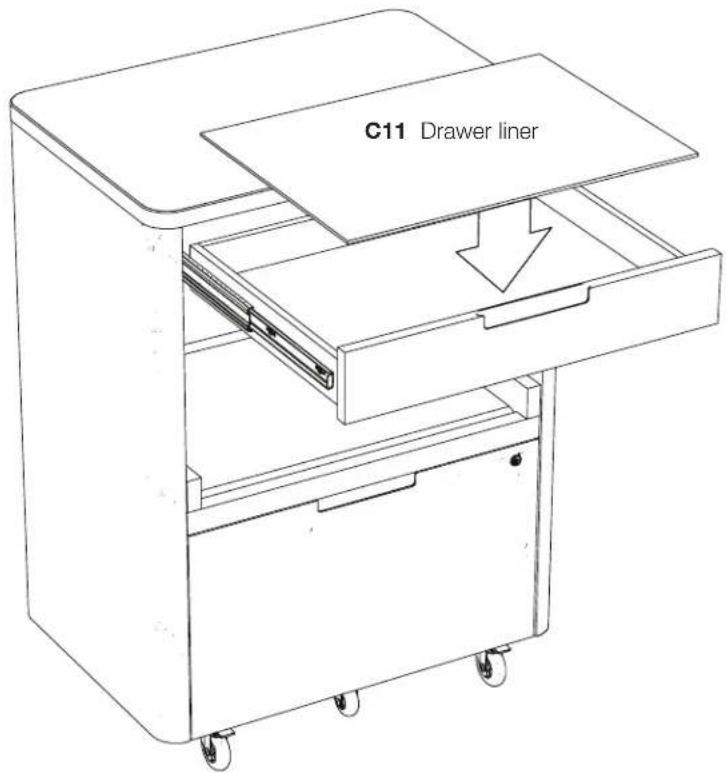

Step 5 - Install Drawer Liner

Open the top drawer and install the drawer liner. Place grippy side down.

C11 Drawer liner
