WASL3T201 - Washing machine AEG-ELECTROLUX - Free user manual and instructions

Product Type	Front-loading washing machine
Brand	AEG-ELECTROLUX
Model	WASL3T201
Dimensions (W x H x D)	400 x 890 x 600 mm
Maximum capacity (cotton)	6 kg
Maximum spin speed	1500 rpm
Electrical supply	230 V, 2200 W, 10 A, 50 Hz
Water pressure	0.5 - 8 bar (min - max)
Water supply type	Cold water only
Protection index	IPX4
Wash programs	Cotton, Synthetics, Delicates, Wool/Silk, Anti-allergy, Jeans, 20 min - 3 kg, Super Eco, Cotton Eco, Steam Refresh, Steam De-wrinkle, etc.
Main functions	Delayed start, Prewash/Stains, Extra rinse, Time saving, Rinse hold, Child safety, Door lock, Buzzer
Display	Digital screen with phase indicators, temperature, speed, lock, etc.
Detergent dispenser	3 compartments: prewash, main wash, fabric softener; powder/liquid flap
Cleaning and maintenance	Accessible drain filter, water inlet filters, emergency drain, drum cleaning, frost protection
Safety	Automatic stop, leak protection (anti-flood hose), child safety, door lock during cycle
Included accessories	Plastic cap, hose guide, anti-flood inlet hose
Energy consumption (cotton cycle 60°C)	1.10 kWh (full load)
Water consumption (cotton cycle 60°C)	54 litres (full load)
Noise level (spin)	Not specified in the manual

Frequently Asked Questions - WASL3T201 AEG-ELECTROLUX

What to do if the machine does not fill with water?

Check that the water tap is open and the inlet hose is not kinked or blocked. Clean the filters in the inlet hose and at the tap. If the problem persists, error code E10 will appear.

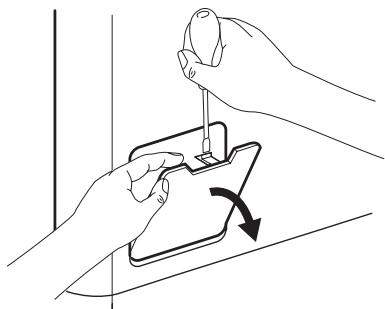

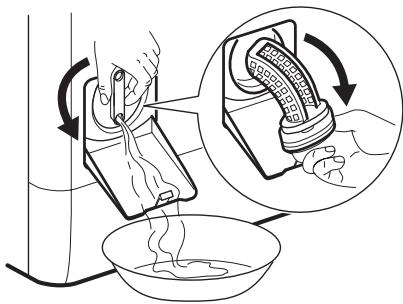

How to clean the drain filter?

Unplug the appliance and wait for the water to cool. Open the filter flap, place a container underneath, turn the filter to drain, then unscrew it completely to remove fluff. Clean it with clean water before putting it back.

Why doesn't the door open at the end of the cycle?

The door remains locked as long as the lock symbol is displayed. If the program is finished but the symbol remains lit, it may be due to the Rinse Hold option. Run a drain or spin program to drain the water.

What do error codes E20 or E40 mean?

E20 indicates a drainage problem (blocked filter, kinked hose). E40 means the door is not properly closed. Check the door and make sure it is fully engaged.

How to use the steam function?

The steam programs (Steam Refresh and Steam De-wrinkle) are intended for dry or once-worn garments. Do not use detergent. For the refresh program, max load 1 kg. At the end of the cycle, garments may be damp; let them air for 10 minutes.

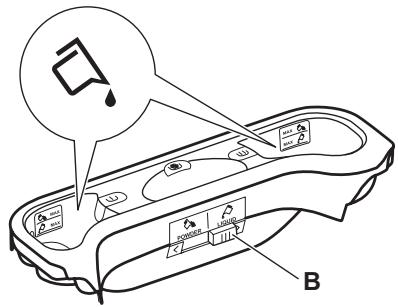

Can liquid detergent be used with all programs?

Yes, but for programs with Prewash, it is not recommended to use liquid detergent. Place the dispenser flap in position B for liquid detergent. Do not exceed the MAX level.

How to activate child safety?

Press the Stains/Prewash (9) and Spin (10) buttons simultaneously for 6 seconds until the lock symbol appears. To deactivate, repeat the operation.

What is the maximum capacity for the cotton program?

The maximum capacity for the cotton program is 6 kg. For synthetics, 3 kg; for wool, 1 kg. Respect these limits for optimal washing.

How to perform a maintenance wash?

Run an empty wash with a cotton program at the highest temperature (95°C) and biological powder detergent. This cleans the drum and removes residues. Do this regularly, especially after low-temperature washes.

What to do in case of frost?

If the appliance is installed in an unheated room, drain the residual water: close the tap, disconnect the inlet hose and let the water drain into a container. Run a drain program, then unplug the appliance. Before reusing, make sure the temperature exceeds 0°C.

USER MANUAL WASL3T201 AEG-ELECTROLUX

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information	2	Before first use	13
Safety instructions	3	Using the appliance	13
Product description	5	Helpful hints and tips	16
Accessories	5	Care and cleaning	17
Control panel	6	Troubleshooting	19
Washing programmes	10	Technical information	20
Consumption values	12

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

GENERAL SAFETY

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not change the specification of this appliance.
• Obey the maximum load volume of 6kg (refer to the "Programme chart" chapter).
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The operating water pressure (minimum and maximum) must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)
• The ventilation openings in the base (if applicable) must not be obstructed by a carpet.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

SAFETY INSTRUCTIONS

INSTALLATION

• Remove all the packaging and the transit bolts.
• Keep the transit bolts. When you move the appliance again you must block the drum.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0^ or where it is exposed to the weather.
• Obey the installation instruction supplied with the appliance.
• Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.
• Do not install the appliance where the appliance door can not be fully opened.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

• Make sure that there is air circulation between the appliance and the floor.

• Adjust the feet to have the necessary space between the appliance and the carpet.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
  Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.
• This appliance complies with the E.E.C. Directives.

Water connection

• Make sure not to cause damage to the water hoses.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.

USE

Warning! Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Use this appliance in a household only.
• Do not change the specification of this appliance.
• Obey the safety instructions on the detergent packaging.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Make sure that you remove all metal objects from the laundry.

• Do not put a container to collect possible water leakage under the appliance. Contact the Service to ensure which accessories can be used.

CARE AND CLEANING

Warning! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

DISPOSAL

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

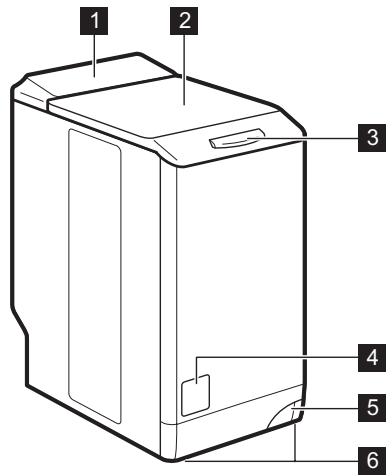

PRODUCT DESCRIPTION

1 Control panel
2 Lid
3 Lid button
4 Filter access door
5 Lever to move the appliance
6 Adjustable feet

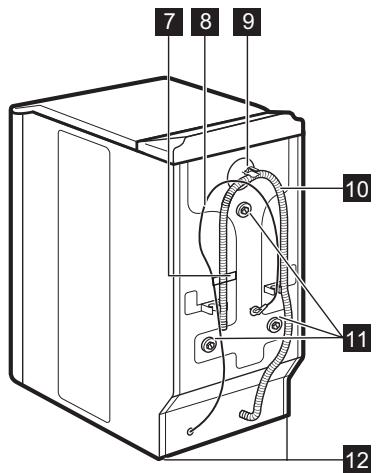

ACCESSORIES

7 Rating plate
8 Mains cable
9 Water inlet valve
10 Water drain hose
11 Transit bolts
12 Feet for the appliance level

Plastic cap

To close the hole on the rear side of the cabinet, after the removal of the transit bolt.

2 Plastic hose guide

To connect the drain hose on the edge of a sink.

3 Anti-flood inlet hose

To prevent possible leakage.

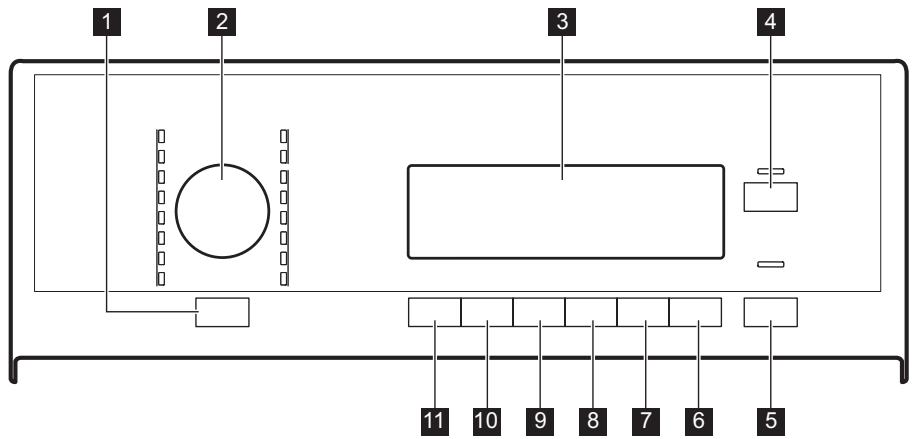

CONTROL PANEL

1 On/Off button
2 Programme knob
3 Display
4 Liquid detergent button
5 Start/Pause button
6 Delay start button
Time saving button
8 Extra rinse button
9 Stain/Prewash button
10 Spin button
11 Temperature button

AUTO OFF BUTTON 1

Press this button to activate or deactivate the appliance. A tune sounds when the appliance is activated.

The AUTO OFF function automatically deactivates the appliance to stop the energy consumption when:

• You do not use the appliance for 5 minutes before you press button ⑤

• All settings are cancelled.
  Press button 1 to activate the appliance again.

• Set again the washing programme and all possible options.
• After 5 minutes from the end of the washing programme. Refer to 'At the end of programme'.

PROGRAMME KNOB 2

Turn this knob to set a programme. The related programme indicator comes on.

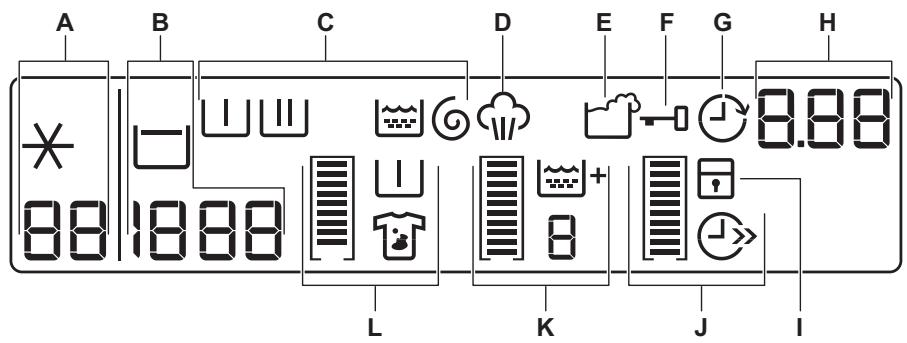

DISPLAY 3

The display shows:

A	88 *	The temperature of the set programme
		Cold water
B	1888	The spin speed of the set programme
	- - -	No Spin symbol¹)
		Rinse Hold symbol
1) Only available for Spin/Drain programme.
C		Prewash phase
		Washing phase
		Rinses phase
		Spin phase
	The phase symbols · When a programme is set, all the symbols of the phases related to the programme come on. · When the programme starts, only the symbol of the phase in operation flashes. · When the programme is completed, the symbol of the last phase is on.
D		The steam symbol comes on when you set a Steam programme.
E		The detergent overdosing comes on at the end of the cycle when the appliance detects too much detergent.
F		You cannot open the appliance door when the symbol is on. You can open the door only when the symbol goes off. If the programme is completed but the symbol stays on: · The 'Rinse Hold' function is on. · There is water in the drum.
G		The delay start symbol comes on when you set the delay start function.
H	125	· The programme time When the programme starts, the programme time decreases with steps of 1 minute.
	2h	· The delay start When you press the delay start button, the display shows the delay start time.
	E20	· Alarm codes If the appliance has a malfunction, the display shows alarm codes. Refer to 'Troubleshooting'.
	Err	· The display shows this message for some seconds when: - You set a function that is not applicable for the programme. - You change the programme while it operates.
		·When the programme is completed.
I		The child safety lock symbol comes on when this device is activated.
Graphic bars
		The empty indicator bar appears only if the related function is available for the set programme.
		The indicator bar fills accordingly to the set functions.
If you make a wrong selection the message Err indicates that the selection is not possible.
J		The time save symbol comes on when you set one of the programme duration:
		·Shortened duration
		·Extra Quick
K		The extra rinse symbol comes on when this function is activated.
		The value shows the total number of the rinses.
		The indicator bar is fully filled when you set to the maximum number of rinses.
L		The Stain symbol comes on when you activate the function.
		The Prewash symbol comes on when you activate the function.
		The indicator bar is not fully filled when you set only one of the functions.
		The indicator bar is fully filled when you set the two functions.

LIQUID DETERGENT BUTTON 4

Press button 4 to adapt the cycle if you use a liquid detergent.

START/PAUSE BUTTON 5

Press button 5 to start or interrupt a programme.

DELAY START BUTTON 6

Press button 6 to delay the start of a programme from 30 minutes to 20 hours.

TIME SAVE BUTTON 7

Press button 7 to decrease the duration of the programme.

• Press one time to set 'Shortened duration' for items with daily soil.

• Press two times to set 'Extra Quick' for items with light soil.
  Some programmes accept only one of the two functions.

EXTRA RINSE BUTTON 8

Press button 8 to add rinsing phases to a programme.

Use this function for persons allergic to detergents and in areas where the water is soft.

THE STAIN-PREWASH BUTTON 9

Press button 9 to add the stain and/or a prewash phase to a programme.

Press the button again and again to activate one or two options. The related sym

bol and the indicator bar comes on in the display.

STAIN

• Use this function for laundry with hard stains to remove. When you set this function, put the stain remover into compartment . This function increases the programme duration.

This function is not available with a temperature lower than 40^ .

PREWASH

• Use this function to add a prewash phase before the washing phase. We recommend that you use this function when you have laundry with a high level of soil.
  The set of this function increases the programme duration.

SPIN BUTTON 10

Press this button to:

• Decrease the maximum speed of the spin phase of the programme.
  The display shows only the spin speeds available with the set programme.
• Deactivate the spin phase.
• Activate the 'Rinse Hold' function. Set this function to prevent fabric creases. The appliance does not drain the water when the programme is completed.

TEMPERATURE BUTTON 11

Press button 11 to change the default temperature. When the display shows × - , the appliance does not heat the water.

ACOUSTIC SIGNALS FUNCTION

You can hear the acoustic signals when:

• You activate the appliance.
• You deactivate the appliance.
• You press the buttons.
  The programme is completed.
• The appliance has a malfunction.

To deactivate/activate the acoustic signals, press button 7 and button 8 at the same time for 6 seconds.

If you deactivate the acoustic signals, they continue operate only when you press the buttons and when a malfunction occurs.

CHILD LOCK FUNCTION

This function prevents children to play with the control panel.

• To activate the function, press button 9 and button 10 at the same time until the display shows the symbol 7 .

• To deactivate the function, press button 9 and button 10 at the same time until the symbol goes off.

You can activate the function:

• Before you press the Start/Pause button 5 : the appliance cannot start.
• After you press the Start/Pause button 5 , all the buttons and the programme knob are deactivated.

PERMANENT EXTRA RINSE FUNCTION

With this function you can keep the extra rinse function permanently on when you set a new programme.

• To activate the function press button 5 and button 6 at the same time until the display shows the symbol 23 .
  To deactivate the function press button 5 and button 6 at the same time until the symbol goes off.

WASHING PROGRAMMES

Programme Temperature	Type of load Max. weight of load	Cycle description	Functions
Cottons (Koch/Bunt / Blanc/Couleurs) 95° - Cold	White and coloured cotton with heavy level of soil. max. load 6 kg	Wash Rinses Long spin	SPIN REDUCTION RINSE HOLD PREWASH1)/STAIN2) LIQUID DETERGENT EXTRA RINSE TIME SAVE3)
Extra Silent (Extra Leise / Extra Silence) 95° - Cold	White and coloured cotton with normal level of soil. max. load 6 kg	Wash Rinses Stop with water in the drum	PREWASH1)/STAIN2) LIQUID DETERGENT EXTRA RINSE TIME SAVE3)
Synthetics (Pflegeleicht / Synthétiques) 60° - Cold	Synthetic or mixed fabric items with nor-mal level of soil. max. load 3 kg	Wash Rinses Short spin	SPIN REDUCTION RINSE HOLD PREWASH1)/STAIN2) LIQUID DETERGENT EXTRA RINSE TIME SAVE
Easy Iron (Leichtbögeln / Repassage Facile) 60° - Cold	Synthetic fabrics. The wash and the spin phase of this programme are delicate to prevent the creases of the laundry. The appliance adds some rinses. max. load 1 kg	Wash Rinses Short spin	SPIN REDUCTION RINSE HOLD PREWASH1) LIQUID DETERGENT EXTRA RINSE TIME SAVE
Delicates (Feinwäsche / Delicats) 40° - Cold	Delicate fabrics as acrylics, viscose, poly-ester items with normal soil. max. load 2,5 kg	Wash Rinses Short spin	SPIN REDUCTION RINSE HOLD PREWASH1)/STAIN2) LIQUID DETERGENT EXTRA RINSE TIME SAVE
Wool / Silk (Wolle/Seide / Laine/Soie) 40° - Cold	Machine washable wool as well as for hand washable wool and delicate fabrics with «hand washing» care symbol. max. load 1 kg	Wash Rinses Short spin	SPIN REDUCTION RINSE HOLD LIQUID DETERGENT
pillows (Daunen / Cou-ette) 60° - 30°	Special programme for one synthetic blanket, duvet, bedspread and so on. max. load 2,5 kg	Wash Rinses Short spin	SPIN REDUCTION LIQUID DETERGENT
Anti Allergy (Anti-Allergie / Anti-allergies) 60°	White cotton items. This programme removes micro-organisms thanks to the washing by 60°C and adds on rinse. In this way the action is more effective. Put a special additive for hygiene in the Prewash compartment and select the option Stain. max. load 6 kg	Wash Rinses Long spin	SPIN REDUCTION RINSE HOLD PREWASH1)/STAIN LIQUID DETERGENT EXTRA RINSE
Spin / Drain (Schleudern/ Pumpen / Es-sorage/Vi-dange)4)	All fabrics. The spin phase assumes the setting for cotton items. Set the spin speed accord-ing the type fabrics. max. load 6 kg	Drainage of the water Spin phase	SPIN REDUCTION NO SPIN
Rinse (Spülen / Rin-çage)	All fabrics. max. load 6 kg	One rinse with additive spin phase	SPIN REDUCTION RINSE HOLD LIQUID DETERGENT EXTRA RINSE5)
Jeans 60° - Cold	Items like pants, shirts or jackets in jeans and jersey realized with hi-tech materials. max. load 3 kg	Wash Rinses Short spin	SPIN REDUCTION RINSE HOLD PREWASH1) LIQUID DETERGENT EXTRA RINSE
20 min - 3kg 40° - 30°	Quick wash of sport items or cotton and synthetic items, lightly soiled or worn once. max. load 3 kg	Wash Rinses Short spin	SPIN REDUCTION LIQUID DETERGENT
Super Eco Cold	Mixed fabrics (cotton and synthetic items). This programme is designed for saving energy, water and time.6) max. load 3 kg	Wash Rinses Short spin	SPIN REDUCTION RINSE HOLD LIQUID DETERGENT EXTRA RINSE
Cottons Eco (Baumwolle Eco/ Coton Eco)7) 60° - 40°	White and fast coloured cotton with nor-mal soil. Set this programme to have a good washing results and decrease the energy consumption. The time of the washing programme is extended. For cotton economy programmes you can set only the Extra Quick duration. max. load 6 kg	Wash Rinses Long spin	SPIN REDUCTION RINSE HOLD PREWASH1)/STAIN 2) LIQUID DETERGENT EXTRA RINSE TIME SAVE3)

1) If you use liquid detergent, set a programme without PREWASH.
2) The Stain function is not available with a temperature lower than 40^ .
3) If you select the Extra Quick duration, we recommend that you decrease the quantity of the load. It is possible to load fully the appliance, however the washing results are reduced.
4) To select the DRAIN programme only, set the function NO SPIN.
5) Press EXTRA RINSE button to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.
6) This programme is suitable for detergents that are effective at low temperatures.
7) According to regulation 1061/2010, the "Baumwolle Eco/ Coton Eco 60^ and Baumwolle Eco/ Coton Eco 40 ^ C " are respectively the "standard 60 °C cotton programme" and the "standard 40 °C cotton programme". They are the most efficient programmes in terms of combined energy and water consumptions for washing normally soiled cotton laundry.

STEAM PROGRAMMES

Programme1)	Type of load	Max. load
Steam Refresh (Dampf Aufrischen / Rafraîchir Vapeur) This cycle removes odours from the laundry i Steam does not remove animal odours.	Cotton and synthetic items Do not set the Steam programme for this type of items: · items where it is not specified on the care label as being suitable for tumble-drying · all items that have plastic, metal, wood- en parts or alike.	up to 1 Kg
Steam Dewrinkle (Dampf Glätten / Défloissage Vapeur) This cycle helps to dewrinkle the laun-dry.		up to 1 Kg
i Steam can be used for dried, washed or worn once laundry. These programmes can reduce creases and odours and make your laundry more smooth. Do not use any detergent. If necessary, remove stains by washing or using localized stain re-mo-oval. Steam programmes do not perform any hygienic cycle.

1) If you set a Steam programme with dried laundry, at the end of the cycle the laundry feels humid. It is better to expose items to the open air for about 10 minutes to remove the humidity. When the programme is completed, quickly remove the laundry from the drum. After a steam cycle, items may to be ironed anyway, but with less effort!

CONSUMPTION VALUES

The data of this table are approximate. Different causes can change the data: the quantity and type of laundry, the water and ambient temperature.

Programmes	Load (Kg)	Energy consumption (kWh)	Water consumption (litre)	Approximate programme duration (minutes)	Remaining moisture (%)1)
Cottons 60 °C	6	1.10	54	180	44
Cottons 40 °C	6	0.60	52	170	44
Synthetics 40 °C	3	0.45	45	105	35
Delicates 40 °C	3	0.51	46	74	35
Wool/Hand wash 30 °C	1	0.33	44	60	30
Standard cotton programmes
Standard 60 °C cotton	6	0.62	39	230	44
Standard 60 °C cotton	3	0.53	34	170	44
Standard 40 °C cotton	3	0.42	34	160	44

1) At the end of spin phase.

Off Mode (W)	Left On Mode (W)
0.05	0.05
The information given in the charts above are in compliance with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC.

BEFORE FIRST USE

Put a small quantity of detergent in the main wash compartment of the detergent dispenser. Set and start a programme for

cotton at the highest temperature without laundry. This removes all possible dirt from the drum and the tub.

USING THE APPLIANCE

1. Open the water tap.
2. Connect the mains plug to the mains socket.
3. Press button to activate the appliance.
4. Put the laundry in the appliance.
5. Use the correct quantity of detergent and additives.

6. Set and start the correct programme for the type of laundry and soil.

7. Open the lid of the appliance.

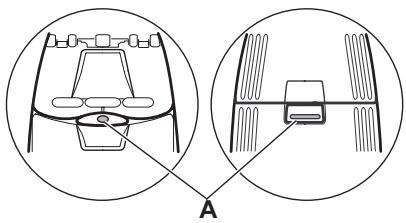

8. Push the button A (depending on model). The drum opens automatically.
9. Put the laundry. Make sure to not put too much laundry into the drum.
10. Close the drum and the lid of your washing machine.

Important! Before you close the lid of your appliance, make sure that you close the drum correctly.

LOADING THE LAUNDRY

USING DETERGENT AND ADDITIVES

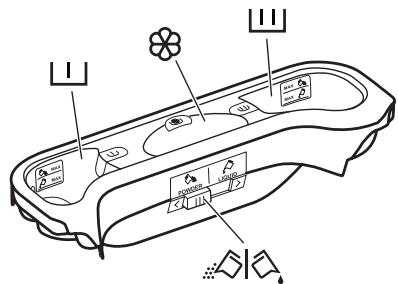

• Measure out the detergent and the fabric conditioner.

Detergent compartment for prewash phase.

The marks MAX are the maximum levels for the quantity of detergent (powder or liquid).

Detergent compartment for washing phase.

The marks MAX are the maximum levels for the quantity of detergent (powder or liquid).

Compartment for liquid additives (fabric conditioner, starch).

The mark M is the maximum level for the quantity liquid additives.

Flap for powder or liquid detergent.

Liquid or powder detergent

1.

2.

3.

4.

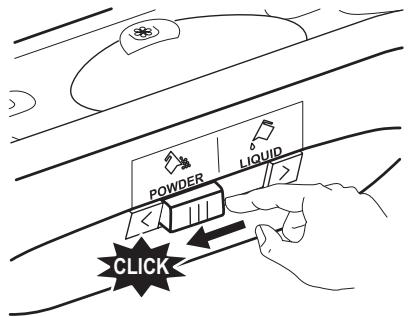

• Position A for powder detergent (factory setting).

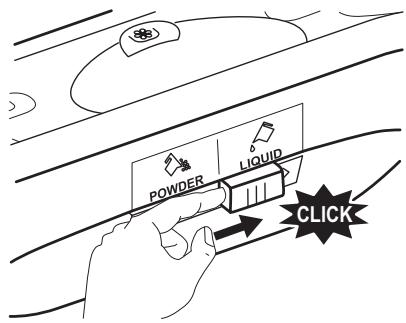

• Position B for liquid detergent.

When you use the liquid detergent:

• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid then the maximum level.

SETTING AND STARTING A PROGRAMME

SETTING AND STARTING A PROGRAMME

1. Turn the programme knob. The related programme indicator comes on.
2. The indicator of button 5 flashes with red colour.
3. The display shows the default temperature, the spin speed and the empty indicator bars of the available functions.
4. To change the temperature and/or the spin speed, press the related buttons.

5. Set the available functions.

6. Press button 5 to start the programme. The indicator of button 5 is on.
   The drain pump can operate for a short time when the appliance fills water.

INTERRUPT A PROGRAMME

1. Press button 5 . The indicator flashes.
2. Press button 5 again. The washing programme continues.

CANCEL A PROGRAMME

1. Press button 1 to cancel the programme and to deactivate the appliance.

2. Press button 1 again to activate the appliance. Now, you can set a new washing programme.
   The appliance does not drain the water.

CHANGE A FUNCTION

You can change only some functions before they operate.

1. Press button 5 . The indicator flashes.
2. Change the function set.

SET THE DELAY START

1. Press button 6 again and again until the display shows the number of minutes or hours. The related symbols comes on.
2. Press button 5, the appliance starts the countdown of the delay start. When the countdown is completed, the programme starts automatically.

Before you press button 5 to start the appliance, you can cancel or change the set of the delay start. You cannot set the delay start with the Steam programme.

1. Press button 5 . The related indicator flashes.
2. Press button 6 again and again until the display shows 0^
3. Press button 5 . The programme starts.

OPEN THE LID

While a programme or the delay start operates, the lid is locked.

To open the lid:

1. Press button 5. You can open the lid 2 minutes after the appliance stops. The door lock symbol in the display goes off.
2. Open the lid.
3. Close the lid and press button 5 . The programme or the delay start continu es.

If the temperature and level of the water in the drum are too high, the door lock symbol stays on and you cannot open the lid. If necessary, do the following procedure to open the lid.

1. Deactivate the appliance.
2. Wait for some minutes.
3. Make sure that there is no water in the drum.

Important! If you deactivate the appliance, it is necessary to set the programme again.

AT THE END OF PROGRAMME

• The appliance stops automatically.
• The acoustic signals operate.
• In the display comes on.
• The indicator of the Start/Pause button 4 goes off.
• You can open the lid 2 minutes after the appliance stops. The door lock symbol goes off.
• Press button 1 to deactivate the appliance. After five minutes from the end of the programme, the AUTO OFF function automatically deactivates the appliance.

When you activate the appliance again, the display shows the end of the last set programme. Turn the programme knob to set a new cycle.

• Remove the laundry from the appliance.
  Make sure that the drum is empty.
• Keep the door ajar, to prevent mildew and odours.
• Close the water tap.

The washing programme is completed, but the 'Rinse Hold' function is on:

• The drum turns regularly to prevent the creases in the laundry.
• The door stays locked.
• You must drain the water to open the door.

To drain the water:

1. If necessary, decrease the spin speed.
2. Press the Start/Pause button 4 . The appliance drains the water and spins.

3. When the programme is completed and the door lock symbol goes off, you can open the door

4. Deactivate the appliance.

The appliance drains and spins automatically after approximately 18 hours.

HELPFUL HINTS AND TIPS

THE LAUNDRY LOAD

• Divide the laundry in: white, coloured, synthetics, delicates and wool.
• Obey the washing instructions that are on the laundry care labels.
• Do not wash together white and coloured items.
• Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first times.
• Button up pillowcases, close zippers, hooks and poppers. Tie up belts.
• Empty the pockets and unfold the items.
• Turn inside out multilayered fabrics, wool and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy soil stains.
• Be careful with the curtains. Remove the hooks or put the curtains in a washing bag or pillowcase.

• Do not wash in the appliance :

• Laundry without hems or with cuts

• Underwired bras.

• Use a washing bag to wash small items.

• A very small load can cause balance problems with the spin phase. If this occurs, adjust manually the items in the tub and start the spin phase again.

STUBBORN STAINS

For some stains, water and detergent is not sufficient.

We recommend that you remove these stains before you put the items in the appliance.

Water hardness table

Level	Type	Water hardness
		°dH	°C.T.H.	mmol/l	Clarke
1	soft	0-7	0-15	0-1.5	0-9
2	medium	8-14	16-25	1.6-2.5	10-16
3	hard	15-21	26-37	2.6-3.7	17-25
4	very hard	>21	>37	>3.7	>25

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

DETERGENTS AND ADDITIVES

• Only use detergents and additives specially made for washing machines.
• Do not mix different types of detergents.
• To help the environment, do not use more than the correct quantity of detergent.
• Obey the instructions that you find on the on packaging of these products.
• Use the correct products for the type and colour of the fabric, the programme temperature and the level of soil.

WATER HARDNESS

If the water hardness in your area is high or moderate, we recommend that you use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener.

To know the water hardness in your area, contact your local water authority.

Obey the instructions that you find on the packaging of the products.

Equivalent scales measure the water hardness:

German degrees (^)
- French degrees (°TH).
- mmol/l (millimol for each litre - international unit for the hardness of water).
- Clarke degrees.

Warning!

Disconnect the appliance from the mains supply before you clean it.

DESCALING

The water we use contains limescale. If it becomes necessary, use a water softener to remove limescales.

Use a special product made for washing machines. Obey the instructions that you find on the packaging of the manufacturer. Do this separately from the laundry wash.

EXTERNAL CLEANING

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

Caution! Do not use alcohol, solvents or chemical products.

MAINTENANCE WASH

With the low temperature programmes it is possible that some detergent stays in the drum. Make regularly a maintenance wash. To do this:

• Empty the laundry from the drum.
• Set the hottest cotton wash programme
• Use a correct quantity of powder detergent with biological properties.

After each wash, keep the door open for a while to prevent mould and to let unpleasant smells go out.

DETERGENT DISPENSER

To clean the dispenser:

1. Remove the detergent dispenser and disconnect the two parts.

2. Clean all the parts with water.

3. Assemble the two parts of the detergent dispenser.

4. Put back the detergent dispenser.

DRAIN FILTER

Regularly examine the drain filter and make sure that it is clean.

Warning!

• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates. Do not clean the drain filter if the water in the appliance is hot. The water must be cold before you clean the drain filter.

To clean the drain filter:

1. Open the drain filter door.

1. Put a container below the recess of the drain filter to collect the water that flows out. Turn the filter until it is vertical.
2. Turn the filter fully and remove it.
3. Remove fluff and objects.
4. Clean the filter with water.

5. Put it back and screw it in.

6. Make sure that you tighten correctly the filter to prevent leakages.

7. Close the drain filter door.

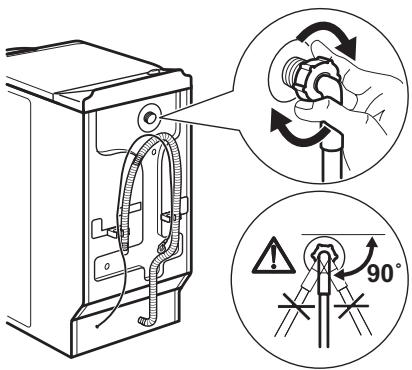

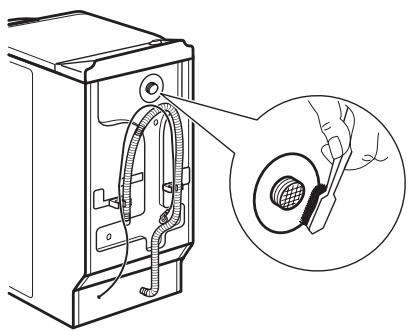

THE INLET HOSE FILTER AND THE VALVE FILTER

Warning!

• Disconnect the mains plug from the mains socket.

To clean the water inlet filters:

1. Close the water tap.
2. Remove the water inlet hose from the water tap.
3. Clean the filter in the inlet hose with a stiff brush.

1. Remove the inlet hose behind the appliance.
2. Clean the filter in the valve with a stiff brush or a towel.

1. Install again the inlet hose. Make sure that the couplings are tight to prevent leakages.
2. Open the water tap.

EMERGENCY DRAIN

Because of a malfunction, the appliance cannot drain the water.

If this occurs, do steps (1) through (3) of 'To clean the drain filter'.

If necessary, clean the filter.

Put the drainage duct back and close the drain filter flap.

FROST PRECAUTIONS

If the appliance is installed in an area where the temperature can be less than 0^ , remove the remaining water from the inlet hose and the drain pump.

1. Close the water tap and disconnect the inlet hose.
2. Put the end of the inlet hose in a container and let the water flow out of the hose.
3. Do the Drain programme and let it operate until the end of the cycle.
4. Turn the programme knob to Stop to disconnect the appliance from the power supply.
5. Disconnect the appliance.

Warning! Make sure that the temperature is more than 0^ before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

TROUBLESHOOTING

The start of the appliance does not occur or it stops during operation.

First try to find a solution to the problem (refer to the table). If not, contact the service centre.

With some problems, the acoustic signals operate and the display shows an alarm code:

• E10 - The appliance does not fill with water.

• E20 - The appliance does not drain the water.

• E40 - The appliance door is open or not closed correctly.
• EFO - The anti-flood device is on.

Warning! Deactivate the appliance before you do the checks.

Problem	Possible cause	Possible solution
The appliance does not fill with water.	The water tap is closed.	Open the water tap.
	The water inlet hose is damaged.	Make sure that the water inlet hose has no damages.
	The filters in the water inlet hose is blocked.	Clean the filters. Refer to 'Care and cleaning'.
	The water tap is blocked or is furred with limescale.	Clean the water tap.
	The connection of the water inlet hose is not correct.	Make sure that the connection is correct.
	The water pressure is too low.	Contact your local water authority.
The appliance does not drain the water.	The water drain hose is damaged.	Make sure that the water drain hose has no damages.
	The filter of the drain pump is blocked.	Clean the filter of the drain pump. Refer to 'Care and cleaning'.
	The connection of the water drain hose is not correct.	Make sure that the connection is correct.
	A washing programme without the drain phase is set.	Set the drain programme.
	The function Rinse & Hold is on.	Set the drain programme.
The appliance door is open or not closed correctly.		Close the door correctly.
The anti-flood device is on.		• Disconnect the appliance. • Close the water tap. • Contact the service centre.
The spin phase does not operate.	The spin phase is off.	Set the spin programme.
	The filter of the drain pump is blocked.	Clean the filter of the drain pump. Refer to 'Care and cleaning'.
	Balance problems with the laundry load.	Adjust manually the items in the tub and start the spin phase again.
The programme does not start.	The mains plug is not connec-ted in the mains socket.	Put in the mains plug.
	Blow out fuse in the household fuse box.	Replace the fuse.
	You did not press button 5 .	Press button 5 .
	The delay start is set.	To start immediately the programme, cancel the delay start.
	The Child Lock function is acti-vated.	Deactivate the Child Lock function.
There is water on the floor.	Leakages from the couplings of the water hoses.	Make sure that the couplings are tight.
	Leakages from the drain pump.	Make sure that the drain pump filter is tight.
	The water drain hose is dam-aged.	Make sure that the water inlet hose has no damages.
You cannot open the appliance door.	The washing programme is in operation.	Let the washing programme end.
	There is water in the drum.	Set the drain or the spin programme.
The appliance makes an unusual noise.	Incorrect level of the appli-ance.	Adjust the level of the appliance. Refer to 'Installation'.
	You did not remove the pack-aging and/or the transit bolts.	Remove the packaging and/or the trans-it bolts. Refer to 'Installation'.
	The load is very small.	Add more laundry in the drum.
The appliance fills with water and drain imme-dately.	The end of the drain hose is too low.	Make sure that the drain hose is in the correct position.
The washing results are not satisfactory.	The detergent you used was not sufficient or correct.	Increase the detergent quantity or use a different one.
	You did not remove the stub-born stains before you wash the laundry.	Use special products to remove the stubborn stains.
	Incorrect temperature was set.	Make sure that you set the correct tem-perature.
	Too much laundry load.	Decrease the laundry load.

After the check, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the service centre.

If the display shows other alarm codes, contact the service centre.

TECHNICAL INFORMATION

Dimensions	Width / Height / Depth	400 / 890 / 600 mm
	Total depth	600 mm
Electrical connection:	Voltage	230 V
	Overall power	2200 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure	Minimum	0,5 bar (0,05 MPa)
	Maximum	8 bar (0,8 MPa)
Water supply 1)		Cold water
Maximum load	Cotton	6 kg
Spin speed	Maximum	1500 rpm

1) Connect the water inlet hose to a water tap with a 3/4'' thread.

C E
