Lavamat LVMT4100 - Washing machine AEG-ELECTROLUX - Free user manual and instructions

Product Type	Washing Machine
Brand	AEG-Electrolux
Model	Lavamat LVMT4100
Capacity	7 kg
Spin Speed	1000 rpm
Energy Class	A+++
Noise Level (Wash/Spin)	52 dB / 74 dB
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Weight	67 kg
Voltage / Frequency	220-240 V / 50 Hz
Power Consumption (Wash)	0.78 kWh
Water Consumption per Cycle	47 L
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Wool, Quick 30min, Eco 40-60
Special Features	Delay Start, Quick Wash, Rinse Hold, Extra Rinse, Child Lock
Display Type	LED
Drum Material	Stainless Steel
Cabinet Type	Freestanding
Available Colors	White
Installation Type	Freestanding
Maintenance Features	Drum Cleaning Program, Filter Cleaning Reminder
Safety Features	Child Lock, Overflow Protection, Anti-Unbalance Control
Spare Parts Availability	Yes, through authorized service

Frequently Asked Questions - Lavamat LVMT4100 AEG-ELECTROLUX

What is the capacity of the AEG-Electrolux Lavamat LVMT4100?

The Lavamat LVMT4100 has a capacity of 7 kg, suitable for medium-sized households.

How do I install the washing machine?

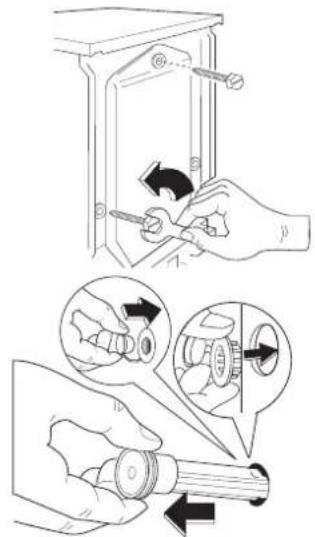

Remove all transport bolts, level the machine using the adjustable feet, connect water hoses, and plug into a grounded outlet. Refer to the manual for detailed steps.

What programs are available?

It offers 15 programs including Cotton, Synthetics, Delicates, Wool, Quick 30min, and Eco 40-60.

How do I clean the filter?

Open the filter cover at the bottom front, unscrew the filter, remove lint, rinse, and replace. Perform this every few months.

Why is the machine not spinning?

Possible causes: unbalanced load, clogged filter, or safety mode. Try redistributing laundry, cleaning filter, or restarting the cycle.

What does error code E10 mean?

E10 usually indicates a water supply issue. Check if the water tap is open, hoses are kinked, or inlet filter is blocked.

Can I use a delay start?

Yes, press the Delay Start button to set a timer from 1 to 24 hours. The cycle will finish at the set time.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the icon appears. Repeat to deactivate.

What special detergent should I use?

Use HE (high-efficiency) detergent for front-loading washers. Follow dosage instructions based on load size and soil level.

How can I reduce noise during spin?

Ensure the machine is level, not overloaded, and that small items (like socks) are not stuck in the door seal. Also check for transport bolts removed.

USER MANUAL Lavamat LVMT4100 AEG-ELECTROLUX

Line drawing of a white AEG washing machine with circular vent and control panel (no text or symbols)

Sayın Müşterimiz,

Line drawing of a hand inserting a device into a computer case (no text or symbols visible)

Illustration of hands cleaning a circular object with a cloth (no text or symbols)

Illustration of a hand inserting a device into a drawer (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a device into a drawer (no text or symbols visible)

After about two or three minutes the door can be opened.

Line drawing of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to cut or remove a component, no text or symbols present

Su Tahliye Pompası

Hand placing a small object into a rectangular device, with a curved line above (no text or symbols visible)

Simple line drawing of a washing machine with a base, no text or symbols present

Simple line drawing of a washing machine with a dial and handle, no text or symbols present

Uyari

Cartoon illustration of a smiling character pushing a washing machine with a plate (no text or symbols)

Yerleştirme

Su Girişi

Diagram of a hand holding a pipe with a curved arrow indicating direction (no text or symbols)

Diagram of a pipe connection with a valve, showing tubing and a valve (no text or labels)

Line drawing of a washing machine connected to a sink with a pump and switch (no text or symbols)

Pure geometric lines forming a crosshair symbol (no text or labels)

35.293.049...LV 4100.qxd 7/9/06 17:55 Página 47

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric lines forming a crosshair symbol (no text or labels)
