M289 - Lawn mower Medicura - Free user manual and instructions
Find the device manual for free M289 Medicura in PDF.
| Product type | Trimmer |
| Brand | Medicura |
| Model | M289 |
| Dimensions (L x W x H) | 40 x 30 x 20 cm |
| Weight | 1.5 kg |
| Power supply | Mains (230 V) or batteries |
| Power | 15 W |
| Blade type | Stainless steel |
| Cutting height | 1 to 12 mm (6 positions) |
| Included accessories | Guide combs, lubrication oil, cleaning brush |
| Features | Precise cutting, self-sharpening blades, pivoting head |
| Sound level | Less than 60 dB |
| Maintenance and cleaning | Clean blades after each use, oil regularly |
| Safety | Child safety lock, automatic shut-off in case of overheating |
| Spare parts | Blades, guide combs, mains adapter |
| Warranty | 2 years |
Frequently Asked Questions - M289 Medicura
User questions about M289 Medicura
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual M289 - Medicura and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M289 by Medicura.
USER MANUAL M289 Medicura
READ THIS BOOKLET CAREFULLY.
IT CONTAINS IMPORTANT INSTRUCTIONS FOR A SAFE INSTALLATION, USE AND MAINTENANCE.
IMPORTANT INSTRUCTIONS TO BE KEPT FOR FUTURE REFERENCE
Warnings
GB
Keep handy the guarantee, receipt of payment and these instructions for future use and reference.
After removing the packaging, check the appliance for any signs of damage.
In case of visible damage, do not use it and contact a qualified technician.
Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.
Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.
If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.
Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.
When you don't use the appliance disconnect it from the power supply unless it is being charged and assure that the interruptor is off.
Do not tug on the power cable or on the appliance itself to remove the plug from the socket.
The use of any electrical appliance requires that a number of basic rules are observed, namely:
- Never touch the appliance with wet or humid hands.
- This appliance should not be used by people (including children) with limited physical, sensory or mental capacities or anyone who lacks experience and knowledge, unless they are supervised or have been instructed on how to use the appliance by someone who is responsible for their safety. Children should not be allowed to play with appliance.
- Do not leave the appliance exposed to weathering (rain, sunlight).
- Do not subject it to rough handling.
In case of a breakdown or malfunctioning of the appliance, disconnect it at once.
Do not attempt to repair it, but take it to a service centre approved by the manufacturer.
If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.
The power cable should be extended to its full lenght to avoid over heating.
If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.
For safety reasons, the appliance should never be opened.
Before attaching the supplied spacing combs make sure the appliance is switched off.
Do not use the appliance with broken or damaged combs or with combs missing teeth, as this may cause injuries.
Make certain that the blades are aligned well before using the appliance.
Do not rest the appliance on any surfaces while it is operating, as this may damage it.
Do not insert objects into the slots of the appliance.

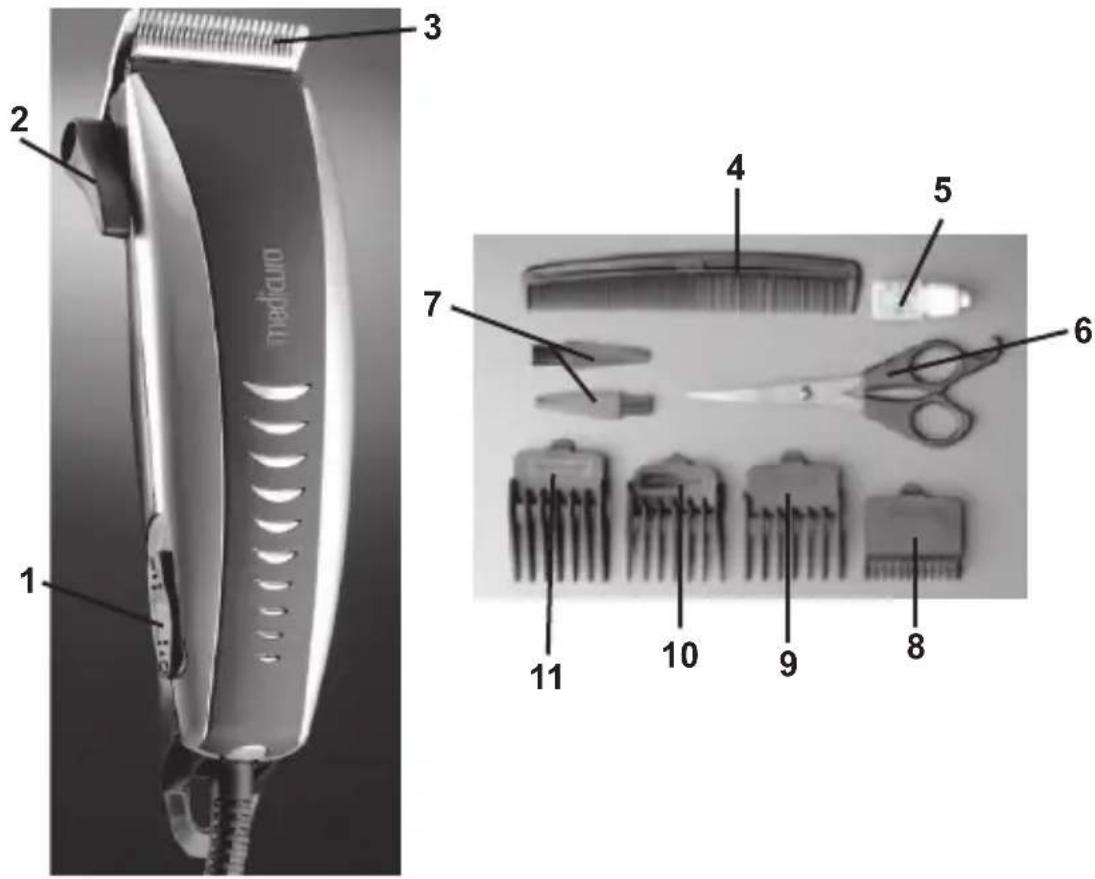

Technical informations GB
1 - Power switch
2 - Lever to adjust the height of the haircut
3 - Cutting blades
4 - Comb
5 - Blade lubricating oil
6 - Scissors
7 - Small brushes for cleaning the blades
8 - Comb : cutting height from 3 to 6 mm
9 - Comb : cutting height from 6 to 9 mm
10 - Comb : cutting height from 9 to 12 mm
11 - Comb : cutting height from 12 to 15 mm
Technical data indicated on the appliance.
CE
Instructions for use
GB
Before switching on the appliance, choose which cutting procedure you would like to use.
The haircut can be performed using the fixed blades of the appliance directly or with one of the four interchangeable combs supplied to vary the length of the haircut.
Select the comb you would like to use and insert it onto the appliance until it is fixed with the teeth facing upwards.
To remove the comb, just pull it upwards.
The appliance must be switched off while the comb is being attached or removed.
The lever on the side of the hair trimmer has been specially positioned near your thumb so that it can be easily used while holding the hair trimmer.
This small lever makes the appliance more versatile, allowing you to gradually change the length of the haircut without changing combs.
The blades produce the shortest cut when the lever is raised completely, and the length is gradually increased as you press the lever downwards.
Furthermore, if the cut hair should jam the blades, you can remove the hair be moving the lever instead of having to remove the blades.
While the appliance is still operating, move the lever up and down quickly a few times. Performing this operation routinely at the end of each use will help to keep the blades clean.
Maintenance
GB
After use, switch the appliance off and detach the plug.
Before cleaning the appliance, make certain that it has been switched off. To clean the blades, use the small brushes supplied with the appliance or disassemble the blades by loosening the appropriate screws.
Be careful to align the blades correctly when assembling them and tighten the screws carefully.
To realign the blades, the teeth of the upper blade must be matched with those of the lower blade point by point.
If the blades are misaligned, add a few drops of oil to the blades, switch on the appliance for a few minutes, switch it off and disconnect it from the socket. Remove the blades and reposition them.
The blades should be oiled at each haircut in order to keep the appliance in good working condition.
Do not use hair oil, gel or oil mixed with paraffin or other solvents since solvents evaporate and would leave the dense oil that could drip from the moving blades.
Clean the equipment thoroughly after each use with a soft and slightly damp cloth.
Never use abrasive products or chemical solvents.
Attention: keep dry the appliance.
NEVER DIP THE APPLIANCE INTO THE WATER.
ATTENTION
LIRE SOIGNEUSEMENT LES AVERTISSEMENTS CONTENUS DANS LE MODE D'EMPLOI QUI FOURNIT DES INDICATIONS IMPORTANTES CONCERNANT LA SECURITÉ DE L'INSTALLATION, D'USAGE ET D'ENTRETIEN.
INSTRUCTIONS IMPORTANTES. À CONSERVER POUR TOUT AUTRE CONSULTATION.
Avvertissements
FR
LESEN SIE DIE IN DIESEM
HEFTCHEN STEHENDEN
ANWEISUNGEN
SORGFÄLTIG.
SIE GEBEN IHNEN
NÜTZLICHE HINWEISE
HINSICHTLICH DER
The guarantee is valid for 24 months.
This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.
The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.
After the guarantee has expired, the appliance will be repaired against payment.
The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.
Limits
All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:
- mishandled by unauthorized persons
- improperly used, stored or transported.
The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.
If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.
USER INFORMATION
pursuant to art. 26 of Italian Legislative Decree no. 49 of 2 April 2014
"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".
The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.
The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste, or return it to the dealer in case they purchase a new device of equivalent type, at a one-to-one-ratio.
Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.
Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
