USER MANUAL Stratos 36701/05/12 Lucide

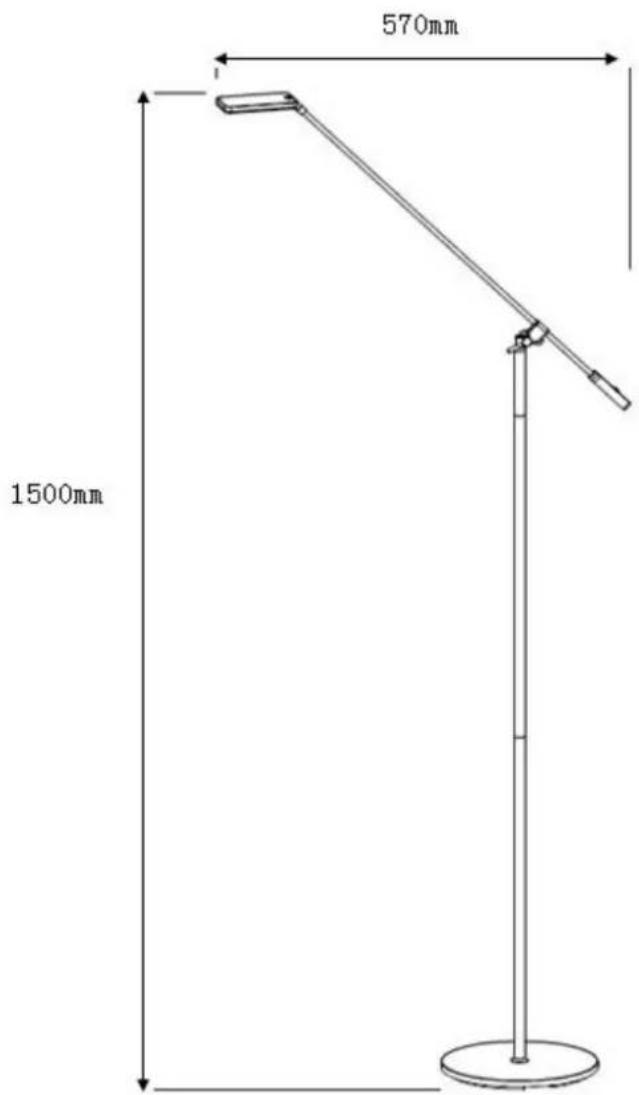

Line drawing of the item (with outline dimensions)

Lucide Stratos 36701/05/12 - 1

text_image 570mm 1500mm

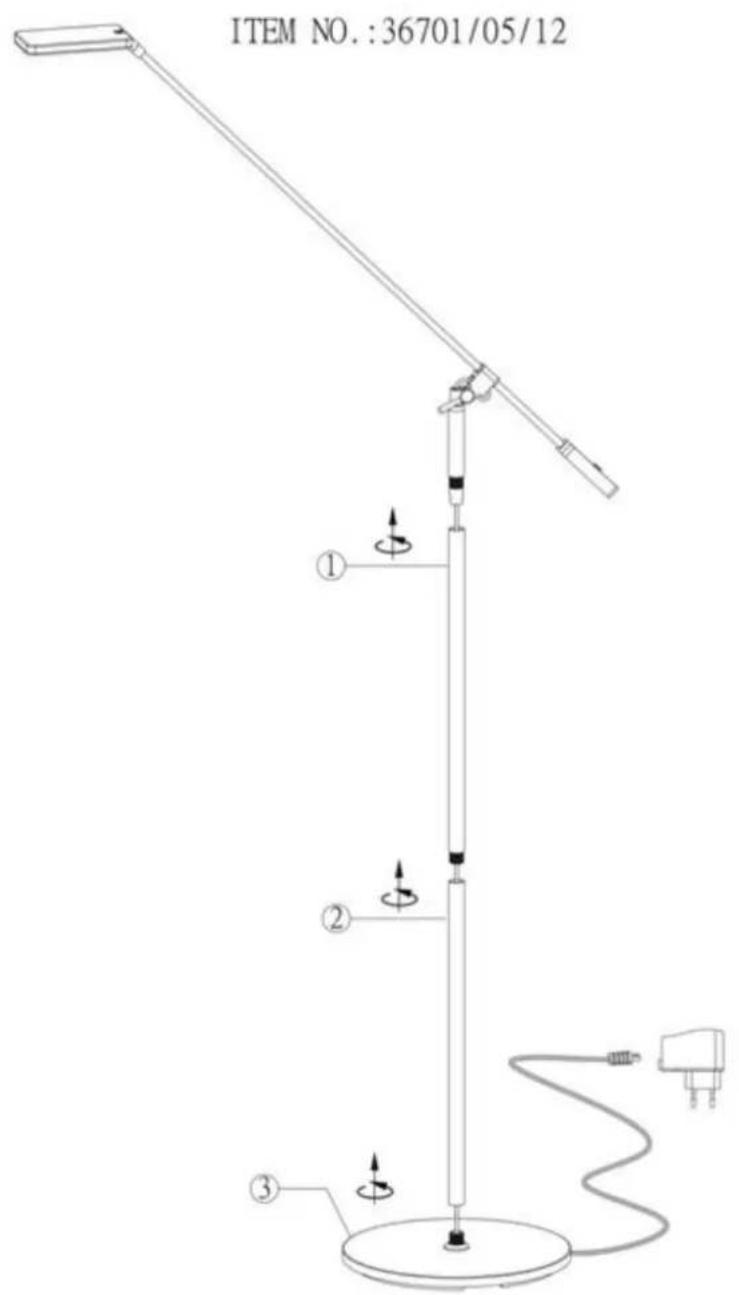

Installation drawing (the same as it in its instruction manual)

Lucide Stratos 36701/05/12 - 2

text_image ITEM NO.:36701/05/12 ① ② ③

Technical details

materials used:Metal, Acrylic
color:Black and Silver
dimmable and how is the fixture dimmable:
size:Height:1500mm
Length:570mm
Width:230mm
Net Weight:3.46KGS
power requirements:220-240V~50Hz
bulb type and maximum Wattage:LED Max.5W
number of bulbs:1xLED
IP degree:IP20

EES label (only one in English, vertical)

Lucide Stratos 36701/05/12 - 3

text_image LUCIDE® 36701/05/12 This luminaire contains built-in LED lamps. A++ A+ A } LED C D E The lamps cannot be changed in the luminaire 874/2012
