USER MANUAL Helios II Kiddo

Line drawing of a stroller with adjustable arms and wheels (no text or symbols)

Baby Alliance

IMPORTANTE LER COM ATENÇÃO E GUARDAR PARA EVENTUAIS CONSULTAS

CARRINHO OU MANUSEÁ-LO.

• NUNCA DEIXE AS CRIANÇAS BRINCAREM OU SE PENDURAREM NO CARRINHO.

- NUNCA UTILIZE O CARRINHO EM ESCADAS, ESCADAS ROLANTES, SUPERFÍCIES ACIDENTADAS, DECLIVE EXCESSIVO, ARENOSAS ETC.

- UTILIZE O CARRINHO EM ÁREA LIVRE DE OBSTÁCULOS, ONDE A CRIANÇA NÃO POSSA EMPURRAR COM OS PÉS.

- NUNCA ESTACIONE O CARRINHO EM SUPERFÍCIE INCLINADA MESMO COM OS FREIOS ACIONADOS.

- NUNCA UTILIZE O CARRINHO EM LOCAIS ÚMIDOS, MOLHADOS, FRIOS OU MUITO QUENTES POR LONGO PERÍODO DE TEMPO.

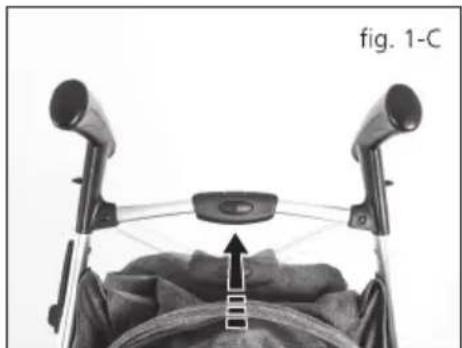

Mechanical device with articulated arms and base components, labeled 'fig. 1-B' (no readable text or symbols on the device itself)

Diagram of a medical device with two lenses and a central connector, labeled 'fig. 1-C' (no text or symbols on the diagram itself)

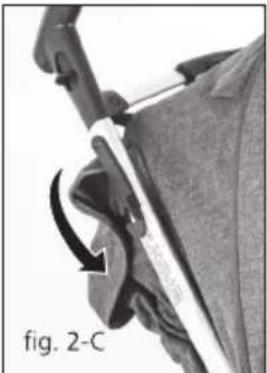

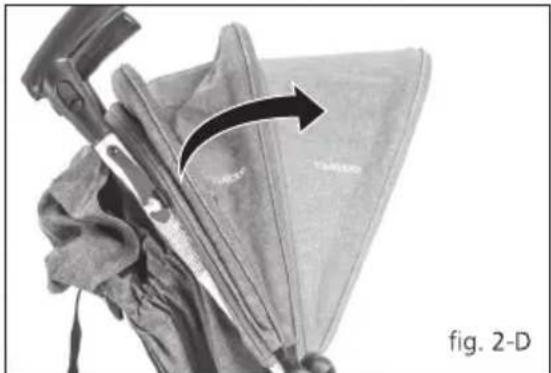

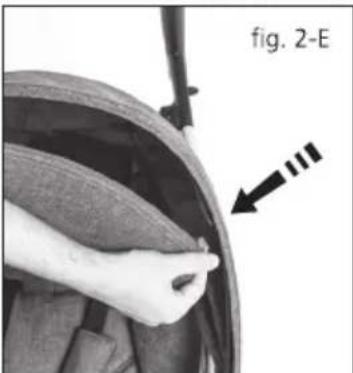

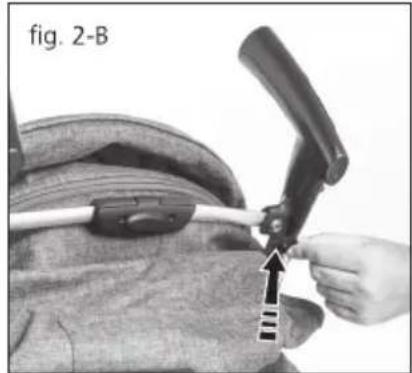

2 PARA INSTALAR E ABRIR O TOLDO

Medical procedure image showing a surgical tool inserted into a patient's shoulder area, labeled 'fig. 2-A' (no text or symbols on the diagram itself)

Close-up of a mechanical component with a curved arrow indicating motion, labeled 'fig. 2-C' (no readable text or symbols)

Close-up of a hand holding a bag with a triangular cover and a curved arrow indicating direction (no text or symbols)

Close-up of a person adjusting a dark fabric or cushion, with a black arrow pointing to a detail (no text or symbols visible)

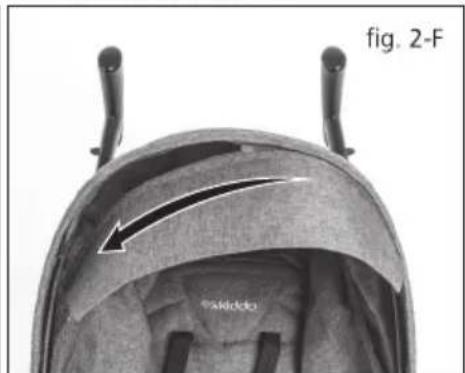

Close-up of a mechanical device with a curved arrow indicating motion or force, labeled 'fig. 2-F' (no readable text or symbols beyond label)

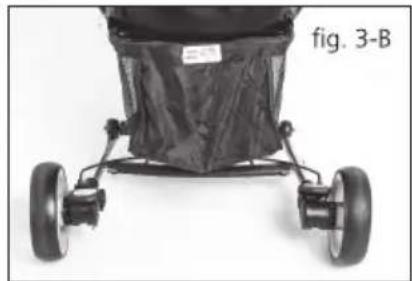

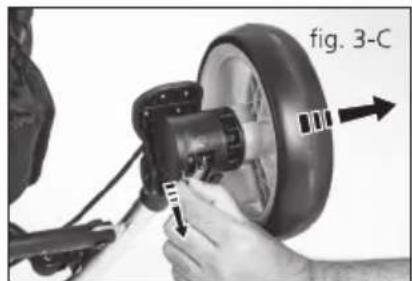

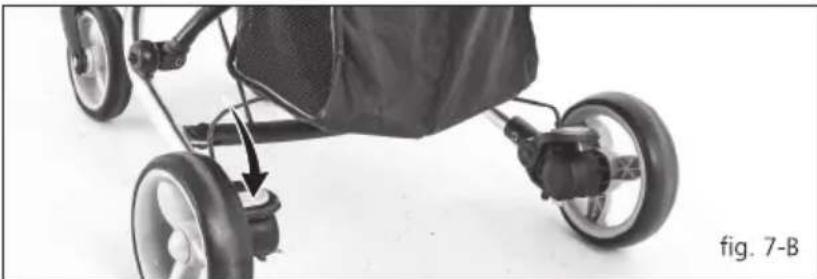

3 PARA INSTALAR E REMOVER AS RODAS TRASEIRAS

Close-up of a person using a stroller to lift a wheel, with no visible text or symbols on the device itself.

Top-down view of a baby stroller with four wheels and a back cover, labeled 'fig. 3-B' (no other text or symbols)

Close-up of a person using a mechanical device to adjust a wheel rim, labeled 'fig. 3-C' (no text on the object itself)

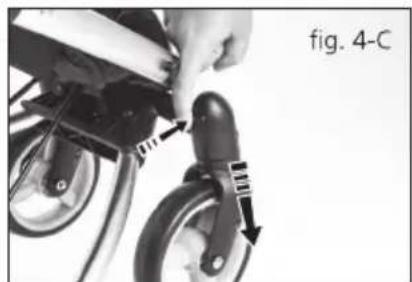

4 PARA INSTALAR E REMOVER AS RODAS DIANTEIRAS

Close-up of a hand holding a small car wheel with a screwdriver, next to a scooter seat (no text or symbols visible)

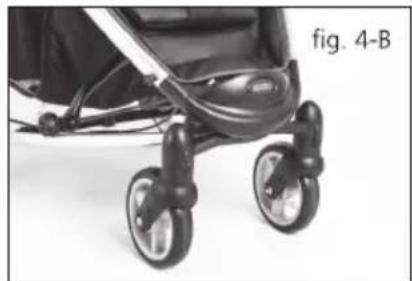

Close-up of a stroller with four wheels, labeled 'fig. 4-B' (no other text or symbols visible)

Close-up of a hand adjusting a bicycle wheel (no text or symbols visible)

5

PARA INSTALAR E UTILIZAR O DESCANSA BRAÇO

Close-up of a hand adjusting a mechanical component with directional arrows indicating motion (no text or symbols)

Black and white photo of a baby stroller with a curved roof, no visible text or symbols on the device itself.

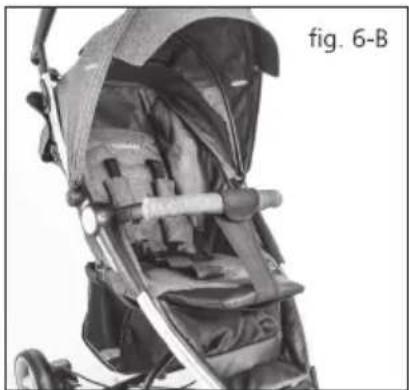

INSTRUÇÕES DE USO

6

Close-up of a stroller with hand adjusting the seatbelt, labeled 'fig. 6-A' (no other text or symbols visible)

Black-and-white photo of a stroller with adjustable arms and wheels (no visible text or symbols)

Close-up of a stroller with wheels and a close-up inset showing the wheel assembly (no text or symbols)

Close-up of a stroller with wheels and a bag, showing mechanical components and a directional arrow (no text or symbols)

Close-up of a baby stroller with wheels and a hand adjusting the seat (no visible text or symbols)

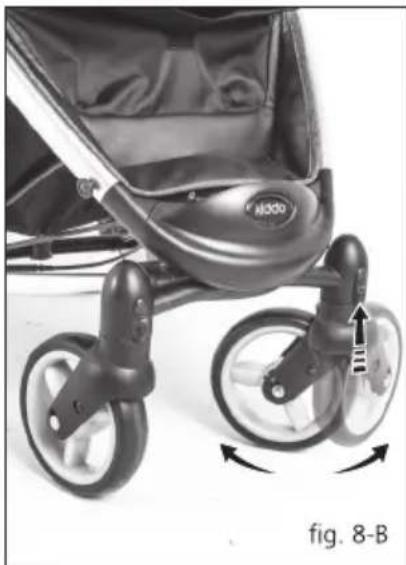

Close-up of a baby stroller with wheels and a logo, labeled 'fig. 8-B' (no text on the diagram itself)

9

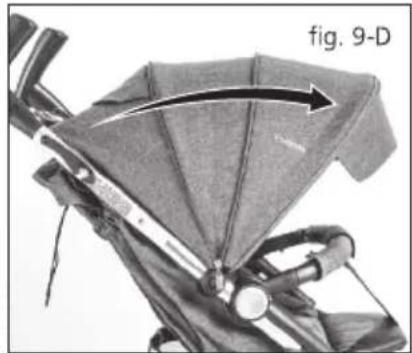

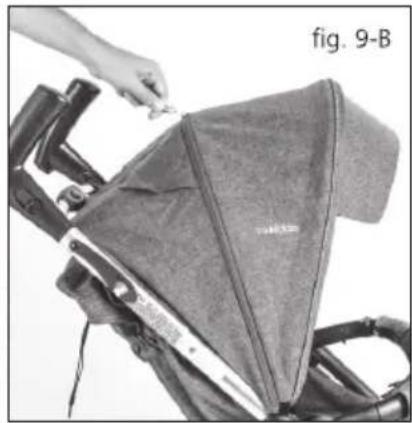

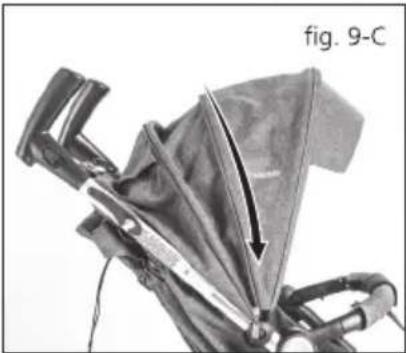

PARA UTILIZAR O VISOR E O TOLDO

Close-up of a person's seatbelt with a hand holding a tool, showing a black arrow pointing to the seat area (no text or symbols visible)

Close-up of a person adjusting a gray mesh blanket on a stroller (no text or symbols visible)

Mechanical device with attached clamps and a folded top, showing a black arrow indicating a specific component (no text or symbols present)

Stroller with curved arrow indicating motion, labeled 'fig. 9-D' (no other text or symbols)

10

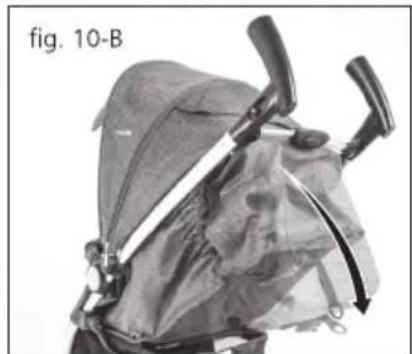

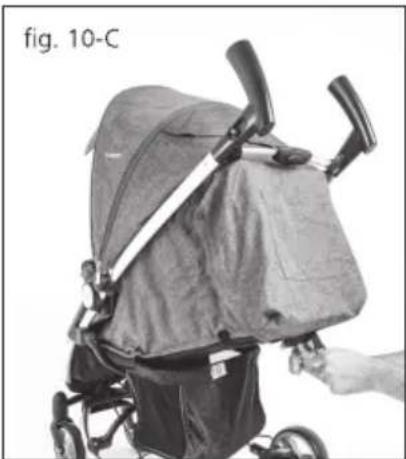

PARA RECLINAR O ENCOSTO

Close-up of a baby stroller with straps and a hand adjusting the seat (no text or symbols visible)

Back view of a person wearing a backpack with straps and a mesh bag, labeled 'fig. 10-B' (no other text or symbols visible)

Black-and-white photo of a stroller with a hand adjusting its seat, no visible text or symbols

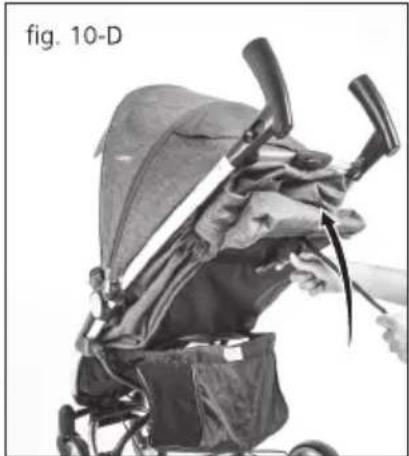

Black-and-white photo of a stroller with visible legs and handle, labeled 'fig. 10-D' (no other text or symbols)

11 PARA UTILIZAR O CINTO DE SEGURANÇA ATENÇÃO - ANTES DE COLOCAR A CRIANÇA NO CARRINHO, VERIFIQUE SE ESTE ESTÁ BEM TRAVADO, SE TODAS AS OPERAÇÕES ANTERIORES FORAM EXECUTADAS E SE OS FREIOS ESTÃO ACIONADOS.

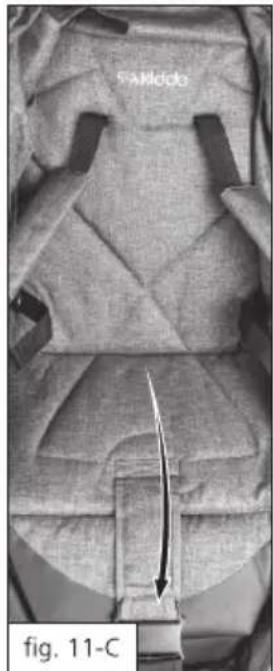

Para liberar o cinto, pressione o botão central (fig. 11-A), desconecte os engates das tiras abdominais (fig. 11-B) e afaste a tira entrepernas (fig. 11-C).

Close-up of a mechanical component with two arrows indicating direction, labeled 'fig. 11-B' (no readable text or symbols beyond labels)

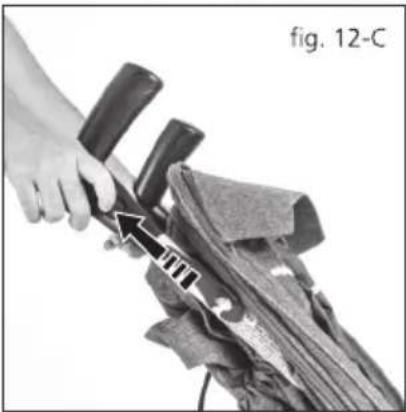

12

Mechanical device with directional arrows indicating motion or movement, labeled 'fig. 12-A' (no readable text or symbols on the device itself)

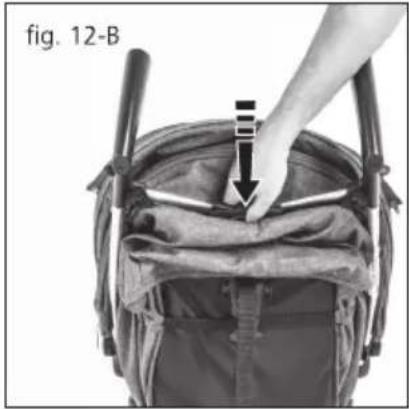

Back view of a backpack with a hand adjusting the pocket area, labeled 'fig. 12-B' (no text on bag or background)

Close-up of a hand using a tool to lift a textured fabric item, labeled 'fig. 12-C' (no other text or symbols)

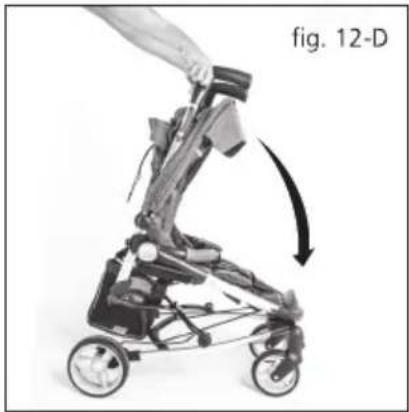

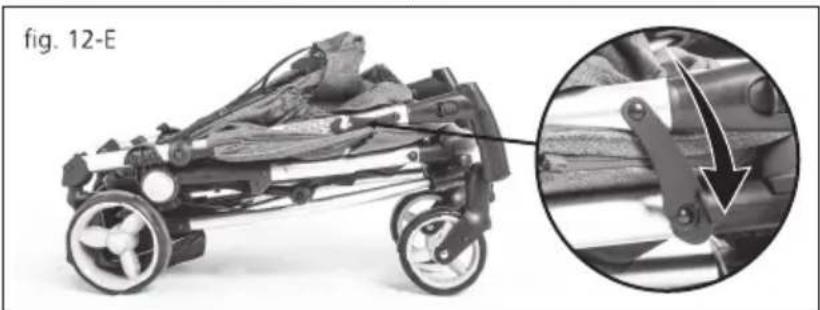

Mechanical device with hand operating a leg, showing motion arrow (no text or symbols)

Mechanical stroller with attached gear assembly, shown in magnified inset (no text or symbols)

OPÇÃO TRAVEL SYSTEM

13

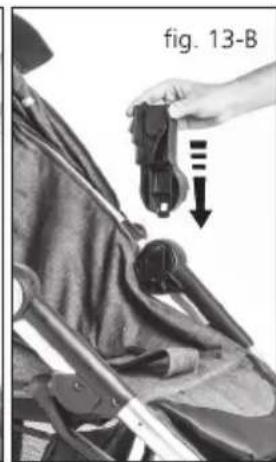

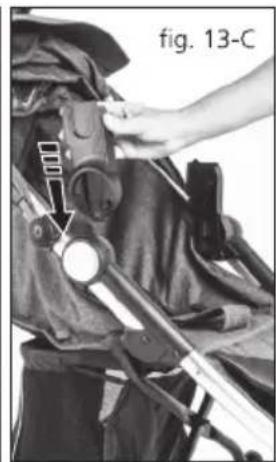

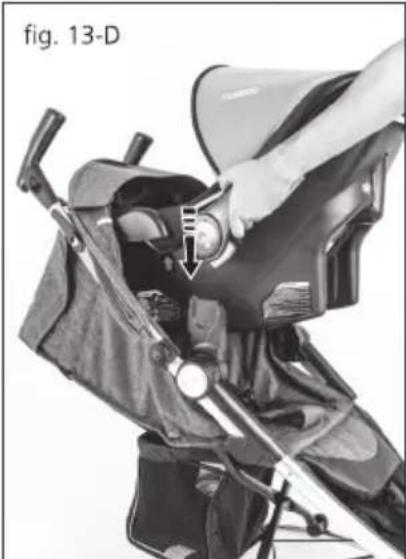

PARA UTILIZAR O TRAVEL SYSTEM

Close-up of a hand adjusting a car seatbelt with a belt, labeled 'fig. 13-A' (no text or symbols on the diagram itself)

Close-up of a hand holding a small mechanical component, with a downward arrow and label 'fig. 13-B' (no readable text or symbols on the object itself)

Close-up of a hand adjusting a mechanical device with a tool, labeled 'fig. 13-C' (no readable text or symbols on the device itself)

Person adjusting a bicycle seatbelt device, no visible text or symbols on the device itself

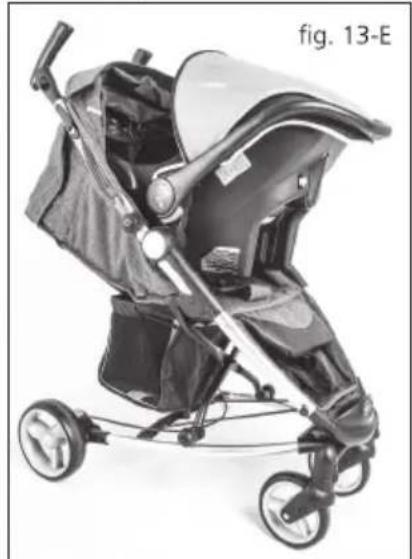

Black and white photo of a baby stroller with wheels and a hood, labeled 'fig. 13-E' (no other text or symbols visible)

14

PARA RETIRAR O DISPOSITIVO DE RETENÇÃO E OS ADAPTADORES

Close-up of hands holding a medical device with an arrow pointing upward, no visible text or symbols

componentes | components

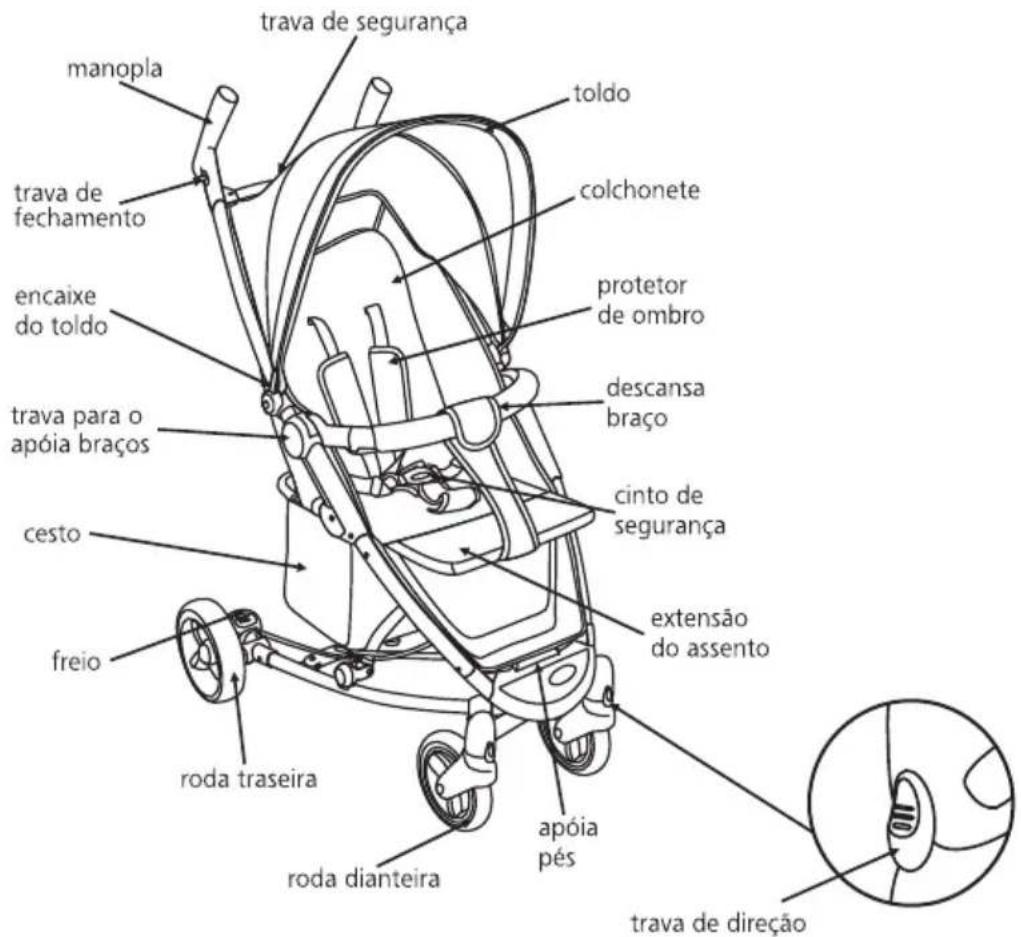

988 dimensions | dimensions:

Imporado por | Imported by Kadro industriale Comercio Ltda. Rod. Rigs Bitencourt, 3666 06793-000 - Tabaco da Serra - SP - Brasil (11) 4787-0744 - CNPJ 60.688.090/0001-87
