USER MANUAL Trek Kiddo

Illustration of a baby stroller with black wheels and a gray canopy (no text or symbols)

@kiddobrasil

IMPORTANTE LER COM ATENÇÃO E GUARDAR PARA EVENTUAIS CONSULTAS

• ATENÇÃO: UTILIZE SEMPRE O CINTO DE SEGURANÇA.
• ATENÇÃO: NUNCA DEIXE A CRIANÇA SOZINHA SEM A SUPERVISÃO DE UM ADULTO.
• ATENÇÃO: ASSEGURE-SE DE QUE TODOS OS DISPOSITIVOS DE TRAVAMENTO ESTEJAM ACIONADOS ANTES DO USO.
• ATENÇÃO: PARA EVITAR O PERIGO DE ASFIXIA, MANTER OS SACOS PLÁSTICOS LONGE DO ALCANCE DAS CRIANÇAS.
• ATENÇÃO: NÃO PENDURE

NENHUM PESO NA ALÇA DO CARRINHO.

Black-and-white photo of a small mobility device with wheels and a motor, shown from top, side, and bottom views (no text or symbols visible)

fig. 1-B

Close-up of a mechanical device with a circular connector (no visible text or symbols)

fig. 1-C

Illustration of a mounted machine gun with an upward arrow indicating motion (no text or symbols)

2

PARA INSTALAR E RETIRAR AS RODAS DIANTEIRAS

Mechanical assembly diagram showing a bracket and two hanging components with a downward arrow indicator (no text or symbols)

fig. 2-A

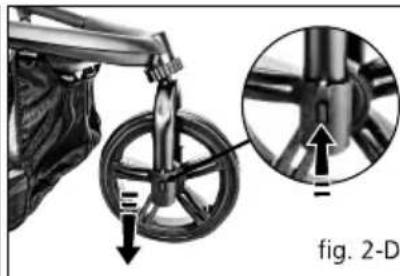

fig. 2-B

Diagram showing a mechanical assembly with three components and a final wheel (no text or symbols)

fig. 2-C

Top-down view of a stroller with wheels and a tire, showing motion arrows (no text or symbols)

Mechanical assembly diagram showing a wheel and shaft with an inset close-up of the component (no text or symbols)

3

PARA INSTALAR E RETIRAR AS RODAS TRASEIRAS

Close-up of a hand operating a wheeled vehicle wheel, showing the wheel and handle mechanism (no text or symbols visible)

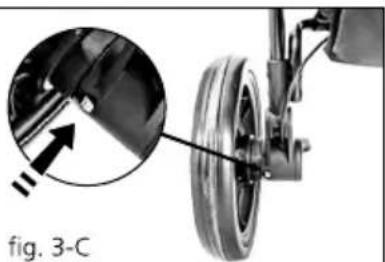

fig. 3-B

Front view of a two-wheeled baby stroller (no text or symbols visible)

Mechanical assembly diagram showing a wheel and suspension components with an arrow indicating motion direction (no text or symbols)

Close-up of a small wheeled vehicle with a wheel and attached lever, labeled 'fig. 3-D' (no text or symbols on the diagram itself)

4

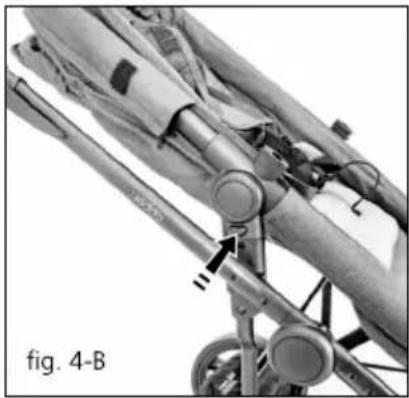

Close-up of a mechanical assembly with a tool and rope, showing a downward arrow and label 'fig. 4-A' (no readable text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

5

PARA INSTALAR A CAPOTA

Close-up of a mechanical device with a magnified inset showing a close-up detail (no text or symbols visible)

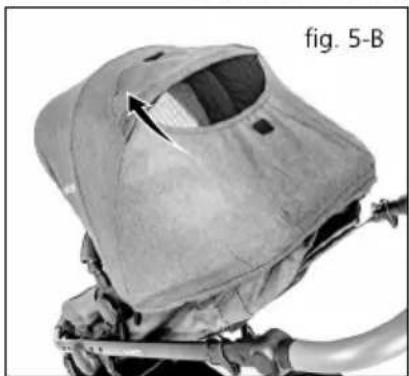

Close-up of a military helmet with visible structural details and a labeled section (fig. 5-B), no text or symbols on the helmet itself.

6

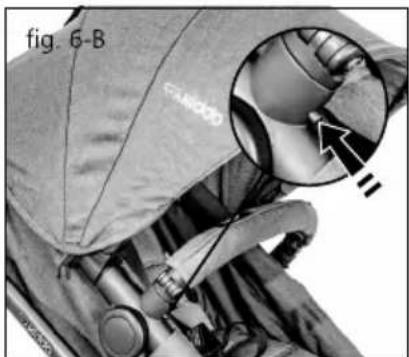

PARA INSTALAR E UTILIZAR O DESCANSA BRAÇO

Close-up of a person adjusting a car seatbelt with a hand adjusting the seatbelt (no visible text or symbols)

Close-up of a person's jacket with a magnified inset showing a close-up of the garment (no text or symbols visible)

INSTRUÇÕES DE USO

7 PARA TRAVAR A RODA DIANTEIRA

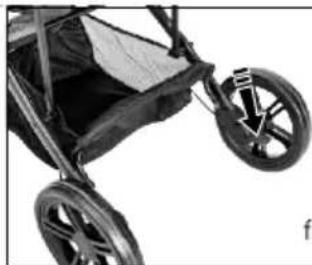

Close-up of a stroller with black plastic wheel and metal strap (no text or symbols visible)

fig. 7-A

Close-up of a car's wheel with motion arrows indicating rotation (no text or symbols)

fig. 7-B

Close-up of a stroller with two wheels and a backrest (no visible text or symbols)

fig. 8-A

Close-up of a stroller with visible wheel and side brackets (no text or symbols)

fig. 8-B

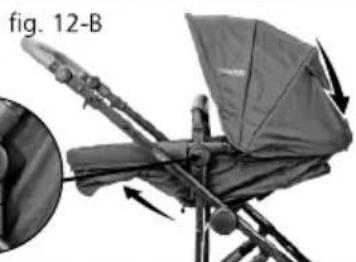

9 PARA A SEGURANÇA DA CRIANÇA

ATENÇÃO - ANTES DE COLOCAR A CRIANÇA NO CARRINHO, VERIFIQUE SE ESTE ESTÁ BEM TRAVADO, SE TODAS AS OPERAÇÕES ANTERIORES FORAM EXECUTADAS E SE OS FREIOS ESTÃO ACIONADOS.

Medical procedure image showing a close-up of a medical device with a magnified inset highlighting internal components (no text or symbols visible)

Close-up of a propeller blade with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two configurations of a device with a magnified inset highlighting a component (no text or symbols present)

Close-up of a mechanical component with a labeled section (fig. 12-A), showing internal components and a directional arrow (no readable text or symbols)

Black-and-white photo of a folding chair with a triangular canopy and a long arm, no visible text or symbols

Close-up of a mechanical device with a side panel and arrow indicator (no readable text or symbols)

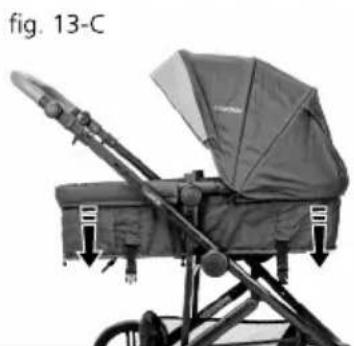

Black-and-white photo of a baby's baby boom device with a canopy cover and ladder, labeled 'fig. 13-C' (no text on device itself)

Close-up of a mechanical component with white arrows indicating features, labeled 'fig. 13-B' (no readable text or symbols)

14

Close-up of a mechanical component with an inset close-up showing internal features (no text or symbols visible)

fig. 14-B

Mechanical device with articulated arms and a pull arrow, labeled 'Fig. 14-B' (no readable text or symbols)

Black-and-white photo of a car chassis with attached mechanical components, shown with an inset magnified view (no text or symbols)

Illustration of a mechanical cart with wheels and a lever, no text or symbols present

fig. 14-D

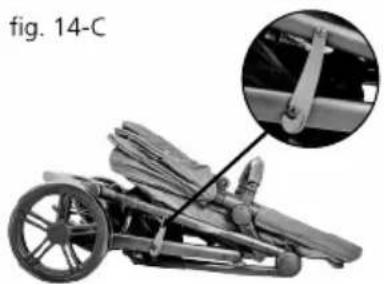

fig. 14-E

15

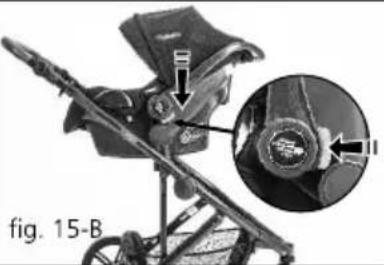

Mechanical device labeled 'fig. 15-A' with a magnified inset showing internal components (no readable text or symbols)

Mechanical device with labeled parts and a magnified inset showing a close-up of a component (no readable text or symbols)

Close-up of a person's arm with a black tool, labeled 'fig. 15-C' (no other text or symbols visible)

Diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

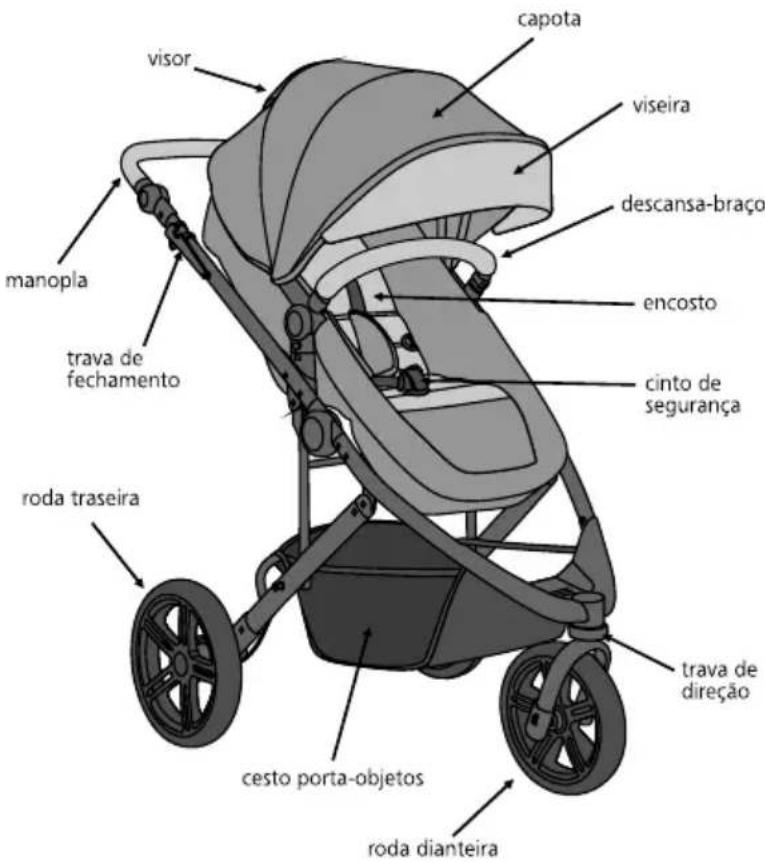

componentes | components

peso | weight: 10,890 kg

carrinho | stroller
