Brand	JUNG
Model	LCZ981BF
Product Type	Flush mounting frame for switches and sockets
Series	LS ZERO
Number of Gangs	1, 2, or 3 (depending on configuration)
Minimum Panel Thickness	13 mm
Mounting Recommendation	Flush mounting with smooth, flat supporting frame contact surface
Material	Plastic (likely polycarbonate or similar)
Dimensions (Typical single-gang frame)	Approximately 80 x 80 mm (depth varies)
Weight (Approx.)	50 g per gang
Color	White (as shown in manual images)
Installation	Must be installed by a qualified electrician
Compatibility	Designed for JUNG LS ZERO inserts
Sealing Required	Seal cut-out to prevent furniture swelling
Cleaning Instructions	Wipe with a damp cloth; do not use abrasive cleaners
Safety Information	Electrical connection only by qualified electrician
Spare Parts Availability	Contact JUNG customer service for replacement frames
Reparability	Frame is non-repairable; replace if damaged
Certification	Complies with relevant EU directives (assumed)

Frequently Asked Questions - LCZ981BF JUNG

What is the JUNG LCZ981BF used for?

The JUNG LCZ981BF is a flush mounting frame designed for the LS ZERO series of switches and sockets. It accommodates 1, 2, or 3-gang inserts.

What is the minimum panel thickness required for installation?

The minimum panel thickness is 13 mm. The supporting frame contact surface must be smooth and flat.

Can I install the LCZ981BF myself?

No. Electrical connections must be made by a qualified electrician to ensure safety and compliance.

How do I clean the frame?

Clean with a damp cloth. Avoid abrasive cleaners or solvents that may damage the surface.

Is the frame compatible with other brands?

No. The LCZ981BF is specifically designed for JUNG LS ZERO inserts. Using other brands may result in poor fit or safety issues.

How many gangs can the frame hold?

The frame can be configured for 1, 2, or 3 gangs depending on the model variant (as shown in the manual).

Do I need to seal the cut-out before installation?

Yes. The cut-out should be sealed with a suitable sealing material to prevent swelling of furniture due to moisture.

What is the weight of the frame?

Approximately 50 grams per gang. A 2-gang frame weighs about 100 grams.

Can I paint the frame?

It is not recommended. Painting may affect the fit and finish. The frame is designed to be used as-is in white.

Where can I get spare parts if damaged?

Contact JUNG customer service or an authorized dealer for replacement frames. The frame is not repairable and must be replaced if broken.

USER MANUAL LCZ981BF JUNG

Mounting recommendation

LS ZERO

0 mm 3 mm

Mounting recommendation

0 mm

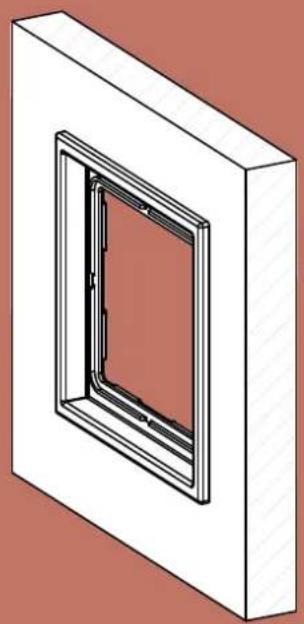

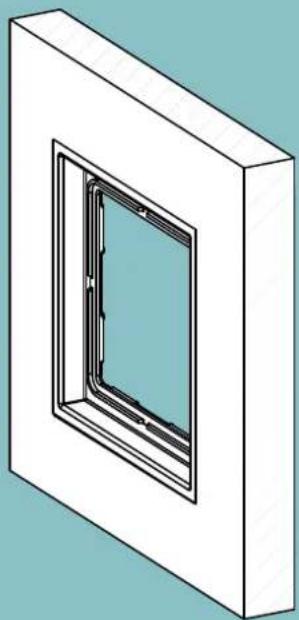

Isometric view of a rectangular frame with a square recessed, showing internal structure (no text or symbols)

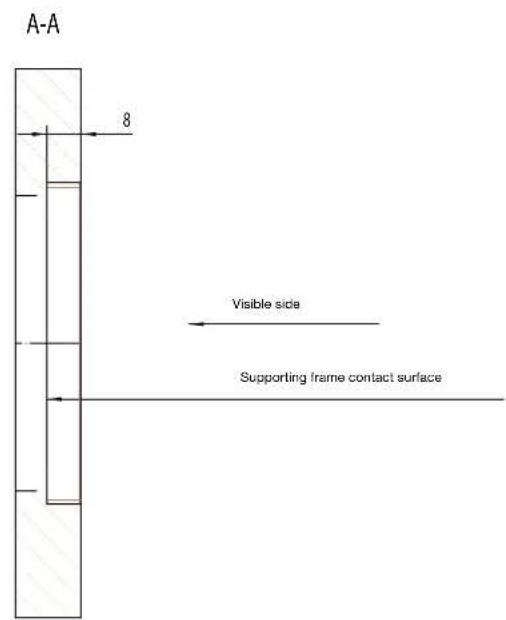

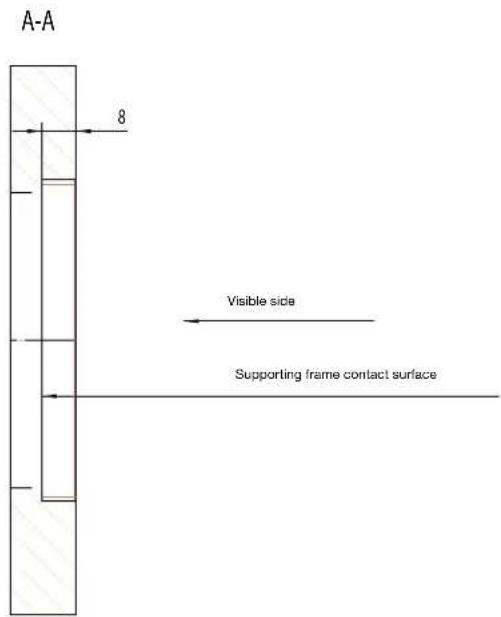

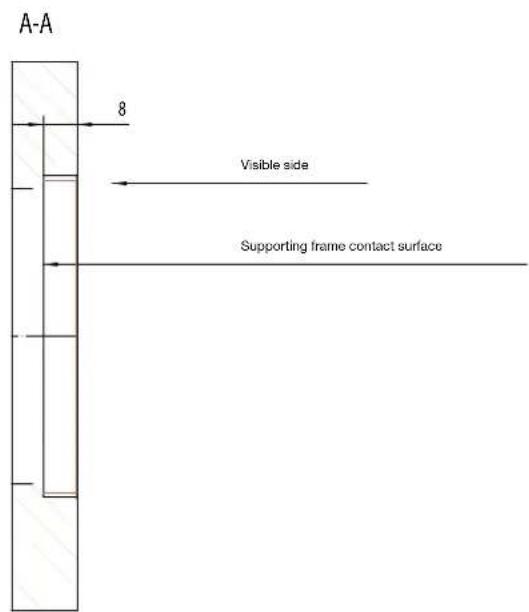

The flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.

Mounting recommendation

0 mm

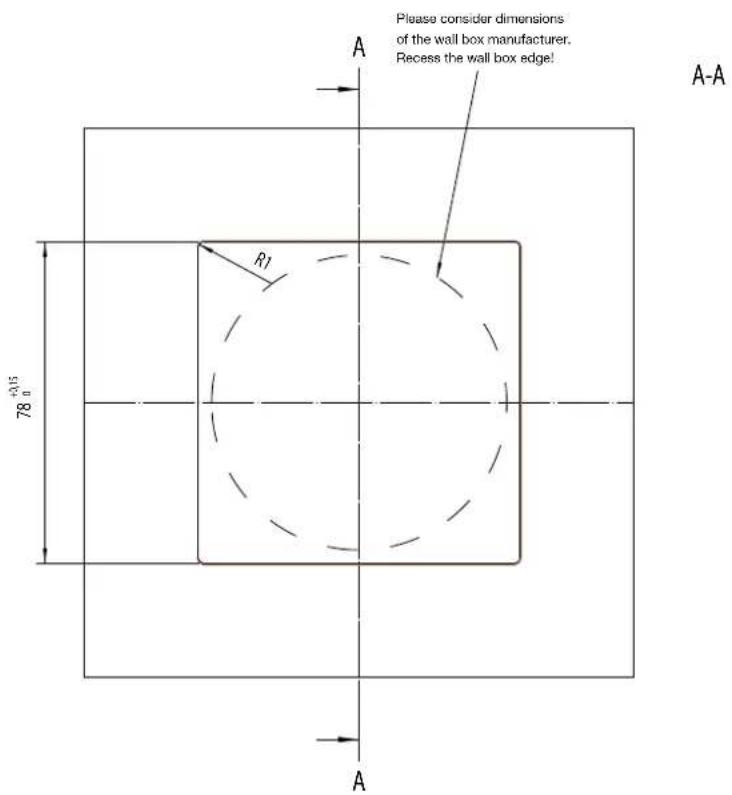

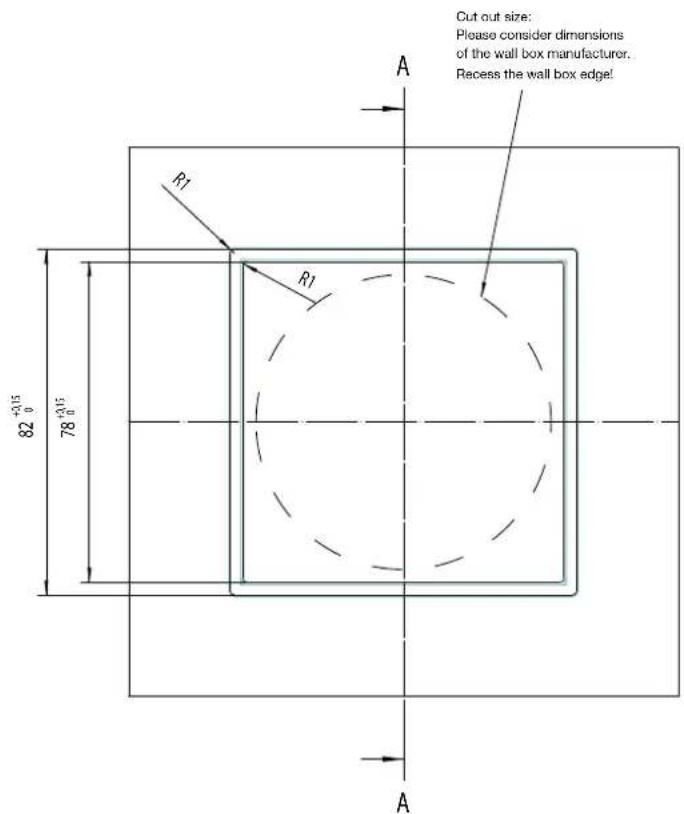

1-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

0 mm

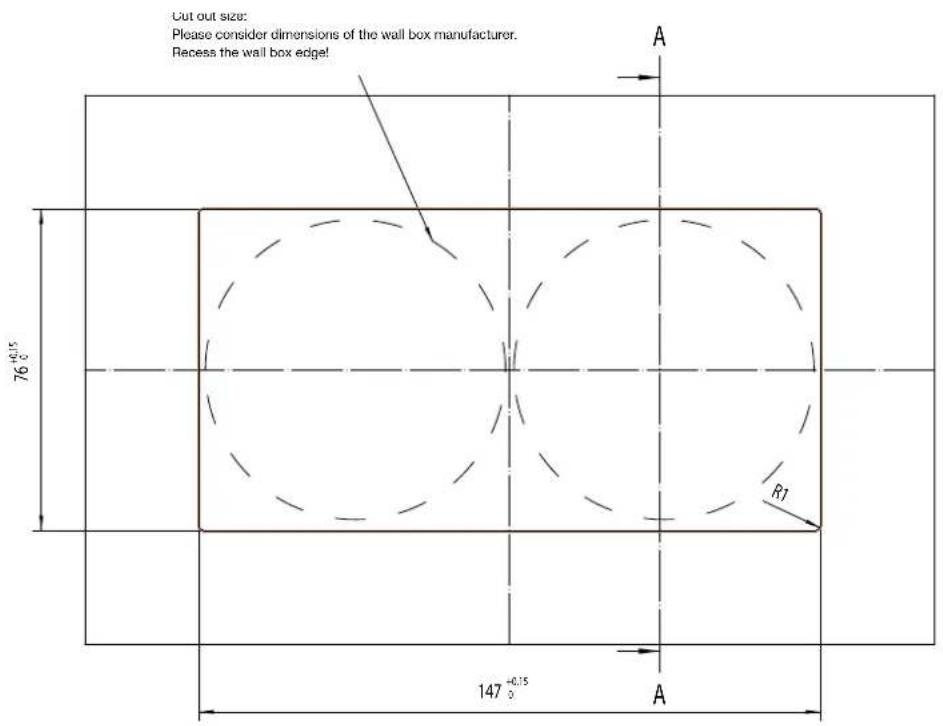

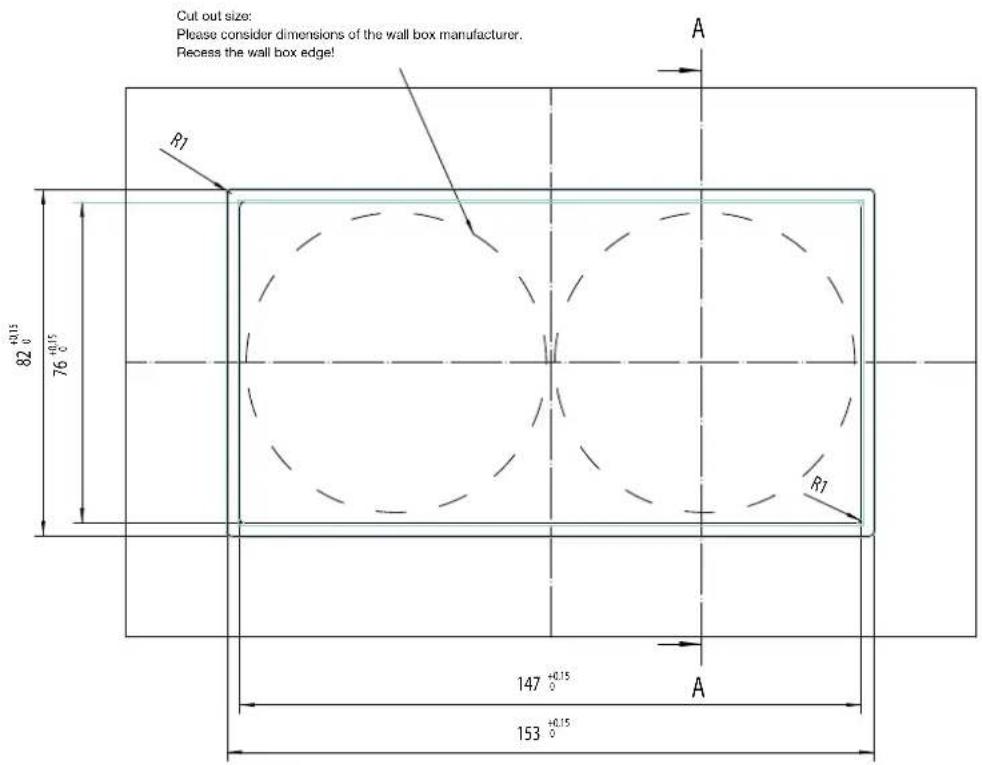

2-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

0 mm

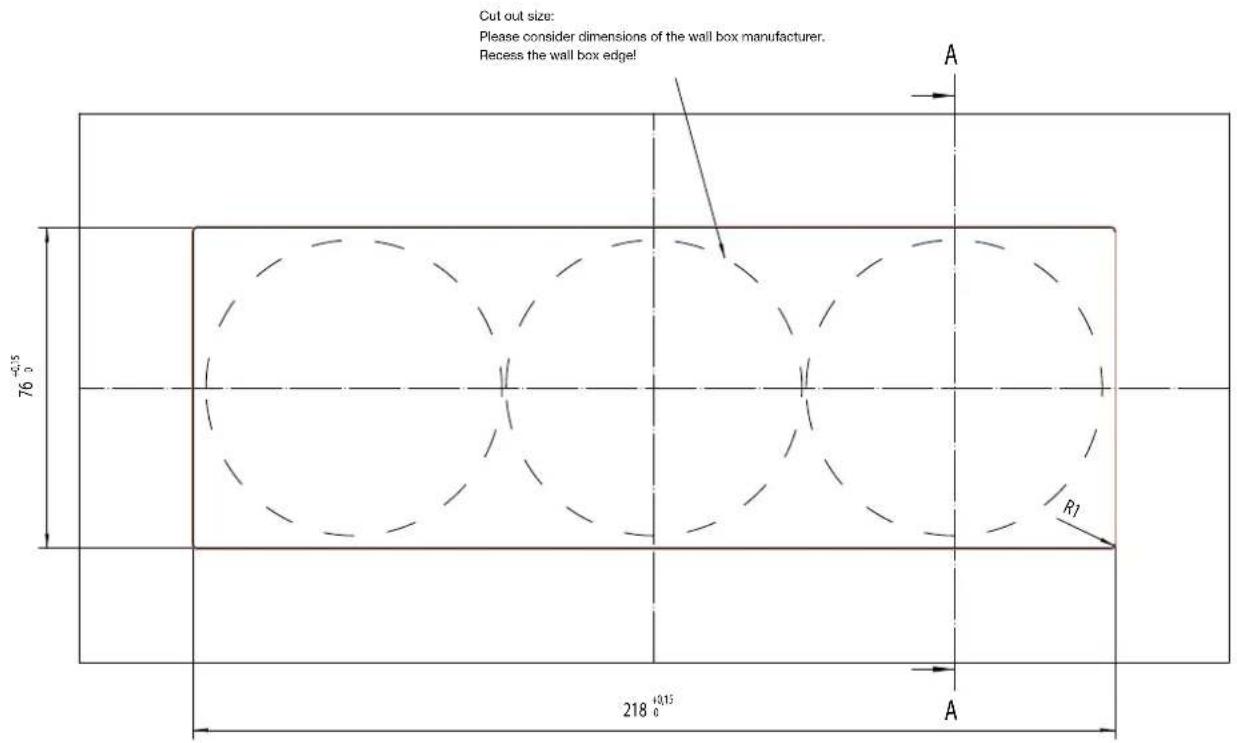

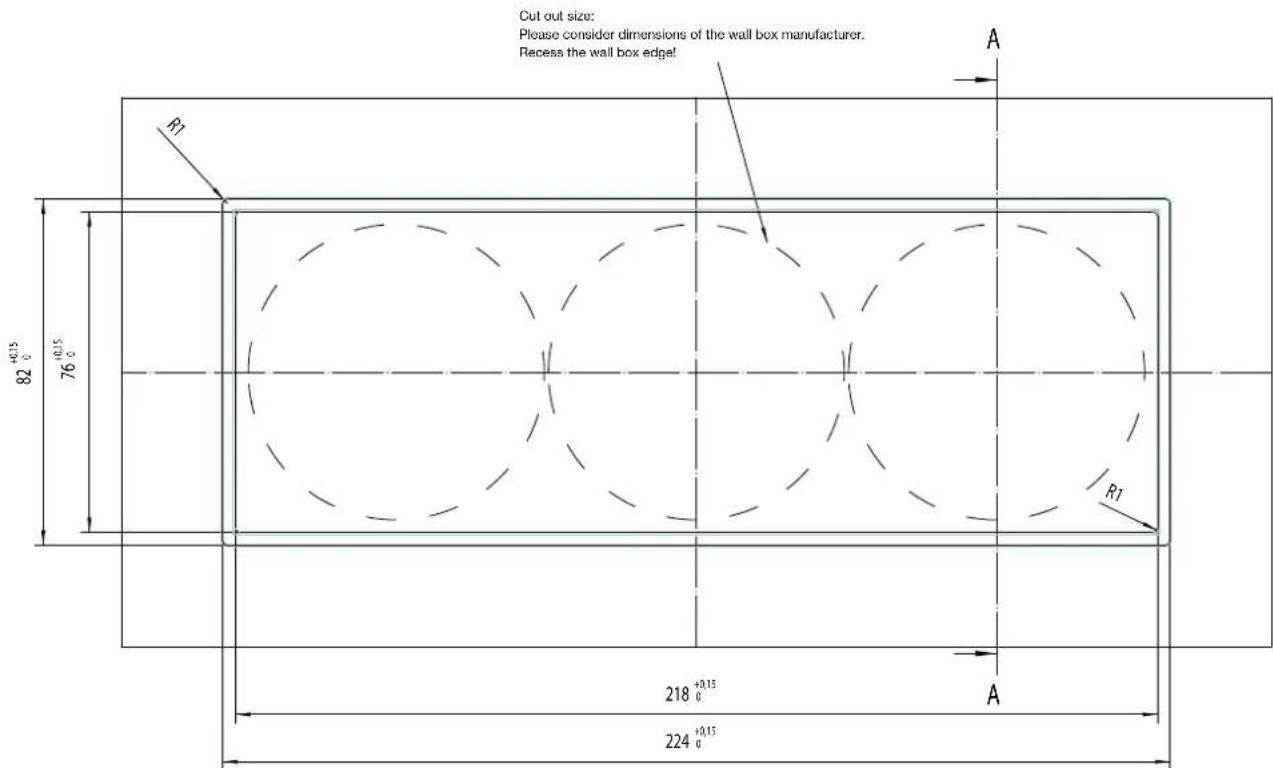

3-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

Isometric view of a rectangular frame with internal cutouts, mounted on a white base (no text or symbols)

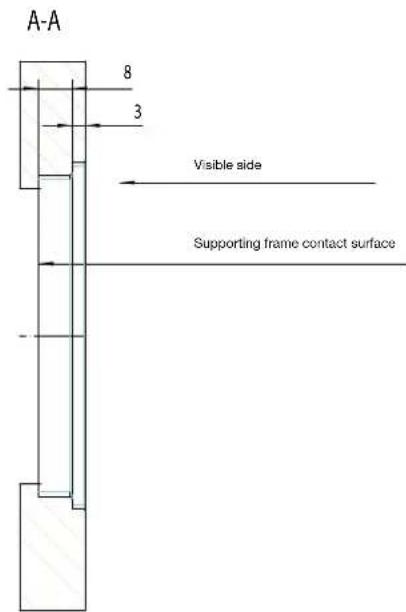

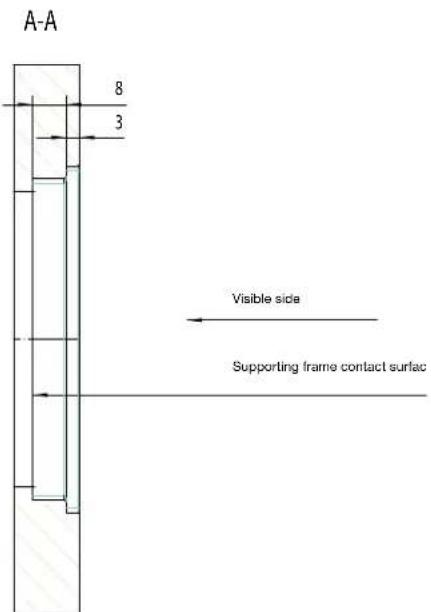

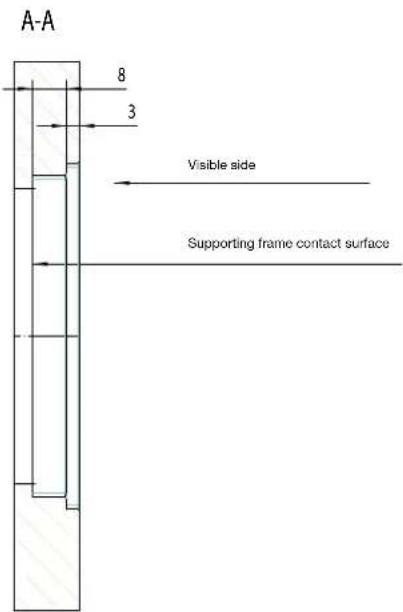

The flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.

Mounting recommendation

3 mm

1-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

2-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

3-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
