Product Type	Wireless actuator / sensor
Brand	JUNG
Model	LSZAL981BF
Dimensions (H x W x D)	71 x 71 x 42 mm
Weight	Approx. 50 g
Power Supply	230 V AC, 50/60 Hz
Rated Load	Max. 2000 W (resistive)
Wireless Protocol	Zigbee 3.0
Range	Up to 100 m (free field)
Operating Temperature	-5 °C to +45 °C
Protection Rating	IP20
Mounting	Flush-mount (60 mm box)
Functions	Switching, dimming, blind control, scene control
Compatibility	JUNG HOME, Smart Home systems
Cleaning	Wipe with dry cloth; no solvents
Safety	Overload protection, short-circuit proof
Repairability	Replaceable fuse; professional repair only
Warranty	5 years

Frequently Asked Questions - LSZAL981BF JUNG

What is the JUNG LSZAL981BF?

The JUNG LSZAL981BF is a wireless actuator/sensor used for switching, dimming, and blind control in smart home systems. It communicates via Zigbee 3.0 and is compatible with JUNG HOME.

What are the dimensions of the LSZAL981BF?

The device measures 71 x 71 x 42 mm, suitable for flush-mounting in a standard 60 mm junction box.

What power supply does it require?

It operates on 230 V AC, 50/60 Hz, with a maximum resistive load of 2000 W.

How do I pair the device with my smart home system?

To pair, put the device into pairing mode by pressing the service button for 3 seconds. Then use your smart home app to search for new devices.

Can I use the LSZAL981BF with Alexa or Google Home?

Yes, via a compatible Zigbee gateway that supports JUNG HOME. Voice control may require additional bridge integration.

What is the wireless range of this device?

The Zigbee range is up to 100 meters in free field. Indoors, range may be reduced to 20-30 meters depending on walls and obstructions.

How do I reset the LSZAL981BF to factory defaults?

Press and hold the service button for 10 seconds. The LED will flash rapidly, indicating reset. Release the button. The device will restart.

Is the device suitable for outdoor use?

No, the IP20 rating means it is only suitable for indoor use in dry environments.

How do I clean the device?

Clean the surface with a soft, dry cloth. Do not use chemical cleaners or abrasive materials.

Where can I find the full user manual?

The full manual can be downloaded for free from notice-facile.com in PDF format. Search for 'JUNG LSZAL981BF'.

USER MANUAL LSZAL981BF JUNG

Mounting recommendation

LS ZERO

0 mm 3 mm

Mounting recommendation

0 mm

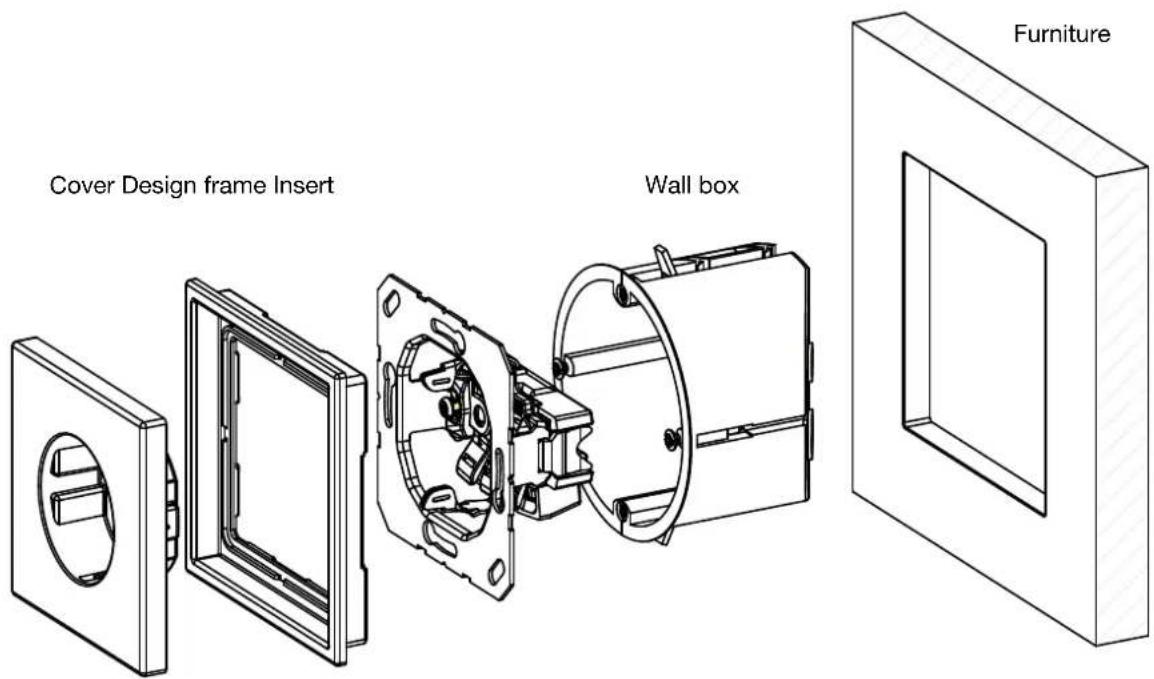

Isometric view of a rectangular frame with a square recessed, showing internal structure (no text or symbols)

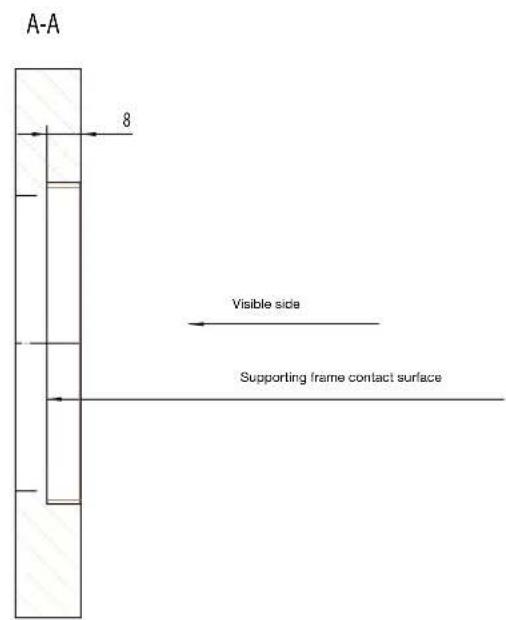

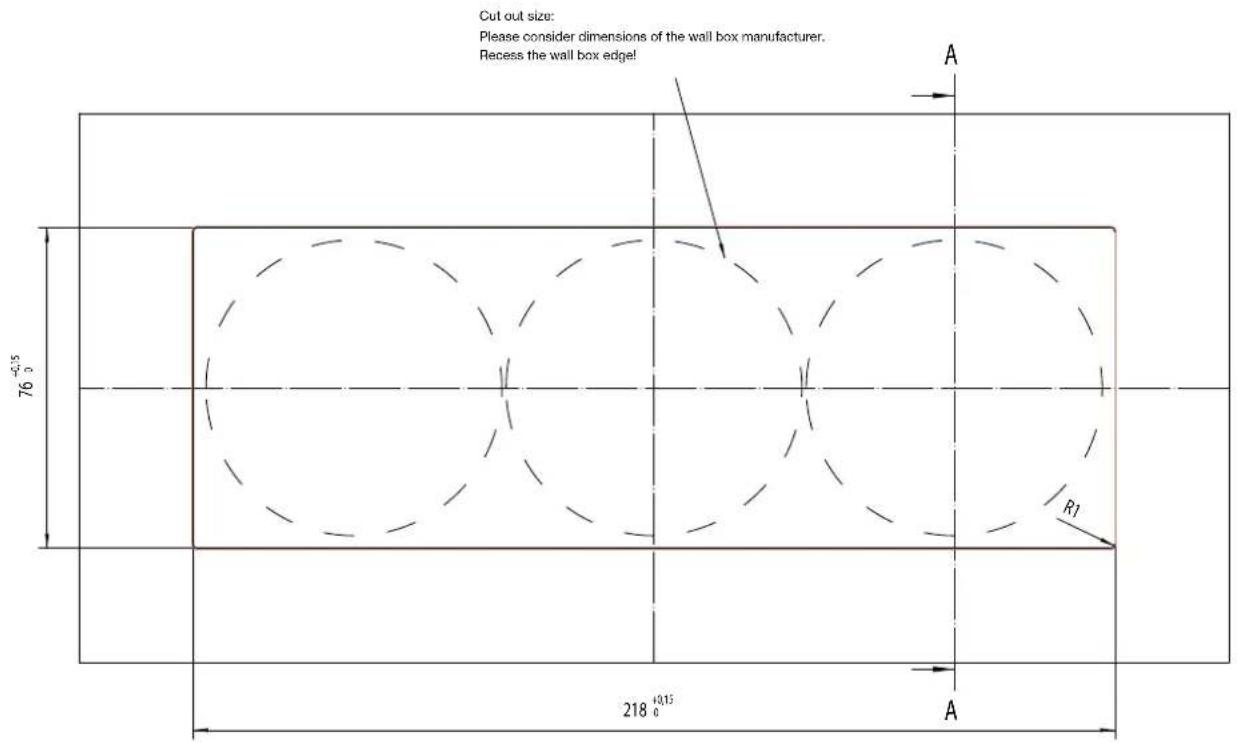

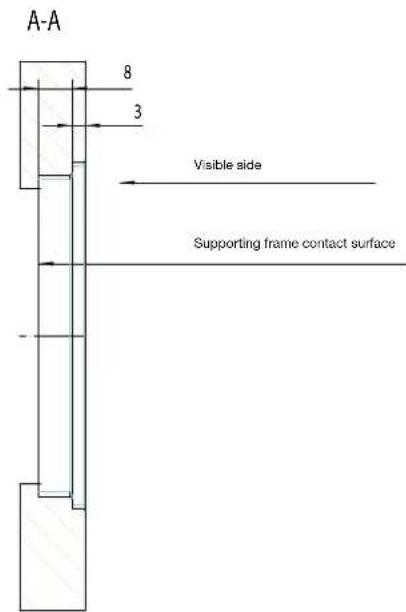

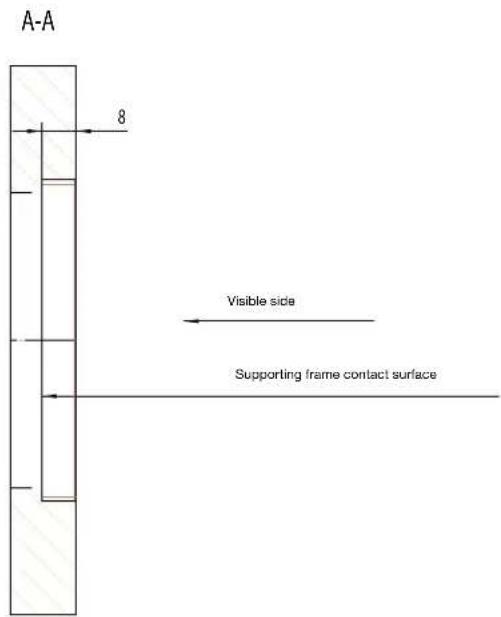

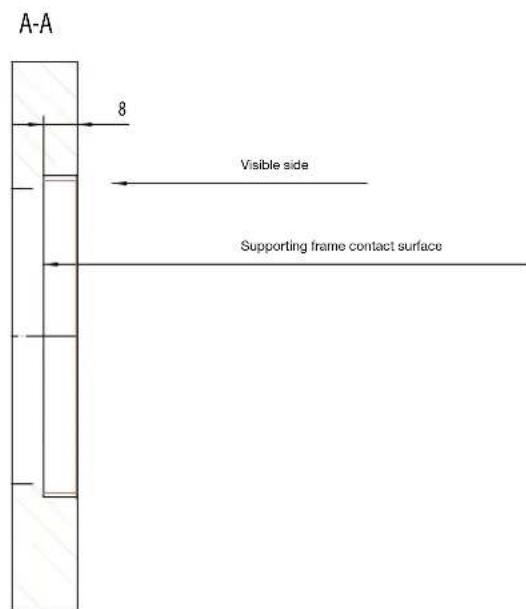

The flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.

Mounting recommendation

0 mm

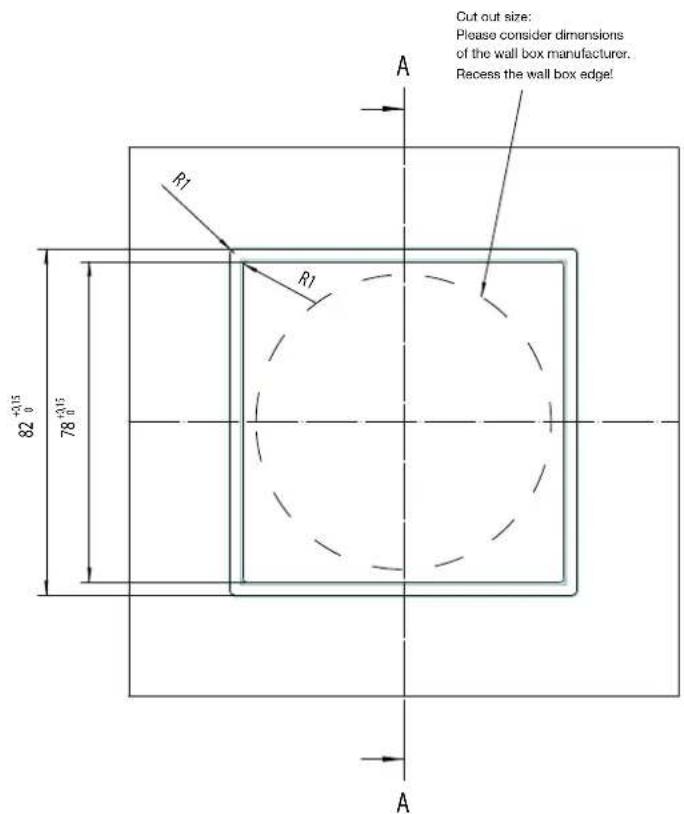

1-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

0 mm

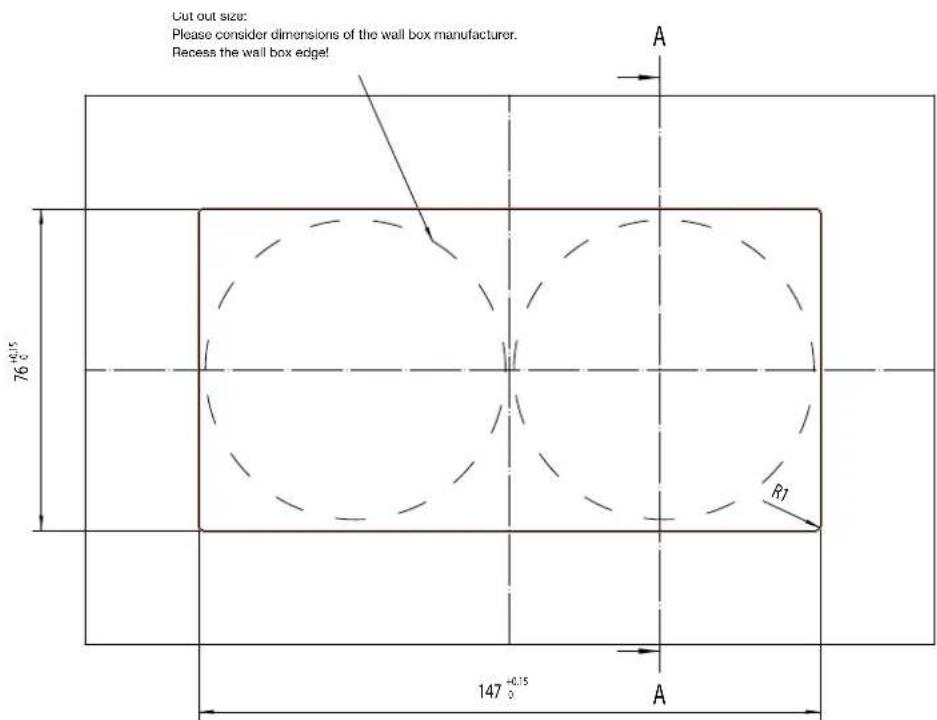

2-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

0 mm

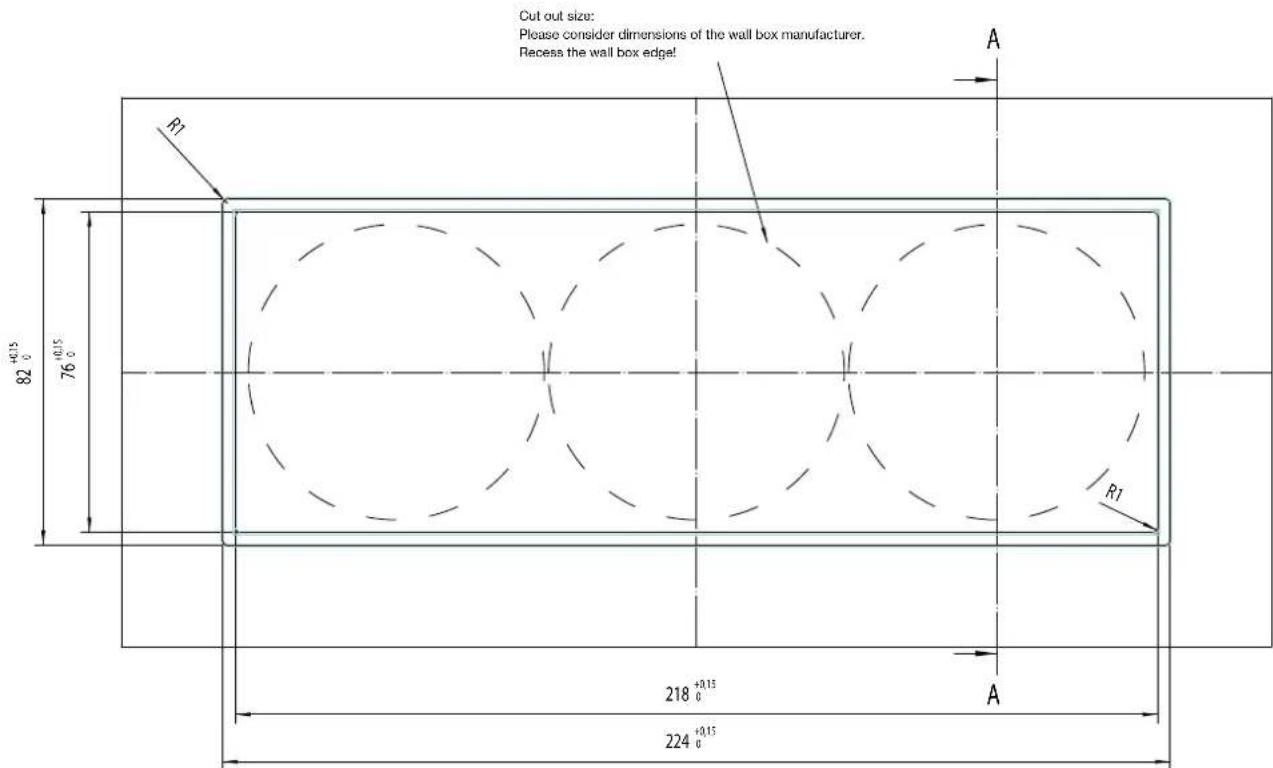

3-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

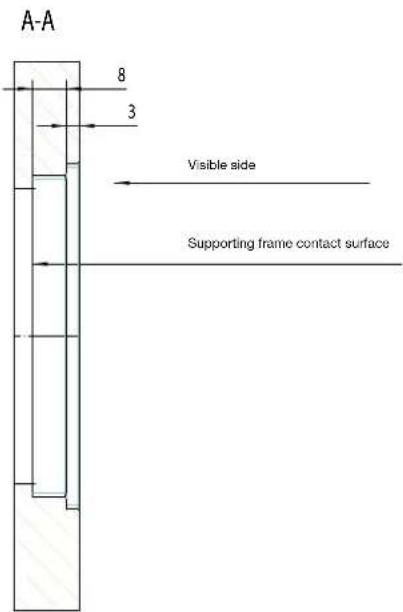

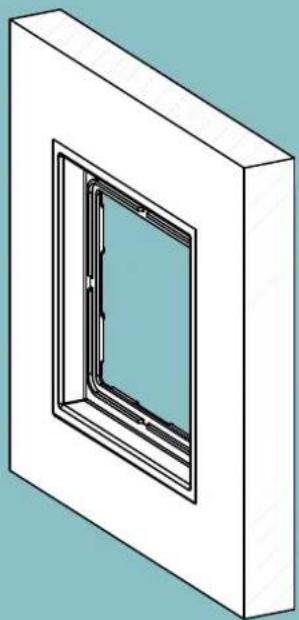

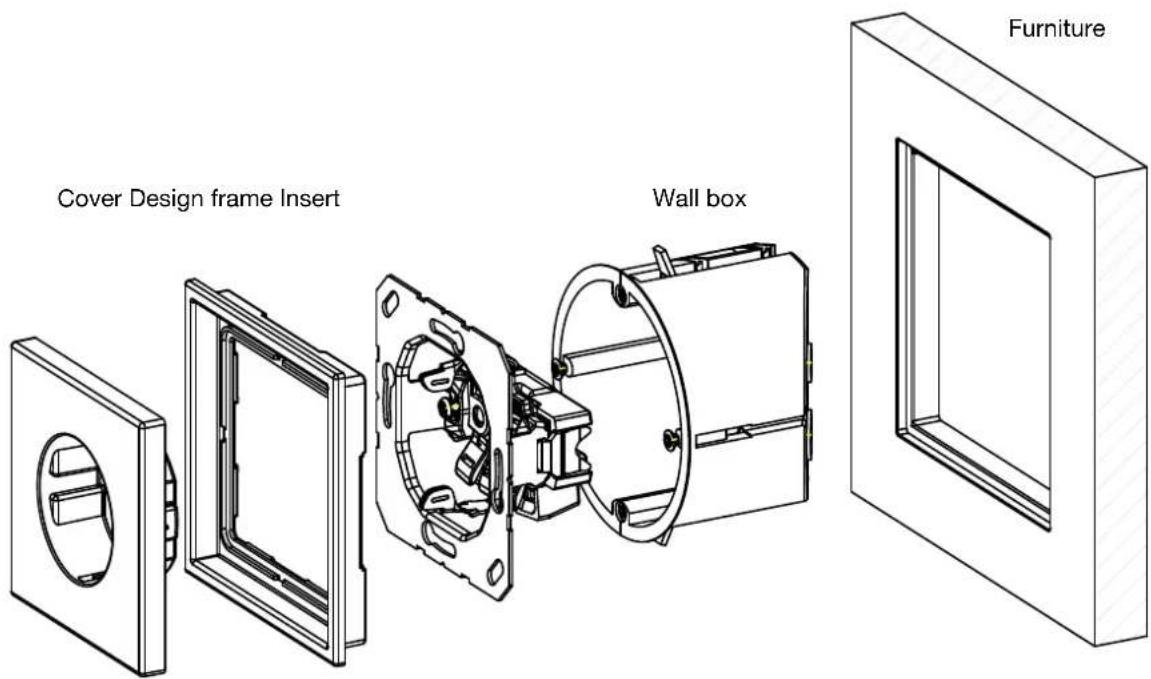

Isometric view of a square window frame mounted on a rectangular wall (no text or symbols)

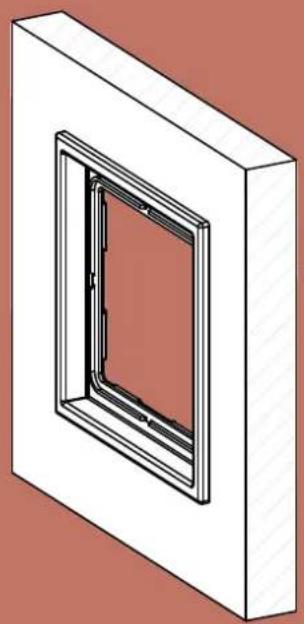

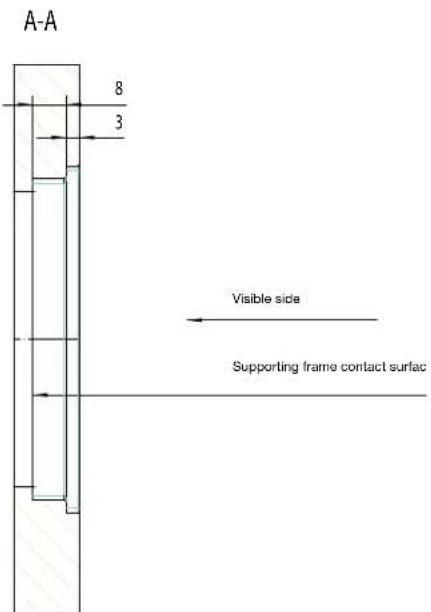

The flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.

Mounting recommendation

3 mm

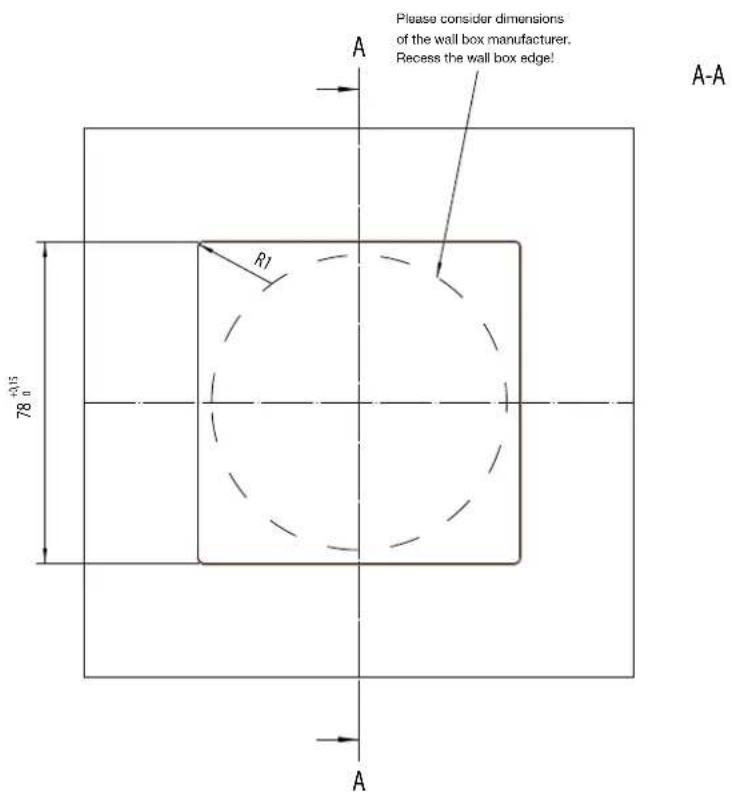

1-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

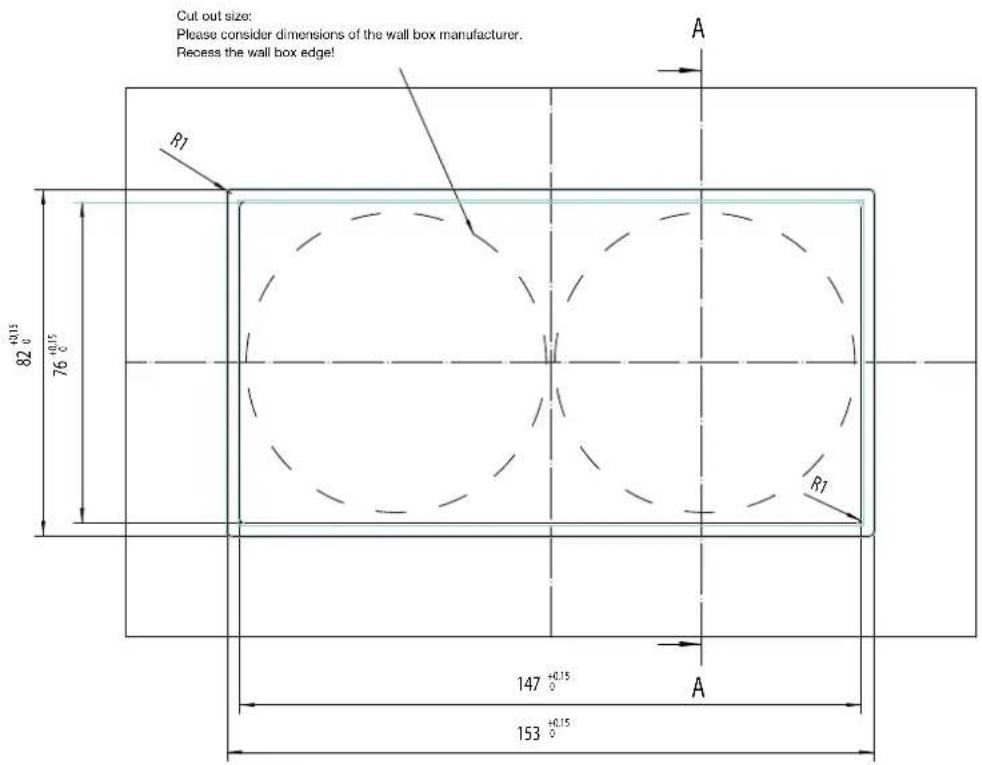

2-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

3-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
