USER MANUAL EHP-115 Grunkel

White portable electric stove with black lid and control knob, no visible text or symbols on body

White portable electric stove with a circular top and control knob, no visible text or symbols on the appliance body.

White grunkel electric stove with two black circular lamps and a warning symbol (no text or labels on the appliance itself)

A couple smiling while looking at a document together, with cardboard boxes in the background (no visible text or symbols)

Modern flat-screen TV displaying a large wave crashing against the ocean surface, with no visible text or symbols.

Exterior view of a modern kitchen blender with a black handle and blue control knob (no text or symbols visible)

White microwave oven with control knobs and a black interior, set against an orange background (no text or symbols visible)

White portable electric heater with mesh insulation and control panel (no visible text or symbols)

Black rectangular oven with open lid and control knobs, set against an orange background (no visible text or symbols)

Product photo of a white and red electric vacuum cleaner with control buttons (no visible text or symbols)

White rectangular toaster with a button and ventilation grille, set against a solid purple background (no text or symbols visible)

Modern stainless steel coffee maker with a curved handle against a solid purple background (no text or symbols visible)

Metallic coffee maker with black handle against a solid yellow background (no text or symbols visible)

Black outdoor fan with visible blades and a black handle against a blue background (no text or symbols)

Black hair dryer against a solid pink background (no text or symbols visible)

White and maroon electric iron with a side-mounted grille, displayed against a solid teal background (no text or symbols visible)

White rectangular food processor with handles and a black handle, set against a solid purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

grunkel

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

Electric cooking plate instructions manual

White portable electric stove with black lid and warning symbol (no visible text or labels)

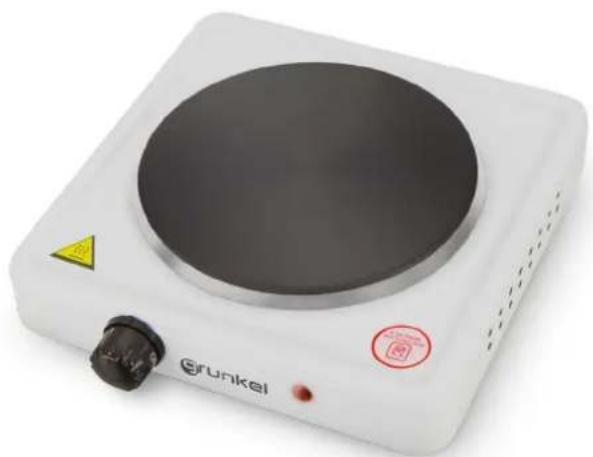

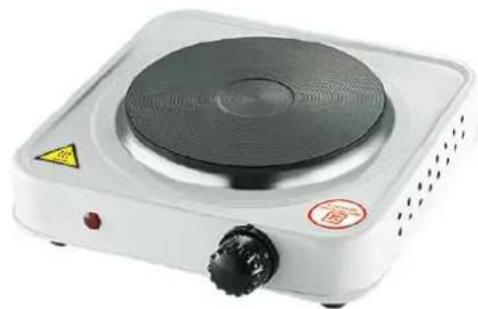

Model: EHP-115

White portable electric stove with a black top and red warning symbol (no visible text or labels)

Model: EHP-118

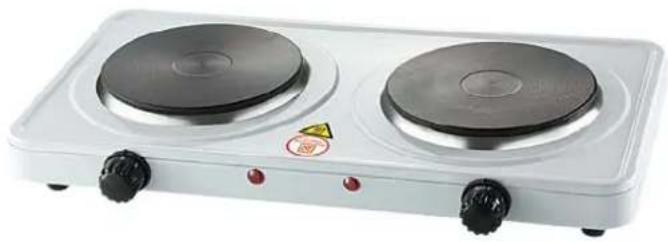

White portable electric stove with two circular burners and a warning symbol (no text or labels visible)

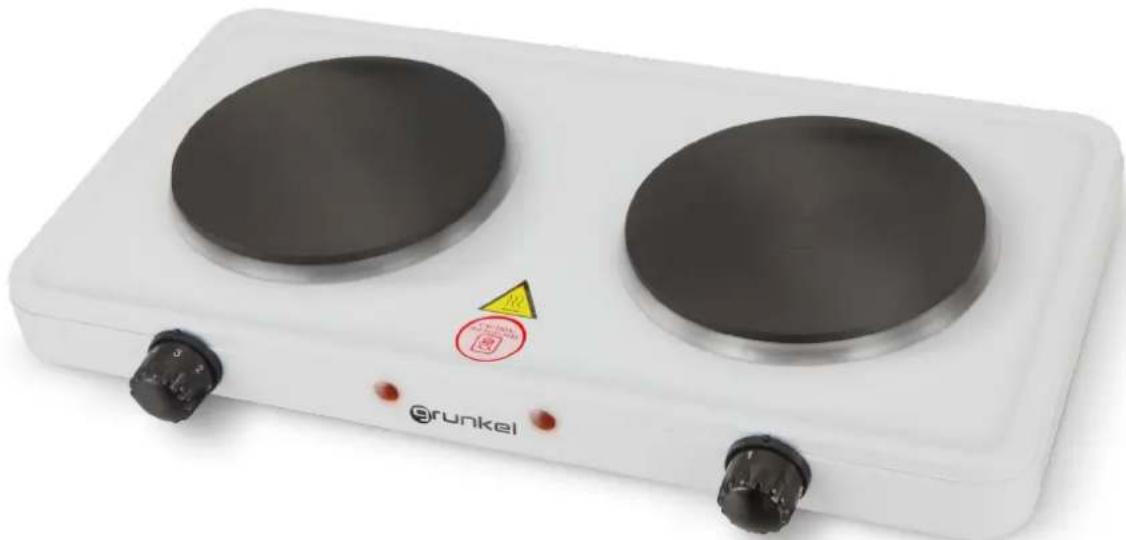

Model: EHP-215

Read and save these instructions

- Before you start the electric cooker, please read carefully through the instruction manual below. Only then are we able to guarantee trouble free use of the unit.Wrong use and careless handling may cause the unit to malfunction. We are in that cause unable to honour any warranty.

- TECHNICAL DATA

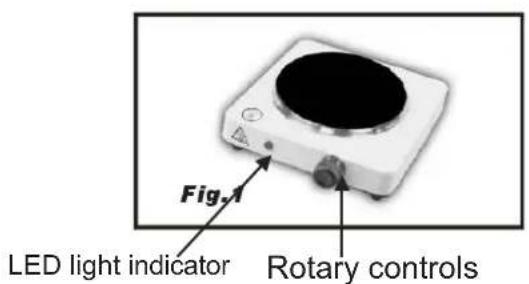

Fig.1

230V\~ 50 Hz 1000W

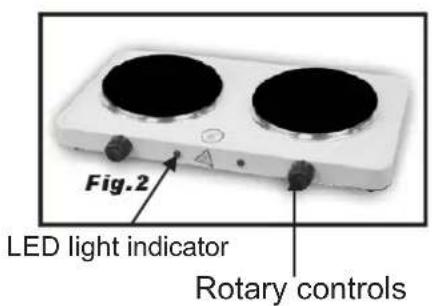

Fig 2

230V\~ 50 Hz 1500W

Fig 3

230V\~ 50 Hz 1000W+1000W

● How to use the product

The cooker should be connected to a well unit of 230V or Volt (like show the product) that conforms with the official regulations.

The cooking plates have been equipped with a 6-step switch. The numbers and intermittent points on the rotary controls show the specific way to operate it.

OFF

1=For simmering delicate foods and thickening sauces etc.

2=Slow cooking

3=For simmering large quantities.

4=Shallow frying of meat and pan dishes

5=To bring all dishes to rapid meat

Note: The LED light will go off when the hot plate reaches the selected temperature and will cycles and off to maintain the temperature. These indications are only approximate. The individual steps on the switch may vary for different pots and pans, and also because of what you cook.

● BEFORE YOU USE IT FOR THE FIRST TIME

Only use suitable pots and pans

Pots and pans should have flat bottoms in order to transfer heat steadily and to obtain the exact specifications indicated for the temperature controls. The dimension of the pan and the plate should be identical.

This is the right pan. It has a flat Bottom and absorbs the heat of the cooking plate very well

This pan is too small and does not cover the edges, resulting in heat loss.

This pan is not suitable.

This transfer of heat between the cooking plate and the pan is poor.

● HOW TO OPERATE IT

Cover ought to fit tightly on the respective pot or pan so that no steam can escape

The cooking plate is equipped with a thermostat, which prevents overheating. You should nevertheless always switch off the unit in good time.

Switch the unit off or to a lower level in good time in order to save energy. The cooking plate still will emit intensive heat for a few minutes, which you may use to complete the cooking process.

But the cooking time shall be less than 1 hour

- SAFETY TIPS

●The unit is only for use at home and not suited for use in restaurants and for industrial use
- Only use the cooking plates in enclosed spaces
- Never immerse the unit in water.
- Do not use the unit if the cable is damaged or if the cooking plate crack
- Please avoid that the cable gets into contact with the cooking plate.
- Only use the cooking plate on firm and horizontal surfaces. Please avoid using on flammable base (such as covers, plastic materials and the like)

grunkel

● Children do not know the dangers that may occur when using electric equipment. Please keep children out of reaching of this product

- Please put this user manual in a safe place.

- When this equipment is passed to a third party, then instruction manual should be handed over as well

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

- The temperature of accessible surfaces may be high when the appliance is operating.

- The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

NOTE

Please do not touch the cooker in operation to avoid being burned! Please unplug the cooker before wash it!

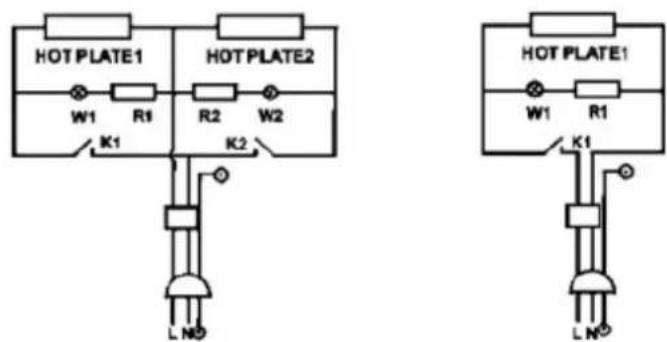

• Electrical diagram

The surfaces are liable to get hot during use.
