DEAR CUSTOMER:

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any freezer equipment please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.

Safety warnings

Meaning of safety warning symbols

Prohibition symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Warning symbols

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Note symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

CAUTION :

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

GENERAL:

This type of refrigerator-freezer is widely used in places such as hotels, offices, student dormitories and houses. It is mostly suitable for refrigerating and preserving foods such as fruits and beverage. It enjoys the advantages of small size, Lightweight, Low electric consumption and easy use.

This manual contains lots of important safety information which shall be observed by the users.

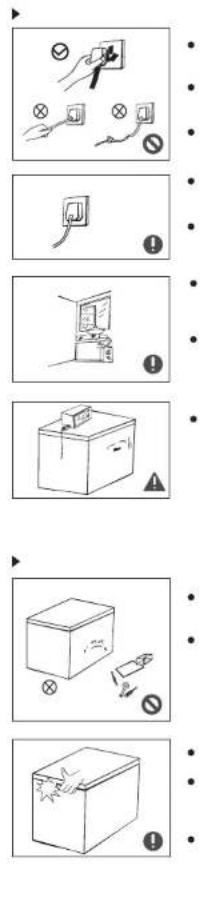

Illustration showing five different electrical safety instructions with icons and labels, likely for electrical safety or repair.

Illustrated sequence showing a person falling into a box with warning symbols and five sequential steps of handling items.

• • • • • • •

Simple diagram with two horizontal lines, one containing a circled symbol and the other a plus sign, with a small square below.

Proper use of freezers

▶ Names of components

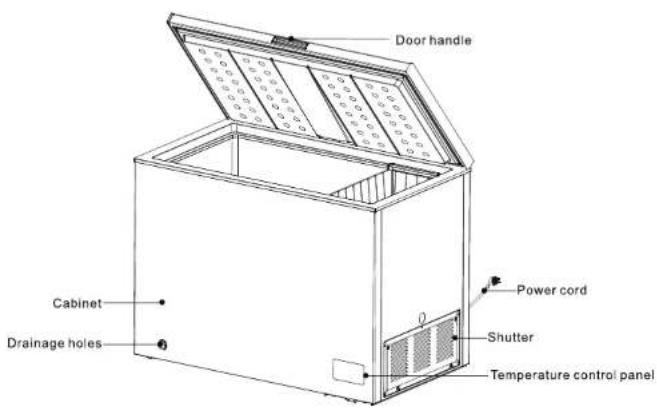

Door handle Cabinet Drainage holes Power cord Shutter Temperature control panel

The appliance has the function of conversion between freezer and refrigerator.

Refrigerator

• The refrigerator is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.

Freezer

● The freezer may keep food fresh for a long time and it is mainly used to
store frozen foods and making ice.
- The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be
consumed in short term.
- Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

The appliance has the function of refrigerator -freezer transition, by operating on display panel, end-consumers could select refrigerator or freezer in accordance with their requirement.

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

4

Proper use of freezers

▶ Temperature Control

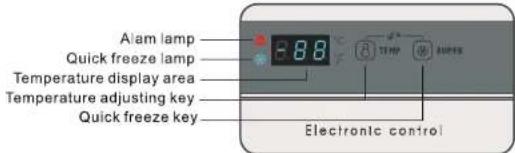

Alarm lamp Quick freeze lamp Temperature display area Temperature adjusting key Quick freeze key Electronic control

▶ Display control

- When power on the freezer, the display windows shines fully for 3 seconds, then it enters into normal display, the default set temperature is -18^(0^) . if no error happen, the display panel shows set temperature or mode, if it has error, error code will show on control panel;

▶ Locking and unlocking

• Locking: long press temperature adjusting key ⏻ and quick freeze key ⚙ for 3 s at the same time, it enters into lock status, and display window flashes for several seconds, then enter into normal display state;
• Unlocking: long press temperature adjusting key ⏻ and quick freeze ⚙ key for 3s at the same time, it exits lock status, and temperature can be adjusted.

The following key operations shall be conducted under unlocking state. If the operation is conducted under locking state, display quickly flashes for 3s as a tip of invalid operation.

▶ Conversion of Fahrenheit and Celsius

Under unlocking state, Fahrenheit and Celsius shall be converted through long pressing temperature adjusting key for 3 s.

▶ Temperature setting

In the mode of freezer, press the temperature adjusting key to change the set temperature, the set temperature will drop by 1°C/F for each press, when the display panel shows -24°C/-11°F, pressing the temperature adjusting key again will convert the freezer into refrigerator, and the display panel will show 1°C/34°F, in the mode of refrigerator, the set temperature will increase by 1°C/F for each time to press adjusting key .
Temperature adjustment mode in Centigrade is as follows:

Temperature adjustment in Fahrenheit is as follows:

▶ Quick freeze mode

●Enter of quick freeze

①Press quick freeze key, and quick freeze indicator lights
● Exit of quick freeze

① Under quick freeze mode, press quick freeze key ☑️, quick freeze mode exits.

②When continuous running time reaches 24 h under quick freeze mode, quick freeze mode will automatically exit.

5

Proper use of freezers

When Celsius is set, “-24” will appear in display screen, and compressor continuously runs; When Fahrenheit is set, “-11” will appear in display screen, and compressor

▶ High temperature alarm The indicator light ▲ will be on if freezers give an alarm for high temperature

▶ Power off memory In case of power failure, the previous settings will be memorized, till power on.

▶ Failure code When the following tips appear in display windows, then failure occurs in the freezer.

Failure code	E2
Description	Failure of temperature sensor

▶ Placement

Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.

● The freezer is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

●The top space of the freezer shall be greater than 70cm, and the distances from both sides and backside shall be more than 20cm to facilitate the opening and closing and heat dissipation.

● Wipe the freezer inside and outside with warm moist rag (add a small amount of detergent in the warm water and wipe clean finally with clean water).

▶ Start

- The freezer shall stay for half an hour before connecting 220\~240V/50Hz power when it is firstly started. - The freezer shall run 2 to 3 hours before loading fresh or frozen foods; the freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

6

Maintenance of freezers

▶ Cleaning

- Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the freezer should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. - Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning temperature control knob and electrical components.

Please unplug the for defrost and cleaning, freezer

▶ Defrost

- Freezer shall be manually defrosted. Unplug the freezer and open the freezer door, remove foods and drawers before defrosting; Open the outflow holes and drainage holes (and place water container at the outflow holes); indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper might be used to the accelerate de-icing process.

- Please remove the food and put in a cool place when defrosting before removing accessories.

Other mechanical devices or other means shall not be used to accelerate except those recommended by the manufacturer. Do not damage the refrigerant circuit.

▶ Stop using

Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer. Please unplug the freezer left unused for a long time for cleaning. Keep the door open to avoid the bad odor. Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle cannot be greater than 45^ . Please hold the door and hinge when moving.

Continuous operation is recommended when the freezer is started. Please do not move the freezer under normal circumstances so as not to affect the freezer's service life.

7

Frequently asked questions

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power;Low voltage;Whether temperature control knob is in the work areaFailure power or tripping circuit
Odor	Odorous foods should closely wrapped;Whether foods are rotten;Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that freezer operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time;Do not put foods until they are cooled;Frequent opening of freezer door.Thick frost layer (defrost is needed)
Illuminating light does not shine	Whether the freezer is connected to power, whether the indicator light is damaged.
The freezer door can not be properly closed.	The freezer door is stuck by food packages:Too much food;Tilt freezer.
Loud noises	Whether the food is leveled, whether the freezer is balanced;Whether the freezer parts are properly placed.
Transient difficulty in door opening	After refrigeration, there will be pressure difference between the inside and outside of the refrigerator to result in transient difficulty in door opening. This is a normal physical phenomenon.

Warm tips:

radiation of the condenser, and it is a normal phenomenon.

seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.

grunts which is normal does not affect the cooling effect.

does not affect the operation.

J

Model	ORS 135 DG
Total Gross Volume, L 99
The current consumption depends on how the appliance is used and its location
Energy efficiency class	A+
Energy consumption: kWh/year 168
Dimensions (H x W x D), mm	850*565*523
Noise Level, db(A) re 1pw 40
Electrical Information	Check Rating Label
Note: The manufacturer reserves the right to make future changes in specifications and Technical parameters.

Model	ORS 186 DG
Total Gross Volume, L	142
The current consumption depends on how the appliance is used and its location
Energy efficiency class	A+
Energy consumption: kWh/year 190
Climate Class
Dimensions (H x W x D), mm	850*730*523
Noise Level, db(A) re 1pw	40
Electrical Information	Check Rating Label
Note: The manufacturer reserves the right to make future changes in specifications and Technical parameters

Model	ORS 295 DG
Total Gross Volume, L	198
The current consumption depends on how the appliance is used and its location
Energy efficiency class	A+
Energy consumption: kWh/year	219
Climate Class	N SN ST T
Dimensions (H x W x D), mm	850*945*523
Noise Level, db(A) re 1pw 40
Electrical Information	Check Rating Label
Note: The manufacturer reserves the right to make future changes in specifications and Technical parameters

Model	ORS 385 DG
Total Gross Volume, L	295
The current consumption depends on how the appliance is used and its location
Energy efficiency class	A+
Energy consumption: kWh/year 268
Climate Class	N SN ST T
Dimensions (H x W x D), mm	850*1115*670
Noise Level, db(A) re 1pw	43
Electrical Information	Check Rating Label
Note: The manufacturer reserves the right to make future changes in specifications and Technical parameters

9

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recyclin
