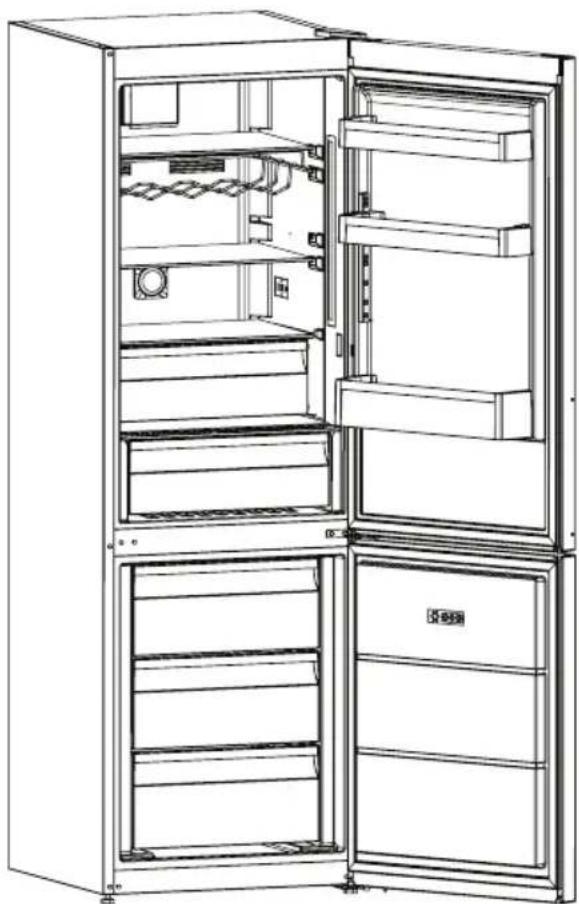

Line drawing of an open refrigerator with doors open, showing internal compartments and ventilation slots (no text or symbols)

SZANOWNY KLIENCIE,

Simple line drawing of a cartoon character with a swirl, no text or symbols present

Illustration of four hands performing a welding or cutting process with visible tool tips and a crack (no text or symbols)

Cartoon illustration of a character moving from a door (no text or symbols)

Safety warning illustration showing a smiling face, a crossed-out hand, and a prohibition symbol with a crossed-out hand.

Simple line drawing of a bottle and glass with bubbles, no text or symbols present

Diagram of a multi-level air vent system with airflow indicators (no text or labels)

WYŚWIETLACZ I PANEL STEROWANIA

① ⑨ ⑪ ⑩ ⑦a ⑤ ⑧a ⑥ ⑮ ③ °C V± -88°C | +88°C | +88°C Dk. Min. ② ⑫ 14 ⑦b 138b ○ ○ ○ ④

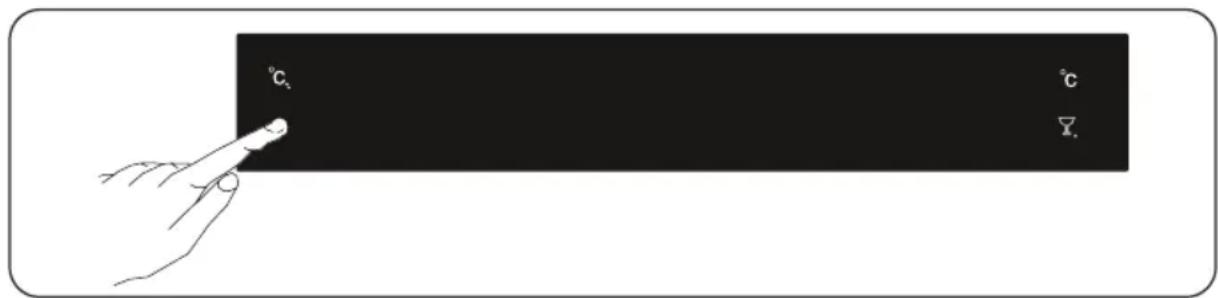

Diagram showing a hand pointing at a black rectangle with symbols including 'E', 'E', and 'E' arranged in rows.

Line drawing of a refrigerator with a red directional arrow indicating left motion (no text or symbols)

Technical line drawing of a structural bracket with no visible text or symbols

Technical diagram of a mechanical assembly with two parallel plates and a vertical dimension arrow, labeled 'Rys. 2' (no text or symbols on the diagram itself)

Diagram of a bottled water bottle mounted on a shelf with attached compartments (no text or symbols)

Diagram of a shelving unit with shelves and doors, showing an arrow indicating direction (no text or symbols)

Diagram showing a device with labeled ports and a directional arrow indicating rotation or movement.

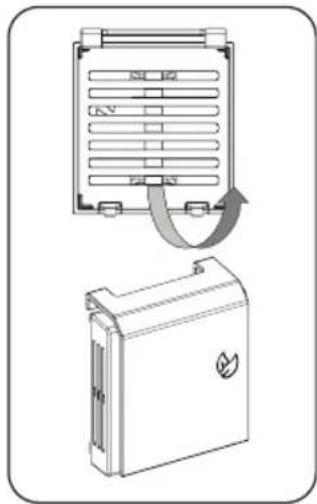

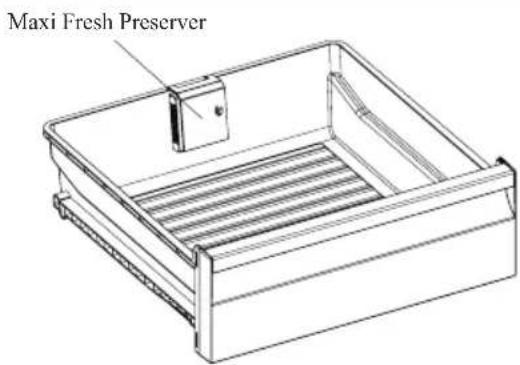

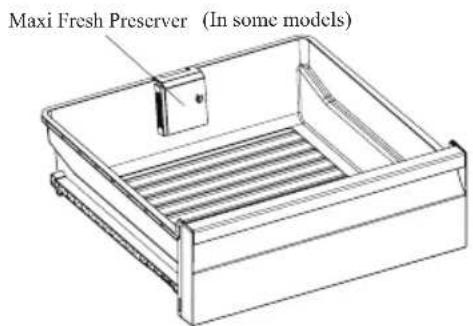

Maxi Fresh Preserver

Cartoon illustration of a hand washing a refrigerator while cleaning it (no text or symbols)

Cartoon illustration of a smiling refrigerator with food items nearby (no text or symbols)

Illustration showing a refrigerator with a red 'X' symbol crossed out, and a cartoon refrigerator with surprised expressions.

Illustration of a hand cleaning a metal grate (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Line drawing of an open refrigerator with doors open, showing internal compartments and ventilation slots (no text or symbols)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

The operating instructions apply to several models. Differences may therefore occur.

Icon Caption Description
	Warning Risk of serious injury or death
	Risk of electric shock Dangerous voltage
	Fire	Risk of fire / flammable materials
	Attention	Risk of injury or material damage
	Important/Note	Information on correct operation of the system
	Read the instructions
	Hot surface

CONTENTS

CHAPTER 1. Before using the appliance....36

Old and out-of-order fridges or freezer 38
Disposal of your old appliance....38
Safety warnings 40
Installing and operating your fridge freezer....41
Before Using your Fridge....41

CHAPTER 2. The various function and possibilities....42

Information about New Generation Cooling Technology 42
Dsipal and control panel....43
Operating your fridge 43
Accessories....48

CHAPTER 4. Arranging food in the appliance....50

CHAPTER 5. Cleaning and maintenance ....55

Defrosting....56

CHAPTER 6. Transportation and changing of installation position ....57

Repositioning the Door 57

CHAPTER 7. Before calling your after sales service....57

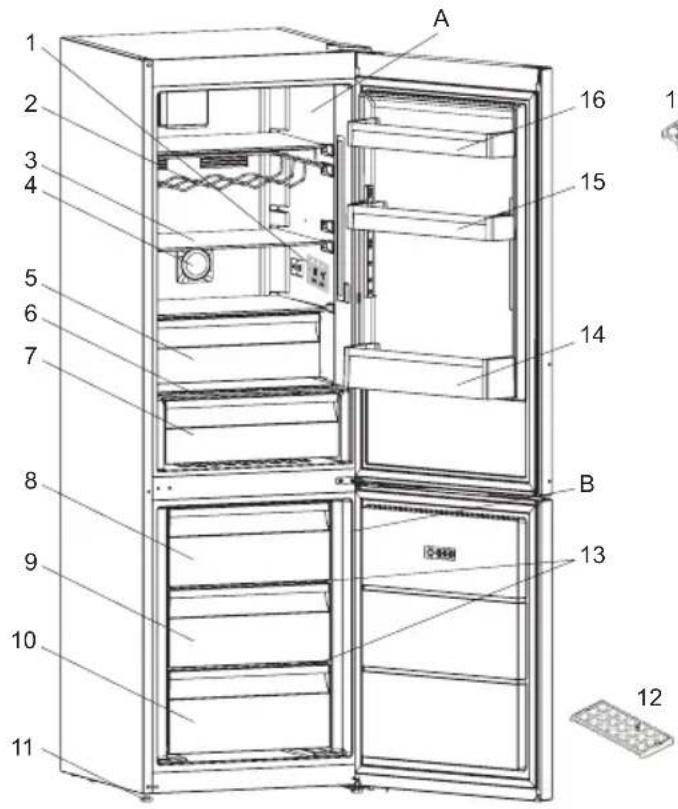

CHAPTER 8. The parts of the appliance and the compartments ......61

CHAPTER 9. Disposal of used equipment....62

CHAPTER 1. BEFORE USING THE APPLIANCE

General warnings

WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING

Do not damage the refrigerant circuit.

WARNING

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

FIRE

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural

gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to homeuse only.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

OLD AND OUT-OF-ORDER FRIDGES OR FREEZER

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

DISPOSAL OF YOUR OLD APPLIANCE

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTES:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

SAFETY WARNINGS

- Do not connect your fridge freezer to the mains electricity supply using an extension lead.

- Do not use damaged, torn or old plugs.

Simple line drawing of a cartoon character with a surprised expression and a lightning bolt (no text or symbols)

- Do not pull, bend or damage the cord.

Illustration showing four different techniques for using a tool to interact with a cable or wire (no text or symbols present)

- Do not use plug adapter.

- This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

Cartoon illustration of a character moving from a door (no text or symbols)

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

Safety warning illustration showing a smiling robot, a crossed-out prohibition symbol, and a hand gesture.

- Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

Simple line drawing of two bottles with a bottle and a glass, no text or symbols present

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

- Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

INSTALLING AND OPERATING YOUR FRIDGE FREEZER

Before using your fridge freezer for the first time, please pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge freezer where it will not be exposed to direct sunlight.

- Your fridge freezer must never be used outdoors or exposed to rain.

- Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.

- Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

- Do not place heavy items on the appliance.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

- Clean the appliance thoroughly before use (see Cleaning and Maintenance).

- Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.

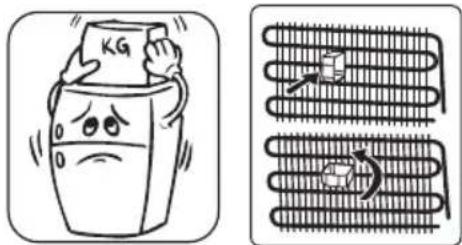

• Install the two plastic distance guides (the parts on the black vanes-condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

- The distance between the appliance and back wall must be a maximum of 75 mm.

KG

BEFORE USING YOUR FRIDGE

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

CHAPTER 2. THE VARIOUS FUNCTION AND POSSIBILITIES

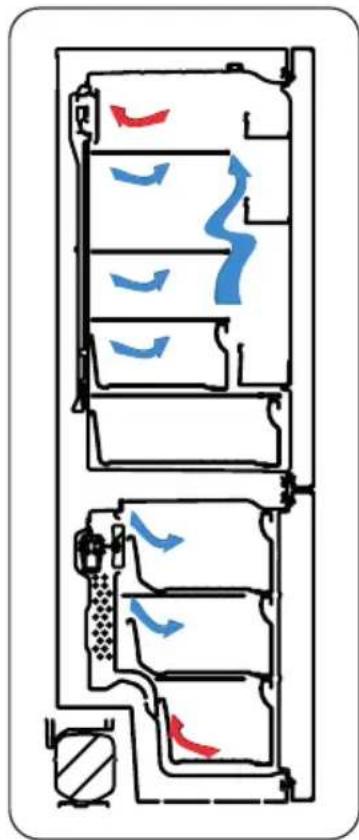

INFORMATION ABOUT NEW GENERATION COOLING TECHNOLOGY

Fridges with new-generation cooling technology have a different operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. In such fridges, regular defrosting is required; the fridge must be switched off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed.

In fridges with new-generation cooling technology, a fan blows dry cold air evenly throughout the fridge and freezer compartments. The cold air cools your food evenly and uniformly, preventing humidity and ice build-up.

In the refrigerator compartment, air blown by the fan, located at the top of the refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct, evenly spreading cool air throughout the refrigerator compartment.

There is no air passage between the freezer and refrigerator compartments, therefore preventing the mixing of odours.

As a result, your fridge, with new-generation cooling technology, provides you with ease of use as well as a huge volume and aesthetic appearance.

Diagram of a multi-level air conditioning unit with airflow indicators (no text or labels)

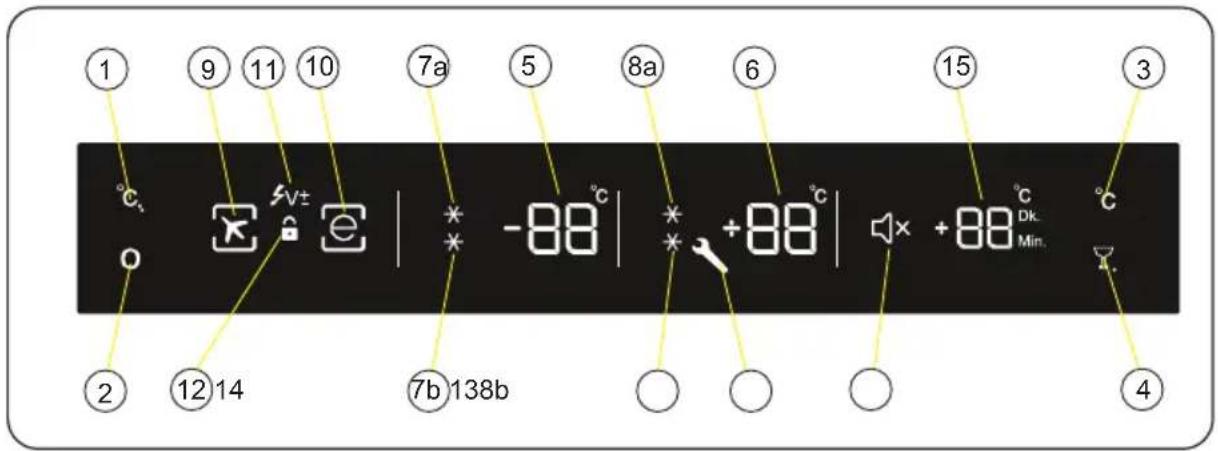

DSIPAL AND CONTROL PANEL

① ⑨ ⑪ ⑩ ⑦a ⑤ ⑧a ⑥ ⑮ ③ °C V± -88°C | +88°C | +88°C Dk. Min. ② ⑫ 14 ⑦b 138b ○ ○ ○ ④

1. Freezer Set Button
2. Mode Button
3. Refrigerator Button
4. D.cool & Mute Button
5. Freezer Set Value Screen
6. Cooler Set Value Screen
7. Super Freeze Symbol
8. Super Cool Symbol

9. Holiday Mode Symbol

10. Economy Mode Symbol

11. Low Voltage Symbol
12. Child Lock Symbol
13. Alarm (SR) Symbol
14. Sound Off Symbol
15. Drink Cool Value Screen (Active Symbol May Change According to Language(Min-Dk.))

How would it be used?

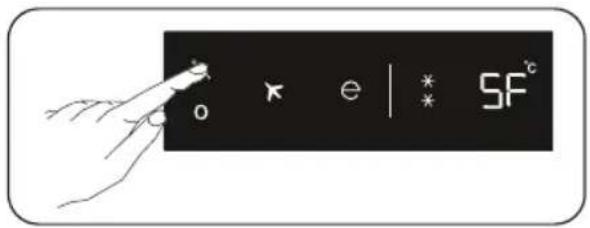

• Press freezer set button until SF letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set.
• Freezer temperature segment will show „SF”.

SF° o e | *

During this mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.
  • Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.

Super cool mode

How would it be used?

• Press cooler set button until SC letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set.
• Cooler temperature segment will show „SC”.

* SC° * *

During this mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.
  • Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.

Economy mode

How would it be used?

• Push „mode button” till a circle appears around economy symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show „E”.
• Circle of economy symbol and ,, , will light till mode finishes.

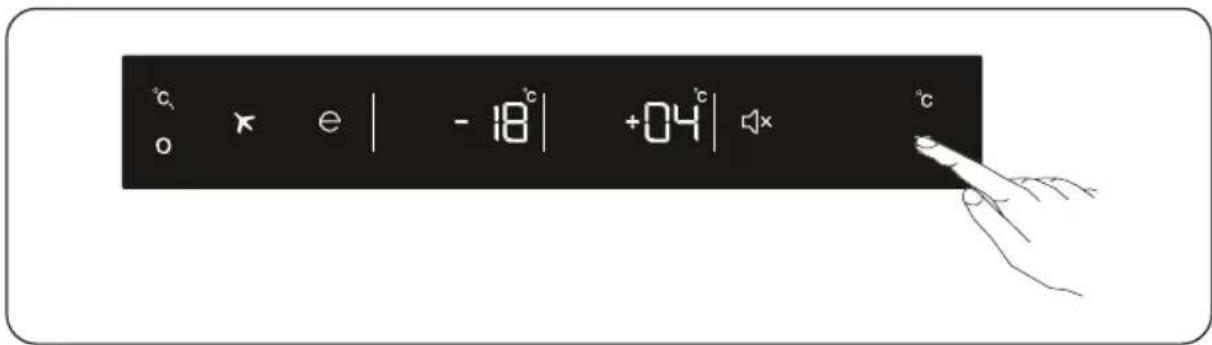

Diagram showing a hand pointing at a black rectangle with symbols including 'e', 'E', and 'E' arranged in rows.

During this mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.

Holliday mode

How would it be used?

• Push „mode button” till a circle appears around plane symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer temperature segment will show „H”.
• Circle of plane symbol and H will light till mode finishes.

°c e H°

During this mode:

• Freezer may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.

Drink cool mode

Drink cool button should be pressed to activate beverage cooling mode. Each press will increment the time for 5 minutes up to 30 minutes, and then it returns to zero. You can view the time zone you want to set on “Drink cool alarm counter” section. Drink cool mode only lets the refrigerator release an audible alert after a specific period.

05 Min. °C

IMPORTANT:

It should not be confused with cooling.

NOTE:

You must adjust the time according to the temperature of the bottles before you put them in.

For example, you can set the time as “5 minutes” in the beginning. After this time, if the cooling is insufficient, you might set another 5 or 10 minutes.

While using this mode, you must check the temperature of the bottles regularly. When the bottles are cool enough, you must take them out of the appliance.

In the event that you leave the bottles in when the Drink Cool mode is on, they might explode.

Screen saver mode. How to use?

℃ ℃ ▽

• This mode will be activated when you press on mode button for 5 seconds.
• If pressed on no button in 5 seconds when he mode is active, lights of the control panel will go off.
• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can make the adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.
• To cancel screen saver mode press on mode button for 5 seconds again.
• When screen saver mode is active you can also activate child lock.
• If you do not press any button for 5 seconds after activating child lock, the lights of the control panel will go off. Then, you can view the previous settings and that child lock symbol is active when you pres any button, and you can cancel child lock as is described in the instruction of that mode

Mute Mode

°C o × e | -18°C | +04°C | ℃ × °C

This mode can be activated when you press and hold mute button for 3 seconds. When this mode is activated all button sounds and sound alarms will be off.

This mode can be cancelled when you press and hold mute button for 3 seconds.

Function of Child lock

When would it be used?

To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance.

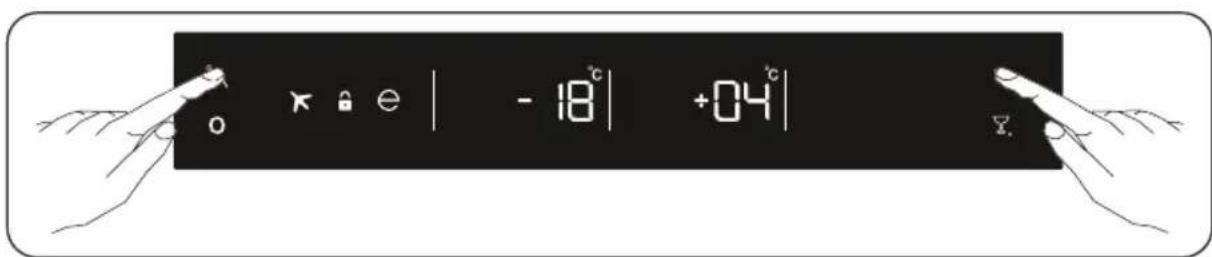

Activating Child Lock

o e | -18°C | +04°C | Y.

Press on Freezer and Cooler buttons simultaneously for 5 seconds.

Deactivating Child Lock

Press on Freezer and Cooler buttons simultaneously for 5 seconds.

NOTE:

Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

Light cancelling mode

When would it be used?

• If you want to cancel lights of cooler, you can select this mode.
• While pushing on Freezer, Cooler, Mode and D.Cool/Mute Button together for 3 seconds. The mode will be selected in this way. From now on, the lights will not come on when the function is not cancelled by the same way.
• If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours.

Freezer temperature settings

• Initial temperature value for Freezer Setting Indicator is -18°C.
• Press freezer set button once.
• When you first push this button, the last set value will blink on screen.
• Whenever you press on this button, lower temperature will be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).
• When you push the freezer set button until superfreeze symbol appears on the Freezer Setting Indicator, and if you do not push any button in 1 seconds Super Freeze will flash.
• If you continue to press, it will restart from -16^ .
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

o e | - 18°

Cooler temperature settings

• Initial temperature value for Cooler Setting Indicator is +4 °C.
• Press cooler button once.
• When you first push this button, the last value appears on the setting indicator of the cooler.
  • Whenever you press on this button, lower temperature will be set. (+8°C, +6°C, +5°C, +4

+04^c Y.

• When you push the cooler set button until supercool symbol appears on the Cooler Setting Indicator, and if you do not push any button in 1 seconds Super Cool will flash.
• If you continue to press, it will restart from +8^ .
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Temperature Adjustment Warnings

• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
  • Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and the ambient temperature in the location of your fridge.
  • In order to allow your fridge to reach the operating temperature after being connected to mains, do not open the doors frequently or place large quantities of food in the fridge. Please note that, depending on the ambient temperature, it may take 24 hours for your fridge to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your fridge when connecting or disconnecting to mains, or when an energy breakdown occurs. Your fridge will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class Ambient (	°C)
T 16 to 43 (	°C)
ST 16 to 38 (	°C)
N 16 to 32 (	°C)
SN 10 to 32 (	°C)

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

ACCESSORIES

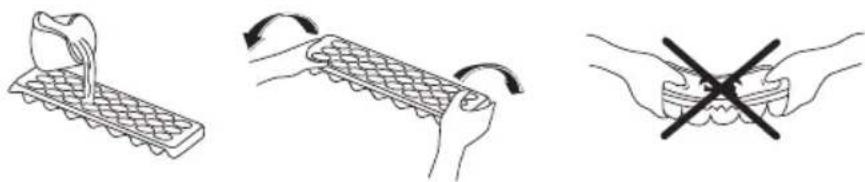

Ice Tray

• Fill the ice tray with water and place in the freezer compartment.
  • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three steps of a robotic arm: pressing a tray, moving a curved path, and holding a tool with a black cross (no text or symbols)

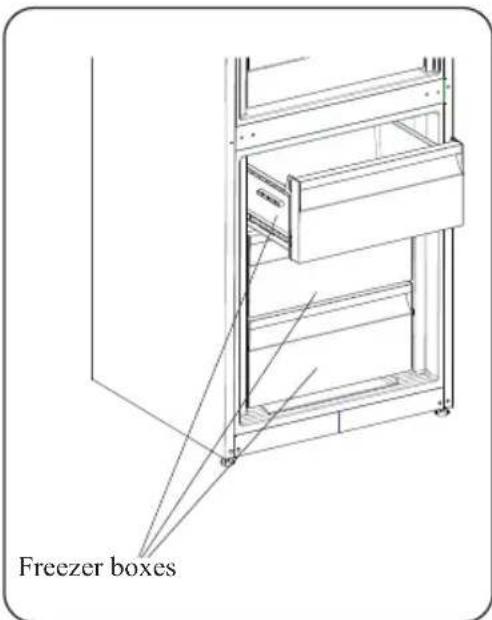

The Freezer Box

The freezer box allows food to be accessed more easily.

Removing the freezer box:

• Pull the box out as far as possible
- Pull the front of the box up and out.

Carry out the opposite of this operation when refitting the sliding compartment.

Always keep hold of the handle of the box while removing it.

Freezer boxes

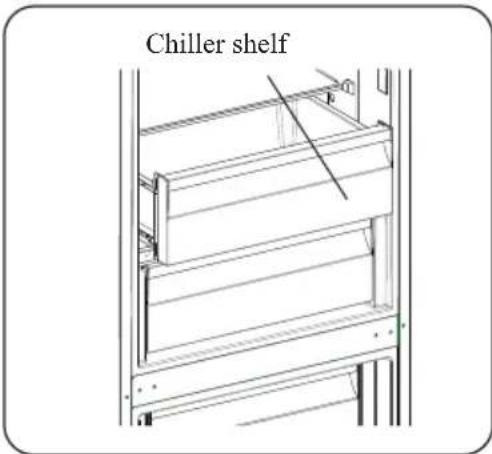

The Chiller Shelf (In some models)

Keeping food in the Chiller compartment, instead of the freezer or refrigerator compartments, allows food to retain freshness and flavour for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water. (Water freezes at 0^ C, but food containing salt or sugar freezes at temperatures lower than this).

The Chiller compartment is usually used for storing foods such as raw fish, lightly pickled food, rice, and so on.

Do not put food you want to freeze or ice trays (to make ice) in the Chiller compartment.

Chiller shelf

To remove the Chiller Shelf:

• Pull the chiller shelf towards you by sliding it on the rails.
- Pull the chiller shelf up from the rail and remove it from the fridge.

After the chiller shelf has been removed, it can support a maximum 20 kg load.

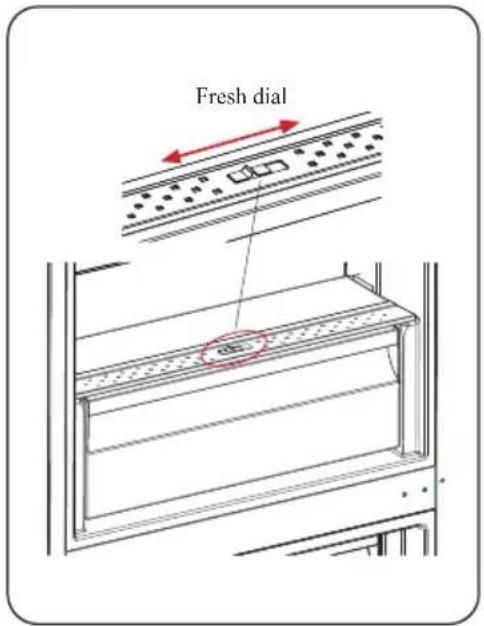

The Fresh Dial (In some models)

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

Fresh dial

Adjustable Door Shelf (In some models)

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow. (Fig.1) Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed.

Technical line drawing of a structural joint or bracket (no text or symbols)

NOTE:

Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails.

Technical diagram of a mechanical assembly with two parallel plates and a vertical dimension arrow, labeled Fig. 2 (no text or symbols on the diagram itself)

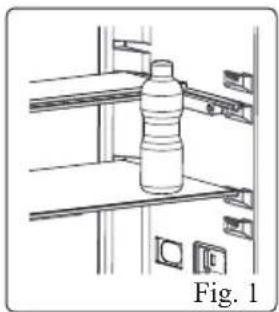

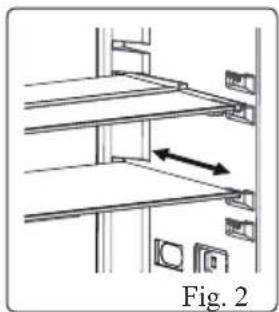

Adjustable Glass Shelf (In some models)

Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it.

You can load your food as you want in the resulting extra space. To bring the shelf in its original position, pull it toward you.

Diagram of a bottle placed on shelves with a magnified inset showing a device (no text or symbols)

Diagram of a mechanical assembly with labeled components and an arrow indicating direction (no text or symbols present)

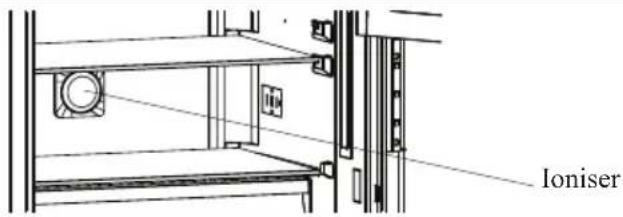

Natural Ion Tech (In some models)

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air. By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.
- The location of your ioniser device may vary from product to product.

Ioniser

Maxi-fresh preserver (In some models)

Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

• Maxi Fresh Preserver must be cleaned once in a year. The filter should be waited for 2 hours at 65^ C in a oven.
- To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow.
- The filter should not be washed with water or any detergent.

Diagram showing a device with labeled components and a separate box, likely illustrating a process or assembly.

Maxi Fresh Preserver (In some models)

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

CHAPTER 4. ARRANGING FOOD IN THE APPLIANCE

For normal operating conditions, set the temperature +4 or +6 oC.

Refrigerator compartment

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

• Store loose fruit and vegetable items in the crisper containers.

• Store loose fruit and vegetables in the crisper.

• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

NOTE:

Potatoes, onions and garlic should not be stored in the refrigerator.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food Maximum storage time How and where to store
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 Days	Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese	3 - 4 Days On the designated door shelf
Butter and margarine	1 week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs	1 month On the designated egg shelf
Cooked food		All shelves

Freezer compartment

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.

• Before freezing fresh food, divide it into portions that can be consumed in one sitting.

• Consume thawed frozen food within a short period of time after defrosting

• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, set the refrigerator at 4 oC for 24 hours before placing fresh food into the freezer.
• After placing fresh food into the freezer, change the setting to 2 oC for 24 hours is generally sufficient. After 24 hours, you can reduce the setting if required.

NOTE:

If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time.
  Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
  The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

MEAT AND FISH PREPARATION		MAXIMUM STORING TIME (MONTH)
Steak	Wrapping in a foil	6-8
Lamb meat	Wrapping in a foil 6-8
Veal roast	Wrapping in a foil 6-8
Veal cubes	In small pieces 6-8
Lamb cubes	In pieces 4-8
Minced meat	In packages without using spices 1-3
Giblets (pieces)	In pieces 1-3
Bologna sausage/salami	Should be packaged even if it has membrane -
Chicken and turkey	Wrapping in a foil 4-6
Goose and Duck	Wrapping in a foil 4-6
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets 6-8
Fresshwater fishes(Salmon, Carp,Crane, Siluroidea)	After cleaning the bowels and scales of the fish,wash and dry it; and if necessary, cut the tail andhead	2
Lean fish; bass, tur-bot, flounder		4
Fatty fishes (Tunny,Mackarel, bluefish, anchovy)		2-4
Shellfish	Cleaned and in bags 4-6
Caviar	In its package, aluminium or plastic container 2-3
Snail	In salty water, aluminum or plastic container 3

NOTE:

Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

VEGETABLES AND FRUITS	PREPARATION	MAXIMUM STORING TIME (MONTH)
String beans and beans	Wash and cut to small pieces and boil in water 10-13
Beans	Hull and wash and boil in water 12
Cabbage	Cleaned and boil in water 6-8
Carrot	Clean and cut to slices and boil in water 12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8-10
Spinach	Washed and boil in water 6-9
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10-12
Eggplant	Cut to pieces of 2 cm after washing 10-12
Corn	Clean and pack with its stem or as sweet corn 12
Apple and pear	Peel and slice 8-10
Apricot and Peach	Cut into two pieces and remove the stone 4-6
Strawberry and Blackberry	Wash and hull 8-12
Cooked fruits	Adding 10 % of sugar in the container 12
Plum, cherry, sourberry	Wash and hull the stems 8-12

	MAXIMUM STORING TIME (MONTHS)	THAWING TIME IN ROOM TEMPERATURE (HOURS)	THAWING TIME IN OVEN (MINUTES)
Bread	4–6 2–3	4–5 (220–225 °C)
Biscuits	3–6	1–1,5	5–8 (190–200 °C)
Pastry	1–3 2–3	5–10 (200–225 °C)
Pie	1–1,5	3–4	5–8 (190–200 °C)
Phyllo dough	2–3	1–1,5	5–8 (190–200 °C)
Pizza	2–3 2–4 15–20	(200 °C)
DAIRY PRODUCTS	PREPARATION	MAXIMUM STORING TIME (MONTHS)	STORING CONDITIONS
Packet (Homogenize) Milk	In its own packet 2–3		Pure Milk – In its own packe
Cheese-excluding white cheese	In slices 6–8		Original package may be used for short storing period. It should be wrapped in foil for longer periods
Butter, margarine	In its package 6 –

CHAPTER 5. CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning

Do not wash your appliance by pouring water on it.

Cartoon illustration of a bird reacting to a sneaker inside a container (no text or symbols)

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

Cartoon illustration of a smiling refrigerator with a spoon and two smaller objects nearby (no text or symbols)

• Make sure that no water enters the lamp housing and other electrical components.
  • The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

Illustration showing a refrigerator with a red X symbol crossed out, and a cartoon refrigerator with surprised faces.

• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand cleaning a bicycle frame (no text or symbols)

The power supply must be disconnected during cleaning.

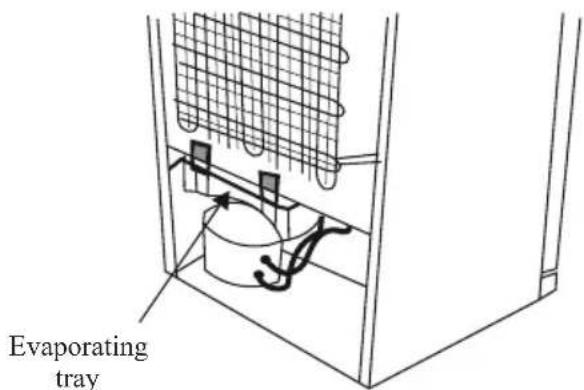

DEFROSTING

Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there.

• Make sure you have disconnected the plug of your refrigerator before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Evaporating tray

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

NOTE:

The numbers and location of the LED strips may change according to the model.

CHAPTER 6. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
- Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
- Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

REPOSITIONING THE DOOR

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

CHAPTER 7. BEFORE CALLING YOUR AFTER SALES SERVICE

Check Warnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.

ERROR TYPE	ERROR TYPE WHY WHAT TO DO
SR	„Failure Warning”	There is/are some part(s) Out of order or there is a failure in cooling process	Call Service for assistance as soon as possible.
LF	Freezer comp. Not Cold enough	This caution will be seen especially after long term of power failure	1.Do not freeze the foods that are thaw and use in short time period.2.Set the freezer temperature to colder values or set the super freeze, until the compartment gets to normal temperature.3.Do not put fresh food until this failure is off.
LC	„Refrigerator comp. Not Cold enough”	Ideal temperature for Ref. Compartment is +4 oC. If you see this warning your foods have risk of spoiling.	1.Set the refrigerator temperature to colder values or set the super cooling mode until the compartment gets to normal temperature.2.Do not open the door much until this failure is off.
LF AND LC	„not cold enough Warning”	It is the combination of LF and LC Error type	You will see this failure when first starting the appliance. It will be off after the compartments gets normal temperature
HC	Refrigerator comp. too Cold	The foods starts to freeze because of the too much cold temperature	1.Check if the “Super cooling mode” is on2.Decrease the refrigerator temperature values
LOPO	„Low voltage Warning”	When the power supply gets lower than 170 V the appliance gets to steady position.	This not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level

If your fridge is not operating;

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.

If your fridge is not cooling enough;

• Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
• Is the door of fridge closed properly?
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?
- Is there adequate distance between your fridge and the rear and side walls?
- Is the ambient temperature within the range of values specified in the operating manual?

If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?
- Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

If your fridge is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
  • Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your fridge vibrating?

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally. Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
  • Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• The lifetime of your appliance stated and declared by the Department of the Industry is 10 years (the period for retaining parts required for the proper functioning of the appliance).

Tips for saving energy

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed.
7. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.

CHAPTER 8. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A 16 15 14 B 13 12 11 7 6 5 4 3 2 1

A) Refrigerator compartment

B) Freezer compartment

1. Thermostat box / Interior display

2. Wine rack *

3. Refrigerator shelves

4. Ioniser *

5. Chiller *

6. Crisper cover

7. Crisper

8. Freezer upper basket

9. Freezer middle basket

10. Freezer bottom basket

11. Levelling feet

12. Ice box tray

13. Freezer glass shelves *

14. Bottle shelf

15. Adjustable door shelf * / door shelf

16. Door shelf

17. Egg holder

*In some models

CHAPTER 9. DISPOSAL OF USED EQUIPMENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

KERNAU

NÁVOD K POUŽITÍ

NO FROST CHLADNIČKA COMBI

CHLADNIČKA - MRAZNIČKA

KFRC 18262.2 NF E B

Line drawing of an open refrigerator with doors open, showing internal compartments and ventilation ducts (no text or symbols)

Simple line drawing of a cartoon character with a surprised expression and a lightning bolt (no text or symbols)

Illustration of four hands performing a knot break operation (no text or symbols present)

Cartoon illustration of a character moving from a door, no text or symbols present

Safety warning symbol showing a hand holding a smiling face next to a crossed-out no-smoking sign

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

INSTALACE A OBSLUHA VAŠÍ CHLADNIČKY

Diagram of a vehicle air intake system with airflow indicators (no text or labels)

DISPLEJ A OVLÁDACÍ PANELA

① ⑨ ⑪ ⑩ ⑦a ⑤ ⑧a ⑥ ⑮ ③ °C V± -88°C | +88°C | +88°C Dk. Min. °C ② ⑫ 14 ⑦b 138b ○ ○ ○ ④

Diagram showing a hand pointing at a black rectangular button with symbols including 'c', 'E', and 'E' arranged in rows.

Mraznička - box

Diagram of a cabinet or storage unit with a red directional arrow indicating left motion (no text or symbols present)

Technical line drawing of a structural joint or bracket (no text or symbols)

POZNÁMKA:

Technical diagram of a mechanical assembly with two parallel plates and a vertical dimension arrow, labeled 'Obr.2' (no text or symbols on the diagram itself)

Obr.1 Obr.2

Diagram showing a device with labeled ports and a directional arrow indicating rotation or movement.

Maxi Fresh Preserver

Cartoon illustration of a hand using a tool to clean or store items, with no visible text or symbols.

Cartoon illustration of a smiling refrigerator with a hand holding a tool, accompanied by a bottle and cup (no text or symbols)

Illustration showing a refrigerator with a red X symbol crossed out, and a cartoon refrigerator with surprised faces (no text or symbols)

Illustration of a hand cleaning a metal grate (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

PŘEMÍSTĚNÍ DVEŘÍ

Line drawing of a double refrigerator with open doors and internal compartments (no text or symbols)

Simple line drawing of a diver in flight, no text or symbols present

Illustration showing three hands performing a welding or cutting process with visible sparks (no text or symbols)

Cartoon illustration of a character moving from a door (no text or symbols)

Safety warning illustration showing a hand holding a phone with a crossed-out no booth, a smiling face, and a crossed-out hand gesture.

Simple line drawing of two bottles with bubbles and a droplet, no text or symbols present

Diagram of a vehicle air intake system with airflow indicators and component labels in Chinese

Diagram showing a hand pointing at a black rectangle with symbols including 'E', 'E', and 'E' arranged in rows.

У цьому режимі:

Illustration showing three steps of dental tool manipulation: using toothbrush, moving tool, and cutting tool (no text or symbols)

Simple line drawing of a hand washing a refrigerator while another hand holds a toothbrush (no text or symbols)

Cartoon illustration of a refrigerator with cleaning tools and a bottle (no text or symbols)

Illustration showing a refrigerator with a red X symbol crossed out, and a distressed refrigerator with a frowning face.

Illustration of a hand cleaning a basket (no text or symbols)

РОЗМОРОЖУВАННЯ

Simple line drawing of two children holding a large rectangular object (no text or symbols)
