Brand	AEG-ELECTROLUX
Model	IG0940
Product type	Upright freezer
Net capacity	94 liters
Niche dimensions (H x W x D)	880 x 560 x 550 mm
Energy consumption	0.54 kWh/24h, 197 kWh/year
Freezing capacity	16 kg/24h
Autonomy in case of power failure	20 hours
Climate class	T, ST, N, SN
Power supply	230 V ~ 50 Hz (according to rating plate)
Refrigerant type	Hydrocarbons (R600a)
Main functions	Fast freezing, acoustic alarm, alarm indicator
Defrosting	Manual
Included accessories	Plastic spatula, ice cube trays
Cleaning	Warm soapy water or bicarbonate, do not use metal objects
Safety	Unplug before cleaning, do not use metal objects to defrost
Spare parts	Use only original parts from after-sales service
Warranty	According to manufacturer's conditions
Standards	Compliant with EU directives

Frequently Asked Questions - IG0940 AEG-ELECTROLUX

How to adjust the temperature of my AEG-ELECTROLUX IG0940 freezer?

Turn the thermostat knob (F) clockwise to decrease the temperature (colder) or counterclockwise to increase it (less cold). A medium position is generally recommended. The internal temperature depends on the ambient temperature, door opening frequency, quantity of food, and location.

What to do if the acoustic alarm sounds?

The acoustic alarm sounds when the temperature inside the freezer exceeds a critical threshold. To stop it, press the button (A). Also check that the door is properly closed. If the alarm persists, check the ambient temperature and the quantity of food.

How to defrost the IG0940 freezer?

Turn the thermostat to '0' or unplug the appliance. Wrap the food in newspaper and keep it in a cool place. Leave the door open, use the plastic spatula provided as a gutter and place a bowl underneath to collect the water. Never use a metal object. After defrosting, dry thoroughly and plug the appliance back in.

How to clean the inside of the freezer?

First unplug the appliance. Wash the inside with warm water and baking soda, rinse, and dry thoroughly. Never use abrasive cleaners, scouring powder, or metal sponges.

What is the maximum freezing capacity per 24 hours?

The maximum freezing capacity is 16 kg per 24 hours, as indicated on the rating plate. For efficient freezing, activate the fast freeze function at least 24 hours before adding fresh food.

How long do foods stay frozen in case of power failure?

The autonomy in case of power failure is 20 hours. If the outage exceeds this time, consume the food quickly or recook it before refreezing.

Can I freeze carbonated drinks in the freezer?

No, never place bottles or cans of carbonated drinks in the freezer, as they may explode due to gas expansion when cold.

How to use the fast freeze function?

Press button (A) to activate fast freezing. The indicator (B) lights up. It is recommended to activate it at least 24 hours before freezing fresh food. The function stops automatically or can be deactivated by pressing the button again.

What to do if my freezer does not work?

First check that the plug is properly connected and that there is power. Make sure the operating button (E) is pressed and the thermostat is not set to '0'. Also check that the ambient temperature is within the allowed range. If the problem persists, contact after-sales service.

Where to find the serial number and model code?

The serial number and model code are on the rating plate located inside the appliance, lower left side, as well as on the warranty certificate.

USER MANUAL IG0940 AEG-ELECTROLUX

These warnings would be given to the Schutz under his command. The Schutz would have to be able to tell him what he was saying, and he would have to be able to tell him what he was saying.

Sicherheit

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child.

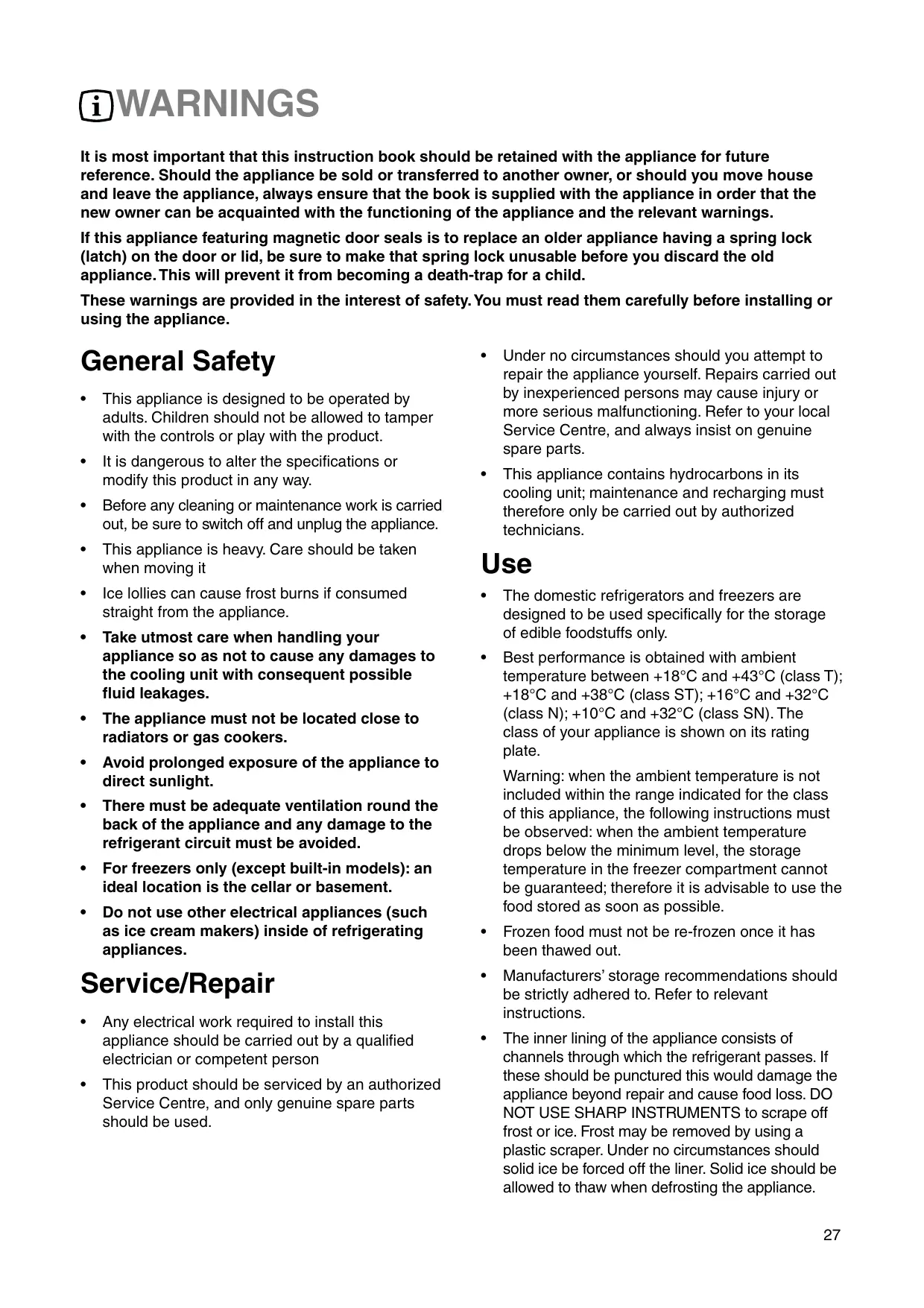

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

General Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
• It is dangerous to alter the specifications or modify this product in any way.
• Before any cleaning or maintenance work is carried out, be sure to switch off and unplug the appliance.
• This appliance is heavy. Care should be taken when moving it
• Ice lollies can cause frost burns if consumed straight from the appliance.
• Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.
• The appliance must not be located close to radiators or gas cookers.
• Avoid prolonged exposure of the appliance to direct sunlight.
• There must be adequate ventilation round the back of the appliance and any damage to the refrigerant circuit must be avoided.
• For freezers only (except built-in models): an ideal location is the cellar or basement.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances.

Service/Repair

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person

• This product should be serviced by an authorized Service Centre, and only genuine spare parts should be used.

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.

• This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
• Best performance is obtained with ambient temperature between +18^ and +43^ (class T); +18^ and +38^ (class ST); +16^ and +32^ (class N); +10^ and +32^ (class SN). The class of your appliance is shown on its rating plate.

Warning: when the ambient temperature is not included within the range indicated for the class of this appliance, the following instructions must be observed: when the ambient temperature drops below the minimum level, the storage temperature in the freezer compartment cannot be guaranteed; therefore it is advisable to use the food stored as soon as possible.

• Frozen food must not be re-frozen once it has been thawed out.
• Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.

• The inner lining of the appliance consists of channels through which the refrigerant passes. If these should be punctured this would damage the appliance beyond repair and cause food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Frost may be removed by using a plastic scraper. Under no circumstances should solid ice be forced off the liner. Solid ice should be allowed to thaw when defrosting the appliance.

• Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. Never use metal objects for cleaning your appliance as it may get damaged.

Installation

• During normal operation, the condenser and compressor at the back of the appliance heat up considerably. For safety reasons, minimum ventilation must be as shown in the instructions.

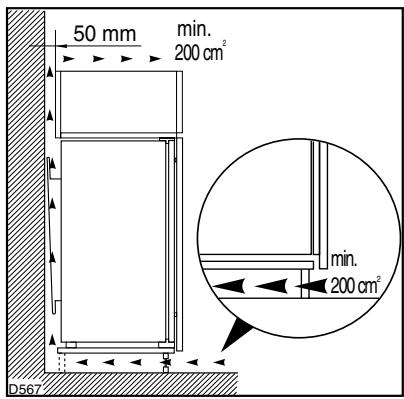

Attention: keep ventilation openings clear of obstruction.

• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
  Important: if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• If the appliance is transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

• There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.

• Parts which heat up should not be exposed. Wherever possible the back of the product should be against a wall.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from municipal authorities. The materials used on this appliance marked by the symbol are recyclable.

Disposal of old Appliances

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CONTENTS

Warnings 28
Use - Cleaning the interior - Control Panel - Operation - Temperature regulation - Quick-freezing - Warning .
light - Sound signal alarm - Sound signal alarm with open door 29
Use - Freezing fresh food - Storage of frozen food - Thawing
Ice-cube production - Hints - Hints for freezing 30
Hints - Hints for storage of frozen food - Maintenance - Periods of no operation - Periodic cleaning . . . .
Defrosting 31
Customer service and spare parts - Technical Information 32
Installation - Location - Electrical connection 33

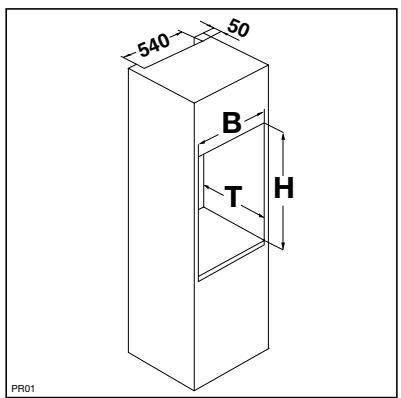

Installation - Dimensions of housing 33
Warranty 34

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Control Panel

Do not use detergents or abrasive powders, as these will damage the finish.

A. Normal/Super push button/ Reset sound signal alarm
B. Super control light
C. Warning light
D. Pilot light
E. ON/OFFbutton
F. Thermostat knob

Operation

Insert the plug into the wall socket. Push button ON/OFF. The pilot light (D) will light up, indicating that the appliance is powered. Turn the thermostat knob (F), clockwise, beyond the «O» (STOP) position. The warning light (C) will light up and the sound signal alarm will get on, indicating that the temperature inside the appliance is to high.

Push the button (A), the sound signal alarm will get off and the super control light (B) light up. The freezer will start to operate.

To stop operation, simply push the ON/OFF button (E).

Temperature regulation

The temperature is automatically regulated and can be increased to achieve a higher temperature (warmer) by rotating the thermostat knob toward lower settings or reduced (colder) rotating the knob towards higher settings.

However, the exact setting should be chosen keeping in mind that the temperature inside the refrigerator depends on:

• room temperature;
• how often the door is opened;
  the quantity of food stored;
• location of appliance.

A medium setting is generally the most suitable.

Quick-freezing

For quick-freezing, push the button (A). The super control light (D) will then light up.

Warning light (C)

The temperature alarm light turns on automatically whenever the temperature within the freezer rises above a certain value which might endanger satisfactory long-term conservation.

It is perfectly normal for the temperature alarm light to remain lit up for a short time after the freezer is initially turned on. It will remain lit up until the optimum temperature for the conservation of frozen food is attained.

Sound signal alarm (A)

This appliance incorporates an alarm which gives off a sound signal when the temperature inside the freezer has risen to a point where the safe storage of frozen food is no longer ensured.

This sound can be turned off pushing the button (A).

Sound signal alarm with open door

This appliance incorporates an alarm which gives off a sound signal when the door remains opened for more than 60 seconds. The signal can be stopped by closing the door.

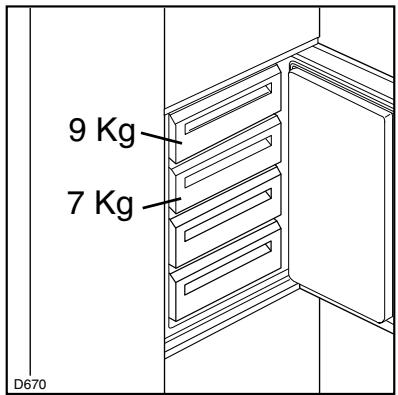

Freezing fresh food

The 4-star compartment is suitable for long term storage of commercially frozen food and for freezing fresh food.

To freeze fresh foods allow it to run on the fast freeze setting for at least 24 hours before loading food. Place the food to be frozen in the compartments as shown in figure.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run for at least two hours on the fast freeze setting, then turn the thermostat knob to the normal operating position.

Important

If there is a power failure when food is in the freezer, do not open the door of the freezer compartment. The frozen food will not be affected if the power cut is of short duration (up

HINTS

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food

to 6-8 hours) and the freezer compartment is full, otherwise, it is recommended that the food should be used within a short time (a temperature increase of the frozen food shortens its safe storage period).

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods are stored better and longer than fatty ones; salt reduces the storage life of food;
  water ices, if consumed immediately after removal from the freezer compartment, can possibly cause frost burns;
• it is advisable to show the freezing-in date on each individual pack to enable you to keep a tab of the storage time;
• on the inner door or special card (if supplied) you will find sketches of various animals and food types together with the recommended storage time (in months) from the time of freezing;
• do not put carbonated liquids (fizzy drinks, etc.) in the freezer compartment as they may burst.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred

MAINTENANCE

! Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly.

Defrosting

The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4mm . During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to carry out this operation when the appliance is empty.

To carry out complete defrosting of the freezer compartment proceed as follows:

1. pull out the plug from the wall socket or turn the thermostat knob to the «O» setting;
2. remove any stored food, wrap it in several layers of newspaper and put it in a cool place;

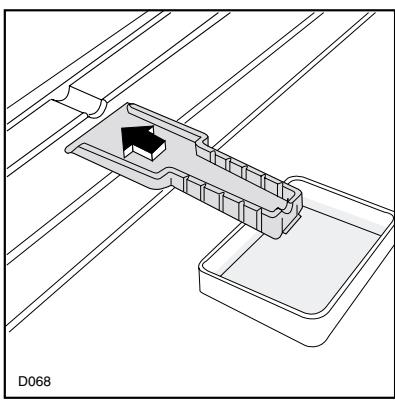

3. leave the door open, insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water;
4. when defrosting is completed, dry the interior thoroughly and refit the plug; keep the scraper for future use;
5. turn the thermostat knob back to the required setting or replace the plug in the power socket. After letting the appliance run for at least half an hour, replace the previously removed food into the compartment.

from the foodstore to the freezer in the shortest possible time;

• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• remove the plug from the wall socket;
• remove all food;
• defrost and clean the interior and all accessories;
• leave the door ajar to allow air to circulate to prevent unpleasant smells.

Important

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life. s

CUSTOMER SERVICE AND SPARE PARTS

If the appliance is not functioning properly, check that:

• the plug is firmly in the wall socket and the mains power switch is on;
• there is an electricity supply (find out by plugging in another appliance);
• the thermostat knob is in the correct position.
• If there are water drops on the bottom of the cabinet, check that the defrost water drain

opening is not obstructed (see "Defrosting" section).
- If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model and serial number of your appliance which can be found on the guarantee certificate or on the rating plate located inside the appliance, on the bottom left-hand side.

TECHNICAL INFORMATION

Freezer Net Capacity It.	94
Energy Consumption kWh/24h	0,54
Energy Consumption kWh/annuo	197
Freezing Capacity kg/24h	16
Rising Time	20

The Technical info are on the rating plate situated on the left inside the appliance.

INSTALLATION

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. See the enclosed built-in instructions.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ± 6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate conductor in compliance with current regulations, consulting a qualified technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the following E.E.C. Directives:

• 87/308 EEC of 2/6/87 relative to radio interference suppression.
• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
  89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

ATTENTION!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Dimensions of housing

Height 880 mm

Depth 550 mm

Width 560 mm

For safety reasons, minimum ventilation must be as shown in Fig.

Attention: keep ventilation openings clear of obstruction.

It is necessary that the niche is provided with a ventilation conduct having the following dimensions:

Depth 50 mm

Width 540 mm

Servicestellen	Points de service	Servizio dopo vendita	Point of service
5506 Mägenwil/Zürich
Industriestr. 10
9000 St. Gallen
Zürcherstrasse 204 e
4127 Birsfelden		Service-Helpline
Hauptstrasse 52
6020 Emmenbrücke		0848 848 111
Seetalstrasse 1
7000 Chur		[e-mail]
Comercialstrasse 19
3018 Bern
Morgenstrasse 131
1028 Prüverenges
Le Trési 6
6916 Grancia
Zona Industriale E

Ersatzteilverkauf / Point de vente de rechange / Vendita pezzi di ricambio / spare parts service

5506 Mägenwil, Industriestrasse 10, Tel. [phone]

Fachberatung, Verkauf/Demonstration, Vente/Consulente (cucina), Vendita/consulting, sales
	8048 Zürich, Badenerstrasse 587, Tel. [phone]
Garantie	Für{jedes Produkt gewähren wir ab Verkauf bzw. Lieferdatum an den Endverbraucher eine Garantie von 2 Jahren. (Ausweis durch Garantieschein, Faktura oder Verkaufsbeleg).Die Garantieleistung umfasst die Kosten für Material, Arbeits- und Reisezeit.Die Garantieleistung entfällt bei Nichtbeachtung der Gebrauchsanweisung und Betriebsvorschriften, unsachgerechter Installation, sowie bei Beschädigung durch ässere Einflüsse, höhere Gewalt, Eingriffe Dritter und Verwendung von Nicht-Original Teilen.
Garantie	Nous octroyons sur chaque produit 2 ans de garantie à partir de la date de livraison ou de la mise en service au consommateur (documenté au moyen d'une facture, d'un bon de garantie ou d'un justificatif d'achat). Notre garantie couvre les frais de mains d'oeuvres et de déplacement, ainsi que les pièces de rechange.Les conditions de garantie ne sont pas valables en cas d'intervention d'un tiers non autorisé, de l'emploi de pièces de rechange non originales, d'erreurs de maniement ou d'installation dues à l'inobser-vation du mode d'emploi, et pour des dommages causés par des influences extérieures ou de force majeure.
Garanzia	Per ogni prodotto concediamo una garanzia di 2 anni a partire alla data di consegnà o alla sua messa in funzione. (fa stato la data della fattura, del certificato di garanzia o dello scontrino d'acquisto) Nella garanzia sono comprese le spese di manodopera, di viaggio e del materiale.Dalla copertura sono escludi il logoramauto ed i danni causati da agenti esterni, intervento di terzi, utilizzo di ricambi non originali o alla inossevanza delle prescrizioni d'installazione ed istruzioni per l'uso.
Warranty	For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).The guarantee covers the costs of materials, labour and travel.The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

www.electrolux.com

www.electrolux.ch
