USER MANUAL MCZ-63 MPM

Exterior view of a modern silver water heater with a brown handle and control knob (no text or symbols visible)

Labeled diagram of a modern kitchen keener with numbered parts for identification and assembly reference.

Read carefully this manual before using the appliance.
- Close supervision is necessary when using the appliance near children.
Do not use the appliance for the purposes different than it was designed for.
Do not immerse the appliance, its cord and plug in water or any other liquids.
Do not leave the appliance switched on when unattended.
▶ Always unplug the appliance when it is not in use or before cleaning.
Do not use the appliance if it is damaged, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre.
Do not use the appliance outdoors.
Do not place the cord over sharp edges and keep it away from hot surfaces.
Do not fill the kettle above the maximum and below the minimum level - the boiling water may splash out of the kettle.
Before the kettle is placed on the base, make sure it is switched off.
When boiling water the lid of the kettle must be closed.
▶ Use the kettle only with the base attached.
Do not place the kettle near heat sources and on hot surfaces.
▶ Use the kettle only for boiling water.
When boiling the water do not touch the housing as it may be hot.
The appliance shall be plugged to an outlet with a protective earth pin.
This appliance has been designed for domestic use only.
This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
- Store the appliance and its cord out of reach of children under 8 years of age.
Do not pull the plug by holding the power cord.
If water gets to the internal electrical components, as well as to the power base, before plugging the kettle into the power outlet, dry it thoroughly.
Do not switch on the kettle without water.
The appliance is not intended for use with external timers or separate remote control systems.
Do not connect the power plug with wet hands.
Before cleaning allow the kettle to cool down completely.

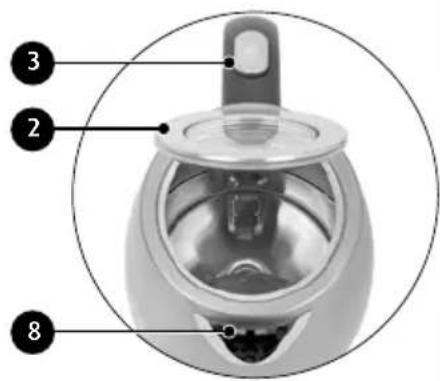

DESCRIPTION OF THE APPLIANCE:

Diagram of a teapot with numbered parts labeled 2, 3, and 8

Labeled diagram of a modern kettle with numbered parts for identification

9 10 11

1. Stainless steel jug
   (model: MCZ-51/C, MCZ-51/G1)
2. Automatically hinged lid with a lock
3. Lid opening button
4. ON/OFF button
5. Handle
6. Water level indicator with scale

Min/Max capacity 0,5/1,71

Temperature control from 10^ C to 100^ C – each 10^ C

Covered heater

1. Stable swivel base 360°
2. Replaceable filter
3. Temperature adjustment button (+)
4. Temperature adjustment button (-)
5. LCD display
6. Keep-warm function button

BEFORE USE

1. The kettle must be placed on a stable, flat and dry surface.
2. Before first use fill the kettle up to the maximum level, boil the water, pour it out and rinse the kettle. Repeat the procedure several times to remove manufacturing deposits, etc.
3. The kettle turns off automatically when the water has boiled. If necessary you may turn it off using ON/OFF switch (4).
4. After the water has boiled or the kettle has been switched off, wait several seconds before switching it on again.
5. If you switch the kettle on without water, the overheat protection will automatically shut the appliance off. Leave the kettle to cool down for about 15 minutes before refilling.

USING THE KETTLE

1. Before filling with water, remove the kettle from the base (7).
2. Open the lid and fill the kettle with water up to the desired level (between 0,5 l and 1,7 l).
3. After plugging the base to the power outlet, the display turns on for a moment, all buttons are lit and the appliance beeps twice which means that the base is connected to the power source and the kettle is placed on the base.
4. Close the lid and place the kettle on the power base (7), the appliance beeps once, the display turns on and the ON/OFF button stars to flash blue. Below the horizontal line on the display you will see the current water temperature which will be visible for about 5 seconds. If you do not perform any actions, the kettle turns off automatically.
5. Press the ON/OFF button (11) without setting other functions. The kettle turns on and beeps, the ON/OFF button will be lit red. The kettle boils water up to 100^ C, then switches off automatically and beeps three times.
6. If you just want to heat up the water, use the boiling temperature buttons „+” or „-”. Press once to change the temperature. The temperature setting will be shown on the display. You may select between the pre-defined temperature settings: from 10°C up to 100°C each 10°C. If the temperature set is lower than the temperature of water in the kettle, the kettle switches off.
7. After reaching the desired temperature of water, the kettle switches off and beeps three times.
8. If you want to select the keep-warm function, press the button (12), the keep-warm symbol will be shown on the display. In this mode press the button „+” or „-” to set the desired temperature. The temperature adjustment (increase and decrease) step is 10^ C. The available range of temperature setting 40–100°C. In order to switch off the keep-warm function, press the keep-warm button (12) again or ON/OFF button (4) to switch off the kettle. Otherwise the water temperature will be maintained at a pre-set level. If no action is taken for 2 hours in the keep-warm mode, the kettle will switch off. Press the ON/OFF button (4) again to turn on the kettle (the kettle beeps once).

NOTE! The kettle may be used only with the based attached. Do not open the lid when boiling water.

OPTIMUM TEMPERATURE FOR TEA AND COFFEE

40-60°C – blends for babies

70^ - green and white tea

90^ -instant coffee

100^ - black tea

CLEANING AND MAINTENANCE

NOTE! Regularly remove limescale deposits from the kettle according to the instructions below. Before cleaning the kettle, unplug it and wait until it cools down.

1. Fill the kettle with water and vinegar or juice (citric acid) or use a special descaling agent available in household stores.
2. Leave the kettle for 1 hour, then boil the water.
3. Empty the kettle and rinse it thoroughly with cold water.

4. If necessary repeat the procedure 1-3 times.

5. To eliminate the smell of vinegar, boil the water several times and pour it out.

6. Wipe the interior and exterior surfaces of the kettle with a cloth.
7. Descaling protects the kettle from damages.

WARNING! Do not immerse the appliance and the base in water or any other liquids. This may cause electric shock or fire.

NOTE! Do not use wire brush or any other abrasive objects. Do not clean the kettle with strong detergents.

TECHNICAL DATA:

Technical parameters are indicated on the product nameplate. Length of power cord: 0,74 m

NOTE! MPM agd S.A. reserves its right to modify the technical data.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department

of Environmental Protection. Do not dispose the device with other municipal waste.

Labeled diagram of a digital water heater with numbered parts for identification

9 10 11

Labeled diagram of a modern kettle with numbered parts for identification

9 10 11

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
