USER MANUAL KSHB 300 W Kernau

INSTRUKCJA OBSŁUGI BLENDER REÇZNY KSHB 300 W

Line drawing of a handheld electric shaver with a stem and base (no text or symbols)

www.kernau.com

SZANOWNY KLIENCIE,

Opis

Line drawing of a handheld electric shaver with a stem and base (no text or symbols)

www.kernau.com

DEAR CUSTOMER,

Many thanks for choosing to purchase a KERNAU. brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

KERNAU

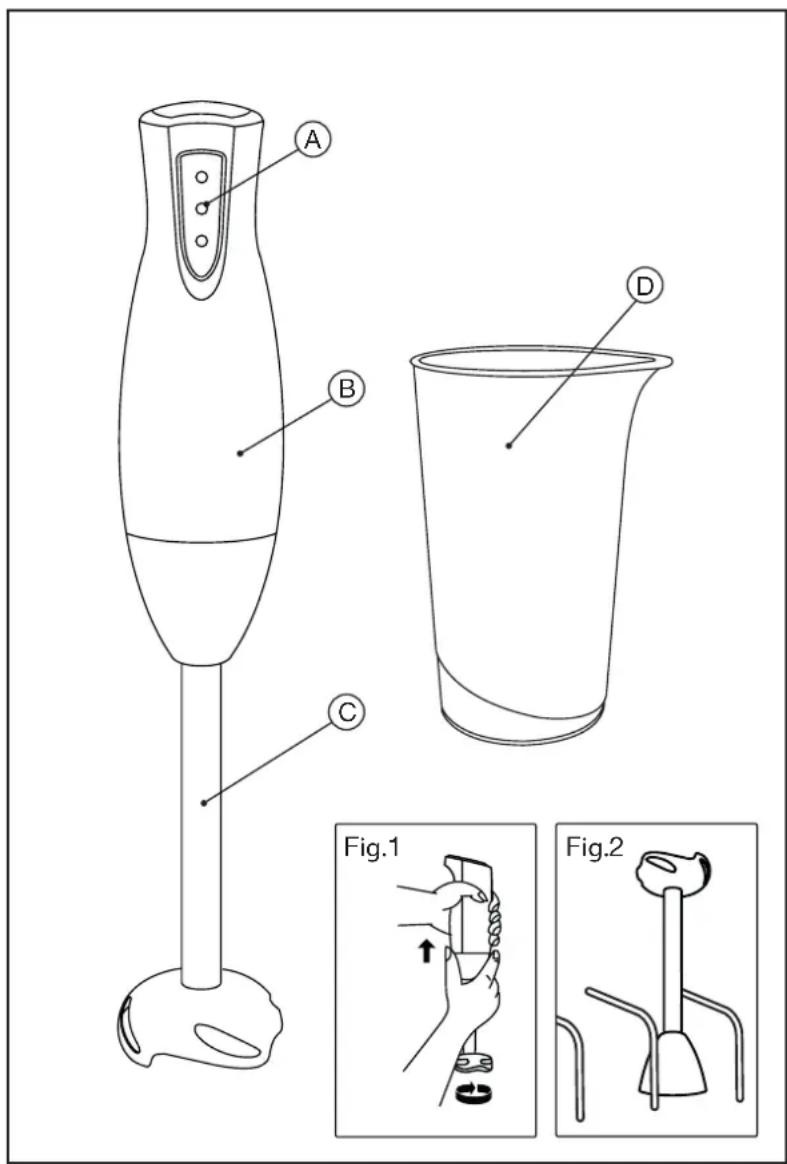

Description

A Start button
B Driving motor
C Blender foot
D Measuring cup

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

SAFETY ADVICE AND WARNINGS

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident. Failure to follow and observe these instructions may result in an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This appliance must not be used by children. - Keep the appliance and its cable out of reach of children.
• This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• The blades are sharp and there is a risk of being cut. Proceed with caution and avoid direct contact with their edges.
• Be especially careful when handling the blades during operations of assembly and dismantling, emptying the goblet and cleaning.
• Always switch off the appliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Keep children and bystanders away when using this appliance.
• Do not use the appliance if the cable or plug is damaged.

• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
  • The appliance is not suitable for outdoor use.
• Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• Do not use or store the appliance outdoors.
• Do not touch the plug with wet hands.
  • Take the necessary measures to avoid starting the appliance involuntarily.
  • Before using the appliance ensure that the blade is properly fixed in place.
• Exercise precaution after employing the stop operation on the appliance as the blade/s will continue moving from the effect of its own mechanical inertia.
• The temperature of the accessible surfaces may be high when the appliance is in use.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
  • Do not use the appliance if it is empty.
• Do not use the appliance if the on/off switch does not work.
• Do not force the appliance’s work capacity.
  • Respect the MAX level indicator.
• When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.
  • This appliance is for household use only, not professional, industrial use.
  • This appliance should be stored out of reach of children and/or the disabled.
• Do not expose the appliance to extreme temperatures.

• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance for more than 1 minute at a time. In case of operate in cycles; allow the appliance a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.
• As a reference in the annexed table appears several recipes, that include the amount of food to process, the recommended operating time to elaborate each recipe, as well as the time of maximum operation of the apparatus under each one of these conditions of load.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with frozen goods or those containing bones.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

Make sure that all the product's packaging has been removed.
- Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Prepare the appliance according to the function you wish to use:

Use:

• Unroll the cable completely before plugging it in.
- Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button.
- Select the appliance function desired.
- Select the desired speed.
• Work with the food you want to process.

Once you have finished using the appliance:

• Stop the appliance by releasing the pressure on the on/off button.
  • Unplug the appliance from the mains.

• Put the cable back in the cable housing.

• Clean the appliance

Accessories:

Blender foot (Fig. 1):

• This accessory is used for making sauces, soups, mayonnaise, milkshakes, baby food ...
• Attach the stick to motor body and turn in the direction of the arrow (Fig. 1).
• Put the food to be prepared in the jar and switch the appliance on.
• For further cleaning, detach and remove the stick by turning in the opposite direction of the arrow (Fig. 1).

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The appliance is suitable for cleaning in hot soapy water or in a dishwasher (using a soft cleaning program).
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Measuring cup
• Blender foot
• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily (Fig. 2).
• Then dry all parts before its assembly and storage.

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This appliance complies with Directive 2006/95/EC on Low Voltage, Directive 2004/108/EC on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Food preparation

Recipe	Recommended accessory	Quantity	Method	Time
Mayonnaise		250m l	Add 1 egg, salt, some drops of vinegar or lemon to the recepta cle. Fill with oil up to the level indicated and switch on, do not move or agitate until the oil has been bound.	35s
Fruit milkshakes		----	Add the fruit and mix with blender until smooth.	---
Béchamel sauce		600ml	Melt 30 g of butter in a saucepan over a low heat, add 100g of lour and 30g of fried onion (beforehand chop using the mincer attachment) and gradually add 500ml of milk.	15s
Mashed potatoes		400g	Potatoes can be blended while still in the saucepan.	30s
Baby food		300g	Cut up 100g of apples, 100g of banana, 50g of biscuits and place into a receptacle. Add orange juice and blend.	25s
Mature cheese		50 g	Before blending, cut into 1 cm cubes.	10 s

UPOZORNĚNÍ PŘED PRVNÍM POUŽITÍM RUČNÍ MIXÉR KSHB 300 W

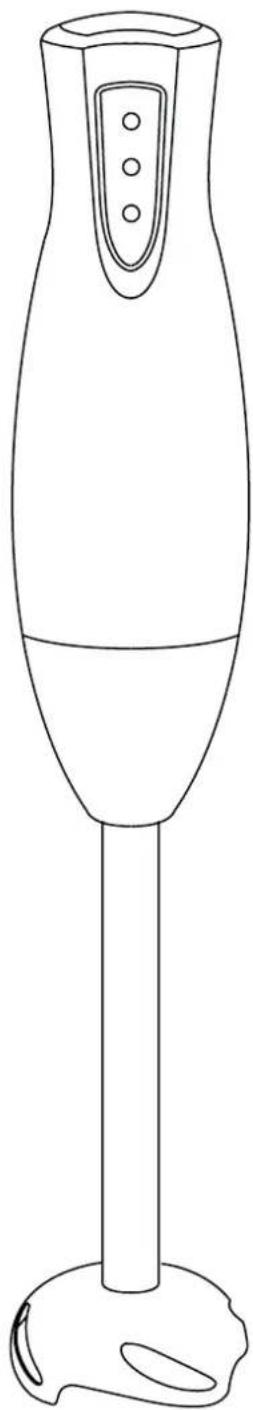

Line drawing of a handheld electric shaver with a stem and base (no text or symbols)
