ARM-0451 - Flat Screen Mount Deltaco - Free user manual and instructions

Product Type	TV/Display Floor Stand with Wheels
Brand	Deltaco
Model	ARM-0451
Compatible Screen Size	32" to 65"
Maximum Weight Capacity	40 kg (88 lbs)
VESA Compatibility	75x75mm, 100x100mm, 200x200mm, 400x200mm, 400x400mm
Material	Steel frame
Color	Black
Height Adjustment	Adjustable (1100 mm to 1600 mm)
Tilt	+5° / -15°
Swivel	±90°
Wheels	4 locking casters (2 with brakes)
Cable Management	Integrated cable channels
Assembly Required	Yes, all hardware included
Included Accessories	Mounting brackets, screws, hex key, wrench
Warranty	2 years
Recommended Cleaning	Wipe with dry cloth; avoid solvents

Frequently Asked Questions - ARM-0451 Deltaco

What is the maximum TV size this stand can support?

The stand supports screens from 32 to 65 inches, depending on the VESA pattern and weight.

How do I determine if my TV is compatible with this stand?

Check the VESA pattern on the back of your TV (distance between mounting holes). The stand supports 75x75, 100x100, 200x200, 400x200, and 400x400 mm.

Does the stand require wall mounting?

No, it is a freestanding floor stand with wheels, so no wall attachment is needed.

Can I adjust the height of the TV?

Yes, the stand features height adjustment from 1100 mm to 1600 mm by loosening the collar and sliding the pole.

How do I lock the wheels?

Two of the four casters have brake pedals. Press them down to lock the stand in place.

What tools are included for assembly?

All necessary tools are provided: a hex key and a wrench. No additional tools are needed.

Is the stand suitable for curved TVs?

Yes, it can accommodate curved TVs as long as the VESA pattern and weight are within specifications.

How do I clean and maintain the stand?

Wipe with a dry soft cloth. Avoid abrasive cleaners or solvents to prevent damage to the finish.

Does the stand provide cable management?

Yes, it has integrated cable channels to hide and organize wires for a clean look.

What is the weight of the stand itself?

The stand weighs approximately 10 kg (22 lbs), making it sturdy yet movable.

USER MANUAL ARM-0451 Deltaco

TV/DISPLAY FLOOR STAND WITH WHEELS

DAN Brugermanual

Technical line drawing of a mechanical assembly with no visible text or symbols

H (×1)

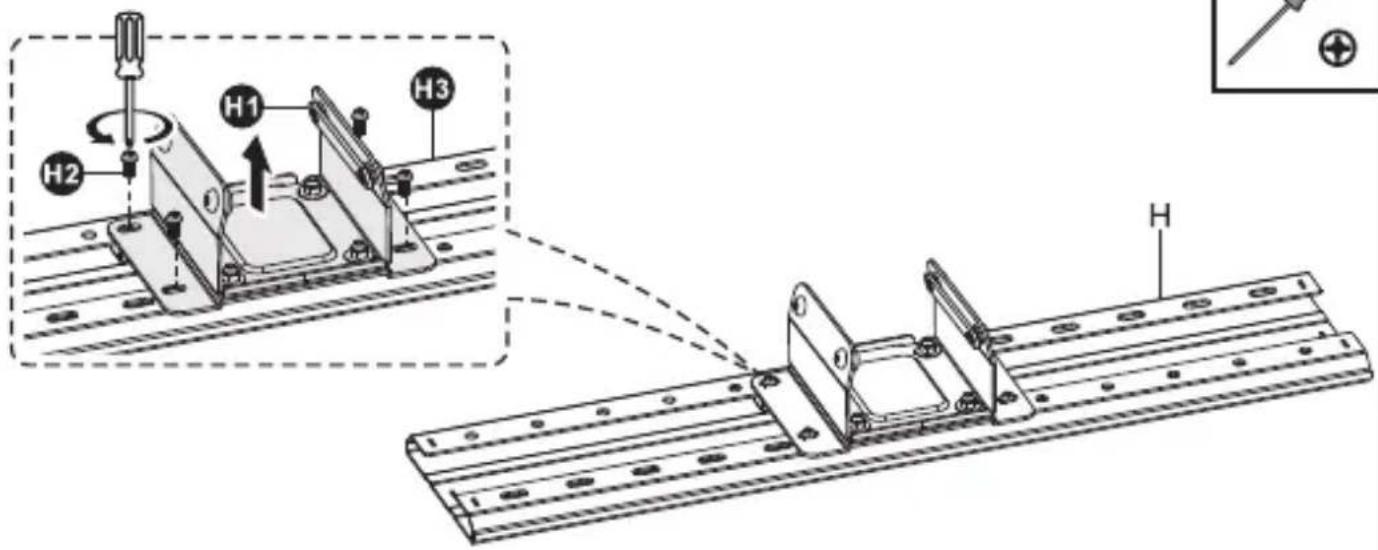

Technical line drawing of a mechanical component with slots and brackets (no text or symbols)

1 (x2)

J (x2)

K (x1)

L (x8)

P-A (x4)

M8×80 P-B (x4)

M8x20 P-C (x12)

M6x12 P-D (x4)

P-E (x1)

5mm P-F (x1)

6mm P-G (x1)

M5x14 M-A (x4)

M6x14 M-B (x4)

M6x30 M-C (x4)

M8x30 M-D (x4)

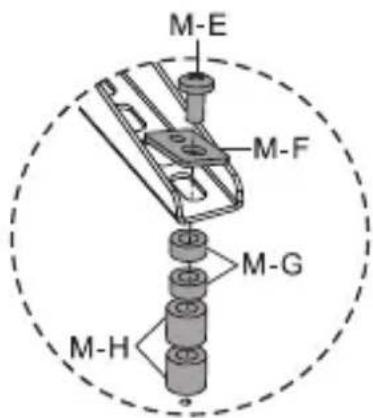

M8×50 M-E (x4)

M-F (x4)

M-G (×8)

M-H (x8)

1

3

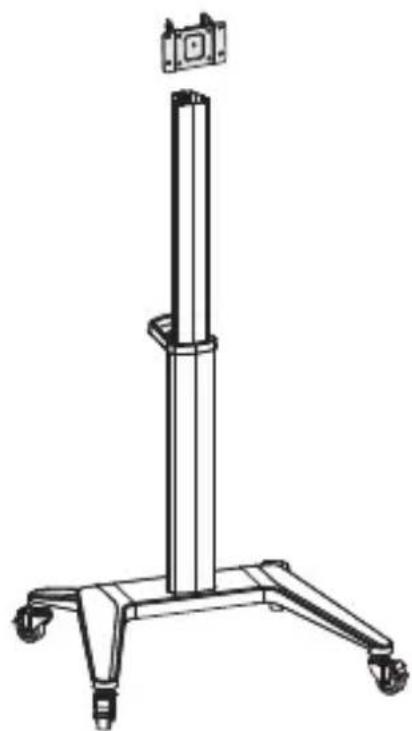

Line drawing of a vertical cylindrical device with wheels and a top-mounted bracket (no text or symbols)

4

5a

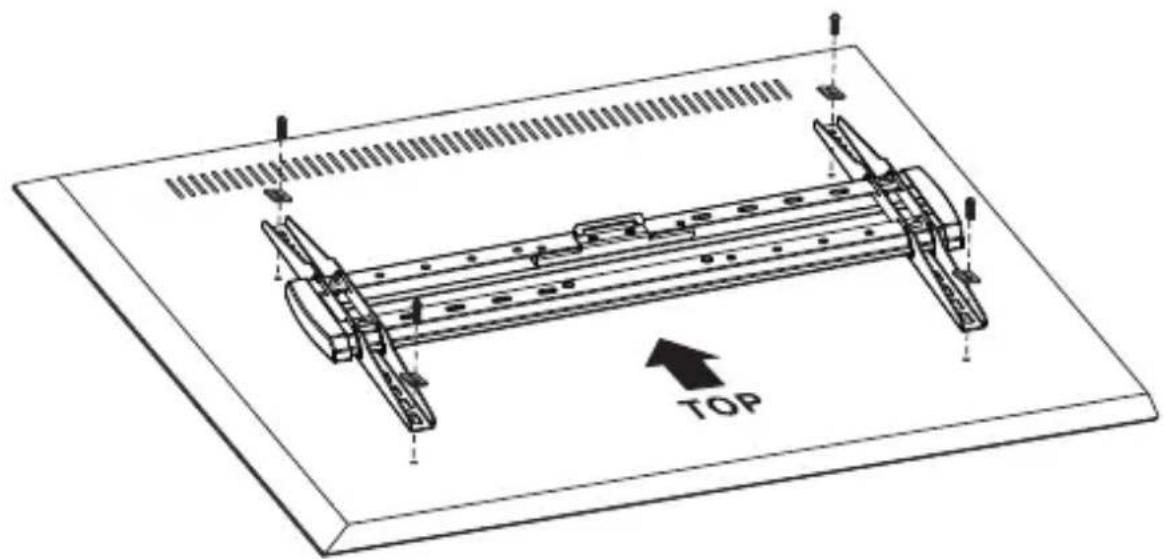

Technical line drawing of a mechanical assembly with labeled 'TOP' and structural components (no readable text or symbols beyond label)

5b

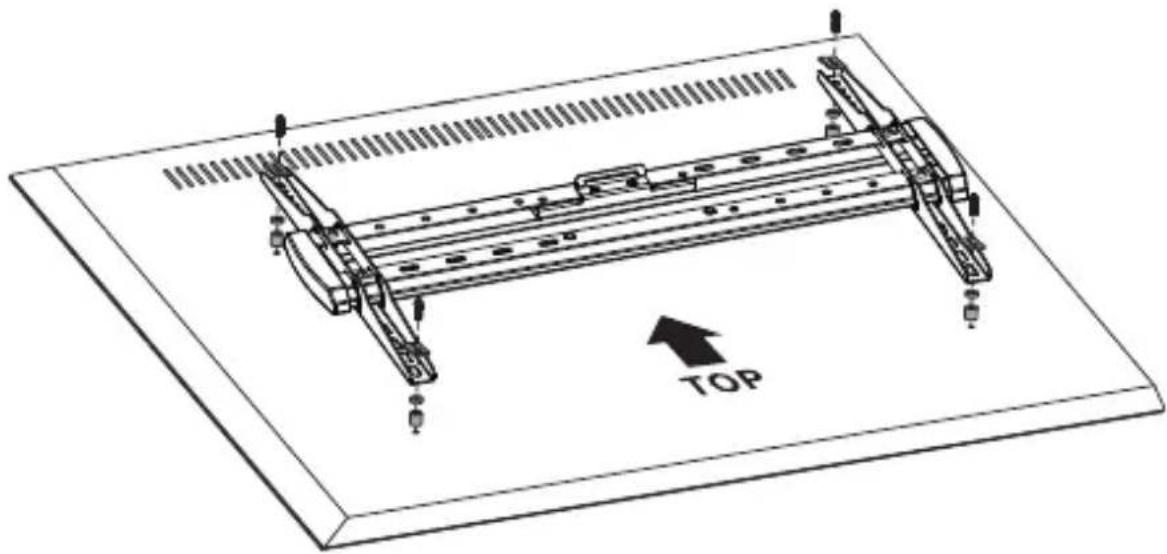

Technical line drawing of a mechanical assembly with labeled 'TOP' and structural components (no text or symbols beyond label)

6

Technical line drawing of a mechanical assembly with mounting brackets and a close-up inset showing internal components (no text or symbols)

Two symbolic icons: a group of two figures holding a document and a screwdriver with a plus sign (no text or symbols present)

7

Technical line drawing of a mechanical assembly mounted on a vertical post, with no visible text or symbols.

8

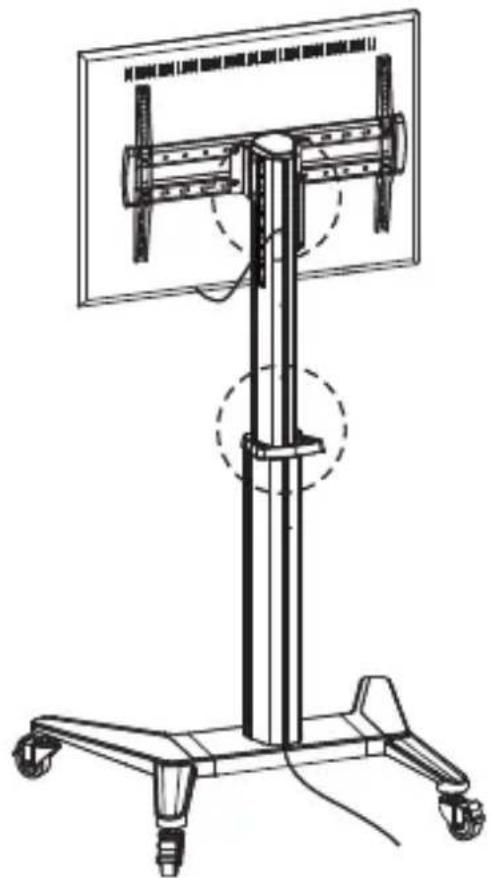

Technical line drawing of a mechanical device with a vertical support and mounted frame (no text or symbols)
