IZ-9034 - Ventilateur domestique Izzy - Free user manual and instructions

Product Type	Domestic Fan
Brand	Izzy
Model	IZ-9034
Dimensions (Height × Base Diameter)	Approx. 70 cm × 35 cm
Weight	3.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	50 W
Fan Speeds	3 speeds (Low, Medium, High)
Oscillation	Automatic 90° left-right oscillation
Adjustable Tilt	Manual tilt adjustment upward
Safety Features	Stable base, safety grille with narrow openings, tip-over switch
Cleaning and Maintenance	Wipe with a soft damp cloth; do not immerse in water
Spare Parts Available	Replacement blades and motor assembly
Reparability	Modular design; disassembly possible with common tools
Certifications	CE, RoHS
Accessories Included	User manual

Frequently Asked Questions - IZ-9034 Izzy

How do I assemble the Izzy IZ-9034 fan?

The fan comes pre-assembled in most parts. Simply attach the base to the pole using the provided screws, then slide the fan head onto the pole and tighten the knob. Refer to the user manual for detailed steps.

Can I use the fan outdoors?

The Izzy IZ-9034 is designed for indoor domestic use only. Using it outdoors may expose it to moisture and dust, which can damage the motor and pose an electrical hazard.

How do I clean the fan?

Unplug the fan before cleaning. Use a soft, damp cloth to wipe the grille and blades. Do not use abrasive cleaners or immerse any part in water. A small brush can help remove dust between grille openings.

Is the fan noisy?

The fan operates quietly, especially on low speed. A slight humming from the motor and air movement noise is normal. If you hear rattling, check that all screws are tight and the blades are not damaged.

How do I adjust the oscillation?

Press the oscillation button on the control panel or remote (if included) to start automatic left-right oscillation. Press again to stop. The range is approximately 90 degrees.

Does the fan come with a remote control?

The Izzy IZ-9034 typically includes a remote control for convenient operation. Check the package contents in the user manual. If missing, contact Izzy support.

What should I do if the fan stops working?

First, check that the fan is plugged in and the power outlet is working. If it still does not turn on, inspect the fuse in the plug (if applicable). If the motor overheats, the thermal cutout may have tripped; let it cool down for 30 minutes before trying again.

Can I store the fan in a vertical position?

Yes, you can store the fan assembled in a dry place. To save space, you can disassemble the pole from the base and the head from the pole. Keep the fan away from direct sunlight and moisture.

Is the fan energy efficient?

The fan consumes only 50 W on the highest speed, making it an energy-efficient cooling solution compared to air conditioning. Using lower speeds further reduces power consumption.

Where can I find replacement parts?

Replacement parts such as blades, motor, and remote control can be ordered through Izzy's official website or authorized service centers. Always use genuine parts to maintain safety and performance.

USER MANUAL IZ-9034 Izzy

Black outdoor box fan with visible blades and grid pattern (no text or symbols)

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
- Never leave the appliance unattended when operating.
- Close supervision is necessary when your appliance is being used near children or infirm persons. Ensure that they do not play with the appliance.
- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructing concerning use of the appliance by a person responsible for their safety.
WARNING: Do not expose babies and the elderly many hours in front of the fan's air.

- Switch off and unplug:

- When not in use.

- When you move it.

- Before cleaning.

- Never use the appliance for any other use than indicated. - The device is intended for indoor use. Do not use the device outdoors.

- The device is intended only for domestic use. Any other use will cancel the warranty.

• Always use the mixer on a secure, dry level surface.

- Do not operate or place the device or parts in places of high humidity or where it may get wet.

- Do not use this appliance in the immediate surroundings of a bath,

shower or a swimming pool or in places where it may get wet.

- Never let the power unit, cord or plug get wet. If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.

CAUTION: To prevent injury, do not place foreign objects, pencils, e through the grills when the appliance is plugged in or when it is in operation. CAUTION: To avoid injury, do not put your fingers through the grilles when the appliance is plugged in or when it is in operation.

• Leave plenty of free space around the appliance so that you do not block the grilles and the fan movement.
• Do not let the power cord of the appliance hang over the edge of a table or bench edge or where a child can grab it. Do not allow the power cord to touch any warm surface.
• Ensure that the power cord is not clamped from any object, e.g. furniture. Do not press the power cord and never place it under carpets or mats where there is a risk of stepping on it. Keep the power cord in a place when there is no danger of stumbling.
• Do not place the appliance next to fabrics, e.g. hanging curtains, etc. Do not place clothes on the appliance to dry or for any other reason.
• Before inserting or removing the socket, make sure the appliance turned OFF.
• Never use the cord to pull the plug out of the socket. Disconnect always by pulling on the plug.
• Ensure that the power cord does not come into contact with moving parts of the appliance.
• Do not use the appliance if it has been dropped or damaged in any way and contact an authorized BENRUBI Service Center.
• In case that you notice some strange noise, smell, smoke or anything unusual, do not use the appliance. Disconnect it from electricity and contact an authorized BENRUBI Service Center.
• Failure to use properly may cause injury.
• Never leave the power cable wrapped during use. Unwind it completely.
• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.
• Do not move the appliance when it is in operation.
• Do not touch the appliance with wet or damp hands.

• Do not use an extension power cord.

• This appliance is not intended to be operated by means of an external timer or separate remote control system.

• Check the power cord periodically for possible damages.
• If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.
• Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Only use original spare parts
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/ EU Low Voltage Directive, the2011/65/EU RoHS Directive and the directive 2009/125/EC for eco-design.

SAVE THESE INSTRUCTIONS

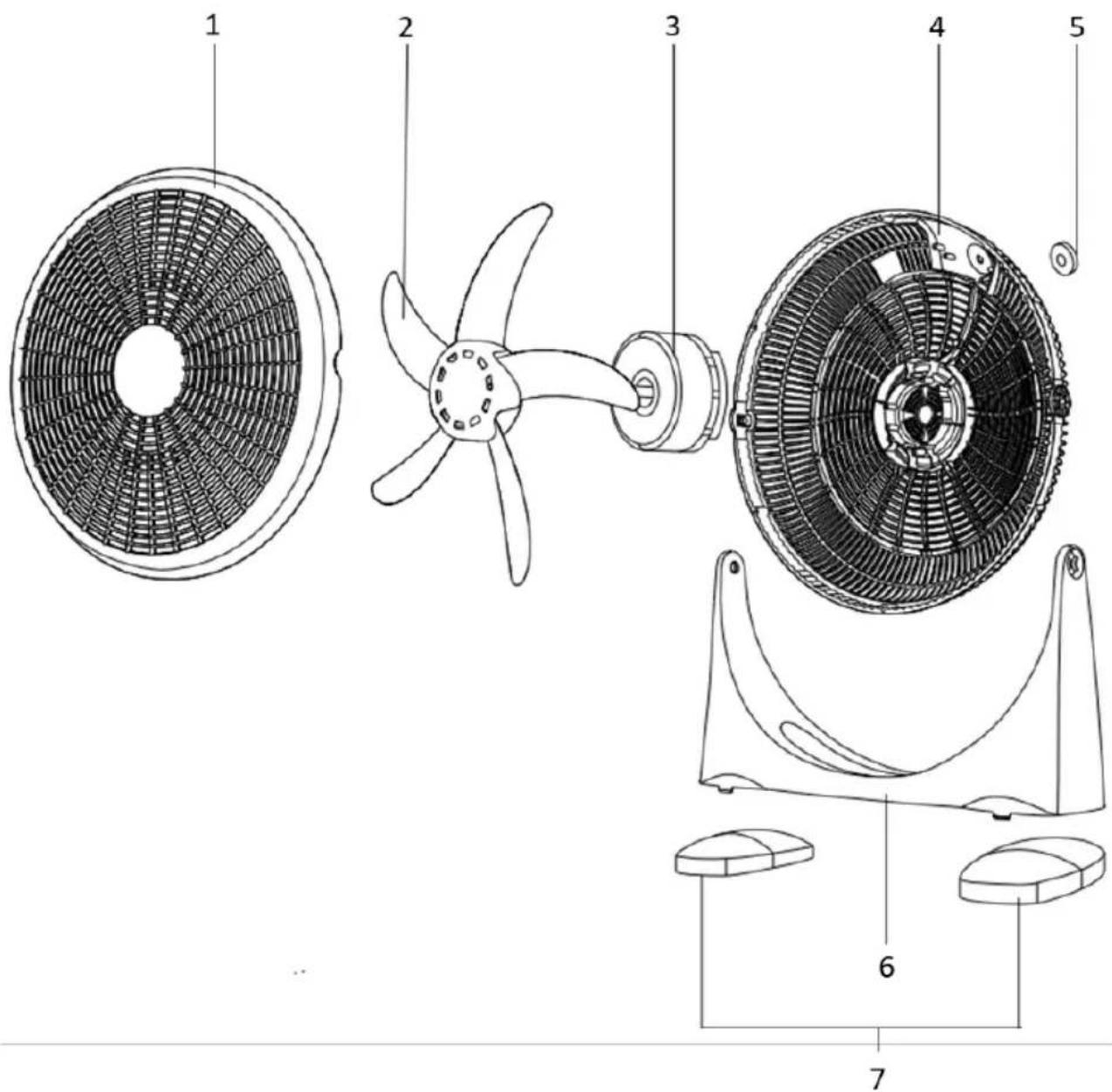

Parts of the Appliance

1. Front fan grill
2. Blades
3. Motor
4. Rear fan grill
5. Speed regulator
6. Base
7. Base feet

Using the Fan

CAUTION:

• Before use, make sure to fasten the feet to the bottom of the base.

• Always place the device on a flat, dry and stable surface. There is a risk of damage if it is not installed on a flat and level surface.

• Before use, make sure the speed regulator is in the "0" position.

• Plug in the appliance.
• Turn the speed regulator (5) to the desired speed.
  The fan has 3 speed options:
  1 - Low speed
  2 - Medium speed
  3 - High speed
• Turn the speed regulator (5) to the "0" position to stop the operation.
• Disconnect from the power outlet when not in use.

Care and Cleaning

• Switch off and unplug the appliance before cleaning.
• Do not disassemble the fan to clean it.
• At regular intervals, clean the main body of the appliance with a soft cloth and dry thoroughly.
• Never use highly corrosive or abstractive cleaning agents. Never use metal brushes or sponges for cleaning and do not immerse the appliance in water.
• To ensure that the air circulates properly on the motor, keep the air outlets at the rear of the motor clean.

Storage

• Switch off and unplug the appliance before storing it.
• Store the appliance in a dry place without humidity.
• Before using the appliance for a long time, make sure it is clean and dry.
• Store the appliance where it is not reachable by children.

Technical Information

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

- BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.

- The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.

- Burns due to exposure to heat or flame.

- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,

Tel./Customer Support: [phone]

e-mail: [e-mail]
