SHB 3110 - Food processor SINBO - Free user manual and instructions

Product Type	Food Processor
Brand	Sinbo
Model	SHB 3110
Power Consumption	500 W
Bowl Capacity	1.5 L
Number of Speeds	2 + Pulse
Main Functions	Chopping, Mixing, Blending, Pureeing, Grating, Slicing, Dough Kneading
Accessories Included	Stainless steel blade, dough hook, whisk, slicing disc, grating disc, chopping blade
Housing Material	Plastic
Bowl Material	Plastic (BPA-free)
Blade Material	Stainless Steel
Dimensions (L x W x H)	25 x 20 x 32 cm
Weight	2.5 kg
Cord Length	1.2 m
Safety Features	Overload protection, non-slip feet, locking lid, safety interlock switch
Cleaning	Removable parts dishwasher safe (top rack recommended)
Spare Parts Availability	Replacement bowls, blades, and discs available from authorized service centers
Warranty	2 years

Frequently Asked Questions - SHB 3110 SINBO

How do I assemble the food processor?

Place the bowl on the motor base, align the locking handle, and twist to secure. Insert the desired accessory (e.g., chopping blade or slicing disc) onto the central shaft, ensuring it clicks into place. Attach the lid and lock it before use.

Can I process hot ingredients?

It is not recommended to process hot liquids or ingredients above 60°C, as this may damage the bowl or cause splattering. Allow food to cool before processing.

How do I clean the food processor?

Unplug the unit. Remove the lid, bowl, and accessories. Wash all removable parts in warm soapy water or place them on the top rack of the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base in water.

Why does the motor stop during use?

The processor has overload protection. If it stops, unplug and let it cool for 10-15 minutes. Reduce the load and restart. Ensure the lid is properly locked.

What is the maximum bowl capacity?

The bowl has a maximum capacity of 1.5 liters. Do not overfill to avoid spillage and ensure proper mixing. For liquids, do not exceed the max fill line.

Can I use the food processor to knead dough?

Yes, use the dough hook accessory. Process up to 500g of flour mixture. Pulse initially, then run continuously for 30 seconds. Do not exceed the recommended dough quantity.

How do I change accessories?

Turn off and unplug the unit. Remove the lid. Carefully pull the accessory off the central shaft. Insert the new one by aligning it with the shaft and pushing down until it clicks. Replace lid.

Is the blade sharp?

Yes, the stainless steel blade is very sharp. Handle with care. Always hold it by the plastic hub or use a tool to avoid direct contact.

What should I do if the lid won’t lock?

Ensure the accessory is correctly seated and the bowl is aligned with the base. The locking tabs must click into place. If still loose, check for debris or damage. Do not force it.

Where can I find spare parts?

You can purchase spare parts (bowls, blades, discs) from authorized Sinbo service centers or online retailers. Always use genuine parts for safety and performance.

USER MANUAL SHB 3110 SINBO

Black and white photo of a Sinbo 4-branded blender with a side view showing its internal structure (no text or symbols visible on the device itself)

CİHAZİN TANITIMI • DRAWING FOR THE STRUCTURE СХЕМА СТРУКТУРЫ ПРИБОРА

Technical line drawing of a mechanical component with three blades and a shaft, no text or symbols present

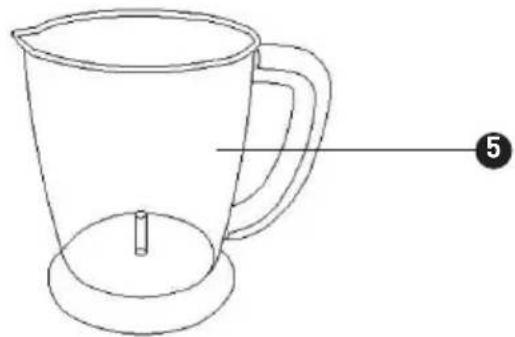

Line drawing of a simple cup with handle and base, labeled with number 5 (no text or symbols on the cup itself)

TÜRKÇE

Değerli Müşterimiz,

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

SINBO SHB 3110 DOĞRAYICI KULLANIM TALİMATI AC220-240V, 50/60Hz, 400W

Read this manual thoroughly before using your device and keep it for future reference.

General Safety Warnings

Safety recommendations

• Read this operation manual carefully before operating the appliance for the first time.
• Keep the appliance where it cannot be reached by unattended children. - Close supervision is required when the appliance is used by children or handicapped persons.
• Check if the mains voltage rating at your home matches the voltage rating specified on the appliance.

Any connection error renders the warranty void.

- This appliance is intended for use at home only.

- Unplug the appliance after any operation and before cleaning.

- Never use a damaged appliance or an appliance that does not work properly. Contact the service center in such a case.

- Do not immerse the appliance, power cord or the plug to water or any other fluid.

- Keep power cord away from the reach of children.

- Power cord shall be kept away from heat sources and sharp edges.

- Do not use the appliance if the power cord or the plug is damaged. To avoid any risk of hazard, these parts shall be changed by the manufacturer or the service center.

- For your safety, use accessories or spare parts that are manufactured by us and that are suitable for your appliance only.

- Do not remove accessories without completely stopping the appliance.

- Do not insert any utensils (spoons, putty knives etc.) into the blade compartment.

- Use accessories one by one.

- Hold the metal blade very carefully while cleaning or removing it from the bowl as the blade is very sharp.

- Always remove the blades before removing the ingredients of the bowl.

- Always avoid touching rotating parts.

- Do not use the appliance while it is empty.

- This appliance should not be used by physically, sensually or mentally handicapped ones (including children) without supervision and guidance of someone who can undertake the responsibility for safety but by the ones who are sufficiently informed and experienced about the use.

• Close supervision is required to ensure that children don't play with the appliance.
• Warning: Do not use this appliance for any other purpose than its intended purpose

This appliance is for use in home and similar environments:

• personnel kitchens in stores, offices or other work environments;

• ranches;

• customers in hotels, motels and similar environments;

• bed and breakfast environments.
• The appliance is not designed to be operated by an external timer or a separate remote control system.
• This appliance can be operated by children of 8 years and above, people with limited physical, auditory and cognitive skills or people with lack of experience and knowledge as long as they are under supervision or they are provided instructions regarding the operation of the appliance. In case they are not older than 8 years old or unsupervised, children should not clean or maintain the kettle.
• Keep the appliance and its cable from the reach of children aged 8.

General explanation

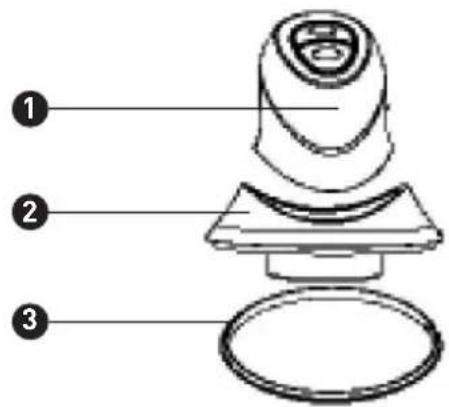

1. Motor unit, 2. Cover, 3. Cover gasket, 4. Blade unit, 5. Bowl

Maximum processing amounts and times

- Poultry and meat: Maximum 250 g

Maximum mixture amount while preparing food such as poultry and meat is 250g. Processing time is maximum 30 seconds and appliance shall be cooled 2 minutes after each operation. Wait until the appliance is cooled to room temperature.

Use of The Appliance

1. Install the blade set to the pin inside the bowl.
2. Put the food inside the bowl and select "HIGH or LOW speed" as per the instructions on the food processing manual.
3. Cut bigger parts of food to parts of 1-2cm.
4. Do not attempt to process hard foods such as coffee beans, ice, spices or chocolate as the blades may get damaged.
5. Install the splash-preventing lid. Make sure that the indentations of the lid are seated on the edges of the bowl.
6. Food processor shall not operate if the splash-preventing lid is not installed.
7. Install the motor unit.
8. Motor unit may only be installed in two positions.
9. Plug the appliance. Press the motor unit for a short while to perform a short rotation without chopping the food more than required.
10. When the appliance has difficulty, take some of the mixture to another bowl and process the food in several parties.
11. Skim the food inside by stopping the appliance if required.
12. Unplug the appliance and disassemble after any operation.

Cleaning

- Unplug the appliance from the outlet.

- Clean the motor body and the cord by wiping a wet and thoroughly squeezed.

All accessories are suitable for washing :-

- Wash with water and detergent. Be very careful while holding the steel blade to prevent injuries.

Motor unit

Clean by wiping with a wet cloth and then dry it.

Other parts

Wash by hand and dry thoroughly or wash at the upper drawer of your dishwasher.

Storage

Assemble your food processor and wrap the cord around the motor unit.

WHILE HANDLING

* Do not drop the product,
* Ensure it does not suffer impact,
* Ensure it doesn't get crushed or squeezed,
* Observe the marks on the packaging.

ENVIRONMENT FRIENDLY DISPOSAL

You can also contribute to environmental protection!

Please do not forget to adhere to local regulations.

Take the non-operational electrical appliance to the suitable disposal centers.

There is no situation that might harm human health or the environment during use.

Processing manual

Meat 250g Remove bones, grease and

gristles. Cut to parts of 1-2 cm

Vegetables (parsley etc.) 50g Remove their tails

Nuts (e.g. almond) 200g Remove their tails

Cheese (e.g. cheddar) 100g Cut to parts of 1-2cm

Bread 75g Cut to parts of 1-2cm

Hard boiled eggs 6 Cut to half or quarter

(according to its size)

Onion 250g Cut to parts of 2cm approximately

Biscuits 150g Break into small parts

Soft fruits (e.g.

Raspberry) 250g Remove their tails

Compact design

You may keep some accessories inside the bowl to save space when the appliance is not used.

IMPROTANT NOTE

• DO NOT ATTEMPT TO OPERATE THE APPLIANCE WHILE THE ACCESSORIES ARE KEPT INSIDE THE BOWL.
• DO NOT STORE CUTTING OR CHOPPING BLADES INSIDE THE BOWL: INCORRECT USE MAY CAUSE SERIOUS DAMAGE TO THE APPLIANCE.

Why does not the appliance operate?

Check the following:

• Connection
• If the bowl lid is installed correctly to the motor unit.
• If lock latches are installed correctly.

Your appliance still does not operate?

Please contact the service center or the manufacturer.
