SHB 3106 - Food processor SINBO - Free user manual and instructions

Product Type	Food Processor
Brand	Sinbo
Model	SHB 3106
Dimensions (L x W x H)	30 x 20 x 25 cm
Weight	2.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	600 W
Bowl Capacity	1.5 L
Main Functions	Chopping, Mixing, Blending, Grating, Slicing
Speed Settings	2 Speeds + Pulse
Blade Material	Stainless Steel
Accessories Included	Chopping Blade, Grating/Slicing Discs, Dough Blade, Lid with Feed Tube
Safety Features	Overload Protection, Non-Slip Feet, Safety Lock on Lid
Cleaning and Maintenance	Detachable Parts Dishwasher Safe; Wipe Motor Base with Damp Cloth
Spare Parts Availability	Bowls, Blades, Lids Available from Sinbo Service
Repairability	Repairable by Authorized Service Centers
General Information	Compact Design for Everyday Kitchen Use
Material	Plastic Body with Stainless Steel Blades
Package Content	Main Unit, Bowl, Lid, Blade Set, Discs, Pusher, User Manual
Warranty	2 Years

Frequently Asked Questions - SHB 3106 SINBO

How do I use the pulse function on the Sinbo SHB 3106?

The pulse function is activated by pressing the 'P' button. It gives short bursts of power for precise control over chopping or mixing. Use it for ingredients that require brief processing.

Can I wash the bowl and blades in the dishwasher?

Yes, the bowl, lid, blades, and discs are all dishwasher safe. Place them on the top rack and remove any large food residues before washing. Wipe the motor base with a damp cloth only.

What is the maximum capacity for liquids?

Do not fill the bowl beyond the maximum line (1.5 L). For liquids, do not exceed 1 L to avoid overflowing during blending.

How do I change the speed settings?

Turn the speed dial to select '1' (low) or '2' (high). Use low for soft ingredients and high for tough ones. The pulse function works independently.

The motor stopped suddenly. What should I do?

This is likely due to overload protection. Turn off the appliance, unplug it, and let it cool for 15 minutes. Reduce the amount of food and try again.

Can I grind coffee beans or hard spices?

No, the Sinbo SHB 3106 is not designed for grinding hard items like coffee beans or whole spices. Doing so may damage the blades or motor.

How do I assemble the grating/slicing disc?

Place the disc onto the blade shaft inside the bowl, with the sharp side up for slicing or the rough side for grating. Secure the lid before operating.

Is the dough blade included for mixing dough?

Yes, a dough blade is included for mixing and kneading bread or pizza dough. Use the pulse function or speed 1 for best results.

Where can I purchase replacement parts?

Contact Sinbo customer service or visit authorized dealers. Spare parts like bowls, blades, and lids are available. Retain your proof of purchase for warranty claims.

The lid won't lock properly. What can I do?

Ensure the bowl is correctly seated on the base and the lid aligns with the locking arrows. If it still doesn't click, check for obstructions and clean the sealing area.

USER MANUAL SHB 3106 SINBO

Black and white photo of a Sinbo blender with a handle and spout, no visible text or symbols on the device itself.

for Turkey

www.sinbo.com

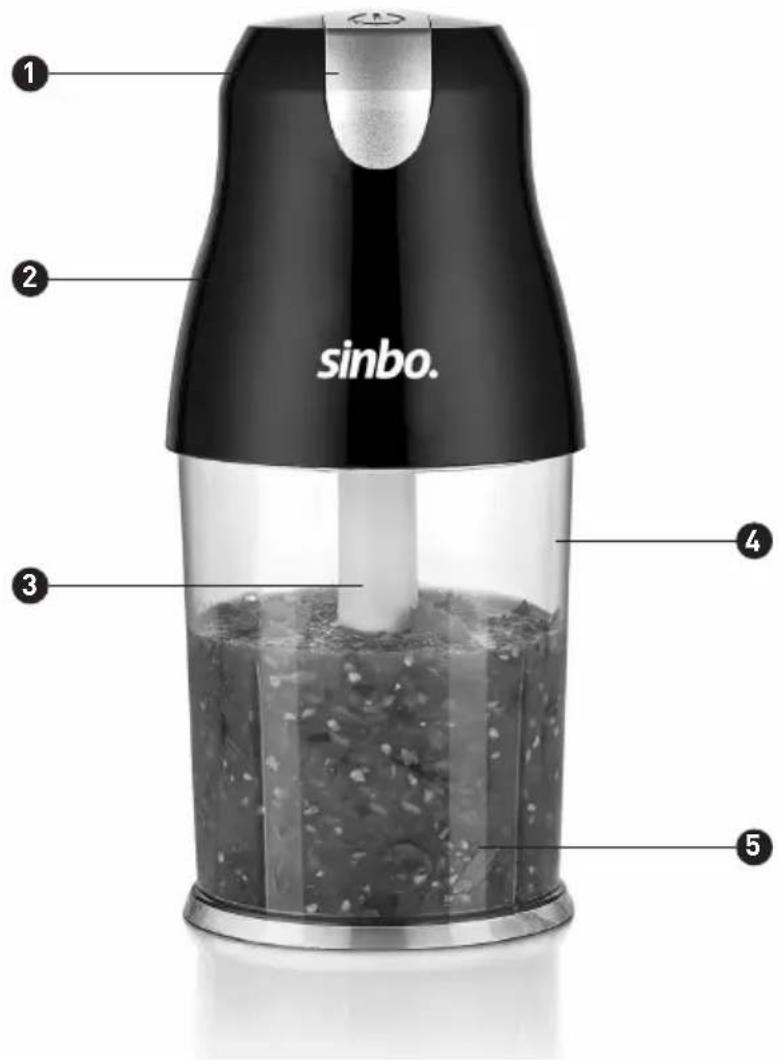

CİHAZİN TANITIMI • DRAWING FOR THE STRUCTURE СХЕМА СТРУКТУРЫ ПРИБОРА

TÜRKÇE

Değerli Müsterimiz,

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

SINBO SHB 3106 DOĞRAYICI KULLANIM KILAVUZU

GENEL GÖRÜNÜM CİHAZIN TANIMI

Technical Specifications

Model: SHB 3106

Mains voltage: AC220-240V, 50/60Hz

Protection class: ||

Power level: 400 W

Maximum non-stop working

(KB): 1 minute

In order to use the product safe and know all the features of it:

• Read the user's instructions carefully before using the product.
• More importantly, read the safety instructions.
• The appliance can only be used according to these instructions.
• Keep these instructions as a reference.
• If another person is using the appliance, please give him/her these instructions.

Intended Use

Multi functional chopper can only be used for chopping foods and stirring cream.

The appliance is especially designed to be used at home. The appliance is only be used indoors.

This appliance shouldn't be used for commercial purposes.

WARNING! Do not use the appliance especially for the solid foods such as frozen foods, bones, coconut, grain, coffee bean.

Security Warnings

• Packing materials are not for children to play. Children shouldn't be allowed to play with plastic bags. There is a risk of choke.
• This appliance shouldn't be used by children.
  Cleaning and maintenance shouldn't be done by children. Children should be kept away from the appliance and power cable.
• This appliance can be used by the people with physical or mental disability or by the people who don't have enough experience or understanding if they are informed about how the use the appliance safe, if they are controlled and know the risks that may occur.

• This appliance should never be used near bath tub, shower, sink or etc.

• Motor unit, power cable and main plug should be kept away from water.

• Protect motor unit from water and moisture.
• If motor unit gets wet, unplug the main plug immediately. Check the appliance before using again.
• Do not touch the appliance with wet hands.
• If the appliance gets into water, unplug the main plug immediately. Before using the appliance again, be sure that it is safe.
• To prevent the liquid get into the motor unit, fill the reservoir with maximum 200 ml liquid.
• When the appliance is assembled completely, plug it in again.
• Plug the main plug into a properly assembled, coherent with the measuring sheet features and voltage and easy to reach plug. After plug the appliance in, the plug should be easy to reach.
• Be sure that power cable is not damaged by the sharp edges and warmth.
  Do not wind the cable around the appliance.
• Even after the appliance is off, there is still a connection with the power cable. To disconnect it, unplug the main plug.
• While using the appliance, be sure that power cable is not compressed or smashed.
• While unplugging the main plug, always pull the plug not the cable.
• Unplug the mail plug
  .... if there is a detect, .... if you are not using the appliance, .... before assembling or disassembling the appliance,
  ..... after cleaning and
  .... during the storm.
• If there is a visible damage on the appliance or power cable, do not use the appliance.
• Do not modify the application in order to avoid any risks. Besides, do not change the power cable on your own. Repair should only be performed by Repair Center or Service Center.
• The blade is sharp. Hold it carefully. While washing by hand, water should be clear enough for you to see the knives easily.
• Do not start up the appliance without reservoir.
• Do not touch the circular blades. Do not touch circular parts with spoon or any other kitchen appliances. Keep your hair or loose clothing away from circular parts.
• After the appliance is turned off, the blade still continues to rotate. Wait before removing the reservoir's lid.
  WARNING! Risk of Financial Damage
• Filling level for solid foods is 350 ml.
• Filling level for liquids (such as cream) is 200 ml.

• The appliance is designed to work for maximum 1 minute without any intervention. Thereafter, the appliance should be kept turned off in the room temperature until it gets cold.

• In order to avoid any damage that may occur in the appliance, if the blade doesn't rotate or rotates slowly, stop mixing immediately.
  Unplug the main plug and check if there is anything that blocks the reservoir or if the food is too solid. Also, check if the appliance is assembled properly.

• Do not start the appliance when it is empty because it would cause the motor to get hot too much.
• Only use original accessories.
• Do not use firm or abrasive cleaning materials.

WARNING! In order to avoid any damage that may occur in the appliance, if the blade doesn't rotate or rotates slowly, stop mixing immediately. If this happens, unplug the main plug and check if there is anything that blocks the reservoir or if the food is too solid. Also, check if the appliance is assembled correctly.

Cutting Blade

Field of Application

Cutting blade is used for chopping solid foods such as onion, carrot, cheese, nut.

Food Preparation

- Usage

.... shouldn't pass the filling level which is maximum 350 ml for solid foods or .... which is maximum 200 ml for liquids.

- Wash the food.

- Dice the food (approximately 2-3 cm)

- Take off the outer shell of nut. Inner shell can be used if wanted, for instance with almonds.

- Remove the roots of the plants.

- Remove the bones of the meat, remove nerves and skin.

Worksheet
Content Recommended amount Recommended procedure time/speed

Onion (cut into four pieces)	100 g Pulse/TURBO
Garlic (a whole clove)	100 g Pulse/TURBO
Walnut 50 g 2 x 8 seconds TURBO
Almond 50 g 1 x 10 seconds (to the bowl) 1 x 30 seconds (smooth) TURBO
Cheese (like Gouda, cold)	100 g 4 x 15 seconds TURBO

Salami 130 g 3 x 5 seconds TURBO
(approximately 2 cm)	250 g 3 x 12 seconds TURBOSliced beef
	100 g 3 x 5 seconds normalCarrot
	130 g 4 x 15 seconds TURBODried fruits
	100 g Pulse/TURBOlce cubes

NOTE: This specified procedure time and speed is a general information.

- The actual amounts may be different according to the amount of foods and their suitability.

- Check the results again according to how small the food is.

- Start it with short PULSE (1 pulse: approximately 1 second)

Assemblage of the appliance

WARNING: Do not fill the reservoir at the maximum level as the cutting blade may block the reservoir according to foods solidity and suitability.

Pay attention to the instructions for different foods in this "Worksheet" section.

1. Place the reservoir that is on the reservoir's lid.

2. Place the blade.

3. Place the prepared food to the reservoir.

4. Place the actuator's lid onto reservoir and place two little recess' into the hollows in the reservoir then rotate the actuator's lid clockwise until it is placed completely.

5. Place the motor unit to the top corner of the actuator's lid.

6. Plug the main plug in according to technical data given.

Chopping

- Press push to down the button for start the product.

If the food isn't chopped properly:

- Unplug the main plug, take out motor unit and shake the reservoir carefully.

- If food sticks to the reservoir, rotate the actuator's lid anticlockwise and take out. Use a spatula and push down the pieces.

- Plug the main plug in again and before start up bring the pieces together.

Cleaning

Clean the appliance before the first use.

- Before cleaning the appliance unplug the main plug.

- Motor unit, power cable and main plug should be kept away from water.

While washing by hand, water should be clear enough for you to see the knives easily.

Do not use firm or abrasive cleaning materials.

Disassemble of the appliance

1. Unplug the main plug.
2. Take out the motor unit.
3. Rotate the actuator's lid anticlockwise and take out.
4. Take out the reservoir's lid.
5. Take out the cutting blade from the reservoir carefully.

How to clean properly

1. If necessary, wipe the motor unit and power cable with a wet rag. Wait for motor unit to dry before using it again.
2. Wash all accessories by hand except motor unit.
3. Wait for all pieces to dry before using the appliance again or put it away.

Some Cleaning Tips

• To prevent foods from drying, clean the appliance as soon as possible after using.
  • After using salty or acidic foods, dry the cutting blade carefully.

Storage

Keep the appliance away from children.
In order to avoid accidents, main plug shouldn't be plugged into while keeping it away.
- Keep the appliance away from high temperature and moisture.

Troubleshooting

If the appliance isn't working properly, please try to check the control list and fix the problem on your own.

Do not try to fix the appliance in any condition on your own.

Defect

Probable causes/Action

It isn't working

Is the appliance connected to the power supply?

Check the connection.

Is the top corner of the actuator's lid clean?

Cutting blade doesn't rotate or it rotates hard.

• Turn it off immediately, unplug the main plug and check it. :
  -Is there a blockage on the reservoir?
  -Is the food too solid?
  -Is the appliance assembled properly?
  Is the reservoir watered due to the solid food?
• It is normal and doesn't affect working.
