Product Type	Monitor
Brand	Syscom
Model	EPMON24
Screen Size	23.6 inches
Display Technology	TFT with LED backlight
Maximum Resolution	1920 x 1080 @ 60Hz
Pixel Pitch	0.2715 x 0.2715 mm
Display Colors	16.7 million
Active Display Area	521.38 mm x 293.22 mm
Power Consumption (Typical)	35 Watts
Power Consumption (Maximum)	40 Watts
Power Input	AC 100-240V
Built-in Speakers	3W x 2
Tilt Angle	0° to 20° backward
Operating Temperature	0°C to +40°C
Compliance	FCC, CE, UL, WEEE
Video Inputs	VGA, DVI, HDMI
Audio Input	3.5mm audio jack
Stand Type	Detachable base
Accessories Included	Power cable, VGA cable, Audio cable, User's guide
Cleaning	Unplug before cleaning; use dry cloth; non-ammonia cleaner for glass
Safety	No user-serviceable parts; unplug if wet; keep away from magnetic objects

Frequently Asked Questions - EPMON24 Syscom

How do I connect the monitor to a computer?

First, make sure both the monitor and computer are powered off. Then connect a video cable (VGA, DVI, or HDMI) from the computer's output to the monitor's corresponding input. Next, connect the audio cable if you want audio through the monitor's speakers. Finally, connect the power cord to the monitor and a power outlet. Power on the computer first, then the monitor.

What is the recommended resolution and refresh rate?

The recommended resolution is 1920 x 1080 at 60 Hz for optimal display quality.

How do I clean the monitor screen?

Always unplug the monitor before cleaning. Use a clean, dry cloth to clean the cabinet. For the glass screen, apply a non-ammonia based cleaner to the cloth, not directly onto the screen.

What should I do if there is no power?

Ensure the AC power cord is securely connected to the power adapter and the monitor. Verify the power outlet is working by plugging another device. Also check that all signal cables are properly connected.

How do I adjust the On-Screen Display (OSD) settings?

Press the OSD Menu button (button 1) to open the main menu. Use the ▼ or ▲ buttons to navigate, and press button 2 to confirm a selection. The OSD allows you to adjust contrast, brightness, color, input source, and more.

What video inputs does the monitor support?

The monitor supports VGA (D-Sub 15 pin), DVI (24 pin), and HDMI (19 pin) inputs.

How do I remove the stand base?

Place the monitor face down on a soft cloth. To remove the stand base, unlatch all four tenons before pulling it off.

What is ECO mode?

ECO mode reduces power consumption by lowering energy use. When active, contrast and brightness adjustments are disabled. You can toggle ECO on or off in the OSD menu.

How do I recall factory settings?

In the OSD menu, navigate to Memory Recall and press button 2 to confirm. This will restore all video and audio controls to default settings.

Can the monitor be wall-mounted?

The manual does not provide wall-mounting instructions. It is recommended to use the included stand base or consult the manufacturer for compatible mounting solutions.

USER MANUAL EPMON24 Syscom

Operation Instructions....1

Safety Precautions....2

First Setup....3

Front View of the Product....4

Rear View of the Product....5

Quick Installation....6

Using On Screen Display (OSD) Functions ....7

Supporting Timing Modes 10

Technical Information 11

Care and Maintenance 12

Troubleshooting....12

Operation Instructions

Thank you for purchasing this Monitor, a high-resolution multi-scan color Monitor. Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS)

This Monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. This Monitor generates, uses, and can radiate radio frequency energy. Harmful interference to radio communication may be led as a result if it's not properly installed and used. However, there is no guarantee that interference will not occur in a particular installation. If this Monitor does cause serious interference to radio or television reception, resetting the Monitor may determine it. Moreover, users are encouraged to correct interference by doing one or more of the following:

● Reorient or relocate the receiving antenna.
- Move the Monitor and the receiver further away from each other.
- Connect the Monitor into an outlet on a circuit different from that to which the receiver is connected.
- Consult your local dealer or an qualified technician.

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications to this Monitor would void the user's authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be used to meet the emission level limits.

According to WEEE regulation, this Monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it.

Safety Precautions

This Monitor is manufactured and tested on a ground principle that a user's safety comes first. However, improper use or installation may result danger to the Monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

WARNINGS:

This Monitor should be operated only at the correct power sources indicated on the label on the rear end of the Monitor. If you're unsure of the power supply in your residence, consult your local dealer or power company.
Do not try to repair the Monitor yourself as it contains no user-serviceable parts. The Monitor should only be repaired by a qualified technician.
Do not remove the Monitor cabinet. There is high-voltage parts inside that may cause electric shock to human bodies, even when the power cord is disconnected.
◆ Stop using the Monitor if the cabinet is damaged. Have it checked by a service technician.
Put your Monitor only in a clean, dry environment. Unplug the Monitor immediately if gets wet and consult your service technician.
◆ Always unplug the Monitor before cleaning it. Clean the cabinet with a clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.
◆ Keep the Monitor away from magnetic objects, motors, TV sets, and transformer.
◆ Do not place heavy objects on the cable or power cord.
For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

First Setup

Congratulations on your purchase of this high performance Monitor.

This Monitor comes with the following accessories :

- Monitor

- Power Cable

- User's Guide

- VGA Cable

- Audio Cable

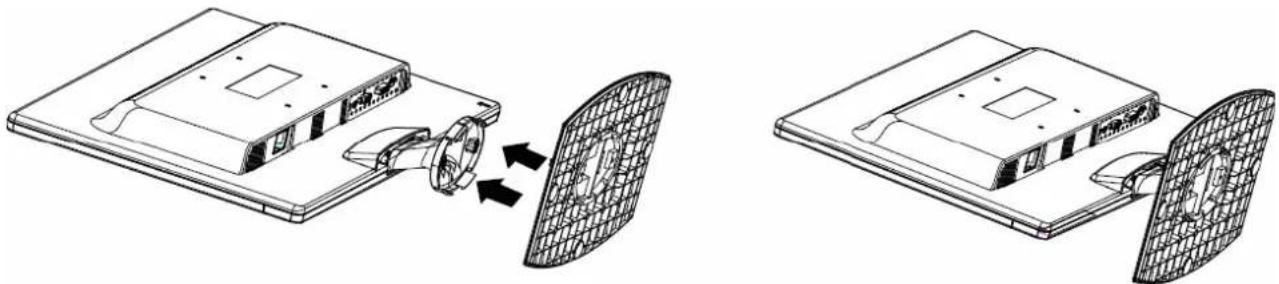

Installing the Stand Base

Technical line drawing showing two views of a device with a central fan and internal components (no text or symbols)

1. Place the monitor face down on a soft cloth or cushion on a table.

2. Install the stand base to the monitor.

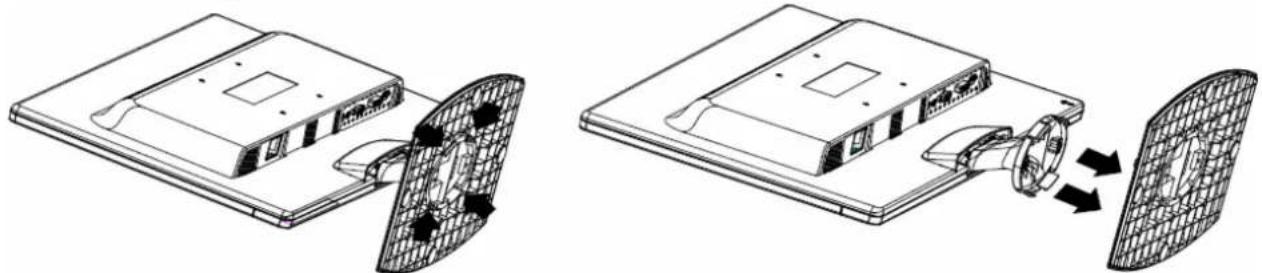

Disconnecting the Stand Base

Technical line drawing showing two views of a device with internal components and airflow indicators (no text or symbols)

1. Place the monitor face down on a soft cloth or cushion on a table.

2. In order to remove the stand base, all four tenons need to be unlatched before removing stand.

Front View of the Product

① OSD Menu On/Off
② Scroll Down/Adjust Decrease
③ Scroll Up/ Adjust Increase
4 Confirm Select
⑤ Power ON/OFF/ LED Indicator

Rear View of the Product

① Power input (AC input)
② Audio input
③ HDMI input (HDMI 19 pin)
④ DVI Input (DVI 24 pin)
⑤ VGA input (D-Sub 15 pin)

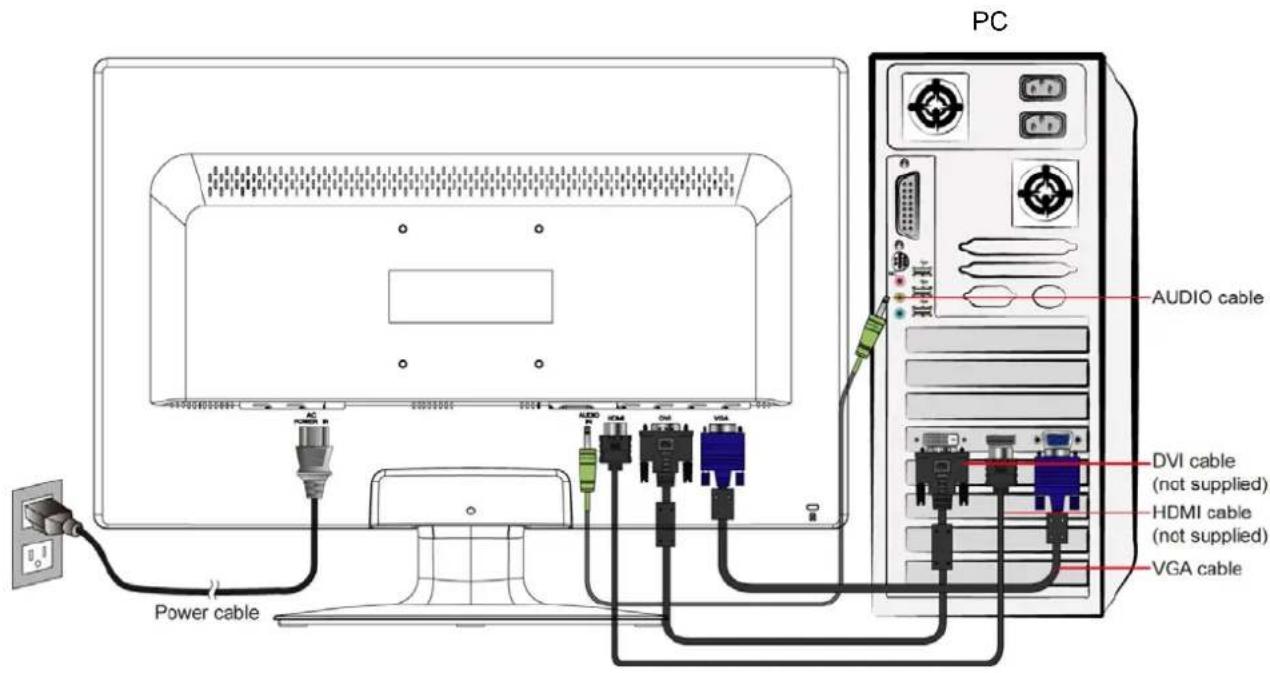

Quick Installation

1. Connect Video cable (VGA cable)

Make sure both monitor and computer are powered OFF. Connect the video cable (VGA cable) to the computer, then to the monitor.

2. Connect DVI cable \*Optional

Connect the DVI cable from DVI output of computer to the DVI input of the monitor.

3. Connect HDMI cable \*Optional

Connect the HDMI cable from HDMI output of computer to the HDMI input of the monitor.

4. Connect Power cord

Connect the AC power cord to an AC/DC power adapter, then to the monitor.

5. Connect Audio cable

Connect the Audio cable from Audio output of computer to the Audio input of the monitor.

6. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

7. Setting the Timing Mode

Recommended resolution and refresh rate is 1920 x 1080 @ 60 Hz.

Example:

Using On Screen Display (OSD) Functions

1	Display main menu
	Exit from OSD menu
2	Confirm the selection
	Selects between VGA, DVI ,HDMI or Auto mode
▼	Select the desired item when in OSD menu
	When not in OSD menu, directly enters Contrast/Brightness /DCR/ECO mode menu
▲	Select the desired item when in OSD menu
	When not in OSD menu, directly enters Color Vision Mode
▼ + ▲	Recall both of Contrast and Brightness (when not in OSD menu)

Main Menu

Short Cuts Function from the button(s)

Auto Image Adjust: To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen.

Contrast: To adjust the foreground white level of screen image.

▲: increase contrast, ▼: decrease contrast.

Brightness: To adjust the luminance of the video.

▲: increase brightness, ▼: decrease brightness.

DCR: Allows the user to turn the DCR On or Off. Brightness cannot move when DCR opens.

ECO : Allows the user to turn the ECO On or Off. Contrast and Brightness adjustment disabled when ECO is active.

Audio Adjust: To adjust the audio functions.

Volume: To adjust the volume of speaker output.

Mute: To turn the Mute ON/OFF.

Input Select: When press Input Select change Input signal to VGA, DVI, HDMI or Auto.

Color Adjust: To select the color for improving brightness and color saturation between sRGB, Blueish, Reddish and User Color.

sRGB: Adds red to screen image for warmer white and richer red.

Blueish: Adds blue to screen image for cooler white.

Reddish: Adds green to screen image for a darker color.

User Color: Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press ▼ or ▲ button to adjust selected color.

Information: To display the information, regarding the current input signal coming from the graphic card in your computer.

Note: See your graphic card user guide for more information about changing the resolution and refresh rate.

Manual Image Adjust: To manually adjust the Horizontal Size, H./V. position, Fine Tune, Sharpness, Video Mode adjust and Prest Mode.

Horizontal Size: To adjust the width of the screen image.

▼: decrease the width of screen image, ▲: increase the width of screen image.

H./V. Position: To adjust the horizontal and vertical position of the video.

H. Position: ▲: move screen to the right, ▼: move screen to the left.

V. Position: ▲: move screen up, ▼: move screen down.

Fine Tune: To adjust the delay time of data and clock.

Press ▼ or ▲ to adjust to your preference.

Sharpness: To adjust the clarity of a non-Full HD Resolution (1920x1080) signal with ▼ or button▲.

Video Mode adjust: To select the video mode from Full Screen, Over Screen or Aspect Ratio.

Full Screen: To select full-screen size image.

Over Screen: To select over-screen size image.

Aspect Ratio: To select input timing image size.

Color Vision Mode: Provides an optimum display environment depending on the contents displayed. It contains 5 user-selectable presets.

Standard is for general windows environment and monitor default setting.

Game optimized for PC game environment.

Cinema optimized for movie and video environment.

Scenery optimized for displaying outdoor scenery images.

Text optimized for text editing and viewing in a word processing environment.

Setup Menu: To set up Language Select, OSD Position, OSD Time Out and OSD Background.

Language Select: To allow users to choose from available languages.

OSD Position: Press ▼ or ▲ button to select between horizontal and vertical OSD Position adjustment.

H. Position: To horizontally adjust the OSD position.

▲: move OSD to the right, ▼: move OSD to the left.

V. Position: To vertically adjust the OSD position.

▲: move OSD up, ▼: move OSD down.

OSD Time Out: To automatically turn off On Screen Display (OSD) after a preset period of time.

OSD Background: Allows the user to turn the OSD background On or Off.

Memory Recall: To recall factory settings for Video & Audio controls. Press button 2 to select the Memory Recall menu option.

Supporting Timing Modes

STANDARD RESOLUTION

VGA 720 x 400 @ 70Hz

VGA 640 x 480 @ 60Hz

MAC 640 x 480 @ 67Hz

VESA 640 x 480 @ 72Hz

VESA 640 x 480 @ 75Hz

VESA 800 x 600 @ 56Hz

VESA 800 x 600 @ 60Hz

VESA 800 x 600 @ 72Hz

VESA 800 x 600 @ 75Hz

MAC 832 x 624 @ 75Hz

VESA 1024 x 768 @ 60Hz

VESA 1024 x 768 @ 70Hz

VESA 1024 x 768 @ 75Hz

VESA 1280 x 960 @ 60Hz

VESA 1152 x 864 @ 75Hz

MAC 1152 x 870 @ 75Hz

VESA 1280 x 1024 @ 60Hz

VESA 1280 x 1024 @ 75Hz

VESA 1440 x 900 @ 60Hz

VESA 1440 x 900 @ 75Hz

CVT 1400 x 1050 @ 60Hz

VESA 1600 x 1200 @ 60Hz

VESA 1680 x 1050 @ 60Hz

VESA 1920 x 1080 @ 60Hz

Note: Simultaneously press 1 and 2 keys on monitor panel to switch between similar PC timings. Similar PC Timing on list below:

- 720 x 400 @ 70Hz / 640 x 400 @ 70Hz

• 1400 x 1050 @ 60Hz / 1680 x 1050 @ 60Hz

- 640 x 480 @ 60Hz / 720 x 480 @ 60Hz

Warning: Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor.

Technical Information

Technical Specification

Panel 23.6" TFT (with LED back light)
Power Management On: 35 Watts (typical), 40 Watts (maximum)
Displayable Resolution	Full HD 1920 x 1080 max.
	Vertical Frequency 60Hz max.
Pixel Dimension 0.2715x 0.2715 mm
Display Color 16.7M
Tilt 0°~ 20°
Active Display Area 521.38mm ×293.22mm
Temperature Operating: 0°C ~ + 40°C
Compliance FCC, CE, UL, WEEE
Power Input Voltage AC100-240 V
Speaker 3W x 2

Care and Maintenance

Care

• Avoid exposing your Monitor directly to sunlight or other heat source. Place your Monitor away from the sun to reduce glare.
  ● Put your Monitor in a well ventilated area.
• Do not place any heavy things on top of your Monitor.
  ● Make certain your Monitor is installed in a clean and moisture-free area.
• Keep your Monitor away from magnets, motors, transformers, speakers, and TV sets.

Note

• Move the LED out of the package and take off the plastic bag and Polystyrene Foam.
  ● Pull the base from Parallel versus Panel to Vertical.
• Adjust the Panel within 0 degree leaning forward and 20 degree leaning backward.

Safety Tips

• If smoke, abnormal noise or odor came out from your Monitor, caution you should remove the power cord immediately and call your service center.
• Never remove the rear cover of your Monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock to human bodies.
• Never try to repair your Monitor yourself. Always call your service center or a qualified technician to fix it.

Troubleshooting

No power

● Make sure A/C power cord is securely connected to the power adapter and the power supply is firmly connected to the Monitor.
- Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage.
● Make sure all signal cables are installed.

Power on but no screen image

● Make sure the video cable supplied with the Monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it.
- Adjust brightness.

Wrong or abnormal colors

• If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.
• Connect the Monitor to another computer.
