Product Type	USB-C Hub / Adapter
Input Interface	USB-C Female x1 (with provided Type-C male to male cable)
Output Interfaces	2x USB 3.0 Female, 1x USB-C Female (data & PD), 1x HDMI Female, 1x Micro SD, 1x SD/MMC
USB 3.0 Data Speed	Up to 5 Gbps
USB-C Data Speed	Up to 5 Gbps (data), PD up to 100W
HDMI Resolution	Up to 4Kx2K@30Hz
PD Charging Output	Up to 100W (20V/5A)
USB-A Power (BC 1.2)	One port supports up to 7.5W (5V/1.5A)
Card Reader Standard	SD v3.0 UHS-I, up to 104 MB/s (SDR104)
Card Reader Compatibility	Micro SD and SD/MMC, simultaneous support
Hot Swap Support	Yes
Fast Role Swap (PD 3.0)	Yes
Operating Temperature	0°C to +45°C
Storage Temperature	-10°C to +70°C
Operating Humidity	10% to 85% RH (non-condensing)
Storage Humidity	5% to 90% RH (non-condensing)
Certification	CE
Manufacturer	Assmann Electronic GmbH, Auf dem Schüffel 3, 58513 Lüdenscheid, Germany
Package Contents	Main unit x1, User Manual x1

Frequently Asked Questions - DA-70867 ASSMANN Electronic

Is this hub compatible with my laptop?

The hub works with any laptop or mobile phone that supports DP Alt-mode over USB-C. Ensure your device's USB-C port supports DisplayPort Alternate Mode and USB Power Delivery.

Can I charge my laptop through this hub?

Yes, the USB-C female port supports PD Charging up to 100W (20V/5A). Connect a PD charger to this port to charge your laptop while using other functions.

What is the maximum HDMI resolution supported?

The HDMI port supports resolutions up to 4Kx2K@30Hz.

Does it support USB 3.0 speeds?

Yes, the two USB-A ports are USB 3.0 with data transfer speeds up to 5 Gbps, downward compatible with USB 2.0.

How do I insert SD or Micro SD cards?

Insert the card into the corresponding slot: SD/MMC for standard SD cards and Micro SD for micro cards. Both slots can work simultaneously.

Does this hub work with mobile phones?

Yes, it works with mobile phones that support DP Alt-mode over USB-C. You can use it to connect peripherals or display output.

Is the included cable replaceable?

The hub is designed to work with the provided Type-C male to male cable. If lost, contact Assmann for a replacement with the same specifications. Using other cables may affect performance.

Can I use multiple devices simultaneously?

Yes, you can connect multiple devices to the USB-A ports, HDMI, and card reader at the same time. The hub supports plug and play and hot swap.

What is the maximum power delivery for the USB-C PD port?

The USB-C female port supports PD charging up to 100W (20V/5A). It also supports Fast Role Swap to prevent disconnection when plugging/unplugging the PD adapter.

Does the hub support hot swapping?

Yes, all interfaces support hot swap, allowing you to connect or disconnect devices without restarting your computer.

USER MANUAL DA-70867 ASSMANN Electronic

White rectangular electronic device labeled 'DIGITUS' with three USB ports and port labels (no readable text beyond branding)

User Manual

DA-70867

1.0 INTRODUCTION

This is a USB-C to two USB 3.0, HDMI, Micro SD, SD/MMC, Type-C™ Data and PD Charging Adapter. The USB 3.0 port allows you to connect USB device or another hub to the host USB-C computer, the USB-C female port supports both PD Charging and data; the HDMI port allows you to enjoy high definition picture or video on big screen, and the Micro SD and SD/MMC port allows you to read information in the memory card on the host PC. It can work on all PCs and mobile phones which support DP Alt-mode.

2.0 FEATURES

- Interface:

1. Type-C™ Female x1 (connect to Type-C™ host PC with our equipped Type-C™ M to M cable)
2. Type-C™ Female x1 (for data and PD Charging)
3. USB-A Female x2
4. HDMI Female x1

5. SD slot x1, Micro SD slot x1

6. Support USB 3.0 super speed (5Gbps) transmission, downward compatible with USB 2.0

7. One of the two USB-A port supports BC 1.2, the power of this port can be up to 7.5W (5V/1.5A)
8. USB 3.0 port supports to charge and transmit data for the USB device simultaneously
   • Support HDMI resolution up to 4Kx2K@30Hz
9. Type-C™ female port supports both data (5Gbps) and PD Charging 100W (20V/5A)
10. Multiple USB-C interfaces support plug and play, hot swap
11. Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12(12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
    • Note: Support two card slots to work simultaneously
12. Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
13. Easy to use and carry
    • Note: Description of the Detached Type-C™ M to M Cable
14. It is a USB 3.1 Type-C™ Gen2 Full-featured cable with speed up to 10Gbps; E-marked IC and power output up to 5Amp
15. This product only functions well with our equipped Type-C™ M to M cable or cable produced by us that has the same spec with the original one. So to guarantee the proper functioning of this product, if the equipped cable is lost by accident, please contact our sales to buy another cable of the same spec and avoid using cable produced by other manufacturers.

3.0 SPECIFICATIONS

Input/Output Connector
Input USB-C Female x1 (with our Type-CTM M to M cable)
Output USB 3.0 Female x2	USB-C Female x1 (for data and Charging)HDMI Female x1Micro SDX1SD/MMCX1
Environmental
Operating Temperature 0°C to +45°C
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature -10°C to +70°C
Storage Humidity 5% to 90% RH (no condensation)
Power Supply
USB-C Female Port Up to 100W (20V/5A)

4.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

• Main unit x1
• User Manual x1

5.0 OPERATION

1) Connect the USB-C Female port of this product to USB-C device.
2) Connect the two USB 3.0 outputs of this product to two USB 3.0/2.0 devices
3) Connect HDMI output of this product to HDTV with one HDMI cable
4) Insert Micro SD, SD/MMC card into the responding slots
5) Connect the USB-C charging port, it can charge for the host computer and support power for this product simultaneously

Note:

1) Not all USB-C ports support all features of the USB Type-C ^™ standard. Make sure your notebook's USB-C port supports DisplayPort Alternate Mode (DP-Alt Modi) and USB Power Delivery (PD).
2) The video output capability depends on the graphic card of your notebook and the connected monitor.

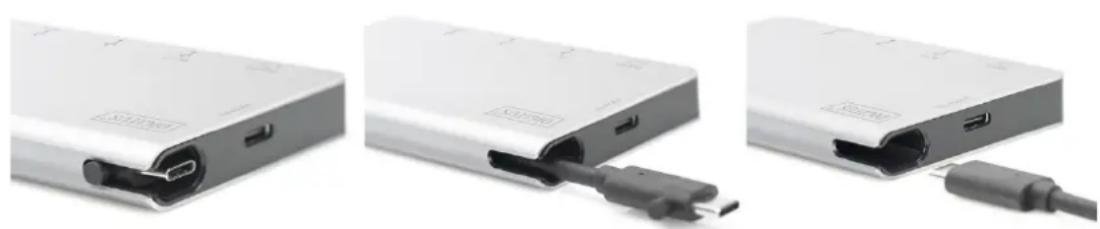

Three views of a white electronic device with ports and connectors, showing internal components and cable insertion (no visible text or symbols)

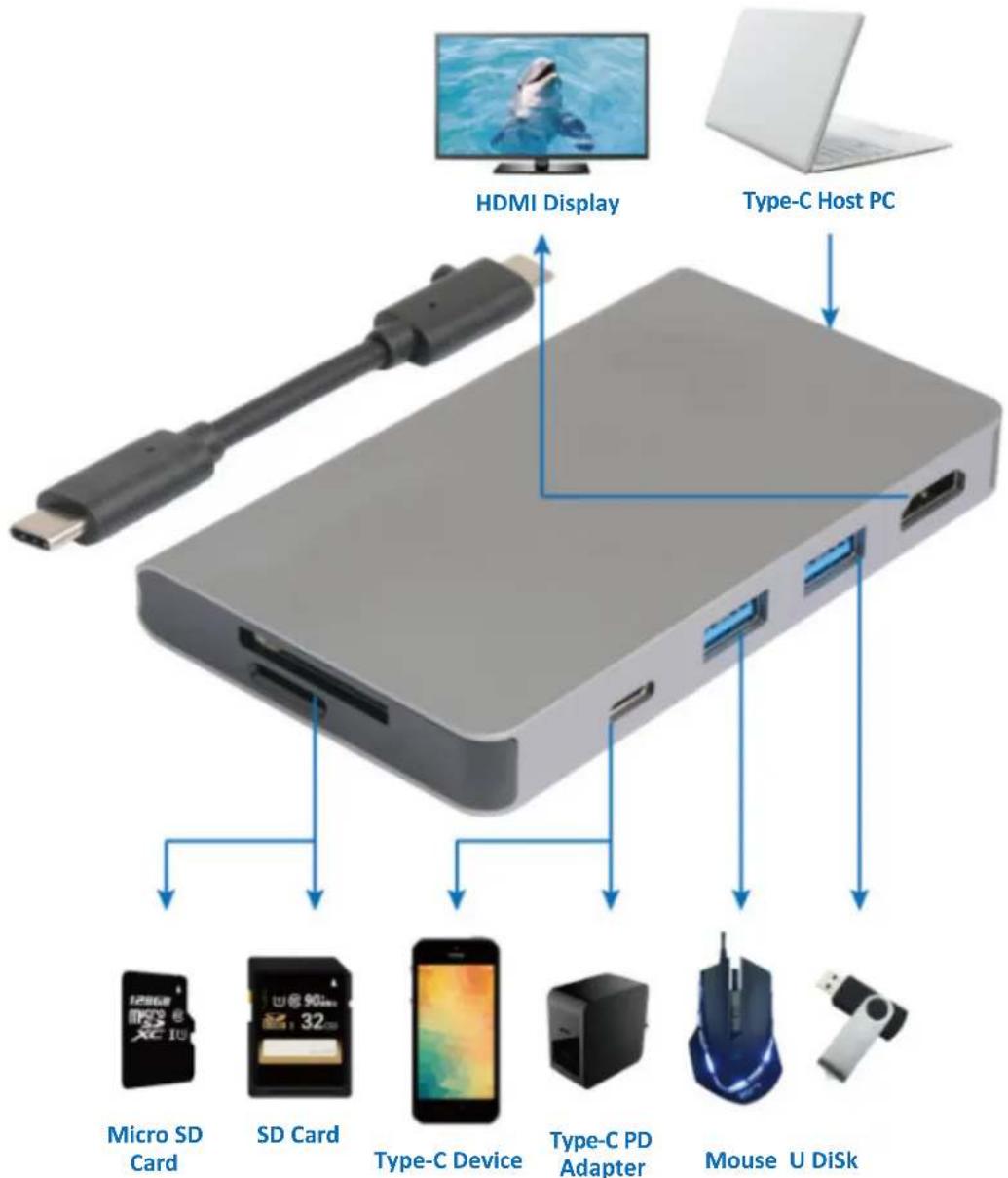

6.0 CONNECTION DIAGRAM

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany

CE
