USER MANUAL Muze K5 PRESTIGIO

You may find detailed warranty information at: www.prestigio.com/support/warranty-terms.

© Copyright 2016 Prestigio. All rights reserved.

Prestigio

Unboxing

Inside your package Your phone at a glance Buttons

Menu

Troubleshooting

Back

Next

Inside your package

Line drawings of various electronic devices including a box, battery pack, plug, and power adapter (no text or symbols)

• Prestigio MultiPhone
- USB cable
- Battery
- Adapter

• Quick start guide
  • Legal & safety notices
• Warranty card

Your phone at a glance

Diagram of smartphone rear panel with numbered labels pointing to camera and ear components

1. Front camera
2. Earpiece
3. Rear camera
4. Flash

5. Volume button

6. Power button

7. Speaker
8. Microphone
9. Micro USB port
10. Earphone jack

Prestigio

Inside your package

Your phone at a glance

Buttons

Menu

Troubleshooting

Back

Next

Buttons

The back, start and search keys help you navigate your phone.

• Tap to open a list of options available on the current screen. To open the list of recent apps, tap and hold
• Tap to return to the home screen.
• Tap to return to the previous screen.

Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.

Please read the "Legal and safety notices" in your package before use.

Prestigio

Getting started

Installation

Power on your phone

Home screens

List menu

Menu

Troubleshooting

Back

Next

Congratulations on your purchase and welcome to Prestigio. To get the most from your product and enjoy all that Prestigio has to offer, please visit: www.prestigio.com/catalogue/SmartPhones

For more details about your product, please visit: www.prestigio.com/support

Installation

Follow the steps below to prepare your phone for using. Remember to turn off your mobile phone before removing the rear panel.

Remove the rear panel.

2

Take out the battery.

Illustration of a smartphone with a partially open stack of a CD or memory card, showing a red arrow indicating rotation (no text or symbols present)

3

Insert the SIM card.

Standard SIM

Prestigio

Installation

Power on your phone

Home screens

List menu

Menu

Troubleshooting

Back

Next

4

Insert a memory card.

5

Insert the battery into the battery compartment.

Illustration of a smartphone with a red arrow indicating compression or disassembly (no text or symbols present)

6

Put the rear panel back.

Illustration of a smartphone with three red downward arrows indicating force or motion (no text or symbols)

- The use of incompatible SIM cards, manually cut SIM cards, or SIM card adapters may damage the cards or the device, and it may corrupt the data stored on the cards.

- Scratching or bending of the SIM cards may result in the loss of contacts and information, so be careful when handling, inserting, or removing the cards.

Frequent writing and erasing of data shortens the lifespan of memory cards.

Dual SIM standby

The device supports two SIM cards for voice calls and data connection. During a voice call or data transfer via one SIM card, the other SIM card becomes inactive (not registered with your mobile network operator). This means that you cannot receive incoming calls or use data connection via the inactive SIM card. When the call or data transfer ends, both SIM cards will become active and show on the list of registered networks.

Power on your phone

7 Press and hold the power button for a few seconds.

When turning on the device for the first time, follow the on-screen instructions to set up your device.

To turn off your phone, press and hold the power key, and and then tap Power off on the pop-up screen.

2 1

Prestigio

Installation

Power on your phone

Home screens

List menu

Menu

Troubleshooting

Back

Next

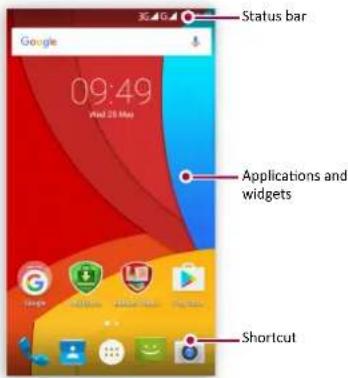

Home screens

Your home screen is the starting point to access all of your phone's features. The home screen can have multiple panels. To view other panels, swipe left or right.

Tap to return to the home screen.

Your phone's home screen consists of the following:

Google 09:49 Air26 Min Status bar Applications and widgets Shortcut

Personalise your wallpaper

Pick your favourite photo as your Home wallpaper. Choose from the available wallpapers, or use any photo you have taken with the camera.

1. On the home screen, tap □> Wallpaper.
2. Select an image and tap Set wallpaper.

Add an app icon to home screen

1. On the home screen, tap to open the list menu.
2. Tap and hold an application icon.
3. Drag it into a panel preview.

Remove an item on home screen

1. Tap and hold an item to remove.
2. Drag the item to the Remove option.
3. When the Remove option turns red, release the item.

Prestigio

Installation

Power on your phone

Home screens

List menu

Menu

Troubleshooting

Back

Next

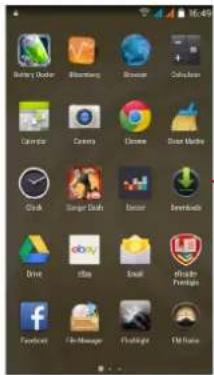

List menu

All your apps' icons can be found on the list menu. On the home screen, tap 📋 to open the list menu. Tap ← or to return to the home screen. Your phone's list menu consists of the following:

Battery Make Bluetooth Browse Calculator Gamebox Camera Chrome Drive Mode Clock Timer Dash Sensor Downloads Drive file Email Apache Prompts Facebook File Messenger Flash games 10 MHz

Applications

Finger tips

Only use your fingers to use the touch screen.

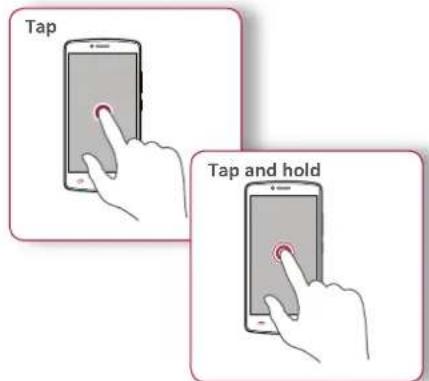

Tap Tap and hold

• To open an application, to select a menu item, to press an on-screen button, or to enter a character using the on-screen keyboard, tap it with a finger.
• Tap and hold an item for more than 2 seconds to access available options.

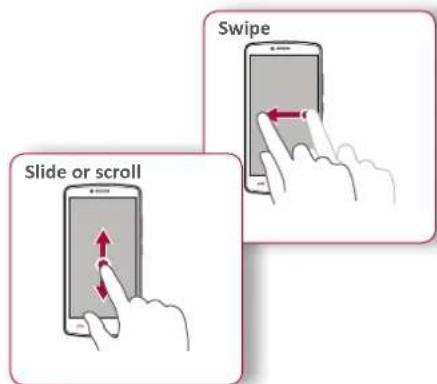

Slide or scroll Swipe

• Quickly swipe your finger vertically or horizontally across the screen to go to other home pages, scroll through documents, and more.
• Slide your finger vertically across the screen to open drop-down menu. Drag up or down to scroll.

Prestigio

Finger tips

Charge the battery

Connect to your PC

Rotate the screen

Lock and unlock the screen

Use the notifications panel

Enter text

System update

Status icons

Menu

Troubleshooting

Back

Next

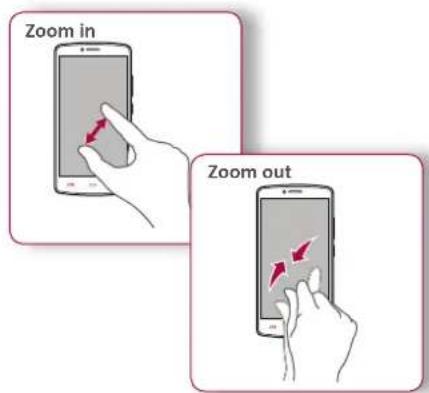

Zoom in Zoom out

• Spread two fingers apart on a web page, map, or image to zoom in a part.
• Pinch two fingers together on a web page, map, or image to zoom out a part.

Flick

• Flick left or right on the home screen or the applications screen to see another panel. Flick up or down to scroll through a web page or a list, such as contacts.

Prestigio

Finger tips

Charge the battery

Connect to your PC

Rotate the screen

Lock and unlock the screen

Use the notifications panel

Enter text

System update

Status icons

Menu

Troubleshooting

Back

Next

Charge the battery

A new battery is partially charged. The battery icon at the upper-right corner shows the level of charging status.

Illustration of a smartphone with a cable inserted into its connector (no text or symbols)

1. Plug the small end of the charger into the micro USB port of the device, and plug the large end of the charger into an electric socket.
2. After being fully charged, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.

Always use authentic accessories to optimise your battery performance. Non-authentic accessories (eg. chargers) can damage your battery and even your phone.

Optimise your battery performance

Here are some tips to help you optimise your battery performance.

-Always ensure that your phone profile is appropriately set to meet your actual usage.
-If you are not using Bluetooth, Wi-Fi, GPS or other applications, turn them off.
-Adjust the intensity of your display screen's backlight to low or medium level and for the shortest duration.
- Avoid using or placing your phone near magnetic objects (eg. a radio or television) or on metal surfaces, which will impact the network connection and ultimately drain power from your battery.

Prestigio

Finger tips

Charge the battery

Connect to your PC

Rotate the screen

Lock and unlock the screen

Use the notifications panel

Enter text

System update

Status icons

Menu

Troubleshooting

Back

Next

Connect to your PC

You may need to connect your phone to a PC in order to complete activation. Your phone's micro USB port allows you to exchange media and other files with a PC.

Illustration of a smartphone connected to a laptop via a cable (no text or symbols)

Load files from your PC

1. Connect your phone to the PC with the included USB cable.
2. Open the notifications panel, and then tap Connected as a media device > Media device (MTP).
3. Transfer files between your phone and the PC.

Rotate the screen

For many screens, you can automatically change the screen orientation from portrait to landscape by turning your phone sideways. When entering text, you can turn your phone sideways to bring up a bigger keyboard.

Two smartphones displaying a scenic photo of sailboats on water, one open and one closed (no text or symbols visible)

To prevent the display from rotating automatically, open the notifications panel and deselect Auto rotation.

• Some applications do not allow screen rotation.
• Some applications display a different screen depending on the orientation.

Prestigio

Finger tips

Charge the battery

Connect to your PC

Rotate the screen

Lock and unlock the screen

Use the notifications panel

Enter text

System update

Status icons

Menu

Troubleshooting

Back

Next

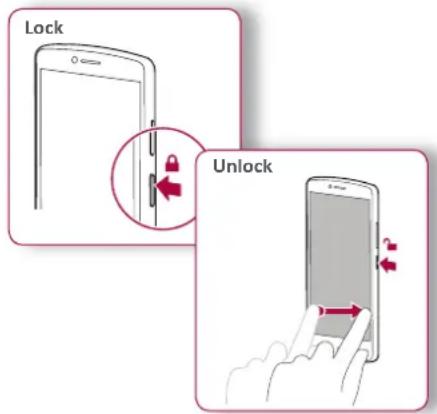

Lock and unlock the screen

When not in use, lock your phone to prevent unwanted operations and save the battery power.

Lock Unlock

Auto lock

You can set a time span for the screen to be locked automatically.

1. On the list menu, tap ⚙️ Settings >Display >Sleep.

2. Select your desired time span.

Set screen lock pattern

Protect your personal information and prevent others from using your phone without your permission by setting a screen lock pattern, PIN, or password.

- On the list menu, tap Settings >Security >Screen lock.

When your phone is locked, Your phone can still:

• Receive calls, text messages, and other updates.
• Play music.
• Adjust the volume.

Prestigio

Finger tips

Charge the battery

Connect to your PC

Rotate the screen

Lock and unlock the screen

Use the notifications panel

Enter text

System update

Status icons

Menu

Troubleshooting

Back

Next

Use the notifications panel

Slide down from the top of the screen to open the notifications panel. When you get a new notification, you can open it to see what event or new info you have received. You can also quickly access settings from it. It allows you to easily turn airplane mode, Wi-Fi, and Bluetooth on and off. It also provides a shortcut to set the brightness and orientation of your screen.

16:13 16/07/2014 App permission App permission management is closed Dismiss the notification Quick settings Notifications CU DU

Enter text

Use the on-screen keyboard to enter text, such as contact information, mail, and web addresses.

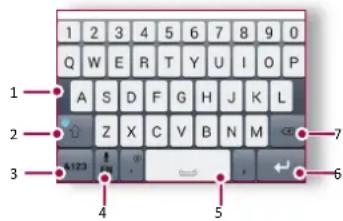

Use the keyboard

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M 6123 4 5 6

1. Character keys
2. Shift key
3. Numbers and symbols key
4. Enter text by voice
5. Space key
6. Enter key
7. Backspace key

Prestigio

Finger tips

Charge the battery

Connect to your PC

Rotate the screen

Lock and unlock the screen

Use the notifications panel

Enter text

System update

Status icons

Menu

Troubleshooting

Back

Next

Enter text by voice

You also can enter the text by activating the voice input feature and then speak into the microphone. Your phone displays what you speak.

Voice typing: tap ↓ on the screen.

Copy and paste text

- Tap a word, drag the circles before and after the word to highlight the section you want to copy, and tap 📄

- To paste the text, tap and hold at the point where you want to paste the text. Tap Paste.

System update

Your phone can check and notify you if there is a new upgrade available. You can also manually check if there is an available update. You can set this option in Settings > About phone > updates.

Do not press any keys while the device is upgrading.

Status icons

The icons in the status bar at the top of the screen give information about your phone:

	Control (control) Control (control)
Vibration mode activated W	Control (control) Control (control)
Airplane mode activated	Control (control) (control) (side of area)
Battery power level Bluetooth	Control (control) Control (control)
Calls in progress Connected t	Control (control) Control (control)
Missed call	Wired earphones + Control (control) (control) connected
New SMS or MMS	Wired earphones Control (control) Control (control)
GPRS network connected No	Control (control) Control (control)
EDGE network connected A	Control (control) Control (control)
HSPA network connected	Control (control) Control (control)

Learn to use calling functions, such as making and answering calls, using options available during a call or customising and using call-related features.

Calls

Make and end a call

1. On the home screen or list menu, tap Phone.
2. Tap to open the dial pad.
3. Enter the phone number, and then tap.
4. Tap to end a call.

Answer a call

When you receive a phone call from a contact, the incoming call screen appears. To pick up the phone,

Slide to.

Silence an incoming call

When a call comes in, press the power button or volume button to mute the ringing sound without rejecting the call

Set up a conference call

If network is available, you can make the first call or accept a call. Then simply dial each subsequent call to add it to the conference.

1. During a call, tap to make a call to another person.
2. The second number is dialled, and the first call is put on hold at this time.
3. Tap to add the contact to a conference call.

Make sure your SIM card is enabled with conference calling service. Contact your mobile operator for details.

Make an emergency call

In some regions, you can make emergency calls even if you do not have a SIM card installed or your SIM card has been blocked.

1. On the home screen, tap Phone.
2. Tap to open the dial pad.
3. Dial the emergency number for your location, and then tap

If you are out of base station coverage, you will not be able to make an emergency call.

In Europe, the standard emergency number is 112; in the UK, it is 999.

Contacts

Contacts are stored in one of the two available phone books: SIM phone book (located on your SIM card) or the Smart phone book (located on your phone).

- To view your contacts, tap People on the home screen or list menu.

Search for a contact

1. Scroll up or down the contact list.
2. Tap and enter the first few letters of the name in the search bar.
3. Select the contact from the option list.

Add a new contact

Method one:

1. On the home screen or list menu, tap Phone.
2. Tap to open the dial pad.
3. Enter a number, tap Add to contacts.
4. Add details as desired.
5. Tap Done to finish and save.

Method two:

1. Go to People to view the contact list.
2. Tap to add a new contact.

Import/Export contacts

1. Go to People to view the contact list.
2. Tap > Import/export.
3. Select the contacts storage.
4. Follow the prompts to finish.

Delete contacts

1. Go to People to view the contact list.
2. Tap > Delete contact.
3. Choose the contacts you wish to remove.
4. Tap OK to delete the contacts.

Contact groups

You can group your contacts as different groups. For different groups, you can use different identifications, and send messages to a group.

Add contacts to a group

1. Go to People to view the contact list.
2. Tap to view contact groups.
3. Tap to add contacts to a group.
4. Enter your group's name, and tap to add contacts.

Messages let you exchange text messages with other SMS and MMS devices via your cellular connection. Your sent and received messages are neatly grouped into conversations, by contact name or phone number.

On the home screen or list menu, tap Messaging. And then tap to start composing a new message.

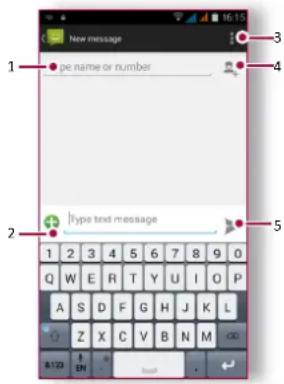

New message 1 pe name or number 2 type text message 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Q Z X C V B N M ∞ 8/123 EN Touch

There is a limit on the number of characters for a single text message (displayed above the send button). If you exceed the limit, your text message will be delivered as one but will be billed as more than one message.

Prestigio

Send a message

Check your message

Reply to a message

Forward or delete a message

Delete a conversation

Menu

Troubleshooting

Back

Next

Check your message

Depending on your notification settings, your phone plays a sound, vibrates, or displays the message briefly in the status bar when you receive a new message.

- On the home screen or list menu, tap Messaging. To check a message, tap a conversation.

Reply to a message

1. On the messages screen, tap the conversation containing the message.
2. In the text box, enter your message.
3. Tap to send the message.

Forward or delete a message

1. On the messages screen, tap the conversation containing the message.
2. Tap and hold a message.
3. In the pop-up window, select Forward or Delete.

Delete a conversation

1. On the home screen or list menu, tap
   Messaging to display the messages screen.
2. Tap and hold a contact or phone number.
3. Tap at the bottom of the screen.
   ges screen.

Use this application to send or view email messages. Learn to send or view email messages via your personal or company email account.

Set up an email account

1. On the home screen or list menu, tap Email and do one of the following:
   -If this is your first time adding an email account in Mail, move to the next step.
   -If you have already added an email account, then tap:> Settings > add account.
2. Enter the email address and password for your email account.

When you finish setting up the email account, the email messages will download to your device.

Delete an email account

1. Go to Settings > Accounts.
2. Tap the email account your want to delete.

3. Tap > Remove account.

4. Enter a recipient

5. Enter the mail subject
6. More options
7. Send the mail

View your mails

1. On the email inbox, tap to check whether there is a new mail.
2. Tap the desired mail to read it. -Use or to view the previous or next mail.

Search for a mail

1. Tap to display the search bar.
2. Choose a search option in the drop-down list.
3. Enter the first few letters of the mail sender or subject in the search bar.
4. Select the mail from the list.

Reply to a mail

1. On the email inbox, tap the email message.
2. Tap, and then compose your mail.
3. Tap to send the mail.

Delete mails

- Tap the mail you wish to delete, and then tap 📄.

With your phone, you can take both photos and videos as desired. In addition to a rear camera, there is a camera on the front for video calls and self-portraits.

-To use the camera, on the home screen or list menu, tap 📄 Camera.

Your camera at a galance

Scenic coastal view at dusk with a sailboat on calm water, hills in background, no visible text or symbols

1. Capture mode
2. Image preview
3. Capture photo
4. Video recording
5. Phone / video settings
6. Flash settings
7. Switch between front/rear camera

Take a photo

1. Turn on the camera.
2. Change the camera setting if necessary.
3. Point the camera at what you want to capture.
4. Tap to capture the photo.

Take a photo of yourself

1. Turn on the camera.
2. On the screen, tap
3. Tap to capture the photo.

Take a panoramic photo

You can capture anything wide or tall objects in a single photo with your phone.

1. Turn on the camera.
2. Scroll down the capture modes, and then tap
3. When you are ready to take the first shot, tap
4. A directional arrow appears. Pan your phone as smoothly as you can.
5. The camera will stitch the shots into a single photo.

Prestigio

Your camera at a galance

Take a photo

Record a video

Photo and video settigns

Menu

Troubleshooting

Back

Next

Record a video

1. Turn on the camera.
2. When you are ready to start recording, tap
3. To stop recording, tap

Photo and video settigns

Before you take a photo or record a video, customise your photo/video settings.

General settings
GPS location info	Attach a GPS location tag to the photo.
Exposure This determines how much light the camera's sensor receives.
Scene mode	Select your desired scene mode.
White balance Select an appropriate white balance, so images have a true-to-life colour range.
Anti-flicker Select a band to avoid the impacts on photos caused by flickers from lighting sources.
Restore defaults	Restore to default settings.
Photo settings
Zero shutter delay	The ZSD (zero shutter delay) function helps you capture photos immediately.
Face detection	Set the ideal exposure and clarity of faces.
Self timer Select a time span for shutter delay to take a self-portrait.

Picture size Select from various standard sizes for your picture.
Preview size Set the preview screen ratio before you take a photo.
ISO An ISO value indicates the light sensitivity of your camera's imaging sensor. Higher values are for fast-moving or poorly-lit objects.
Video settings
EIS The EIS (Electronic Image Stabilization) function helps reduce blurring associated with the motion of a camera during exposure
Time lapse interval	Set the time lapse interval to adjust the speed of your video output.
Video quality Set the quality level for videos as this setting will affect your file size.

Your phone provides several multimedia for your entertainment. You can view your photo gallery, enjoy music, and watch videos.

Gallery

View your photos

1. On the home screen or list menu, tap Gallery.
2. Browse an album or a group of photos.
3. Tap a photo to view it full-screen.

Zoom in and out

Spread two fingers apart on any place to zoom in.

Pinch to zoom out, or double-tap to return.

Edit your photos

When viewing a photo, use the keys on the screen to edit the photos.

Scenic coastal view at dusk with a sailboat on water, hills in background, no visible text or symbols

1. Edit the photo
2. More options
3. Share your photo

Video player

You can use the video player on your phone to watch videos.

Watch a video

1. On the home screen or list menu, tap Videos.
2. Select the video that you want to watch.
3. Tap the on-screen keys to control the video playback.
4. Press the volume button to adjust the sound.
5. Tap to select more options.

Music player

You can listen to your favourite music with the music player. The music app is a central hub for your favourite music whether it is stored in your phone or streamed through a music service.

Listen to music

1. On the home screen or list menu, tap Music.
2. Tap a song from the list, or tap to find your desired song.
3. Tap the on-screen keys to control the music playback.
4. Press the volume button to adjust the sound.
5. Tap to select more options.

FM radio

You can listen to radio programs with your phone.

You must connect a headset before using the FM radio on your phone.

Listen to a radio station

1. On the some screen or list menu, tap Radio.
2. Tap > Search. It will start scanning automatically and save the available channels.
3. Use the on-screen keys to control playback:
4. Press the volume button to adjust the sound.
5. Tap to select more options.

You can connect your phone to the Internet and browse a web page.

Connect to the Internet

Your phone connects to the Internet whenever necessary, using a Wi-Fi connection (if available) or your mobile operator's data connection.

Data connection

You can use your mobile operator's data connection.

Turn on data connection

1. Go to 📋 Settings > More... > Mobile networks > Data connection.
2. Tap to turn on or off data connection.

Some apps and services may transfer data over your mobile operator's cellular network, which may result in additional fees. Contact your mobile operator for details.

Turn on data roaming

Connect to your mobile operator's partner networks and access data services when you are out

of your mobile operator's coverage area.

1. Go to Settings > Data usage.
2. Tap >> Data roaming to turn it on or off.

Using data services while roaming may be costly. Check with your mobile operator for data roaming rates before you use data roaming.

Use your phone as a wireless router Share your data connection with other devices by turning your phone into a wireless router.

1. Go to Settings > More... > Tethering & portable hotspot.
2. Tap to turn on portable Wi-Fi hotspot.

The other device uses data from your data plan, which may result in data traffic costs. For info on availability and costs, contact your network service provider.

Wi-Fi

Connect the device to a Wi-Fi network to use the Internet or share media files with other devices.

Connect to a wireless network

1. Go to Settings > Wi-Fi.
2. Make sure Wi-Fi is switched to On.
3. The Wi-Fi section will show the list of networks detected.
4. Tap the desired Wi-Fi network you want to connect to.

-If you selected a secured network, you will be asked to enter the network key or password.

Web browse

You can use your phone to browse websites. Before browsing a website, please confirm that you have turn on data connection or Wi-Fi.

Browse a web page

1. On the home screen or list menu, tap Browser.
2. Enter your search keywords or a web page address.

www.prestigio.com 1 2 3 4

1. The previous web page
2. The next web page
3. Web page preview
4. View Bookmarks, History and Saved pages.

Prestigio

Connect to the Internet Web browse

Menu

Troubleshooting

Back

Next

Web page preview

1 2 3 Google

1. View Bookmarks
2. Open a new page
3. Close the web page

Your phone can connect to a compatible Bluetooth device for exchanging data. Bluetooth creates a direct wireless connection between two devices over short distances.

Pair with a Bluetooth device

1. Go to Settings > Bluetooth.
2. Make sure Bluetooth is switched to On.
3. A list of available Bluetooth devices will appear.
4. Tap the device you wish to connect with.
5. The pairing is made if your pairing request is accepted by the other device.

Receive data via Bluetooth

1. Make sure Bluetooth is switched to On.
2. Tap your phone model to make it visible to all nearby Bluetooth devices.
3. Accept the request and pair with the other Bluetooth device(s).
4. Slide to open notifications panel, tap Accept.

Send data via Bluetooth

1. Select the file you want to share.
2. Tap to send the file via Bluetooth.
3. Select a device to start sending the file.

The files received via Bluetooth are stored in the Bluetooth folder.

Use the Google Play Store to purchase and download applications and games that are able to run on your phone. Choose from a wide variety of free and paid apps ranging from productivity apps, entertainment, to games.

• A Google Wallet™ payment service is required to purchase a paid app. You will be asked to confirm the method of payment when you purchase an app.
• The availability of Store and the selection of items available for download depend on your region.

Search and install an app

1. On the list menu, tap Play store.
2. Browse applications by category, or tap to search with a keyword.
3. Select an application to view information.
4. To download it, tap Install.

-If there is a charge for the application, tap the price, and follow the prompts to complete the purchase.

Use a Wi-Fi connection to download large files.

Uninstall an app

1. On the list menu, tap Play store.
2. Tap >My Apps.
3. Select an app you want to uninstall.
4. Tap Uninstall.

Maps & navigation

Use Google maps Find a location

Search for a place Get directions Maps settings

Menu

Troubleshooting

Back

Next

Use this application to pinpoint the location of your phone, search for places, or get directions.

Use Google maps

Google Maps lets you track your current location and receive detailed directions to your destination. It also provides a search tool where you can locate places of interest or an address on a map, or view locations at street level.

- On the home screen or list menu, tap

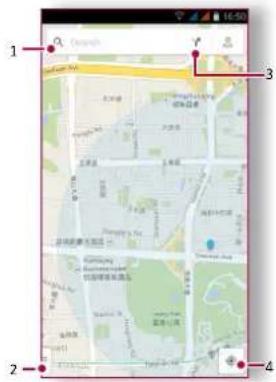

Mobile app screenshot showing a map with numbered annotations pointing to specific locations.

1. find an address or place
2. Map settings
3. Get directions
4. Show your location

Find a location

Turn on or off location service

In order to find your location on your phone, you need to enable location service.

1. Go to Settings > Location.
2. Switch Location to On.

Find your location

- On the Maps screen, tap to find your location on the map.

If you are in an area where there are a lot of surrounding buildings, Locations may have a hard time pinpointing your location.

Search for a place

You can search for a name of an establishment, street, or city. Suggested matches will be shown while you type.

1. On the Maps screen, tap .
2. Enter the place you want to search for.
3. Select the desired place in the result list.

Get directions

Get detailed directions to where you want to go.

1. On the Maps screen, tap to get directions.
2. Enter your start point and end point.
3. Select the desired place in the result list.
4. Choose how you want to get to your destination.
5. The map opens showing the route to your destination.

Maps settings

You can set up the Google Maps, tap > Settings while viewing the maps.

Google search

Use this application to search not only the Internet, but also apps and contents on your phone.

- On the home screen or list menu, tap Google.

Search on the web or your phone

1. Tap the search field, and then enter a keyword.
2. Select one of the suggested keywords that appear.

Search with your voice

Use Google Voice Search to find information on the web just by speaking to your phone.

1. On the home screen or list menu, tap Voice search.
2. If the Google search bar is available on the Home screen, you can also tap 🔔.
3. Speak a keyword or phrase when Speak now appears on the screen.
4. Select one of the suggested keywords that appear.
5. If what you are searching for is in the list, tap the item to open it in its compatible app. Otherwise, tap Retry to search again.

Alarm

You can set up one or more alarms.

Set an alarm

1. On the home screen or list menu, tap Clock.
2. On the clock screen, tap . Ⓤ
3. Tap to add a new alarm.
4. Set the alarm time, and then tap Done.
5. If you want the alarm for multiple days, tap Repeat.

Turn off an alarm

- Select the alarm, and drag the check button to Off.

Stop an alarm

When the alarm sounds,

-Slide to : the alarm stops.

-Slide to : the alarm will sound again after a specific length of time.

Delete an alarm

- Tap the alarm, and then tap

Calendar

You can create events and make plans on your calendar.

Create an event

1. On the home screen or list menu, tap Calendar.
2. Select a date, and then tap: > New event.
3. Edit reminder settings.
4. Tap Done to save the event.

Manage your events

Edit an event

You can only edit events you have created.

1. While viewing your calendar, tap the event your want to edit.

2. Tap, and then make changes to the event.

3. Tap Done.

Delete an event

- Select the event your want to delete, and then tap 📄

Quad core 1.0GHz

RAM 1GB + 8GB eMMC

Android™ 5.1 (olli o ®)

Micro SDHC/SDXC ≤ 32GB

5.0" HD IPS

Asahi Glass

1280*720

2.0 MP + 8.0 MP AF

UMTS: 900/2100 MHz

GSM: 850/900/1800

/1900 MHz

Wi-Fi (802.11 b/g/n), 3G,

Bluetooth 2.1

GPS, A-GPS

2400 mAh

143.7*70.9*9 mm (H*W*D)

166 g

Your phone is not charging

If the battery is completely flat, it might take several minutes of precharge (up to 5 minutes in some cases) before the charging icon is displayed on the screen.

The picture captured with the phone camera is not clear

Make sure that the camera lens on both sides is clean.

Your device freezes or has fatal errors

If your device freezes or hangs, you may need to close programs or reset the device to regain functionality. If your device is frozen and unresponsive, remove the battery and try to switch the phone on. The device reboots automatically.

If this does not solve the problem, perform a factory data reset. On the list menu, tap Settings > Backup

& reset > Factory data reset.

Others cannot hear you speaking on a call

-Ensure that you are not covering the built-in microphone.

-Ensure that the microphone is close to your mouth.

-If using a headset, ensure that it is properly

connected.

Another Bluetooth device is not located

-Ensure that the Bluetooth wireless feature is activated on your device.

-Ensure that the Bluetooth wireless feature is activated on the device you wish to connect to, if necessary.

-Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).
