USER MANUAL KD-SC607EE JVC

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols)

OFF/ATT SOUND U R SOURCE F D VOL- VOL+ JVC HIV-REACH

JVC SDWX4 KD-SC601 1 2 3 4 5 6 7. EQ 8. M4 9. NAM 10 11. MFT 12. MBD RDS TREPTY CD-14 U1N1 SND MOSL MOSC 1 2 3 4 5 6 TEN1

WMA MP3

For installation and connections, refer to the separate manual.

MANUEL D'INSTRUCTIONS

GEBRUIKSAANWIJZING

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

CAUTION : Visible and invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL : Synlig og usynlig laserstråling når maskinen er åben eller interlocken fejler. Undgå direkte eksponering til stråling. (d)

VARNING : Synlig och osynlig laserstråning når den öponas och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukhus chletuna tai vialisena oiet altina näkyvälle ja näkymättmälle lasersäte lytle. Våta säleen kohdistumista suoara Ibaesi. (f)

How to reset your unit

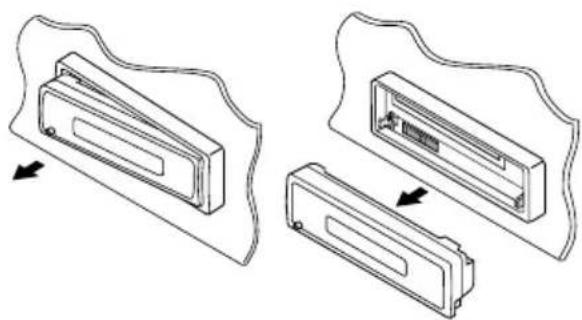

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or a similar tool.

This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

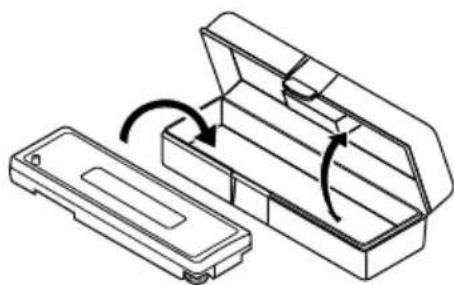

Diagram showing a device component being processed into a labeled package, with arrows indicating the process.

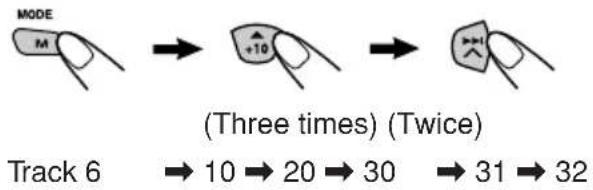

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and ▲/▼ buttons work as different function buttons.

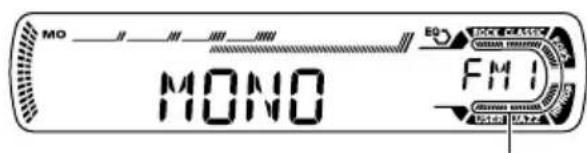

Ex.: When number button 2 works as MO (monaural) button.


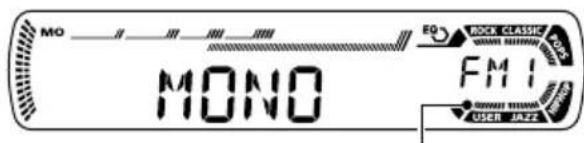

MO MONO EO DOCK CLASSIC FMI USER JAZ

Time countdown indicator

To use these buttons for original functions again after pressing M MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

- Pressing M MODE again also clears the functions mode.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit's chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

CONTENTS

How to reset your unit 2

How to use the M MODE button ...... 2

LOCATION OF THE BUTTONS ...... 4

Control panel 4

Remote controller 5

Preparing the remote controller .... 6

BASIC OPERATIONS ...... 7

Turning on the power 7

Canceling the display demonstration ..... 8

Setting the clock 9

RADIO OPERATIONS .... 10

Listening to the radio 10

Storing stations in memory 11

Tuning in to a preset station 12

RDS OPERATIONS ...... 13

What you can do with RDS 13

Other convenient RDS functions and adjustments 18

CD OPERATIONS ...... 20

Playing a CD 20

Locating a track or a particular portion on a CD 21

Selecting CD playback modes 22

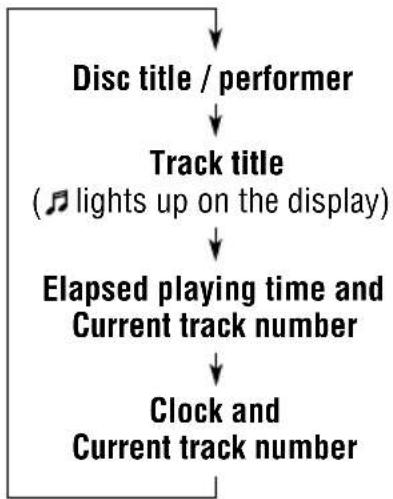

Playing a CD Text 23

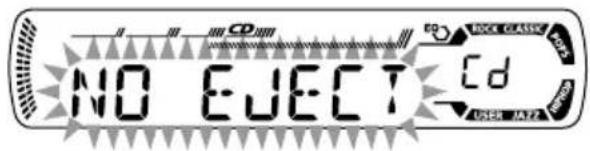

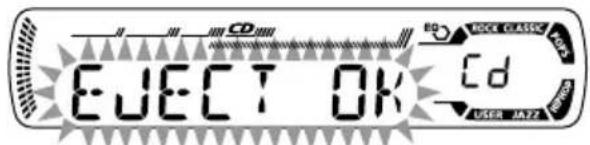

Prohibiting disc ejection 23

MP3/WMA INTRODUCTION 24

What are MP3/WMA? 24

How are MP3/WMA files recorded and played back? 24

MP3/WMA OPERATIONS 25

Playing a disc 25

Locating a file or a particular portion on a disc 26

Selecting playback modes 28

SOUND ADJUSTMENTS 29

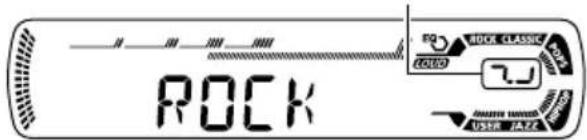

Selecting preset sound modes (C-EQ: custom equalizer) 29

Adjusting the sound 30

OTHER MAIN FUNCTIONS .... 31

Changing the general settings (PSM) ..... 31

Assigning names to the source 34

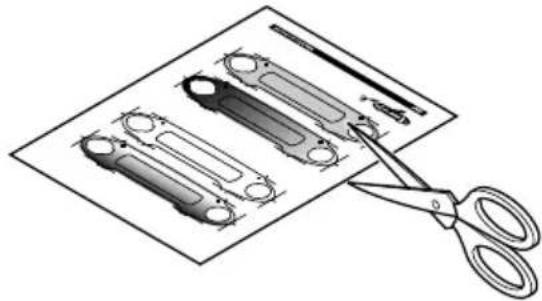

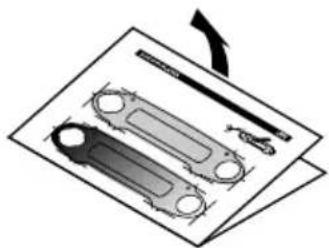

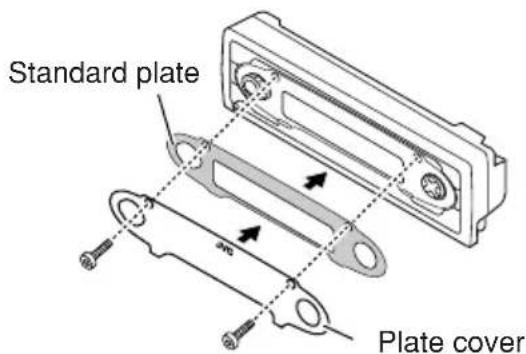

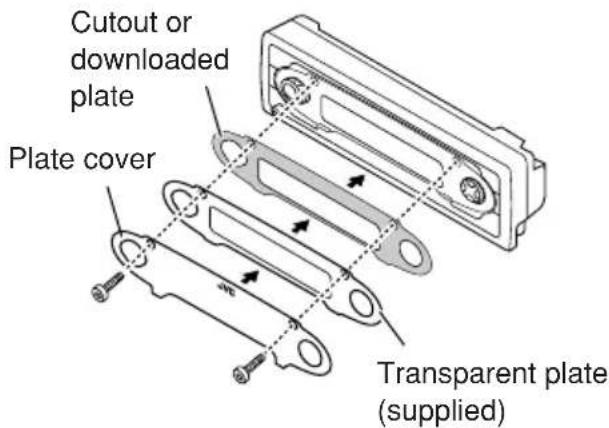

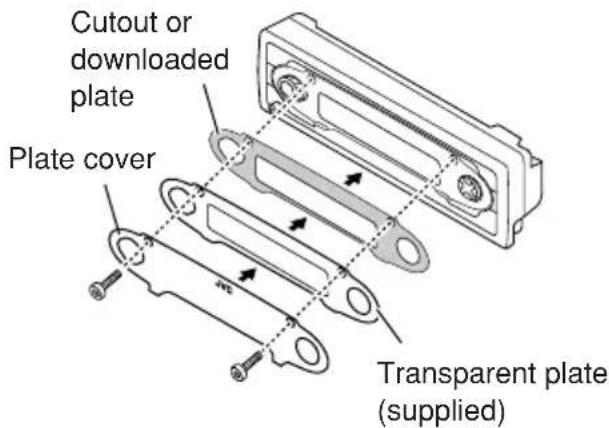

Changing the standard plate 35

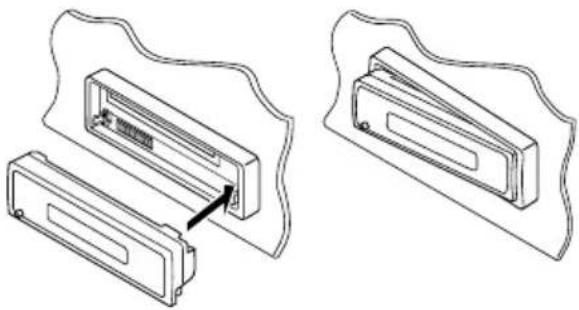

Detaching the control panel 37

CD CHANGER OPERATIONS .... 38

Playing discs 38

Selecting the playback modes 41

EXTERNAL COMPONENT OPERATIONS ... 42

Playing an external component 42

DAB TUNER OPERATIONS .... 43

Tuning in to an ensemble and one of the services 43

Storing DAB services in memory 44

Tuning in to a preset DAB service 45

What you can do more with DAB 46

TROUBLESHOOTING 47

MAINTENANCE 50

Handling discs 50

SPECIFICATIONS 51

BEFORE USE

\*For safety....

- Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

- Stop the car before performing any complicated operations.

\*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

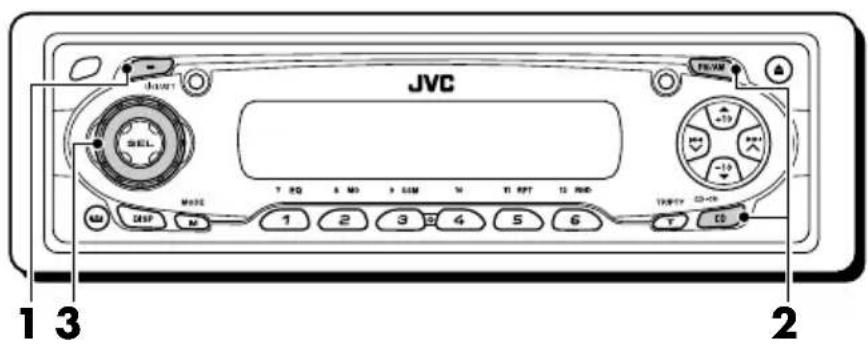

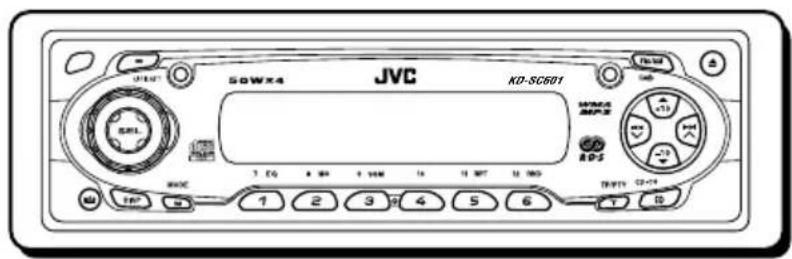

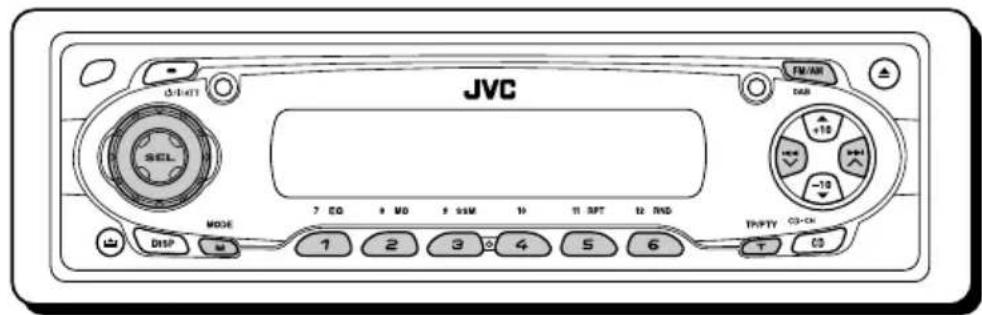

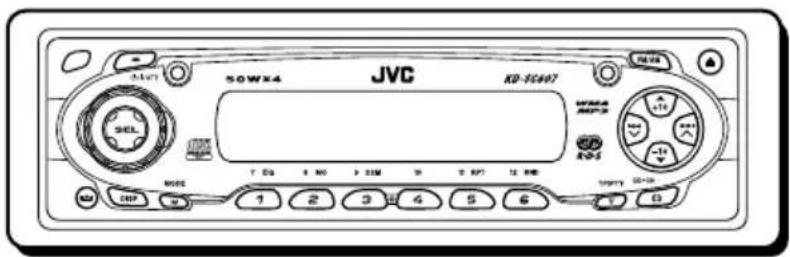

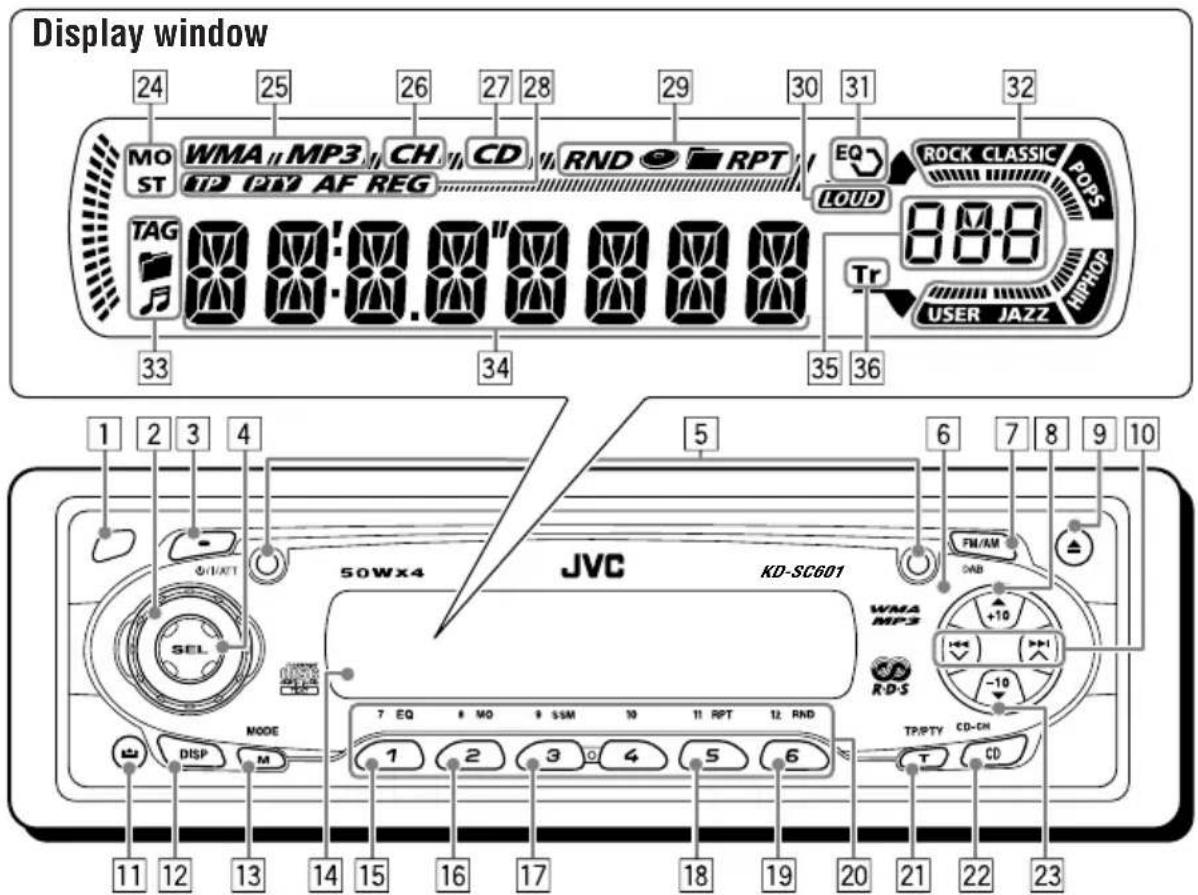

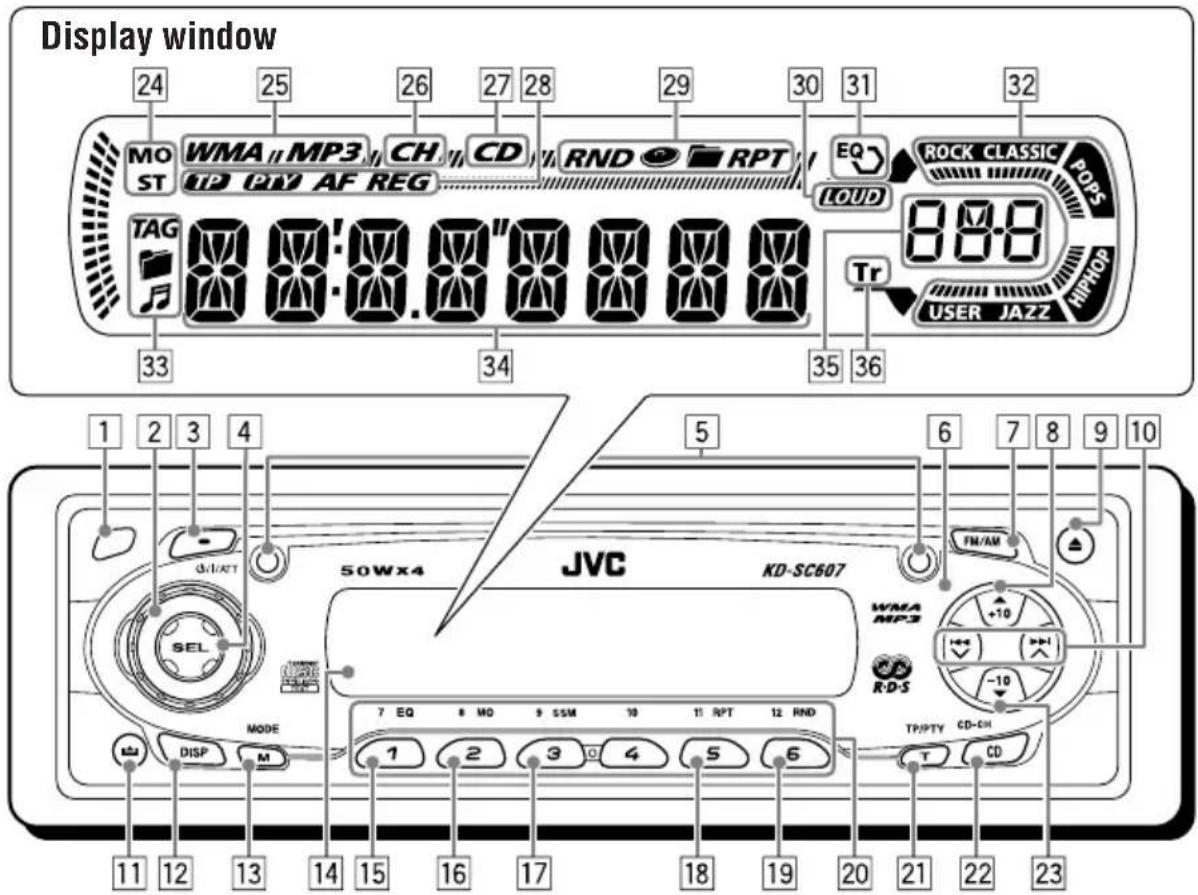

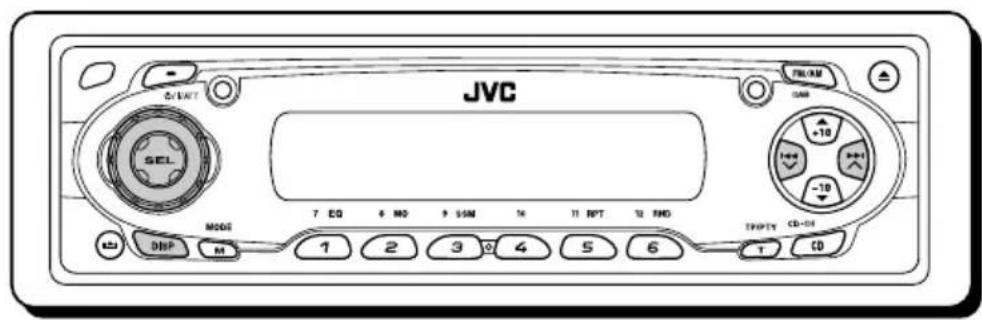

Control panel

Display window 24 25 26 27 28 29 30 31 32 MO WMA MP3 CH CD RND RPT EQ LOUD ROCK CLASSIC POPS ST 12 PTY AF REG 88.8 TAG 33 34 35 36 Tr USER JAZZ MPTOP 5 1 2 3 4 5 6 7 8 9 10 Q/1/XTI 50Wx4 JVC KD-SC601 SEL MODE WMA MP3 RDS FM/AM +10 -10 7 EQ 8 MO 9 SSM 10 11 RPT 12 RND TP/PTY CD-CN 1 2 3 4 5 6 T CD DISP M 11 12 13 14 15 16 17 18 19 20 21 22 23

1 Remote sensor

2 Control dial

3 Qs1aA0by/on/attenuator) button

4 SEL (select) button

5 Screws (M2 × 5 mm)

6 Plate cover and standard plate

7 FM/AM DAB button

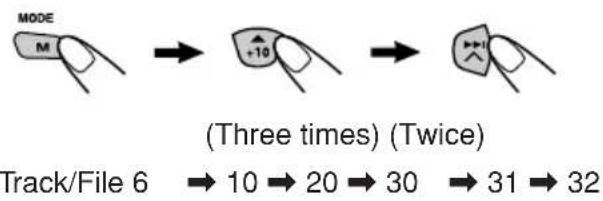

8 ▲ (up) button +10 button

9 ▲ (eject) button

10 |◀◀ ▼ /▶▶| ∧ buttons

11 (control panel release) button

12 DISP (display) button

13 M MODE button

14 Display window

15 EQ (equalizer) button

16 MO (monaural) button

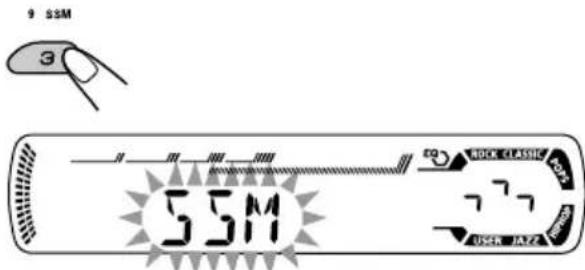

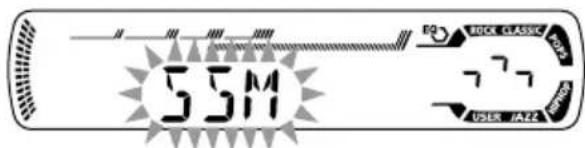

17 SSM (Strong-station Sequential Memory) button

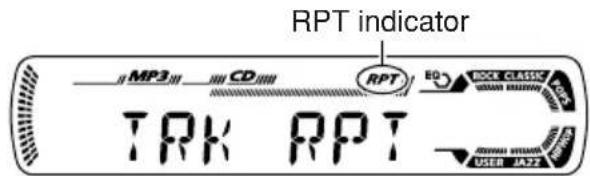

18 RPT (repeat) button

19 RND (random) button

20 Number buttons

21 T TP/PTY (traffic programme/programme type) button

22 CD CD-CH (CD changer) button

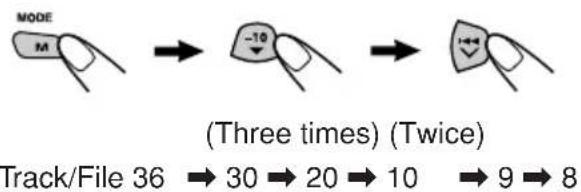

23 ▼ (down) button -10 button

Display window

24 Tuner reception indicators—MO (monaural), ST (stereo)

25 Disc type indicators—WMA, MP3

26 CH (CD changer) indicator

27 CD indicator

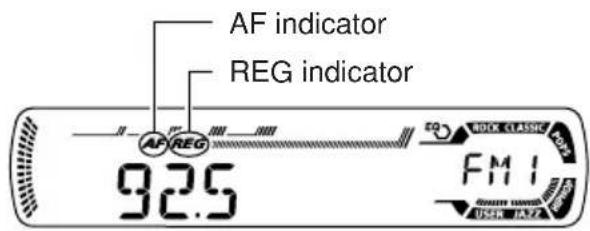

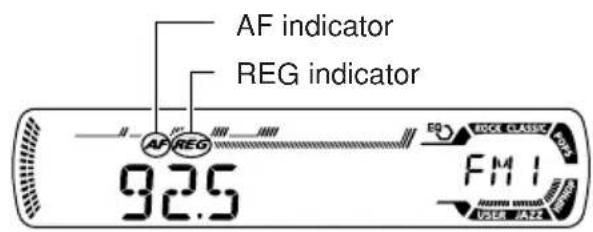

28 RDS indicators—TP, PTY, AF, REG

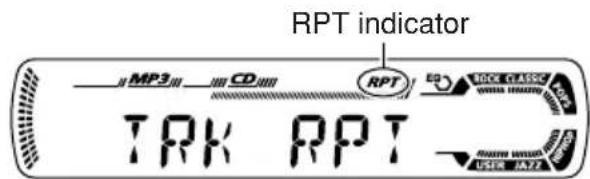

29 Playback mode/item indicators—RND (random), (disc), (folder), RPT (repeat)

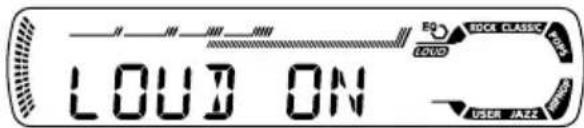

30 LOUD (loudness) indicator

31 EQ (equalizer) indicator

32 Sound mode (C-EQ: custom equalizer) indicators—ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

- also works as level meter during play if the level meter is activated (see page 33).

33 Disc information indicators—TAG (ID3 Tag), (folder), track/file)

34 Main display

35 Source display Volume level indicator

36 Tr (track) indicator

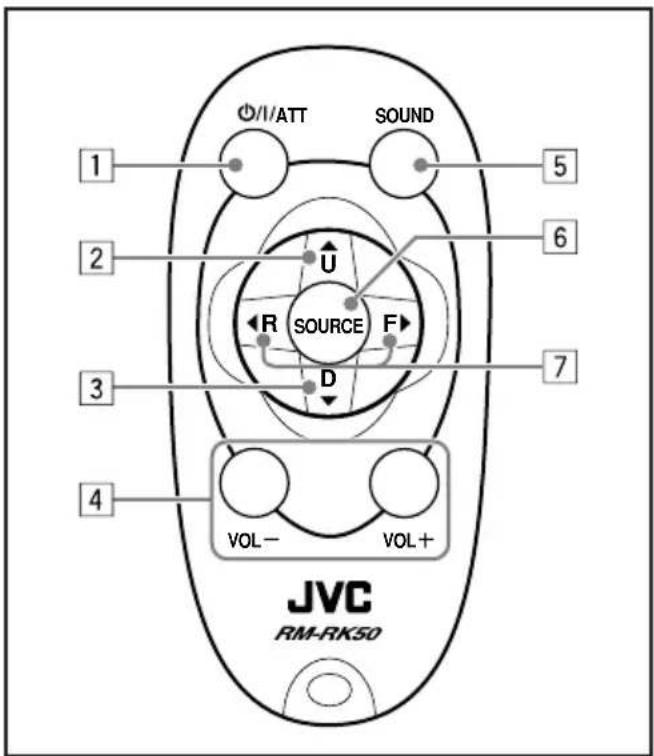

Remote controller

ØI/ATT SOUND 1 2 U R SOURCE F D 3 4 VOL- VOL+ JVC RM-RK50

1 • Turns on the unit if pressed when the unit is turned off.
- Turns off the unit if pressed and held until "SEE YOU" appears on the display.
- Drops the volume level in a moment if pressed briefly.
Press again to resume the volume.

2 • Selects the band while listening to the radio (or the DAB tuner). Each time you press the button, the band changes.

- Skips to the first file of the next folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the next folder and start playing the first file.

- While playing an MP3 disc on an MP3-compatible CD changer; - Skips to the next disc if pressed briefly. - Skips to the next folder if pressed and held.

Note: While playing a CD on a CD changer, this always skips to the next disc.

3 • Selects the preset stations (or services) while listening to the radio (or the DAB tuner).
Each time you press the button, the preset station (or service) number increases, and the selected station (or service) is tuned in.
- Skips to the first file of the previous folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the previous folder and start playing the first file.
- While playing an MP3 disc on an MP3-compatible CD changer;
- Skips to the previous disc if pressed briefly.
- Skips to the previous folder if pressed and held.
- Skips to the previous disc if pressed briefly. - Skips to the previous folder if pressed and held.
Note: While playing a CD on a CD changer, this always skips to the previous disc.

4 Functions the same as the control dial on the main unit.

Note: These buttons do not function for the preferred setting mode adjustment.

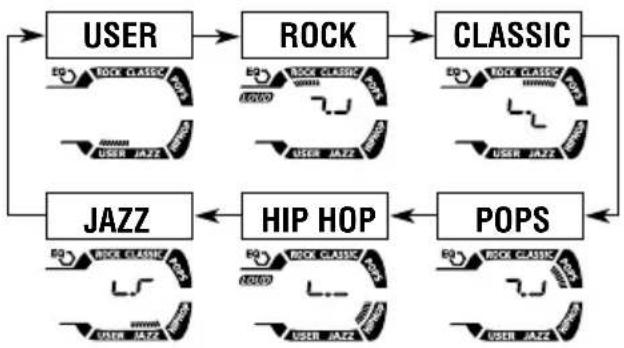

5 Selects the sound mode (C-EQ: custom equalizer). Each time you press the button, the sound mode (C-EQ) changes.

6 Selects the source. Each time you press the button, the source changes.

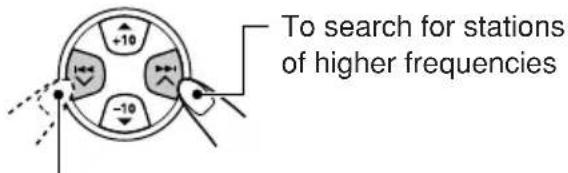

7 • Searches for stations while listening to the radio.
- Selects services while listening to the DAB tuner if pressed briefly.
• Searches for ensembles while listening to the DAB tuner if pressed for more than one second.
- Fast-forwards or reverses the track/file if pressed and held while listening to a disc.
- Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

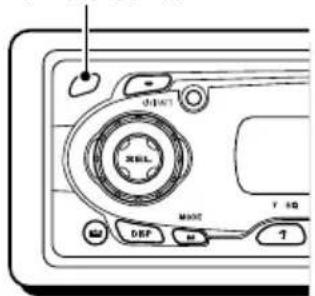

Preparing the remote controller

Before using the remote controller:

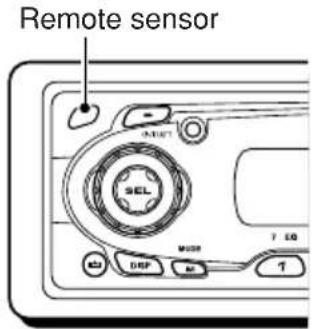

- Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

Remote sensor SEL MOSR 7.50 DBP M T

- Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

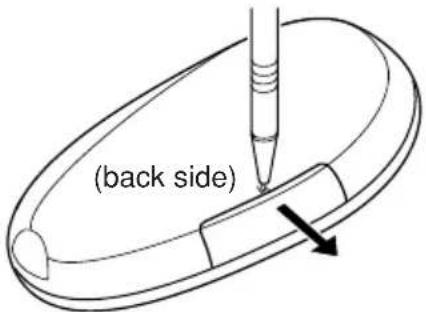

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

1. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

1. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

- Store the battery in a place where children cannot reach.

If a child accidentally swallows the battery, consult a doctor immediately.

- Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire.

Doing any of these things may cause the battery to give off heat, crack, or start a fire.

- Do not leave the battery with other metallic materials.

Doing this may cause the battery to give off heat, crack, or start a fire.

- When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

- Do not poke the battery with tweezers or similar tools.

Doing this may cause the battery to give off heat, crack, or start a fire.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

KD-SC601 is equipped with the steering wheel remote control function.

If your car is equipped with the steering wheel remote controller, you can operate this unit using the controller.

- See the Installation/Connection Manual (separate volume) for connection to utilize this function.

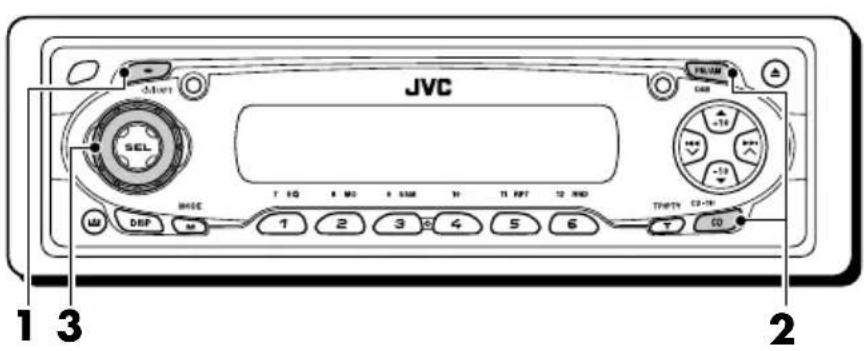

JVC SEL MOUT +10 +19 +20 THTY CO DBP M 1 2 3 4 5 6 1 3 1 3 2

Turning on the power

1 Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

2 Select the source.

To operate the tuner (FM or AM), see pages 10 - 19.

To play a CD, see pages 20 – 23.

To play an MP3/WMA disc, see pages 25 – 28.

To operate the CD changer, see pages 38 - 41.

To operate the external component (LINE IN), see page 42.

To operate the DAB tuner, see pages 43 - 46.

3 Adjust the volume.

SEL

To increase the volume

To decrease the volume

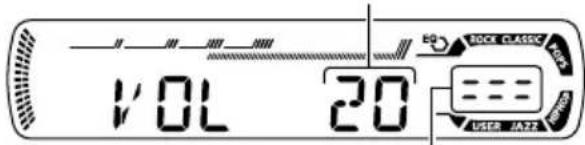

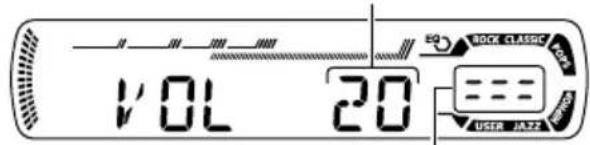

Volume level appears.

VOL 20 EQQ ROCK CLASSIC USER JAZZ

Volume level indicator

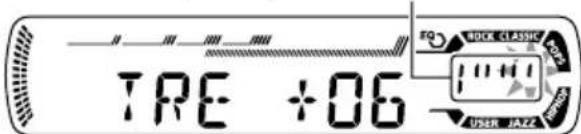

4 Adjust the sound as you want. (See pages 29 and 30.)

To drop the volume in a moment

Press briefly while listening to any source. "ATT" starts flashing on the display, and the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

- If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for/ABTe than one second.

"SEE YOU" appears, then the unit turns off.

- If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

JVC SELL MODE DISP M 7 EQ 8 MO 9 SSM 10 11 RPT 12 RD 1 2 3 4 5 6 TW/WR CAB +10 -10 CO CO

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

- It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

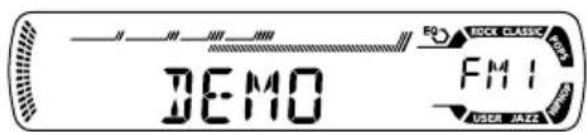

2 Select "DEMO" if not shown on the display.

DEMO E0 RICE CLASSIC FMI USER JAZZ

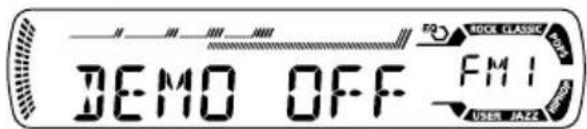

3 Select "DEMO OFF."

SEL

DEMO OFF ↔ DEMO ON

DEMO OFF FMI

4 Finish the setting.

To activate the display demonstration, repeat the same procedure and select "DEMO ON" in step 3.

JVC MODE DIP M 7 EQ 6 MO 9 SSM 16 11 RPT 12 FMD TIMEY CD-01 +10 +10 -10 T CD

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

2 Set the hour.

1 Select "CLOCK H" (hour) if not shown on the display.
2Adjust the hour.

2 SEL

3 Set the minute.

1 Select "CLOCK M" (minute).
2Adjust the minute.

2 SEL

4 Set the clock system.

1 Select "24H/12H."
② Select "24H" or "12H."

2 SEL

5 Finish the setting.

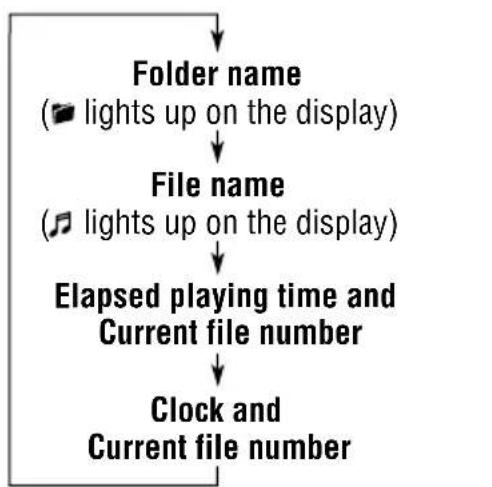

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

- During AM and FM non-RDS station operation:

Frequency Clock

• During FM RDS Station operation:


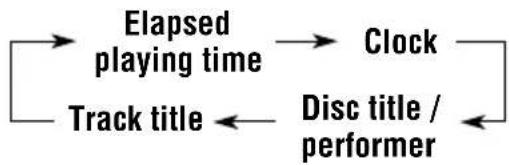

• During disc operation:

Notes:

• While playing a conventional CD, "NO NAME" appears for the disc title/performer and the track title.
• For indication change while playing a CD Text or an MP3/WMA disc, see also pages 23 and 26.

- During external component operation:

LINE IN ←→ Clock

- During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

JVC +10 -10 +10 +10 +10 7 EQ 9 WD 9 SSM 10 11 SPT 12 RND MODE DISP 1 2 3 4 5 6 TP/PTY C3-CN C3

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

ST 08:3 EQ RICK CLASSIC FMI USER JAZE

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Start searching for a station.

+10 -10

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed for searching.

Searching for a station manually: Manual search

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

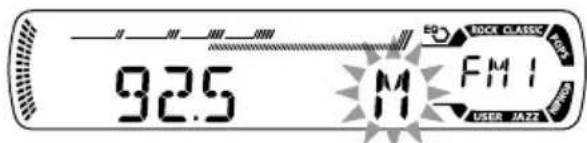

2 Press and hold ▶▶| ∧ or ◀◀◀ ∨ until “M” (manual) starts flashing on the display.

92.5 M FM I EQ BOOK CLASSIC USER JAZZ

3 Tune in to a station you want while "M" (manual) is still flashing.

-10 -10

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.
• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz for AM—MW/LW) until you release the button.

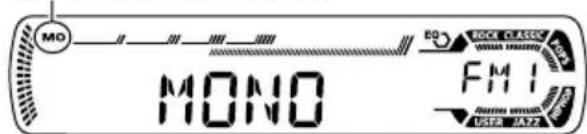

When an FM stereo broadcast is hard to receive:

1 Press M MODE to enter the functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while "MODE" is still flashing on the display, so that "MONO" appears on the display. Each time you press the button, monaural mode turns on and off alternately.

MO (monaural) indicator

MO MONO EQ RICK CLASSE FM1 USER 1/2

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
- Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

1 Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

2 Press M MODE to enter the functions mode.

3 Press and hold SSM for about 2 seconds.

EQ ROCK CLASSIC 55M 777 USER / Jazz

“SSM” flashes, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency).

When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 92.5 MHz into the preset number 1 of the FM1 band.

1 Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

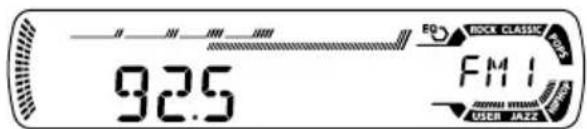

2 Tune in to a station (in this example, of 92.5 MHz).

+10 -10

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

EQ ROCK CLASSIC OFF 92.5 FMI USER JAZZ

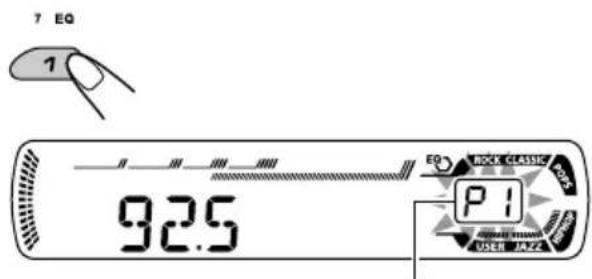

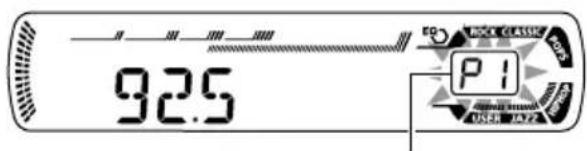

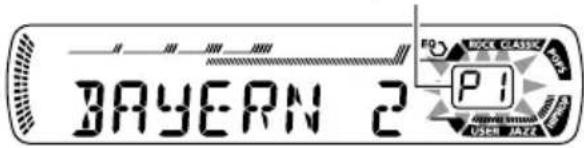

3 Press and hold the number button (in this example, 1) for more than 2 seconds.

92.5 P1 RIOCK GLASSIC USER JOZZA

Preset number flashes for a while.

4 Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see "Storing stations in memory" on pages 11 and 12.

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

2 Select the number (1 - 6) for the preset station you want.

7 EQ 8 MO 9 SSM 10 T1 RPT 12 RND 1 2 3 4 5 6

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.

Another advantage of RDS function is called "Enhanced Other Networks." By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)
• Standby Reception of TA (Traffic Announcement) or your favorite programme
  • PTY (Programme Type) search
• Programme search
  • And some other functions

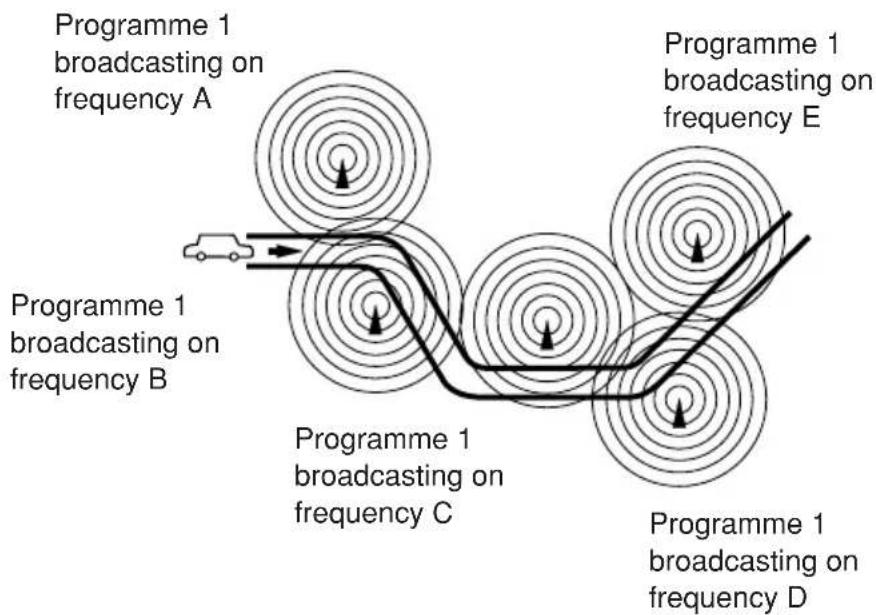

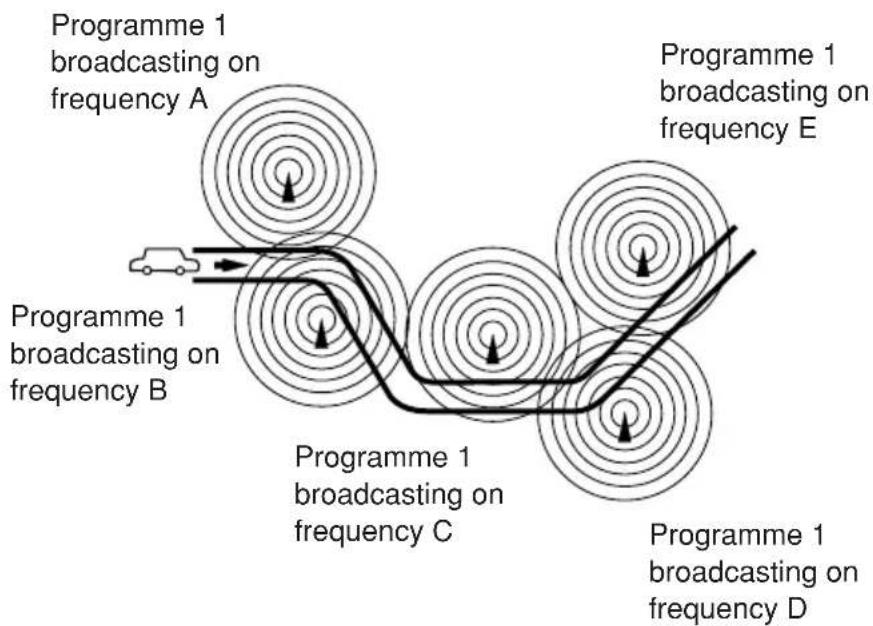

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page 19.)

Two types of the RDS data are used to make Network-Tracking Reception work correctly —PI (Programme Identification) and AF (Alternative Frequency).

Without receiving these data correctly from the RDS station you are listening to, Network-Tracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of network-tracking reception to continue listening to the same programme in its finest reception.

When shipped from the factory, "AF" is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to "off."
  With this setting, the unit switches to another station within the same network when the received signals from the current station become weak. (In this mode, the programme may differ from the one currently received.)
  The AF indicator lights up but the REG indicator does not.

- AF REG: Network-Tracking Reception is activated with Regionalization set to "on."

With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the received signals from the current station become weak.

Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated.

Neither the AF indicator nor the REG indicator lights up.

AF indicator REG indicator AF REG 92.5 EQ ROCK CLASSIC TIME F M I USER JAZZ

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated ("AF") automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 46.)

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

2 Select "AF-REG" (alternative frequency/regionalization reception) if not shown on the display.

3 Select the desired mode—"AF," "AF REG," or "OFF."

SEL

4 Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press T TP/PTY to activate TA Standby Reception.

■When the current source is FM, the TP indicator either lights up or flashes.

- If the TP indicator lights up, TA Standby Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 18) and the traffic announcement can be heard. - If the TP indicator flashes, TA Standby Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ▶▶| ∧ or ◀◀◀ ∨ to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

■When the current source is other than FM, the TP indicator lights up.

If a station starts broadcasting a traffic announcement, "TRAFFIC" appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception, press T TP/PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components).

- PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception.

When shipped from the factory, PTY Standby Reception is turned off. ("OFF" is selected for PTY Standby Reception.)

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

2 Select "PTY STBY" (standby) if not shown on the display.

3 Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display and is stored into memory.

4 Finish the setting.

■When the current source is FM, the PTY indicator either lights up or flashes.

- If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station. - If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ▶▶▶ ▲ or ◀◀◀ ▼ to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

■When the current source is other than FM, the PTY indicator lights up.

If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception, select "OFF" in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below.

To search your favorite programme type, see page 17.

1	2	3
POP M	ROCK M EASY M
4	5	6
CLASSICS	AFFAIRS	VARIED

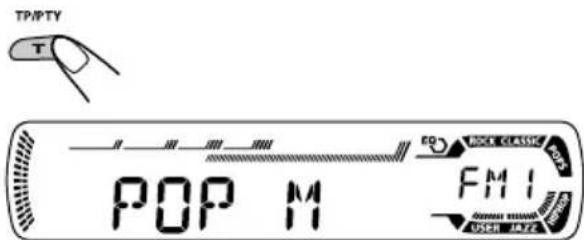

To store your favorite programme types

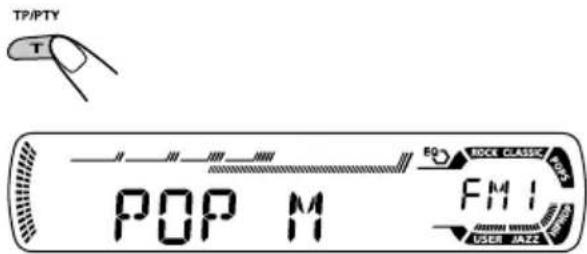

1 Press and hold T TP/PTY for more than 2 seconds while listening to an FM station.

POP M FM1 ROCK CLASSIC USER JAZZ

The last selected PTY code appears.

2 Select one of the twenty-nine PTY codes. (See page 19.)

SEL

Selected code name appears on the display.

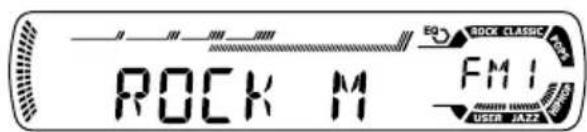

3 Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

ROCK M FM1 USB JAZK

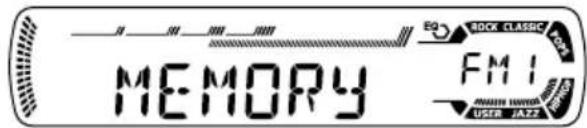

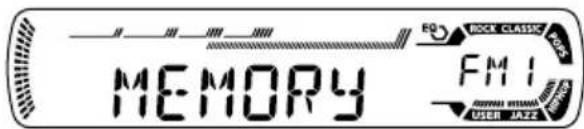

Selected PTY code and "MEMORY" appear alternately for a while.

MEMORY EQ SOCK CLASSIC FMI USER JAZZ

4 Press and hold T TP/PTY for more than 2 seconds to exit from this mode.

To search your favorite programme type

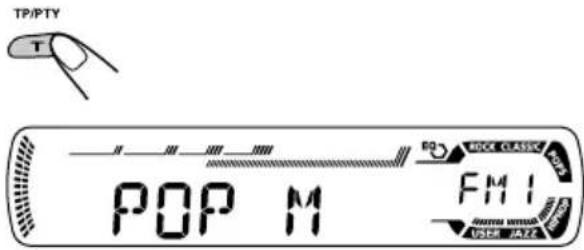

1 Press and hold T TP/PTY for more than 2 seconds while listening to an FM station.

TP/PTY T POP M FM I RICK CLASSIC USER JAZZ

The last selected PTY code appears.

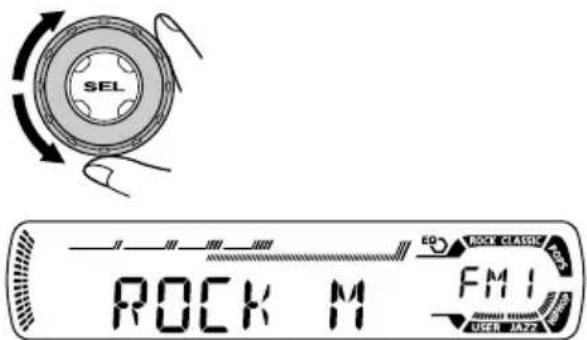

2 To select one of your favorite programme type

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

or

To select any one of the twenty-nine PTY codes.

SEL

ROCK M FM1 SPCK CLASSIC USER TAIZ

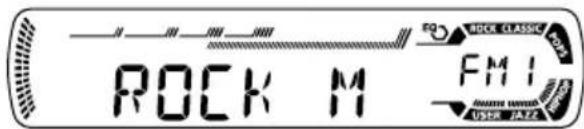

Ex.: When "ROCK M" is selected

3 Press ▶▶| ∧ or ◀◀◀ ∨ to start PTY search for your favorite programme.

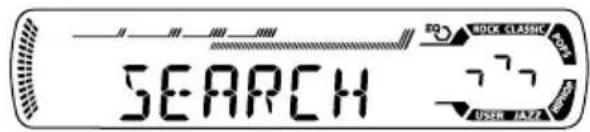

SEARCH EQ RDC CLASSIC RDC USER JAZZ

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.
• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in.

However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

- The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

- See also "Changing the general settings (PSM)" on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

2 Press ▶▶| ∧ or ◀◀◀ ∨ to select "P(Programme)-SEARCH."

3 Turn the control dial clockwise to select "ON." Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same procedure and select "OFF" in step 3 by turning the control dial counterclockwise.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

- See also "Changing the general settings (PSM)" on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ ▲ or ◀◀◀ ▼ to select "TA VOL" (volume).
3 Turn the control dial to set to the desired volume. You can set it from "VOL 00" to "VOL 30" or "VOL 50" (depending on the amplifier gain control setting: see page 34).
4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal.

If you do not want to use automatic clock adjustment, follow the procedure below.

- See also "Changing the general settings (PSM)" on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ ▲ or ◀◀◀ ▼ to select "AUTO ADJ" (adjustment).
3 Turn the control dial counterclockwise to select "OFF." Now automatic clock adjustment is canceled.
4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same procedure and select "ON" in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting "AUTO ADJ" to "ON."

Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News	SOCIAL:	Programmes on social activities
AFFAIRS: Topical programmes expanding on current news or affairs	RELIGION:	Programmes dealing with any aspect of belief or faith, or the nature of existence or ethics
INFO: Programmes which impart advice on a wide variety of topics
SPORT: Sport events	PHONE IN:	Programmes where people can express their views either by phone or in a public forum
EDUCATE: Educational programmes
DRAMA: Radio plays
CULTURE: Programmes on national or regional culture	TRAVEL:	Programmes about travel destinations, package tours, and travel ideas and opportunities
SCIENCE: Programmes on natural science and technology
VARIED: Other programmes like comedies or ceremonies	LEISURE:	Programmes concerned with recreational activities such as gardening, cooking, fishing, etc.
POP M: Pop music
ROCK M: Rock music
EASY M: Easy-listening music	JAZZ: Jazz music
LIGHT M: Light music	COUNTRY:	Country music
CLASSICS: Classical music	NATION M:	Current popular music from another nation or region, in that country's language
OTHER M: Other music
WEATHER: Weather information
FINANCE: Reports on commerce, trading, the Stock Market, etc.	OLDIES:	Classic pop music
CHILDREN: Entertainment programmes for children	FOLK M:	Folk music
	DOCUMENT:	Programmes dealing with factual matters, presented in an investigative style

The same programme can be received on different frequencies.


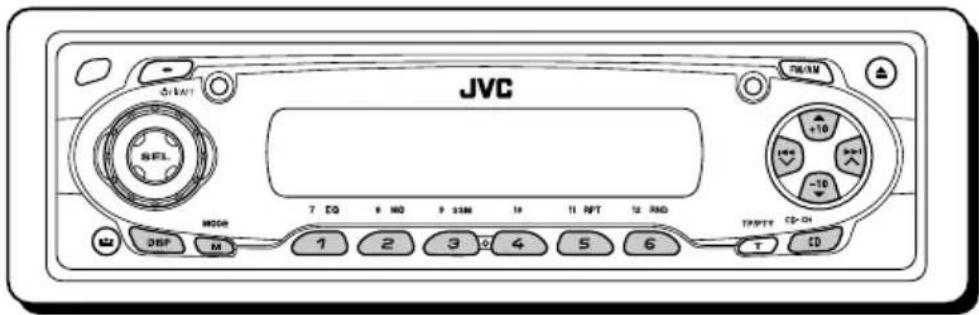

JVC +10 +10 -10 THTPTY CD-03 +1 MODE 7 EQ 8 MD 9 SWM 10 11 RPT 12 END DISP M 1 2 3 4 5 6 T CO

Refer "MP3/WMA OPERATIONS" on pages 25 to 28 for operating MP3/WMA discs.

Playing a CD

1 Open the control panel.

Diagram showing a finger pressing a button next to a device with a curved arrow indicating rotation (no text or symbols present)

Note on One-Touch operation:

When a CD is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically.

2 Insert a CD into the loading slot.

Technical line drawing of a CD inside a rectangular housing, showing internal components and an arrow indicating direction (no text or symbols)

The unit turns on, draws the CD and starts playback automatically.

3 Close the control panel by hand.

Isometric line drawing of a mechanical component with a central fastener (no text or symbols)

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator PLAY Current source indication 7340" 17 Total playing time of the inserted disc Total track number of the inserted disc 0003" 01 Elapsed playing time Current track number

Notes:

• When a CD is inserted upside down, the CD automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the previously selected source, "PLEASE" and "EJECT" appear alternately on the display.
• If there is no CD in the loading slot, you cannot select CD as the source. "NO DISC" appears on the display.
• If the current disc is a CD Text, disc title/performer and then track title will automatically appear.

To stop play and eject the CD

Press ▲.

CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source.

- If you change the source, CD play also stops (without ejecting the CD). Next time you select "CD" as the source, CD play starts from where playback has been stopped previously.

Notes:

- If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

- You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

+10 -10

Press and hold ▶▶▶, while playing a CD, to fast-forward the track.

Press and hold ◀◀◀ ,while playing a CD, to reverse the track.

To go to the next or previous tracks

+10 -10

Press ▶▶▶ ▲ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press ◀◀◀ briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

- To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly. - To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and -10 buttons)

1 Press M MODE to enter the functions mode while playing a CD.

2 Press +10 or -10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* First time you press +10 or -10 button, the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks (see "How to use the +10 and -10 buttons" on page 22).

• After the last track, the first track will be selected, and vice versa.

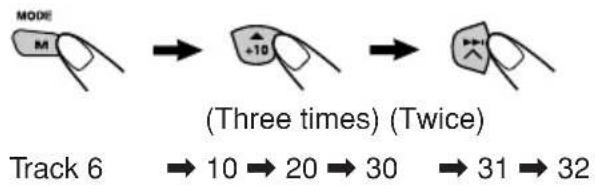

How to use the +10 and -10 buttons

• Ex. 1: To select track number 32 while playing track number 6

MODE M (Three times) (Twice) Track 6 → 10 → 20 → 30 → 31 → 32

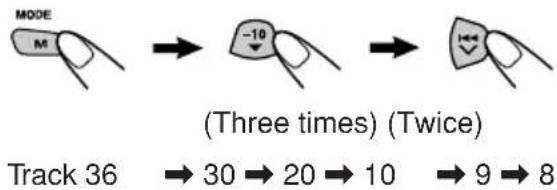

• Ex. 2 : To select track number 8 while playing track number 36

MODE M → -10 → (Three times) (Twice) Track 36 → 30 → 20 → 10 → 9 → 8

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press M MODE to enter the functions mode while playing a CD.

2 Press RND (random), while "MODE" is still flashing on the display, so that "DISC RND" appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

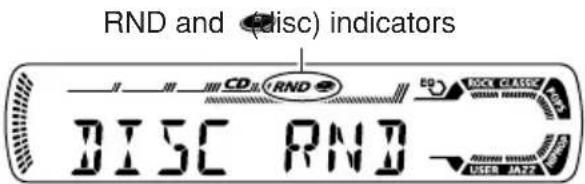

RND and (disc) indicators

CD RND DISC RND EQ ROCK CLASSIC USER JA.72

When disc random play is turned on, the RND and indicators light up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press M MODE to enter the functions mode while playing a CD.

2 Press RPT (repeat), while "MODE" is still flashing on the display, so that "TRK RPT" appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

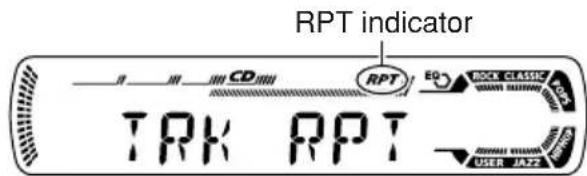

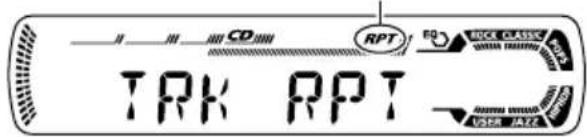

RPT indicator

TRK RPT EQ RICE CLASSIC VSSR 12.47

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Playing a CD Text

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Notes:

• The display shows up to 8 characters at one time and scrolls if there are more than 8 characters. See also "To select the scroll mode—SCROLL" on page 33.
  Some characters or symbols will not be shown (and be blanked) on the display.
  (Ex. “ABCâ!d#” ⇔ “ABCA D”)

• When you press DISP (display) while playing a conventional CD, "NO NAME" appears for the disc title/performer and the track title.

• When track title is shown, the Tr indicator and current track number also appear on the right side of the display.

Prohibiting disc ejection

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD CD-CH, press and hold ⏻/I/ATT for more than 2 seconds.

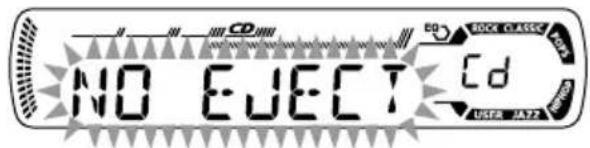

"NO EJECT" flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

NO EFFECT CD USER JAZ2 BCK CLASSIC MOSA

To cancel the prohibition and unlock the disc

While pressing CD CD-CH, press and hold ⏻/I/ATT again for more than 2 seconds. "EJECT OK" flashes on the display for about 5 seconds, and the disc is unlocked.

EJECT OK EQ SOCK CLASSIC HOTCH Cd USER HAZZ

What are MP3/WMA?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps ^* ).

* Bit rate is the average number of bits that one second of audio data will consume. The unit used is Kbps. To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

WMA (Windows Media® Audio) is the digital audio compression format developed by Microsoft Corporation.

- For details information about the MP3/WMA discs, refer to “A Guide to MP3/WMA” (separate volume).

Compatible with ID3 Tag

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3/WMA file.

This unit can show both ID3v1 (Version 1) and ID3v2 (Version 2) tags on the display. (See page 26.)

• Some characters cannot be shown correctly.
• If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

How are MP3/WMA files recorded and played back?

MP3/WMA "files (tracks)" can be recorded in "folders"—in PC terminology.

During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data.

"Root" is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

The illustration below shows an example of how MP3/WMA files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• This unit cannot read or play an MP3 file without the extension code <.mp3> and a WMA track without the extension code <.wma> .
• This unit is not compatible with MP3 files encoded with Layer 1 and Layer 2 formats.
• This unit is not compatible with WMA files which are not based upon Windows Media ^ Audio.
• This unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which enables users to make their own playback order without physically rearranging the files.


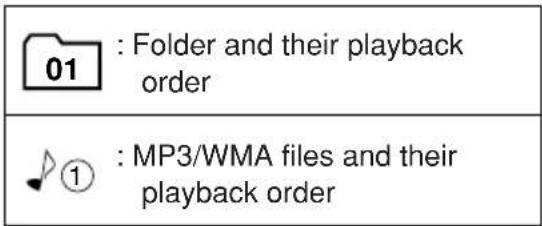

01 : Folder and their playback order MP3/WMA files and their playback order

- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

JVC SILV MODE 7 EQ 8 MD 9 SSM 10 11 RPT 12 RMD +10 +10 -10 TROPY CD-01 T CD +DJ DSP M 1 2 3 4 5 6 +10 +10 +10 +10

Refer also to "CD OPERATIONS" on pages 20 to 23.

Playing a disc

1 Open the control panel.

Diagram showing a finger pressing a button next to a device with a curved arrow indicating rotation (no text or symbols present)

Note on One-Touch operation:

When a disc is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically.

2 Insert a disc into the loading slot.

Technical line drawing of a mechanical component with a circular housing and arrow indicating direction (no text or symbols)

The unit turns on, draws the disc and starts playback automatically.

3 Close the control panel by hand.

Isometric line drawing of a mechanical component with no visible text or symbols

All files will be played repeatedly until you stop playback.

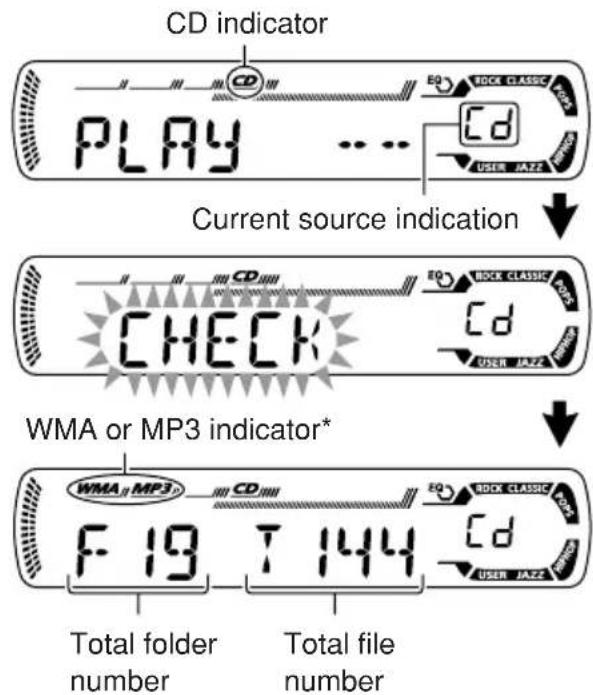

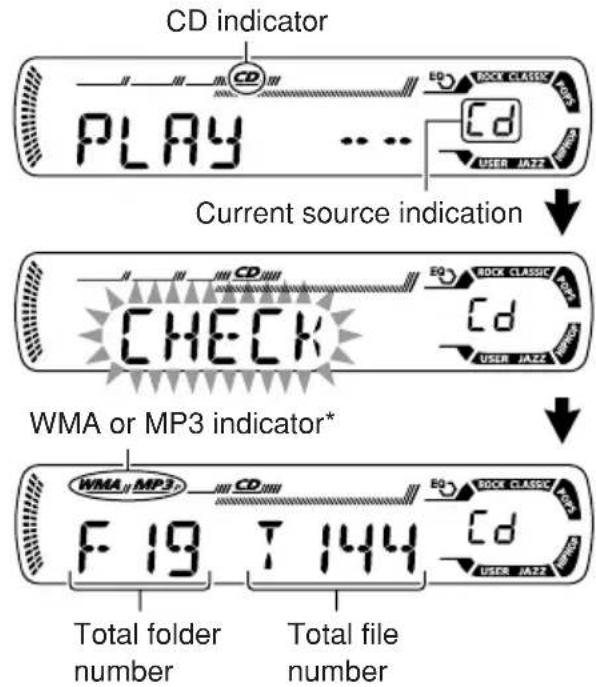

The display changes to show the following:

CD indicator PLAY EQ ROCK CLASSIC VOUT CD USER JAZZ Current source indication CHECK EQ ROCK CLASSIC VOUT CD USER JAZZ WMA or MP3 indicator* F 19 T 144 Total folder number Total file number

Ex.: When the disc contains 19 folders and 144 MP3/WMA files

* WMA or MP3 indicator lights up depending on the first detected file.

Notes:

• MP3/WMA discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)
• When playback starts, folder and file names (or ID3 tags) will automatically appear. (See also page 26.)
• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press ▲.

Playback stops and the control panel flips down. The disc automatically ejects from the loading slot

To change the display information

While playing back an MP3/WMA file, you can change the disc information shown on the display.

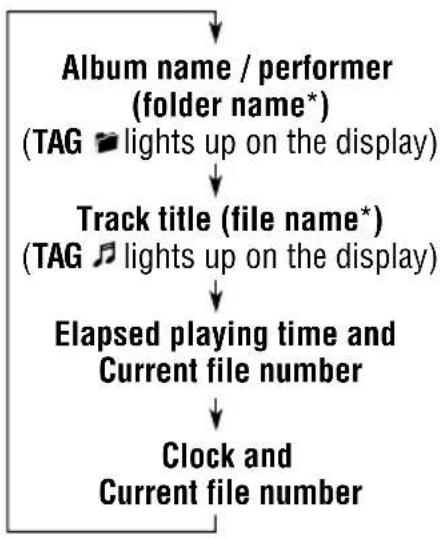

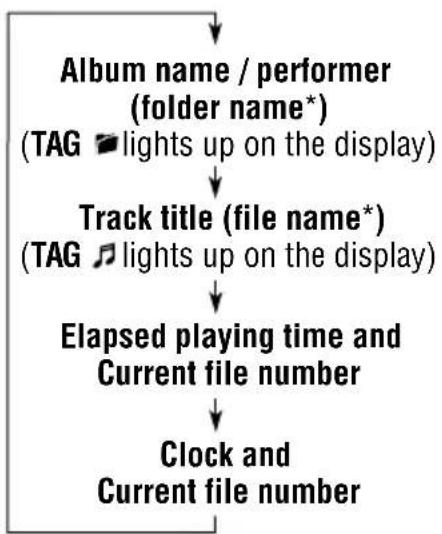

Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following:

- When "TAG DISP" is set to "TAG ON" (initial setting: see page 34)

* If ID3 tags are not recorded, folder name and file name appear. In this case, the TAG indicator will not light up on the display.
- When "TAG DISP" is set to "TAG OFF"

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also "To select the scroll mode—SCROLL" on page 33.
• When folder or file name is shown, current folder number or the Tr indicator and current file number also appear on the right side of the display.

Locating a file or a particular portion on a disc

To fast-forward or reverse the file

+10 -10

Press and hold ▶▶▶ I ∧ while playing a disc, to fast-forward the file.

Press and hold ◀◀◀ While playing a disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

+10 -10

Press ▶▶▶ I ▶ briefly while playing, to skip ahead to the beginning of the next file.

Each time you press the button consecutively, the beginning of the next files is located and played back.

Press ◀◀◀ briefly, while playing, to skip back to the beginning of the current file.

Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and -10 buttons)

1 Press M MODE to enter the functions mode while playing a disc.

2 Press +10 or -10.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

* First time you press +10 or -10 button, the file skips to the nearest higher or lower file with a file number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 files (see "How to use the +10 and -10 buttons" below).

• After the last file, the first file will be selected, and vice versa.

How to use the +10 and -10 buttons

- Ex. 1: To select file number 32 while playing file number 6

MODE M → +10 → (Three times) (Twice) File 6 → 10 → 20 → 30 → 31 → 32

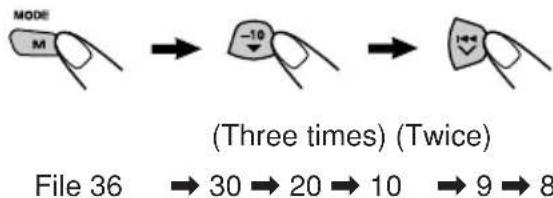

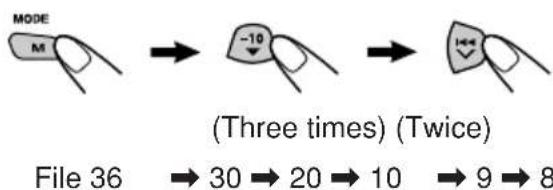

- Ex. 2 : To select file number 8 while playing file number 36

MODE M (Three times) (Twice) File 36 → 30 → 20 → 10 → 9 → 8

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.)

Ex.: If folder name is "01 ABC"

→Press 1 to go to Folder 01 ABC. If folder name is "1 ABC," pressing 1 does not work.

If folder name is "12 ABC"

→Press and hold 6 (12) to go to Folder 12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.
• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If indicator flashes on the display after you have selected a folder, it means that the folder does not contain any MP3/WMA files.
• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press ▶▶▶ | ▲ or ◀◀◀ ▼ after selecting the folder.

To skip to the next or previous folder

+10 -10

Press ▲ (up) while playing a disc to skip to the next folder.

Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Press ▼ (down) while playing a disc to skip back to the previous folder.

Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3/WMA files, it is skipped.

Selecting playback modes

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the disc at random.

1 Press M MODE to enter the functions mode while playing a disc.

2 Press RND (random), while "MODE" is still flashing on the display, so that "FLDR RND" or "DISC RND" appears on the display.

Each time you press the button, the random play mode changes as follows:

RND and (folder) indicators

MP3 CD RND EQ FLDR RND USER JAZZ

Ex.: When you select "FLDR RND" while listening to an MP3 file

Mode	Active indicator	Plays at random
FLDR RND	RND and files of the indicators current folder, then light up. files of the next folder and so on.
DISC RND	RND and files on the disc. indicators light up.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

1 Press M MODE to enter the functions mode while playing a disc.

2 Press RPT (repeat), while "MODE" is still flashing on the display, so that "TRK RPT" or "FLDR RPT" appears on the display. Each time you press the button, the repeat play mode changes as follows:

RPT indicator MP3 CD RPT EQ TRK RPT

Ex.: When you select "TRK RPT" while listening to an MP3 file

Mode	Active indicator	Plays repeatedly
TRK RPT R	PT indicator The current (or lights up. specified) file.
FLDR RPT	and RPT All files of the indicators current (or light up. specified) folder.

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre.

- There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

1 Press M MODE to enter the functions mode.

2 Press EQ (equalizer) while "MODE" is still flashing on the display.

You can confirm the current sound mode.

3 Select the sound mode you want.

Indication pattern changes for each sound mode except for "USER."

ROCK RICK CLASSIC COLOD 7J USSR 1.22

Ex.: When you select "ROCK"

Indication	For: Preset values
		BAS TRE LOUD
USER (Flat sound) 00 00 OFF
ROCK Rock or +03 +01 ON disco music
CLASSIC	Classical music	+01 -02 OFF
POPS Light music +04 +01		OFF
HIP HOP	Funk or rap music	+02 00 ON
JAZZ	Jazz music	+02 +03 OFF

Note: You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See "Adjusting the sound" on page 30.

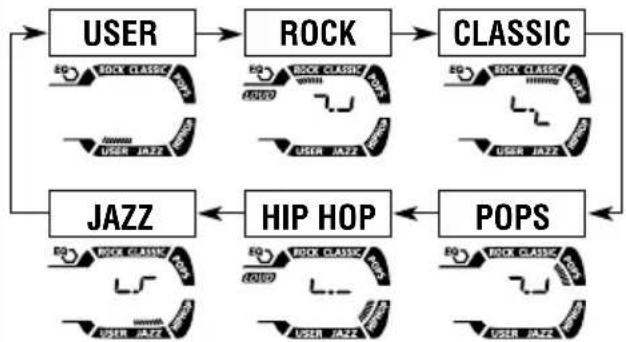

When using the remote controller:

Press SOUND repeatedly. Each time you press the button, the sound modes change as follows:

Adjusting the sound

You can adjust the sound characteristics to your preference.

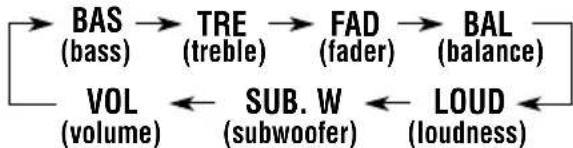

1 Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

Indication	To do: Range
BAS^*1	Adjust the bass. -06 (min.)|+06 (max.)
TRE^*1	Adjust the treble. -06 (min.)|+06 (max.)
FAD^*2	Adjust the front R06 (Rear only)and rear speaker balance. F06 (Front only)
BAL Adjust	the left L06 (Left only)and right speaker balance. R06 (Right only)
LOUD^*1	Boost low and high frequencies LOUD ONto produce a well-balanced sound at low volume level.
SUB. W^*3	Adjust the subwoofer output level.	00 (min.)|08 (max.)
VOL^*4	Adjust the volume.	00 (min.)|30 or 50 ( max.^)*5 )

*1 When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including "USER."
*2 If you are using a two-speaker system, set the fader level to "00."
*3 This takes effect only when a subwoofer is connected.
*4 Normally the control dial works as the volume control. So you do not have to select "VOL" to adjust the volume level.
*5 Depending on the amplifier gain control setting. (See page 34 for details.)

2 Adjust the setting.

SEL

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Indication pattern changes as you adjust the bass or treble.

TRE +06 EQ BONE CLASSIC 111+11 USER JAZZ

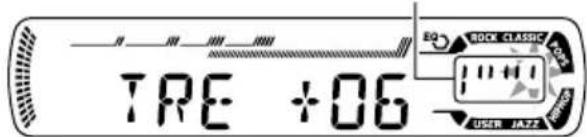

Ex. 1: When you adjust "TRE" (treble)

EQQ Rocks CLASSIC Loud ON USER JAZZ

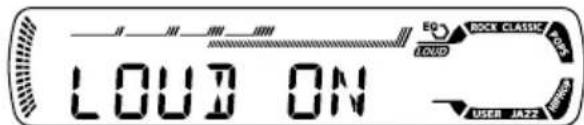

Ex. 2: When you turn on the loudness

3 Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and reassign the preset values listed in the table on page 29.

Changing the general settings (PSM)

You can change the items listed in the table below and on page 32 by using the PSM (Preferred Setting Mode) control.

Basic Procedure

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See below and page 32.)

2 Select the PSM item you want to adjust.

3 Adjust the PSM item selected.

SEL

4 Repeat steps 2 and 3 to adjust the other PSM items if necessary.

5 Finish the setting.

Preferred Setting Mode (PSM) items

- For detailed operations of each PSM items, refer to the pages listed in the table.

Indications Selectable values/items			Factory-preset settings page	See
DEMO Display demonstration	DEMO OFF	DEMO ON	DEMO ON	8
CLOCK H Hour adjustment	0 — 23 (1 — 12)		0 (0:00)	9
CLOCK M Minute adjustment	00 — 59		00 (0:00)
COLOR Display color	(See page 33.)		ALL DEMO	33
24H/12H 24/12-hour time display	12H 24H		24H	9
AUTO ADJ Automatic clock setting	OFF ON		ON	18
AF-REG Alternative frequency/Regionalization reception	AF AF REG \ OFF^*1		AF	13, 14

^*1 Displayed only when the “DAB AF” is set to “OFF.”

Indications	Selectable values/items		Factory-preset settings	See page
PTY STBY PTY standby	OFF → 29 programme types (see page 19)↑		OFF	15
TA VOL Traffic announcement volume	VOL 00 — VOL 30 or 50*2		VOL 20	18
P-SEARCH Programme search	OFF ON		OFF	18
DAB AF*3 Alternative frequency search	AF OFF AF	ON	AF ON	46
DAB VOL*3 DAB volume adjustment	VOL -12 — VOL 12		VOL 00	46
LEVEL Level display	OFF	ON	ON	33
DIMMER Dimmer mode	AUTO ↔ OFF↑→ ON ←↑		AUTO	33
TEL Telephone muting	OFF ↔ MUTING 1↑→ MUTING 2 ←↑		OFF	33
BEEP Key-touch tone	OFF ON		ON	33
SCROLL Scroll mode	ONCE ↔ AUTO↑→ OFF ←↑		ONCE	33
EXT IN*4 External component	CHANGER	LINE IN	CHANGER	34
TAG DISP Tag display	TAG OFF	TAG ON	TAG ON	34
AMP GAIN Amplifier gain control	LOW PWR	HIGH PWR	HIGH PWR	34

*2 Depending on the amplifier gain control setting. (See page 34 for details.)
*3 Displayed only when the DAB tuner is connected.
*4 Displayed only when one of the following sources is selected—FM, AM, and CD.

To select the display color—COLOR

You can select the color of the display according to your preference.

When shipped from the factory, "ALL DEMO" is selected.

The selectable colors are as follows:

ALL DEMO ⊃ SOURCE ⊃ BLUE ⊃ OCEAN ⊃ PURPLE ⊃ PINK ⊃ ROSE ⊃ RED ⊃ (back to the beginning)

• ALL DEMO: The display color changes every 6 seconds (rose → pink → ocean → red → purple → blue → back to the beginning).
• SOURCE: The display color is fixed to red while listening to FM or AM, blue while listening to CD, and purple while listening to external component.

To select the level meter—LEVEL

You can activate or deactivate the level meter according to your preference.

When shipped from the factory, level meter is activated.

• ON: Shows the audio level indicator.
- OFF: Cancels the audio level indicator; sound mode indicator is shown.

To select the dimmer mode—DIMMER

When you turn on the car headlights, the display automatically dims (Auto Dimmer).

When shipped from the factory, Auto Dimmer mode is activated.

• AUTO: Activates Auto Dimmer.
• OFF: Cancels Auto Dimmer.
• ON: Always dims the display.

Note:

Auto Dimmer equipped for this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming.

In this case, set the dimmer mode to "ON" or "OFF."

To select the telephone muting—TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either "MUTING 1" or "MUTING 2" whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select if this setting can mute the sounds.
• MUTING 2: Select if this setting can mute the sounds.
  • OFF: Cancels the telephone muting.

To turn on/off the key-touch tone—BEEP

You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated.

• ON: Activates the key-touch tone.
• OFF: Deactivates the key-touch tone.

To select the scroll mode—SCROLL

You can select the scroll mode for the disc information (when the entire text cannot be shown at once).

When shipped from the factory, scroll mode is set to "ONCE."

• ONCE: Scrolls only once.
- AUTO: Repeats the scroll (5-second intervals in between).
• OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to "OFF," you can scroll the display by pressing DISP (display) for more than one second.

To select the external component to use —EXT IN

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

To use the external component as the playback source through this unit, you need to select which component—CD changer or external component—to use.

When shipped from the factory, CD changer is selected as the external component.

- CHANGER: To use the CD changer.

• LINE IN: To use the external component other than CD changer.

Note:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).

To turn the tag display on or off —TAG DISP

An MP3/WMA file can contain file information called "ID3 Tag" where its album name, performer, track title, etc. are recorded.

There are two versions—ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

When shipped from the factory, "TAG ON" is selected.

- TAG ON: Turns on the ID3 tag display while playing MP3/WMA files.

- If an MP3/WMA file does not have ID3 tags, folder name and file name appear.

- TAG OFF: Turns off the ID3 tag display while playing MP3/WMA files. (Only the folder name and file name can be shown.)

To select the amplifier gain control —AMP GAIN

You can change the maximum volume level of this unit. When the maximum power of the speakers is less than 50 W, select "LOW PWR" to prevent them from being damaged.

When shipped from the factory, "HIGH PWR" is selected.

- LOW PWR: You can adjust the volume level from "VOL 00" to "VOL 30."

Note:

If you change the setting from “HIGH PWR” to “LOW PWR” while listening at a volume level more than 30, the unit automatically changes the volume level to “VOL 30.”

- HIGH PWR: You can adjust the volume level from "VOL 00" to "VOL 50."

Assigning names to the source

You can assign names to CDs (both in this unit and in the CD changer).

After assigning a name, it will appears on the display when you select the source.

Source Maximum number of characters

CDs* Up to 32 characters (up to 40 discs)

* You cannot assign a name to a CD Text or an MP3/WMA disc.

1 Select a source you want to assign a name to.

CD-CH CD CD CD-CH

When you select a source, the power automatically comes on.

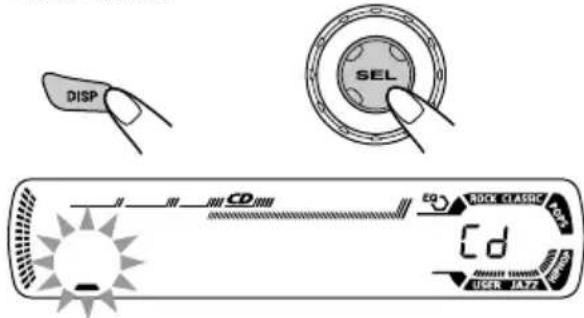

2 While pressing DISP (display), press and hold SEL (select) for more than 2 seconds.

DISP SEL CD RGB-CLASSIC DDR/ DDR/1A77

Ex.: When you select CD as the source

3 Select a character.

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

P

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

-

/

<

>

space

4 Move the cursor to the next (or previous) character position.

5 Repeat steps 3 and 4 until you finish entering the name.

6 Finish the procedure while the last selected character is flashing.

To erase the input characters

To erase all the characters at a time, press and hold DISP (display) for more than 1 second as described in the procedure above.

Notes:

• When you try to assign a name to the 41st disc, "NAME FULL" appears on the display. (In this case, delete unwanted names before assignment.)
• When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.

Changing the standard plate

You can change the standard plate with another plate supplied with your unit.

You can also download them by visiting http://www.jvc.co.jp/jvccar.

- When changing the plate, be careful not to leave your fingerprints on the plate or cover.

1 Loosen the screws with the supplied hex screwdriver.

Technical line drawing of a mechanical component with a central shaft and mounting holes (no text or symbols)

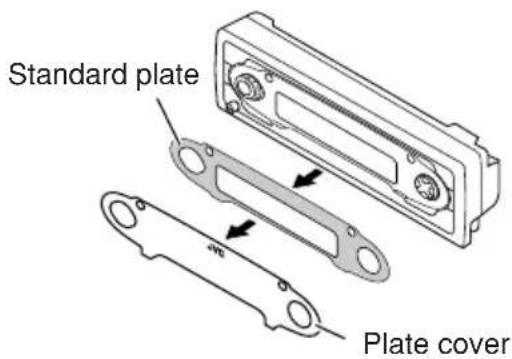

2 Remove the plate cover and the standard plate.

Standard plate Plate cover

3 Replace with another plate (a standard, cutout, or downloaded plate) of your preference.

- When attaching a standard plate

Standard plate Plate cover

- When attaching a cutout or downloaded plate

Add the transparent plate (supplied) between the cutout or downloaded plate and the plate cover in order to attach the plate cover in place.

Cutout or downloaded plate Plate cover Transparent plate (supplied)

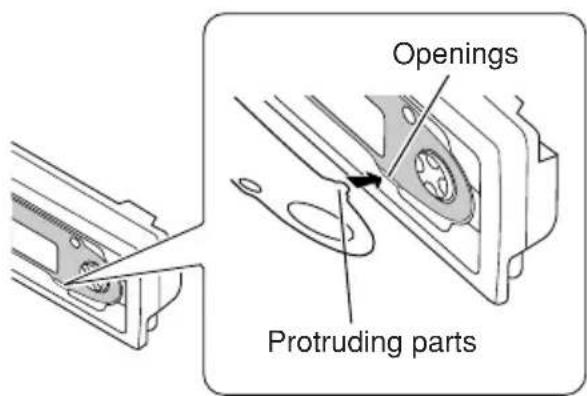

When attaching the plate cover

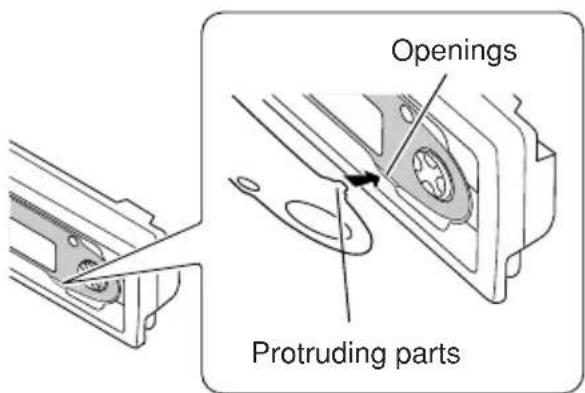

Openings Protruding parts

Ensure the two protruding parts at the bottom of the plate cover are inserted into the two openings on the control panel, as illustrated.

Notes:

• Be sure to keep the hex screwdriver for future use.
• Two spare screws for the plate cover attachment are provided with the unit. See the Installation/Connection Manual (separate volume).
• When you attach the plate cover, do not tighten the screws too hard; otherwise, the plate cover might be cracked.

How to use the cutout plates

1 Unfold the supplied cutout plates.

Technical diagram of a mechanical assembly with no visible text or symbols

2 Cut the plates out using a scissors.

Illustration of scissors cutting through a sheet of mechanical parts (no text or symbols)

3 Trim out the window and two knobs using a knife on a rubber mat.

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Detaching the control panel

You can detach the control panel when leaving the car.

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

1 Unlock the control panel.

Diagram of a door handle with an arrow pointing to the handle area, no text or symbols present

2 Pull the control panel out of the unit.

Technical line drawing of two mechanical component assemblies with arrows indicating assembly direction (no text or symbols)

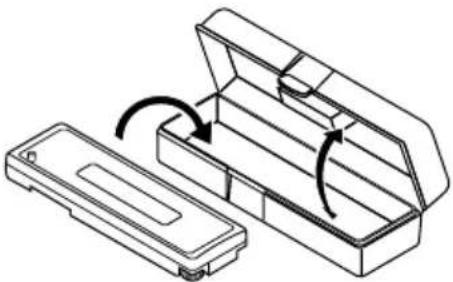

3 Put the detached control panel into the provided case.

Technical line drawing of a mechanical component with an open lid and internal slots, showing rotational motion arrows (no text or symbols)

Attaching the control panel

1 Insert the right side of the control panel into the groove on the panel holder.

Technical line drawing of two mechanical component assemblies with no visible text or symbols

2 Press the left side of the control panel to fix it to the panel holder.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate.

To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

JVC SEL MOSC 7 EG 8 MG 9 SGM 10 11 RPT 12 RMD T3/PTY CD-10 ONP M 1 2 3 4 5 6 T CD

We recommend that you use the JVC MP3-compatible CD changer with your unit.

By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

• You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.
• You cannot use the KD-MK series CD changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied for your CD changer.
• If no discs are in the magazine of the CD changer or the discs are inserted upside down, "NO DISC" will appear on the display. If this happens, remove the magazine and set the discs correctly.
• If no magazine is loaded in the CD changer, "NO MAG" appears on the display. If this happens, insert the magazine in the CD changer.
• If "RESET 1" – "RESET 8" appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Note:

You cannot control and play any WMA disc on the CD changer.

Playing discs

Select the CD changer (CD-CH).

CD-CH CD → CD GD-CH*

* If you have changed "EXT IN" setting to "LINE IN" (see page 34), you cannot select the CD changer.
- When the current disc is an MP3 disc:

Playback starts from the first folder of the current disc once file check is completed.

CD-CH EQ ROCK CLASSIC RJZZ USER JAZZ Selected disc number CHECK EQ ROCK CLASSIC RJZZ DO 1 USER JAZZ MP3 indicator MP3 CH ROOT EQ ROCK CLASSIC RJZZ F00 USER JAZZ (folder) indicator Selected folder number

Note:

Folder name appears on the display instead of "ROOT," if an MP3 disc contains a folder.

- When the current disc is a CD:

Playback starts from the first track of the current disc.

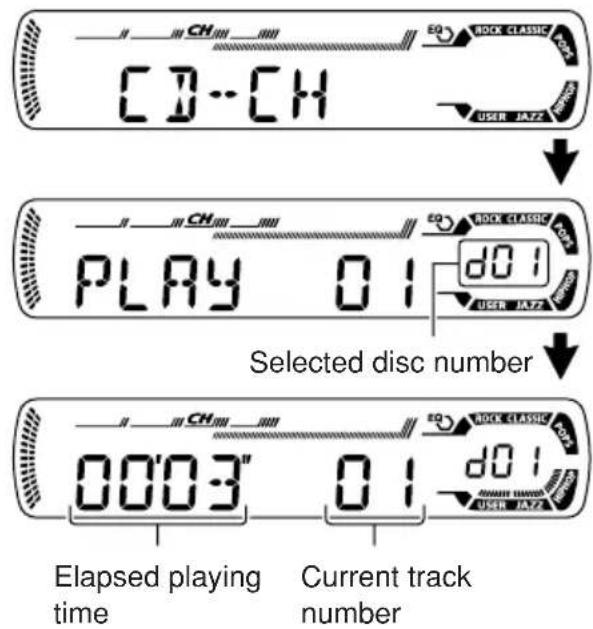

CD-CH EQ RICK CLASSIC RICK USER JAZZ Selected disc number PLAY 01 d01 00'03" 01 d01 Elapsed playing time Current track number USER JAZZ

Notes:

• When you press CD CD-CH, the power automatically comes on. You do not have to press ⏻/I/ATT to turn on the power.
• If you change the source, CD changer play also stops. Next time you select the CD changer as the source, CD changer play starts from where playback has been stopped previously.
• When you start playing back a CD Text or MP3 disc, disc information will automatically appear on the display. (See pages 23 and 26.)

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.
- To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To fast-forward or reverse the track/file

+10 -10

Press and hold ▶▶▶▲ during play, to fast-forward the track/file.

Press and hold ◀◀◀, during play, to reverse the track/file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous tracks/files

+10 -10

Press ▶▶▶ I briefly during play, to skip ahead to the beginning of the next track/file. Each time you press the button consecutively, the beginning of the next tracks/files is located and played back.

Press ◀◀◀ Briefly during play, to skip back to the beginning of the current track/file.

Each time you press the button consecutively, the beginning of the previous tracks/files is located and played back.

This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500).

To go to a track/file quickly (+10 and -10 buttons)

1 Press M MODE to enter the functions mode while playing a disc.

2 Press +10 or -10.

To skip 10 tracks/files* forwards to the last track/file

To skip 10 tracks/files* backwards to the first track/file

* First time you press +10 or -10 button, the track/file skips to the nearest higher or lower track/file with a track/file number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks/files (see "How to use the +10 and -10 buttons" below).

• After the last track/file, the first track/file will be selected, and vice versa.

Note:

If the current playing disc is an MP3 disc, files are skipped within the same folder.

How to use the +10 and -10 buttons

- Ex. 1: To select track/file number 32 while playing track/file number 6

- Ex. 2 : To select track/file number 8 while playing track/file number 36

MODE M → -10 → (Three times) (Twice) Track/File 36 → 30 → 20 → 10 → 9 → 8

To skip to the next or previous folder (only for MP3 discs)

-10 -10

Press ▲ (up) while playing an MP3 disc, to go to the next folder.

Each time you press the button consecutively, the next folder is located, and the first file in the folder starts playback.

Press ▼ (down) while playing an MP3 disc, to go to the previous folder.

Each time you press the button consecutively, the previous folder is located, and the first file in the folder starts playback.

To show the disc information for CD Text and MP3 discs

This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability.

Select text display mode while playing a CD Text or an MP3 disc.

- For details, see page 23 about CD Text disc information and page 26 about MP3 disc information.

Selecting the playback modes

To play back tracks/files at random (Folder Random/Disc Random/Magazine Random Play)

1 Press M MODE to enter the functions mode during play.
2 Press RND (random), while "MODE" is still flashing on the display. Each time you press the button, the random play mode changes as follows:

For MP3 discs:

FLDR RND DISC RND

Canceled MAG RND

For CDs:

DISC RND MAG RND

Canceled

RND indicator

Ex.: When you select "MAG RND"

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

Active indicator

Plays at random

FLDR RND* RND and All files of the indicators current folder, then light up. files of the next folder and so on.

DISC RND RND and All tracks/files of indicators the current (or light up. specified) disc.

MAG RND RND indicator All tracks/files of lights up. the inserted discs.

* "FLDR RND" is only applicable for MP3 discs.

To play back tracks/files repeatedly (Track Repeat/Folder Repeat/Disc Repeat Play)

1 Press M MODE to enter the functions mode during play.
2 Press RPT (repeat), while "MODE" is still flashing on the display. Each time you press the button, the repeat play mode changes as follows:

For MP3 discs:

TRK RPT FLDR RPT

Canceled DISC RPT

For CDs:

TRK RPT DISC RPT

Canceled

(disc) and RPT indicators

Ex.: When you select "DISC RPT"

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

Active indicato

Plays repeatedly

TRK RPT RPT indicator The current (or lights up. specified) track/file.

FLDR RPT* and RPT indicators light up. All files of the current (or specified) folder of the current disc.

DISC RPT and RPT All tracks/files of indicators light the current (or up. specified) disc.

* "FLDR RPT" is only applicable for MP3 discs.

JVC MOSC 7 EQ 8 NO 9 SSM 10 11 RPT 12 RND THTY CD-11 M +10 -10 +5 -5 +3 -3 +2 -2 +4 -4 +6 -6 +8 -8 +10 +12 -14 +16 -18 +19 +21 +23 +25 +27 +29 +31 +33 +35 +37 +39 +41 +43 +45 +47 +49 +51 +53 +55 +57 +59 +61 +63 +65 +67 +69 +71 +73 +75 +77 +79 +81 +83 +85 +87 +89 +91 +93 +95 +97 +99 +101

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).
• Before operating the external component using the following procedure, select the external input correctly. See “To select the external component to use—EXT IN” on page 34.

1 Select the external component (LINE IN).

CD-CH CD CD LINE IN*

LINE IN EQ ROCK CLASSIC USER JAZZ

• If "LINE IN"* does not appear on the display, see page 34 and select the external input ("LINE IN").
  * Displayed only when one of the following sources is selected—FM, AM, and CD.

Note on One-Touch Operation:

When you press CD CD-CH, the power automatically comes on. You do not have to press ⬇WHAT on the power.

2 Turn on the connected component and start playing the source.
3 Adjust the volume.

SEL

4 Adjust the sound as you want. (See pages 29 and 30.)

JVC SELECT SELL MODE T EQ 8 NO 9 SUM 10 11 RPT 12 RMD USB DPB M T RPTY CD-1H +10 +10 -10 T CD

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit.

If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

- Refer also to the Instructions supplied for your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion.

Furthermore, it can carry text, pictures, and data.

In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called “services”) to form one “ensemble.”

In addition, each "service"—called "primary service"—can also be divided into its components (called "secondary service").

With the DAB tuner connected with this unit, you can enjoy these DAB services.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit.

To prevent this inconvenience, you can adjust the DAB volume level. (See "To adjust the DAB volume level" on page 46.)

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

← FM/AMDAB

2 Select the DAB band (DAB1, DAB2, or DAB3).

Each time you press the button, the DAB band changes as follows:

Note:

This receiver has three DAB bands (DAB1, DAB2, DAB3). You can use any of them to tune in to an ensemble.

3 Start searching for an ensemble.

-10 -10

To search for ensembles of higher frequency

To search for ensembles of lower frequency

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have pressed for searching.

4 Select a service (either primary or secondary) you want to listen to.

+10 -10

To select the next service (If a primary service has some secondary services, they are selected before the next primary service is selected.)

To select the previous service (either primary or secondary)

To change the display information while tuning in to an ensemble

Normally service name is shown on the display. If you want to check the ensemble name or its frequency, press DISP (display) repeatedly.

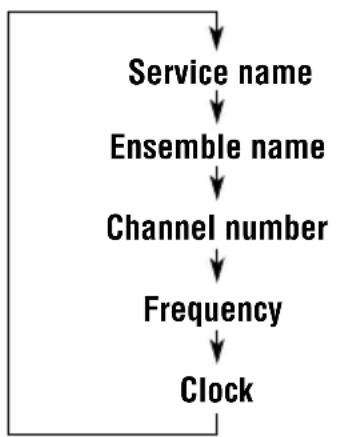

Each time you press the button, the following information appears for a while on the display.

To tune in to a particular ensemble without searching

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Press and hold FM/AM DAB to select DAB tuner as the source.
2 Press FM/AM DAB repeatedly to select the DAB band (DAB1, DAB2, or DAB3).
3 Press and hold ▶▶▶ | ∧ or |◀◀ ∨ for more than one second.
4 Press ▶▶▶ ▲ or ◀◀◀ ▼ repeatedly until the ensemble you want is reached.
- If you hold down the button, the frequency keeps changing until you release the button.
5 Press ▲ (up) or ▼ (down) to select a service (either primary or secondary) you want to listen to.

To restore the FM/AM tuner

Press and hold FM/AM DAB again.

Storing DAB services in memory

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2, and DAB3) manually.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

← FM/AMDAB

2 Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

→ DAB1 DAB2 DAB3 →

3 Tune in to an ensemble you want.

4 Select a service of the ensemble you want to listen to.

To select the next service

To select the previous service

5 Press and hold the number button (in this example, 1) for more than 2 seconds to store the selected service into the preset number you want.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

Selected preset number

BAYERN 2 P1 MODEL CLASSIC USSR JAZA

6 Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• You can only preset primary DAB services. If you store a secondary service, its primary service will be stored instead.
• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.
• Preset DAB services are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the DAB services again.

Tuning in to a preset DAB service

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, see "Storing DAB services in memory" on pages 44 and 45.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

←→ FM/AMDAB

2 Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

→ DAB1 DAB2 DAB3 →

3 Select the number (1 - 6) for the preset DAB service (primary) you want.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

Note:

If the selected primary service has some secondary services, pressing the same number button repeatedly will tune in to the secondary services.

What you can do more with DAB

Tracing the same programme automatically (Alternative Reception)

You can keep listening to the same programme.

- While receiving a DAB service:

When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

- While receiving an FM RDS station:

When driving in an area where a DAB service is broadcasting the same programme as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

- See also “Changing the general settings (PSM)” on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶▶ or ▶◀◀▼ to select "DAB AF" (alternative frequency).
3 Turn the control dial to select the desired mode.

- AF ON: Traces the programme among DAB services and FM RDS stations—Alternative Reception. The AF indicator lights up on the display (see page 13).

• AF OFF: Alternative Reception is deactivated.

4 Press SEL (select) to finish the setting.

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 13) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception.

To adjust the DAB volume level

You can adjust the volume level of DAB tuner and store it in memory. By adjusting the volume level properly to match it to the FM sound level, you will not need to adjust the volume level each time you change the source.

When shipped from the factory, DAB volume level is set at "00."

- See also “Changing the general settings (PSM)” on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ ▲ or ◀◀◀ ▼ to select "DAB VOL" (volume).
3 Turn the control dial to set to the desired volume. You can set it from "VOL-12" to "VOL 12."
4 Press SEL (select) to finish the setting.

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms		Causes	Remedies
General	Sound cannot be heard from the speakers.	The volume level is set to the minimum level.	Adjust it to the optimum level.
		Connections are incorrect.	Check the cords and connections.
	This unit does not work at all.	The built-in microcomputer may have functioned incorrectly due to noise, etc.	Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)
FM/AM	SSM (Strong-station Sequential Memory) automatic preset does not work.	Signals are too weak.	Store stations manually.
	Static noise while listening to the radio.	The aerial is not connected firmly.	Connect the aerial firmly.
Disc Playback	Disc cannot be played back.	Disc is inserted upside down.	Insert the disc correctly.
	CD-R/CD-RW cannot be played back.Tracks on the CD-R/CD-RW cannot be skipped.	CD-R/CD-RW is not finalized.	Insert a finalized CD-R/CD-RW.Finalize the CD-R/CD-RW with the component which you used for recording.
	Disc cannot be ejected.	Disc is locked.	Unlock the disc.(See page 23.)
	Disc sound is sometimes interrupted.	You are driving on rough roads.	Stop playback while driving on rough roads.
		Disc is scratched.	Change the disc.
		Connections are incorrect.	Check the cords and connections.
	“NO DISC” appears on the display.	No disc in the loading slot.	Insert a disc into the loading slot.
		Disc is inserted incorrectly.	Insert the disc correctly.
MP3/WMA Playback	Disc cannot be played back.	No MP3/WMA files are recorded on the disc.	Change the disc.
		MP3/WMA files do not have the extension code <.mp3> or <.wma> in their file names.	Add the extension code <.mp3> or <.wma> to their file names.
		MP3/WMA files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.	Change the disc.(Record MP3/WMA files using a compliant application.)
	Noise is generated.	The file played back is not an MP3/WMA file (although it has the extension code <.mp3> or <.wma>).	Skip to another file or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or non-WMA files.)
	A longer readout time is required ("CHECK" keeps flashing on the display).	Readout time varies due to the complexity of the folder/file configuration.	Do not use too many hierarchies and folders.
	Files cannot be played back as you have intended them to play.	Playback order is determined when the files are recorded.	____
	Elapsed playing time is not correct.	This sometimes occurs during play. This is caused by how the files are recorded on the disc.	____
	Indicator flashes on the display.	The current folder does not contain any MP3/WMA file.	Select another folder.
	"NO FILES" appears on the display.	The current disc does not contain any MP3/WMA file.	Insert a disc that contains MP3/WMA files.
	Correct characters are not displayed (e.g. album name).	This unit can only display alphabets (capital: A-Z), numbers, and a limited number of symbols.	____
“NO DISC” appears on the display.	No disc is in the magazine.	Insert discs into the magazine.
	Discs are inserted upside down.	Insert discs correctly.
“NO MAG” appears on the display.	No magazine is loaded in the CD changer.	Insert the magazine.
“RESET 8” appears on the display.	This unit is not connected to the CD changer correctly.	Connect this unit and the CD changer correctly and press the reset button of the CD changer.
“RESET 1” – “RESET 7” appears on the display.	——	Press the reset button of the CD changer.
The CD changer does not work at all.	The built-in microcomputer may function incorrectly due to noise, etc.	Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying.

We recommend that you stop disc play while driving on such rough roads.

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts.

- This unit is also compatible with MP3 and WMA discs.

How to handle discs

When removing a disc

from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

Center holder

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

- Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not be played correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.
- If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only "finalized" CD-Rs or CD-RWs.
• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched.
- Moisture condensation on the lens inside the unit.
- The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.
• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs:

• Discs with stickers, labels, or protective seal stuck to the surface.
  – Discs on which labels can be directly printed by an ink jet printer.

Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example,

• Stickers or labels may shrink and warp a disc.
• Stickers or labels may be peeled off so discs cannot be ejected.

– Print on discs may get sticky.

Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)
• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.
• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel

Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Subwoofer-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Cut off frequency: 120 Hz (fixed)

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 μV

Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 μV

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 decoding format:

MPEG 1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

WMA (Windows Media® Audio) decoding format:

Max. Bit Rate: 192 Kbps

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 12 mm

Mass (approx.):

1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

If you want some additional downloaded plates, you can download them by visiting http://www.jvc.co.jp/jvccar.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

DEUTSCH

Parts list for installation and connection

The following parts are provided for this unit. The number in parentheses indicates the quantity of the pieces supplied. After checking them, please set them correctly.

Illustration of three identical mechanical flange components with bolt holes, arranged in a staggered stack (no text or symbols)

Cutout plates (printed on the sheet) (4) Schablonen (auf das Blatt aufgedruckt) (4) Plaques découpées (imprimées sur une feuille) (4) Platen voor uitsnijding (gedrukt op het blad) (4)

Hex screwdriver (1) Sochskantschraubendreher (1) Clef hexagonale (1) Zcshockige sleutel (1)

Spare screws for the plate cover attachment—M2 x 5 mm (2) Ersatzschrauben für die Plattenabdeckung—M2 x 5 mm (2) Vis de rechange pour la fixation du couvercle de la plaque—M2 x 5 mm (2) Extra schroeven voor bevestiging van platafdckking—M2 x 5 mm (2)

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

- If you are not sure how to install this unit correctly, have it installed by a qualified technician.

EINBAU (IM ARMATURENBRETT)

INSTALLATIE (INBOUW IN HET DASHBOARD)

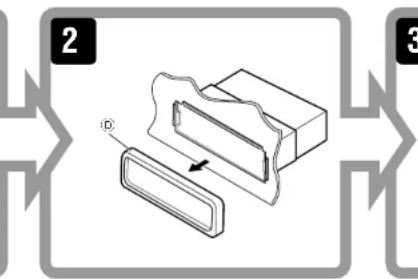

Diagram showing a mechanical assembly with a rectangular component and a separate rectangular block, no text or symbols present.

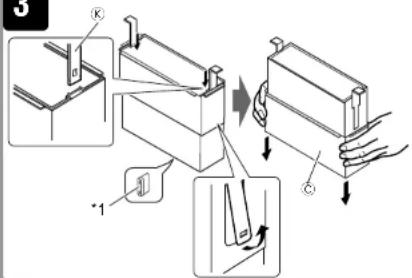

3

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Pure mechanical diagram showing a rectangular block with internal wires and arrows indicating force or movement (no text or symbols)

When using the optional stay / Beim Verwenden der Anker-Option / Lors de l'utilisation du hauban en option / Wanneer u de steun gebruikt (facultatief)

Fire wall Feuerwand Cloison Brandschem Stay (option) Anker (Option) Hauban (en option) Steun (facultatief) Screw (option) Schraube (Option) Vis (en option) Schrocf (facultatief) Dashboard Armaturenbrett Tableau de bord Dashboard

In a Toyota for example, first remove the car radio and install the unit in its place.

Flat type screws (M5 x 8 mm)*

* Not included with this unit.

Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If longer screws are used, they could damage the unit.

To prevent short circuits, we recommend that you disconnect the battery's negative terminal and make all electrical connections before installing the unit.

Be sure to ground this unit to the car's chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.
• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 to 8 ). If the maximum power is less than 50 W, change "AMP GAIN" setting to prevent the speakers from being damaged (see page 34 of the INSTRUCTIONS).
  • To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.
• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink

Abstrahlblech

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit.

The leads of the power cord and those of the connector from the car body may be different in color.

1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the aerial cord.
3 Finally connect the wiring harness to the unit. Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.
• The yellow lead (A4) is not used in this case.

• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
- No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “—” terminals of L and R speakers grounded in common?
- Noise interfere with sounds.
* Is the rear ground terminal connected to the car's chassis using shorter and thicker cords?
- Unit becomes hot.
* Is the speaker output lead grounded?
* Are the “-” terminals of L and R speakers grounded in common?

You can connect an amplifier and other equipment to upgrade your car stereo system.
- Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
- For amplifier only: Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this unit unused.

Refer also to page 38 of the INSTRUCTIONS.

Connecting cord supplied for your DAB tuner

Connecting cord supplied for your CD changer

Connecting cord supplied for your DAB tuner or CD changer

- Before connecting the CD changer and/or the DAB tuner, make sure that the unit is turned off.

• Bevor Sie den CD-Wechsler und/oder den DAB-Tuner anschließen, vergewissern Sie sich, daß das Gerät ausgeschaltet ist.
• Avant de connecter le changeur CD et/ou le tuner DAB, s'assurer que l'unité est éteinte.
• Zorg ervoor dat de apparaat is uitgeschakeld alvorens u de CD-wisselaar en/of DAB-tuner aansluit.

External Component / Externe Komponente / Appareil extérieur / Extern apparaat

CD changer jack Buchse für CD-Wechsler Prise du changeur CD Aansluiting voor CD-wisse

Signal cord (not supplied for this unit)

Signal cord (not supplied with this unit)

If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC's OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.

Steering wheel remote input

OE remote adapter (not supplied)

ATT SOUND U R SOURCE D VOL- VOL + JVC RUN/START

50WX4 JVC KD-SC407 MOSO 1 2 3 4 5 6 OFF +/-

Abstract geometric pattern with diagonal black and white stripes (no text or symbols)

INSTRUCTIONS

1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

CAUTION : Visible and invisible laser radiation when open and interlock, failed or defeated. AVOID DIRECT EXPOSURE TO BEAM (e)

ADVARSEL : Synlig og usynlig laserstråling när maskinen er åben eller interlocken feijer. Undgå direkte eksponering till stråling (d)

VARNING : Synlig och osynlig laserstråning när den öppnas och spårren är urkopolad. Betrakta ej strålen. (s)

VARO : Nattæssa ja suojaukitus ohteltuna la vialisene det alltina näkyvälle ja näkymättömälle lasersätelylle. Vältä säiben kohdistumista suoraan tseesi (f)

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or a similar tool.

This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

Diagram showing a device component assembly process with labeled parts and directional arrows indicating assembly steps.

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and ▲/▼ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

MO MONO EQ FM1

Time countdown indicator

To use these buttons for original functions again after pressing M MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

- Pressing M MODE again also clears the functions mode.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit 2

How to use the M MODE button .... 2

LOCATION OF THE BUTTONS ...... 4

Control panel 4

Remote controller 5

Preparing the remote controller .... 6

BASIC OPERATIONS ...... 7

Turning on the power 7

Canceling the display demonstration ..... 8

Setting the clock 9

RADIO OPERATIONS ...... 10

Listening to the radio 10

Storing stations in memory 11

Tuning in to a preset station 12

RDS OPERATIONS ...... 13

What you can do with RDS 13

Other convenient RDS functions and adjustments 18

CD OPERATIONS ...... 20

Playing a CD 20

Locating a track or a particular portion on a CD 21

Selecting CD playback modes 22

Playing a CD Text 23

Prohibiting disc ejection 23

MP3/WMA INTRODUCTION 24

What are MP3/WMA? 24

How are MP3/WMA files recorded and played back? 24

MP3/WMA OPERATIONS 25

Playing a disc 25

Locating a file or a particular portion on a disc 26

Selecting playback modes 28

SOUND ADJUSTMENTS 29

Selecting preset sound modes (C-EQ: custom equalizer) 29

Adjusting the sound 30

OTHER MAIN FUNCTIONS .... 31

Changing the general settings (PSM) ..... 31

Assigning names to the source 34

Changing the standard plate 35

Detaching the control panel 37

CD CHANGER OPERATIONS .... 38

Playing discs 38

Selecting the playback modes 41

EXTERNAL COMPONENT OPERATIONS ... 42

Playing an external component 42

TROUBLESHOOTING 43

MAINTENANCE 46

Handling discs 46

SPECIFICATIONS 47

BEFORE USE

\*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.

\*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

Display window 24 25 26 27 28 29 30 31 32 MO WMA MP3 CH RND RPT EQ ROCK CLASSIC POPS ST 12 21 AF REG LOUD TAG 88-8 Tr USER JAZZ 33 34 35 36 1 2 3 4 5 6 7 8 9 10 d/1/AT 50Wx4 JVC KD-SC607 SEL MODE DISP M 7 EQ 8 MO 9 SSM 10 11 RPT 12 RND TP/PTY CD-CH +10 R-D-S FM/AM 11 12 13 14 15 16 17 18 19 20 21 22 23

1 Remote sensor

2 Control dial

3 Qs1aAdby/on/attenuator) button

4 SEL (select) button

5 Screws (M2 × 5 mm)

6 Plate cover and standard plate

7 FM/AM button

8 ▲ (up) button +10 button

9 ▲ (eject) button

10 |◀◀ ▼ /▶▶| ∧ buttons

11 (control panel release) button

12 DISP (display) button

13 M MODE button

14 Display window

15 EQ (equalizer) button

16 MO (monaural) button

17 SSM (Strong-station Sequential Memory) button

18 RPT (repeat) button

19 RND (random) button

20 Number buttons

21 T TP/PTY (traffic programme/programme type) button

22 CD CD-CH (CD changer) button

23 ▼ (down) button -10 button

Display window

24 Tuner reception indicators—MO (monaural), ST (stereo)

25 Disc type indicators—WMA, MP3

26 CH (CD changer) indicator

27 CD indicator

28 RDS indicators—TP, PTY, AF, REG

29 Playback mode/item indicators—RND (random), (disc), (foiler), RPT (repeat)

30 LOUD (loudness) indicator

31 EQ (equalizer) indicator

32 Sound mode (C-EQ: custom equalizer) indicators—ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

- also works as level meter during play if the level meter is activated (see page 33).

33 Disc information indicators—TAG (ID3 Tag), (folder), track/file)

34 Main display

35 Source display Volume level indicator

36 Tr (track) indicator

Remote controller

I/O/ATT SOUND 1 2 U R SOURCE F D 3 4 VOL- VOL+ JVC RM-RK50

1 • Turns on the unit if pressed when the unit is turned off.
- Turns off the unit if pressed and held until "SEE YOU" appears on the display.
- Drops the volume level in a moment if pressed briefly.
Press again to resume the volume.

2 • Selects the band while listening to the radio. Each time you press the button, the band changes.

- Skips to the first file of the next folder while listening to an MP3 or a WMA disc.

Each time you press the button, you can move to the next folder and start playing the first file.

- While playing an MP3 disc on an MP3-compatible CD changer;

– Skips to the next disc if pressed briefly.
- Skips to the next folder if pressed and held.

Note: While playing a CD on a CD changer, this always skips to the next disc.

3 • Selects the preset stations while listening to the radio. Each time you press the button, the preset station number increases, and the selected station is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the previous folder and start playing the first file.

• While playing an MP3 disc on an MP3-compatible CD changer;

• Skips to the previous disc if pressed briefly.

• Skips to the previous folder if pressed and held.

Note: While playing a CD on a CD changer, this always skips to the previous disc.

4 Functions the same as the control dial on the main unit.

Note: These buttons do not function for the preferred setting mode (PSM) adjustment.

5 Selects the sound mode (C-EQ: custom equalizer).

Each time you press the button, the sound mode (C-EQ) changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches for stations while listening to the radio.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.
• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

Preparing the remote controller

Before using the remote controller:

- Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

Remote sensor

DBP MDD T T+0

- Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Diagram of a mechanical device with a rotating component and a magnified view of the lid (no text or symbols)

Lithium coin battery (product number: CR2025)

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

- Store the battery in a place where children cannot reach.

If a child accidentally swallows the battery, consult a doctor immediately.

- Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire.

Doing any of these things may cause the battery to give off heat, crack, or start a fire.

- Do not leave the battery with other metallic materials.

Doing this may cause the battery to give off heat, crack, or start a fire.

- When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

- Do not poke the battery with tweezers or similar tools.

Doing this may cause the battery to give off heat, crack, or start a fire.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

JVC 1 3 2 +10 +15 +40 +10 +15 +40 +10 +15 +40 +10 +15 +40 +10 +15 +40 +10 +15 +40 +10 +15 +40 +10 +15 +40 +10 +15 +40

Turning on the power

1 Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

2 Select the source.

To operate the tuner (FM or AM), see pages 10 - 19.

To play a CD, see pages 20 – 23.

To play an MP3/WMA disc, see pages 25 – 28.

To operate the CD changer, see pages 38 - 41.

To operate the external component (LINE IN), see page 42.

3 Adjust the volume.

SEL

To increase the volume

To decrease the volume

Volume level appears.

VOL 20 RCK CLASSIC USER JAZZ

Volume level indicator

4 Adjust the sound as you want. (See pages 29 and 30.)

To drop the volume in a moment

Press briefly while listening to any source. "ATT" starts flashing on the display, and the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

- If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

"SEE YOU" appears, then the unit turns off.

- If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

JVC +15 -10 +10 +10 +10 TVP/FTY CD/CK MODE 7 EQ 8 WD 9 SSM 10 11 RPT 12 RND DISP M 1 2 3 4 5 6 T C3

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

- It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

2 Select "DEMO" if not shown on the display.

DEMO EO DOCK CLASSIC FMI USER JAZZ

3 Select "DEMO OFF."

SEL

DEMO OFF ↔ DEMO ON

DEMO OFF RCKE CLASSIC FM1 USER JAZZ

4 Finish the setting.

To activate the display demonstration, repeat the same procedure and select "DEMO ON" in step 3.

JVC +10 -10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 DIP MODE 7 EQ 8 WD 9 SWM 10 TI RPT 11 RND TVP/FTY CD-CH T C3

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

2 Set the hour.

1 Select "CLOCK H" (hour) if not shown on the display.
2 Adjust the hour.

2 SEL

3 Set the minute.

1 Select "CLOCK M" (minute).
2Adjust the minute.

2 SEL

4 Set the clock system.

1 Select "24H/12H."
② Select "24H" or "12H."

2 SEL

5 Finish the setting.

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

- During AM and FM non-RDS station operation:

Frequency Clock

• During FM RDS Station operation:

• During disc operation:

Notes:

• While playing a conventional CD, "NO NAME" appears for the disc title/performer and the track title.
• For indication change while playing a CD Text or an MP3/WMA disc, see also pages 23 and 26.
• During external component operation:

LINE IN ←→ Clock

- During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

JVC MODE 7 10 6 10 9 558 18 11 RPT 12 RND T RPTY CD-CH +10 +10 -10 T CD

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

ST 00:3 EQ RICK CLASSIC FMI USB 1.24

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed for searching.

Note:

FM1 and FM2: 87.5 MHz - 108.0 MHz

FM3: 65.00 MHz - 74.00 MHz

Searching for a station manually: Manual search

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Press and hold ▶▶| ∧ or ◀◀◀ ∨ until “M” (manual) starts flashing on the display.

92.5 M FM1 USER JAZZ

3 Tune in to a station you want while "M" (manual) is still flashing.

+10 -10

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.
• If you hold down the button, the frequency keeps changing—in 50 kHz intervals (87.5 MHz – 108.0 MHz for FM 1 and FM 2), in 30 kHz intervals (65.00 MHz – 74.00 MHz for FM 3) and 9 kHz for AM —MW/LW until you release the button.

When an FM stereo broadcast is hard to receive:

1 Press M MODE to enter the functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while "MODE" is still flashing on the display, so that "MONO" appears on the display. Each time you press the button, monaural mode turns on and off alternately.

MO (monaural) indicator

MO MONO EQ 30K CLASSIC FMI USER A72

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
- Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

1 Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

2 Press M MODE to enter the functions mode.

3 Press and hold SSM for about 2 seconds.

9 SSM 3 SSM 7 7 7 USER A/KZ

“SSM” flashes, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3).

These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency).

When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 92.5 MHz into the preset number 1 of the FM1 band.

1 Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

2 Tune in to a station (in this example, of 92.5 MHz).

+10 -10

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

92.5 EQ RACK, CLASSIC FM1 USER JAZZ

3 Press and hold the number button (in this example, 1) for more than 2 seconds.

7 EQ 1 92.5 EQ MOCK CLASSIC P1 USER JA22

Preset number flashes for a while.

4 Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see "Storing stations in memory" on pages 11 and 12.

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

2 Select the number (1 - 6) for the preset station you want.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

Note:

You can also use the ▲ (up) or ▼ (down) button on the unit to select the next or previous preset stations. Each time you press the ▲ (up) or ▼ (down) button, the next or previous preset station is tuned in.

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.

Another advantage of RDS function is called "Enhanced Other Networks." By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)
• Standby Reception of TA (Traffic Announcement) or your favorite programme
  • PTY (Programme Type) search
• Programme search
  • And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page 19.)

Two types of the RDS data are used to make Network-Tracking Reception work correctly —PI (Programme Identification) and AF (Alternative Frequency).

Without receiving these data correctly from the RDS station you are listening to, Network-Tracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of network-tracking reception to continue listening to the same programme in its finest reception.

When shipped from the factory, "AF" is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to "off."
  With this setting, the unit switches to another station within the same network when the received signals from the current station become weak. (In this mode, the programme may differ from the one currently received.)
  The AF indicator lights up but the REG indicator does not.

- AF REG: Network-Tracking Reception is activated with Regionalization set to "on."

With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the received signals from the current station become weak.

Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated.

Neither the AF indicator nor the REG indicator lights up.

AF indicator REG indicator AF REG 92.5 Rock CLASSIC FM1 USK 1027

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

2 Select "AF-REG" (alternative frequency/regionalization reception) if not shown on the display.

3 Select the desired mode—"AF," "AF REG," or "OFF."

4 Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press T TP/PTY to activate TA Standby Reception.

■When the current source is FM, the TP indicator either lights up or flashes.

- If the TP indicator lights up, TA Standby Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 18) and the traffic announcement can be heard.

- If the TP indicator flashes, TA Standby Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ▶▶ | ▲ or ◀◀ ▼ to search for such a station.

When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

■When the current source is other than FM, the TP indicator lights up.

If a station starts broadcasting a traffic announcement, "TRAFFIC" appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception, press T TP/PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components).

- PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception.

When shipped from the factory, PTY Standby Reception is turned off. ("OFF" is selected for PTY Standby Reception.)

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

2 Select "PTY STBY" (standby) if not shown on the display.

3 Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display and is stored into memory.

4 Finish the setting.

■When the current source is FM, the PTY indicator either lights up or flashes.

- If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station. - If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ▶▶▶ ▲ or ◀◀◀ ▼ to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

■When the current source is other than FM, the PTY indicator lights up.

If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception, select "OFF" in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below.

To search your favorite programme type, see page 17.

1	2	3
POP M	ROCK M EASY M
4	5	6
CLASSICS	AFFAIRS	VARIED

To store your favorite programme types

1 Press and hold T TP/PTY for more than 2 seconds while listening to an FM station.

TPJPY T POP M FM1 MODE USER LIFE

The last selected PTY code appears.

2 Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display.

3 Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6 ROCK M FM1 EQ ROCK CLASSIC ROCK USER JAZZ

Selected PTY code and "MEMORY" appear alternately for a while.

MEMORY EQ RICE CLASSIC FM1 USER JAZZ

4 Press and hold T TP/PTY for more than 2 seconds to exit from this mode.

To search your favorite programme type

1 Press and hold T TP/PTY for more than 2 seconds while listening to an FM station.

TP/PTY T EQ BOCE CLASSIC MOZ FM1 USER JAZC POP M

The last selected PTY code appears.

2 To select one of your favorite programme type

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

or

To select any one of the twenty-nine PTY codes.

SEL ROCK M FMI RCK CLASSIC MOS USSL JAZZ

Ex.: When "ROCK M" is selected

3 Press ▶▶| ∧ or ◀◀◀ ∨ to start PTY search for your favorite programme.

SEARCH EQ MOCK CLASSIC 777 USSR 1A7Z

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.
• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in.

However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

- The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

- See also "Changing the general settings (PSM)" on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

2 Press ▶▶▶ | ∧ or ◀◀◀ ▼ to select "P(Programme)-SEARCH."

3 Turn the control dial clockwise to select "ON." Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same procedure and select "OFF" in step 3 by turning the control dial counterclockwise.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

- See also "Changing the general settings (PSM)" on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ I ∧ or ◀◀◀ ∨ to select "TA VOL" (volume).
3 Turn the control dial to set to the desired volume.

You can set it from "VOL 00" to "VOL 30" or "VOL 50" (depending on the amplifier gain control setting: see page 34).

4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal.

If you do not want to use automatic clock adjustment, follow the procedure below.

- See also "Changing the general settings (PSM)" on page 31.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ ▲ or ▶◀◀ ▼ to select "AUTO ADJ" (adjustment).
3 Turn the control dial counterclockwise to select "OFF."

Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same procedure and select "ON" in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting "AUTO ADJ" to "ON."

Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding on current news or affairs INFO: Programmes which impart advice on a wide variety of topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or regional culture SCIENCE: Programmes on natural science and technology VARIED: Other programmes like comedies or ceremonies POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading, the Stock Market, etc. CHILDREN: Entertainment programmes for children

SOCIAL: RELIGION: PHONE IN: TRAVEL: LEISURE: JAZZ: Jazz music COUNTRY: NATION M: OLDIES: FOLK M: DOCUMENT:

Programmes on social activities Programmes dealing with any aspect of belief or faith, or the nature of existence or ethics Programmes where people can express their views either by phone or in a public forum Programmes about travel destinations, package tours, and travel ideas and opportunities Programmes concerned with recreational activities such as gardening, cooking, fishing, etc. Country music Current popular music from another nation or region, in that country's language Classic pop music Folk music Programmes dealing with factual matters, presented in an investigative style

The same programme can be received on different frequencies.

JVC d1/100 SAIL FM/MR +18 +16 -19 7 EQ 8 WD 9 SSM 10 11 RPT 12 AND MODE DISP 1 2 3 4 5 6 TP/PTY CD+

Refer "MP3/WMA OPERATIONS" on pages 25 to 28 for operating MP3/WMA discs.

Playing a CD

1 Open the control panel.

Diagram showing a finger pressing a button on a device, then moving to a rectangular device with a curved arrow indicating rotation (no text or symbols present)

Note on One-Touch operation:

When a CD is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically.

2 Insert a CD into the loading slot.

Technical line drawing of a CD inside a rectangular housing (no text or symbols)

The unit turns on, draws the CD and starts playback automatically.

3 Close the control panel by hand.

Technical line drawing of a mechanical component with a black band and mounting holes (no text or symbols)

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator PLAY CD USER JAZZ Current source indication 7340" 17 CD USER JAZZ Total playing time of the inserted disc Total track number of the inserted disc 0003" 0.1 Elapsed playing time Current track number

Notes:

• When a CD is inserted upside down, the CD automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the previously selected source, "PLEASE" and "EJECT" appear alternately on the display.
• If there is no CD in the loading slot, you cannot select CD as the source. "NO DISC" appears on the display.
• If the current disc is a CD Text, disc title/performer and then track title will automatically appear.

To stop play and eject the CD

Press ▲.

CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source.

- If you change the source, CD play also stops (without ejecting the CD). Next time you select "CD" as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)
• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

-10 -10

Press and hold ▶▶▶, while playing a CD, to fast-forward the track.

Press and hold ◀◀◀ ,while playing a CD, to reverse the track.

To go to the next or previous tracks

+10 -10

Press ▶▶▶ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press ◀◀◀ briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

- To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly. - To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and -10 buttons)

1 Press M MODE to enter the functions mode while playing a CD.

2 Press +10 or -10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* First time you press +10 or -10 button, the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks (see "How to use the +10 and -10 buttons" on page 22).

• After the last track, the first track will be selected, and vice versa.

How to use the +10 and -10 buttons

• Ex. 1: To select track number 32 while playing track number 6

MODE M → +10 → (Three times) (Twice) Track 6 → 10 → 20 → 30 → 31 → 32

• Ex. 2 : To select track number 8 while playing track number 36

MODE M (Three times) (Twice) Track 36 → 30 → 20 → 10 → 9 → 8

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press M MODE to enter the functions mode while playing a CD.

2 Press RND (random), while "MODE" is still flashing on the display, so that "DISC RND" appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

RND and (disc) indicators DISC RND RND RDC CLASS USER JA72

When disc random play is turned on, the RND and indicators light up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press M MODE to enter the functions mode while playing a CD.

2 Press RPT (repeat), while "MODE" is still flashing on the display, so that "TRK RPT" appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator TRK RPT

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Playing a CD Text

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Notes:

• The display shows up to 8 characters at one time and scrolls if there are more than 8 characters. See also "To select the scroll mode—SCROLL" on page 33.
  Some characters or symbols will not be shown (and be blanked) on the display. (Ex. "ABCâ!d#" ⇔ "ABCA D ")
• When you press DISP (display) while playing a conventional CD, "NO NAME" appears for the disc title/performer and the track title.
• When track title is shown, the Tr indicator and current track number also appear on the right side of the display.

Prohibiting disc ejection

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD CD-CH, press and hold Ⓓ/1/ATT for more than 2 seconds.

"NO EJECT" flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

NO EFFECT RICH CLASSIC MUST USB USB

To cancel the prohibition and unlock the disc

While pressing CD CD-CH, press and hold ⏻/I/ATT again for more than 2 seconds. "EJECT OK" flashes on the display for about 5 seconds, and the disc is unlocked.

EJECT OK RIOCK CLASSIC CD USER JA72

What are MP3/WMA?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps ^* ).

WMA (Windows Media® Audio) is the digital audio compression format developed by Microsoft Corporation.

* Bit rate is the average number of bits that one second of audio data will consume. The unit used is Kbps. To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.
- For details information about the MP3/WMA discs, refer to "A Guide to MP3/WMA" (separate volume).

Compatible with ID3 Tag

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3/WMA file.

This unit can show both ID3v1 (Version 1) and ID3v2 (Version 2) tags on the display. (See page 26.)

• Some characters cannot be shown correctly.
- If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

How are MP3/WMA files recorded and played back?

MP3/WMA "files (tracks)" can be recorded in "folders"—in PC terminology.

During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data.

"Root" is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

The illustration below shows an example of how MP3/WMA files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• This unit cannot read or play an MP3 file without the extension code <.mp3> and a WMA track without the extension code <.wma> .
• This unit is not compatible with MP3 files encoded with Layer 1 and Layer 2 formats.
• This unit is not compatible with WMA files which are not based upon Windows Media® Audio.
• This unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which enables users to make their own playback order without physically rearranging the files.

01 : Folder and their playback order MP3/WMA files and their playback order

- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

JVC MODE 7 10 8 10 9 35M 10 11 RFT 12 RND TAXPTY 10-CN DISP M 1 2 3 4 5 6 T C3

Refer also to "CD OPERATIONS" on pages 20 to 23.

Playing a disc

1 Open the control panel.

Diagram showing a finger pressing a button next to a device with an arrow indicating rotation or adjustment.

Note on One-Touch operation:

When a disc is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically.

2 Insert a disc into the loading slot.

Technical line drawing of a CD inside a rectangular housing, showing internal components and an arrow indicating direction (no text or symbols)

The unit turns on, draws the disc and starts playback automatically.

3 Close the control panel by hand.

Technical line drawing of a mechanical component with a central fastener or spring (no text or symbols)

All files will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator PLAY .... Current source indication CHECK WMA or MP3 indicator* F 19 T 144 Total folder number Total file number

Ex.: When the disc contains 19 folders and 144 MP3/WMA files

* WMA or MP3 indicator lights up depending on the first detected file.

Notes:

• MP3/WMA discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)
• When playback starts, folder and file names (or ID3 tags) will automatically appear. (See also page 26.)
• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press ▲.

Playback stops and the control panel flips down.

The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3/WMA file, you can change the disc information shown on the display.

Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following:

- When "TAG DISP" is set to "TAG ON" (initial setting: see page 34)

* If ID3 tags are not recorded, folder name and file name appear. In this case, the TAG indicator will not light up on the display.
- When "TAG DISP" is set to "TAG OFF"

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also "To select the scroll mode—SCROLL" on page 33.
• When folder or file name is shown, current folder number or the Tr indicator and current file number also appear on the right side of the display.

Locating a file or a particular portion on a disc

To fast-forward or reverse the file

+10 -10

Press and hold ▶▶▶ I ∧ while playing a disc, to fast-forward the file.

Press and hold ◀◀ While playing a disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

-10 -10

Press ▶▶▶ briefly while playing, to skip ahead to the beginning of the next file.

Each time you press the button consecutively, the beginning of the next files is located and played back.

Press ◀◀◀ briefly, while playing, to skip back to the beginning of the current file.

Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and -10 buttons)

1 Press M MODE to enter the functions mode while playing a disc.

2 Press +10 or -10.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

* First time you press +10 or -10 button, the file skips to the nearest higher or lower file with a file number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 files (see "How to use the +10 and -10 buttons" below).

• After the last file, the first file will be selected, and vice versa.

How to use the +10 and -10 buttons

• Ex. 1: To select file number 32 while playing file number 6

MODE M (Three times) (Twice) File 6 → 10 → 20 → 30 → 31 → 32

- Ex. 2 : To select file number 8 while playing file number 36

MODE M → -10 → (Three times) (Twice) File 36 → 30 → 20 → 10 → 9 → 8

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.)

Ex.: If folder name is "01 ABC"

→Press 1 to go to Folder 01 ABC. If folder name is "1 ABC," pressing 1 does not work.

If folder name is "12 ABC"

→Press and hold 6 (12) to go to Folder 12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.
• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If indicator flashes on the display after you have selected a folder, it means that the folder does not contain any MP3/WMA files.
• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press ▶▶▶ ▲ or ◀◀◀ ▼ after selecting the folder.

To skip to the next or previous folder

+10 -10

Press ▲ (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Press ▼ (down) while playing a disc to skip back to the previous folder.

Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3/WMA files, it is skipped.

Selecting playback modes

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the disc at random.

1 Press M MODE to enter the functions mode while playing a disc.

2 Press RND (random), while "MODE" is still flashing on the display, so that "FLDR RND" or "DISC RND" appears on the display.

Each time you press the button, the random play mode changes as follows:

RND and (folder) indicators MP3 CD RND FLDR RND

Ex.: When you select "FLDR RND" while listening to an MP3 file

Mode	Active indicator	Plays at random
FLDR RND	RND and A files of the indicators current folder, then light up. files of the next folder and so on.
DISC RND	RND and A files on the disc. indicators light up.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

1 Press M MODE to enter the functions mode while playing a disc.

2 Press RPT (repeat), while "MODE" is still flashing on the display, so that "TRK RPT" or "FLDR RPT" appears on the display. Each time you press the button, the repeat play mode changes as follows:

RPT indicator MP3 CD RPT TRK RPT

Ex.: When you select "TRK RPT" while listening to an MP3 file

Mode	Active indicator	Plays repeatedly
TRK RPT RPT	indicator The current (or lights up. specified) file.
FLDR RPT	and RPT All files of the indicators current (or light up. specified) folder.

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre.

- There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

1 Press M MODE to enter the functions mode.

2 Press EQ (equalizer) while "MODE" is still flashing on the display.

You can confirm the current sound mode.

3 Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

Indication pattern changes for each sound mode except for "USER."

ROCK EQ ROCK CLASSIC 7.1 USB 1MHz

Ex.: When you select "ROCK"

Indication	For: Preset values
USER (Flat	sound) 00 00	OFF
ROCK Rock	or +03 +01 ON disco music
CLASSIC	Classical +01 -02 OFF music
POPS Light	music +04 +01	OFF
HIP HOP F	Funk or rap +02 music	00	ON
JAZZ	Jazz music	+02	+03 OFF

Note: You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See "Adjusting the sound" on page 30.

When using the remote controller:

Press SOUND repeatedly. Each time you press the button, the sound modes change as follows:

Adjusting the sound

You can adjust the sound characteristics to your preference.

1 Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

Indication	To do: Range
BAS^*1	Adjust the bass. -06 (min.)|+06 (max.)
TRE^*1	Adjust the treble. -06 (min.)|+06 (max.)
FAD^*2	Adjust the front R06 (Rear only)and rear speaker balance. F06 (Front only)
BAL Adjust	the left L06 (Left only)and right speaker balance. R06 (Right only)
LOUD^*1	Boost low and high frequencies LOUD ONto produce a well-balanced sound at low volume level.
VOL^*3	Adjust the volume.	00 (min.)|30 or 50 ( max.^4 )

*1 When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including "USER."
*2 If you are using a two-speaker system, set the fader level to "00."
*3 Normally the control dial work as the volume control. So you do not have to select "VOL" to adjust the volume level.
*4 Depending on the amplifier gain control setting. (See page 34 for details.)

2 Adjust the setting.

SEL

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Indication pattern changes as you adjust the bass or treble.

TRE +06 EQ RQCK CLASSIC 11111 USER JAZZ

Ex. 1: When you adjust "TRE" (treble)

EQQ EQQ CLASSIC EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ EQQ

Ex. 2: When you turn on the loudness

3 Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and reassign the preset values listed in the table on page 29.

Changing the general settings (PSM)

You can change the items listed in the table below and on page 32 by using the PSM (Preferred Setting Mode) control.

Basic Procedure

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See below and page 32.)

2 Select the PSM item you want to adjust.

3 Adjust the PSM item selected.

SEL

4 Repeat steps 2 and 3 to adjust the other PSM items if necessary.

5 Finish the setting.

Preferred Setting Mode (PSM) items

- For detailed operations of each PSM items, refer to the pages listed in the table.

Indications Selectable values/items			Factory-preset see settings page
DEMO Display demonstration	DEMO OFF	DEMO ON	DEMO ON
CLOCK H Hour adjustment	0 — 23 (1 — 12)		0 (0:00)
CLOCK M Minute adjustment	00 — 59		00 (0:00)
COLOR Display color	(See page 33.)		ALL DEMO
24H/12H 24/12-hour time display	12H 24H		24H
AUTO ADJ Automatic clock setting	OFF ON		ON
AF-REG Alternative frequency/Regionalization reception	AF ↔ AF REG↑↓ OFF ←↑		AF

Indications	Selectable values/items		Factory-preset settings	See page
PTY STBY PTY standby	OFF → 29 programme types (see page 19)		OFF	15
TA VOL Traffic announcement volume	VOL 00 — VOL 30 or 50*1		VOL 20	18
P-SEARCH Programme search	OFF ON OFF			18
LEVEL Level display	OFF ON	ON		33
DIMMER Dimmer mode	AUTO ↔ OFF↑→ ON ←↑		AUTO	33
TEL Telephone muting	OFF ↔ MUTING 1↑→ MUTING 2 ←↑		OFF	33
SCROLL Scroll mode	ONCE ↔ AUTO↑→ OFF ←↑		ONCE	33
EXT IN*2 External component	CHANGER	LINE IN	CHANGER 34
TAG DISP Tag display	TAG OFF	TAG ON	TAG ON	34
AMP GAIN Amplifier gain control	LOW PWR	HIGH PWR	HIGH PWR	34

^1 Depending on the amplifier gain control setting. (See page 34 for details.)
^2 Displayed only when one of the following sources is selected—FM, AM, and CD.

To select the display color—COLOR

You can select the color of the display according to your preference.

When shipped from the factory, "ALL DEMO" is selected.

The selectable colors are as follows:

ALL DEMO ⊃ SOURCE ⊃ BLUE ⊃ OCEAN ⊃ PURPLE ⊃ PINK ⊃ ROSE ⊃ RED ⊃ (back to the beginning)

• ALL DEMO: The display color changes every 6 seconds (rose → pink → ocean → red → purple → blue → back to the beginning).
• SOURCE: The display color is fixed to red while listening to FM or AM, blue while listening to CD, and purple while listening to external component.

To select the level meter—LEVEL

You can activate or deactivate the level meter according to your preference.

When shipped from the factory, level meter is activated.

• ON: Shows the audio level indicator.
- OFF: Cancels the audio level indicator; sound mode indicator is shown.

To select the dimmer mode—DIMMER

When you turn on the car headlights, the display automatically dims (Auto Dimmer).

When shipped from the factory, Auto Dimmer mode is activated.

• AUTO: Activates Auto Dimmer.
• OFF: Cancels Auto Dimmer.
• ON: Always dims the display.

Note:

Auto Dimmer equipped for this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming.

In this case, set the dimmer mode to "ON" or "OFF."

To select the telephone muting—TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either "MUTING 1" or "MUTING 2" whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select if this setting can mute the sounds.
• MUTING 2: Select if this setting can mute the sounds.
  • OFF: Cancels the telephone muting.

To select the scroll mode—SCROLL

You can select the scroll mode for the disc information (when the entire text cannot be shown at once).

When shipped from the factory, scroll mode is set to "ONCE."

• ONCE: Scrolls only once.
• AUTO: Repeats the scroll (5-second intervals in between).
• OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to "OFF," you can scroll the display by pressing DISP (display) for more than one second.

To select the external component to use —EXT IN

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

To use the external component as the playback source through this unit, you need to select which component—CD changer or external component—to use.

When shipped from the factory, CD changer is selected as the external component.

• CHANGER: To use the CD changer.
  • LINE IN: To use the external component other than CD changer.

Note:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).

To turn the tag display on or off —TAG DISP

An MP3/WMA file can contain file information called "ID3 Tag" where its album name, performer, track title, etc. are recorded.

There are two versions—ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

When shipped from the factory, "TAG ON" is selected.

- TAG ON: Turns on the ID3 tag display while playing MP3/WMA files.

- If an MP3/WMA file does not have ID3 tags, folder name and file name appear.

- TAG OFF: Turns off the ID3 tag display while playing MP3/WMA files. (Only the folder name and file name can be shown.)

To select the amplifier gain control —AMP GAIN

You can change the maximum volume level of this unit. When the maximum power of the speakers is less than 50 W, select "LOW PWR" to prevent them from being damaged.

When shipped from the factory, "HIGH PWR" is selected.

- LOW PWR: You can adjust the volume level from "VOL 00" to "VOL 30."

Note:

If you change the setting from “HIGH PWR” to “LOW PWR” while listening at a volume level more than 30, the unit automatically changes the volume level to “VOL 30.”

- HIGH PWR: You can adjust the volume level from "VOL 00" to "VOL 50."

Assigning names to the source

You can assign names to CDs (both in this unit and in the CD changer).

After assigning a name, it will appears on the display when you select the source.

Source Maximum number of characters

CDs* Up to 32 characters (up to 40 discs)

* You cannot assign a name to a CD Text or an MP3/WMA disc.

1 Select a source you want to assign a name to.

CD-CH CD CD CD-CH

When you select a source, the power automatically comes on.

2 While pressing DISP (display), press and hold SEL (select) for more than 2 seconds.

DISP SEL EQ ROCK, CLASSIC CD JAZZ USER JAZZ

Ex.: When you select CD as the source

3 Select a character.

A B	C D	E F	G H	I J
K L	M N	O P	Q R	S T
U V	W X	Y Z				0 1	2 3
4 5	6 7	8 9				-	/	<	>
space

4 Move the cursor to the next (or previous) character position.

5 Repeat steps 3 and 4 until you finish entering the name.

6 Finish the procedure while the last selected character is flashing.

To erase the input characters

To erase all the characters at a time, press and hold DISP (display) for more than 1 second as described in the procedure above.

Notes:

• When you try to assign a name to the 41st disc, "NAME FULL" appears on the display. (In this case, delete unwanted names before assignment.)
• When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.

Changing the standard plate

You can change the standard plate with another plate supplied with your unit.

You can also download them by visiting

http://www.jvc.co.jp/jvccar.

- When changing the plate, be careful not to leave your fingerprints on the plate or cover.

1 Loosen the screws with the supplied hex screwdriver.

Technical line drawing of a mechanical component with no visible text or symbols

2 Remove the plate cover and the standard plate.

Standard plate x2 Plate cover

3 Replace with another plate (a standard, cutout, or downloaded plate) of your preference.

- When attaching a standard plate

Standard plate Plate cover

- When attaching a cutout or downloaded plate

Add the transparent plate (supplied) between the cutout or downloaded plate and the plate cover in order to attach the plate cover in place.

Cutout or downloaded plate Plate cover Transparent plate (supplied)

When attaching the plate cover

Openings Protruding parts

Ensure the two protruding parts at the bottom of the plate cover are inserted into the two openings on the control panel, as illustrated.

Notes:

• Be sure to keep the hex screwdriver for future use.
• Two spare screws for the plate cover attachment are provided with the unit. See the Installation/Connection Manual (separate volume).
• When you attach the plate cover, do not tighten the screws too hard; otherwise, the plate cover might be cracked.

How to use the cutout plates

1 Unfold the supplied cutout plates.

Diagram of mechanical components with arrows indicating direction (no text or symbols)

2 Cut the plates out using a scissors.

Illustration of scissors cutting through a sheet of mechanical parts (no text or symbols)

3 Trim out the window and two knobs using a knife on a rubber mat.

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Detaching the control panel

You can detach the control panel when leaving the car.

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

1 Unlock the control panel.

Diagram showing a hand holding a small object with an arrow pointing to it, next to a rectangular object with a slot.

2 Pull the control panel out of the unit.

Technical line drawing of two mechanical components with directional arrows indicating movement (no text or symbols)

3 Put the detached control panel into the provided case.

Technical line drawing of a mechanical component with an open lid and internal structure, showing rotational motion arrows (no text or symbols)

Attaching the control panel

1 Insert the right side of the control panel into the groove on the panel holder.

Technical line drawing of two mechanical components with arrows indicating assembly or movement (no text or symbols)

2 Press the left side of the control panel to fix it to the panel holder.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate.

To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

JVC +10 +10 -10 TAPPTT CP-CH +10 +10 +10 +10 +10 [phone]M 18 11 NFT 12 RND M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M N

We recommend that you use the JVC MP3-compatible CD changer with your unit.

By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

• You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.
• You cannot use the KD-MK series CD changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied for your CD changer.
- If no discs are in the magazine of the CD changer or the discs are inserted upside down, "NO DISC" will appear on the display. If this happens, remove the magazine and set the discs correctly.
- If no magazine is loaded in the CD changer, "NO MAG" appears on the display. If this happens, insert the magazine in the CD changer.
- If "RESET 1" – "RESET 8" appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Note:

You cannot control and play any WMA disc on the CD changer.

Playing discs

Select the CD changer (CD-CH).

CD-CH CD CD GD-CH*

* If you have changed "EXT IN" setting to "LINE IN" (see page 34), you cannot select the CD changer.
- When the current disc is an MP3 disc:

Playback starts from the first folder of the current disc once file check is completed.

CD-CH Selected disc number CHECK MP3 indicator ROOT VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO VOO

Note:

Folder name appears on the display instead of "ROOT," if an MP3 disc contains a folder.

- When the current disc is a CD:

Playback starts from the first track of the current disc.

CD-CH EQ RICK CLASSIC USER JAZZ PLAY 01 d01 USER JAZZ Selected disc number 00'03" 01 d01 Elapsed playing time Current track number

Notes:

• When you press CD CD-CH, the power automatically comes on. You do not have to press ⏻/1/ATT to turn on the power.
• If you change the source, CD changer play also stops. Next time you select the CD changer as the source, CD changer play starts from where playback has been stopped previously.
• When you start playing back a CD Text or MP3 disc, disc information will automatically appear on the display. (See pages 23 and 26.)

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

7 EQ 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.
• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To fast-forward or reverse the track/file

+10 -10

Press and hold ▶▶▶ I ▲ during play, to fast-forward the track/file.

Press and hold ◀◀◀, during play, to reverse the track/file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous tracks/files

+10 -10

Press ▶▶▶ I briefly during play, to skip ahead to the beginning of the next track/file. Each time you press the button consecutively, the beginning of the next tracks/files is located and played back.

Press ◀◀◀ ▼briefly during play, to skip back to the beginning of the current track/file.

Each time you press the button consecutively, the beginning of the previous tracks/files is located and played back.

This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500).

To go to a track/file quickly (+10 and -10 buttons)

1 Press M MODE to enter the functions mode while playing a disc.

2 Press +10 or -10.

To skip 10 tracks/files* forwards to the last track/file

To skip 10 tracks/files* backwards to the first track/file

* First time you press +10 or -10 button, the track/file skips to the nearest higher or lower track/file with a track/file number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks/files (see "How to use the +10 and -10 buttons" below).

• After the last track/file, the first track/file will be selected, and vice versa.

Note:

If the current playing disc is an MP3 disc, files are skipped within the same folder.

How to use the +10 and -10 buttons

- Ex. 1: To select track/file number 32 while playing track/file number 6

MODE M -10 (Three times) (Twice)

Track/File 6 → 10 → 20 → 30 → 31 → 32

- Ex. 2 : To select track/file number 8 while playing track/file number 36

MODE M → -10 → (Three times) (Twice)

Track/File 36 → 30 → 20 → 10 → 9 → 8

To skip to the next or previous folder (only for MP3 discs)

+10 -10

Press ▲ (up) while playing an MP3 disc, to go to the next folder.

Each time you press the button consecutively, the next folder is located, and the first file in the folder starts playback.

Press ▼ (down) while playing an MP3 disc, to go to the previous folder.

Each time you press the button consecutively, the previous folder is located, and the first file in the folder starts playback.

To show the disc information for CD Text and MP3 discs

This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability.

Select text display mode while playing a CD Text or an MP3 disc.

- For details, see page 23 about CD Text disc information and page 26 about MP3 disc information.

Selecting the playback modes

To play back tracks/files at random (Folder Random/Disc Random/Magazine Random Play)

1 Press M MODE to enter the functions mode during play.

2 Press RND (random), while "MODE" is still flashing on the display.

Each time you press the button, the random play mode changes as follows:

For MP3 discs:

For CDs:

DISC RND → MAG RND Canceled ← RND indicator CH RND MAG RND

Ex.: When you select "MAG RND"

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode	Active indicator	Plays at random
FLDR RND*	RND and All files of the indicators current folder, then light up. files of the next folder and so on.
DISC RND R	ND and All tracks/files of indicators the current (or light up. specified) disc.
MAG RND R	ND indicator All lights up. the inserted discs.	tracks/files of inserted discs.

* "FLDR RND" is only applicable for MP3 discs.

To play back tracks/files repeatedly (Track Repeat/Folder Repeat/Disc Repeat Play)

1 Press M MODE to enter the functions mode during play.

2 Press RPT (repeat), while "MODE" is still flashing on the display. Each time you press the button, the repeat play mode changes as follows:

For MP3 discs:

For CDs:

TRK RPT DISC RPT Canceled (disc) and RPT indicators DISC RPT RPT EQ ROCK CLASSIC USER ULZZ

Ex.: When you select "DISC RPT"

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode	Active indicator	Plays repeatedly
TRK RPT RPT	indicator The lights up. specified) track/file.	current (or
FLDR RPT*	and RPT indicators light up.	files of the current (or specified) folder of the current disc.
DISC RPT	and RPT All tracks/files of indicators light up.	the current (or specified) disc.

* "FLDR RPT" is only applicable for MP3 discs.

JVC SEL MODES 7 10 4 9 55M 16 11 NPT 12 RND DHF M 1 2 3 4 5 6 T CD -10 -10 -10 FIL/MN +/-

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).
• Before operating the external component using the following procedure, select the external input correctly. See “To select the external component to use—EXT IN” on page 34.

1 Select the external component (LINE IN).

CD-CH CD CD LINE IN*

LINE IN EQ ROCK CLASSIC RPG USER JAZZ

• If "LINE IN"* does not appear on the display, see page 34 and select the external input ("LINE IN").
  * Displayed only when one of the following sources is selected—FM, AM, and CD.

Note on One-Touch Operation:

When you press CD CD-CH, the power automatically comes on. You do not have to press ⬇WATT on the power.

2 Turn on the connected component and start playing the source.
3 Adjust the volume.

SEL

4 Adjust the sound as you want. (See pages 29 and 30.)

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms		Causes	Remedies
General	Sound cannot be heard from the speakers.	The volume level is set to the minimum level.	Adjust it to the optimum level.
		Connections are incorrect.	Check the cords and connections.
	This unit does not work at all.	The built-in microcomputer may have functioned incorrectly due to noise, etc.	Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)
FM/AM	SSM (Strong-station Sequential Memory) automatic preset does not work.	Signals are too weak.	Store stations manually.
	Static noise while listening to the radio.	The aerial is not connected firmly.	Connect the aerial firmly.
Disc Playback	Disc cannot be played back.	Disc is inserted upside down.	Insert the disc correctly.
	CD-R/CD-RW cannot be played back.Tracks on the CD-R/CD-RW cannot be skipped.	CD-R/CD-RW is not finalized.	Insert a finalized CD-R/CD-RW.Finalize the CD-R/CD-RW with the component which you used for recording.
	Disc cannot be ejected.	Disc is locked.	Unlock the disc.(See page 23.)
	Disc sound is sometimes interrupted.	You are driving on rough roads.	Stop playback while driving on rough roads.
		Disc is scratched.	Change the disc.
		Connections are incorrect.	Check the cords and connections.
	“NO DISC” appears on the display.	No disc in the loading slot.	Insert a disc into the loading slot.
		Disc is inserted incorrectly.	Insert the disc correctly.
MP3/WMA Playback	Disc cannot be played back.	No MP3/WMA files are recorded on the disc.	Change the disc.
		MP3/WMA files do not have the extension code <.mp3> or <.wma> in their file names.	Add the extension code <.mp3> or <.wma> to their file names.
		MP3/WMA files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.	Change the disc.(Record MP3/WMA files using a compliant application.)
	Noise is generated.	The file played back is not an MP3/WMA file (although it has the extension code <.mp3> or <.wma>).	Skip to another file or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or non-WMA files.)
	A longer readout time is required ("CHECK" keeps flashing on the display).	Readout time varies due to the complexity of the folder/file configuration.	Do not use too many hierarchies and folders.
	Files cannot be played back as you have intended them to play.	Playback order is determined when the files are recorded.	____
	Elapsed playing time is not correct.	This sometimes occurs during play. This is caused by how the files are recorded on the disc.	____
	Indicator flashes on the display.	The current folder does not contain any MP3/WMA file.	Select another folder.
	"NO FILES" appears on the display.	The current disc does not contain any MP3/WMA file.	Insert a disc that contains MP3/WMA files.
	Correct characters are not displayed (e.g. album name).	This unit can only display alphabets (capital: A-Z), numbers, and a limited number of symbols.	____
“NO DISC” appears on the display.	No disc is in the magazine.	Insert discs into the magazine.
	Discs are inserted upside down.	Insert discs correctly.
“NO MAG” appears on the display.	No magazine is loaded in the CD changer.	Insert the magazine.
“RESET 8” appears on the display.	This unit is not connected to the CD changer correctly.	Connect this unit and the CD changer correctly and press the reset button of the CD changer.
“RESET 1” – “RESET 7” appears on the display.	——	Press the reset button of the CD changer.
The CD changer does not work at all.	The built-in microcomputer may function incorrectly due to noise, etc.	Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying.

We recommend that you stop disc play while driving on such rough roads.

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts.

- This unit is also compatible with MP3 and WMA discs.

How to handle discs

When removing a disc

from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

Center holder

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

- Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not be played correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.
- If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only "finalized" CD-Rs or CD-RWs.
• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched.
- Moisture condensation on the lens inside the unit.
- The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.
• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs:

• Discs with stickers, labels, or protective seal stuck to the surface.
  – Discs on which labels can be directly printed by an ink jet printer.

Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example,

• Stickers or labels may shrink and warp a disc.
• Stickers or labels may be peeled off so discs cannot be ejected.

– Print on discs may get sticky.

Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)
• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.
• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel

Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM1/FM2: 87.5 MHz to 108.0 MHz

FM3: 65.00 MHz to 74.00 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 μV

Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 μV

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 decoding format:

MPEG 1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

WMA (Windows Media® Audio) decoding format:

Max. Bit Rate: 192 Kbps

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 12 mm

Mass (approx.):

1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

If you want some additional downloaded plates, you can download them by visiting

http://www.jvc.co.jp/jvccar.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

РУССКИЙ

Parts list for installation and connection

The following parts are provided for this unit. The number in parentheses indicates the quantity of the pieces supplied.

After checking them, please set them correctly.

Technical illustration of a mechanical clamp or bracket with multiple slots and mounting holes (no text or symbols)

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

- If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Diagram showing a rectangular object being cut into a larger rectangular block, with an arrow indicating the process (no text or symbols present)

3

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Technical illustration of a mechanical component with a labeled section (B), no readable text or symbols present.

2 3

Pure electrical circuit lines without any symbols

In a Toyota for example, first remove the car radio and install the unit in its place.

: When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If longer screws are used, they could damage the unit.

To prevent short circuits, we recommend that you disconnect the battery's negative terminal and make all electrical connections before installing the unit.

- Be sure to ground this unit to the car's chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.
• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 to 8 ). If the maximum power is less than 50 W, change "AMP GAIN" setting to prevent the speakers from being damaged (see page 34 of the INSTRUCTIONS).
  • To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.
• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink Radiator

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.
• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit.

The leads of the power cord and those of the connector from the car body may be different in color.

1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the aerial cord.
3 Finally connect the wiring harness to the unit.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

• The fuse blows.
  * Are the red and black leads connected correctly?
  • Power cannot be turned on.
  * Is the yellow lead connected?
  • No sound from the speakers.
  * Is the speaker output lead short-circuited?
  • Sound is distorted.
  * Is the speaker output lead grounded?
  * Are the "-" terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
  * Is the rear ground terminal connected to the car's chassis using shorter and thicker cords?
• Unit becomes hot.
  * Is the speaker output lead grounded?
  * Are the “-” terminals of L and R speakers grounded in common?

You can connect an amplifier and other equipment to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
• For amplifier only:
  Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this unit unused.

Refer also to page 38 of the INSTRUCTIONS.

Connecting cord supplied for your CD changer
