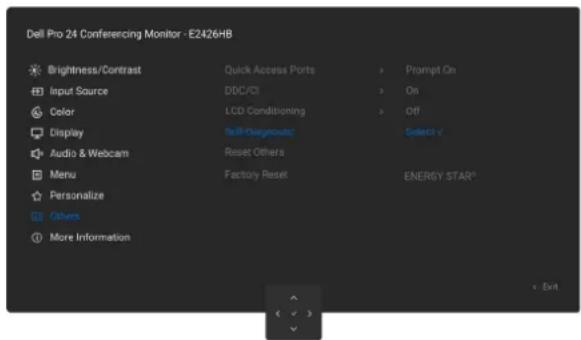

How do I enable the built-in diagnostics?

With the monitor on and no video cable connected, or by navigating the OSD to Others > Self-Diagnostics, start the test. The monitor will cycle through gray, red, green, blue, black, and white screens. Check for any abnormalities.

What does it mean when the power LED blinks white?

A blinking white power LED indicates that the monitor is in Standby Mode. It will turn solid white when the monitor is fully on and receiving a video signal.

USER MANUAL E2426HB DELL

Dell Pro 24 Conferencing Monitor E2426HB

Simplified Service Manual

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

△ CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

⚠ WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Contents

Safety instructions....4

Before working inside your monitor....5

After working inside your monitor 5

Views of E2426HB monitor 6

Front view 6

Back view 7

Side view....7

Bottom view 8

Major components of E2426HB monitor 9

Wiring connectivity diagram 10

Connecting your monitor....11

Disassembly and reassembly 13

Recommended tools....13

Screw list....13

Stand 14

Removing the stand 14

Installing the stand 15

Back cover....16

Removing the back cover 16

Installing the back cover 17

Speakers 18

Removing the speakers 18

Installing the speakers 19

USB Board 20

Removing the USB board 20

Installing the USB board. 21

Keypad board 22

Removing the keypad board 22

Installing the keypad board 23

Main chassis....24

Removing the main chassis 24

Installing the main chassis 25

Middle frame....26

Removing the middle frame 26

Installing the middle frame 27

LED board 28

Removing the LED board 28

Installing the LED board 29

Camera module....30

Removing the camera module 30

Installing the camera module 31

Main board 32

Removing the main board 32

Installing the main board 33

Power board 34

Removing the power board 34

Installing the power board 35

Troubleshooting....36

Self-test....36

Built-in diagnostics....36

Common problems 37

Product-specific problems....38

Universal Serial Bus (USB) specific problems....40

Contacting Dell....41

Revision History 42

Safety instructions

Use the following safety guidelines to protect your monitor from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure in this document assumes that you have read the safety information that shipped with your monitor.

NOTE: Before using the monitor, read the safety information that is shipped with your monitor and printed on the product. Keep the documentation at a secure location for future reference.

CAUTION: The possible long-term effect of listening to audio at high volume through the headphones (on monitors that support it) can damage your hearing ability.

⚠ WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

- Place the monitor on a solid surface and handle it carefully.

• The screen is fragile and can be damaged if dropped or pressed with a sharp object.
• Ensure that your monitor is electrically rated to operate with the AC power available in your location.
- Keep the monitor at room temperature. Excessive cold or hot conditions can have an adverse effect on the liquid crystal of the display.
- Connect the power cable from the monitor to a wall outlet that is near and accessible. See Connecting your monitor.

- Do not place or use the monitor on a wet surface or near water.

• Do not subject the monitor to severe vibration or high impact conditions. For example, do not place the monitor inside a car trunk.
  • Unplug the monitor when it is going to be left unused for an extended period.
  • To avoid electric shock, do not attempt to remove any cover or touch the inside of the monitor.
• Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions that are marked on the product.
• Certain monitors can be wall-mounted using the VESA mount that is sold separately. Ensure to use the correct VESA specifications as mentioned in the wall-mounting section of the User's Guide.

For information about safety instructions, see the Safety, Environmental, and Regulatory Information (SERI) document that is shipped with your monitor.

Before working inside your monitor

Steps

1. Save and close all open files and exit all running applications.
2. Turn off your monitor.
3. Disconnect your monitor and all attached devices from their electrical outlets.
4. Disconnect all attached network devices and peripherals, such as the keyboard, mouse, and dock from your monitor.
   ⚠ WARNING: To disconnect a network cable, first unplug the cable from your monitor and then unplug the cable from the network device.
5. Remove any media card and optical disc from your monitor, if applicable.

After working inside your monitor

△ CAUTION: Leaving stray or loose screws inside your monitor may severely damage it.

Steps

1. Replace all screws and ensure that no stray screws remain inside your monitor.
2. Connect any external devices, peripherals, or cables you removed before working on your monitor.
3. Reinsert any media cards, discs, or any other parts that you removed before working on your monitor.
4. Connect your monitor and all attached devices to their electrical outlets.
5. Turn on your monitor.

Views of E2426HB monitor

Front view

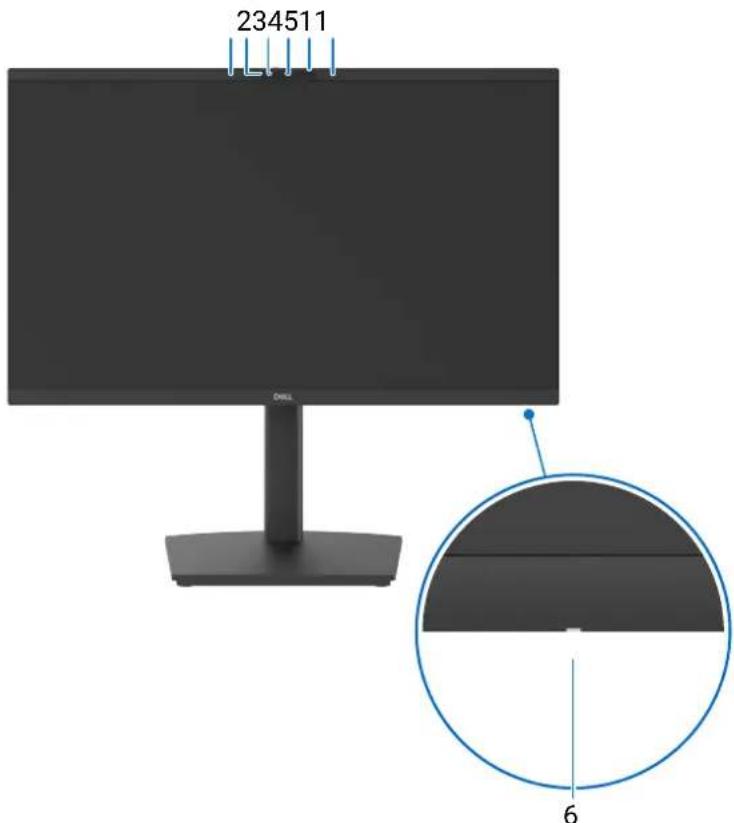

Figure 1. Front view

Table 1. Components and descriptions.

Label Description Function
1	Microphones Monitor microphones (Mic).
2	IR LED Indicator of infrared (IR).
3	IR Camera Supports the face recognition feature.
4	Main Camera Transmits your image in a video conference.
5	Webcam LED indicator Indicator of Webcam. It will light up in white when webcam is in use.
6	Power LED Indicator	Solid white light indicates that the monitor is turned on and is functioning.Blinking white light indicates that the monitor is in Standby Mode.

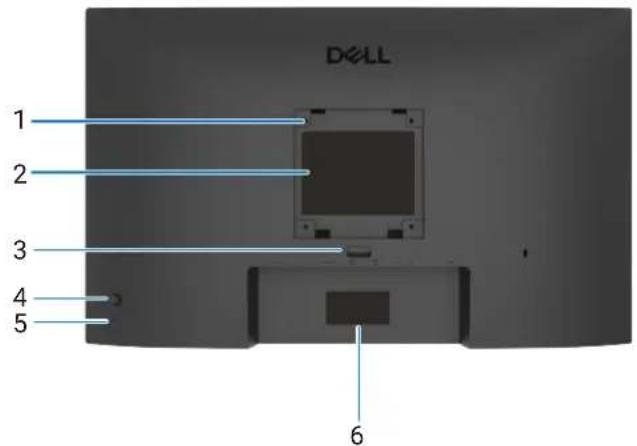

Back view

Computer monitor with DELL logo and 7-pin stand, no visible text or symbols on the device itself

Figure 2. Back view

Table 2. Components and descriptions.

Label	Description Function
1	VESA mounting 4 holes (100 mm x 100 mm) - behind attached VESA cover	Wall-mount the monitor using VESA-compatible Wall-mount kit.
2	Regulatory information label Lists the regulatory approvals.
3	Stand release button Releases the stand from the monitor.
4	Joystick Use it to control the OSD menu.
5	Power button To turn the monitor on or off.
6	Regulatory label (including MyDell QR code, serial number, and Service Tag label)	See this label if you need to contact Dell for technical support. The Service Tag is a unique alphanumeric identifier that allows Dell service technicians to identify your monitor's specifications and access warranty information.

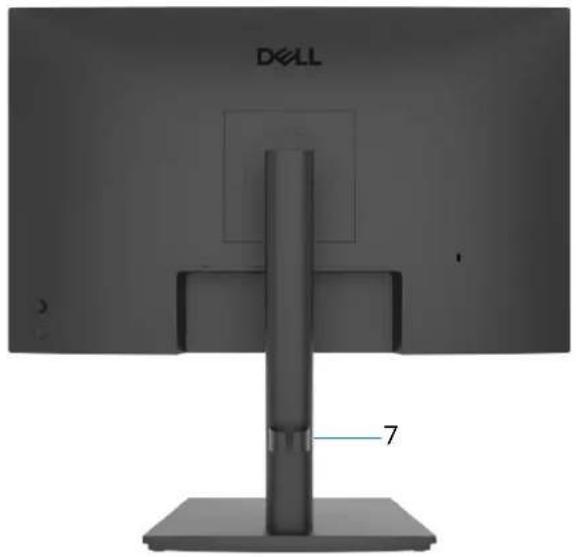

7	Cable management guide To organize the cables.

Side view

Side view of a black computer monitor with a curved top and stand (no text or symbols visible)

Figure 3. Side view

Bottom view

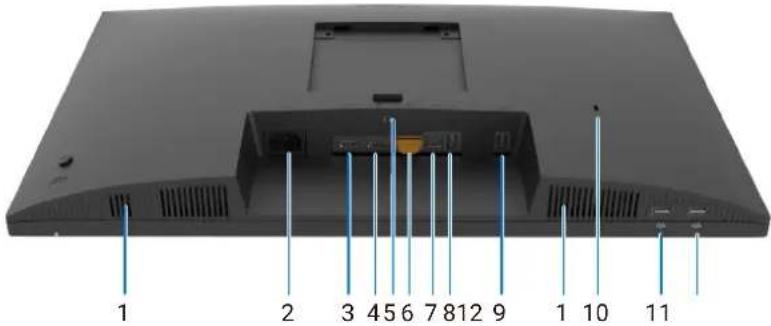

Figure 4. Bottom view

Table 3. Components and descriptions.

Label Description Function
1 Built-in speakers		Provides audio output.
2	Power connector	Connect the power cable.
3	HDMI HDMI port	Connect your computer with the HDMI cable.
4	DisplayPort (in)	Connect your computer with the DisplayPort cable.
5	Stand lock	Locks the stand to the monitor using a M3 x 6 mm screw (screw not included).
6	DisplayPort (Out)	Connect your computer with the DisplayPort cable.
7	USB Type-B upstream port	Connect the USB cable that comes with your monitor to the computer. Once this cable is connected, you can use the USB downstream connectors on the monitor.
8,9	USB Type-A 5Gbps downstream ports	Connect your USB device. You can use these ports only after you have connected the USB cable from the computer to the monitor.NOTE:To avoid signal interference, when a USB device has been connected to a USB downstream port, it is NOT recommended to connect any other USB devices to the adjacent port(s).
10	Security-lock slot (based on Kensington Security Slot)	Secures the monitor with a security cable lock (sold separately).
11,12	USB Type-A 5Gbps downstream port	Connect your USB device. The USB port supports Battery Charging with BC1.2 5 V/1.5 A typical (2 A max) power charging (10W).NOTE:To avoid signal interference, when a USB device has been connected to a USB downstream port, it is NOT recommended to connect any other USB devices to the adjacent port(s).

Major components of E2426HB monitor

The following image shows the major components of monitor.

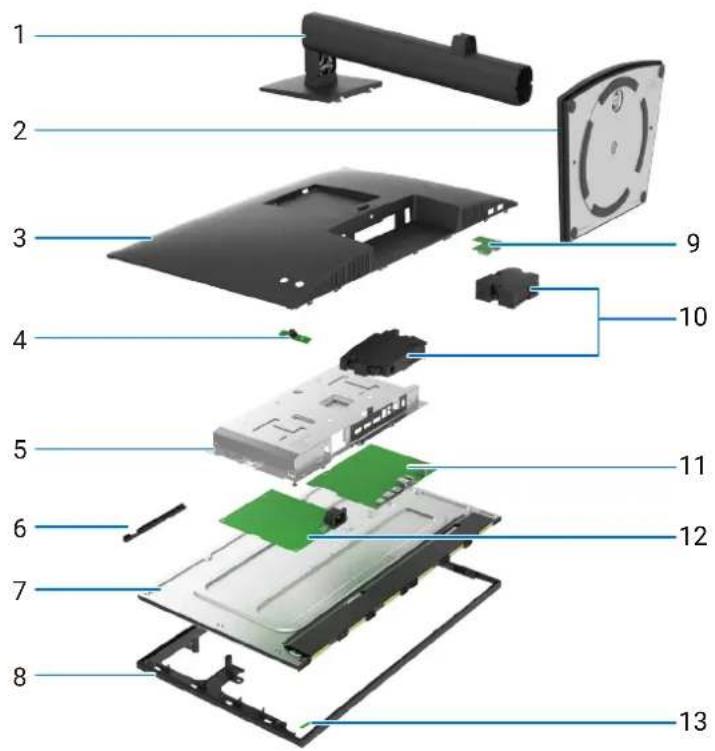

Figure 5. Major Components of E2426HB monitor

Table 4. Major components.

Callout Description Callout Description
1 Stand riser 8 Middle frame
2 Stand base 9 USB board
3 Back cover 10 Speaker
4 Keypad board 11 Main board
5 Main chassis 12 Power board
6 Camera module 13 LED board
7 Display panel

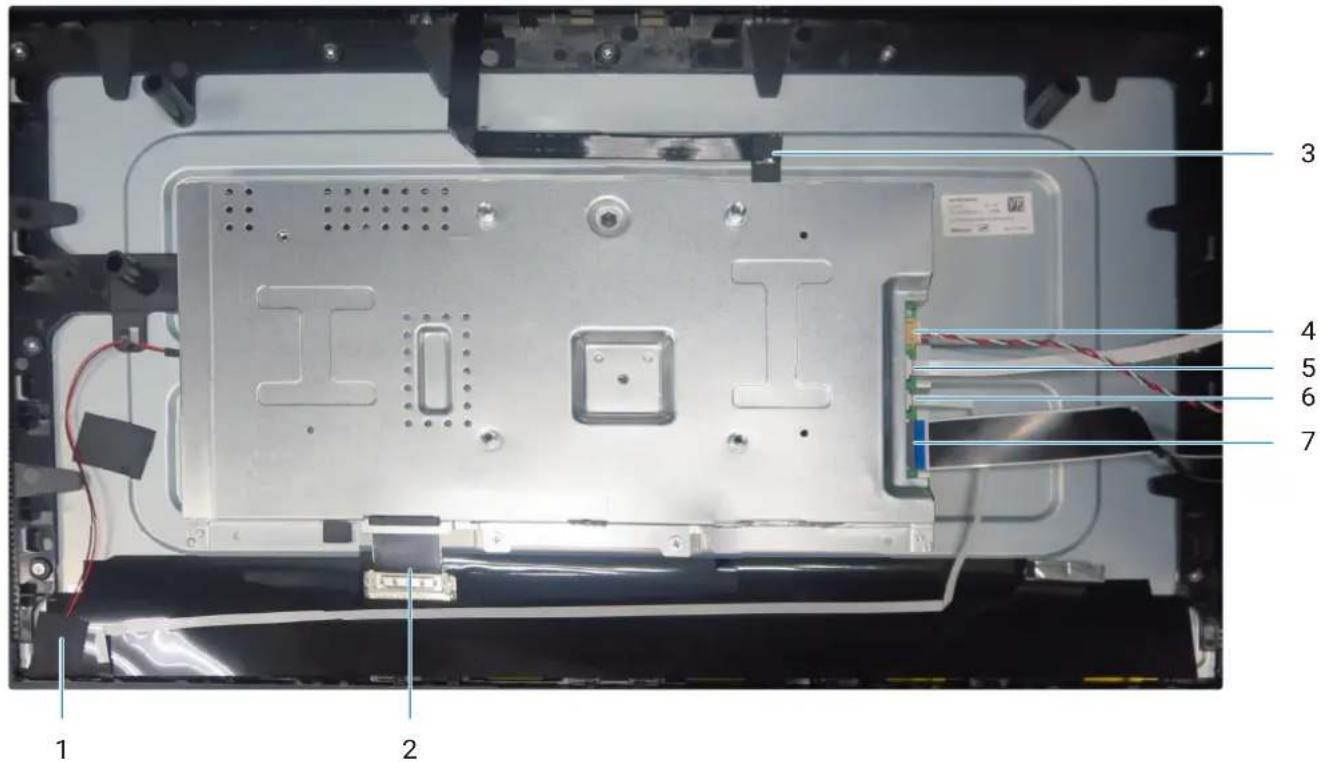

Wiring connectivity diagram

Figure 6. Wiring connectivity diagram

Table 5. Wiring connectivity diagram.

Callout Description
1 Lightbar cable
2 Low Voltage Differential Signaling (LVDS) cable
3 Camera module cable
4 Speaker cable
5 Keypad cable
6 LED cable
7 USB cable

Connecting your monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety instructions.
⚠ WARNING: For your safety, ensure that the grounded power outlet you plug the power cable into is accessible to the operator and located as close to the equipment as possible. To disconnect power from the equipment, unplug the power cable from the power outlet by grasping the plug firmly. Never pull on the cord.
NOTE: Dell monitors are designed to work optimally with the Dell-supplied cables inside the box. Dell does not guarantee the video quality and performance if non-Dell cables are used.
NOTE: Route the cables through the Cable management guide before connecting them.
NOTE: Do not connect all the cables to the computer simultaneously.
NOTE: The images are for the purpose of illustration only. The appearance of the computer may vary.

To connect your monitor to the computer:

1. Turn off your computer and disconnect the power cable.
2. Connect the HDMI, DisplayPort, USB cable from your monitor to the computer.
3. Connect the power cable to the monitor and the wall outlet.
4. Turn on your monitor.
5. Select the correct input source from the OSD Menu on your monitor and then turn on your computer.

Connecting the HDMI cable

Figure 7. Connecting the HDMI cable

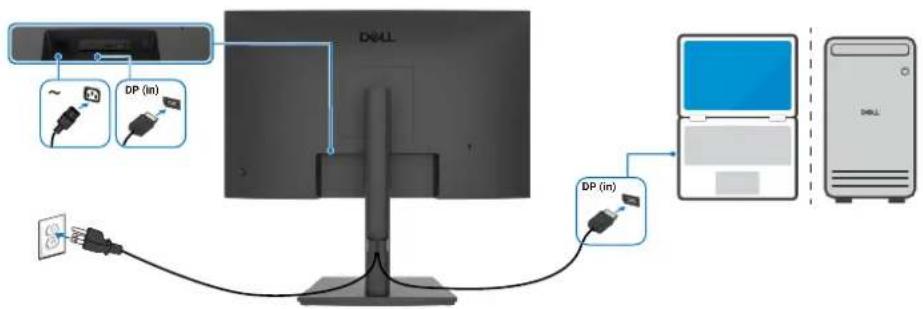

Connecting the DisplayPort cable

Figure 8. Connecting the DisplayPort cable

Connecting the monitor for DisplayPort Multi-Stream Transport (MST) function


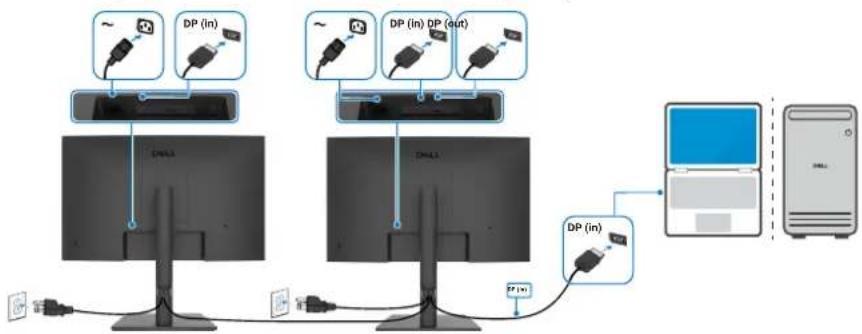

Figure 9. Connecting the monitor for DisplayPort Multi-Stream Transport (MST) function

NOTE: Supports the DisplayPort MST feature. To use this feature, your computer graphic card must be certified to at least DP 1.2 with MST option.

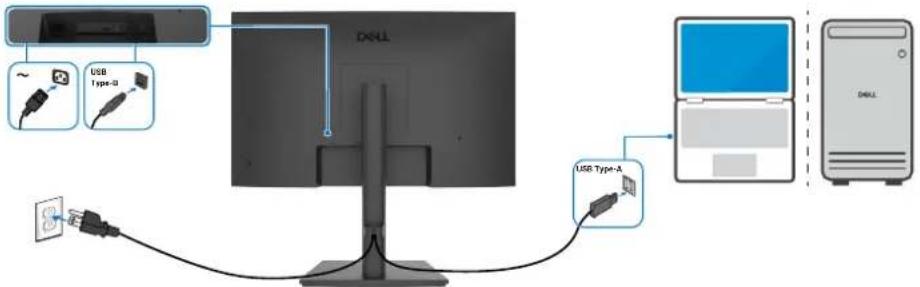

Connecting the USB Type-B to Type-A cable

Figure 10. Connecting the USB Type-B to Type-A cable

Disassembly and reassembly

CAUTION: The information in this section is intended for authorized service technicians in the EMEA region. Dell prohibits users from disassembling the monitor, and any damage that is caused by unauthorized servicing will not be covered under the warranty.

Recommended tools

Tool Description:

• Phillips screwdriver #0
• Phillips screwdriver #2
- Penknife

Screw list

NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when the component is replaced.
NOTE: Some monitors have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.

Table 6. Components and descriptions.

Component Screw type Quantity Screw image
Back cover	M4x10 4
Speakers	M3x6 4
USB board	M3x6 1
Keypad board	M2x3.3 2
Main chassis	M3x5 2
Middle frame	M3x5 9
Camera module	M2x3.3 2
Main Board	M3x6 3
Power board groundwire	M4x8 1
Power board	M3x6 2

Stand

Removing the stand

Prerequisites

1. Follow the procedure in Before working inside your monitor.

Diagram showing a computer monitor with a slide and its side view, including a close-up of the slide's internal mechanism (no text or symbols present)

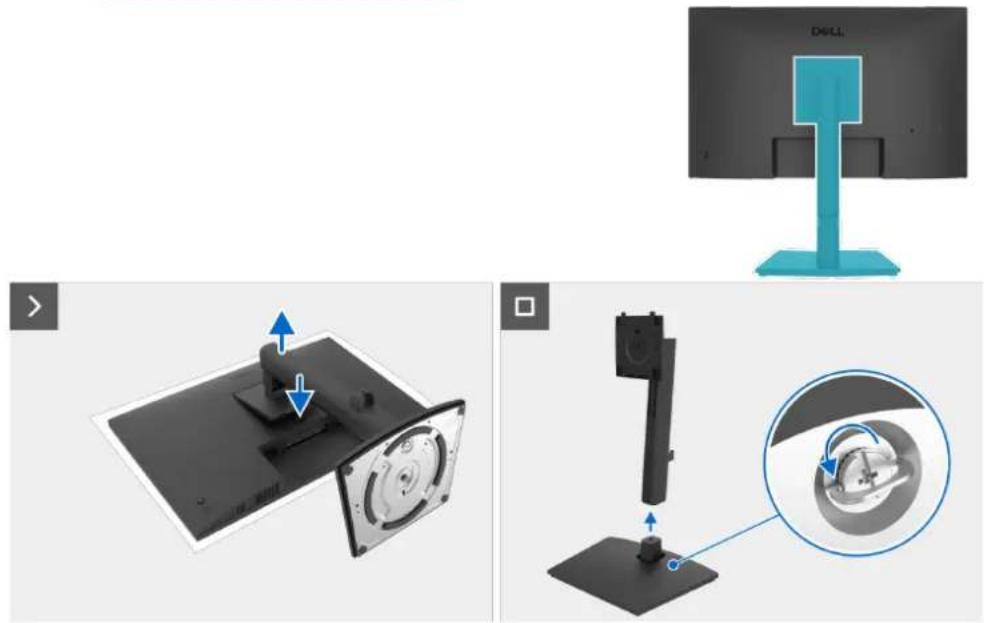

Figure 11. Removing the stand

Steps

1. Place the monitor on a soft cloth or cushion on the desk.
2. Hold and push the stand-release button.
3. Lift the stand up and away from the monitor.
4. Open the screw handle at the bottom of the stand base, and turn it anti-clockwise to unlock the riser with base.
5. Remove the stand riser from the stand base.

Installing the stand

Three-panel image showing a desktop monitor with a T-shaped stand, a close-up of a mechanical component, and a close-up of the open disk (no text or symbols visible)

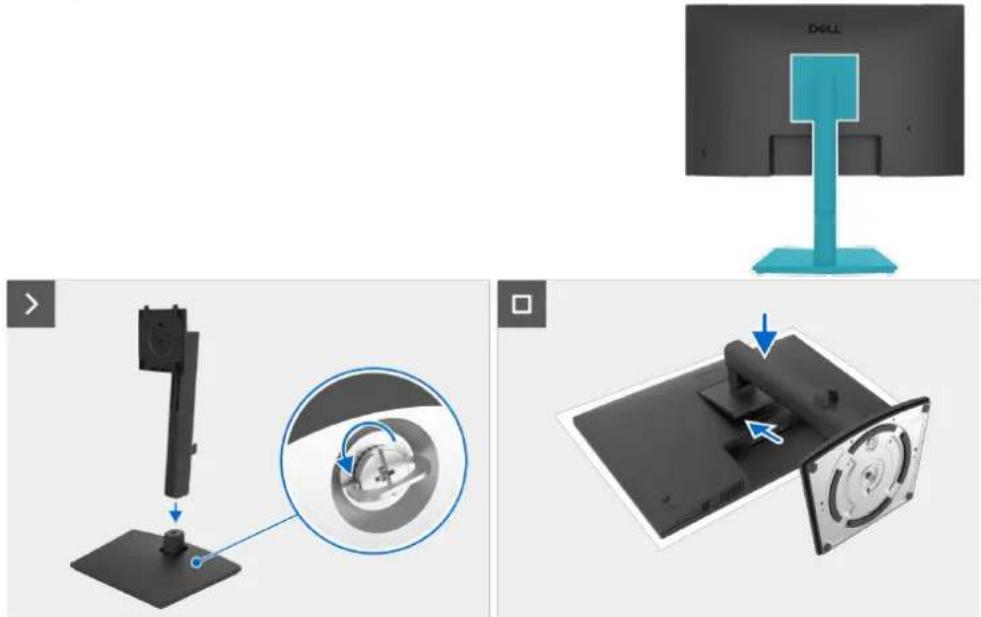

Figure 12. Installing the stand

Steps

1. Align the tabs on the stand base with the slots on the stand riser.
2. Insert the stand riser on the stand base firmly.
3. Open the screw handle at the bottom of the stand base, and rotate it clockwise to tighten the screw firmly. Close the screw handle.
4. Place the monitor on a soft cloth or cushion near the edge of the desk.
5. Align the stand assembly bracket to the monitor head.
6. Insert the stand assembly bracket into the monitor until it locks in place.

Next steps

1. Follow the procedure in After working inside your monitor.

Back cover

Removing the back cover

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.

Simple diagram of a square component labeled 'D4LL' with no text or symbols on the object itself

Top-down view of a Dell monitor with four circular indicators on the screen (no text or symbols on the device itself)

Black rectangular electronic device with blue directional arrows indicating rotation or movement (no text or symbols)

Close-up of a mechanical component with visible wiring and colored components, no text or symbols present.

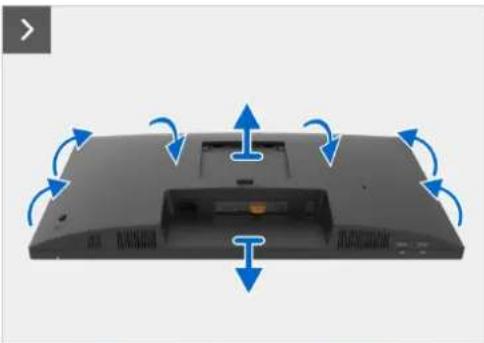

Figure 13. Removing the back cover

Steps

1. Remove the four screws (M4x10) to release the back cover.
2. Using both hands, gently pry the back cover, starting from the top side, then moving to the left and right sides.
3. Partially lift the back cover from the bottom edge.
4. Disconnect the keypad cable, speaker cable and USB cable from the connectors on the main board.
5. Remove the back cover from the display assembly.

Installing the back cover

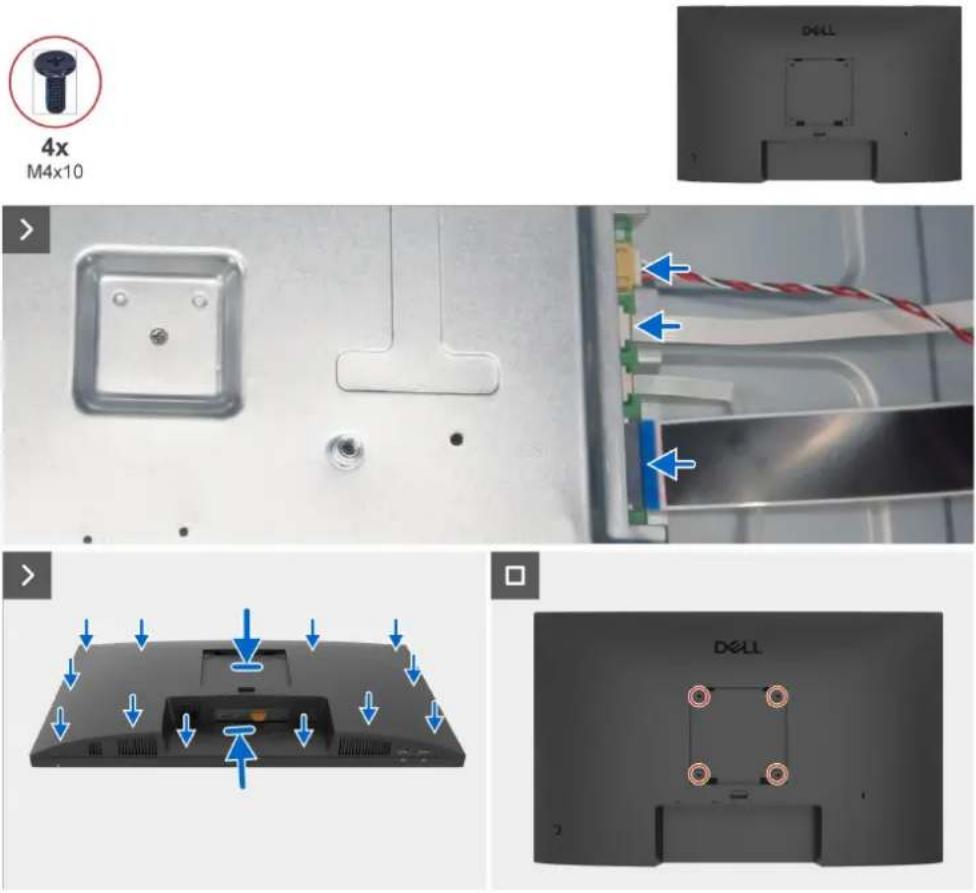

Figure 14. Installing the back cover

Steps

1. Connect the USB cable, speaker cable and keypad cable to the connectors on the main board.
2. Align the back cover with the main chassis, then press along the sides to snap the back cover into place.
3. Replace the four screws (M4x10) to secure the back cover to the monitor.

Next steps

1. Install the stand.
2. Follow the procedure in After working inside your monitor.

Speakers

Removing the speakers

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.

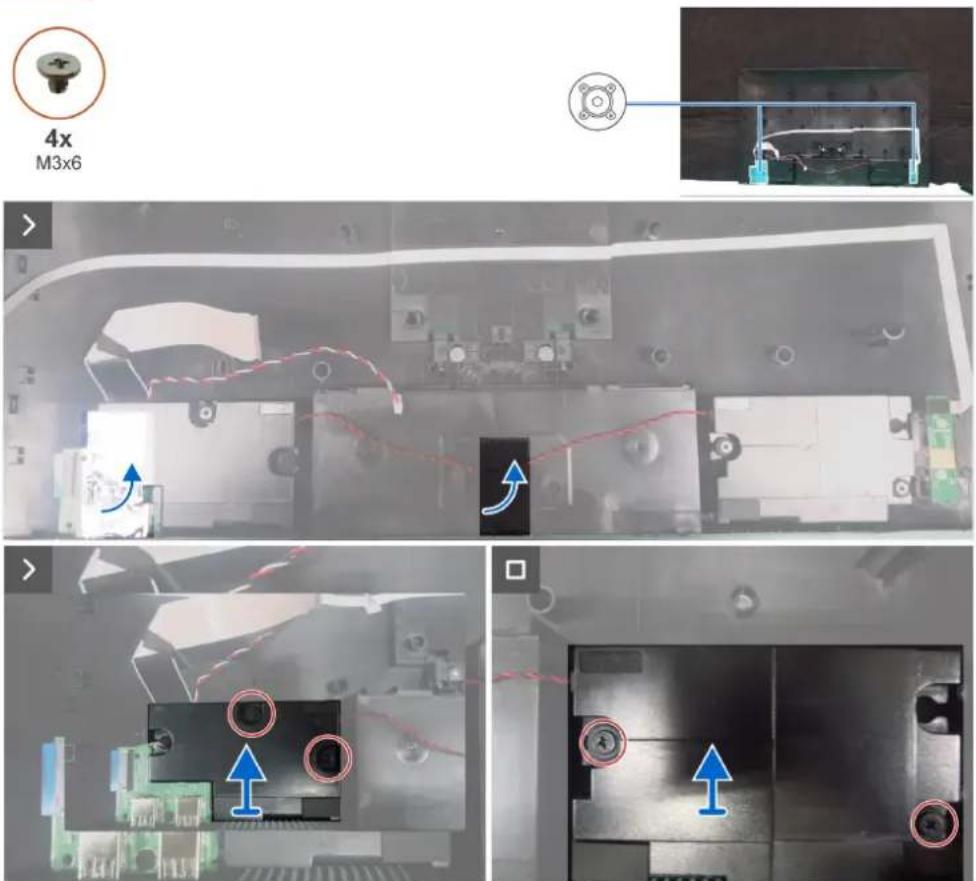

Figure 15. Removing the speakers

Steps

1. Peel the aluminum foil and tapes on the speaker cable.
2. Remove the four screws (M3x6) that secure the two speakers to the back cover.
3. Remove the two speakers from the locating pins on the back cover.

Installing the speakers

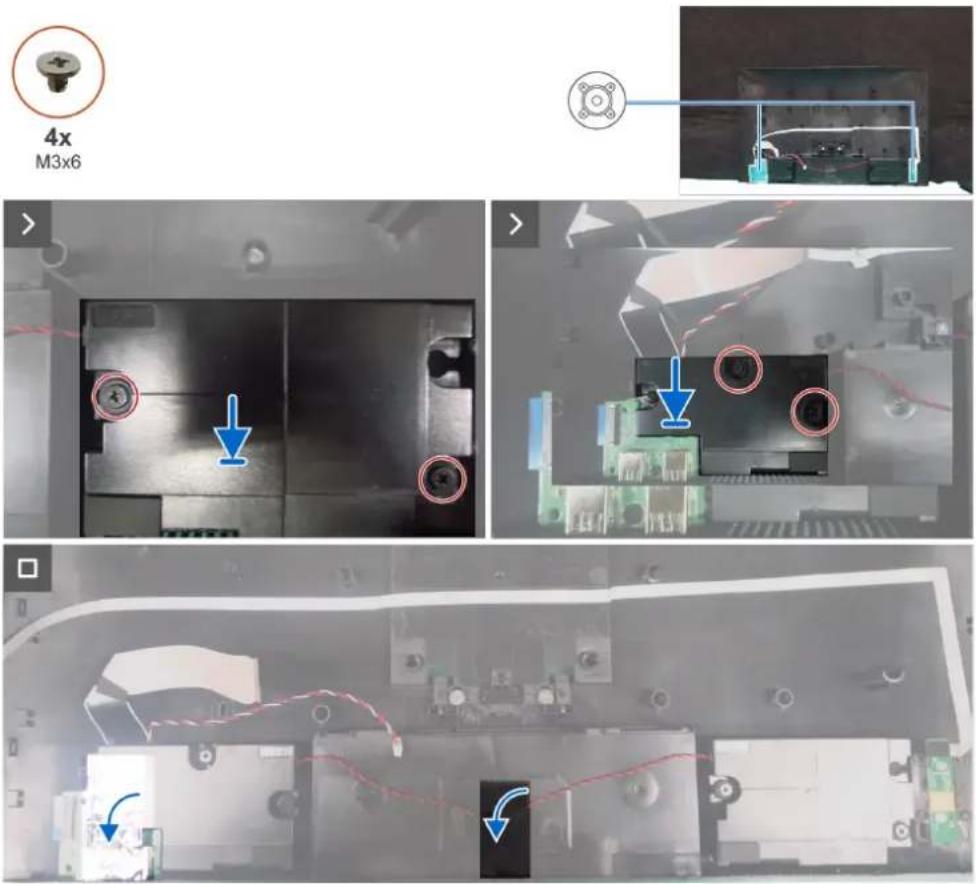

Figure 16. Installing the speakers

Steps

1. Align the holes on the two speakers to the locating pins on the back cover, and place it down.
2. Replace the four screws (M3x6) that secure the two speakers to the back cover.
3. Adhere the aluminum foil and tapes to secure the speaker cable to the back cover.

Next steps

1. Install the back cover.
2. Install the stand.
3. Follow the procedure in After working inside your monitor.

USB Board

Removing the USB board

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.

Interior view of a computer motherboard showing CPU socket and drive unit (no visible text or labels)

Close-up of a robotic arm interacting with a green circuit board component, showing a blue arrow and magnified view (no text or symbols visible)

Diagram of a flexible cable or connector with a green circuit board and blue directional arrows indicating movement (no text or symbols)

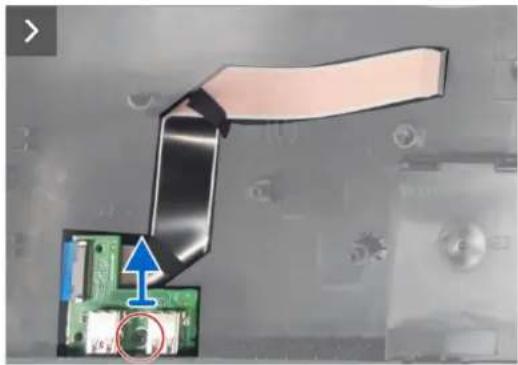

Figure 17. Removing the USB board

Steps

1. Remove the screw (M3x6) that secures the USB board to the middle frame.
2. Remove the USB board from middle frame.
3. Lift the lock and pull out the USB cable from the USB board.

Installing the USB board

Interior view of a computer monitor with visible circuitry and a highlighted component (no text or symbols)

Diagram of a robotic arm interacting with a green circuit board, showing motion and rotation arrows (no text or symbols)

Close-up of a robotic arm interacting with a circuit board component, showing a blue arrow pointing to a circular detail (no text or symbols visible)

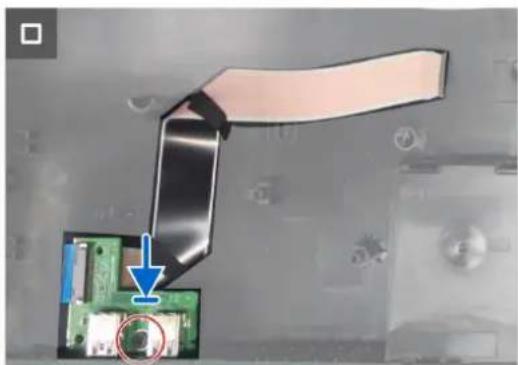

Figure 18. Installing the USB board

Steps

1. Connect the USB cable to the USB board and lock it.
2. Replace the USB board to the middle frame.
3. Replace the screw (M3x6) that secures the USB board to the middle frame.

Next steps

1. Install the speakers.
2. Install the back cover.
3. Install the stand.
4. Follow the procedure in After working inside your monitor.

Keypad board

Removing the keypad board

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.
5. Remove the USB board.

2x M2x3.3

Interior view of a dimly lit room with scattered debris and a white line marking a boundary (no visible text or symbols)

Interior view of a computer room with visible circuit boards and a green circuit board (no text or symbols)

Close-up of a green electronic component with a blue arrow pointing to it, no visible text or symbols.

Close-up of a green printed circuit board with a black knob and a blue upward arrow indicating motion (no text or symbols visible)

Figure 19. Removing the keypad board

Steps

1. Peel the double-sided tape that secures the keypad cable to the back cover.
2. Remove the two screws (M2x3.3) that secure the keypad board to the back cover.
3. Remove the keypad board from the pins on the back cover.
4. Remove the joystick key from the keypad board.

Installing the keypad board

Interior view of a room with scattered debris and a central space (no visible text or symbols)

Close-up of a green printed circuit board with a blue arrow pointing to a circular component (no visible text or symbols)

Close-up of a green electronic circuit board with a blue arrow and circular annotations, mounted on a black surface (no readable text or symbols)

Interior view of a server room with monitor, keyboard, and control panel (no visible text or symbols)

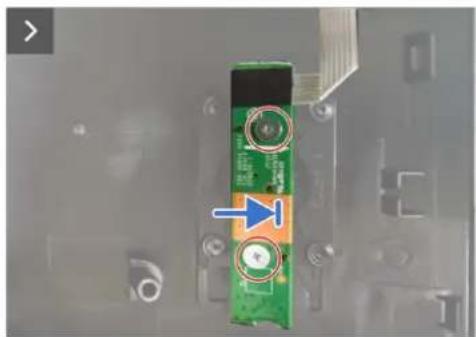

Figure 20. Installing the keypad board

Steps

1. Replace the joystick key to the keypad board.
2. Align the holes on the keypad board with the screw holes on the back cover, and place it down.
3. Replace the two screws (M2x3.3) that secure the keypad board to the back cover.

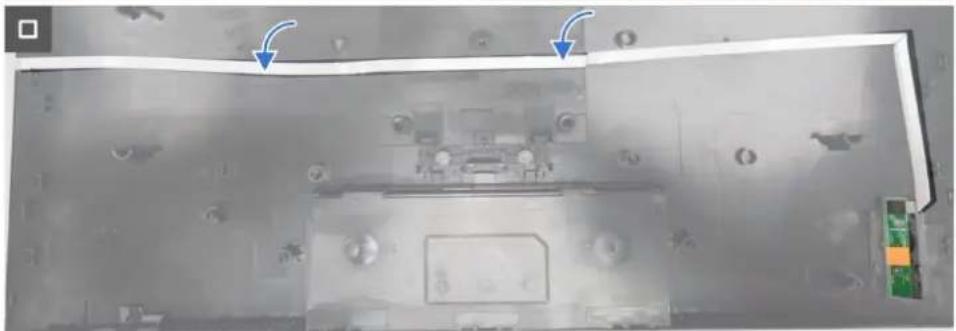

4. Adhere the double-sided tape to secure the keypad cable to the back cover.

Next steps

1. Install the USB board.
2. Install the speakers.
3. Install the back cover.
4. Install the stand.
5. Follow the procedure in After working inside your monitor.

Main chassis

Removing the main chassis

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.
5. Remove the USB board.
6. Remove the keypad board.

2x
M3×5

Close-up of a blue electronic component with a square cutout, mounted on a black substrate (no visible text or symbols)

Top-down view of a white electronic device casing with internal components and mounting holes, showing no visible text or symbols.

Close-up of a mechanical component with red cable and blue arrow pointing to a component (no visible text or symbols)

Close-up of a mechanical device with a blue arrow pointing to a component (no visible text or symbols)

Figure 21. Removing the main chassis

Steps

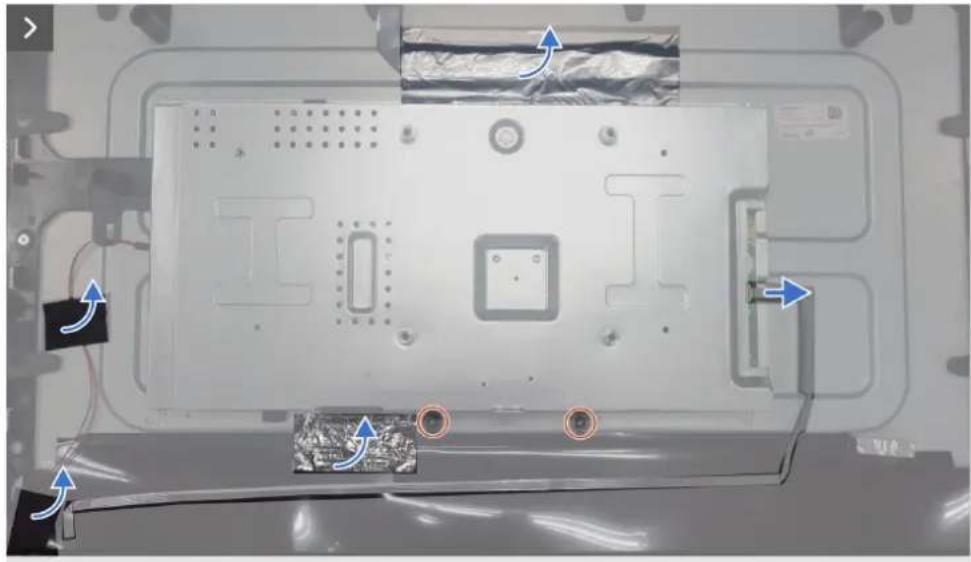

1. Peel the acetate tape and aluminum foil.
2. Disconnect LED cable from the connector on the main board.
3. Disconnect the lightbar cable from the connector on the display panel.
4. Remove the two screws (M3x5) that secure the main chassis to the display panel.

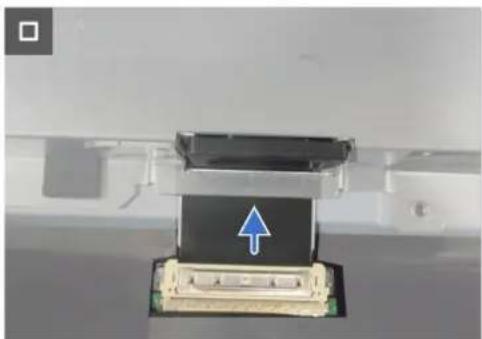

5. Disconnect the LVDS cable from the connector on the display panel.
6. Lift and remove the main chassis from the display panel.

Installing the main chassis

Top-down view of a blue rectangular electronic component with internal circuitry (no visible text or symbols)

Close-up of a mechanical assembly with a blue arrow pointing to a component (no visible text or symbols)

Close-up of a mechanical component with red wires and a blue arrow pointing to a small component (no visible text or symbols)

Interior view of a device casing with visible mounting holes and wiring, no text or symbols present

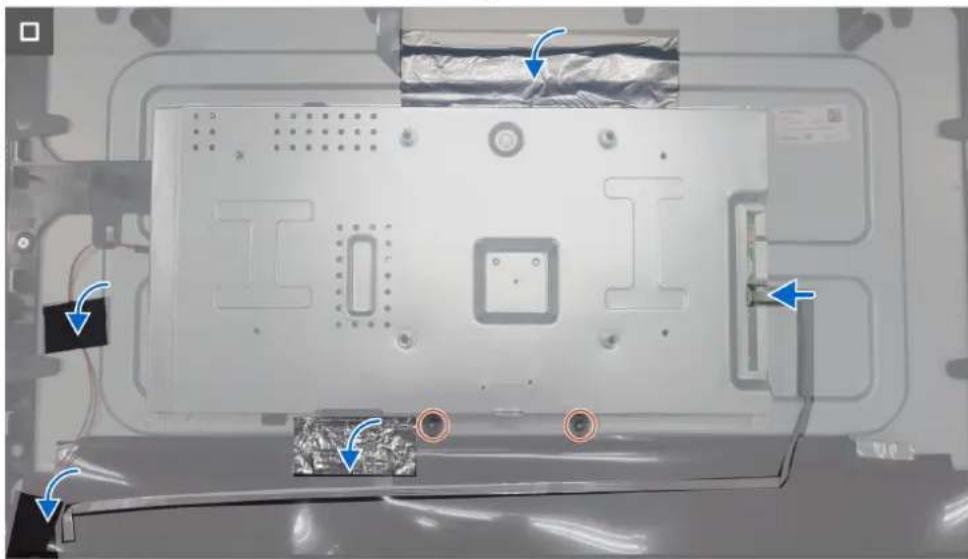

Figure 22. Installing the main chassis

Steps

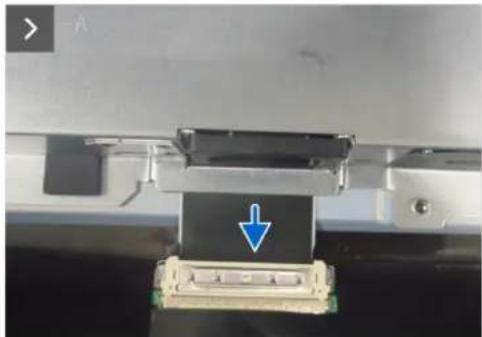

1. Connect the LVDS cable to the connector on the display panel.
2. Align the holes on the main chassis with the screw holes on the display panel, and place it down.
3. Replace the two screws (M3x5) that secure the main chassis to the display panel.

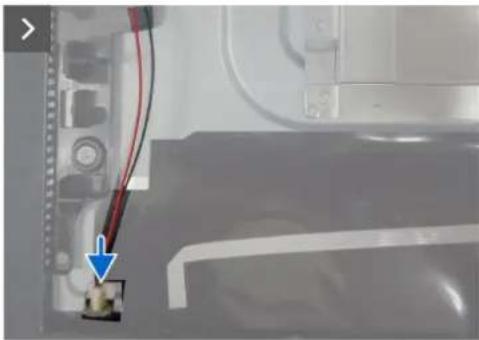

4. Connect the lightbar cable to the display panel and adhere the acetate tape to cover the lightbar connector.
5. Adhere the aluminum foil on the main chassis.

Next steps

1. Install the keypad board.
2. Install the USB board.
3. Install the speakers.
4. Install the back cover.
5. Install the stand.
6. Follow the procedure in After working inside your monitor.

Middle frame

Removing the middle frame

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.
5. Remove the USB board.
6. Remove the keypad board.
7. Remove the main chassis.

9x
M3x5

Metallic plastic component with recessed slots, shown in a blue-tinted frame (no text or symbols visible)

Top-down view of a computer chassis frame with visible circuitry and mounting points (no text or symbols)

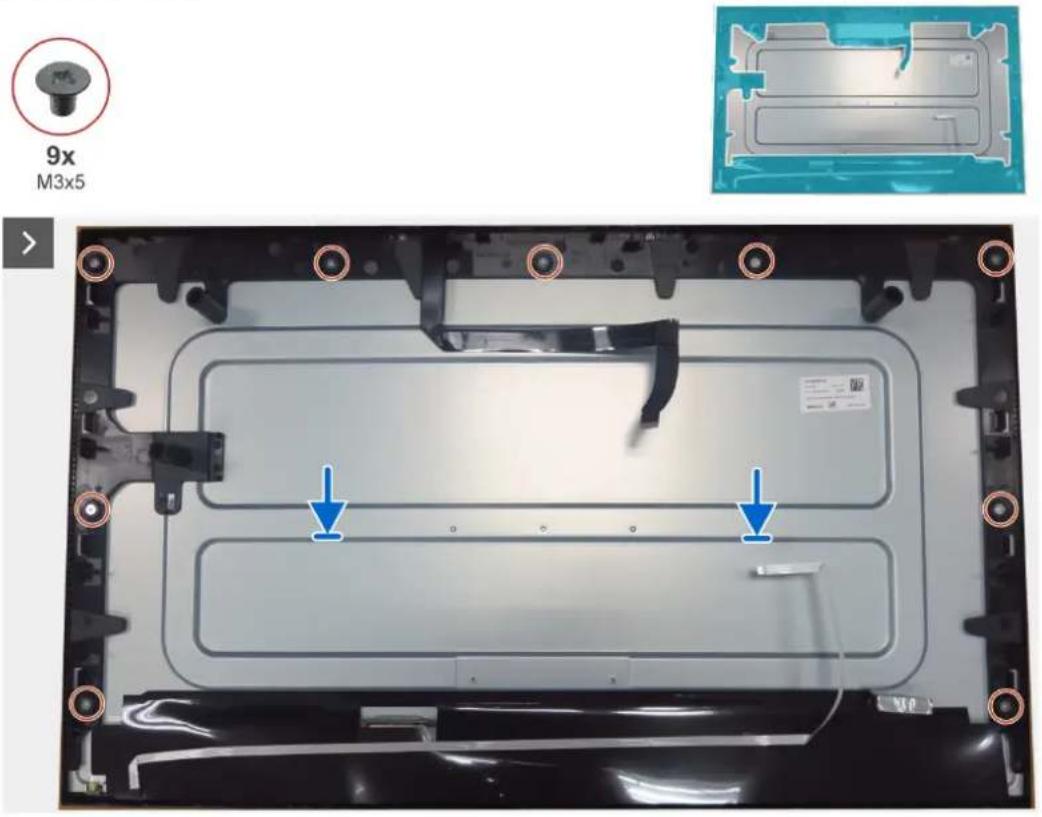

Figure 23. Removing the middle frame

Steps

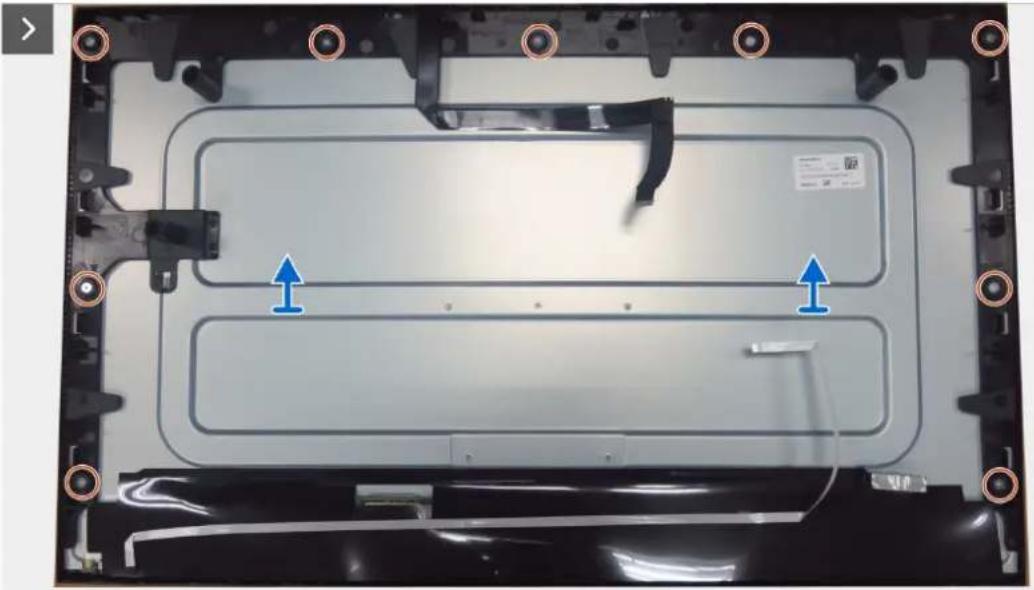

1. Remove the nine screws (M3x5) that secure the middle frame to the display panel.
2. Lift and remove the middle frame away from the display panel.

Installing the middle frame

Figure 24. Installing the middle frame

Steps

1. Align and place the middle frame on the display panel.
2. Replace the nine screws (M3x5) that secure the middle frame to the display panel.
3. Adhere the LED board to secure the LED cable to it on the panel.

Next steps

1. Install the main chassis.
2. Install the keypad board.
3. Install the USB board.
4. Install the speakers.
5. Install the back cover.
6. Install the stand.
7. Follow the procedure in After working inside your monitor.

LED board

Removing the LED board

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.
5. Remove the USB board.
6. Remove the keypad board.
7. Remove the main chassis.
8. Remove the middle frame.

Pure electrical circuit lines without any symbols

Close-up of a mechanical component with a blue arrow indicating a directional change (no text or symbols visible)

Close-up of a mechanical component with a blue arrow pointing to a detail (no visible text or symbols)

Figure 25. Removing the LED board

Steps

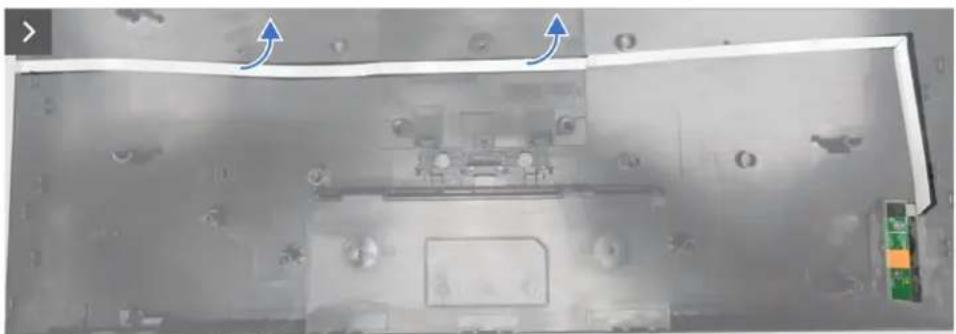

1. Peel the mylar tape from the LED board.
2. Remove the LED board from the pins on the back cover.

Installing the LED board

Pure electrical circuit lines without any symbols

Close-up of a mechanical component with a blue arrow pointing to a component (no visible text or symbols)

Mechanical component with a blue arrow indicating a specific part (no visible text or symbols)

Figure 26. Installing the LED board

Steps

1. Align the holes on the LED board with the pins on the back cover, and place it in the slot.
2. Adhere the mylar tape to cover the LED board.

Next steps

1. Install the middle frame.
2. Install the main chassis.
3. Install the keypad board.
4. Install the USB board.
5. Install the speakers.
6. Install the back cover.

7. Install the stand.

8. Follow the procedure in After working inside your monitor.

Camera module

Removing the camera module

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.
5. Remove the USB board.
6. Remove the keypad board.
7. Remove the main chassis.
8. Remove the middle frame.
9. Remove the LED board.
10. Remove the camera module.

2x
M2×3.3

Close-up of a metallic L-shaped metal bracket with a blue horizontal bar above (no text or symbols visible)

Close-up of a metallic flexible electronic component with two circular eyes and a curved edge (no text or symbols visible)

Close-up of a mechanical component with blue arrows indicating directional movement (no text or symbols)

L-shaped black metal bracket with a blue arrow pointing to the right side (no text or symbols visible)

Black rectangular electronic device with visible ports and connectors, no text or symbols present

Figure 27. Removing the camera module

Steps

1. Remove the two screws (M2x3.3) that secure the camera module to the middle frame.
2. Remove the camera module.
3. Disconnect the camera cable from the connector on the camera module board.

Installing the camera module

Close-up of a metallic L-shaped cable or connector with a blue glass panel on top (no text or symbols visible)

Black rectangular electronic device with visible ports and a small slot, isolated on white background (no text or symbols)

Metal L-shaped bracket with a blue arrow pointing to the top section (no text or symbols visible)

Close-up of a mechanical component with blue arrows indicating direction (no text or symbols)

Close-up of a metallic cable or flexible electronic component with a camera lens and control buttons (no visible text or symbols)

Figure 28. Installing the camera module

Steps

1. Connect the camera cable to the connector on the camera board.
2. Align the screw holes on the camera module to the screws holes on the middle frame.
3. Replace the two screws (M2x3.3) that secure the camera module to the middle frame.

Next steps

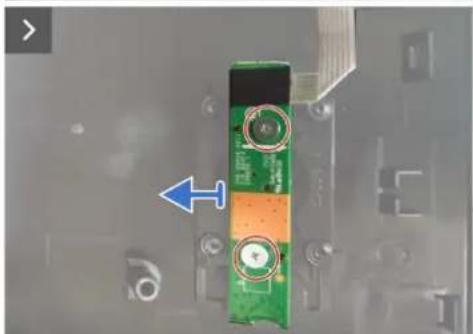

1. Install the LED board.
2. Install the middle frame.
3. Install the main chassis.
4. Install the keypad board.
5. Install the USB board.
6. Install the speakers.
7. Install the back cover.

8. Install the stand.

9. Follow the procedure in After working inside your monitor.

Main board

Removing the main board

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.
5. Remove the USB board.
6. Remove the keypad board.
7. Remove the main chassis.
8. Remove the middle frame.
9. Remove the LED board.
10. Remove the camera module.

Two electronic components: a 3x M3x6 package and a transparent display panel (no visible text or symbols)

Interior view of an electronic device showing a green printed circuit board with blue arrows indicating a component (no text or symbols visible)

Two-panel image showing a green circuit board with connectors and a close-up of its internal components, no visible text or symbols.

Figure 29. Removing the main board

Steps

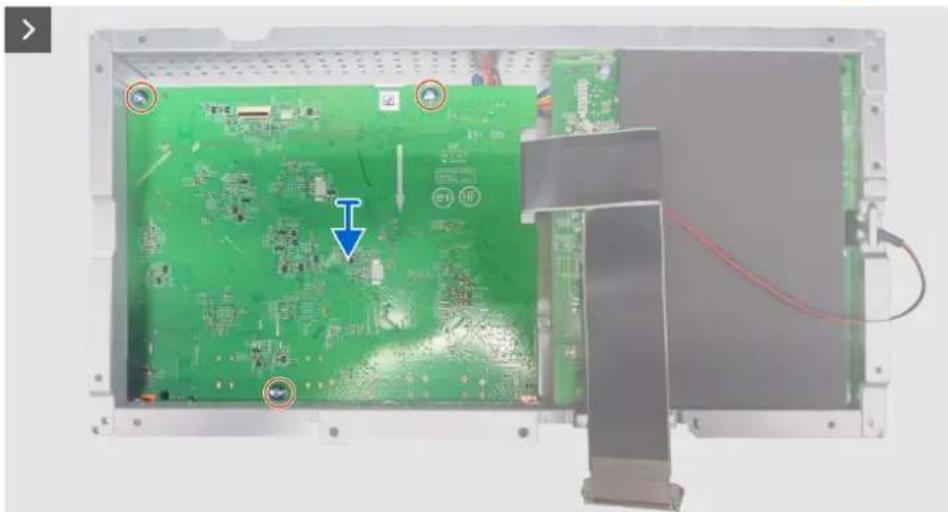

1. Remove the three screws (M3x6) that secures the main board to the main chassis.
2. Disconnect the power cable from the main board.

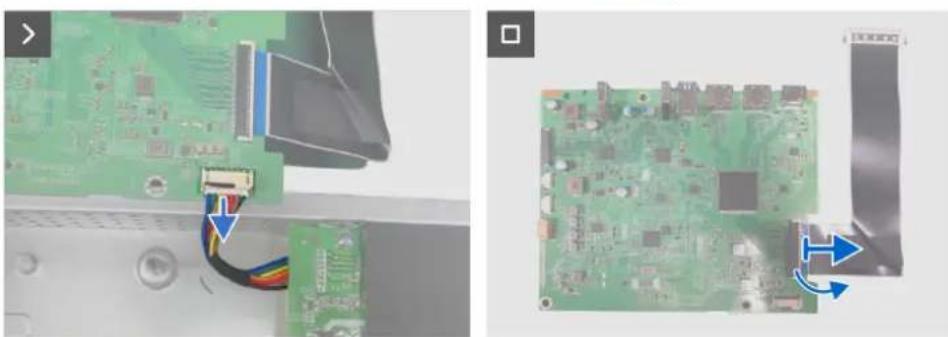

3. Remove the main board, and disconnect the LVDS cable from the connector on the main board.

Installing the main board

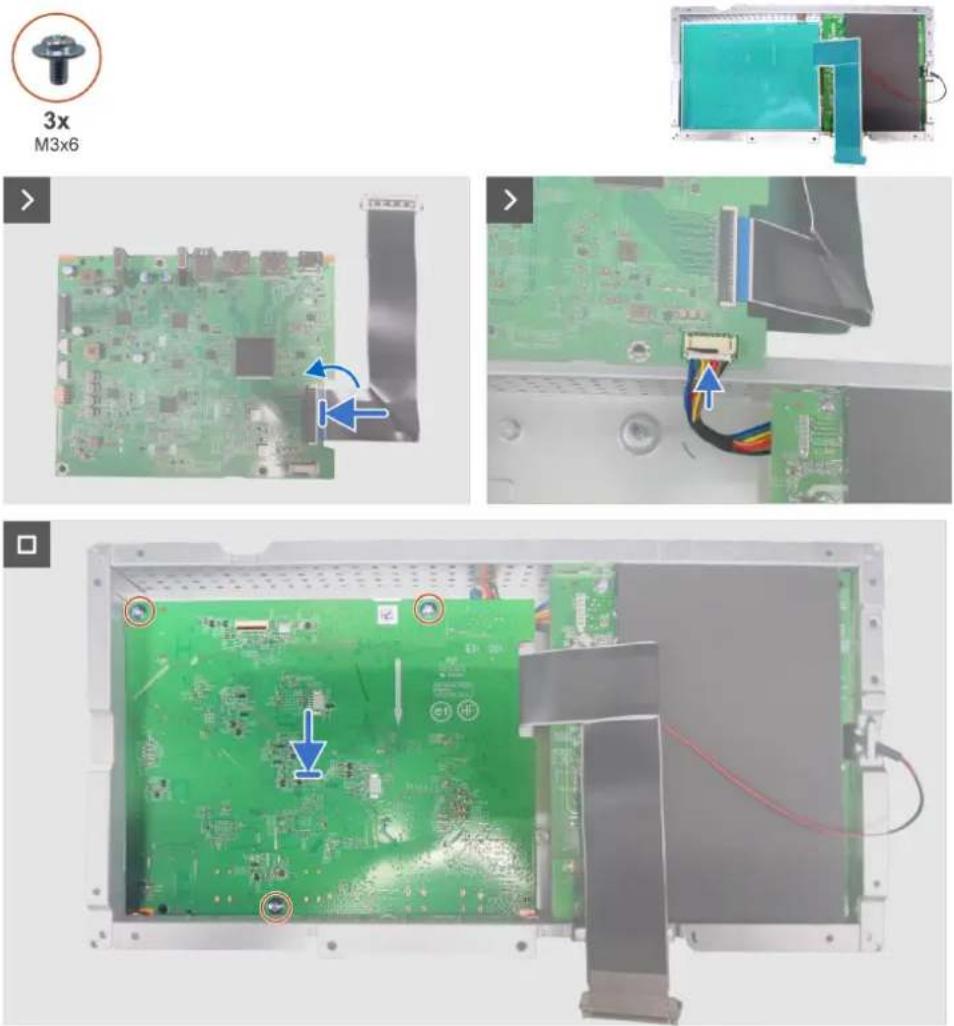

Figure 30. Installing the main board

Steps

1. Connect the LVDS cable to the connector on the main board.
2. Connect the power cable to the main board and then place the main board onto the main chassis.
3. Align the screw holes on the main board to the screw holes on the main chassis, and place it down.
4. Replace the three screws (M3x6) that secures the main board to the main chassis.

Next steps

1. Install the camera module.
2. Install the LED board.
3. Install the middle frame.
4. Install the main chassis.
5. Install the keypad board.
6. Install the USB board.
7. Install the speakers.
8. Install the back cover.
9. Install the stand.
10. Follow the procedure in After working inside your monitor.

Power board

Removing the power board

Prerequisites

1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speakers.
5. Remove the USB board.
6. Remove the keypad board.
7. Remove the main chassis.
8. Remove the middle frame.
9. Remove the LED board.
10. Remove the camera module.
11. Remove the main board.

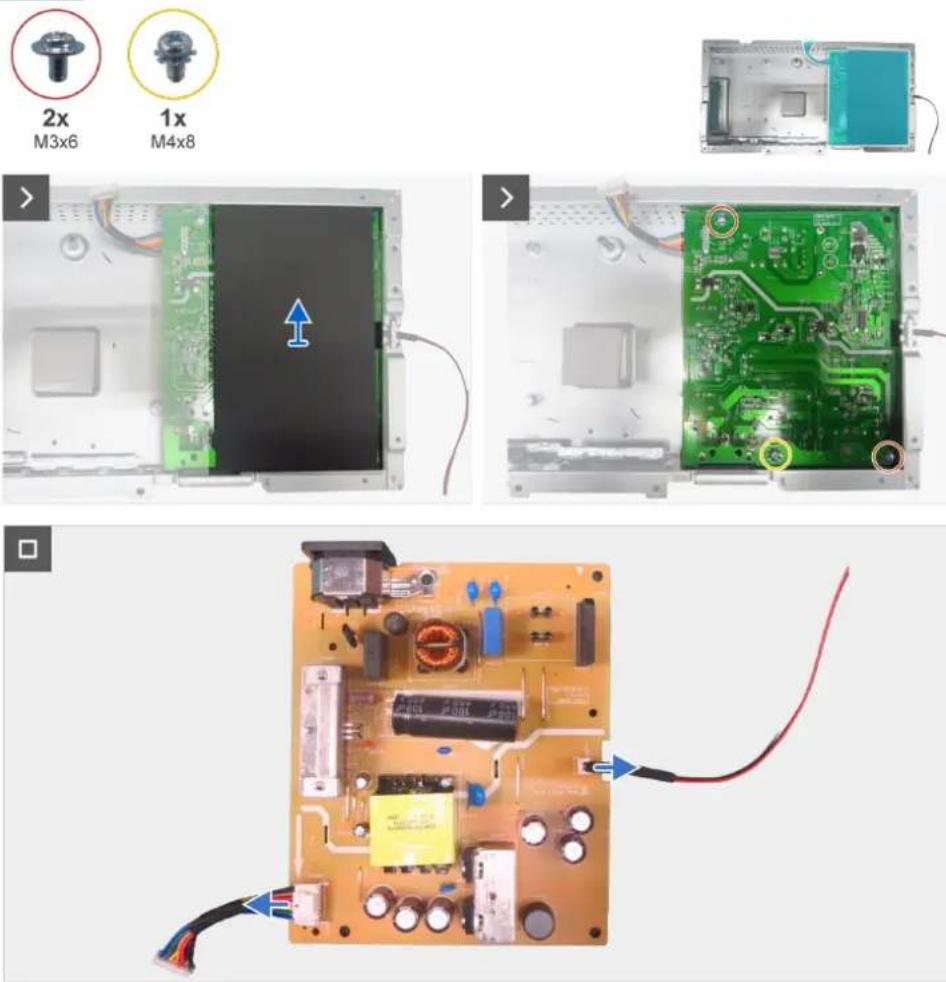

Figure 31. Removing the power board

Steps

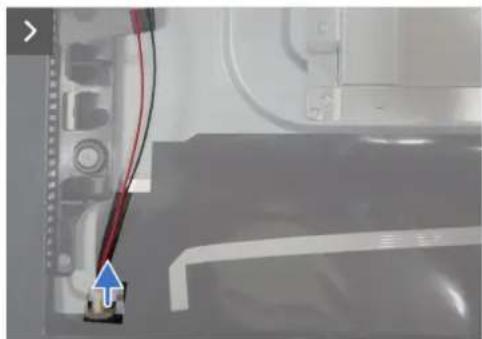

1. Unroute the lightbar cable from the routing guides on the main chassis.
2. Remove the Mylar sheet from the slot in the main chassis.
3. Remove the screw (M4x8) and the two screws (M3x6) that secure the Mylar sheet and power board to the main chassis.
4. Remove the power board from the main chassis.

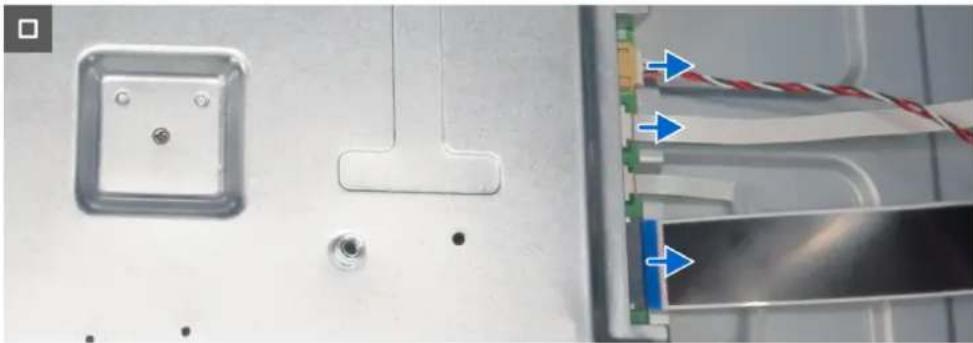

5. Disconnect the lightbar cable and power cable from the connectors on the power board.

Installing the power board

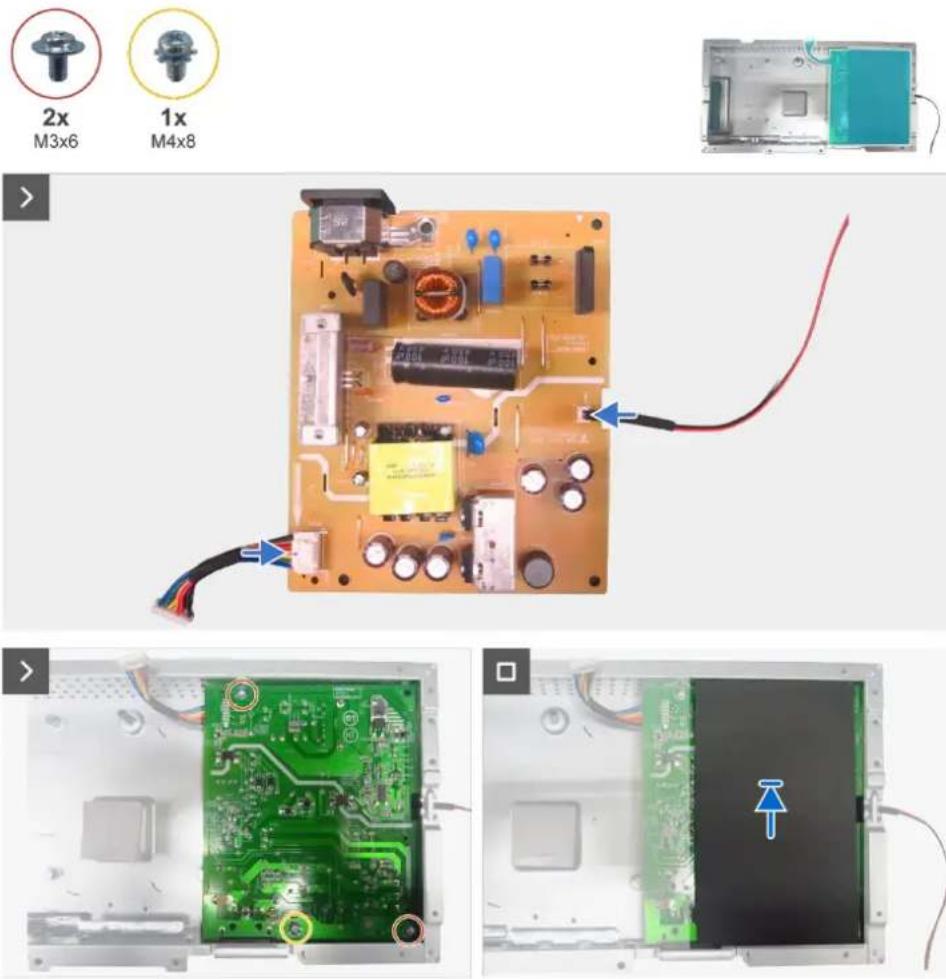

Figure 32. Installing the power board

Steps

1. Connect the power cable and lightbar cable to the connectors on the power board.
2. Align the screw holes on the power board with the screw holes on the main chassis, and place it down.
3. Replace the two screws (M3x6) and the screw (M4x8) to secure the power board to the main chassis.
4. Insert the Mylar sheet into the slot on the main chassis.
5. Route the lightbar cable through the routing guides on the main chassis.

Next steps

1. Install the main board.
2. Install the camera module.
3. Install the LED board.
4. Install the middle frame.
5. Install the main chassis.
6. Install the keypad board.
7. Install the USB board.
8. Install the speakers.
9. Install the back cover.

10. Install the stand.

11. Follow the procedure in After working inside your monitor.

Troubleshooting

⚠ WARNING: Before you begin any of the procedures in this section, follow the Safety instructions.

Self-test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.
2. Unplug the video cable from the computer.
3. Turn on the monitor.

If the monitor cannot sense a video signal and is working correctly, a dialog box appears on the screen (against a black background). While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown will continuously scroll through the screen.

Figure 33. HDMI cable disconnected warning message

1. This dialog box also appears during normal operation if the video cable is disconnected or damaged.
2. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen still remains blank after performing the above steps, it indicates the monitor is functioning properly. Check the video controller and computer.

Built-in diagnostics

Your monitor includes a built-in diagnostic tool to help you identify whether the screen abnormality is due to an issue with the monitor itself or with your computer and video card.

Figure 34. Built-in diagnostics

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Select OSD items of Self-Diagnostics in Others feature.
3. Press the Joystick button to start the diagnostics. A gray screen is displayed.
4. Observe if the screen has any defects or abnormalities.
5. Toggle the Joystick once again until a red screen is displayed.

6. Observe if the screen has any defects or abnormalities.

7. Repeat steps 5 and 6 until the screen displays green, blue, black, and white colors. Note any abnormalities or defects.

The test is complete when a text screen is displayed. To exit, toggle the Joystick control again.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Table 7. Common problems

Common symptoms What you experience Possible solutions
No video/power LED off No picture		·Ensure that the video cable connecting the monitor and the computer is properly connected and secure.·Verify that the power outlet is functioning properly using any other electrical equipment.·Ensure that you have pressed the power button properly.·Ensure that the correct input source is selected in the Input Source menu.
No video/power LED on No picture or no brightness		·Increase brightness and contrast controls through OSD.·Perform monitor self-test feature check.·Check for bent or broken pins in the video cable connector.·Run theBuilt-in diagnostics.·Ensure that the correct input source is selected in the Input Source menu.
Missing pixels LCD screen has spots ·Cycle power on-off.
			·A pixel that stays permanently off is a common defect in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, seeDell Display Pixel Guidelines.
Stuck-on pixels LCD screen has bright spots		·Cycle power On-Off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, seeDell Display Pixel Guidelines.
Brightness problems Picture too dim or too bright		·Reset the monitor to factory settings.·Adjust brightness and contrast controls through OSD.
Safety-related issues Visible signs of smoke or sparks		·Do not perform any troubleshooting steps.·Contact Dell immediately.
Intermittent problems Monitor malfunctions on and off		·Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.·Reset the monitor to factory settings.·Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing color Picture missing color ·Perform a monitor self-test.
			·Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.·Check for bent or broken pins in the video cable connector.
Wrong color	Picture color not good	·Try differentPreset Modes in Colorsettings OSD.·Adjust R/G/B value underCustom Colorin the Color menu OSD.·Change theInput Color Format to RGBor YCbCrin the Color settings OSD.·Run theBuilt-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Faint shadow from the static image displayed appears on the screen	·Set the screen to turn off after a few minutes of screen idle time. These can be adjusted in the Windows Power Options or Mac Energy Saver setting.·Alternatively, use a dynamically changing screensaver.
Mic/Webcam does not work	·USB cable not plug in or not select the correct USB source·Not set the monitor Mic/webcam as the default device	·Plug in the USB Cable (Type-A to Type-B), and if you connect USB Type-B port, switch the USB source in the OSD menu.·Select the monitor Mic/webcam as the default in the PC side.·Touch the Mic button and make sure the Mic mute LED is dark.

Product-specific problems

Table 8. Product-specific problems

Specific symptoms What you experience Possible solutions
The screen image is too small	Image is centered on the screen, but does not fill the entire viewing area	Check the Aspect Ratio setting in the Display menu OSD.Reset the display to factory settings.
Cannot adjust the monitor with the joystick control on the rear of the monitor	OSD does not appear on the screen	Turn off the monitor, unplug the monitor power cable, plug it back, and then turn on the monitor.Check whether the OSD menu is locked. If yes, move and hold the joystick Up, Down, Left, or Right navigation keys for 4 seconds to unlock.
No input signal when user controls are pressed	No picture; the LED light is white	Check the signal source. Ensure that the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.Ensure the signal cable is securely connected. If needed, disconnect and reconnect the cable to confirm a proper connection.Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.Run the built-in diagnostics.
No image when using DP connection to the computer	Black screen	Verify the DisplayPort (DP) certification (DP 1.1a or DP 1.4) of your graphics card. Download and install the latest graphics card driver.Some DP 1.1a graphics card cannot support DP 1.4 monitors.
When press either Volume down/Volume up or Mute button, LED not blink	When press either Volume down/Volume up or Mute button, LED not blink when connected to HDMI or DP only	Connect USB Type-A to Type-B cable.
Webcam or Mic not working	Webcam or Mic not working when connected to HDMI or DP only	Connect USB Type-A to Type-B cable.
No sound coming from the speakers	No sound coming from the speakers when play audio/video on your system	Ensure that you have set the default playback device as Echo Cancelling Speakerphone or DELL E2426HB on your system.Turn Off the monitor, unplug the monitor power cord, replug it, and then turn On the monitor.Reset the monitor to Factory Settings.
Speaker volume is low/sounds soft	Speaker volume is low/sounds soft when speaker option is DELL E2426HB in Sound setting interface	Increase the speaker volume of DELL E2426HB to maximum in the Sound setting interface.Press the Volume Up button to increase the speaker volume of DELL E2426HB.If you select DELL E2426HB audio path, please ensure that the Echo Cancelling Speakerphone volume is set to medium or high. Else, the DELL E2426HB maximum volume may sound soft because it is limited by the Echo Cancelling Speakerphone volume. For example, when the Echo Cancelling Speakerphone volume is at 50%, and the DELL E2426HB volume is set to 100% will have the same sound level as the former.
Monitor's Volume up/Volume down buttons not sync with OS	Pressing the Volume up/Volume down buttons on the monitor does not increase or decrease the volume on the OS.	Select 'Echo Cancelling Speakerphone' audio path on the operating system's Sound setting of your laptop.Select 'Echo Cancelling Speakerphone' audio path on the UC application.Connect USB Type-A to Type-B cable.
Webcam is not detected	Webcam is not detected in the Windows Device Manager	·Ensure that the USB upstream cable is connected between the monitor and the computer or notebook.·Ensure that theWebcamin OSD is set to Enable.·Reconnect the USB upstream cable to the computer or notebook.
	Webcam is not detected in the Dell Peripheral Manager for Windows software	·To support theE2426HBmonitor, please use the Dell Peripheral Manager version 1.7.0 or later.
Webcam cannot connect/Webcam disconnected	Could not detect Monitor camera/Could not switch back to the PC camera	·Reset the monitor to factory settings.·Turn off the monitor, unplug the monitor power cord, replug it, and then turn on the monitor.·Select the monitor camera again in the Camera/Video setting on your UC conference application.
Microphone is muted Microphone is muted in the Windows Device Manager		·Ensure that the USB upstream cable is connected between the monitor and the computer or notebook.·Ensure that the 'Microphone' in OSD is set as Unmute.·Reconnect the USB upstream cable to the computer or notebook.·Ensure that the microphone is enabled/unmuted on the monitor. If the microphone mute LED is lighting up in static red (indicates microphone muted), press the microphone button to unmute the microphone.·Ensure that the monitor's microphone is selected and enabled/unmuted on the setting in the UC application.
Microphone volume is low/sounds soft	Microphone volume is low /sounds soft to the other participant when in audio/video call	·Ensure the Mute button's LED go dark (indicates microphone unmuted).·Adjust the distance between the user and the microphone. The user should avoid sitting too far away from the microphone. The most optimum distance between the user and the microphone is 70 cm.·Ensure that the monitor's microphone is selected and enabled/unmuted on the setting in the UC application.·Increase the microphone volume in the Sound setting interface at the PC side/in the UC application.
Webcam image looks over-exposed	Webcam image shows over-exposed background	·Adjust the environment lighting condition. Ensure the monitor is setup at a well lighted environment, preferably under ceiling lights. The user should avoid a dim/dark background. The user should avoid direct facing a window with bright sunlight.·Alternatively, you may use Dell Peripheral Manager to adjust the webcam setting on color.
Webcam image looks grainy/dark	Webcam image appears grainy/dark	·Adjust the environment lighting condition. Ensure the monitor is setup at a well lighted environment, preferably under ceiling lights. The user should avoid a dim environment.
Webcam image looks blurry	Webcam image appears blurry/not clear.	·Use a clean and slightly damp cloth to wipe the surface of the front webcam.·Adjust the distance between the user and the camera. The user should avoid sitting too far away from the camera. The most optimum distance between the user and the camera is 70 cm.
Image quality poor The image quality of the monitor was poor		Always poor:·Check that your computer is USB 3.0-capable.·Some computers have USB 3.0, USB 2.0, and USB 1.1 ports. Ensure that the correct USB port is used.Sometime poor:·Network will effect the image quality, ensure your network is fine.
The recording video blurred out.	Change monitor Camera resolution to 480p, Record with the camera app, save and playback the recording. There will show Mosaic in the video.	·Change monitor camera resolution to 720p or higher.
The wireless mouse does not work smoothly and pauses.	Connect USB up-stream cable to the DUT. More than one meter away, 2.4Ghz mouse does not work.	• Workaround:a) connect to Quick Access Portb) Connect USB 2.4Ghz dongle via USB Type-A Male to Female cable (0.5M)
Wireless mouse does not work smoothly and properly.	When plugged into one of the USB ports on the rear side of the monitor, the Wireless USB mouse lags of freezes during use	• Unplug the Wireless USB Mouse receiver and replug it into one of the Quick Access USB ports at the bottom of the monitor.

Universal Serial Bus (USB) specific problems

Specific Symptoms What you experience Possible solutions
USB interface is not working	USB peripherals are not working	·Check that your display is turned ON.·Reconnect the upstream cable to your computer.·Reconnect the USB peripherals (downstream connector).·Turn off the monitor and turn it on again.·Reboot the computer.·Certain USB devices such as portable hard drives require higher power source; connect the drive to the computer directly.
super speed USB 5Gbps interface is slow.	super speed USB 3.2 Gen1 peripherals working slowly or not working at all	·Check that your computer is USB 3.0-capable.·Some computers have USB 3.0, USB 2.0, and USB 1.1 ports. Ensure that the correct USB port is used.·Reconnect the upstream cable to your computer.·Reconnect the USB peripherals (downstream connector).·Reboot the computer.
Wireless USB peripherals stop working when a USB 5Gbps device is plugged in	Wireless USB peripherals responding slowly or only working as the distance between itself and its receiver decreases	·Increase the distance between the USB 5Gbps peripherals and the wireless USB receiver.·Position your wireless USB receiver as close as possible to the wireless USB peripherals.·Use a USB-extender cable to position the wireless USB receiver as far away as possible from the USB 5Gbps port.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see Contact Support at Dell Support Site.

NOTE: Availability varies by country or region and product, and some services may not be available in your country or region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Revision History

The following table provides the revision history of this document:

Table 9. Revision history

Revision Date Description
A00 March 2026 Original	publish date
