Product Type	Countertop Microwave Oven
Brand	Kogan
Model	KAMWO30LCGA
Capacity	20 Liters
Dimensions (W x D x H)	440 x 350 x 260 mm
Weight	10.5 kg
Power Consumption	1200 W
Microwave Power	800 W
Power Levels	10 power levels
Display Type	LED digital display
Control Type	Touch buttons and dial
Defrost Function	Yes, by weight or time
Timer	Up to 99 minutes 99 seconds
Child Lock	Yes
Interior Light	Yes
Turntable	Yes, glass turntable
Warranty	1 year
Cleaning Instruction	Wipe interior with damp cloth; avoid abrasive cleaners
Safety Features	Child lock, auto shut-off, door interlock
Spare Parts Availability	Contact Kogan customer support for replacement parts

Frequently Asked Questions - KAMWO30LCGA Kogan

How do I set the clock on my Kogan KAMWO30LCGA microwave?

Press the 'Clock' button, then use the dial to set the hour and minute. Press 'Clock' again to confirm. The time will display in 24-hour format.

How do I defrost food using this microwave?

Press the 'Defrost' button. You can choose defrost by weight or by time. For weight, enter the weight in grams; for time, set the duration. The microwave will automatically adjust power level.

What power levels are available?

There are 10 power levels ranging from 10% (low) to 100% (high). Use the 'Power Level' button to cycle through options.

How do I clean the microwave interior?

Unplug the microwave. Use a damp cloth with mild soap to wipe the interior. Avoid harsh chemicals or abrasive pads. Dry thoroughly before use.

Is there a child lock feature?

Yes. Press and hold the 'Stop/Cancel' button for 3 seconds to lock the control panel. Repeat to unlock. The lock icon will appear on the display.

Why is my microwave not heating?

Check if the door is properly closed. Ensure the power cord is plugged in. If the issue persists, the magnetron may be faulty; contact Kogan support.

Can I use metal containers in the microwave?

No. Metal can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers. Remove any aluminum foil.

What is the maximum cooking time?

The timer can be set up to 99 minutes and 99 seconds. For longer cooking, reset after the timer ends.

How do I install the turntable?

Place the glass turntable on the central hub, ensuring it sits securely. Do not operate the microwave without the turntable.

Does this microwave have a warranty?

Yes, the Kogan KAMWO30LCGA comes with a 1-year warranty covering manufacturing defects. Keep your purchase receipt for service.

USER MANUAL KAMWO30LCGA Kogan

Black microwave oven with digital display and control buttons (no visible text or symbols on main body)

30L CONVECTION MICROWAVE WITH GRILL

KAMWO30LCGA

Safety & Warnings 3

Overview 6

Installation 8

Operation 9

Cleaning & Care 16

Specifications 17

Troubleshooting 17

Notes 18

SAFETY & WARNINGS

Precautions to Avoid Possible Exposure to Excessive Microwave Energy

• Do not attempt to operate this microwave with the door open, as this can result in harmful exposure to microwave energy. It is important not to tamper with or break the safety interlocks.
• Do not place any object between the microwave front face and the door, nor allow residue to accumulate on the sealing surfaces.
• WARNING: If the door, door hinges or door seals are damaged, the microwave must not be operated. Contact the help.Kogan.com for support before using the unit again.
• If the microwave is not properly maintained and kept in a good state of cleanliness, its surface may degrade affecting the lifespan of the appliance and lead to a dangerous situation.

Basic Safety Precautions

• Read all instructions carefully before using the microwave and retain this user guide for future reference.
• The microwave is intended for the heating of food and beverages. Drying of food or clothing or the heating of warming pads, slippers, sponges, damp cloth or similar may lead to risk of injury, ignition, or fire.
• Do not place corrosive chemicals or vapours in this microwave. This type of microwave is not designed for industrial or laboratory use.
• Do not operate this microwave when empty.
• If the power cord or plug is damaged, cease use immediately and contact help.Kogan.com for support.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning the use of the product in a safe way and been given an understanding of the dangers involved.
• Cleaning and user maintenance must not be carried out by children unless they are older than 8 years old and supervised.
• Keep the appliance and the power cord out of the reach of children.
• When heating food in plastic or paper containers, keep an eye on the microwave due to the possibility of ignition.

• Remove wire twist-ties from paper or plastic bags before placing the bag in the microwave.

• If smoke is observed, switch off and unplug the appliance and keep the door closed to stifle any flames.

• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

- WARNING: Liquids and food must not be heated in sealed containers as they may explode.

- Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handle the container.

- Do not fry food in the microwave. Hot oil can damage microwave parts and utensils and even result in skin burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in this microwave as they may explode even after microwave heating has ended.

- Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

- The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature should be checked before serving to avoid burns.

- Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

- Utensils should be checked to ensure that they are suitable for microwave use.

- WARNING: It is hazardous for anyone other than a Kogan technician to carry out repairs that involve the removal of the cover, which gives protection against microwave energy.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- The microwave is designed to be freestanding. Do not place the microwave inside a cabinet.

- WARNING: Do not install the microwave over a range cook top or another heat-producing appliance.

- The door or the outer surface may get hot when the appliance is operating.

- WARNING: Accessible parts may become hot during use. Young children should be kept away.

- During use, internal elements become hot. Care should be taken to avoid pressing heating elements inside the microwave.

- The microwave is not intended to be operated by means of an external timer or separate remote control system.

• Never remove the distance holders on the back or sides of the microwave, as they ensure a minimum distance from the wall for air circulation.
• Secure the turntable before moving the appliance to avoid damage.
• CAUTION: Steam will escape when opening lids or wrapping foil.

Grounding

• This microwave must be connected to a grounded electrical outlet.
• Ensure no other appliance is plugged into the same electrical outlet.
• Ensure that the plug is fully inserted into the electrical outlet.
• The power cord of this microwave is equipped with a grounding plug for wall outlets to minimise the possibility of electric shock. Any questions concerning power and/or grounding should be directed toward a certified electrician.
• This microwave must be positioned in such a way that the plug is accessible.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

Important: The wires in this power cord are coloured in accordance with the following code:

Green and yellow	Grounding
Blue	Neutral
Brown	Live

Radio interference

Operation of the microwave can cause interference to your radio, TV, or similar devices. When there is interference, it may be reduced or eliminated by taking the following measures:

• Clean the door and sealing surface of the microwave.
  • Reorient the antenna of the radio or TV.
• Move the microwave away from the radio or TV.
• Plug the microwave into a different electrical outlet.

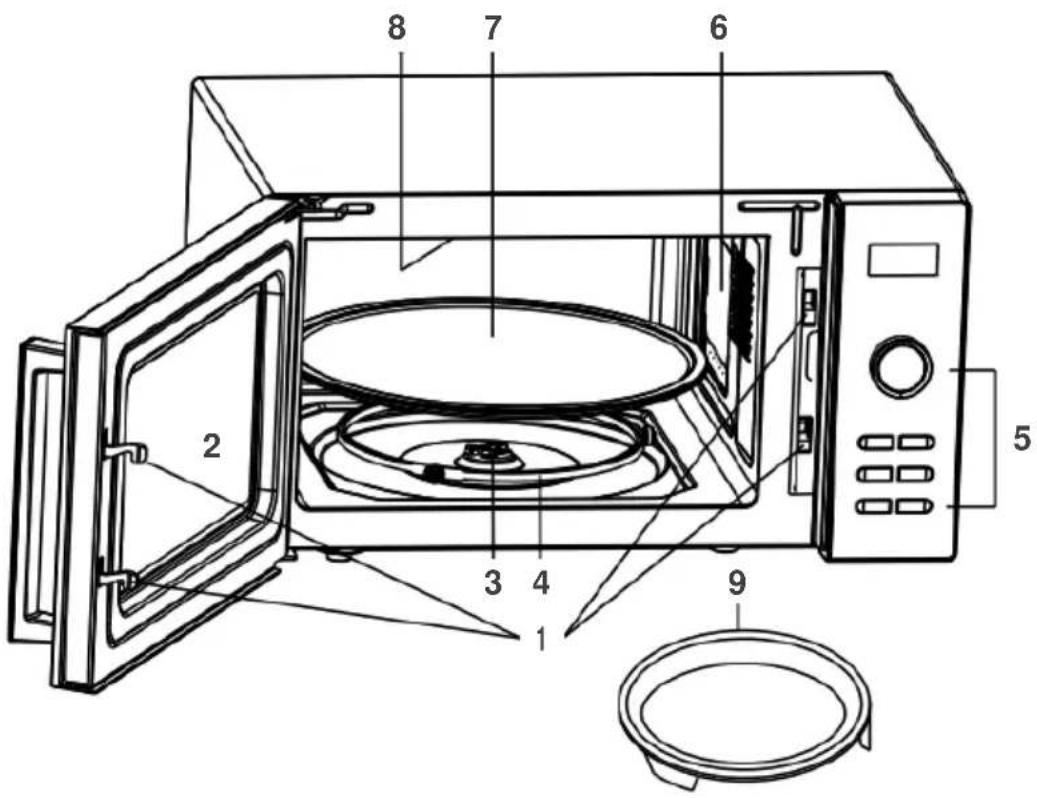

1 Lock System
2 Window
3 Shaft
4 Roller Ring
5 Control Panel
6 Wave Guide
7 Glass Tray
8 Grill Heater
9 Bake Tray

Note:

Do not remove the mica plate covering the wave guide.

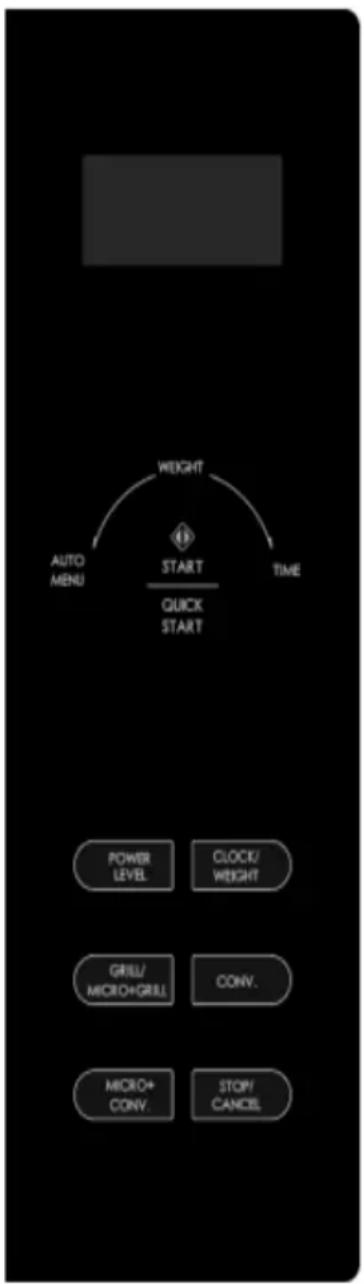

MENU ACTION SCREEN	Cooking time, power, indicators, and clock are displayed.
AUTO MENU/TIME (dial)	Turn the dial to set the cooking time.Turn the dial to select auto cooking menu.
START/QUICK START	Press to start cooking and defrosting programs.Press the dial several times to set the cooking time and cook immediately at full power.
POWER LEVEL	Press to set the microwave cooking power level.
CLOCK/WEIGHT	Press to set the clock time.Press to set food weight or servings.
GRILL/MICRO+GRILL	Press to set food weight or servings.Press to set the microwave and grill combination cooking program.
CONV.	Press to set the convection cooking program.
MICRO+CONV.	Press to set the microwave and convection combination cooking program.
STOP/CANCEL	Press once to temporarily stop cooking or twice to cancel cooking altogether.

INSTALLATION

• Ensure that all the packing materials are removed from the inside of the door.
• Warning: Check the microwave for any damage, such as a misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the microwave and contact help.Kogan.com.
• This microwave must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the microwave.
• Do not place the microwave where heat, moisture or high humidity are generated or near combustible materials.
• For correct operation, the microwave must have sufficient airflow. Allow a minimum of 20cm of free space above the top surface of the microwave and 5cm at both sides. The microwave rear plate must be placed close to the wall. Do not cover or block any openings on the appliance. Do not remove feet.
• Do not operate the microwave without the glass tray, roller ring and shaft in their proper positions.
• Ensure that the power cord is undamaged and does not run under the microwave or over any hot or sharp surfaces. If the power cord is damaged, do not use the microwave and contact help.Kogan.com for support.
• The electrical outlet must be readily accessible so that it can be easily unplugged in an emergency.
• Do not use the microwave outdoors.

OPERATION

• When the microwave is first plugged in, it will beep. '1:00' and '■' will illuminate on the display.
• During the process of setting, after 30 seconds of no user input, the microwave will return to standby mode.

• During cooking:

• Press the STOP/CANCEL button to pause the program.

• Press the START/QUICK START button to resume the program.
• Press the STOP/CANCEL button twice, to cancel the program.

- After cooking, 'the display and the microwave will beep every 2 minutes until the door is opened or the STOP/CANCEL button is pressed.

Set the Clock Time

1. In standby mode, press the CLOCK/WEIGHT button repeatedly to select 12 or 24 hour time.
2. Turn the AUTO MENU/TIME dial to set the hour digit.
3. Press the CLOCK/WEIGHT or START/QUICK START button.
4. Turn the AUTO MENU/TIME dial to set the minute digit.
5. Press the CLOCK/WEIGHT or START/QUICK START button to confirm.

Note:

During cooking or pausing, you can check the current clock time by pressing the CLOCK/WEIGHT button.

Express Cooking

• Use this feature to conveniently program the microwave to cook food at 100% power.
• In standby mode, press the START/QUICK START button to start cooking at full power.
• During cooking, press the START/QUICK START button repeatedly to add cooking time. Each press increased the time by 30 seconds, up to 10 minutes.

Microwave Cooking

1. In standby mode, press the POWER LEVEL button repeatedly to set the cooking power level.
2. Turn the AUTO MENU/TIME dial to set the cooking time (max. 95 minutes).
3. Press the START/QUICK START button to confirm.

Press POWER LEVEL button	Power (Display)
Once	100% (P100)
Twice	80% (P-80)
3 times	60% (P-60)
4 times	40% (P-40)
5 times	20% (P-20)
6 times	0% (P-00)

Note:

During cooking or pausing, you can check the power level by pressing POWER LEVEL button. If you want to cook at full power level, directly turn AUTO MENU/TIME dial clockwise to set cooking time, then press START/QUICK START button to start.

Grill

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages, and pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes.

1. In standby mode, press the GRILL/MICRO + GRILL button once.
2. Turn the AUTO MENU/TIME dial to set the cooking time (max. 95 minutes).
3. Press the START/QUICK START button to confirm.

Microwave + Grill

Combination 1: 30% of the time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin.

Combination 2: 55% of the time for microwave cooking, 45% for grill cooking. Use for pudding, omelettes, baked potatoes and poultry.

1. In standby mode, press the GRILL/MICRO+GRILL button twice or 3 times to select 'Co-1' or 'Co-2'.
2. Turn the AUTO MENU/TIME dial to set the cooking time (max. 95 minutes).
3. Press the START/QUICK START button to confirm.

Convection

• During convection cooking, hot air is circulated throughout the microwave cavity to brown and crisp foods quickly and evenly.
• This microwave can be programmed for ten different cooking temperatures (200°C→190°C→180°C→170°C→160°C→150°C→140°C→130°C→120°C→110°C).

Preheat and cook with convection:

Your microwave can be programmed to combine preheating and convection cooking operations.

1. In standby mode, press the CONV. button repeatedly to set the convection temperature.
2. Press the START/QUICK START button to confirm. The microwave will beep when the designated temperature is reached.
3. Open the door and place the container of food in the centre of the glass tray.
4. Turn the AUTO MENU/TIME dial to set the cooking time (max. 95 minutes).
5. Press the START/QUICK START button to start.

Note:

The preheat time is 30 minutes. When the microwave reaches the preheat temperature, the microwave will beep every 5 seconds for 30 minutes. The program will end automatically if the door is not opened within 30 minutes.

Cook with convection:

1. In standby mode, press the CONV. button repeatedly to select a temperature.
2. Turn the AUTO MENU/TIME dial to set the cooking time (max. 95 minutes).
3. Press the START/QUICK START button to start.

Note:

During cooking, you can check the current temperature by pressing the CONV. button.

Microwave + Convection

This microwave has four pre-programmed settings that make it easy to cook with both convection heat and the microwave.

1. In standby mode, press MICRO+CONV. button repeatedly to select the convection temperature (200°C→170°C→140°C→110°C).
2. Turn the AUTO MENU/TIME dial to set the cooking time (max. 95 minutes).
3. Press the START/QUICK START button to confirm.

Note:

During cooking, you can check the combination power level by pressing the MICRO+CONV. button.

Auto Defrost

1. In standby mode, turn the AUTO MENU/TIME dial anti-clockwise until the display shows 'AUTO', 'A-9' and
2. Press the START/QUICK START button.
3. Press the CLOCK/WEIGHT button repeatedly to select the food weight.
4. Press the START/QUICK START button to confirm.

Note:

During defrosting, the program will pause to remind you to turn the food over. After turning the food over, press the START/QUICK START button to resume.

Child Lock

The child lock prevents unsupervised operation by children.

Enable the child lock:

The microwave will automatically enable the child lock after 1 minute of on user input when in standby mode. The child lock indicator will illuminate, and all buttons will be disabled.

Disable the child lock:

Open and close the microwave door to cancel the child lock.

Sticky Button Resistance

• If a button is pressed for 60 seconds, the program will stop immediately. The microwave will beep, and 'FAIL' will illuminate on the display.
• After troubleshooting, press the STOP/CANCEL button to return to standby mode.

Automatic Protection

Overheating Protection

• When the microwave enters super high temperature protection status, the microwave will beep and 'E01' will illuminate on the display.
• After troubleshooting, press the STOP/CANCEL button to return to standby mode.

Low Temperature Protection

• When the microwave enters low temperature protection status, the microwave will beep and 'E02' will illuminate on the display.
• After troubleshooting, press the STOP/CANCEL button to return to standby mode.

Sensor Malfunction Protection

• The microwave enters protection mode when the system sensor is short circuited. The microwave will beep and 'E03' will illuminate on the display.
• After troubleshooting, press the STOP/CANCEL button to return to standby mode.

Auto Cook

For the following foods, it is not necessary to program the cooking time and power. It is sufficient to indicate the type of food that you wish to cook as well as the weight or servings of this food.

1. In standby mode, turn the AUTO MENU/TIME dial anticlockwise to select the menu code.
2. Press the START/QUICK START button.
3. Press the CLOCK/WEIGHT button repeatedly or turn the AUTO MENU/TIME dial to select the food weight or servings.
4. Press the START/QUICK START button to start.

Code	Menu
A-1	Beverage (200 ml/ cup, 1~3 cups)
A-2	Spaghetti (100g, 200g, 300g)
A-3	Rice (150~600g)
A-4	Reheat (200~800g)
A-5	Potato (1~2 servings)
A-6	Grilled Chicken (800~1400g)
A-7	Pizza (150g, 300g, 450g)
A-8	Cake (475g)

Notes:

• For Grilled Chicken (A-6), during cooking, the microwave will pause to remind you to turn the food over. After turning the food, press the START/QUICK START button to resume.
• The result of auto cooking depends on factors such as voltage fluctuation, the shape and size of the food, your personal preference as to the doneness of certain foods and how the food is placed in the microwave.

Cooking Techniques

• Place thickest parts of the food on the outside of dish.
• Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
• Cover the food while cooking to cook evenly and prevent spattering.
• Turn the food over during cooking to speed up the cooking of foods such as chicken and hamburgers. Large items like roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking.

• Do not use metal containers or utensils when microwave cooking.
• Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
• Round/oval dishes rather than square/ oblong ones are recommended, as food in corners tends to overcook.

WARNING: Aluminium foil can only be placed inside the microwave in 'Grill' and 'Convection' modes. Do not place aluminium foil inside the microwave in 'Microwave' or 'Combination' modes.

Cookware	Microwave	Grill	Convection	Combination
Heat -Resistant Glass	Yes	Yes	Yes	Yes
Non Heat -Resistant Glass	No	No	No	No
Heat -Resistant Ceramics	Yes	Yes	Yes	Yes
Microwave -Safe Plastic Dish	Yes	No	No	No
Kitchen Paper	Yes	No	No	No
Metal Tray	No	Yes	Yes	No
Metal Rack	No	Yes	Yes	No
Aluminium Foil & Foil Container	No	Yes	Yes	No

Note:

'Combination' is applicable for both 'microwave + grill' and 'microwave + convection' cooking.

CLEANING & CARE

• Unplug the power cord from the wall before cleaning the microwave.
• Keep the inside of the microwave clean. When food spatters or liquids spill, wipe the microwave with a damp cloth. Mild detergent may be used if the microwave gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
• The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave, ensure water does not seep into the ventilation openings.
• Wipe both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to clean any spills or spatters. Do not use abrasive cleaners.
• Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the microwave door open to prevent the microwave from accidentally turning on.
• If steam accumulates inside or around the outside of the microwave door, wipe the door with a soft cloth. This may occur when the microwave is operated in high humidity conditions, and it is normal.
• It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.
• The roller ring and microwave floor should be cleaned regularly to avoid excessive noise. Wipe the bottom surface of the microwave with mild detergent. The roller ring may be washed in mild soapy water or the dishwasher. When removing the roller ring from the floor cavity for cleaning, be sure to replace it in the proper position.
• Remove odours from your microwave by combining a cup of water with the juice and skin of one lemon in a deep, microwave-safe bowl and microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
• The microwave should be cleaned regularly, and any food deposits removed. Failure to maintain the microwave in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Health may also be adversely affected.
• Regularly clean the liquid in the groove at the bottom of the cavity to prevent the liquid from immersing into the cavity which may lead to electrical failure.
• When the grill function is first used, it may produce slight smoke and smell. This is normal, because the microwave is made of a steel plate coated with lubricating oil. The microwave will produce fumes and odour generated by burning the lubricating oil. This phenomenon will disappear over time.

SPECIFICATIONS

Power Supply	230-240V/50Hz
Power Consumption (Microwave)	1400W
Power Consumption (Grill)	1250W
Power Consumption (Convection)	2200W
Rated Microwave Power Output	900W
Operation Frequency	2450MHz
Outside Dimensions	300 × 539 × 452mm
Microwave Cavity Dimensions	224 × 354 × 358mm
Microwave Capacity	30L
Net Weight	Approx. 18kg

TROUBLESHOOTING

Before contacting help.Kogan.com, check the following:

• Ensure the microwave is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these are operating properly, test the outlet with another appliance.
• Ensure the control panel is programmed correctly and the timer is set.
• Ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside.

If the above points are unsuccessful, contact help.Kogan.com for support. Do not attempt to repair the microwave yourself.

Disposal

This marking indicates that this appliance should not be disposed with other house-hold wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
