KAWLMFM55MA - Microwave Kogan - Free user manual and instructions

Product Type	TV Wall Mount
Brand	Kogan
Model	KAWLMFM55MA
Suitable TV Size	23" - 55"
Max Load Capacity	30 kg (66 lbs)
VESA Compatibility	100x100, 100x200, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400
Mount Type	Tilt, Extendable, Full Motion (Swivel)
Wall Compatibility	Solid concrete, masonry, wood stud walls; drywall with studs
Tilt Angle	Adjustable vertical tilt (via lower screws)
Extension	Full motion; arms extend from wall
Material	Steel (bracket, arms, hardware)
Color	Black (typical)
Includes Cable Management	Yes (cable management clip)
Included Components	Wall plate (1x), VESA extension arms (4x), extension arm bolts & nuts (4x each), spanner, screws (M6x14, M8x20), spacers, wall screws (ST6.3x55), wall anchors, washers
Installation Tools Required (Not Supplied)	Phillips head screwdriver, spirit level, stud finder, pencil, drill, wrench
Professional Installation Recommended	Yes (for safety)
Indoor Use Only	Yes
Maintenance	Check security every 3 months

Frequently Asked Questions - KAWLMFM55MA Kogan

What is the maximum TV weight this mount can hold?

The maximum load capacity is 30 kg (66 lbs). Do not exceed this weight to avoid product failure or injury.

Can I install this mount on drywall without studs?

No, the mount must be secured to wall studs for drywall or plasterboard. Use a stud finder to locate studs before drilling.

What VESA patterns are compatible?

The mount supports VESA patterns: 100x100, 100x200, 200x100, 200x200 (directly) and 300x200, 300x300, 400x200, 400x300, 400x400 (using extension arms).

Do I need professional installation?

While the manual suggests installation by professionals, a confident DIYer with proper tools and safety precautions can install it. Ensure you follow the instructions exactly.

How do I adjust the tilt angle?

To adjust vertical tilt, loosen the lower two screws on the TV bracket, tilt the TV to the desired angle, then retighten the screws. Do not overtighten.

What tools are required for installation?

You will need: Phillips head screwdriver, spirit level, stud finder, pencil, drill, and wrench. These are not included.

Is this mount compatible with a 43-inch TV?

Yes, the mount is suitable for TVs from 23 to 55 inches, provided the TV's VESA pattern is supported and weight is under 30 kg.

How do I secure the TV to the mount?

First, hook the TV bracket onto the wall mount arm using the top two screws loosely. Then, with two people holding the TV, attach the lower two screws. Tighten all four screws evenly. Do not overtighten.

Can I use this mount outdoors?

No, this product is intended for indoor use only. Outdoor use could lead to product failure and personal injury.

How often should I check the mount's security?

The manual recommends checking the mount's security and safety at least every three months to ensure it remains firmly attached.

USER MANUAL KAWLMFM55MA Kogan

Technical line drawing of a mechanical assembly with four arms and mounting brackets (no text or symbols)

KOGAN TILT EXTENDABLE FULL MOTION WALL MOUNT

(SUITABLE FOR 23" - 55" TVS)

KAWLMFM55MA

SAFETY & WARNINGS

Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, contact your local distributor for assistance.

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.

• Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• This product is designed to be installed on solid concrete walls, masonry walls or wood stud walls.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
  • Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Never exceed the maximum load capacity of 30kg or it may result in product failure or personal injury.

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.

MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).

COMPONENTS

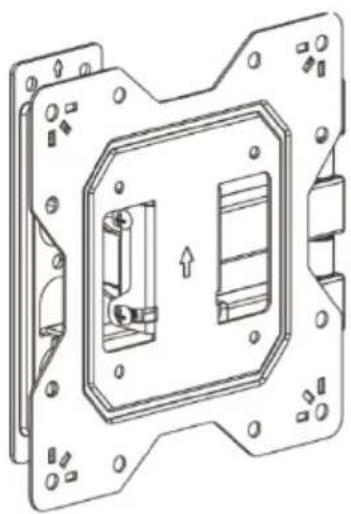

Technical line drawing of a mechanical component with mounting flanges and internal slots (no text or symbols)

A Bracket / wall plate (x1)

Technical line drawing of a mechanical part with rounded ends and circular holes (no text or symbols)

B VESA mount extension arms (x4)

C Extension arm bolt (x4)

D Extension arm nut (x4)

E Spanner (x1)

M-A Screw M6 x 14 (x4)

M-B Screw M8 x 20 (x4)

M-C Spacer (x4)

W-A Screw ST6.3 x 55 (x4)

W-B Wall anchors ø10 x 45 (x4)

W-C Washer (x4)

Tools required for installation (not supplied)

Phillips head screwdriver	Spirit level	Stud finder	Pencil	Drill	Wrench

INSTALLING MOUNT TO WALL

Step 1

Extend the bracket / wall mount (A) out to full length.

Technical illustration of a mechanical assembly showing two views (A and B) of a component with mounting flanges and internal components, no text or symbols present.

Step 2

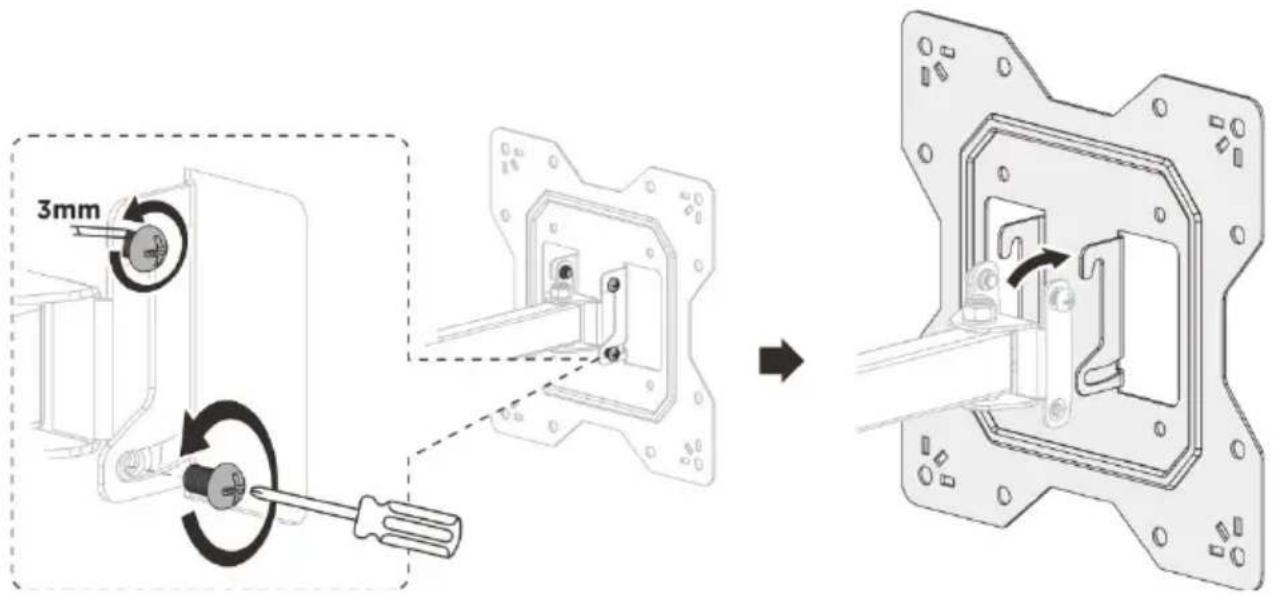

Using a Phillips head screwdriver (not supplied), unscrew and remove the 3mm screws attaching the arm of the mount to the bracket. Keep these screws nearby for later use.

Step 3

Using a pencil, spirit level, mark the desired position for the mount on your wall, using the wall mount to serve as a stencil for the hole positions. If mounting on dry wall or plaster-board, use a stud finder first to check positions of wall studs and ensure the position is free from electrical wiring. Using a drill, create the pilot holes.

Drywall / plaster: Use a 4.5mm or 3/16" drill bit, drilling 55mm deep. Masonry / concrete: Use a 10mm or 3/8" drill bit, drilling 60mm deep.

Pencil, spirit level, stud finder and drill not supplied.

Step 4

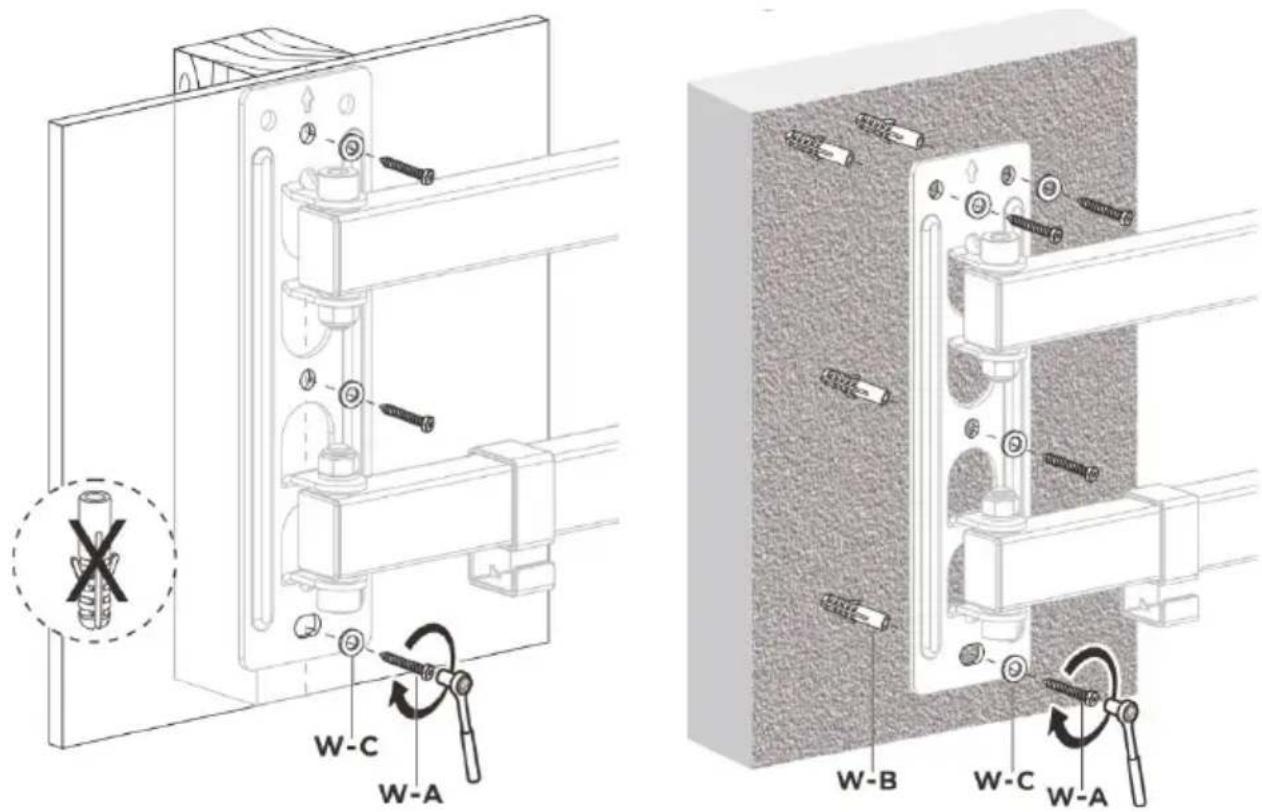

Drywall / plaster: Position the wall mount in line with the pilot holes and secure to the wall using washers (W-C) and ST6.3 screws (W-A). Do not use the wall anchors.

Masonry / concrete: Insert wall anchors (W-B) into the drilled holes. Position the wall mount in line with the holes and secure to the wall using washers (W-C) and ST6.3 screws (W-A).

When using spirit level, ensure the bubble is centred as per the image shown here.

INSTALLING BRACKET TO TV

VESA: 100x100; 100x200; 200x100; 200x200

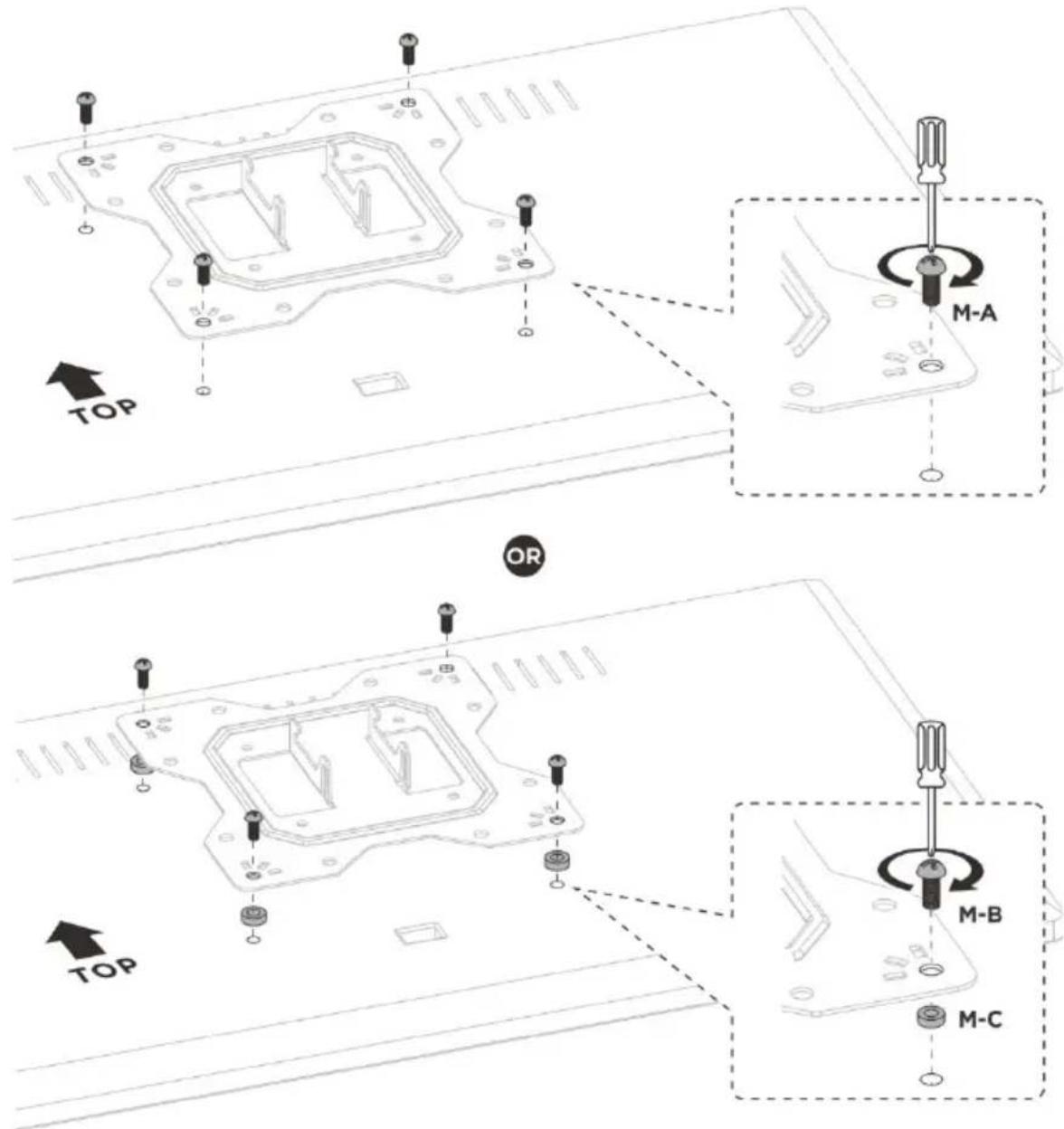

Align the bracket with your TV's VESA holes and secure using supplied screws (M-A or M-B, depending on required length).

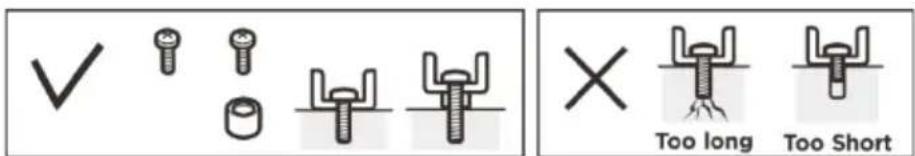

Check if spacers (M-C) are required to ensure correct length of screw, as per the below image. Failure to follow this step may result in damage to your TV or wall mount.

VESA: 300x200; 300x300; 400x200; 400x300; 400x400

For larger VESA configurations, attach the extension arms (B) to the bracket using the bolt and nut set (C, D), tightening with the included spanner (E).

Align the bracket with your TV's VESA holes and secure using supplied screws (M-A or M-B, depending on required length).

With the extension arms successfully fitted, align the bracket with your TV's VESA holes and secure using supplied screws (M-A or M-B, depending on required length).

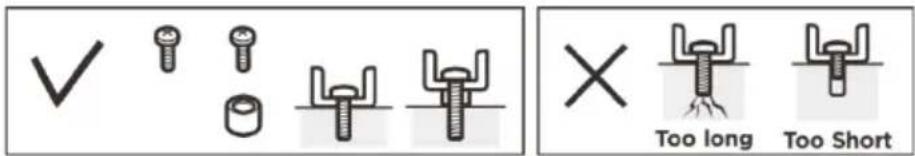

Check if spacers (M-C) are required to ensure correct length of screw, as per the below image. Failure to follow this step may result in damage to your TV or wall mount.

SECURING TV TO MOUNT

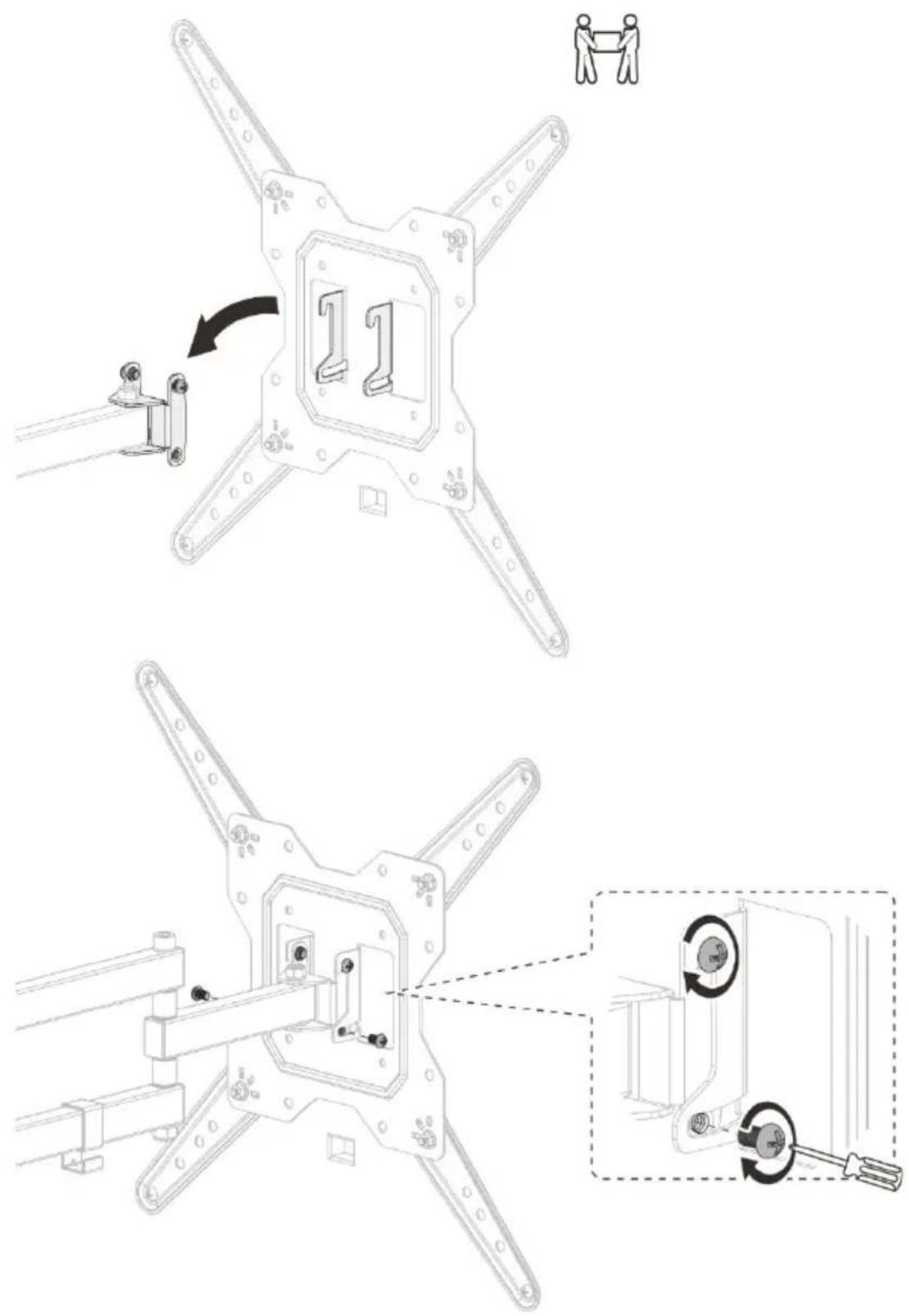

With the top two screws (from Step 2) loosely in place, hook the TV with bracket installed onto the wall mount arm. Two people should carry the TV to prevent damage.

Once in place, attach the lower two screws, then tighten all four. Do not overtighten.

To set the TV to a vertical angle, loosen the lower two screws and move the bracket into desired position before retightening. Do not overtighten.

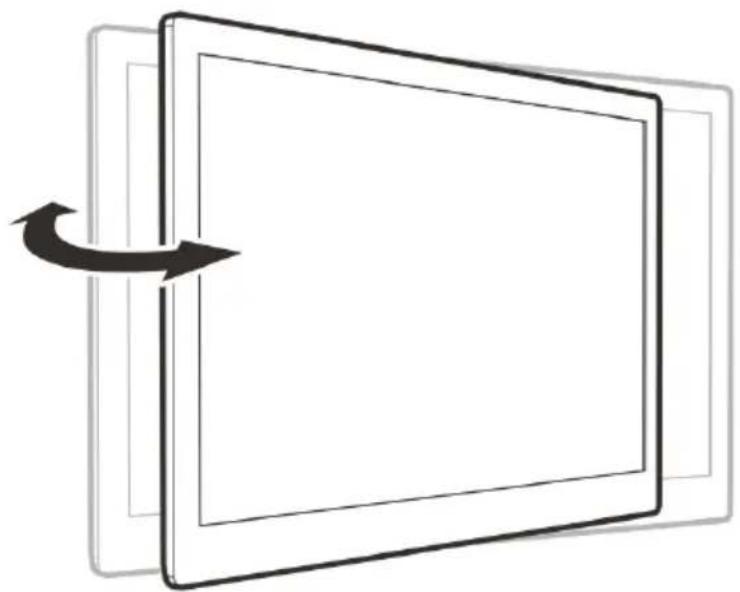

Horizontal angles can be freely positioned without adjusting screws.

Diagram of a tablet device with an arrow indicating rotation or refresh (no text or symbols)

Add the TV's cables to the cable management clip.

Technical line drawing of a mechanical assembly with mounting brackets and wiring (no text or symbols)
