USER MANUAL IDS31-104 Advantech

TITLE	Industrial Monitor / Monitor
MODEL NAME	IDS31-104
SERIAL NAME IDS31-104-523	DVA1E
Signature Date Prepared by Date
Please return 1 copy for our confirmation with your signature and comments

TABLE OF CONTENTS

NO	ITEM	PAGE
I	Overview	3
II	General Description	4
III	Electrical Specifications	5
1	Electrical Characteristics	5
2	Interface Connections	6~9
IV	OSD Function	10
V	Environment Specifications	11
VI	Reliability	11
VII	Inspection Standard	12~14
VIII	Accessory	15~20
IX	Mechanical Characteristics	21
X	Packing	22

BSMI 甲類

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 2 of 22

I. OVERVIEW

The IDS31-104-523DVA1E is designed 10.4 inch monitor

• Support the monitor with 800 × 600 resolution.
• Brightness - 230 cd/m² (without Touch)
• Contrast Ratio : 500:1

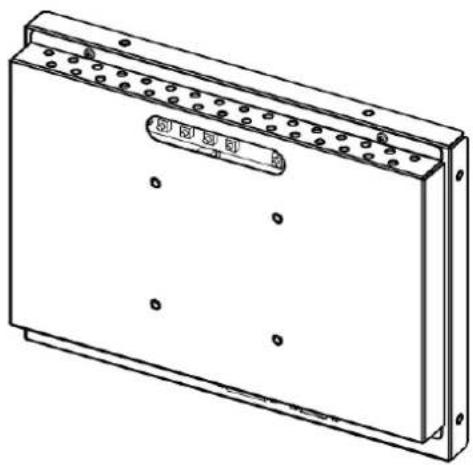

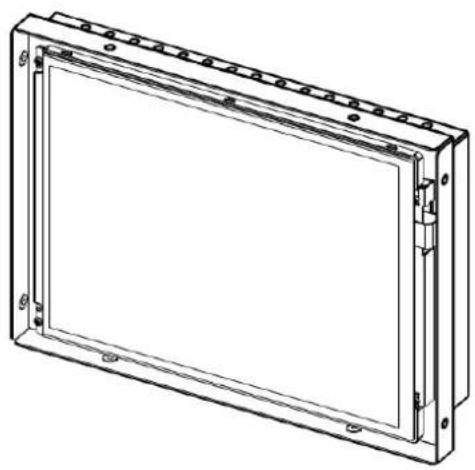

Technical line drawing of a rectangular electronic device with mounting holes and mounting brackets (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting holes and a central control panel (no text or symbols)

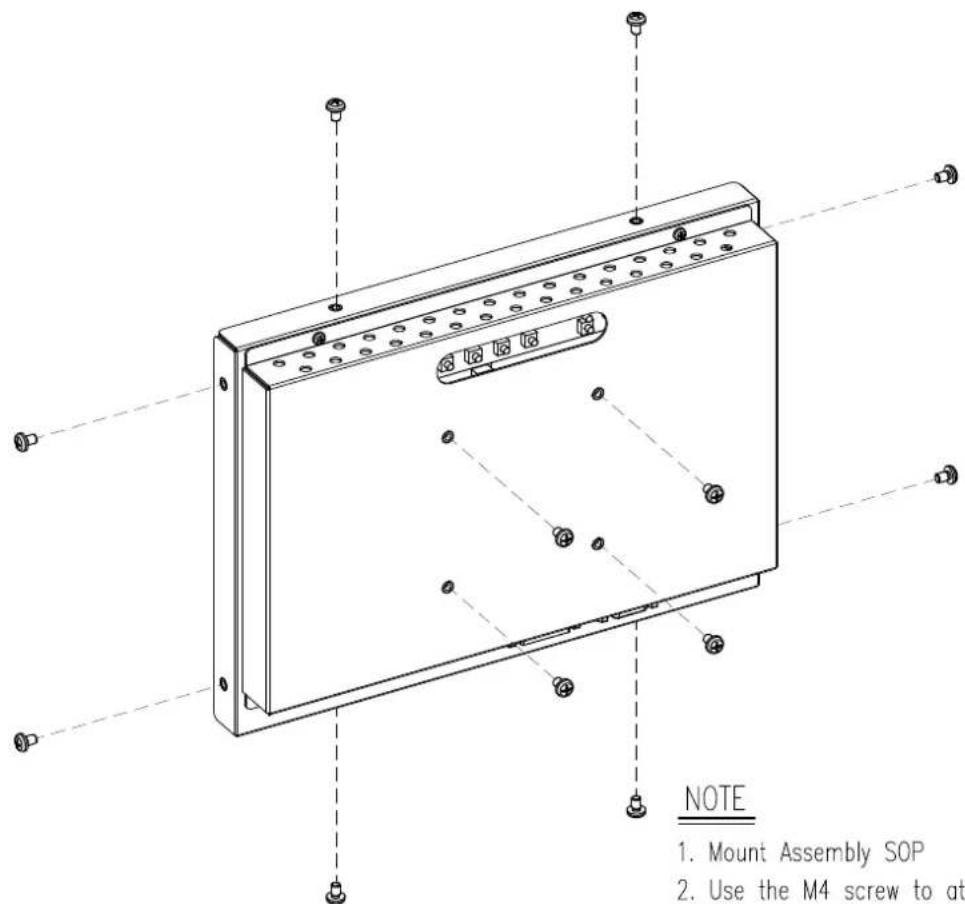

NOTE 1. Mount Assembly SOP 2. Use the M4 screw to at

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 3 of 22

II. General Description

Display Type		TFT LCD Panel (10.4 inch) – G104SN03V5
Pixel Pitch		0.264(H)mm X 0.264(V)mm
Pixel Format		800 Hor. By 600 Ver. Pixels RGB vertical stripe
Display Colors		16.2M / 262K colors
Brightness		230 cd/m2 (Typical)
Contrast Ratio		500 : 1 (Typical)
Response Time		35 ms (TR + TF)
Viewing Angle	Horizontal	160 °
	Vertical	130 °
Life Time		30,000 Hr (Typical)
Input Signal		Analog RGB, DVI-D
OSD Controls		Soft Power(On/Off), Menu, Select, Up, Down
Power Saving(LED Display)		VESA DPMS, On (Green), Stand-By (Green blinking), Suspend (Green blinking), Off
Dimension		262.0(H) x 194.0(V) x 40.3(D)
Weight		1.6kg
Operating Temp.		0°C ~+50°C
Storage Temp.		-20°C ~ +60°C

III. Electrical Specifications

1-1. Electrical Characteristics

Power	DC Input Voltage		12VDC/ 3.5A ± 10%
	Standby power		1.0 W
	Power consumption		6 W
Analog	Video Signal	Type	Analog RGB
		Gain Level	0.714 ± 5%
		Input impedance	75ohm ± 5%(terminated)
		Pixel frequency	Max. 165MHz
		Resolution	Max. 800×600 / 60Hz
	Input Sync Signal	Type	H/V, Separate only
		Gain Level	TTL level(High ≥ 2.0V, Low ≤ 0.8V)
		Polarity	Positive or Negative
		Maximum Duty	Max. 25%
		Frequency Range	Horizontal	31.43 ~ 88.8KHz,
			Vertical	56.25 ~ 75.03Hz
DVI	Differential output		150 ~ 1200 mVp-p
	Input clock freq		20 ~ 135 MHz

1-2 Board Block Diagram

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 5 of 22

2. I/O Port (Interface Connections)

2-1. Analog RGB Pin Assignment

Connector	P/No.	Symbol	Description
VGA Input connector For 15P D-sub	1	Red	Red, analog input
	2	Green	Green, analog input
	3	Blue	Blue, analog input
	4	N.C	Not connected
	5	DGND	Digital ground
	6	Red GND	Ground for Red return
	7	Green GND	Ground for Green return
	8	Blue GND	Ground for Blue return
	9	N.C	Not connected
	10	DGND	Detect connector
	11	N.C	Not connected
	12	DDC Data	DDC Data
	13	H-sync	Horizontal sync, input
	14	V-sync	Vertical sync, input
	15	DDC Clk	DDC Clk

2-2. DVI Jack Pin Assignment

Connector	P/No.	Symbol	Description
DVI	1	RX2N	TMDS Data 2-
	2	RX2P	TMDS Data 2+
	3	GND	TMDS Data 2/4 Shield
	4	NC	TMDS Data 4-
	5	NC	TMDS Data 4+
	6	SCL-DVI-1	DDC Clock
	7	SDA-DVI-1	DDC Data
	8	VSYNC	Analog Vertical Sync
	9	RX1N	TMDS Data 1-
	10	RX1P	TMDS Data 1+
	11	GND	TMDS Data 1/3 Shield
	12	NC	TMDS Data 3-
	13	NC	TMDS Data 3+
	14	+5V Power	DVI+5V
	15	GND	Ground
	16	HPD	Hot Plug Detect
	17	RX0N	TMDS Data 0-
	18	RX0P	TMDS Data 0+

Enabling an Intelligent Planet

	19	GND	TMDS Data 0/5 Shield
	20	NC	TMDS Data 5-
	21	NC	TMDS Data 5+
	22	GND	TMDS Clock Shield
	23	RXCP	TMDS Clock +
	24	RXCN	TMDS Clock -
	C1	NC	Analog Red
	C2	NC	Analog Green
	C3	NC	Analog Blue
	C4	HSYNC	Analog Horizontal Sync

2-3. Input Signal format

Mode\Character	Pixel Freq.	Horizontal Timing				Vertical Timing
		Sync Polar	Freq.	Total	Active	Sync Polar	Freq.	Total	Active
	MHz		KHz	Pixel	Pixel		Hz	Line	Line
640x480 @60Hz	25.175	-	31.47	800	640	-	59.94	525	480
800x600 @60Hz	40.000	-	37.88	1056	800	-	60.32	628	600

Sync : H/V Separated LVDS

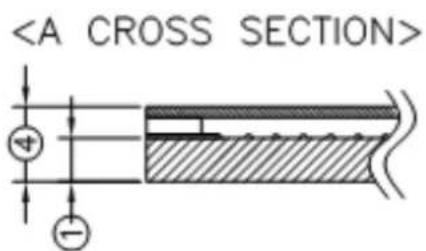

2-4. Touch Glass / Touch Controller

5wire Resistive Touch
Input Method	Pen: 110 g ↓ (Polyacetal)Finger: 110 g ↓ (Silicon rubber)
Light Transmittance	81% ↑ (550nm wavelength, According to JIS-K7105)
Operating Temperature	-20°C ~ 70°C Humidity 90% RH at max 35°C
Storage Temperature	-40°C ~ 80°C Humidity 90% RH at max 35°C
Relative Humidity	25 - 90% (Temperature: 20±2° c / Humidity : 65 ± 5 % RH)

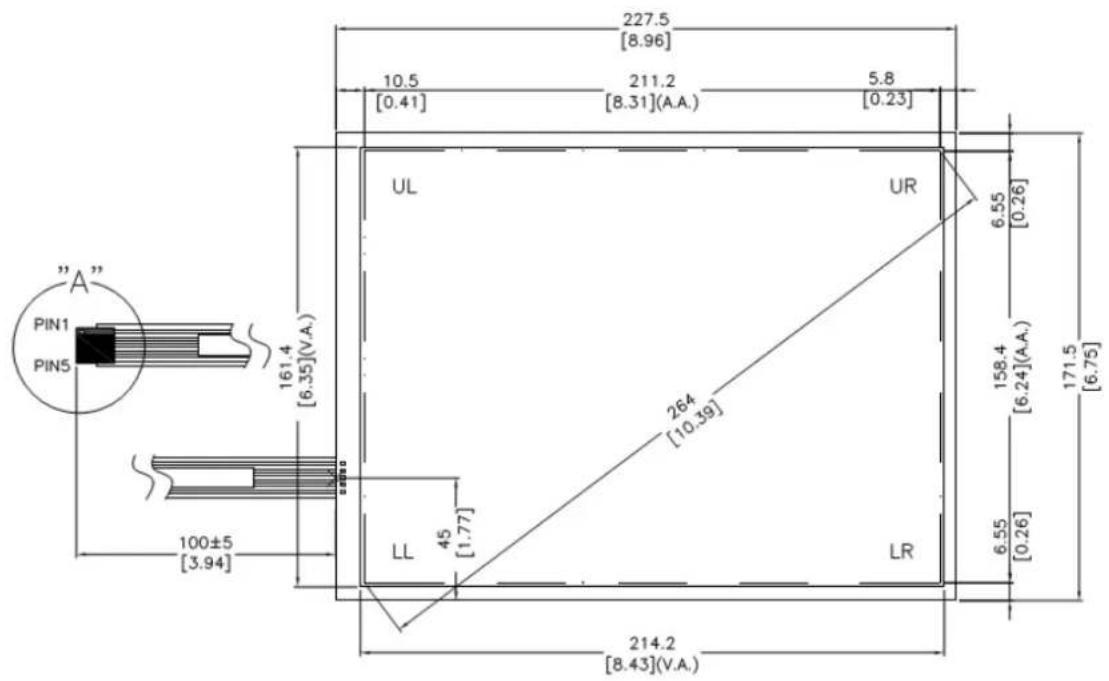

"A" PIN1 PIN5 161.4 [6.35](V.A.) 100±5 [3.94] 227.5 [8.96] 10.5 [0.41] 211.2 [8.31](A.A.) 5.8 [0.23] UL UR 264 [10.39] LL 45 [1.77] LR 6.55 [0.26] 158.4 [6.24](A.A.) 6.55 [0.26] 214.2 [8.43](V.A.) 171.5 [6.75]

① GLASS THICKNESS : 1.8mm

1. GLASS CHARACTERISTIC : NORMAL

2. FILM CHARACTERISTIC : ANTI-GLARE

④ TOTAL THICKNESS : 2.2mm±0.1

1. LABEL TO BE ATTACHED TO FRONT SIDE OF TAIL

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 8 of 22

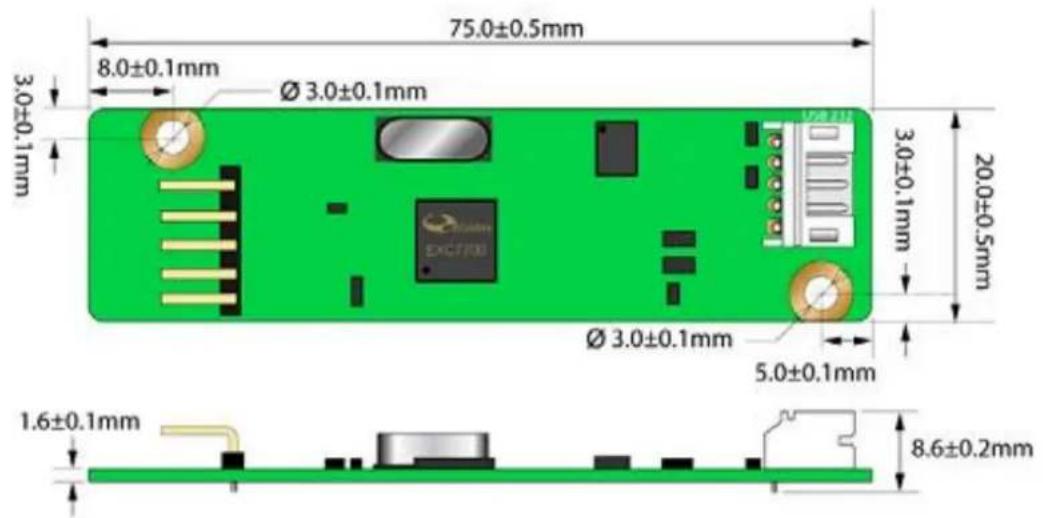

5wire Type Controller
Circuit Board Dimension	20mm x 75mm (0.79inches x 2.95inches)
Power Requirements	D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
Operating Temperature	-25 to 85 °C
Storage Temperature	-40 to 85 °C
Relative Humidity	95% at 60 °C, RH Non-condensing
Interface	USB: 1.1 Full Speed
Resolution	2048×2048 resolution
Report rate	USB: Max. 200 points/sec
Response time	Max. 20 ms
Attached Cable	USB: 180cm shielded cable with USB-A connector
Regulatory Approvals	FCC-B , CE
EMI	Unaffected by environmental EMI
Panel resistance	5 wire resistive model: 50 ~ 200 ohm(Pin to pin on same layer, Touch Resistance under 3k ohm)
Green Product	RoHS Compliant
MTBF	200,000 hrs

ETP-MB-MER4050UEBG-02 (5 wire control board)

75.0±0.5mm 8.0±0.1mm Ø 3.0±0.1mm 3.0±0.1mm 20.0±0.5mm Ø 3.0±0.1mm 5.0±0.1mm 1.6±0.1mm 8.6±0.2mm

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 9 of 22

IV. OSD Function

POWER UP DOWN SELECT MENU

1) Button

Button	Function	Notes
Power	Power on/off button- Turn power on or off
Menu	Main menu on/move button- Show OSD menu on the screen- Exit the main menu or submenu
SLEECT	Menu off button- Submenu Select- Input Source Select(RGB/DP)
DOWN	Adjust button- OSD Menu Down- Moves the bar left to decrease the adjustment
UP	Adjust button- OSD Menu UP- Moves the bar right to increase the adjustment

2) Menu

Image	Sub Menu : Brightness, Contrast, Sharpness, ColorUse the ‘Adjust –’ or ‘Adjust +’ button to decrease or increase the setting
Display	Sub Menu : Auto Adjust, Phase, Clock, Display Position, Panel SelectUse the ‘Adjust –’ or ‘Adjust +’ button to decrease or increase the setting
System	Sub Menu : Input Source, OSD Setting, Language, Dimming, ResetUse the ‘Adjust –’ or ‘Adjust +’ button to adjust the settings automatically

V. Environment Specifications

Parameter	Values		Units	Notes
	Min.	Max.
Operating Temperature	0	+50	°C
Storage Temperature	-20	+60	°C
Operating Humidity	5	90	%RH
Storage Humidity	5	90	%RH

VI. Reliability

No.	Test Item		Conditions
1	High temperature operating test		Ta: 50°C, 120Hr
2	Low temperature operating test		Ta: 0°C, 120Hr
3	High temperature storage test		Ta: 60°C, 120Hr
4	Low temperature storage test		Ta: -20°C, 120Hr
5	High humidity operating test		Ta: 50°C, 80%RH, 120Hr
6	High humidity storage test		Ta: 50°C, 90%RH, 120Hr
7	Thermal shock operation test		Ta: 0°C, 60min → 0°C~50°C, 30min→ 50°C, 60min, 50Cycle
8	Thermal shock storage test		Ta: -20°C, 60min → -20°C~60°C, 30min→ 60°C, 60min, 50Cycle
9	ESD	Contact	8KV,1sec/cycle
		Air	15KV,1sec/cycle
10	Vibration(Non-Operation)		Linear sweep 30minutes, 10~200Hz1.5G, X, Y, Z direction
11	Shock(Non-Operation)		50G, 20ms, Half-sine wave±X, ±Y, ±Z

VII. Inspection standard

1. Description

These inspection standards shall be applied to LCD monitor supplied by GTT.

2. The condition of inspection

2.1 Inspection Environment

1) Ambient temperature : 15\~25°C
2) Humidity : 25\~75%RH
3) Ambient Illumination :

400\~600Lux for external appearance inspection

100\~200Lux for light on inspection

2.2 Inspection condition

• Viewing Distance : 30\~50cm from the surface of the monitor.
• Viewing Angle : 90 degree to the front surface of display panel.
• Viewing Distance : 30cm from the surface of the monitor.
• Viewing Angle : 90 degree to the front surface of display panel.
• Inspection time for 15 seconds.
• while the monitor is on the display and while running the Color patterns(White/Red/Green/Blue)
• Under the inspection condition above, we judge a failure in the inspection if stain or finger print are detected by naked eyes.

2.3 Inspection resolution

800×600, 60Hz

3. Visual inspection

3.1 Packing inspection

Item	Standard	Inspection equipment
Carton label	The character(Model, P/N, S/N etc...) can be discerned.	* Visual
Box	No broken and dirty

3.2 Appearance inspection of monitor

Item	Standard	Inspection equipment
Rear & side	No crack, Broken and Distortion	* Visual* Calipers* Steel scale
Scratch	Noticeable scratch and exfoliation coating are not permitted
Mounting hole	No omission
Rear label	The character(Model, P/N, S/N etc...) can be discerned.
Dimension and hole size	Tolerance: ± 0.2mm

3.3 LCD visual inspection

[unit : mm]

Item	Standard		Inspection equipment
Dot(Bright & Dark)	Random	N≤6	* PC for inspection* Pattern generator* Lupe : ×10* N-test program* ND Filter
	2 adjacent	N≤3 (Note 1)
	3 adjacent or more	N≤2
	Total	N≤10
Mura(Note 4)	Judged by 2% ND filter in gray pattern
Line defect	Not allowed

* D : Diameter, W : Width, L : Length, N : Count

Note (1) Two dot adjacent

2 dot adjacent

2 dot adjacent

2 dot adjacent(Vertical)

2 dot adjacent(Slant)

D: diameter D=(a+b)/2

W:width;L:length

Note (4) The inspection method of ND filter – holding ND filter in front of the panel around 1cm and examine the panel from 35 ± 5 cm in the front view for 3 seconds.

3.4 Touch glass & LCD Panel visual inspection

[unit ; mm]

Item	Defect size	Q'ty	Inspection equipment
Circular defect(Bubble, Scratch,Dig, Foreign object)	D≤0.2	Ignore	* Visual* Lupe; ×10
	0.2<D≤0.5	12
	0.5<D	0
	Sum of defects	12
Circular defect(Dimple, Stain)	D≤0.5	Ignore
	0.5<D≤1.0	7
	1.0<D	0
Liner defectScratch,Foreign object)	W≤0.1, 1≤L≤10	5
	0.1<W≤0.2, L≤10	3
	0.2<W≤0.25, L≤5	1
	W>0.25	0
	Sum of defect	9

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 13 of 22

*out-of-box cosmetic criteria within the viewing area while the touch sensor is on the display and while running the “Colors” program

* Inspection method

• Position front of touch screen 50cm form your eye.
• Inspection for 15 seconds.
• Use one of the following patterns to aid eye.

Pure diagram of three horizontal arrows pointing right, no text or symbols present

D : diameter D=(a+b)/2

W: width ; L:length

4. Function inspection (Resolution 800\*600 at 60Hz)

4.1 OSD key function inspection

Item	Standard	Inspection equipment
Key function	Function normally each key button on the PC mode.	* PC

4.2 Display inspection

Item	Standard		Inspection equipment
Color	No strange color displaying		* PC* Pattern generator
Flicker	No flicker
Noise	No critical noise
Jittering	No critical jittering
Power LED indicator	Power & signal on	Green

4.3 Function inspection of touch screen

Item	Standard	Inspection equipment
Linearity Accuracy	X, Y axis: ± 3.0% or less	* Finger* Touch test program

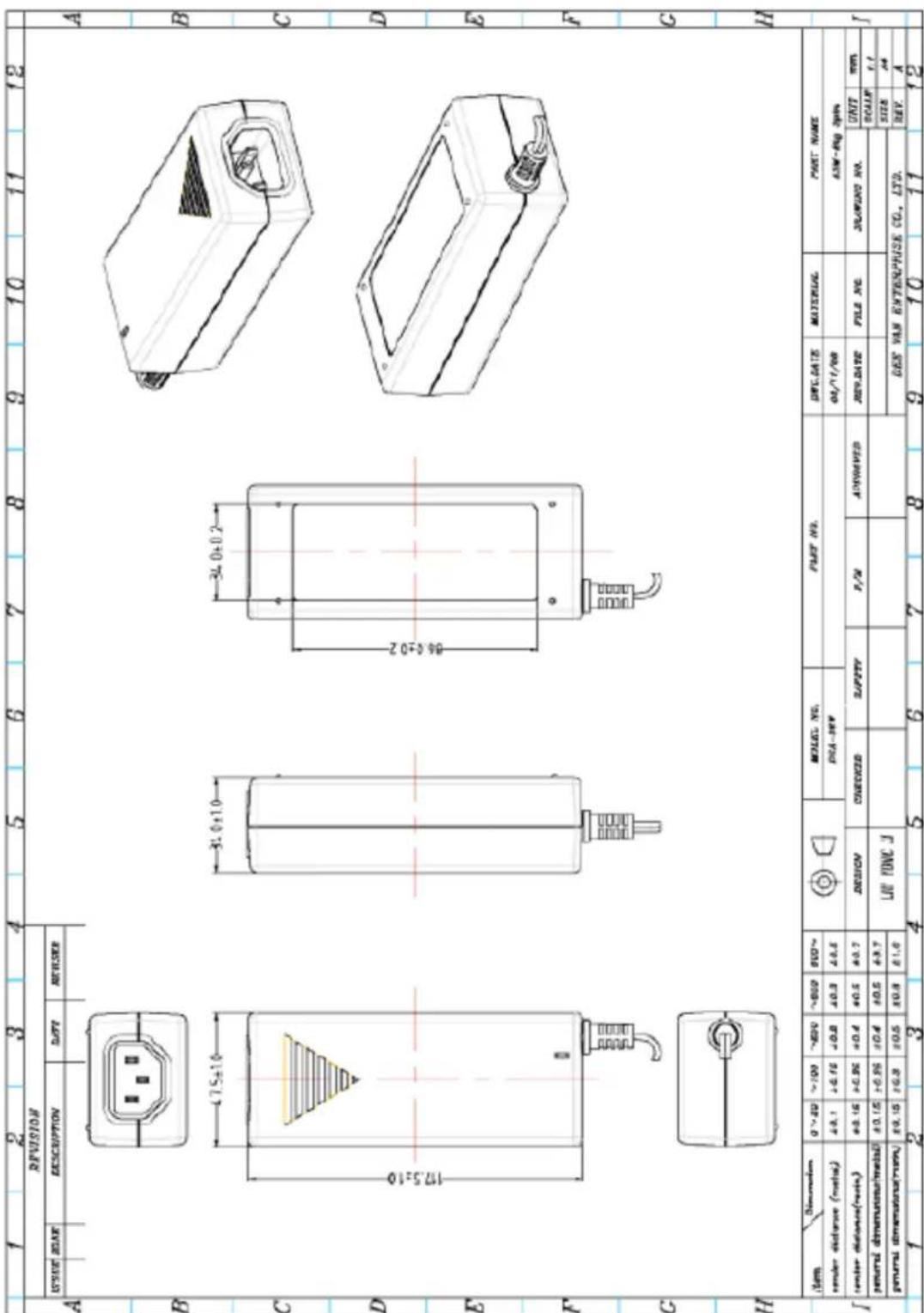

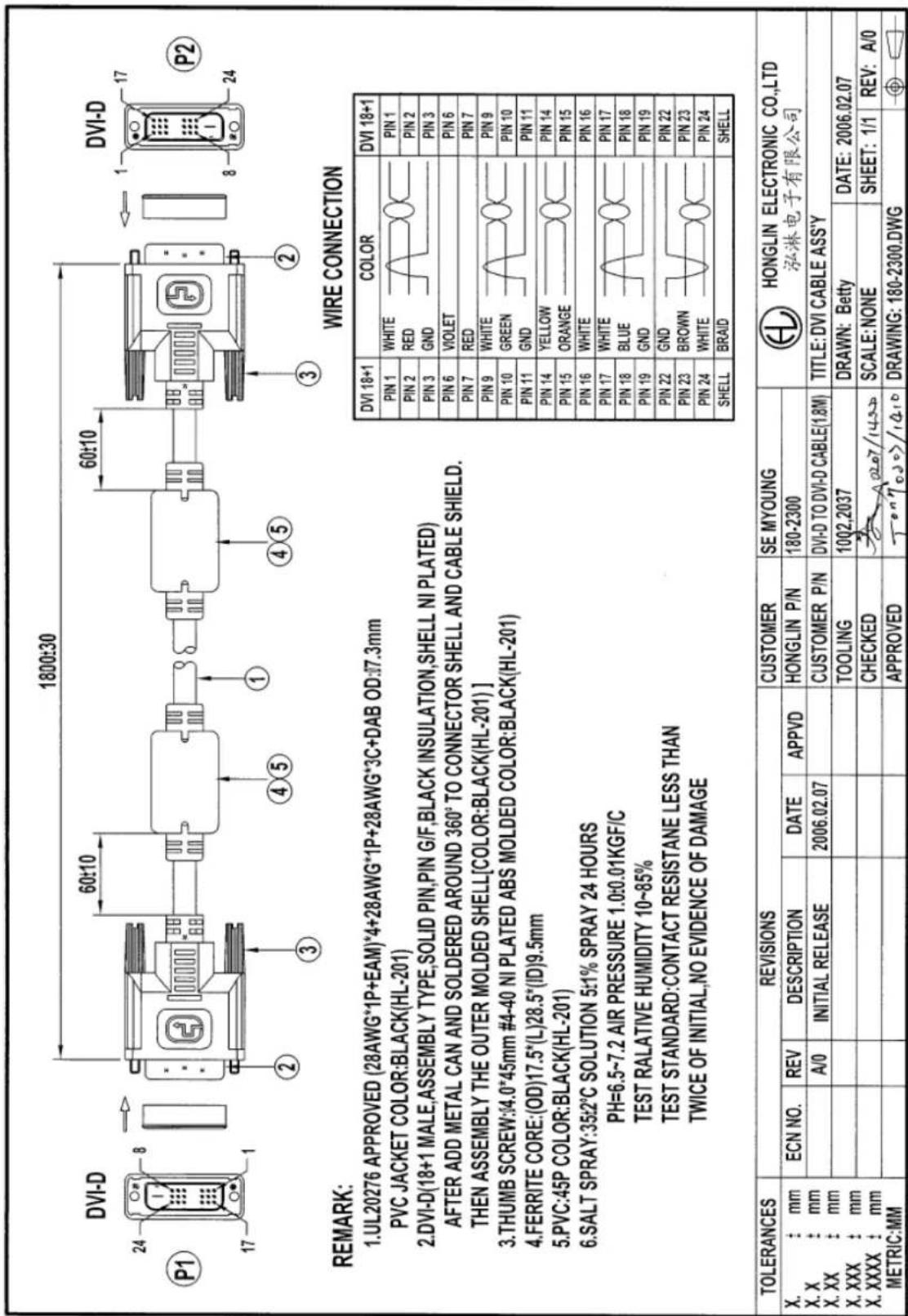

VIII. Accessory

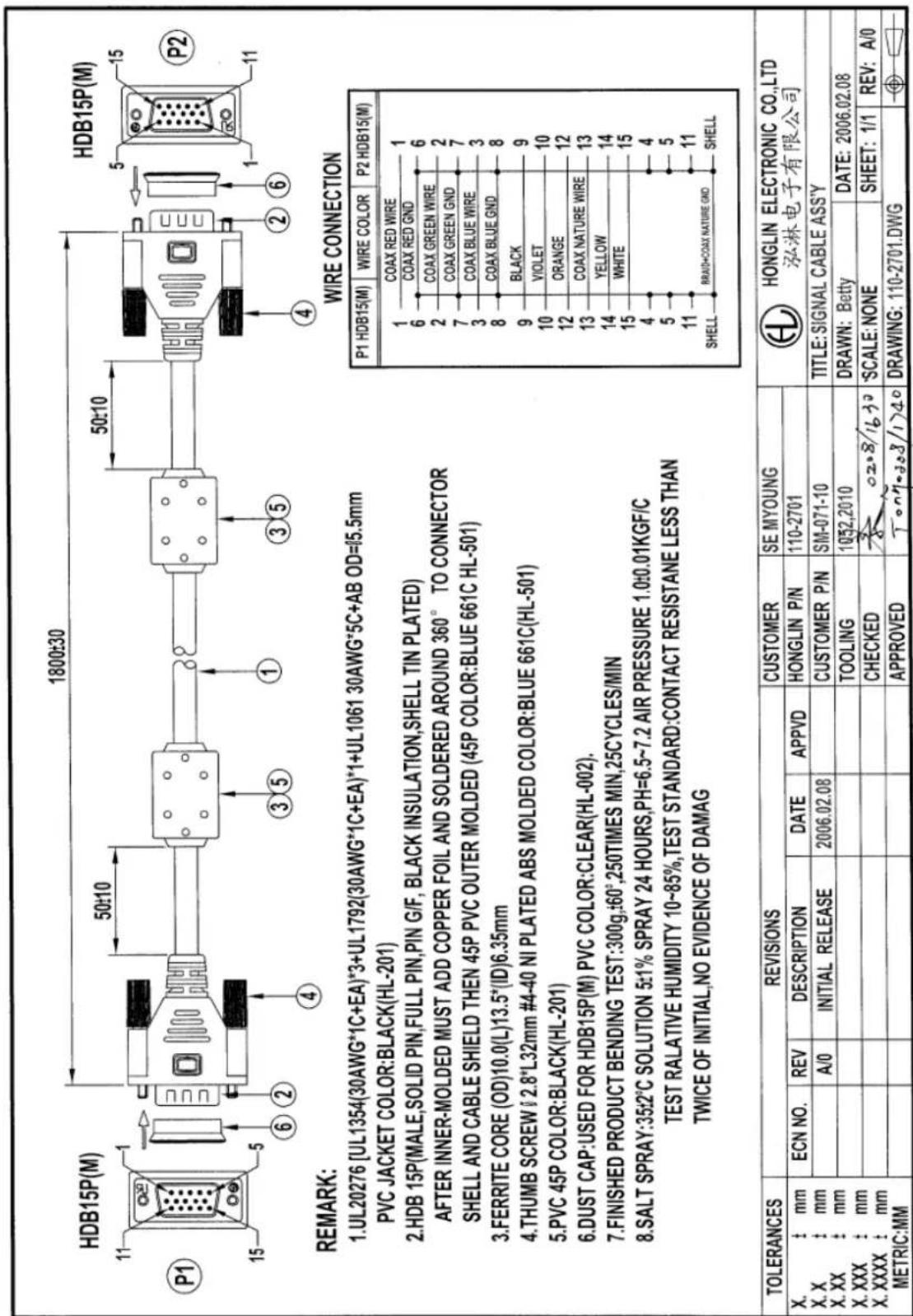

1) VGA Cable

HDB15P(M) 1800:30 HDB15P(M) 11 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ REMARK: 1.UL20276 [UL1354(30AWG*1C+EA)*3+UL1792(30AWG*1C+EA)*1+UL1061 30AWG*5C+AB OD=15.5mm PVC JACKET COLOR:BLACK(HL-201) 2.HDB 15P(MALE,SOLID PIN,FULL PIN,PIN G/F, BLACK INSULATION,SHELL TIN PLATED) AFTER INNER-MOLDED MUST ADD COPPER FOIL AND SOLDERED AROUND 360° TO CONNECTOR SHELL AND CABLE SHIELD THEN 45P PVC OUTER MOLDED (45P COLOR:BLUE 661C HL-501) 3.FERRITE CORE (OD)10.0(L)13.5*(ID)6.35mm 4.THUMB SCREW @ 2.8*L32mm #4-40 NI PLATED ABS MOLDED COLOR:BLUE 661C(HL-501) 5.PVC 45P COLOR:BLACK(HL-201) 6.DUST CAP:USED FOR HDB15P(M) PVC COLOR:CLEAR(HL-002). 7.FINISHED PRODUCT BENDING TEST:300g,t60°,250TIMES MIN,25CYCLES/MIN 8.SALT SPRAY:35:2°C SOLUTION 5:1% SPRAY 24 HOURS,PH=6.5~7.2 AIR PRESSURE 1.0:0.01KGF/C TEST RALATIVE HUMIDITY 10~85%,TEST STANDARD:CONTACT RESISTANE LESS THAN TWICE OF INITIAL,NO EVIDENCE OF DAMAG WIRE CONNECTION P1 HDB15(M) WIRE COLOR P2 HDB15(M) COAX RED WIRE 1 COAX RED GND 6 COAX GREEN WIRE 2 COAX GREEN GND 7 COAX BLUE WIRE 3 COAX BLUE GND 8 BLACK 9 VIOLET 10 ORANGE 12 COAX NATURE WIRE 13 YELLOW 14 WHITE 15 4 4 5 5 SHELL BRAID+COAX NATURE GND SHELL TOLERANCES REVISIONS CUSTOMER SE MYOUNG HONGLIN ELECTRONIC CO.,LTD X. ± mm ECN NO. REV DESCRIPTION DATE APPVD HONGLIN P/N 110-2701 TITLE: SIGNAL CABLE ASS'Y X.X ± mm A/0 INITIAL RELEASE 2006.02.08 CUSTOMER P/N SM-071-10 DRAWN: Betty DATE: 2006.02.08 X.XX ± mm TOOLING 1052,2010 SCALE:NONE SHEET: 1/1 REV: A/0 X.XXX ± mm CHECKED 02-8/16 30 SCALE:NONE SHEET: 1/1 REV: A/0 X.XXXX ± mm APPROVED 107-308/1740 DRAWING: 110-2701.DWG METRIC:MM

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 15 of 22

2) DVI Cable

1800:30 DVI-D 24 8 P1 17 ② ③ ④ ⑤ ① ④ ⑤ ③ DVI-D 17 P2 8 ② WIRE CONNECTION REMARK: 1.UL20276 APPROVED (28AWG*1P+EAM)*4+28AWG*1P+28AWG*3C+DAB OD:7.3mm PVC JACKET COLOR:BLACK(HL-201) 2.DVI-D(18+1 MALE,ASSEMBLY TYPE,SOLID PIN,PIN G/F,BLACK INSULATION,SHELL NI PLATED) AFTER ADD METAL CAN AND SOLDERED AROUND 360° TO CONNECTOR SHELL AND CABLE SHIELD. THEN ASSEMBLY THE OUTER MOLDED SHELL[COLOR:BLACK(HL-201)] 3.THUMB SCREW:4.0*45mm #4-40 NI PLATED ABS MOLDED COLOR:BLACK(HL-201) 4.FERRITE CORE:(OD)17.5*(L)28.5*(ID)9.5mm 5.PVC:45P COLOR:BLACK(HL-201) 6.SALT SPRAY:35±2°C SOLUTION 5±1% SPRAY 24 HOURS PH=6.5~7.2 AIR PRESSURE 1.0:0.01KGF/C TEST RALATIVE HUMIDITY 10~85% TEST STANDARD:CONTACT RESISTANE LESS THAN TWICE OF INITIAL,NO EVIDENCE OF DAMAGE TOLERANCES ECN NO. REV DESCRIPTION DATE APPVD CUSTOMER SE MYOUNG HONGLIN P/N 180-2300 TITLE:DVI CABLE ASS'Y HONGLIN ELECTRONIC CO.,LTD 泓淋电子有限公司 X. ± mm X.X ± mm X.XX ± mm X.XXX ± mm X.XXXX ± mm METRIC:MM A/0 INITIAL RELEASE 2006.02.07 CUSTOMER P/N TOOLING 1002,2037 DRAWN: Betty DATE: 2006.02.07 CHECKED SCALE:NONE SHEET: 1/1 REV: A/0 APPROVED TON"7020"/1410 DRAWING: 180-2300.DWG ⊕

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 16 of 22

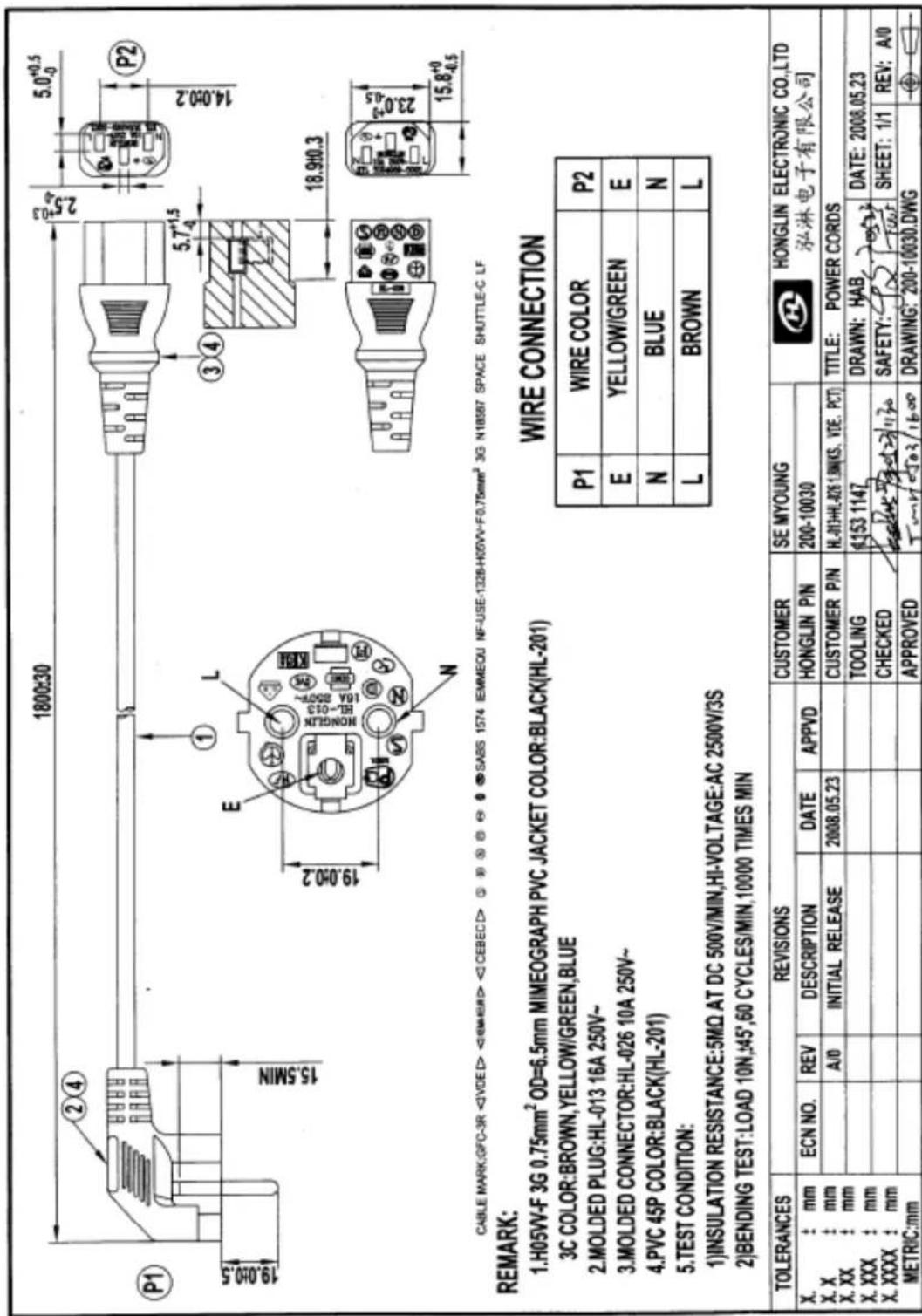

3) AC Cord

1800±30 P1 24 19.00.5 15.5MIN CABLE MARK:GFC-3R ② ③ ④ 5.7+1.5 14.00.2 18.9±0.3 23.0+0.5 15.8+0.5 REMARK: 1.H05VV-F 3G 0.75mm² OD=6.5mm MIMEOGRAPH PVC JACKET COLOR:BLACK(HL-201) 3C COLOR:BROWN,YELLOW/GREEN,BLUE 2.MOLDED PLUG:HL-013 16A 250V~ 3.MOLDED CONNECTOR:HL-026 10A 250V~ 4.PVC 45P COLOR:BLACK(HL-201) 5.TEST CONDITION: 1)INSULATION RESISTANCE:5MΩ AT DC 500V/MIN,HI-VOLTAGE:AC 2500V/3S 2)BENDING TEST:LOAD 10N,±45°,60 CYCLES/MIN,10000 TIMES MIN TOLERANCES X. ± mm X.X ± mm X.XX ± mm X.XXX ± mm X.XXXX ± mm METRIC:mm REVISIONS ECN NO. REV DESCRIPTION DATE APPVD CUSTOMER SE MYOUNG HONGLIN P/N 200-10030 TITLE: POWER CORDS E YELLOW/GREEN E N BLUE N L BROWN L WIRE CONNECTION P1 WIRE COLOR P2 E YELLOW/GREEN E N BLUE N L BROWN L TOLERANCES REVISIONS HONGLIN ELECTRONIC CO.,LTD X.X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X ECN NO. REV DESCRIPTION DATE APPVD CUSTOMER P/N HL-013-HL-426 1.8MKS, VDE, PCT TOOLING 1153 1147 CHECKED SAFETY: 9x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x ECN NO. REV DESCRIPTION DATE APPVD CUSTOMER P/N HL-013-HL-426 1.8MKS, VDE, PCT TOOLING 1153 1147 CHECKED SAFETY: 9x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7x7s APPROVED TUNN 0503/1600 DRAWING: 200-10030.DWG 深圳电子有限公司 DATE: 2008.05.23 SHEET: 1/1 REV: A/0

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 17 of 22

4) USB Cable

A B C D E F G H I WIRE CONNECTION P1 1 RED 1 2 WHT 2 3 GRN 3 4 BLK 4 SHELL BRAID SHELL UL2725[28AWG*1P+28AWG*2C+AL+BRAID16*4/0.10TS 65%]*1C OD: 3.8 MATT PVC JACKET COLOR: IVORY CORE COLOR: WHT&GRN(1PAIR PE); RED.BLK(SR/PVC) B USB 4P A/M OF WHITE PLASTIC PIN G/F GOLD PLATED SHELL NI PLATED 1SET C USB 4P B/M OF WHITE PLASTIC PIN G/F GOLD PLATED SHELL NI PLATED 1SET D H/S TUBE:0.8 PAR BLACK L=5MM 2PCS E P.V.C: 45P IVORY 3G H MINI TIE: BLACK L=80 1PCS I ZIP PAG: 180*60*0.03mm GREEN MARK AND "MADE IN CHINA" SHENZHEN JINHUI DIAN YE PRODUCTS CO.,LTD CUSTOMER: SEMYOUNG PART NO.: DESCRIPTION:USB (A/M) TO USB (B/M) CABLE 24-OCT-08 A NEW DRAWING DATE VER. DESCRIPTION DRAWING NO.: SWE215-1 UNIT: m/m SHEET: 1/1 APPROVED: CHECKED: XIAO REI GUI DRAWING BY: LUO

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 18 of 22

5) Adaptor

FROM NO.1 COMPUTER NO.: REV ZONE DESCRIPTION DATE BY A 18/19/21 ZPH LEVEL3 EFFICIENCY LEVEL EN 60950-1 BS EN 60950-1 with a minimum value of 4mm h = 0.3a with a minimum value of 1mm NOTE: 1. 颜色:銀底黑字 2. 材質:清銀能加亮面(UL, CSA APPROVAL) 環保材料 3. 處理:永久背線 4. 係由UL, CSA合格厂商承制. 5. 锥存溫存:-20C及+70C之範圍. 6. 將業務確認安税等各項再行制作生產. 7. 回形及CE logo 高度最小需達到5mm 8. LABEL厚度為0.25+/-0.02mm 9. 禁止使用DVE所禁用之危害物質 DEE VAN ENTERPRISE CO., LTD. DEPART MENT UNIT CASE PART NO. SALE 像注 R&D SPS mm APPD, BY CHD, BY DWCLBY DRAWING NO. SAFETY 像注 MODEL NO.: DSA-42D-12 PAGE 1OFI 33.70 mm 85.70 mm 31.70 mm (X)此代碼表生產工厂:X=F(表帝聞深圳生產) X=G(表帝聞龍川厂生產)

KEYTSON TITLE NAME DESCRIPTION DATE REFERENCE BSR110604-03H CORE:20*010.5*05.5 15.0 29.0 DETAILA 95±0.5 30±10 60±20 70±10 60±20 1500±50 白色接PLUG口央王 18AWG/IC+SI-11B5 DETAILA NOTE: 1. PLUG MATERIA:黑色PVC料30-40P; PLUG端把螺丝岛DE,自叉式带防滑凹槽; 2. SR MATHAL:黑色PVC料60-70P 拉力20LBS/min; 3. 插性接止接限LABEL指示; 4. 材货须符合"BOXES"要求; 5. 禁止使用DTE所常用之危害物货. S### Dimension # 20 -100 -200 -300 # 20- S### Distance (mm) 29.9 29.75 30.4 30.2 30.6 S### Distance (mm) 24.75 24.80 25.4 25.6 25.7 S### Distance (mm) 23.45 23.85 25.4 25.5 25.7 S### Distance (mm) 24.75 24.80 25.4 25.6 25.7 S### Distance (mm) 24.75 24.80 25.4 25.6 25.7 S### Distance (mm) NOTE CHECKED P/N APPENDS REF.SATE FILE NO. DIMMNT NO. SPEC# SIZE M SIZE M REV A 1 2 3 4 5 6 7 8 9 10 11 12

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 19 of 22

1 2 3 4 5 6 7 8 9 10 11 12 DIVISION ISSUE: ROAR DESCRIPTION DATE REVISION A B C D E F G H 47.5±10 17.5±10 31.0±10 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 LW FONC J MODEL NO. PART NO. SPECID. MATERIAL. PART NAME. DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: DATE: NO. P/N APPROVED. REV.DATE. FILE NO. DRAWING NO. UNIT. SCALE. SIZE. DES VAN ENTERPRISE CO., LTD. REV. I/ II/ III/ IV/ V/ VI/ VII/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/ VIV/ VIII/VEENERCE 2024-2025-2026-2027-2028-2029-2030-2031-2032-2033-2034-2035-2036-2037-2038-2039-2040-2041-2042-2043-2044-2045-2046-2047-2048-2049-2050-2051-2052-2053-2054-2055-2056-2057-2058-2059-2060-2061-2062-2063-2064-2065-2066-2067-2068-2069-2070-2071-2072-2073-2074-2075-2076-2077-2078-2079-2080-2081-2082-2083-2084-2085-2086-2087-2088-2089-2090-2091-2092-2093-2094-2095-2096-2097-2098-2099-2100-2101-2102-2103-2104-2105-2106-2107-2108-2109-2110-2111-2112-2113-2114-2115-2116-2117-2118-2119-2120-2121-2122-2123-2124-2125-2126-2127-2128-2129-2130-2131-2132-2133-2134-2135-2136-2137-2138-2139-2140-2141-2142-2143-2144-2145-2146-2147-2148-2149-2150- 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.5±10 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9 47.6±9

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 20 of 22

IX. Mechanical Characteristics

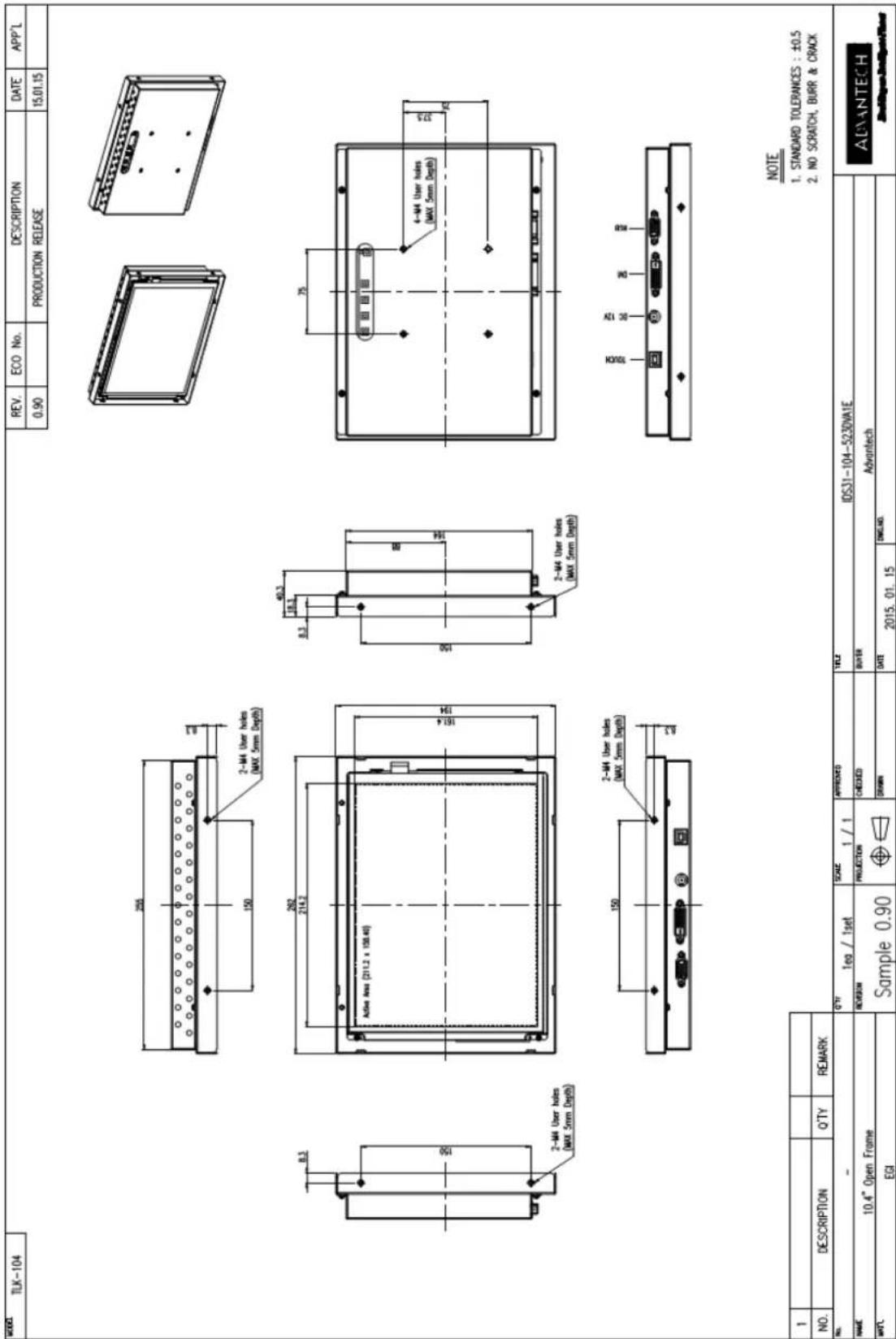

REV. ECO No. DESCRIPTION DATE APP'L 0.90 PRODUCTION RELEASE 15.01.15 TLK-104 255 2-M4 User holes (MAX 5mm Depth) 150 262 214.2 Active Area (211.2 x 158.40) 194 8.3 18.3 80 100 75 4-M4 User holes (MAX 5mm Depth) 2-M4 User holes (MAX 5mm Depth) 2-M4 User holes (MAX 5mm Depth) 150 2-M4 User holes (MAX 5mm Depth) 8.3 70CH 10V 20W 40W NOTE 1. STANDARD TOLERANCES : ±0.5 2. NO SCRATCH, BURR & CRACK NO. DESCRIPTION Q'TY REMARK No. - Q'TY 1ea / 1set SCALE 1 / 1 APPROVED TLE IDS31-104-523DVAIE MAXE 10.4" Open Frame REVISION PROJECTION CHECKED BUTTER Advantech Sample 0.90 DRAWN DATE 2015.01.15 ENGL.NO. unPL EGI

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 21 of 22

X. Packing

1) Packing Method

PE FOAM GIFT BOX Accessory CARTON BOX 1870mm(shipping) 1520mm(Air Transport) 120mm(Pallet Height) 0

1 Carton / 5 Set
1 Pallet / 20 Carton / 100 Set (Shipping)

Model :IDS31-104-523DVA1E

Rev. No : Ver. 0.90

Date :28/APR/2015

Page 22 of 22
