Product Type	Industrial LCD Monitor
Brand	Advantech
Model	IDS31-190
Display Diagonal	19 inches
Resolution	1280 x 1024 (SXGA)
Aspect Ratio	5:4
Brightness	250 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms
Viewing Angle (H/V)	170° / 160°
Input Ports	VGA, DVI, DisplayPort
Power Supply	12V DC (external adapter)
Power Consumption	≤ 25W (typical)
VESA Mounting	100 x 100 mm
Operating Temperature	0°C to 50°C
Weight	Approx. 5.5 kg
Dimensions (W x H x D)	442 x 375 x 58 mm
Certifications	CE, FCC, RoHS
OSD Controls	Button panel on bezel
Cleaning	Use soft dry cloth, avoid solvents

Frequently Asked Questions - IDS31-190 Advantech

Where can I download the user manual for the Advantech IDS31-190?

You can download the manual in PDF format from notice-facile.com or the Advantech official website. The manual includes installation, operation, and maintenance instructions.

What is the native resolution of the IDS31-190 monitor?

The native resolution is 1280 x 1024 (SXGA) with a 5:4 aspect ratio.

What video inputs are supported?

The monitor supports VGA, DVI, and DisplayPort inputs.

Does the IDS31-190 support VESA mounting?

Yes, it has a 100 x 100mm VESA mount pattern for easy installation on arms or brackets.

How do I clean the monitor screen?

Use a soft, dry cloth to gently wipe the screen. Avoid harsh chemicals or abrasive materials. For stubborn stains, slightly dampen the cloth with water.

What is the power requirement for this monitor?

The monitor operates on 12V DC via an external power adapter. Typical power consumption is ≤25W.

Can the IDS31-190 be used in a touchscreen application?

The standard IDS31-190 is not touchscreen. However, Advantech may offer touchscreen variants; check your model specifications.

How to adjust the screen settings (brightness, contrast, etc.)?

Use the OSD (On-Screen Display) buttons located on the front bezel to navigate and adjust settings like brightness, contrast, and input source.

What is the weight and size of the monitor?

The monitor weighs approximately 5.5 kg. Dimensions are 442 x 375 x 58 mm (width x height x depth).

Is there a built-in speaker in the IDS31-190?

No, this model does not include built-in speakers. It is designed for display-only use with external audio if needed.

USER MANUAL IDS31-190 Advantech

TITLE	Industrial Monitor / Monitor
MODEL NAME	IDS31-190
SERIAL NAME	IDS31-190-P35DVA1E
Signature Date Prepared by Date
Please return 1 copy for our confirmation with your signature and comments

TABLE OF CONTENTS

NO	ITEM	PAGE
I	Overview	3
II	General Description	4
III	Electrical Specifications	5
1	Electrical Characteristics	5
2	Interface Connections	6-8
IV	OSD Function	9
V	Environment Specifications	10
VI	Reliability	10
VII	Inspection Standard	11-13

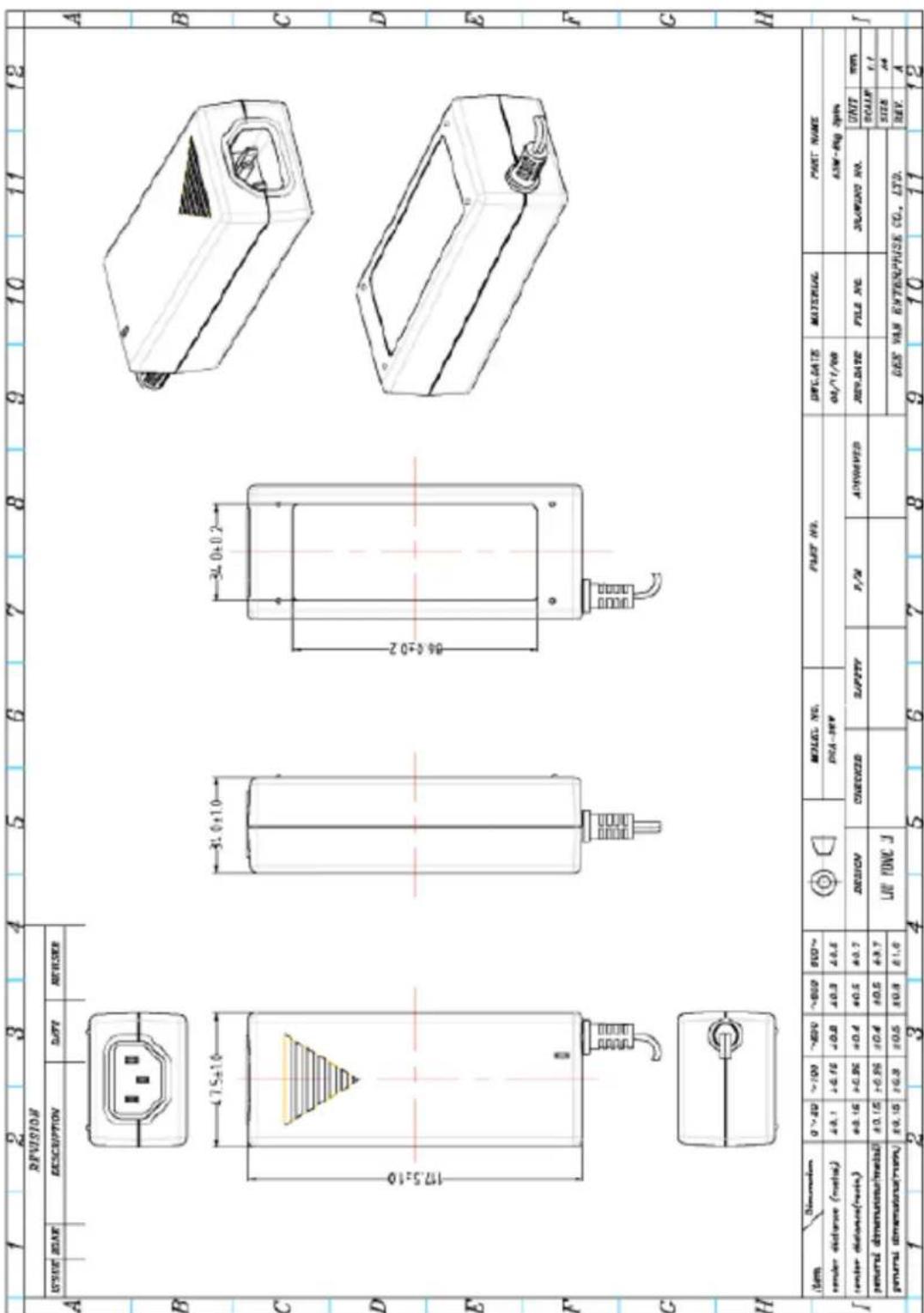

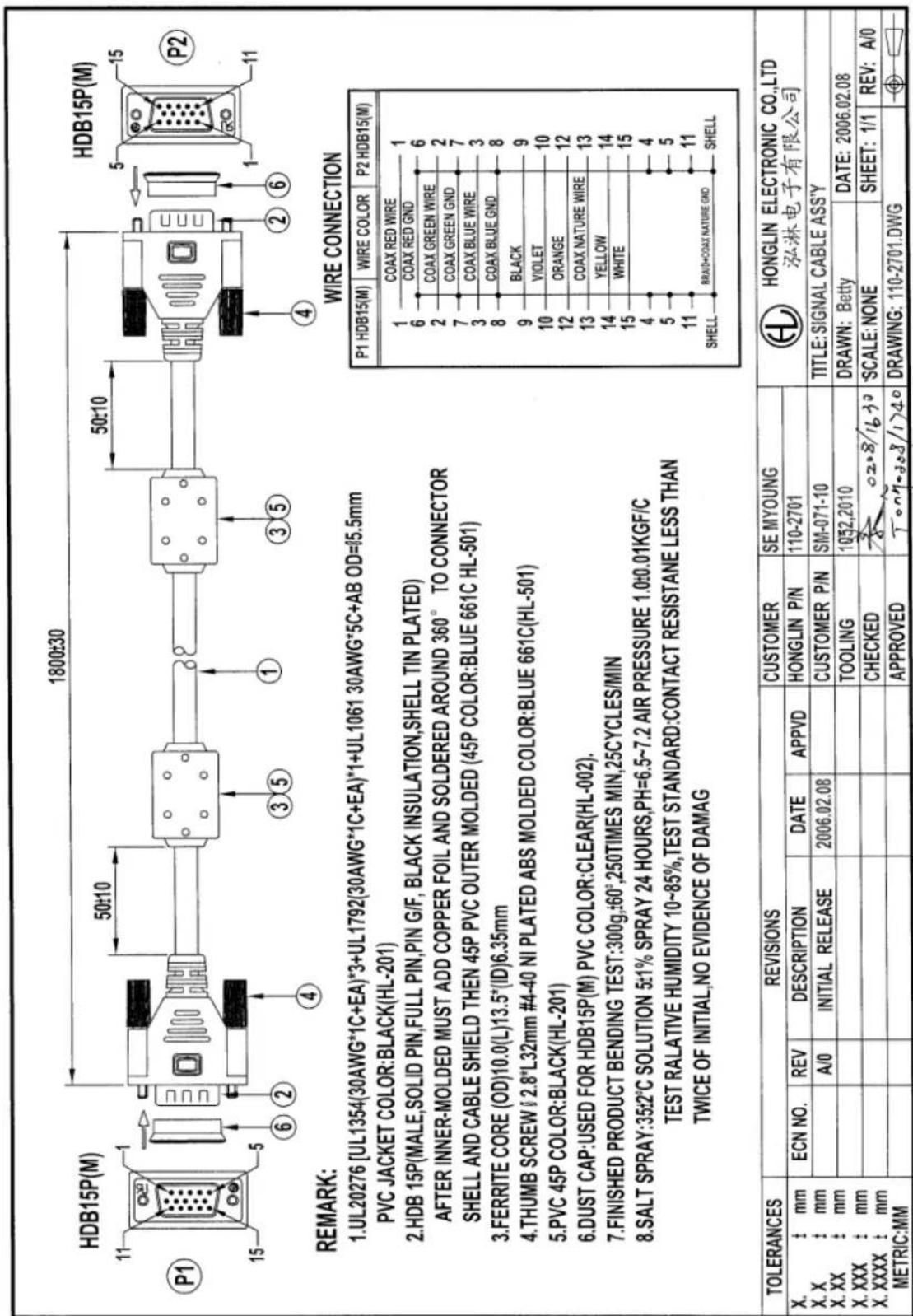

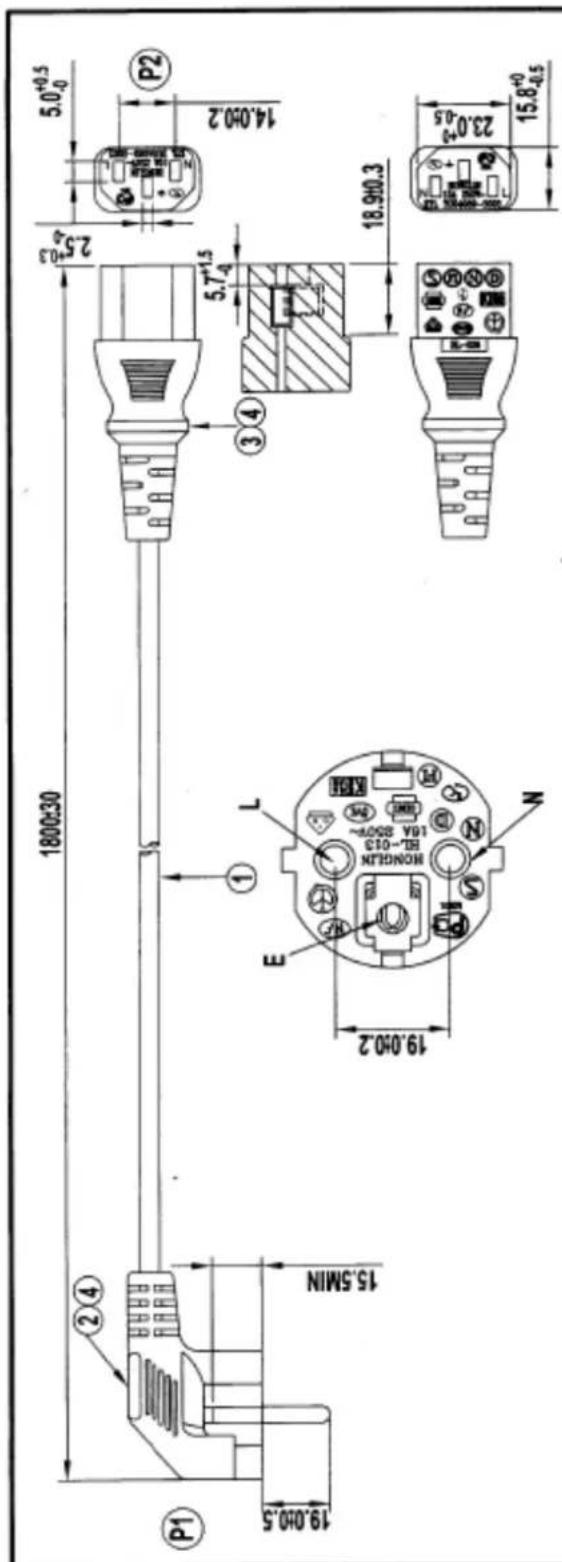

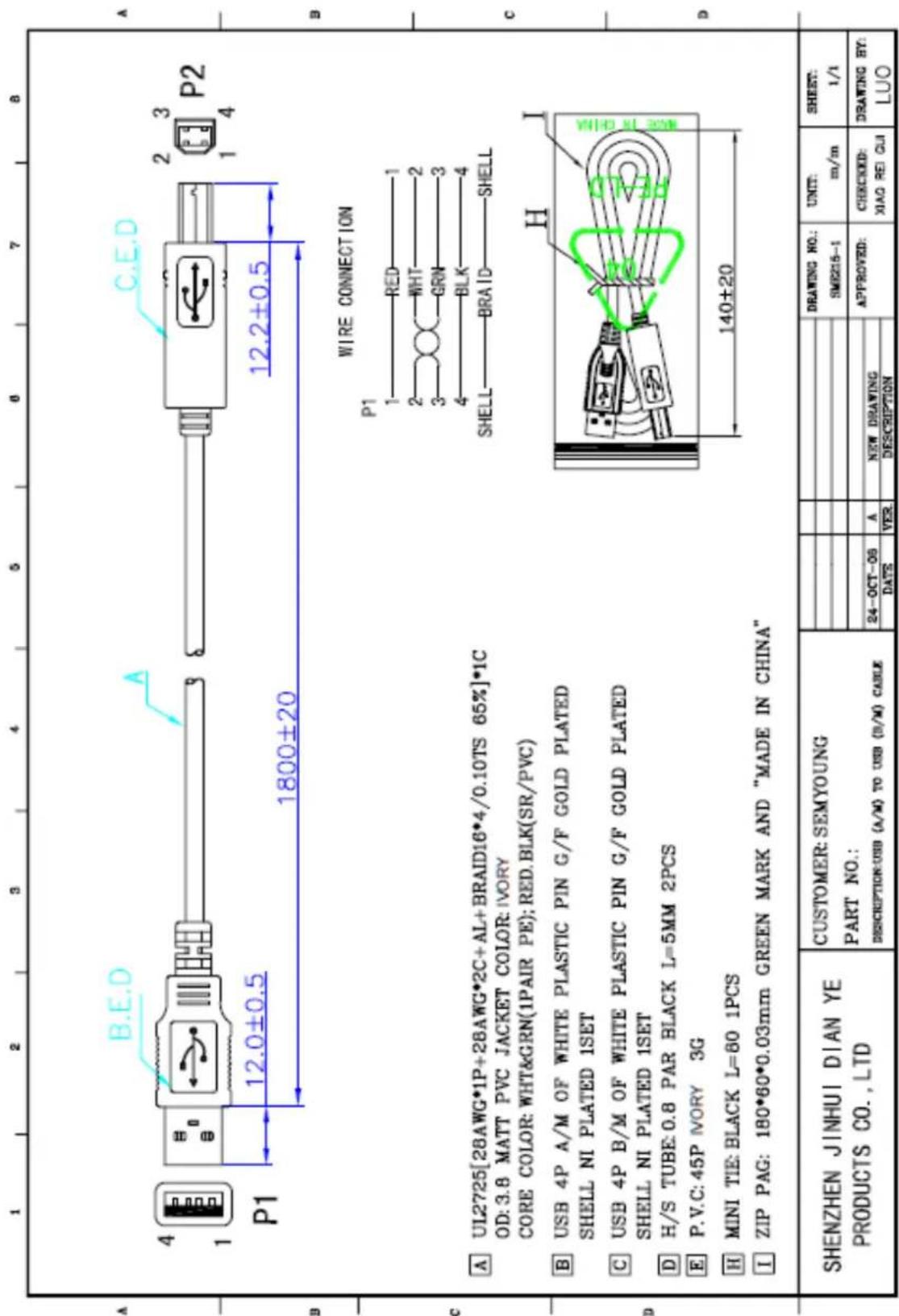

VIII	Accessory	14-19

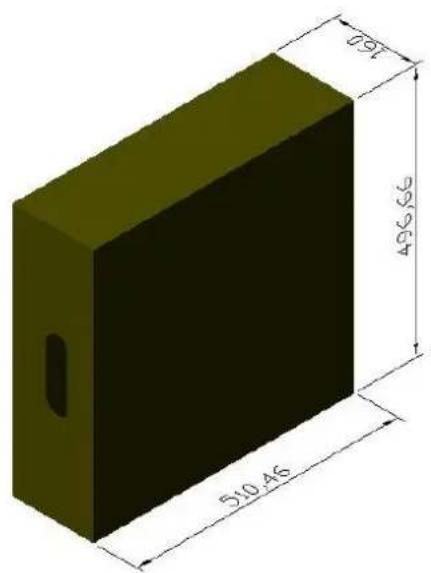

IX	Packing	20

BSMI 甲類

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 2 of 21

I. OVERVIEW

The IDS31-190-P35DVA1E is designed 19 inch monitor

• Support the monitor with 1280 × 1024 resolution.
• Brightness - 350 cd/m² (without Touch)
• Contrast Ratio : 1000:1

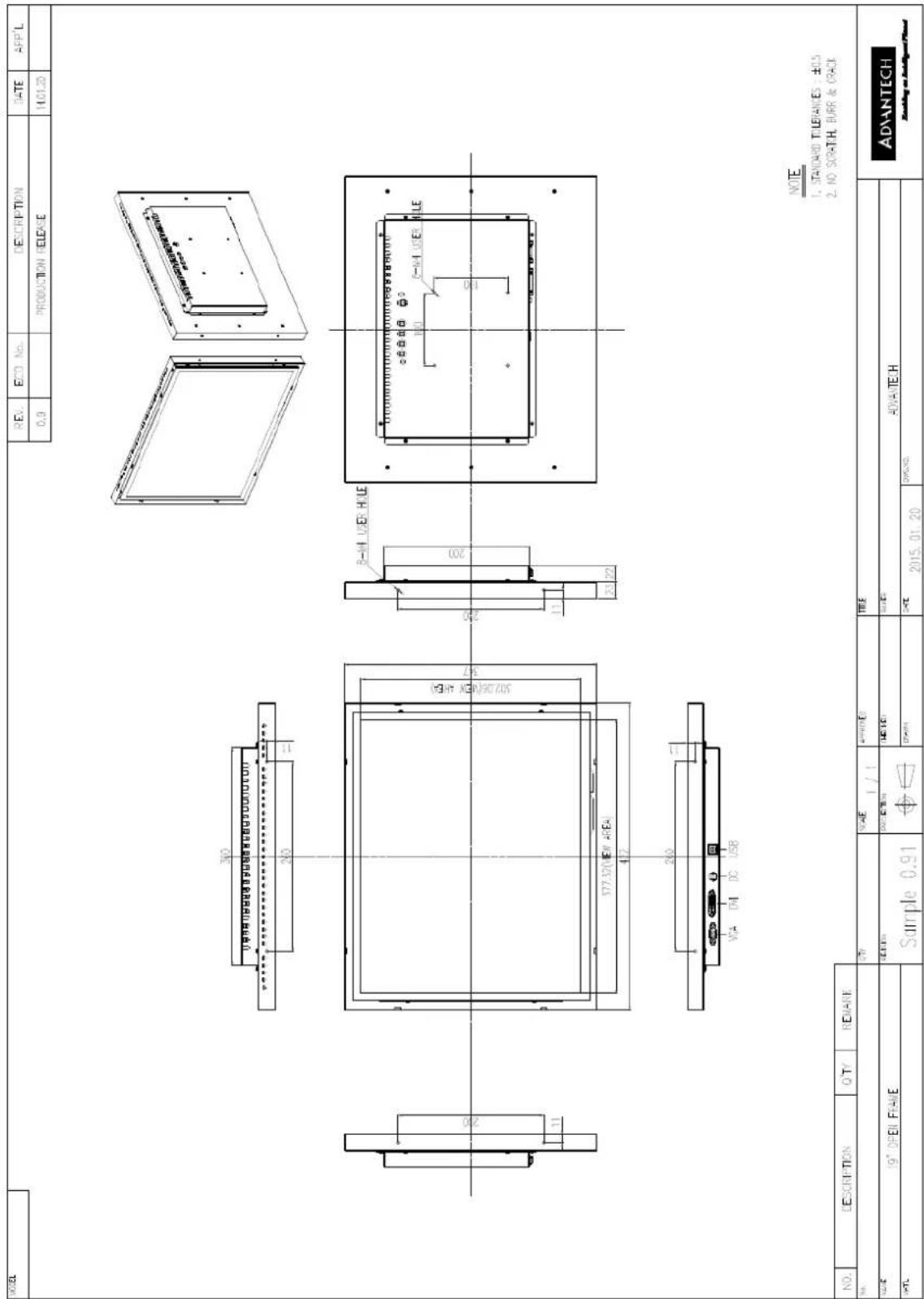

NOTE 1. Mount Assembly SOP 2. Use the M4 screw to attack

Model: IDS31-190-P35DVA1E

Rev. No: Ver. 0.90

Date:21/APR/2015

Page 3 of 21

II. General Description

Display Type		TFT LCD Panel (19 inch)
Pixel Pitch		0.294 (per one triad) × 0.294
Pixel Format		1280 Hor. By 1024 Ver. Pixels RGB vertical stripe
Display Colors		16.7M colors
Brightness		350 cd/m2 (Typical)
Contrast Ratio		1000 : 1 (Typical)
Response Time		5 ms (TR + TF)
Viewing Angle	Horizontal	170 °
	Vertical	160 °
Life Time		50,000 Hr (Typical)
Input Signal		Analog RGB, DVI-D
OSD Controls		Soft Power(On/Off), Menu, Select, Up, Down, Auto
Power Saving(LED Display)		VESA DPMS, On (Green), Stand-By (Green blinking), Suspend (Green blinking), Off
Dimension		422(H) x 347(V) x 45(D)
Weight		4.6kg
Operating Temp.		0°C ~+50°C
Storage Temp.		-20°C ~ +60°C

III. Electrical Specifications

1-1. Electrical Characteristics

Power	DC Input Voltage		12VDC/ 3.5A ± 10%
	Standby power		1.0 W
	Power consumption		23 W
Analog	Video Signal	Type	Analog RGB
		Gain Level	0.714 ± 5%
		Input impedance	75ohm ± 5%(terminated)
		Pixel frequency	Max. 165MHz
		Resolution	Max. 1280×1024 / 60Hz
	Input Sync Signal	Type	H/V, Separate only
		Gain Level	TTL level(High ≥ 2.0V, Low ≤ 0.8V)
		Polarity	Positive or Negative
		Maximum Duty	Max. 25%
		Frequency Range	Horizontal	28.5 ~ 80KHz,
			Vertical	48 ~ 75Hz
DVI	Differential output		150 ~ 1200 mVp-p
	Input clock freq		20 ~ 135 MHz

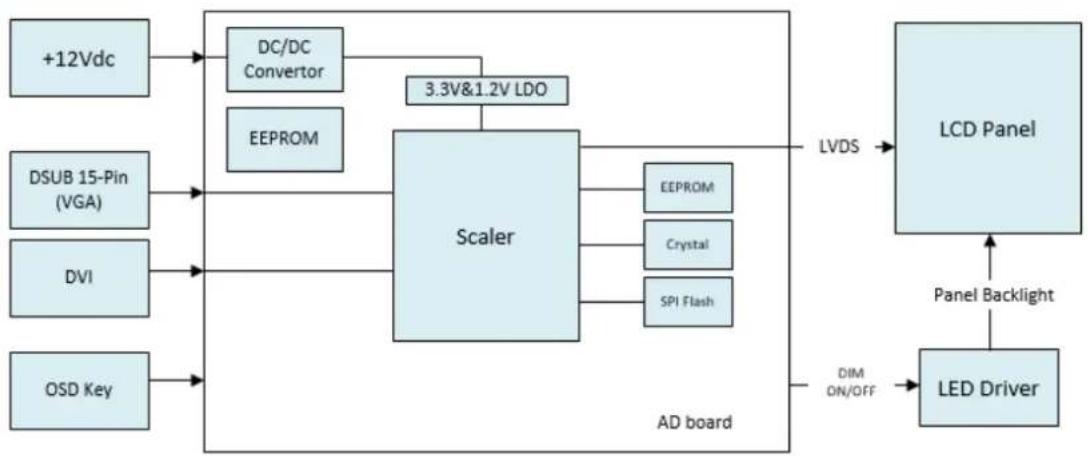

1-2 Board Block Diagram

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 5 of 21

2. I/O Port (Interface Connections)

2-1. Analog RGB Pin Assignment

Connector	P/No.	Symbol	Description
VGA Input connector For 15P D-sub	1	Red	Red, analog input
	2	Green	Green, analog input
	3	Blue	Blue, analog input
	4	N.C	Not connected
	5	DGND	Digital ground
	6	Red GND	Ground for Red return
	7	Green GND	Ground for Green return
	8	Blue GND	Ground for Blue return
	9	N.C	Not connected
	10	DGND	Detect connector
	11	N.C	Not connected
	12	DDC Data	DDC Data
	13	H-sync	Horizontal sync, input
	14	V-sync	Vertical sync, input
	15	DDC Clk	DDC Clk

2-2. DVI Jack Pin Assignment

Connector	P/No.	Symbol	Description
DVI	1	RX2N	TMDS Data 2-
	2	RX2P	TMDS Data 2+
	3	GND	TMDS Data 2/4 Shield
	4	NC	TMDS Data 4-
	5	NC	TMDS Data 4+
	6	SCL-DVI-1	DDC Clock
	7	SDA-DVI-1	DDC Data
	8	VSYNC	Analog Vertical Sync
	9	RX1N	TMDS Data 1-
	10	RX1P	TMDS Data 1+
	11	GND	TMDS Data 1/3 Shield
	12	NC	TMDS Data 3-
	13	NC	TMDS Data 3+
	14	+5V Power	DVI+5V
	15	GND	Ground
	16	HPD	Hot Plug Detect
	17	RX0N	TMDS Data 0-
	18	RX0P	TMDS Data 0+

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 6 of 21

Enabling an Intelligent Planet

	19	GND	TMDS Data 0/5 Shield
	20	NC	TMDS Data 5-
	21	NC	TMDS Data 5+
	22	GND	TMDS Clock Shield
	23	RXCP	TMDS Clock +
	24	RXCN	TMDS Clock -
	C1	NC	Analog Red
	C2	NC	Analog Green
	C3	NC	Analog Blue
	C4	HSYNC	Analog Horizontal Sync

2-3. Input Signal format

Mode\Character	Pixel Freq.	Horizontal Timing				Vertical Timing
		Sync Polar	Freq.	Total	Active	Sync Polar	Freq.	Total	Active
	MHz		KHz	Pixel	Pixel		Hz	Line	Line
640x480 @60Hz	25.175	-	31.47	800	640	-	59.94	525	480
800x600 @60Hz	40.000	-	37.88	1056	800	-	60.32	628	600
1024x768 @60Hz	65.000	-	48.36	1344	1024	-	60.00	806	768
1280x1024 @60Hz	108.000		63.98	1688	1280		60.02	1066	1024

Sync : H/V Separated LVDS

2-4. Touch Glass / Touch Controller

Projected Capacitive Touch
Input Method	Finger
Light Transmittance	More than 82% (Typical)
Operating Temperature	-25°C ~ 70°C Humidity 90% RH at max 35°C
Storage Temperature	-30°C ~ 80°C Humidity 90% RH at max 35°C

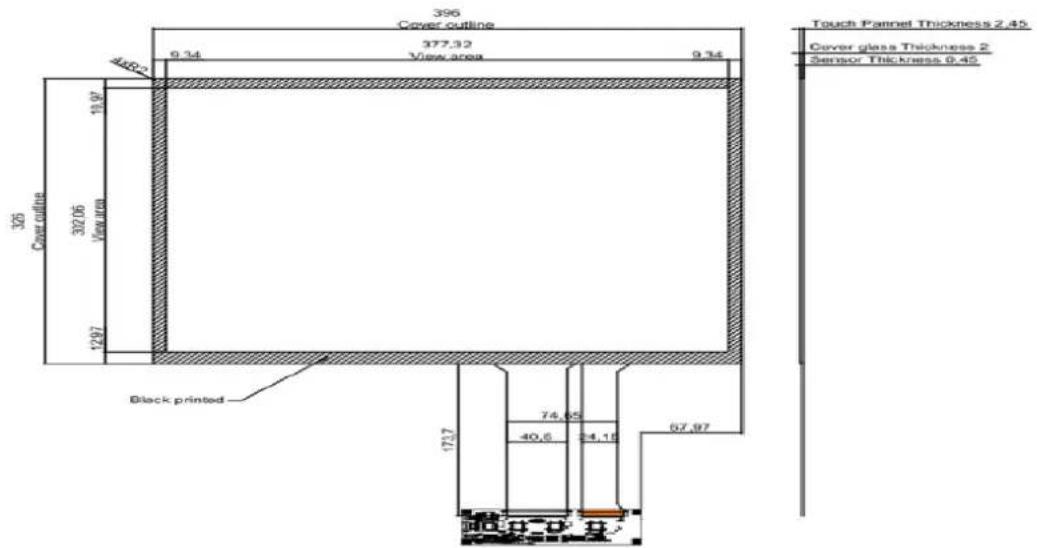

396 Cover outline 377.32 View area 9.34 9.34 10.97 302.06 View area 12.97 326 Cover cutline Black printed Touch Pannel Thickness 2.45 Cover glass Thickness 2 Sensor Thickness 0.45 74.65 40.6 24.18 67.97

FRONT SIDE VIEW

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 7 of 21

Note

1. Total Thickness : 2.45 ± 10%
2. Cover Glass Thickness : 2.0T ( Tempered glass )
3. Transparency : 82% or More
4. Tail : FPC style ( Copper trace )

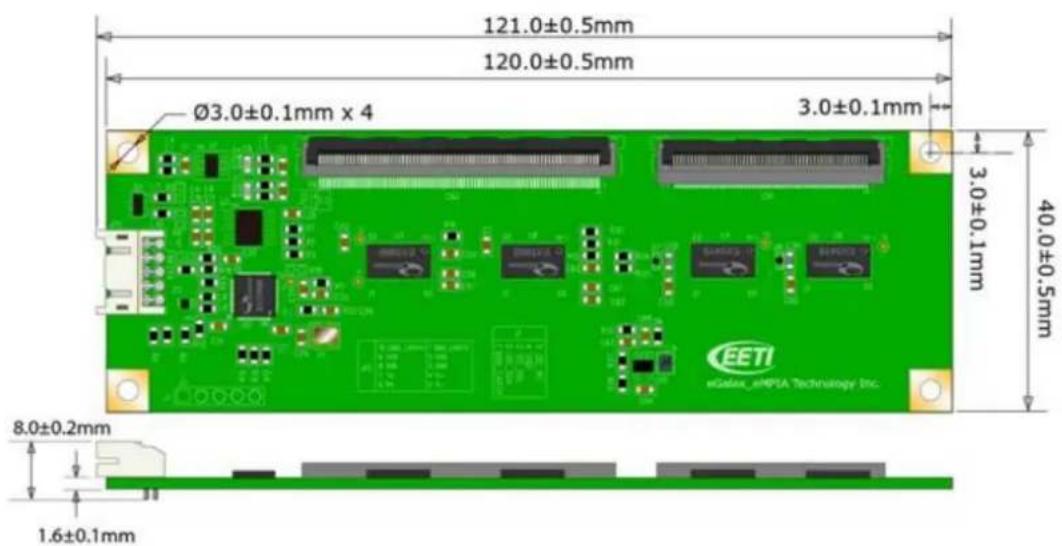

Controller Board
Circuit Board Dimension	120mm x 40mm
Input Voltage	D.C.+5V (100mA typical, 50mV peak to peakmaximum ripple and noise
Operating Temperature	-25 to 80 °C
Storage Temperature	-25 to 80 °C
Relative Humidity	95% at 60 °C, RH Non-condensing
Interface	USB: 1.1 Full Speed
Resolution	2048×2048 resolution
Power consumption	Active Mode: Max 55 mAIdle Mode : 5mASleep Mode :1mA
Response time	Max. 25 ms

121.0±0.5mm 120.0±0.5mm Ø3.0±0.1mm x 4 3.0±0.1mm 3.0±0.1mm 40.0±0.5mm 8.0±0.2mm 1.6±0.1mm EETI eGates_eMPTA Technolator Inc.

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 8 of 21

IV. OSD Function

13.000mm 6.700mm 3.000mm MENU SELECT DOWN UP POWER 8.500mm 14.000mm 14.000mm 14.000mm 14.000mm 28.000mm 96.000mm 129.000mm

1) Button

Button	Function	Notes
Power	Power on/off button- Turn power on or off
Menu	Main menu on/move button- Show OSD menu on the screen- Exit the main menu or submenu
SLEECT	Menu off button- Submenu Select- Input Source Select(RGB/DP)
DOWN	Adjust button- OSD Menu Down- Moves the bar left to decrease the adjustment
UP	Adjust button- OSD Menu UP- Moves the bar right to increase the adjustment

2) Menu

Image	Sub Menu : Brightness, Contrast, Sharpness, ColorUse the ‘Adjust –’ or ‘Adjust +’ button to decrease or increase the setting
Display	Sub Menu : Auto Adjust, Phase, Clock, Display Position, Panel SelectUse the ‘Adjust –’ or ‘Adjust +’ button to decrease or increase the setting
System	Sub Menu : Input Source, OSD Setting, Language, Dimming, ResetUse the ‘Adjust –’ or ‘Adjust +’ button to adjust the settings automatically

V. Environment Specifications

Parameter	Values		Units	Notes
	Min.	Max.
Operating Temperature	0	+50	°C
Storage Temperature	-20	+60	°C
Operating Humidity	5	90	%RH
Storage Humidity	5	90	%RH

VI. Reliability

No.	Test Item		Conditions
1	High temperature operating test		Ta: 50°C, 120Hr
2	Low temperature operating test		Ta: 0°C, 120Hr
3	High temperature storage test		Ta: 60°C, 120Hr
4	Low temperature storage test		Ta: -20°C, 120Hr
5	High humidity operating test		Ta: 50°C, 80%RH, 120Hr
6	High humidity storage test		Ta: 50°C, 90%RH, 120Hr
7	Thermal shock operation test		Ta: 0°C, 60min → 0°C~50°C, 30min→ 50°C, 60min, 50Cycle
8	Thermal shock storage test		Ta: -20°C, 60min → -20°C~60°C, 30min→ 60°C, 60min, 50Cycle
9	ESD	Contact	8KV,1sec/cycle
		Air	15KV,1sec/cycle
10	Vibration(Non-Operation)		Linear sweep 30minutes, 10~200Hz1.5G, X, Y, Z direction
11	Shock(Non-Operation)		50G, 20ms, Half-sine wave±X, ±Y, ±Z

VII. Inspection standard

1. Description

These inspection standards shall be applied to LCD monitor supplied by GTT.

2. The condition of inspection

2.1 Inspection Environment

1) Ambient temperature : 15\~25°C
2) Humidity : 25\~75%RH
3) Ambient Illumination :

400\~600Lux for external appearance inspection

100\~200Lux for light on inspection

2.2 Inspection condition

• Viewing Distance : 30\~50cm from the surface of the monitor.
• Viewing Angle : 90 degree to the front surface of display panel.
• Viewing Distance : 30cm from the surface of the monitor.
• Viewing Angle : 90 degree to the front surface of display panel.
• Inspection time for 15 seconds.
• while the monitor is on the display and while running the Color patterns(White/Red/Green/Blue)
• Under the inspection condition above, we judge a failure in the inspection if stain or finger print are detected by naked eyes.

2.3 Inspection resolution

1280×1024, 60Hz

3. Visual inspection

3.1 Packing inspection

Item	Standard	Inspection equipment
Carton label	The character(Model, P/N, S/N etc...) can be discerned.	* Visual
Box	No broken and dirty

3.2 Appearance inspection of monitor

Item	Standard	Inspection equipment
Rear & side	No crack, Broken and Distortion	* Visual* Calipers* Steel scale
Scratch	Noticeable scratch and exfoliation coating are not permitted
Mounting hole	No omission
Rear label	The character(Model, P/N, S/N etc...) can be discerned.
Dimension and hole size	Tolerance: ± 0.2mm

3.3 LCD visual inspection

[unit : mm]

Item	Standard		Inspection equipment
Dot(Bright & Dark)	Random	N≤8	* PC for inspection* Pattern generator* Lupe : ×10* N-test program* ND Filter
	2 adjacent	N≤4 (Note 1)
	3 adjacent or more	N≤2
	Total	N≤12
Mura(Note 4)	Judged by 2% ND filter in gray pattern
Line defect	Not allowed

* D : Diameter, W : Width, L : Length, N : Count

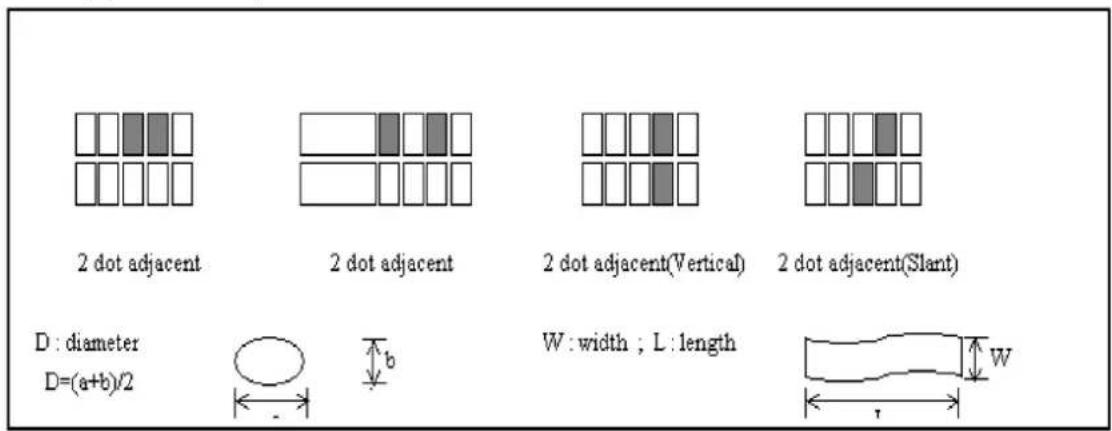

Note (1) Two dot adjacent

2 dot adjacent 2 dot adjacent 2 dot adjacent(Vertical) 2 dot adjacent(Slant) D : diameter D=(a+b)/2 W : width ; L : length b W

Note (4) The inspection method of ND filter – holding ND filter in front of the panel around 1cm and examine the panel from 35 ± 5 cm in the front view for 3 seconds.

3.4 Touch glass & LCD Panel visual inspection

[unit ; mm]

Item	Defect size	Q'ty	Inspection equipment
Circular defect	D<2.0	Ignore	* Visual* Lupe; ×10
	D≥2.0	0
Liner defect (Scratch,Foreign object)	W<0.5, L<15	Ignore
	W≥0.5, L≥15	0

*out-of-box cosmetic criteria within the viewing area while the touch sensor is on the display and while running the “Colors” program

* Inspection method

• Position front of touch screen 50cm form your eye.
• Inspection for 15 seconds.
• Use one of the following patterns to aid eye.

Pure diagram of three horizontal arrows pointing right, no text or symbols present

D: diameter

D=(a+b)/2

W: width ; L:length

4. Function inspection (Resolution 1280\*1024 at 60Hz)

4.1 OSD key function inspection

Item	Standard	Inspection equipment
Key function	Function normally each key button on the PC mode.	* PC

4.2 Display inspection

Item	Standard		Inspection equipment
Color	No strange color displaying		* PC* Pattern generator
Flicker	No flicker
Noise	No critical noise
Jittering	No critical jittering
Power LED indicator	Power & signal on	Green

4.3 Function inspection of touch screen

Item	Standard	Inspection equipment
Accuracy	Within 2.5mm each target & 10% Jitter limit on moving	* Finger

VIII. Accessory

1) VGA Cable

HDB15P(M) 1800:30 HDB15P(M) 11 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ REMARK: 1.UL20276 [UL1354(30AWG*1C+EA)*3+UL1792(30AWG*1C+EA)*1+UL1061 30AWG*5C+AB OD=15.5mm PVC JACKET COLOR:BLACK(HL-201) 2.HDB 15P(MALE,SOLID PIN,FULL PIN,PIN G/F, BLACK INSULATION,SHELL TIN PLATED) AFTER INNER-MOLDED MUST ADD COPPER FOIL AND SOLDERED AROUND 360° TO CONNECTOR SHELL AND CABLE SHIELD THEN 45P PVC OUTER MOLDED (45P COLOR:BLUE 661C HL-501) 3.FERRITE CORE (OD)10.0(L)13.5*(ID)6.35mm 4.THUMB SCREW @ 2.8*L32mm #4-40 NI PLATED ABS MOLDED COLOR:BLUE 661C(HL-501) 5.PVC 45P COLOR:BLACK(HL-201) 6.DUST CAP:USED FOR HDB15P(M) PVC COLOR:CLEAR(HL-002). 7.FINISHED PRODUCT BENDING TEST:300g,t60°,250TIMES MIN,25CYCLES/MIN 8.SALT SPRAY:35:2°C SOLUTION 5:1% SPRAY 24 HOURS,PH=6.5~7.2 AIR PRESSURE 1.0:0.01KGF/C TEST RALATIVE HUMIDITY 10~85%,TEST STANDARD:CONTACT RESISTANE LESS THAN TWICE OF INITIAL,NO EVIDENCE OF DAMAG WIRE CONNECTION P1 HDB15(M) WIRE COLOR P2 HDB15(M) COAX RED WIRE 1 COAX RED GND 6 COAX GREEN WIRE 2 COAX GREEN GND 7 COAX BLUE WIRE 3 COAX BLUE GND 8 BLACK 9 VIOLET 10 ORANGE 12 COAX NATURE WIRE 13 YELLOW 14 WHITE 15 4 4 5 5 SHELL BRAID+COAX NATURE GND SHELL TOLERANCES REVISIONS CUSTOMER SE MYOUNG HONGLIN ELECTRONIC CO.,LTD X. ± mm ECN NO. REV DESCRIPTION DATE APPVD HONGLIN P/N 110-2701 TITLE: SIGNAL CABLE ASS'Y X.X ± mm A/0 INITIAL RELEASE 2006.02.08 CUSTOMER P/N SM-071-10 DRAWN: Betty DATE: 2006.02.08 X.XX ± mm TOOLING 1052,2010 SCALE:NONE SHEET: 1/1 REV: A/0 X.XXX ± mm CHECKED 02-8/16 30 SCALE:NONE SHEET: 1/1 REV: A/0 X.XXXX ± mm APPROVED 107-308/1740 DRAWING: 110-2701.DWG METRIC:MM

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 14 of 21

2) DVI Cable

DVI-D 24 17 8 1800:30 60±10 ② ③ ④ ⑤ ① ④ ⑤ ③ DVI-D 1 8 17 P2 24 WIRE CONNECTION REMARK: 1.UL20276 APPROVED (28AWG*1P+EAM)*4+28AWG*1P+28AWG*3C+DAB OD:7.3mm PVC JACKET COLOR:BLACK(HL-201) 2.DVI-D(18+1 MALE,ASSEMBLY TYPE,SOLID PIN,PIN G/F,BLACK INSULATION,SHELL NI PLATED) AFTER ADD METAL CAN AND SOLDERED AROUND 360° TO CONNECTOR SHELL AND CABLE SHIELD. THEN ASSEMBLY THE OUTER MOLDED SHELL[COLOR:BLACK(HL-201)] 3.THUMB SCREW:4.0*45mm #4-40 NI PLATED ABS MOLDED COLOR:BLACK(HL-201) 4.FERRITE CORE:(OD)17.5*(L)28.5*(ID)9.5mm 5.PVC:45P COLOR:BLACK(HL-201) 6.SALT SPRAY:35±2°C SOLUTION 5:1% SPRAY 24 HOURS PH=6.5~7.2 AIR PRESSURE 1.0:0.01KGF/C TEST RALATIVE HUMIDITY 10~85% TEST STANDARD:CONTACT RESISTANE LESS THAN TWICE OF INITIAL,NO EVIDENCE OF DAMAGE TOLERANCES ECN NO. REV DESCRIPTION DATE APPVD CUSTOMER SE MYOUNG HONGLIN P/N 180-2300 TITLE:DVI CABLE ASS'Y X. X. X.X. X.XX. X.XXXX. METRIC:MM A/0 INITIAL RELEASE 2006.02.07 CUSTOMER P/N TOOLING 1002,2037 DRAWN: Betty DATE: 2006.02.07 CHECKED SCALE:NONE SHEET: 1/1 REV: A/0 APPROVED TON70207/1410 DRAWING: 180-2300.DWG SHELL PIN 1 WHITE PIN 1 PIN 2 RED PIN 2 PIN 3 GND PIN 3 PIN 6 VIOLET PIN 6 PIN 7 RED PIN 7 PIN 9 WHITE PIN 9 GREEN PIN 10 GND PIN 11 YELLOW PIN 14 ORANGE PIN 15 WHITE PIN 16 WHITE PIN 17 BLUE PIN 18 GND PIN 19 GND PIN 22 BROWN PIN 23 WHITE PIN 24 SHELL BRAID SHELL X. X.X. X.XXXX. METRIC:MM

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 15 of 21

3) AC Cord

1800:30 P1 2 4 19.000.5 15.5MIN E L N 19.000.2 18.9±0.3 2.5+0.3 5.0+0.5 14.000.2 P2 ① ③ ④ 5.7+1.5 18.9±0.3 23.0+0 15.8+0 -0.5

CABLE MARK:GFC-3R ② ③ ④ ⑤ ⑥ SABS 1574 IEMMEOU NF-USE-1326-H05VV-F0.75mm² 3G N18587 SPACE SHUTTLE-C LF

WIRE CONNECTION

P1	WIRE COLOR	P2
E	YELLOW/GREEN	E
N	BLUE	N
L	BROWN	L

1.H05VV-F 3G 0.75mm² OD=6.5mm MIMEOGRAPH PVC JACKET COLOR:BLACK(HL-201)

3C COLOR:BROWN,YELLOW/GREEN,BLUE

2.MOLDED PLUG:HL-013 16A 250V\~

3.MOLDED CONNECTOR:HL-026 10A 250V\~

4.PVC 45P COLOR:BLACK(HL-201)

5.TEST CONDITION:

1) INSULATION RESISTANCE: 5MΩ AT DC 500V/MIN, HI-VOLTAGE: AC 2500V/3S

2) BENDING TEST: LOAD 10N, ±45°, 60 CYCLES/MIN, 10000 TIMES MIN

TOLERANCES	REVISIONS					CUSTOMER	SE MYOUNG	HONGLIN ELECTRONIC CO.,LTD泓淋电子有限公司
X. ± mm	ECN NO.	REV	DESCRIPTION	DATE	APPVD	HONGLIN PIN	200-10030
X.X ± mm		A/0	INITIAL RELEASE	2008.05.23		CUSTOMER PIN	HL-012+HL-026 1.0M(KS, VDE, PCT)	TITLE: POWER CORDS
X.XX ± mm						TOOLING	4153 1147	DRAWN: HAB	DATE: 2008.05.23
X.XXX ± mm						CHECKED		SAFETY:	SHEET: 1/1	REV: A/0
X.XXXX ± mm						APPROVED		DRAWING: 200-10030.DWG		Φ
METRIC:mm

4) USB Cable

A B C D E F G H I WIRE CONNECTION P1 12.0±0.5 1800±20 12.2±0.5 2 3 P2 1 4 UL2725[28AWG*1P+28AWG*2C+AL+BRAID16*4/0.10TS 65%]*1C OD: 3.8 MATT PVC JACKET COLOR: IVORY CORE COLOR: WHT&GRN(1PAIR PE); RED.BLK(SR/PVC) USB 4P A/M OF WHITE PLASTIC PIN G/F GOLD PLATED SHELL NI PLATED 1SET USB 4P B/M OF WHITE PLASTIC PIN G/F GOLD PLATED SHELL NI PLATED 1SET H/S TUBE:0.8 PAR BLACK L=5MM 2PCS P.V.C: 45P IVORY 3G MINI TIE: BLACK L=60 1PCS ZIP PAG: 180*60*0.03mm GREEN MARK AND "MADE IN CHINA" SHENZHEN JINHUI DIAN YE PRODUCTS CO.,LTD CUSTOMER: SEMYOUNG PART NO.: DESCRIPTION:USB (A/M) TO USB (B/M) CABLE 24-OCT-05 A NEW DRAWING DATE VER. DESCRIPTION DRAWING NO.: SME215-1 UNIT: m/m SHEET: 1/1 APPROVED: CHECKED: XIAO REI GUI DRAWING BY: LUO

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 17 of 21

5) Adaptor

FROM NO.1 COMPUTER NO.: REV ZONE DESCRIPTION DATE BY A 18/19/21 ZPH LEVEL3 EFFICIENCY LEVEL EN 60950-1 BS EN 60950-1 with a minimum value of 4mm h = 0.3a with a minimum value of 1mm NOTE: 1. 颜色:銀底黑字 2. 材質:清銀龍加亮面(UL, CSA APPROVAL) 環保材料 3. 處理:永久背線 4. 係由UL, CSA合格厂商承制. 5. 锥存溫存:-20C及+70C之範圍. 6. 將業務確認安規等各項再行制作生產. 7. 回形及CE logo 高度最小需達到5mm 8. LABEL厚度為0.25+/-0.02mm 9. 禁止使用DVE所禁用之危害物質 DEE VAN ENTERPRISE CO., LTD. DEPART MENT UNIT CASE PART NO. SALE 像注 R&D SPS mm APPD, BY CHD, BY DWCLBY DRAWING NO. SAFETY 像注 MODEL NO.: DSA-42D-12 PAGE 1OFI 33.70 mm 85.70 mm 31.70 mm (X)此代碼表生產工厂:X=F(表帝聞深圳生產) X=G(表帝聞龍川厂生產)

KEYTSON TITLE NAME DESCRIPTION DATE REFERENCE BSR110604-03H CORE:20*010.5*05.5 15.0 29.0 DETAILA 95±0.5 30±10 60±20 70±10 60±20 1500±50 白色接PLUG口央王 18AWG/IC+SI-11B5 DETAILA NOTE: 1. PLUG MATERIA:黑色PVC料30-40P; PLUG细把螺丝岛DE,自叉式带防滑凹槽; 2. SR MATHAL:黑色PVC料60-70P 拉力20LBS/min; 3. 插性接止接限LABEL指示; 4. 材货须符合"BOXES"要求; 5. 禁止使用DTE所常用之危害物货. SCALE DIMENSIONS ISO 10.06 DC NUMBER SIZE NO. CHECKED P/N APPROVED REV. DUE FILE NO. DRAWN NO. UNIT SCALE SIZE M REV. 1 2 3 4 5 6 7 8 9 10 11 12

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 18 of 21

1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G H DIVISION ISSUE: ROAR DESCRIPTION DATE: REVISOR 47.5±10 31.0±10 31.0±0.2 17.5±10 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.0±0.2 (rout) 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.5±10 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 31.6±9 LW FONC J MODEL NO. PART NO. DEC-DATE MATERIAL PART NAME Q4/7/7/88 ASM-Big 2ppm ITEM Dimension 0°+20°~+100°~+80°~+60°~+50°~+40°~+30°~+20°~+10°~+5°~+4°~+3°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+2°~+ Tender distance (metal) ±0, 1 ±0, 5 ±0, 8 ±0, 1 ±0, 4 ±0, 8 ±0, 1 ±0, 4 ±0, 8 ±0, 1 ±0, 4 ±0, 8 ±0, 1 ±0, 4 ±0, 8 ±0, 1 ±0, 4 ±0, 8 ±0, 1 ±0, 4 ±0, 8 ±0, 1 ±0, 4 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 8 ±0, 7 ±4 Tender distance (rout) ±0, 5 ±4, 9 ±4, 14 ±4, 24 ±4, 44 ±4, 64 ±4, 84 ±4, 164 ±4, 264 ±4, 464 ±4, 664 ±4, 864 ±4, 166 ±4, 266 ±4, 466 ±4, 666 ±4, 866 ±4, 166 ±4, 266 ±4, 466 ±4, 666 ±4, 866 ±4, 166 ±4, 266 ±4, 466 ±4, 666 ±4, 866 ±4, 166 ±4, 266 ±4, 466 ±4, 666 ±5, 766 ±5, 866 ±5, 966 ±5, 166 ±5, 266 ±5, 466 ±5, 666 ±5, 866 ±5, 966 ±5, 166 ±5, 266 ±5, 466 ±5, 666 ±5, 866 ±5, 966 ±5, 166 ±5, 266 ±5, 466 ±5, 666 ±5, 866 ±5, 96 +7777777777777777777777777777777777777777777777777777777777777777777777777777777777777777777777777777

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 19 of 21

IX. Mechanical Characteristics

REV. ECO No. DESCRIPTION DATE APP'L 0,9 PRODUCTION RELEASE 14/01/20 30 100 200 577.32(NEW AREA) 472 240 VIA DM DC USB R=IN USER HILE 100 E=IN USER HILE NOTE 1. STANDARD TILEANCES - ±0.5 2. NO SCRATH, BURR & CRACK NO. DESCRIPTION Q'TY REMARK No. 19" OPEN FRAME Sample 0.91 SIZE 1 / 1 AMOUNTED TITLE DRAWN ADVANTECH 2015.01.20 DIVIDEND ADVANTECH Building on Building Floor

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 20 of 21

X. Packing

1) Packing Method

Ø91 496.56 510.46

Gift Box

350 545,46 546,66

C/T Box (Gift box X 2)

25 350 545,46 9,08 1819,98 120 1100 1100 20 546,66

Pallet (C/T box X 18)

Standard packing for ship by sea

• 40 feet container
  : 20 pallets = 720 monitors
• 20 feet container
  :10 pallets = 360 monitors
• 1 pallet
  : 18 C/T boxes = 36 monitors
• 1 carton box
  : 2 gift boxes = 2 monitors
• 1 gift box : 1 monitor

Model: IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 21 of 21
