Product Type	Video Projector
Brand	Panasonic
Model	PT-LB30EA
Display Technology	LCD (3-chip)
Resolution	XGA (1024 x 768)
Brightness	3000 lumens
Contrast Ratio	2000:1
Lamp Type	UHM
Lamp Life (Normal Mode)	4000 hours
Lamp Life (Eco Mode)	6000 hours
Zoom Ratio	1.2x manual zoom
Keystone Correction	Vertical +/-30°
Input Connectors	VGA x2, Composite Video x1, S-Video x1, Audio x1
Output Connectors	VGA x1, Audio x1
Noise Level (Normal Mode)	35 dB
Noise Level (Eco Mode)	29 dB
Dimensions (W x D x H)	349 x 257 x 82 mm
Weight	2.9 kg
Power Supply	100-240V AC, 50/60Hz
Power Consumption (Normal)	300W
Power Consumption (Standby)	0.5W
Safety Features	Auto power off, security lock slot
Maintenance	Air filter cleaning every 1000 hours
Compliance	RoHS, ENERGY STAR

Frequently Asked Questions - PT-LB30EA PANASONIC

What is the native resolution of the Panasonic PT-LB30EA?

The native resolution is XGA (1024 x 768), suitable for presentations.

How do I replace the lamp on the PT-LB30EA?

Turn off the projector and unplug it. Open the lamp cover on the side, remove the old lamp module, and install the new one. Do not touch the glass bulb.

Can I connect a laptop to this projector?

Yes, use the VGA input or an HDMI-to-VGA adapter if needed. The projector does not have native HDMI.

What is the recommended projection distance?

For a 100-inch screen, the distance is approximately 3.2 meters with the 1.2x zoom in the middle position.

How often should I replace the air filter?

Clean the filter every 1000 hours of use and replace it if damaged or after 5000 hours.

Does the PT-LB30EA support 3D?

No, this model does not support 3D projection.

What is the lamp part number?

The replacement lamp model is ET-LAB80 (original) or compatible equivalents.

Can I use the projector upside down?

Yes, it can be mounted on a ceiling. Enable the Ceiling Mount setting in the menu to flip the image.

How to adjust keystone distortion?

Press the Keystone button on the remote or go to the menu to adjust vertical correction up to +/-30°.

What audio output does the projector have?

It has a built-in 1W mono speaker and an audio output jack for external speakers.

USER MANUAL PT-LB30EA PANASONIC

LCD Projector Commercial Use

사용설명서

Model No. PT-LB30NTEA PT-LB30EA

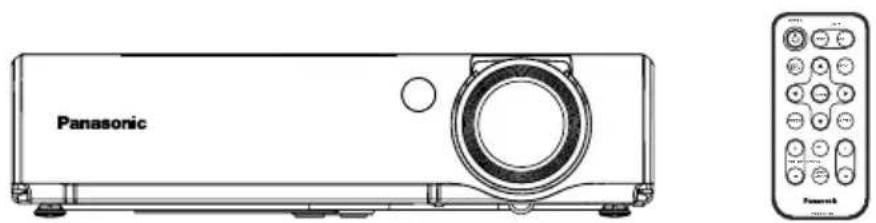

Line drawing of a Panasonic projector with control panel (no text or symbols on device body)

PT-LB30NTEA / PT-LB30EA

시리얼 번호:

주요안전사항

RGB/YPBPR, VGA60/480p,

SXGA 모드, NR, 흑판 모드,

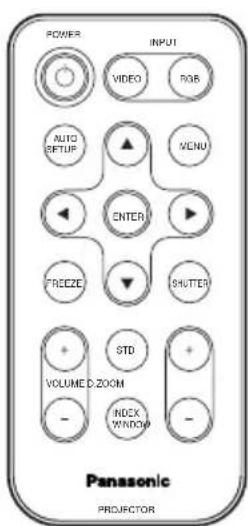

Card remote control unit (N2QADC000008 x1)	Lithium battery for remote control unit (CR-2025/1F x1)	RGB signal cable [1.8 m (5'10"), K1HA15DA0002 x1]
	Mains lead (K2CM3DR00002 x 1)	Mains lead for U.K. (K2CT3DR00005 x 1)
Carrying bag (TPEP014 x 1)	CD-ROM (PT-LB30NTEA에만 해당, TQBH9007 x1)

사용하기 전에

프로젝터 이동시 유의사항

Simple line drawing of a projector on a box, no text or symbols present

Simple line drawing of a box with an object inside, showing light rays from its side (no text or symbols)

Simple line drawing of a board with a small object on top, connected by lines to the right (no text or symbols)

Simple line drawing of a rectangular box with a small object inside, no text or symbols present.

SW Screen L 96.2 mm (3-25/32')

투사거리

4:3 Screen size (diagonal)	Projection distance (L)		Height position (H1)
	Wide (LW) Telephoto (LT)
	-0.84 m(33')	1.1 m(3'7")	0.07 m(2-3/4')
1.02 m(40')	1.2 m(3'11')	1.4 m(4'7")	0.08 m(3-1/8')
1.27 m(50')	1.5 m(4'11')	1.7 m(5'6")	0.11 m(4-5/16')
1.52 m(60')	1.8 m(5'10')	2.1 m(6'10')	0.13 m(5-3/32')
1.78 m(70')	2.1 m(6'10')	2.5 m(8'2")	0.15 m(5-7/8')
2.03 m(80')	2.4 m(7'10')	2.8 m(9'2")	0.17 m(6-11/16')
2.29 m(90')	2.7 m(8'10')	3.2 m(10'5')	0.19 m(7-15/32')
2.54 m(100')	3.0 m(9'10')	3.5 m(11'5')	0.21 m(8-1/4')
3.05 m(120')	3.6 m(11'9')	4.3 m(14'1')	0.25 m(9-13/16')
3.81 m(150')	4.6 m(15'1')	5.4 m(17'8')	0.32 m(12-19/32')
5.08 m(200')	6.1 m(20')	7.2 m(23'7')	0.42 m(16-17/32')
6.35 m(250')	7.6 m(24'11')	9.0 m(29'6')	0.53 m(20-27/32')
7.62 m(300')	9.1 m(29'10')	10.8 m(35'5')	0.63 m(24-25/32')

주의:


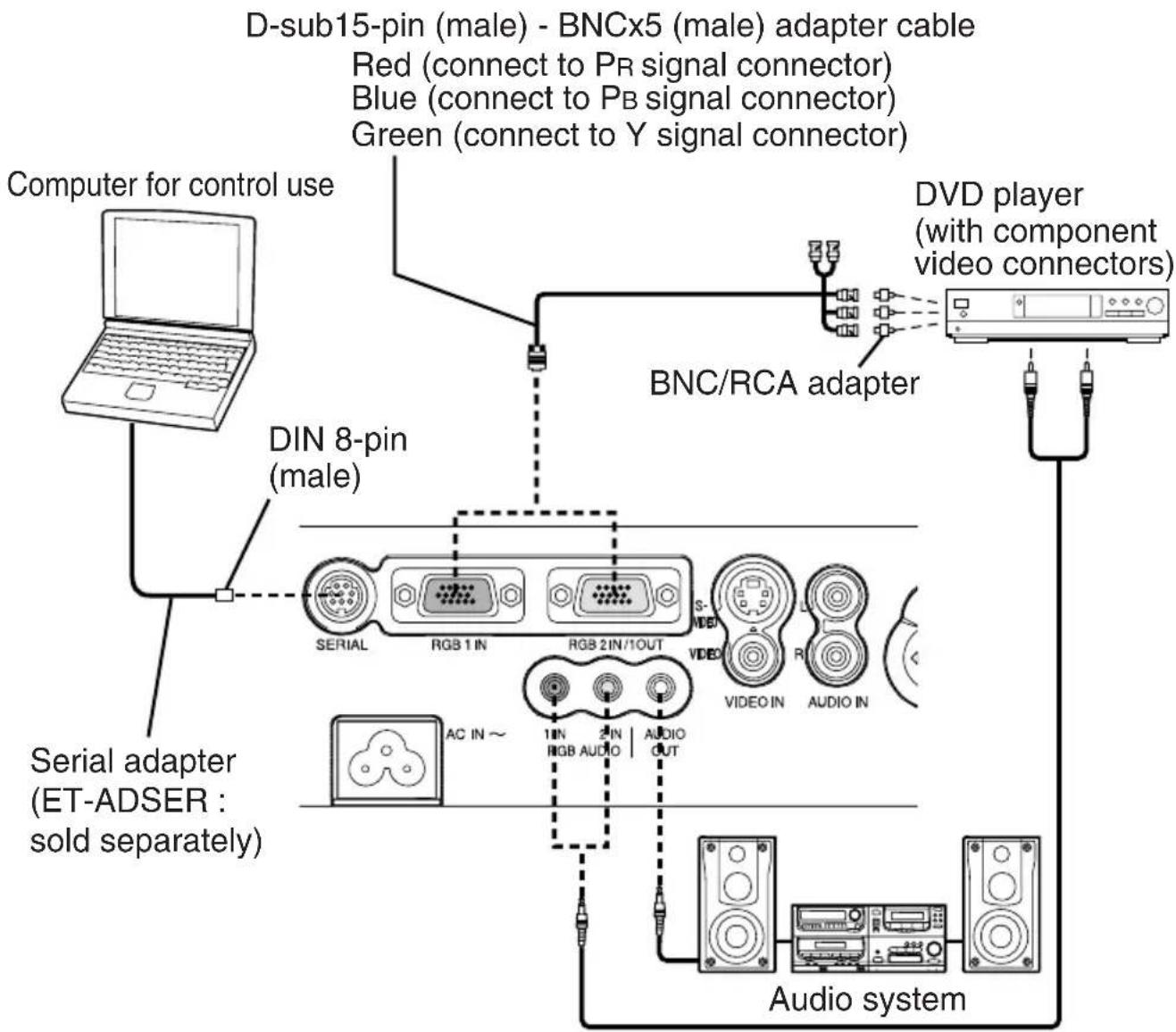

비디오 장치 연결(1)

주의:

Computer for control use

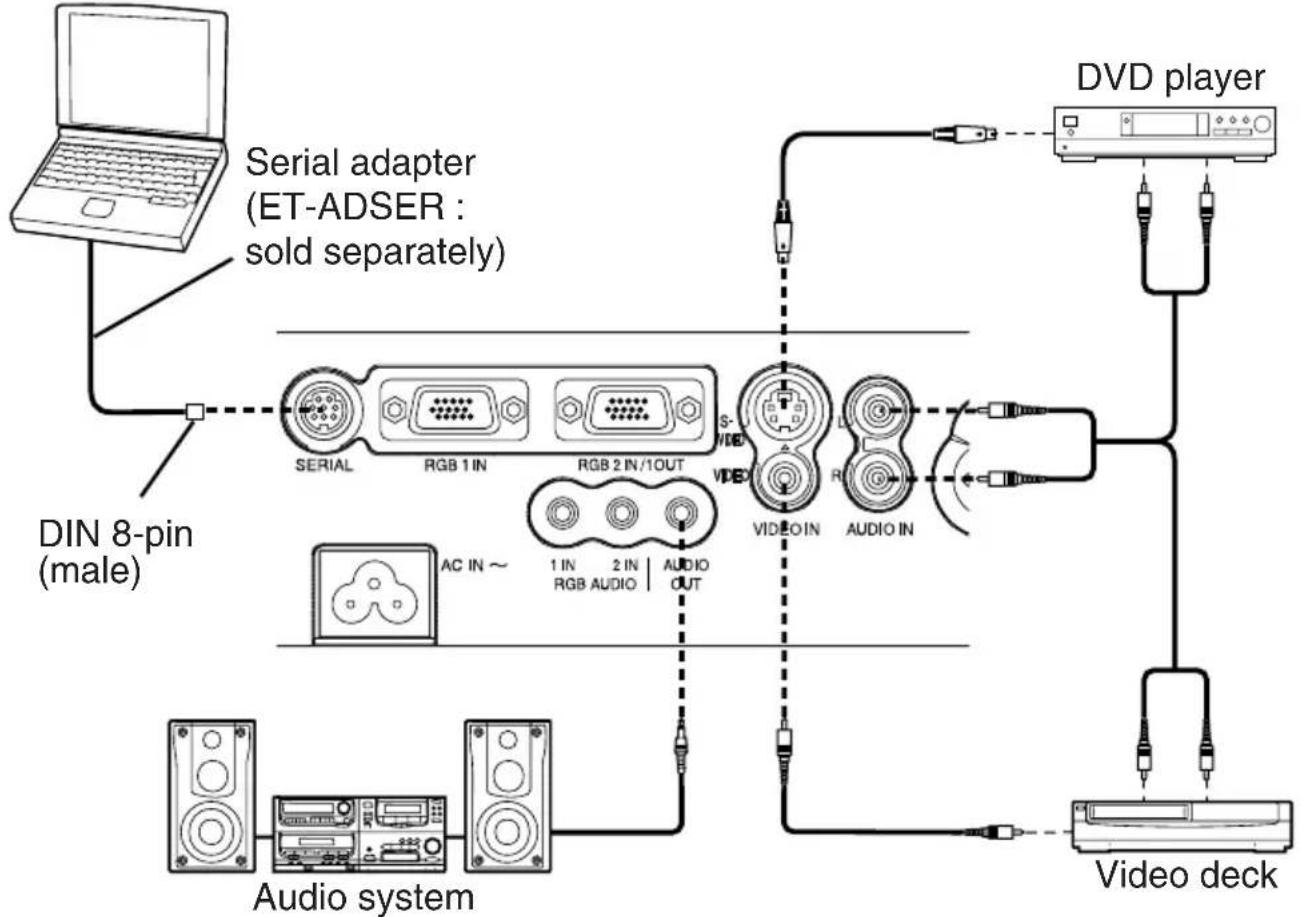


리모컨 준비

Mechanical diagram showing a clamp or clamp device with a circular component and pointer (no text or symbols)

배터리의 “+” 극성을 맞추십시오.

③배러리홀더를 삽입하십시오.

Pure mechanical diagram showing a component with an arrow indicating direction (no text or symbols)

주의:

Illustration of hands operating a projector with an arrow indicating rotation (no text or symbols)

Vertical keystone distortion correction
Operation	Press the ▶ button. Press the ◀ button.

주의:

Black and white barcode image with vertical stripes

CLOCK PHASE

(RGB/YPBPR 전용)

Simple diagram with a central circle surrounded by eight surrounding circles, no text or symbols present.

Diagram showing a rectangular block with a central circle and eight surrounding circles, with an arrow pointing downward (no text or symbols)

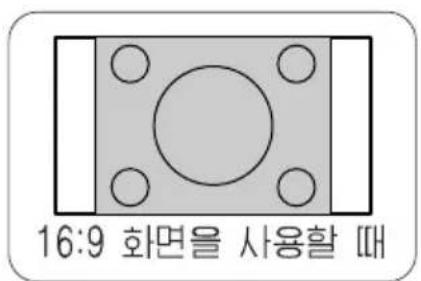

S4:3

Simple geometric diagram with a central circle and four surrounding circles (no text or symbols)

4:3 신호가 입력되는 경우.

Simple diagram of a rectangular plate with four circular holes and a central circle, no text or symbols present.

Air filter cover

주의:

시오. Air filter cover

Air filter cover

Air filter

주의:

Technical diagram of a computer rear panel showing internal components like CPU socket, drive bays, and ventilation slots (no text or labels present)

Lamp unit cover fixing screws

Technical diagram of a device rear panel with labeled components A and B, showing internal structure and connection arrows.

Lamp unit fixing screws

SERIAL(female) DIN 8-pin (male) Serial adapter (ET-ADSER : sold separately) Computer

주의:

① ② ③ ⑤ ⑥ ⑧

DIN 8-pin 외관

Pin No.	Signal name	Contents
3	RXD	Received data
4	GND	Earth
5	TXD T	Transmitted data
1		Connected internally
2
6
7		NC
8		NC

통신설치

Signal level	RS-232C
Sync. method	비동시성
Baud rate	9 600 bps
Parity	없음
Character length 8 bits
Stop bit 1 bit
X parameter	없음
S parameter	없음

기초포imet
