Type	G-type AF-S lens with built-in microprocessor and F mount
Focal length	35 mm
Maximum aperture	f/1.4
Optical construction	10 lenses in 7 groups (aspherical lens and nanocrystal coating)
Angle of view	63° (FX), 44° (DX), 52° (IX240)
Focusing	RF system with SWM motor (silent autofocus) and manual ring
Minimum focusing distance	0.3 m
Diaphragm blades	9 (circular)
Aperture range	f/1.4 to f/16
Filter diameter	67 mm
Dimensions (D × L)	83 mm × 89.5 mm
Weight	Approx. 600 g
Supplied accessories	Front cap LC-67, rear cap LF-4, hood HB-59, case CL-1118
Care and cleaning	Blower brush for dust, ethanol or lens cleaner for stains. Avoid organic solvents.
Safety precautions	Do not disassemble, do not use near flammable gas, do not look at the sun, keep dry.
Camera compatibility	Nikon FX/DX digital SLR cameras and selected film cameras (see manual)
Focusing mode	M/A (manual-priority autofocus), M (manual)
Built-in flash	Use at distance ≥ 0.6 m, remove hood to avoid vignetting

Frequently Asked Questions - AF-S NIKKOR 35MM F-1.4G NIKON

How to clean the AF-S NIKKOR 35mm f/1.4G lens?

Use a blower brush to remove dust. For stains, moisten a clean cloth with ethanol or lens cleaner and clean in a circular motion from center to edge. Never use organic solvents like benzene.

What is the filter diameter for this lens?

The filter attachment diameter is 67 mm (thread pitch 0.75 mm).

Can I use the built-in flash with this lens?

Yes, but at a minimum distance of 0.6 m. Remove the lens hood to avoid vignetting. Some cameras require larger distances (see manual).

How to activate autofocus?

Set the focusing mode switch to M/A. To disable autofocus, turn the focusing ring while holding the shutter release button halfway.

What is the minimum focusing distance?

The minimum focusing distance is 0.3 m (1 foot).

Is this lens compatible with Nikon DX cameras?

Yes, when mounted on a DX body, the angle of view becomes 44° and the equivalent focal length is approximately 52.5 mm (35mm format).

What to do in case of malfunction?

Immediately turn off the camera, remove the battery, and disconnect the adapter. Bring the equipment to an authorized Nikon service center for inspection.

How to attach the lens hood?

Align the locking mark (—O) with the mounting mark (●) on the lens and turn to lock. To remove, reverse the procedure. The hood can be mounted in reverse for storage.

Does the lens have diaphragm blades?

Yes, it has 9 blades forming a circular aperture, which allows for smoother bokeh.

Where can I find the full manual?

The full manual is available for free download in PDF format at notice-facile.com for the AF-S NIKKOR 35mm f/1.4G.

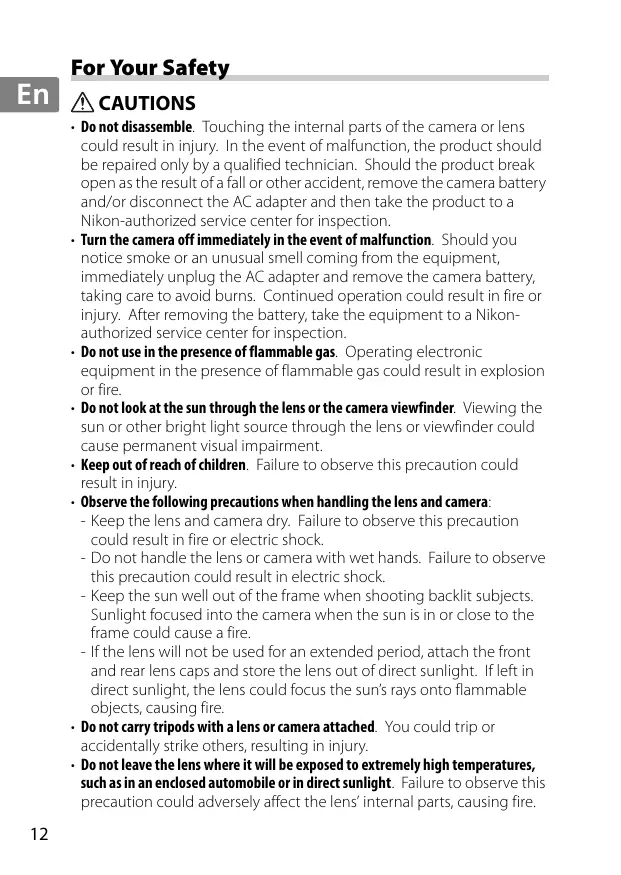

USER MANUAL AF-S NIKKOR 35MM F-1.4G NIKON

• Do not disassemble. Touching the internal parts of the camera or lens could result in injury. In the event of malfunction, the product should be repaired only by a qualified technician. Should the product break open as the result of a fall or other accident, remove the camera battery and/or disconnect the AC adapter and then take the product to a Nikon-authorized service center for inspection.
• Turn the camera off immediately in the event of malfunction. Should you notice smoke or an unusual smell coming from the equipment, immediately unplug the AC adapter and remove the camera battery, taking care to avoid burns. Continued operation could result in fire or injury. After removing the battery, take the equipment to a Nikon-authorized service center for inspection.
• Do not use in the presence of flammable gas. Operating electronic equipment in the presence of flammable gas could result in explosion or fire.
• Do not look at the sun through the lens or the camera viewfinder. Viewing the sun or other bright light source through the lens or viewfinder could cause permanent visual impairment.
• Keep out of reach of children. Failure to observe this precaution could result in injury.

• Observe the following precautions when handling the lens and camera:

• Keep the lens and camera dry. Failure to observe this precaution could result in fire or electric shock.

• Do not handle the lens or camera with wet hands. Failure to observe this precaution could result in electric shock.
• Keep the sun well out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame could cause a fire.
• If the lens will not be used for an extended period, attach the front and rear lens caps and store the lens out of direct sunlight. If left in direct sunlight, the lens could focus the sun's rays onto flammable objects, causing fire.

- Do not carry tripods with a lens or camera attached. You could trip or accidentally strike others, resulting in injury.

- Do not leave the lens where it will be exposed to extremely high temperatures, such as in an enclosed automobile or in direct sunlight. Failure to observe this precaution could adversely affect the lens' internal parts, causing fire.

Thank you for your purchase of an AF-S NIKKOR 35mm f/1.4G lens. Before using this product, please carefully read both these instructions and the camera manual.

Note: When mounted on a DX-format digital single-lens reflex camera such as the D90 or cameras in the D300 series, this lens has an angle of view of 44^ and a focal length equivalent to 52.5 mm (35 mm format).

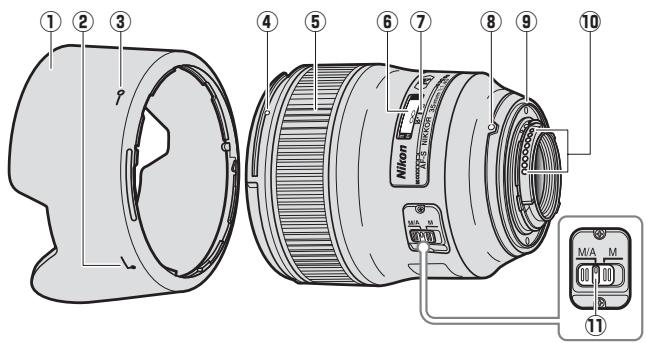

Parts of the Lens

① Lens hood 16
② Lens hood alignment mark.... 16
③ Lens hood lock mark......16
④ Lens hood mounting mark.... 16
⑤ Focus ring....15
⑥ Focus distance indicator...... 15

⑦ Focus distance mark......15
⑧ Lens mounting mark
⑨ Rubber lens-mount gasket....18
⑩ CPU contacts....18
⑪ Focus-mode switch......14

■ Compatibility

Check marks ("√") indicate supported features, dashes ("—") features that are not supported. Some limitations may apply; see the camera manual for details.

Camera	Exposure (Shooting) mode				AF^5
	P^4	S	A	M
Nikon FX-format and DX-format digital single-lens reflex cameras	√	√	√	√	√
F6, F5, F100, F/N80-series ^1 , F/N75-series ^1 , F/N65-series ^1 ,Pronea 600i/6i ^1 ,Pronea S^2	√	√	√	√	√
F4-series, F90X/N90s ^1 , F90-series/N90 ^1 , F70-series/N70 ^1	√	√	—	—	√
F60-series/N60 ^1 , F/N55-series ^1 , F50-series/N50 ^1 , F-401x/N5005 ^1 ,F-401s/N4004s ^1 , F-401/N4004 ^1	√	√	√	√	—
F-801s/N8008s ^1 , F-801/N8008 ^1 , F-601M/N6000 ^1	√	√	—	—	—
F3AF, F-601/N6006 ^1 , F-501/N2020 ^3 , Nikon manual focus cameras(excluding F-601M/N6000 ^1 )	—

1 N-series cameras and Pronea 6i sold in U.S.A. only.
2 Exposure mode M (manual) not available.
3 N2020 sold in U.S.A. and Canada only.
4 Includes AUTO and scene (Digital Vari-Program) modes.
5 Autofocus.

Focus

Supported focus modes are shown in the following table (for information on camera focus modes, see the camera manual).

Camera	Camera focus mode	Lens focus mode
		M/A	M
Nikon FX-format and DX-format digital single-lens reflex cameras, F6, F5, F4-series, F100, F90X/N90s*, F90-series/N90*, F/N80-series*, F/N75-series*, F70-series/N70*, F/N65-series*, Pronea 600i/6i*, Pronea S	AF	Autofocus with manual override	Manual focus with electronic rangefinder
	MF	Manual focus (electronic rangefinder available with all cameras except F-601M/N6000*)
F60-series/N60*, F/N55-series*, F50-series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	AF, MF

* N-series cameras and Pronea 6i sold in U.S.A. only.

M/A (Autofocus with Manual Override)

To focus using autofocus with manual override (M/A):

1 Slide the lens focus-mode switch to M/A.
2 Focus.

If desired, autofocus can be over-ridden by rotating the lens focus ring while the shutter-release button is pressed halfway (or, if the camera is equipped with an AF-ON button, while the AF-ON button is pressed). To refocus using autofocus, press the shutter-release button halfway or press the AF-ON button again.

■ Depth of Field

The depth-of-field indicators on the lens show the approximate depth of field (see page 138 for more information). If the camera offers depth-of-field preview (stop down), depth of field can also be previewed in the viewfinder.

■ Aperture

Aperture is adjusted using camera controls.

Built-in Flash Units

When using the built-in flash on cameras equipped with a built-in flash unit, shoot at ranges of 0.6 m (2 ft.) or more and remove the lens hood to prevent vignetting (shadows created where the end of the lens obscures the built-in flash).

Camera	Use at ranges of
F60-series/N60*, F/N65-series*	1.5 m/4 ft. 11 in. or more
F50-series/N50*	3.0 m/9 ft. 10 in. or more
F/N55-series*	2.0 m/6 ft. 7 in. or more
F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	Lens causes vignetting at all ranges

* N-series cameras sold in U.S.A. only.

The Lens Hood

The lens hoods protects the lens and blocks stray light that would otherwise cause flare or ghosting.

Align the lens hood lock mark (—○) with the lens hood mounting mark (●) on the lens (3).

When attaching or removing the hood, hold it near the symbol on its base and avoid gripping it too tightly.

Vignetting may occur if the hood is not correctly attached.

The hood can be reversed and mounted on the lens when not in use. When the hood is reversed, it can be attached and removed by rotating it while holding it near the lock mark (—○).

■ Focusing Screens

The following cameras support a variety of focusing screens for use in different situations.

Camera\Screen

A

B

C

E

EC-B EC-E

G1

G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

○

◎

◎

◎

○

◎

◎

◎

F5+DA-30

◎

◎

○

◎

◎

○

◎

○

◎

◎

◎

◎: Recommended.
O: Vignetting visible in viewfinder (photographs are not affected).
—: Not compatible with camera.
( ): Figures in parentheses give the exposure compensation for center-weighted metering. Select "Other screen" for Custom Setting b6 ("Screen comp.") when adjusting exposure compensation for the F6; note that with screens other than B or E, "Other screen" must be selected even when the value for exposure compensation is 0. Exposure compensation for the F5 can be adjusted using Custom Setting 18; see the camera manual for details.
Empty cell: Not suited to use with this lens. Note that type M screens can however be used for photomicrography and macro photography at magnifications of 1 : 1 or higher.
Note: The F5 supports matrix metering with A, B, E, EC-B/EC-E, J, and L focusing screens only.

Lens Care

• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immediately and take the lens to a Nikon-authorized service center for repair.
• Use a blower to remove dust and lint from the lens surfaces. To remove smudges and fingerprints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• The lens hood or NC filters can be used to protect the front lens element.
• Attach the front and rear caps before placing the lens in its flexible pouch.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.
  • Leaving the lens in extremely hot locations could damage or warp parts made from reinforced plastic.

■ Supplied Accessories

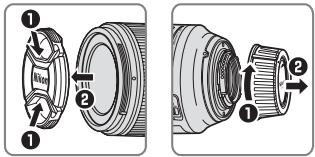

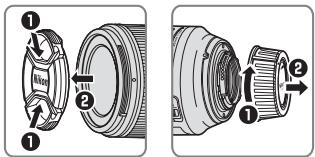

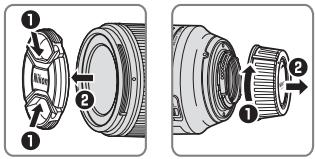

• 67 mm snap-on Front Lens Cap LC-67
• Rear Lens Cap LF-4
  • Bayonet Hood HB-59
• Flexible Lens Pouch CL-1118

■ Compatible Accessories

• 67 mm screw-on filters
• Wireless Remote Speedlight SB-R200: Up to two SB-R200 wireless remote flash units can be mounted at the end of the lens.

Specifications

Type	Type G AF-S lens with built-in CPU and F mount
Focal length	35 mm
Maximum aperture	f/1.4
Lens construction	10 elements in 7 groups (including 1 aspherical lens element and elements with a Nano Crystal Coat)
Angle of view	Nikon film SLR and FX-format D-SLR cameras: 63°Nikon DX-format D-SLR cameras: 44°IX240 system cameras: 52°
Distance information	Output to camera
Focusing	Rear Focusing (RF) System with autofocus controlled by Silent Wave Motor and separate focus ring for manual focus
Focus distance indicator	Graduated in meters and feet from 0.3 m/1 ft to infinity ( )
Minimum focus distance	0.3 m/0.98 ft.
Diaphragm blades	9 (rounded diaphragm opening)
Diaphragm	Fully automatic
Aperture range	f/1.4 to f/16
Metering	Full aperture
Filter-attachment size	67 mm (P=0.75 mm)
Dimensions	Approx. 83 mm diameter × 89.5 mm (distance from camera lens mount flange)
Weight	Approx. 600 g/1 lb 5.2 oz

Nikon reserves the right to change the specifications of the hardware described in this manual at any time and without prior notice.

SICHERHEITSHINWEISE

ScheibeKamera

A

B

C

E

EC-BEC-E

G1

G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

○

◎

◎

◎

○

◎

◎

◎

F5+DA-30

◎

◎

○

◎

◎

○

◎

○

◎

◎

◎

Appareil photo\Verre

A

B

C

E

EC-B EC-E

G1

G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

○

◎

◎

◎

○

◎

◎

◎

F5+DA-30

◎

◎

○

◎

◎

○

◎

○

◎

◎

◎

SkivaKamera

A

B

C

E

EC-BEC-E

G1

G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

○

◎

◎

◎

○

◎

◎

◎

F5+DA-30

◎

◎

○

◎

◎

○

◎

○

◎

◎

◎

照相机\对焦屏

A

B

C

E

EC-BEC-E

G1

G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

○

◎

◎

◎

○

◎

◎

◎

F5+DA-30

◎

◎

○

◎

◎

○

◎

○

◎

◎

◎

◎: 推荐使用。

카메라\스크린

A

B

C

E

EC-BEC-E

G1

G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

○

◎

◎

◎

○

◎

◎

◎

F5+DA-30

◎

◎

○

◎

◎

○

◎

○

◎

◎

◎

◎: 권장.

■ Depth of field (Imperial)
(ft.)

Focus distance			Depth of field			Reproduction ratio
	f/1.4	f/2	f/2.8	f/4	f/5.6	f/8	f/11	f/16
1	1 ft.—1 ft. ^2/_16 in.	11^14/_16 in.—1 ft. ^2/_16 in.	11^14/_16 in.—1 ft. ^2/_16 in.	11^14/_16 in.—1 ft. ^2/_16 in.	11^12/_16 in.—1 ft. ^4/_16 in.	11^10/_16 in.—1 ft. ^6/_16 in.	11^8/_16 in.—1 ft. ^8/_16 in.	11^6/_16 in.—1 ft. ^12/_16 in.
1.5	1 ft. 5^12/_16 in.—1 ft. 6^4/_16 in.	1 ft. 5^12/_16 in.—1 ft. 6^4/_16 in.	1 ft. 5^10/_16 in.—1 ft. 6^6/_16 in.	1 ft. 5^8/_16 in.—1 ft. 6^10/_16 in.	1 ft. 5^4/_16 in.—1 ft. 6^13/_16 in.	1 ft. 5^1/_16 in.—1 ft. 7^3/_16 in.	1 ft. 4^11/_16 in.—1 ft. 7^11/_16 in.	1 ft. 4^3/_16 in.—1 ft. 8^8/_16 in.
2	1 ft. 11^10/_16 in.—2 ft. ^6/_16 in.	1 ft. 11^8/_16 in.—2 ft. ^10/_16 in.	1 ft. 11^4/_16 in.—2 ft. ^13/_16 in.	1 ft. 10^15/_16 in.—2 ft. 1^3/_16 in.	1 ft. 10^9/_16 in.—2 ft. 1^11/_16 in.	1 ft. 10^1/_16 in.—2 ft. 2^6/_16 in.	1 ft. 9^8/_16 in.—2 ft. 3^8/_16 in.	1 ft. 8^8/_16 in.—2 ft. 5^8/_16 in.
2.5	2 ft. 5^6/_16 in.—2 ft. 6^12/_16 in.	2 ft. 5^3/_16 in.—2 ft. 6^15/_16 in.	2 ft. 4^13/_16 in.—2 ft. 7^5/_16 in.	2 ft. 4^5/_16 in.—2 ft. 7^15/_16 in.	2 ft. 3^12/_16 in.—2 ft. 8^14/_16 in.	2 ft. 2^14/_16 in.—2 ft. 10^3/_16 in.	2 ft. 1^13/_16 in.—3 ft. 4^16 in.	2 ft. 6^16 in.—3 ft. 4^3/_16 in.
5	4 ft. 9^2/_16 in.—5 ft. 3^4/_16 in.	4 ft. 8^3/_16 in.—5 ft. 4^9/_16 in.	4 ft. 6^12/_16 in.—5 ft. 6^10/_16 in.	4 ft. 4^13/_16 in.—5 ft. 9^13/_16 in.	4 ft. 2^4/_16 in.—6 ft. 3 in.	3 ft. 11^3/_16 in.—6 ft. 11^14/_16 in.	3 ft. 7^13/_16 in.—8 ft. 3^2/_16 in.	3 ft. 3^2/_16 in.—11 ft. 11^12/_16 in.
∞	87 ft. 8^1/_16 in.—∞	63 ft. 8^1/_16 in.—∞	45 ft. 1^5/_16 in.—∞	32 ft. 4^16 in.—∞	22 ft. 9^6/_16 in.—∞	16 ft. 2^6/_16 in.—∞	11 ft. 10^11/_16 in.—∞	8 ft. 3^8/_16 in.—∞

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

CE
