USER MANUAL MP7630B 3M

MP7630B/MP7730B Personal Projector

Operator's Guide

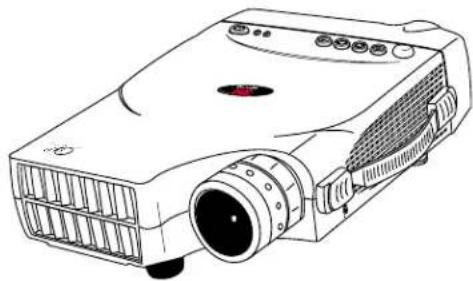

Line drawing of a projector with ventilation slots and a flat screen (no text or symbols)

Table of Contents

On the CD-ROM, please click on any section to jump to that section.

Introduction

Safeguards 4

Thank You for Choosing 3M 6

Warranty 6

Shipping Box Contents....7

Optional Accessories 7

Part Identification 8

Machine Characteristics....9

Remote Control Identification.... 10

Remote Control Features 11

System Setup

Screen Chart 13

Digital Keystone Correction.... 13

Connecting to Various Equipment 14

Mouse Connection 15

Operation

Start-up 16

Shutdown 17

Menu System 18

Optional Video Module 23

Attaching the Optional Audio/Visual Module 24

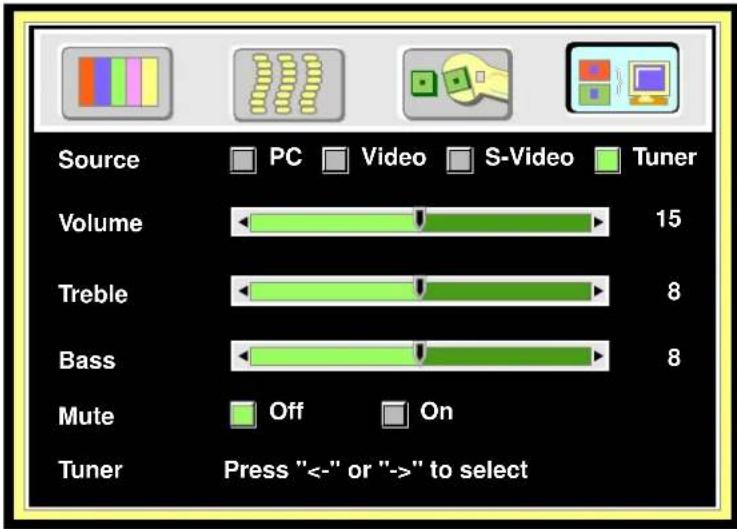

Optional Video Module Menus 25

Maintenance

Lamp Usage 29

Lamp Replacement 30

Resetting Lamp Hours 32

Troubleshooting

Common Problems & Solutions 33

Status Light Messages.... 34

Service Information

Accessories 35

Ordering Parts or Getting Information.... 35

The Appendix is in English only. Please click here (on the CD-ROM) to read it.

Introduction

Intended Use

Before operating the machine, please read the entire manual thoroughly. The 3M Personal Projector MP7630B/MP7730B was designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages. The use of other replacement lamps, outdoor operation, operation in environments containing heavy cigarette smoke or different voltages has not been tested and could damage the projector or peripheral equipment and/or create a potentially unsafe operating condition.

Important Safeguards

1. Read and understand all instructions before using. Pay particular attention to areas where these symbols are shown:

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Caution

Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. It may also be used to alert against unsafe practices.

√ Note - Used to emphasize important conditions or details.

1. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use.

2. Never look directly into the projector lens when the lamp is on. The high pressure mercury lamp produces a strong light that could damage your eyesight.

3. Care must be taken, as burns can occur from touching hot parts.

Caution

1. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged, until it has been examined by a qualified service technician.

2. Position the cord so that it will not be tripped over, pulled or placed in contact with hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.

4. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Grasp plug and pull to disconnect.
5. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.
6. To reduce the risk of electric shock, do not disassemble this appliance. Take it to a qualified technician when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

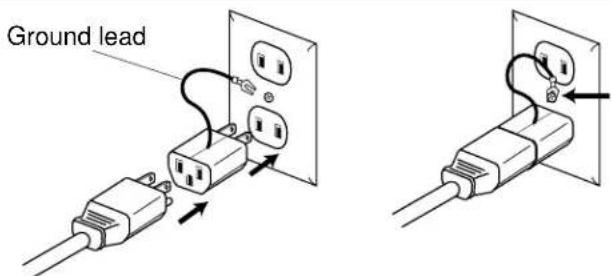

7. Connect this appliance to a grounded outlet.
8. Do not expose this projector to direct sunlight or use it outside.
9. Keep all ventilation openings free of any obstructions.
10. Always open the lens shutter or remove the lens cap when the projector lamp is on.
11. Do not look directly into light beam of laser pointer. The pointer produces a strong light which could damage your eyesight.
12. The projection lamp contains mercury. Always dispose of it in a proper manner according to local regulations.
13. Always operate machine on a flat, sturdy surface.

Introduction

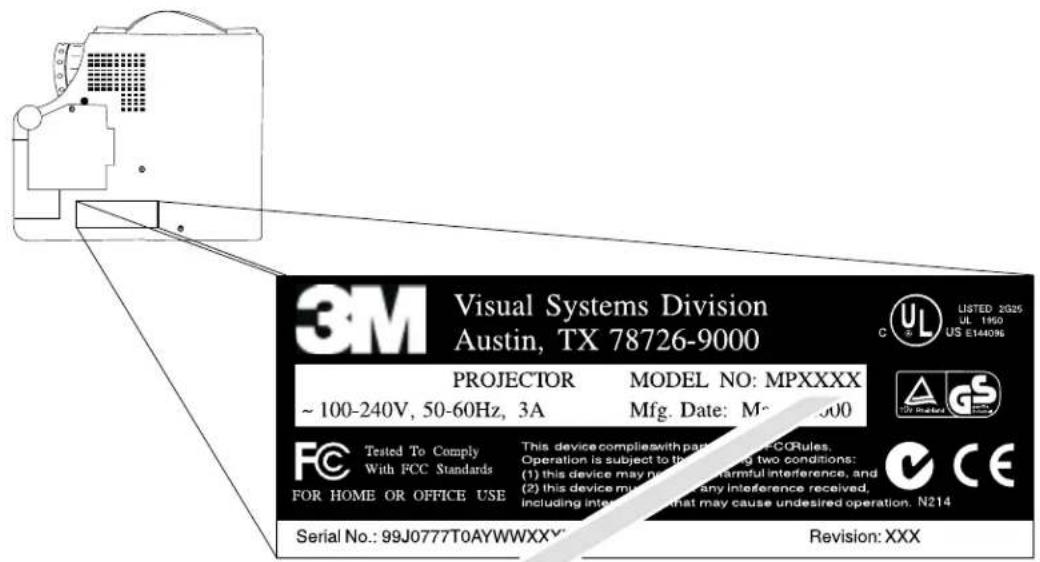

Product Safety Labels

The following safety labels are used on or within the MP7630B/MP7730B projector to alert you to items or areas requiring your attention.

Lamp Unit: 60.J1502.001

HIGH VOLTAGE / HIGH TEMPERATURE / HIGH PRESSURE

WHEN REPLACING THE LAMP, TURN OFF THE PROJECTOR AND PULL OUT THE CORD FROM THE RECEPTACLE BEFORE REPLACING THE LAMP. WAIT UNTIL THE LAMP BECOMES COOL (MINIMUM 45 MINUTES). TOUCHING THE LAMP WHEN IT IS HOT MAY CAUSE A BURN ON YOUR HAND. HIGH PRESSURE LAMP WHEN HOT MAY EXPLODE IF IMPROPERLY HANDLED. REFER TO USER'S GUIDE.

HAUTE TENSION / HAUTE TEMPERATURE / HAUTE PRESSION

ETEIGNEZ LE PROIECTEUR ET DEBRANCIEZ LE CORDON D'ALIMENTATION DE LA PRISE AVANT DE REMPLACER L'AMPOULE. LAISSEZ REFROIDIR L'AMPOULE (U MOIN 45 MINUTES) AVANT DE LA RETIRER. POUR NE PAS VOUS BRULER LES MAINS, EN CAS DE MALVAISES MANIPLICATION LES AMPOULES HAUTE. PRESSION RISQUENT D'EXPLOSER QUAND EL LE SONT CHAUDIES. CONSULTEZ LE MODE D'EMPLOL.

HOHSPANNUNG / HOCH TEMPERATUR / HOCHDRUCK

BEIM AUSWECHSLEIN DER GLÜHLAMPE DEN PROFKTOR AUSSCHALTEN UND NETZKAREL AUS DER WANDSTECKDOSE, ABZIEHEN, VOR DEM AUSWECHSLEIN DER GLÜHLAMPE WARTEN. BIS LAMPE ABGEKÜHILT IAT (MINDERSTENS 45 MINUTEN) DARAF ACHTEN. DAB DIE HEIBE GLÜHLAMPE NICHT BERÜHRT WIR DA DIES VIRBRENNNGEN VERUKSACHIN KANN. BEI UNSACHICUMASSER BEHANDUNG KANN DIE UNTER HOCHIM DR.LCK STEIJENDE BRINE EXPLODIEREN SICH AUF DIB REDENUNGSANLETTUNG BEIZIEHEN.

ALTO VOLTAGGIO / ALTA TEMPERATURA / ALTA PRESSION

SE SI DEVE SOSTITURE LA LAMPADA, SPIONERIE IL PROFITTORE ED ESTRARRE LA SPINA DEL CAYO DI ALIMENTAZIONE DALLA PRESA DELLA RETTE ELETTRICA PRIMA DI SOSTITURE LA LAMPADA. ASPETTARE CHE SI RAFFREDDI (ALMENO 45 MINUT) A TOCCARE LA LAMPADA QUANDO È CALDA SI CORRE IL RISCHIO DI SCOTTARSI LA MANO. CONSULTARE LE ISTRUZIONI PUR L'USO.

ALTO VOLTAJE / ALTA TEMPERATURA / ALTA PRESION

PARA REEMPLAZAR LA LÁMPARA, APAGUE EL PROYECTOR Y RETIRE EL CABLE DE ALIMENTACION DEL TOMACORRIENTE ANTES DE REEMPLAZAR LA LÁMPARA. ESFERE HASTA QUE LA LÁMPARA SE ENFERE (ALMENOS 45 MINUTOS) SI TOCA LA LÁMPARA CUANDO ESTÁ CALIENTE. PUEDE QUE'MARLE LAS MANOS. LA LÁMPARA IS ALTA PRISION CUANDO ESTÁ CALIENTE. PUEDE EXPLOTAR SI NO IS MANIPULADA DEBIDAMENTE CONSULTE LA GUÍA DEL US LARIO.

WARNING / AVERTISSEMENT / VORSICHT / PRECAUCION

RISK OF ELECTRIC SHOCK - DO NOT OPEN. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

POUR PRÉVENTIR DE TOUT CHOC ÉLECTRIQUE, NE PAS OUVRIR L'APPAREIL, AUCUNE PIÈCE INTERNE N'EST CHANGEABLE PAR L'UTILISATEUR. POUR LA MAINTENANCE, SE REFÉRÉR AU PERSONNEL QUALIFIÉ.

GEFAHR DES ELEKTRASCHEN SCHLAGES RÜCKWAND NICHT ENTFEREN: WENDEN SIE SICHAN SERVICE - FACHPERSONAL PARA PREVENTIR DESCARGAS ELECTRICAS, NO ABRIR LA TAPA, NI MANIPULAR EN SU INTERIOR SI NO ES POR PERSONAL CUALIFICADO.

Apparatet mül kun tilkoples jordef stikkontakt.

Caution

In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a bandwidth of 110 to 230 volts ± 10 volts, but could fail if power drops or surges of ±10 volts occur. In these high-risk areas, it is recommended to install a power stabilizer unit.

Save These Instructions

The information contained in this manual will help you operate and maintain your 3M ^™ MP7630B/MP7730B Personal Projector.

Introduction

Thank You for Choosing 3M

Thank you for choosing 3M multimedia projection equipment. This product has been produced in accordance with 3M's highest quality and safety standards to ensure smooth and troublefree use in the years to come.

For optimum performance, please follow the operating instructions carefully. We hope you will enjoy using this high performance product in your meetings, presentations, and training sessions.

Warranty

Limited Warranty

3M warrants this product against any defects in material and workmanship, under normal usage and storage, for a period of two years from date of purchase. Exclusion to Warranty: The lamps are considered a consumable item and are warranted for 90 days or 180 hours, whichever occurs first. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. In the USA call 1-800-328-1371 for warranty or repair service.

Limitation Of Liability

THE FOREGOING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. 3M SHALL NOT BE LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUENTIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT.

Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M's written instructions. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

FCC STATEMENT - CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

Instructions to Users: This equipment complies with the requirements of FCC (Federal Communication Commission) equipment provided that following conditions are met. The cables (power cord, RGB cable and other cables) may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.

Video Signal Cables: Double shielded coaxial cables (FCC shield cable) must be used, and the outer shield must be connected to the ground. If normal coaxial cables are used, the cable must be enclosed in metal pipes or in a similar way to reduce the interference noise radiation.

Video Inputs: The input signal amplitude must not exceed the specified level.

Patents, Trademarks & Copyrights

IBM is a registered trademark of International Business Machines Corporation. Apple Macintosh and Apple Powerbook are registered trademarks of Apple Computer, Inc. Microsoft and Windows 95 and Windows 98 are registered trademarks, and Windows and Windows for Workgroups are trademarks of the Microsoft Corporation. Toshiba is a registered trademark of Toshiba Corporation. All other products are trademarks or registered trademarks of their respective companies.

Introduction

Shipping Box Contents

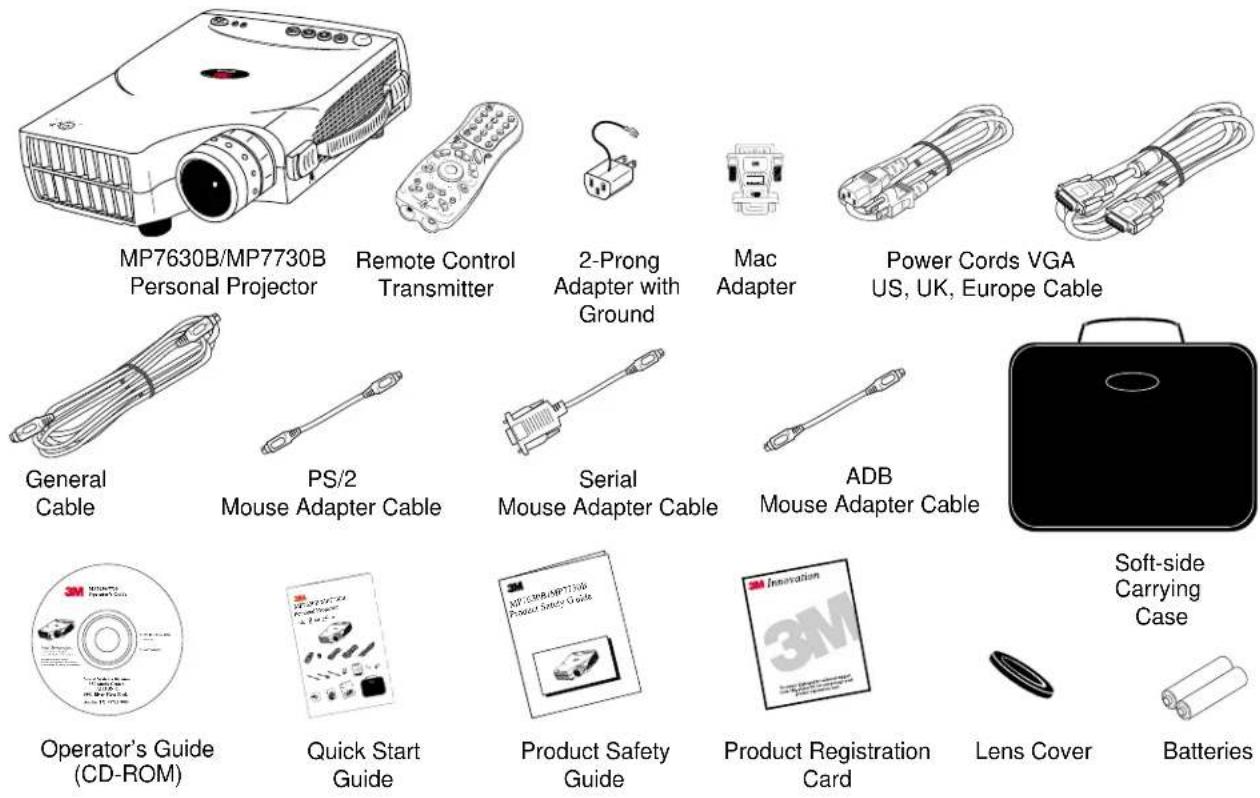

The 3M ^™ MP7630B/MP7730B Personal Projector is shipped with the necessary cables required for standard VCR, PC, Macintosh ^™ or laptop computer connections. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Optional Accessories

Video Module (RCA with tuner)....(1)

Video Module (SCART without tuner) ..... (1)

√ Note: For more information on the Optional Video Module and its functions, please see the Optional Video Module section of this manual.

√ Note: Save the shipping box and packing materials in the event the MP7630B/MP7730B should require shipping to a 3M Service Center for repair.

What's Next?

After you have unpacked the MP7630B/MP7730B and identified all the parts, you are ready to set up the projector.

Please read this guide thoroughly before operating your new projector.

Be sure to check our web site (www.3m.com/meetings) regularly for updates and supplemental information. On the CD-ROM, you can link directly to the web site by clicking here or on "3M Innovation" in the lower right corner of the Main Menu.

Introduction

Part Identification

Line drawing of a device with a labeled component (14), no text or symbols present

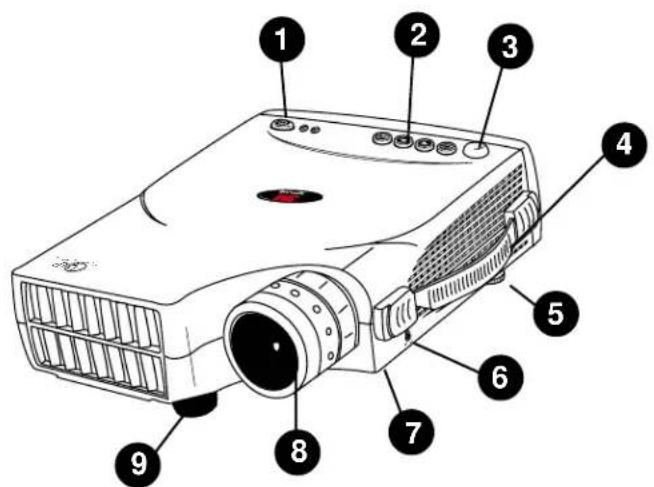

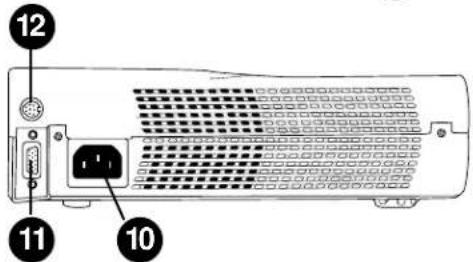

1. Standby/On Button 8. Projection Lens
2. External Control Pad (see next page) 9. Height Adjustment Foot
3. Remote Control Sensor 10. AC Power Cord Input
4. Carrying Handle 11. Serial Port Terminal Connection
5. Image Tilt Control 12. Mouse Control Port (Serial • PS/2 • ADB)
6. Kensington Lock Slot 13. Remote Control Transmitter
7. Lamp Access Door (underneath unit) 14. Video Module Connection

Introduction

Machine Characteristics

The MP7630B/MP7730B Personal Projector integrates ultra-high bright lamp and TI ^™ DLP ^™ technology into a single unit.

The MP7630B/MP7730B Personal Projector offers the following features:

• Small and portable unit
• Ability to display 16.7 million colors
• Easy to set up and use • Full function remote control
  • Digital keystone correction
  • SVGA resolution and component video compatible
  (MP7730B: XGA resolution) • IR remote control sensor on top
  • Horizontal and vertical image inverting
• On screen menus in seven languages
  • Horizontal and vertical image position control
  • Color balance control for data/video
• Ultra-high brightness projection lamp
  • RS-232 control capability

The MP7630B/MP7730B Personal Projector offers the following optional features:

- Attachable video module • Cable television (CATV) tuner

√ Note: The brightness of your machine will vary depending on the ambient room conditions and contrast/brightness settings.

External Control Pad Buttons

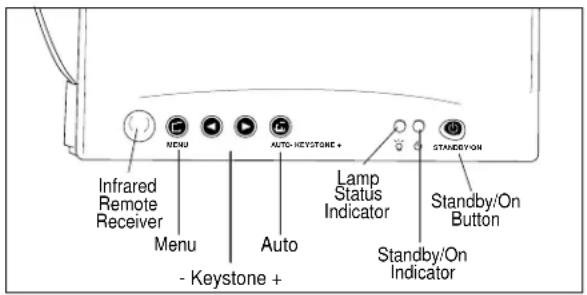

The External Control Pad is located on top of the projector, near the back end.

The Infrared Remote Receivers allow the projector to accept signals from the remote control. For best results, be sure to aim the control toward the sensors, without any obstructions between the two, and at a distance no greater than 4 meters (13 feet).

The Menu button will display the menu system onscreen. Press Menu again to access the sub-menus.

The Keystone buttons help correct keystone distortion of a projected image. The Keystone + button corrects distortion in the upper part of the image. The - Keystone corrects it in the lower part. When you are viewing the onscreen menus, the Keystone buttons help navigate among choices and settings in the sub-menus.

Press the Auto button to automatically adjust a projected image on screen. When you are viewing the onscreen menus, press Auto to go back to the Main Menu. Press Auto again to exit the menu system.

The Lamp Status Indicator will blink or light up when the lamp needs service, cooling or replacement. See page 34 for more detailed information.

When the projector is turned on, the Standby/On Indicator will blink during warm-up and lamp ignition, then stay green to indicate the projector is ready for use.

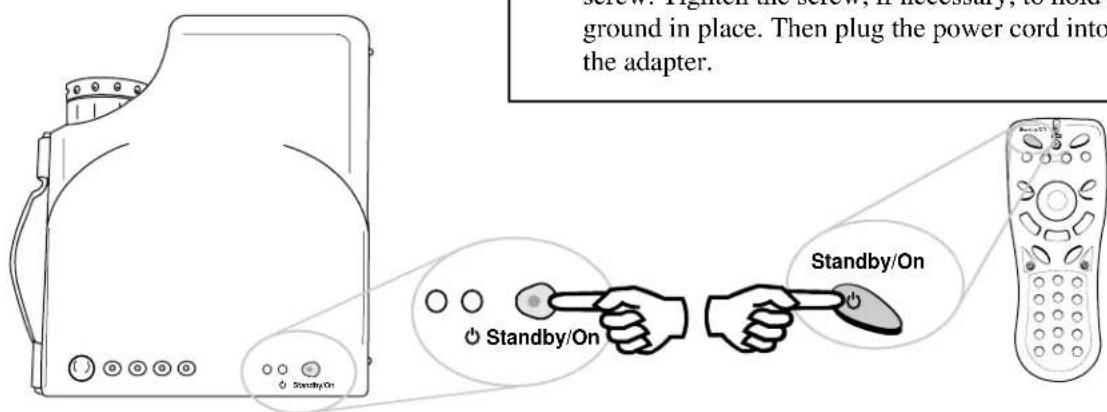

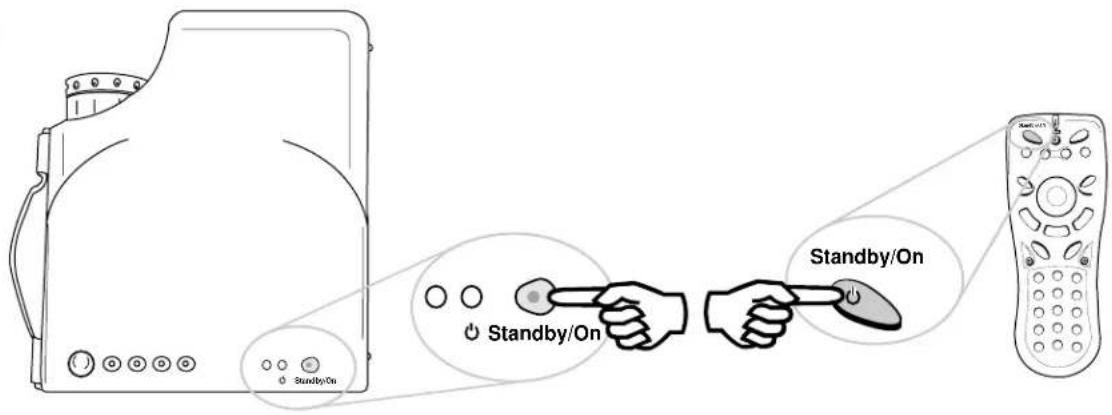

Press the Standby/On Button to turn the projector on or off.

Introduction

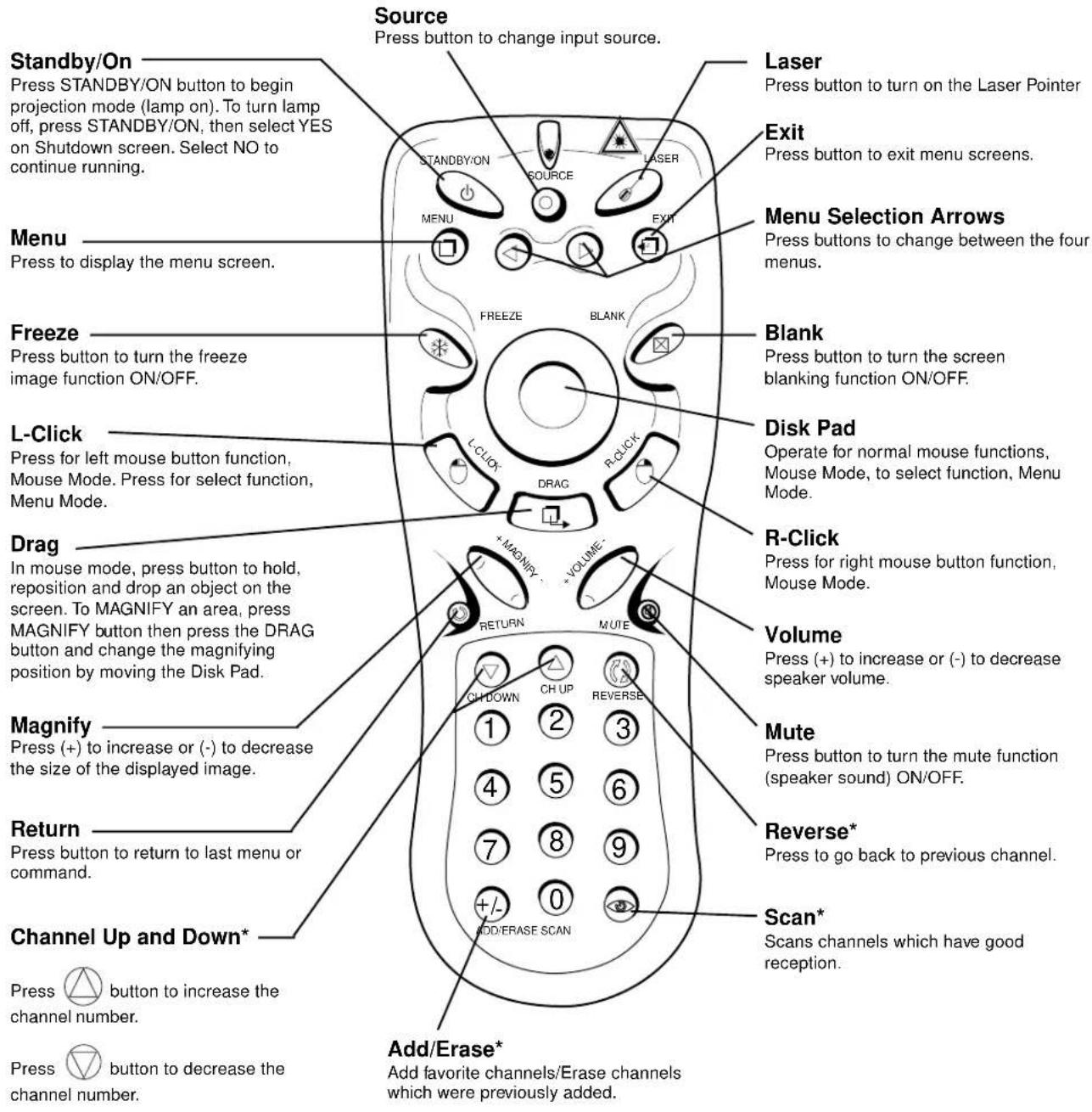

Remote Control Identification

*√ Note: These features are for use only with the optional video module.

Introduction

Remote Control Features

The remote control sensor is located near the back of the projector. The distance between the sensor and the remote control unit must be shorter than 4 meters (13 feet).

Freeze

The image will be frozen when the Freeze button is pressed. A “Pause” icon appears at the lower right of the screen for three seconds during the freeze function. A “Play” icon appears at the lower right of the screen for three seconds when the freeze function is released. To release the freeze function, press the Freeze button or Source button (when the input source is switched over during display).

Freeze button

"Pause" icon

"Play" icon

Mute

Pressing the Mute button will mute the sound. A text box saying “Mute” appears at the lower right of the screen. Press Mute button again or Volume + or - button to release the function.

Mute button

Volume

Press the Volume + or - button to adjust the loudness. The volume slide bar will disappear three seconds after the last adjustment is made.

Volume button

Magnify

By pressing Magnify +, the center of the picture can be magnified, doubling in size. When the button is pressed again, the picture is further magnified, up to four times the original size. By pressing Magnify -, the size of the image is reduced to half its size. When the button is pressed again, the picture is further reduced until it is restored to the original size. To return to the normal display mode, press the Return button. (This function can be used in combination with the Freeze function.)

Magnify button Magnify icon

Introduction

Laser

Press this button to generate the laser beam that functions as a red pointer on the screen.

Laser button

Disk Pad

If the PS/2 (ADB) mouse cable is connected with the PC Notebook or Mac PowerBook mouse port, the Disk Pad can take over the Notebook or PowerBook mouse function. When the Magnify function is activated, use the Disk Pad to move around the display areas.

Note: The mouse function is not available when the Magnify function is turned on.

Disk Pad button

R-Click, L-Click

These two keys are used when the mouse function is activated after the PS/2 port is connected. They act as the right (R) and left (L) buttons of a computer mouse.

L-Click button

R-Click button

Drag

This button toggles between ON and OFF for the drag function of the remote mouse.

Drag button

Blank

Press this button to activate or release the Blank function. Blank makes the screen go blank.

Blank button

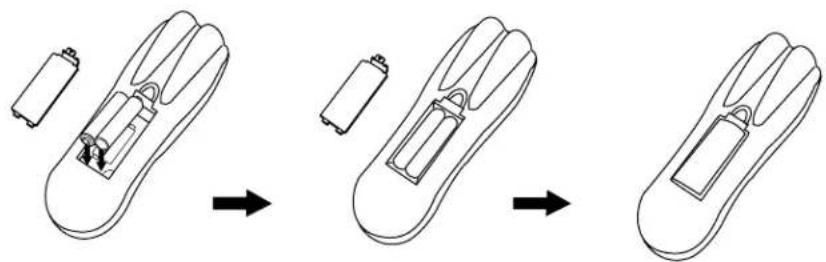

Installing or Replacing Batteries

• Push and slide the battery compartment lid in the direction shown.
  • Install two AAA batteries as indicated by the diagram inside the compartment.
• Position the lid over the compartment and snap back into place.

Diagram showing three-step battery assembly process: adding a battery, adding an internal component, and adding a plug into a final package (no text or labels)

Caution

• Avoid excessive heat and humidity.
• Do not mix old and new batteries or different types of batteries.

System Setup

Screen Chart

Place the projector at the required distance from the screen according to the desired picture size (see the table below).

Screen Size			Distance to Screen
Width	Height	Diagonal	Minimum	Maximum
67.9 cm(27 in.)	50.9 cm(20 in.)	84.8 cm(33.4 in.)	1.5 m(5.0 ft.)	2.0 m(7.0 ft.)
101.2 cm(40 in.)	75.9 cm(30 in.)	126.5 cm(49.8 in.)	2.3 m(8.0 ft.)	3.0 m(10.0 ft.)
134.7 cm(53 in.)	101.0 cm(40 in.)	168.4 cm(66.3 in.)	3.1 m(10.0 ft.)	4.0 m(13.0 ft.)
200.2 cm(79 in.)	150.1 cm(59 in.)	250.2 cm(98.5 in.)	4.6 m(15.0 ft.)	6.0 m(20.0 ft.)
265.6 cm(105 in.)	199.2 cm(78 in.)	332.0 cm(130.7 in.)	6.1 m(20.0 ft.)	8.0 m(26.0 ft.)
331.0 cm(130 in.)	248.3 cm(98 in.)	413.8 cm(162.9 in.)	7.7 m(25.0 ft.)	10.0 cm(33.0 ft.)
399.5 cm(157 in.)	299.6 cm(118 in.)	499.4 cm(196.6 cm)	9.3 m(30.0 ft.)	12.0 m(39.0 ft.)

Note: These sizes are ± 1% . This is due to variations in the manufacture of the lens. If you are close to one of the endpoints you should verify with your unit that the image is the proper size at the proper distance.

For your own customized screen chart, please click here (on the CD-ROM) or visit our Projector to Screen Calculator on the 3M web site (www.3m.com/meetings/screen/7630_calc.html).

Digital Keystone Correction

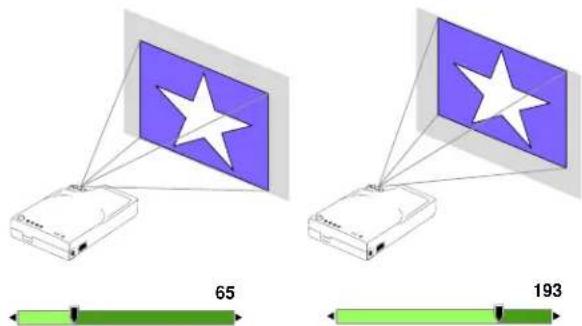

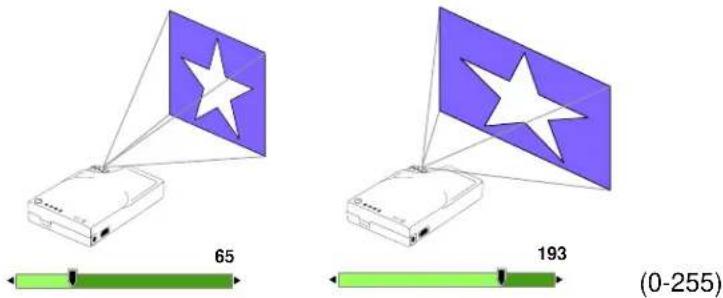

Keystoning is when the projected image is noticeably wider on either the top or bottom. There are two ways to correct this:

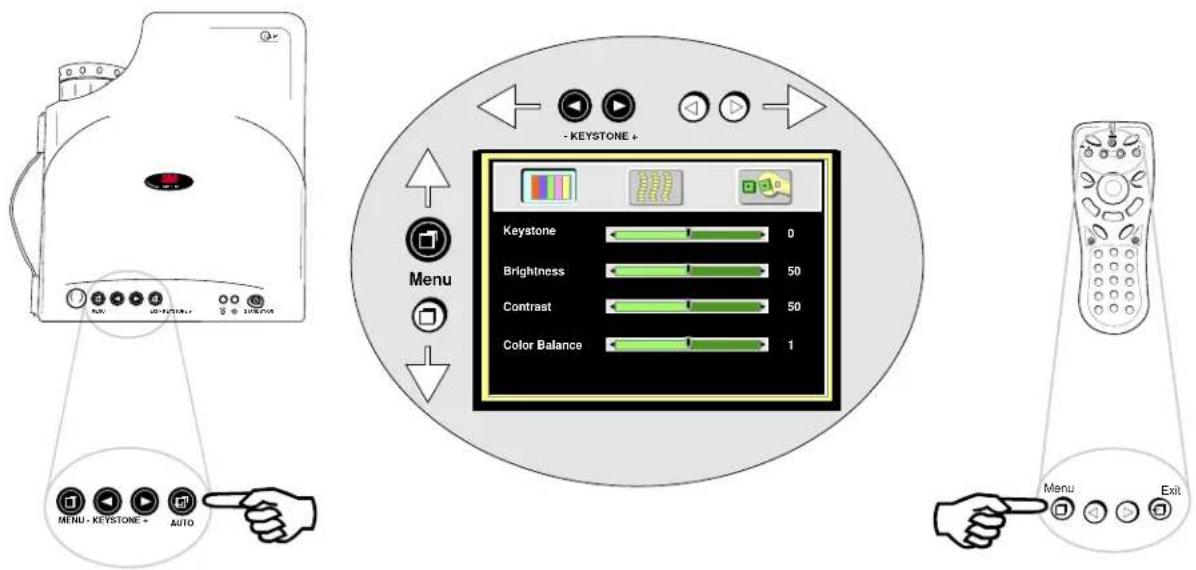

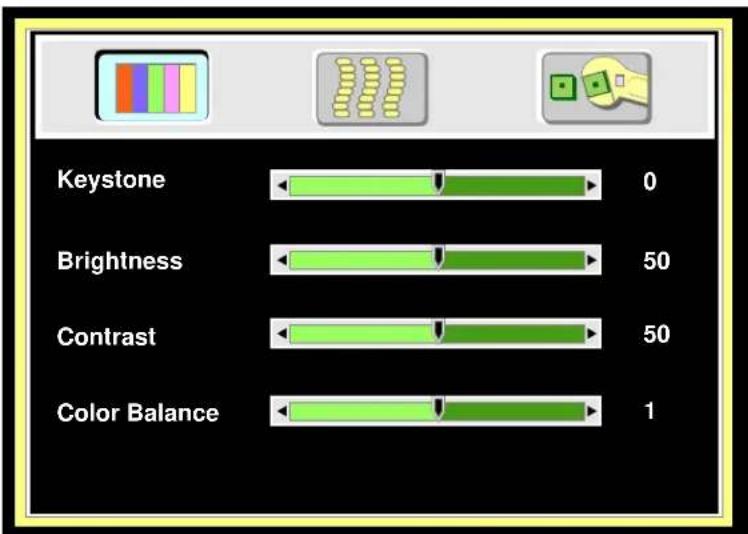

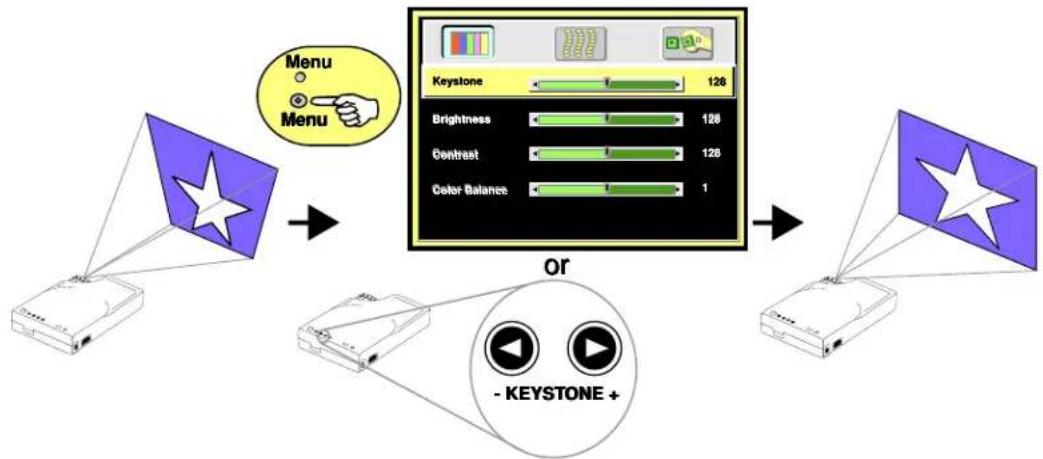

1. Press Menu on the remote control or projector, then select the Display menu (first menu bar button on the left), then adjust the sliding bar labeled Keystone, as needed.

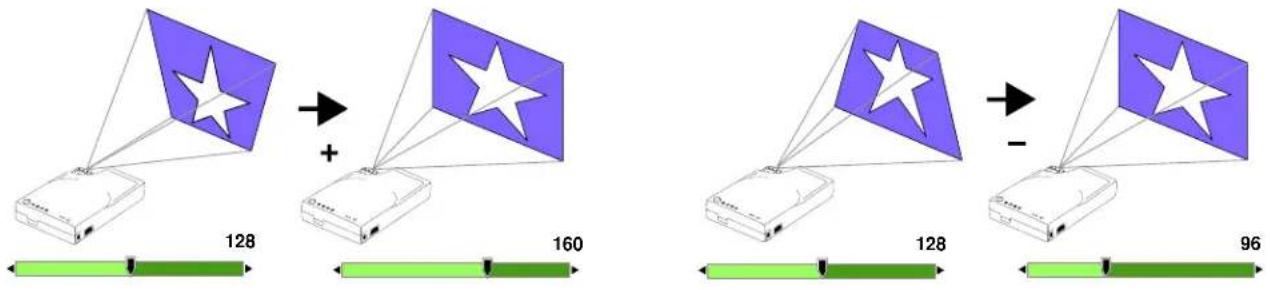

2. Use the Keystone buttons on the external control pad. Pressing the + button will correct keystoning at the top of the image. Pressing the - button will correct keystoning at the bottom of the image.

System Setup

Connecting to Various Equipment

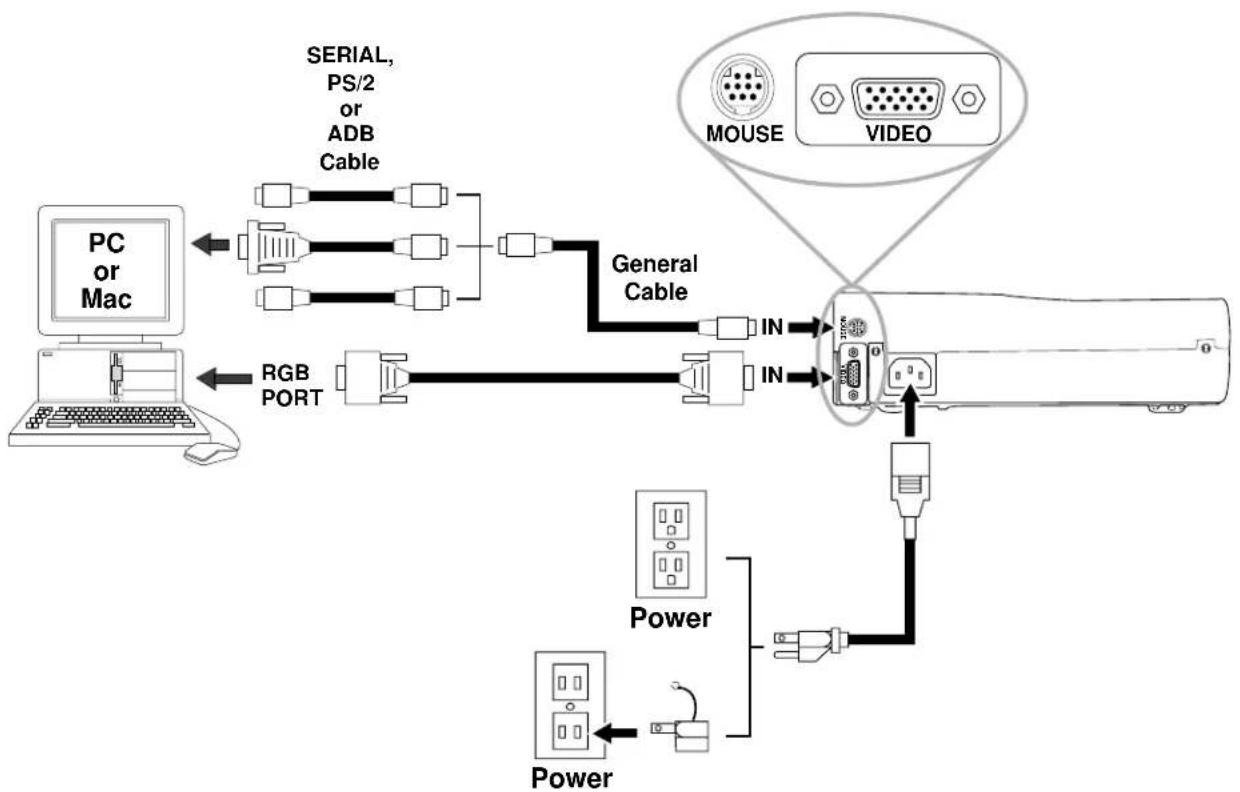

It only takes a few minutes to connect the 3M ^™ Personal Projector MP7630B/MP7730B to your computer, VCR, or other device.

Caution

- Turn off power to all devices before making connections. Never plug anything into the projector or computer while any device is in operation.

- The MP7630B/MP7730B must be powered down when making connections. The mouse emulation may not work if the unit is not powered down before the mouse cable connections are made.

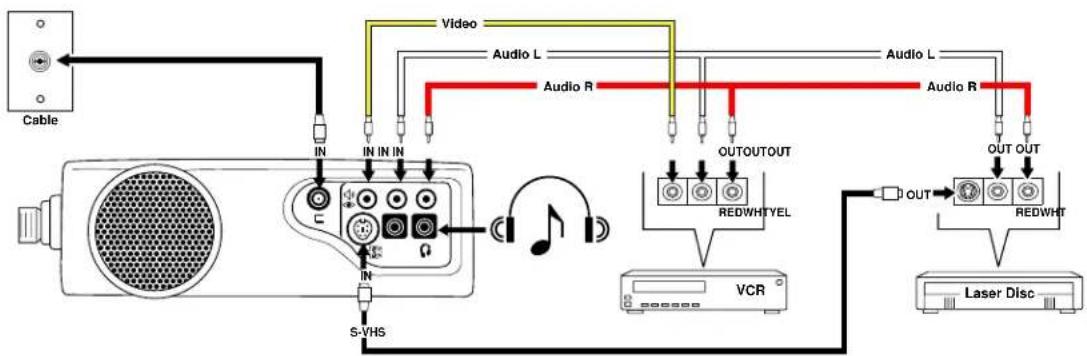

Connection Terminals

System Setup

Mouse Connection

The general cable links the projector to the proper mouse adapter cable for your computer.

1. Attach the male Mini-DIN end of the general cable to the Mouse port on the rear of the projector.
2. Attach the female Mini-DIN end of the general cable to the end of the proper mouse adapter cable for your computer (serial, PS/2 or ADB cable). Line up the arrows on the sides of the plugs before attaching. Be sure not to bend or break the small metal pins inside the plugs.
3. Attach the other end of the mouse adapter cable to the proper port on your computer (serial, PS/2 or ADB).

Apple™ Desktop Mouse

The Macintosh operating system should recognize the MP7630B/MP7730B as a mouse without any drivers being loaded.

VirtualMouse for PC Computer

For IBM ^™ compatible computers, set the operating systems to Serial Mouse or PS/2 Mouse to recognize projector as the mouse pointer device.

To set mouse driver information:

a) Windows ^TM 95/Windows ^TM 98/Windows ^TM NT

1. Select Start/Settings/Control Panel.
2. Select Add New Hardware.
3. "Windows will now search for any PnP devices..." Click Next.
4. Hardware Types: Scroll down to Mouse. Click Mouse.
5. Select Manufacturer: Standard Mouse Type
6. Select Model: Standard Serial Mouse
7. Click Next, Finish, Start.
8. Restart Windows if prompted.

b) Windows ^TM 3.1

From Program Manager

1. Click Main
2. Click Windows Setup (make note of the current mouse driver)
3. Click Options
4. Then Change Systems Settings
5. Choose Mouse
6. It should be listed as Microsoft or IBM PS/2

√ Note: For proper mouse operation, always turn the projector power on first and power up the computer. For some laptop computers, you may need to disable the internal pointing device (IPD). This is done through the BIOS level set-up of the particular machine, or it could be listed in a “Utilities” program group, i.e., “Toshiba Utilities™,” or “Thinkpad Features™.”

Operation

Startup

1

√Note: Make all cable connections and line hookups with the power off.

The 2-prong adapter with ground is used with older U.S. electrical outlets that only support 2-prong power cord plugs.

√ Note: When using this adapter, the ground lead MUST be securely fastened to the ground screw on the outlet.

2

Plug the 2-prong adapter into the bottom socket of the electrical outlet. Hook the end of the ground lead firmly around the neck of the outlet's ground screw. Tighten the screw, if necessary, to hold the ground in place. Then plug the power cord into the adapter.

1. Plug power cord into wall socket. Wait 5 seconds before pressing the Standby/On button.

2. Press the Standby/On button and hold for 3 seconds.

- The ON indicator will blink green during warm-up and lamp ignition. (When power is turned off, there is a 90-second reset period before the Standby/On button will function again.)

1. Turn on all connected equipment.

√ Note: If you have the Optional Video Module attached to the unit, press the Source button on the remote to select the source of the signal to be projected onto the screen. The selected signal input is displayed at the top right of the screen. The display will show the last selected input source before power was turned off. (For more information, please refer to the Optional Video Module section of this manual.)

Operation

Shutdown

1

2
Wait 90 seconds

3

1. Press the Standby/On button. The Shutdown screen will display. Select the YES option (press - Keystone + buttons or Disk Pad button) to turn off.
2. The fan will continue to run for approximately 90 seconds.
3. Disconnect power cord from wall socket.
4. Disconnect cables if moving projector to new location.

Caution

Do not unplug power cord before pressing the Standby/On button. After the Standby/On button is pressed, the fan rotates for about 90 seconds to cool the projector.

Operation

Main Menu

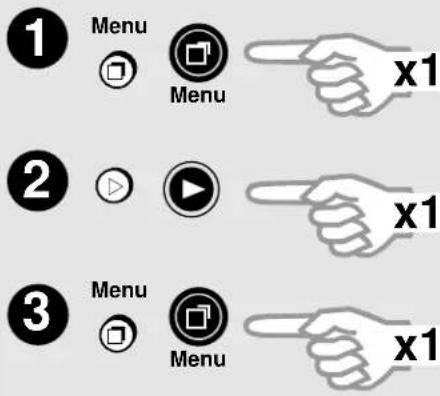

Press Menu on the remote control or external control pad, and the main menu will display on the screen. Press Menu again to enter page items, and press Keystone buttons to select sub-menus. The main menu will go off automatically if there is no further action from user for 10 seconds. Press the Auto button to leave the current sub-menu, and press Auto again to leave the main menu.

Menu Pages

MENU BAR
MENUTUOYAL	sune	MyalpsiD	suneMegaml	uneMeBo(only withVideo Module)
utMlanpoeVielucoM	eneKesthgabColor Balance	ziSotuAHorizontal PhaseHorizontal SyncHorizontal PositionVertical Position	egaugnaLMorrlBotOfRese	(not applicable)
caWwithlanpoeVielucoM	eneKesthgabesprahS	ziSotuAHorizontal PhaseHorizontal SyncHorizontal PositionVertical Position	egaugnaLMorrlBotOfRese	cauoSeoviberaaBMute
oeViu pnlwithlanpoeVielucoM	eneKesthgabColor Balance	fīnesprahSegaimeyS	egaugnaLMorrlBotOfRese	cauoSeoviberaaBMute

Operation

Menu Navigation

To Menu Items

Display Menu

Operation

Display Menu

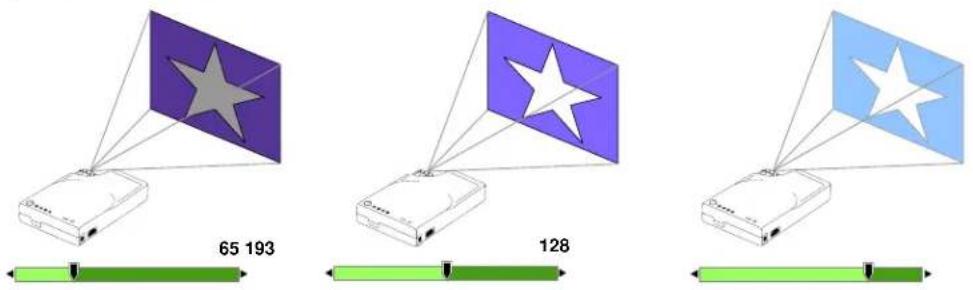

Keystone 5)

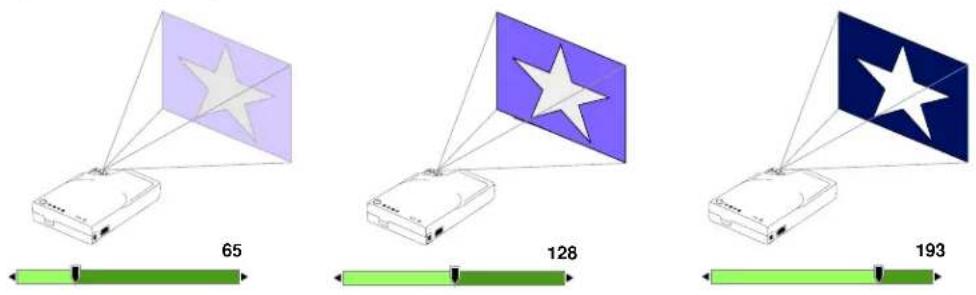

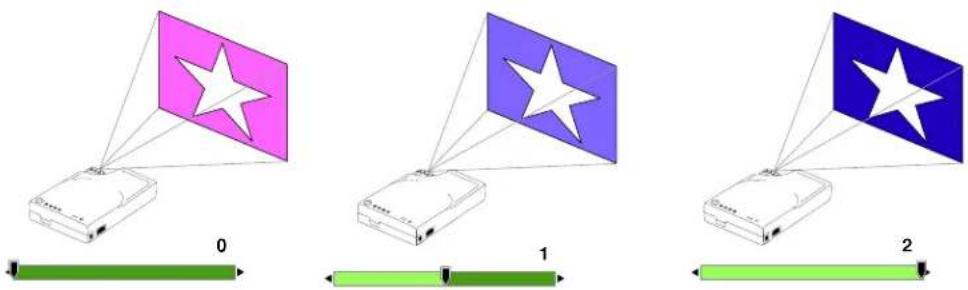

Brightness 255)

Contrast

Color Balance (0-2)

Operation

Image Menu

To Menu Items

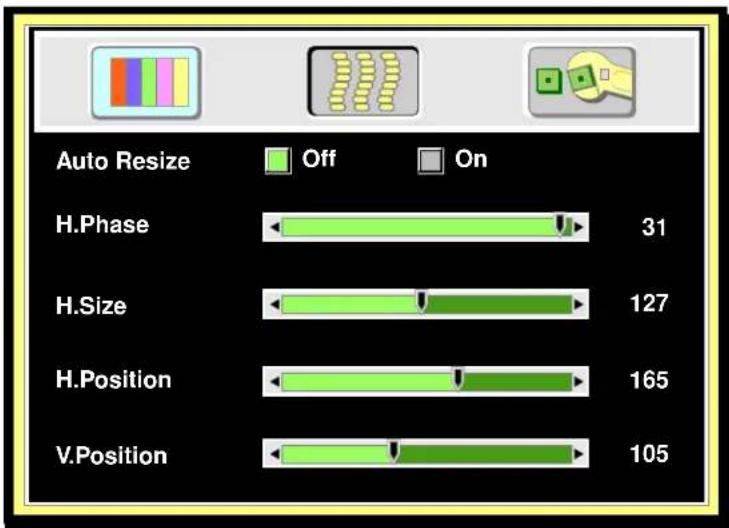

Auto Resize

Will automatically adjust image to fit onto screen.

Off On

Horizontal Phase

(Auto Resize OFF)

(0-31)

Horizontal Size
(Auto Resize OFF)

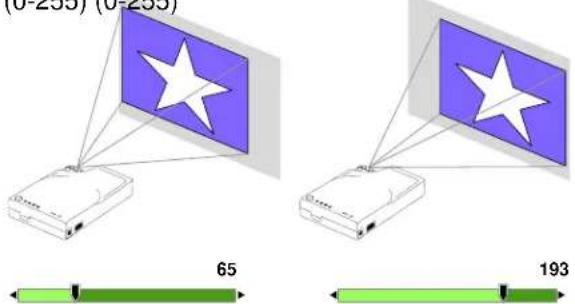

Horizontal Position

(Auto Resize OFF)

(0-255) (0-255)

Vertical Position
(Auto Resize OFF)

Operation

Control Menu

To Menu Items

MENU

MENU

Auto

Will automatically adjust projected image.

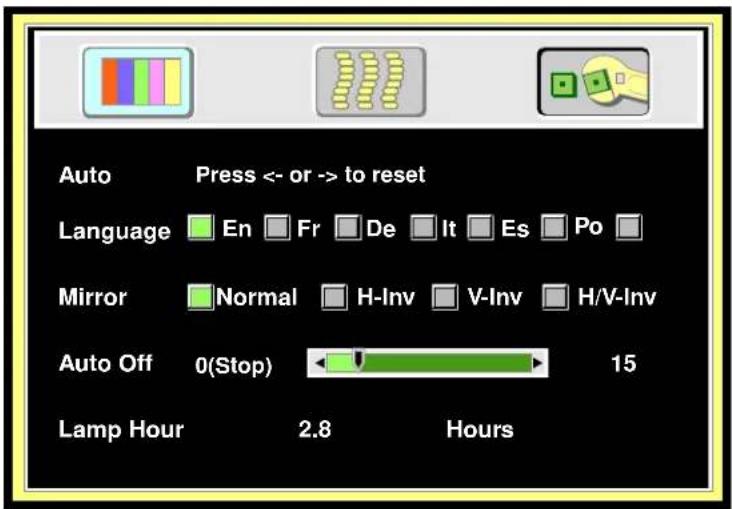

Language

English (En) French (Fr) Deutsch (De) Italian (It) Español (Es) Portuguese (Po) Simplified Chinese ( )

Mirror

Will invert image to display properly according to position of projector.

Normal
(Default)

Diagram showing a device connected to a flag with a star, no text or symbols present

H-Inv (Horizontally Inverted)
(Rear-screen projection)

Illustration of a projector with a white star on its screen, against a purple background (no text or symbols)

V-Inv (Vertically Inverted)

(Ceiling mounted)

Diagram showing a blue square with a white star cut out, connected to a small rectangular object (no text or symbols present)

H/V-Inv (Horizontally/Vertically Inverted)

(Rear-screen projection, ceiling mounted)

Illustration of a spacecraft with a star and a cylindrical object inside a blue rectangular frame (no text or symbols)

Auto Off

Will turn off the power in 60 minutes.

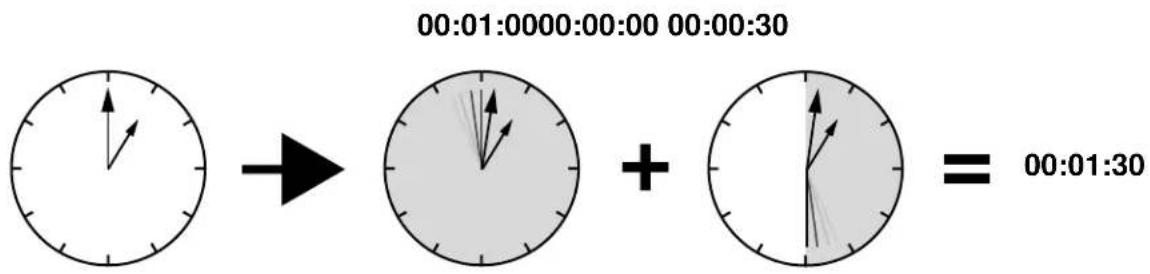

00:00:00 00:60:00

Lamp Hour

Will reset the lamp hours after lamp is changed.

Optional Video Module

Features

The Optional Video Module makes it possible to hook the MP7630B/MP7730B to a laser disc, VCR, or other video devices. Two versions will be available: an NTSC Package (with RCA connectors and television tuner), and a PAL package (with a SCART connector and no television tuner).

Line drawing of a device with a labeled component (1) showing internal structure and ports (no text or symbols beyond label)

Back of projector without Optional Video Module

NTSC Package:

• NTSC Tuner Module
• CATV
• S-Video
• 3 RCA
• Audio

PAL Package:

• PAL Video Module
• S-Video
- SCART connector
• Audio

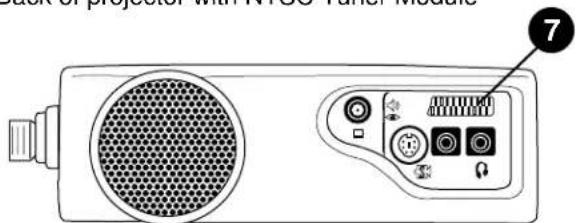

Back of projector with NTSC Tuner Module

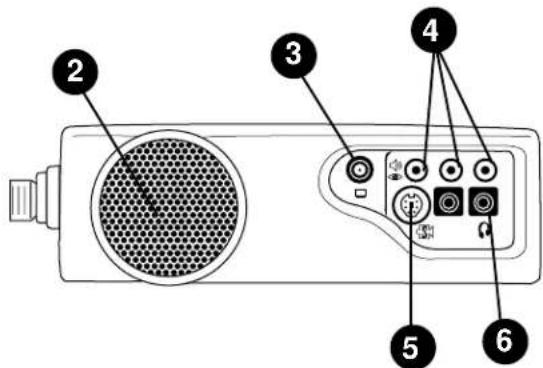

1. Video Module Connection
2. Speaker
3. Cable Television (CATV) Connection
4. RCA Cable Connection

(a) Video (Yellow)

(b) Audio (White/Red)

1. S-Video Connection
2. Headphone Jack
3. SCART Connection

Back of projector with PAL SCART Module Top view of video module

Optional Video Module Connections

Attaching the Optional Video Module to the MP7630B/MP7730B

Caution

Power down the projector before connecting the Optional Video Module or any other device. Failure to do so may cause serious damage.

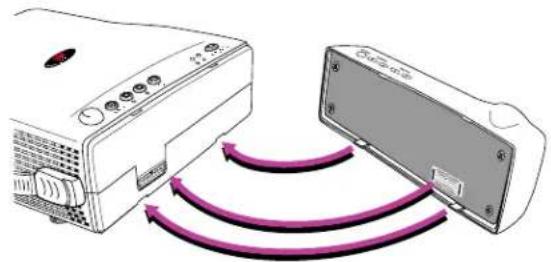

1. Precisely align the two metal tabs on the bottom of the module and insert into the corresponding slots on the back of the projector.
2. Slowly push the module to fit with the unit. Make sure that the module plugs into the AV connection on the projector.
3. Plug the correct cable into the corresponding jack or port in the back of the unit.
4. Select inputs by pressing the Source button, and select the appropriate source channel by pressing the Channel Up/Down buttons.

Diagram showing two devices connected by purple arrows, one with a power button and the other with a device (no text or symbols present)

Line drawing of a projector with ventilation slots and control panel (no text or symbols)

Switching Input Signals

Pressing the Source button on the remote control or the projector will cycle between these choices of input signals: RGB (computer), Video (composite video from a VCR), S-Video, and Tuner. The projector will then search for the selected type of signal until it is found or switched to another type.

Source button

SOURCE

Scanning Channels

The MP7630B/MP7730B can receive over 100 television channels. In Tuner mode (TV and CATV), press the Scan button on the remote control to view all available television channels. The message “DO YOU REALLY WANT TO SCAN? YES NO” will appear onscreen. Press either the left or right arrow buttons on the remote to reach Yes or No, then press the Menu button to enter the selected answer. The message “TUNER IS SCANNING NOW” will display for a few seconds, and then the scanned channels will appear for a few seconds each.

Scan button

Left and Right buttons

Optional Video Module

Image Sub-Menu

This menu is only available when the input signal is from Video, S-Video, TV or CATV.

Color

Less More

Tint

Red Green (Source is video or S-video)

Image Ratio

4:3 (Normal) 16:9 (Video)

System

Auto PAL-M PAL-N SECAM

Optional Video Module

Operation

1. Go into the menu system and move to the Source sub-menu. Use the Menu button on the control pad or remote control unit to scroll through items in the sub-menu. Select the Tuner items and press the - Keystone + keys to prompt out of the tuner menu.

1. Use the Menu button on the control pad or remote control unit to scroll through the Tuner sub-menu.

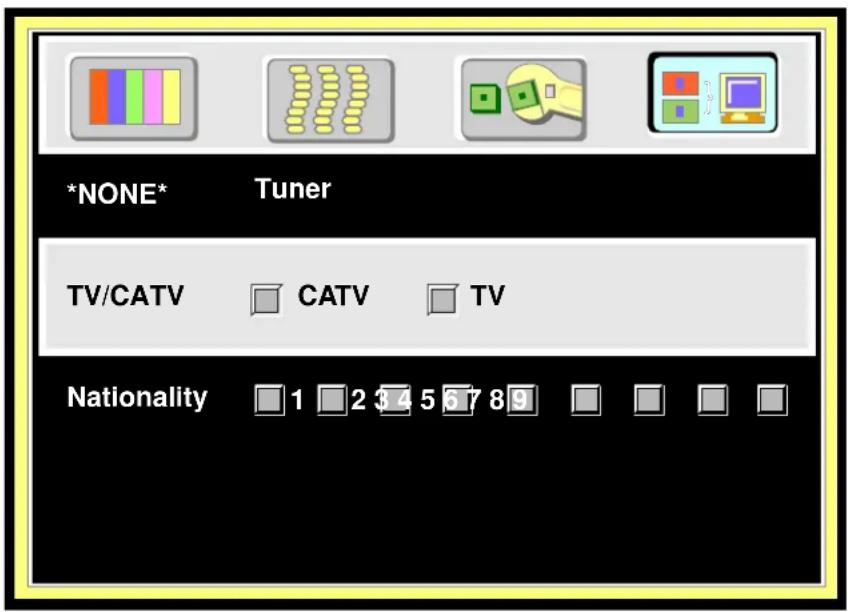

2. TV/CATV: Please select the TV signal source. If the source is from CATV, please choose CATV. Otherwise, select TV.

3. Nationality: Please select the corresponding number representing the user's country. (See reference chart.)

√Note: The item “NONE Tuner” is only for the user’s information and is not a function. For example, if current A Box is NTSC Tuner box, then “NTSC Tuner” will appear in this section.

Optional Video Module

1. After leaving the menu system, press the Scan button to scan all existing channels in that region. √ Note: Scan function must be done for the first use in certain regions to catch all the channels in the local CATV system.

START SCANNING?

Yes No

After the “START SCANNING?” dialog box prompt, use the Channel Up/Down buttons to select “Yes” or “No.” Press Return button to set.

Function (Must be performed with remote control unit)

Channel Select

Press the channel number button user wants to select (for example, 12), then press Return button to set.

Channel Up/Down

Go up and down through channels by pressing the Channel Up/Down buttons. The channel number will appear in the lower right corner of the screen. If there is no further action for three seconds, the channel number display will disappear automatically.

-123-

Scan

Press the Scan button for two seconds to begin scanning TV channels.

Add/Erase

Press the Add/Erase button for two seconds to add or erase the channel. To delete channels from memory, press the button to erase the channel. A “Channel Erased” message will display. Users can also add channels to memory by pressing the button after selecting it. A “Channel Added” message will display.

Channel Erased

Channel Added

Reverse

Press the Reverse button to toggle between the previous and current channels.

Optional Video Module

Source Menu

To Menu Items

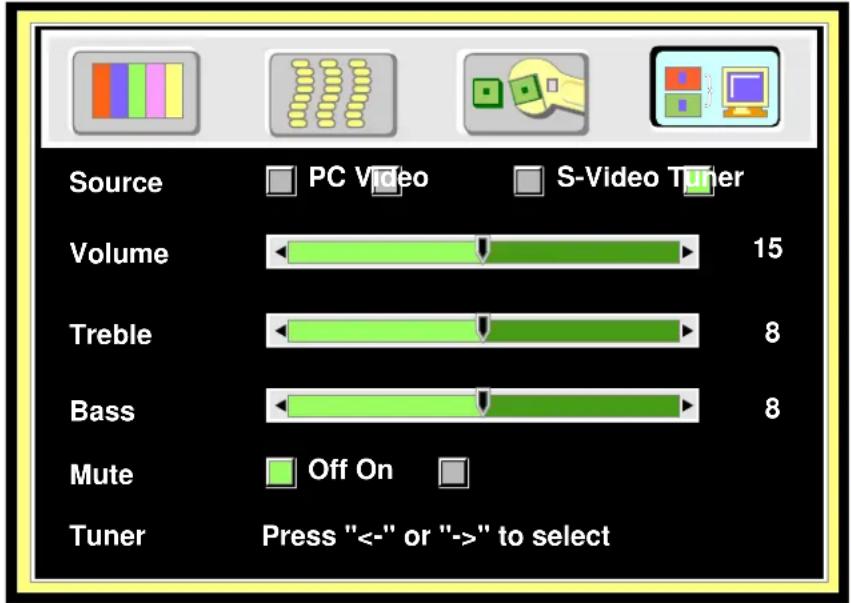

Source

Line drawing of a vintage PC with monitor, keyboard, and mouse (no text or symbols)

S-Video Tuner

Volume (0-29)

Treble 0-15)

Bass 15)

Mute

Off On

Maintenance

Lamp Usage

Use and Replacement of Lamp

The projector lamp has a normal operating time of approximately 1200 to 1500 hours, called the lamp life. During the normal lamp life, the picture will be bright and the colors clear. If the lamp is used beyond the normal lamp life, the picture will become dark and the colors poor. Always replace lamps with new ones. Using an old lamp in the projector could cause a malfunction. When the power is turned on, the LAMP indicator will light up red or a message will be displayed to indicate when it is time to replace the lamp. Consult your dealer.

Lamp/Temperature Status LED Indicators

Lamp Exceed Service Hours — When this LED lights red continuously, it is warning you that the lamp has exceeded 1500 service hours. Replace the projection lamp immediately.

PLEASE CHANGE A NEW LAMP AND RESET THE TIMER— The lamp has been operated for 1400 hours.

PLEASE CHANGE A NEW LAMP, THE POWER WILL TURN OFF AFTER 20 HOURS — The lamp has been operated for 1480 hours, and the power will turn off after 20 more hours.

PLEASE CHANGE A NEW LAMP — The lamp has been operated for more than 1500 hours, and the power will turn off automatically after 10 minutes.

All of these messages will not display for more than 3 minutes, but each message will be displayed whenever you turn on the lamp again.

Lamp is not well attached — When the LED blinks rapidly, it indicates that the lamp is not attached properly.

Temperature is too high — When the projector's internal temperature is too hot to operate safely, the LED blinks slowly for one minute and the lamp goes off automatically.

If the LED light is off, it means that the projector's lamp and temperature are operating under normal conditions.

Caution

The LAMP indicator will light if the lamp becomes too hot. Turn off the power and let the projector cool for 45 minutes. Turn on. If the LAMP indicator still lights up red, please contact your dealer.

Maintenance

Lamp Replacement

WARNING

To reduce the risk of electrical shock, always turn off projector and disconnect power cord before changing lamp.

1. Turn the main power switch off and disconnect the power cord from the outlet.

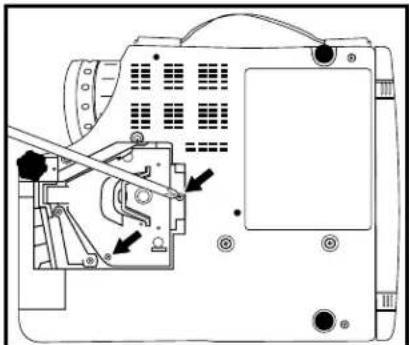

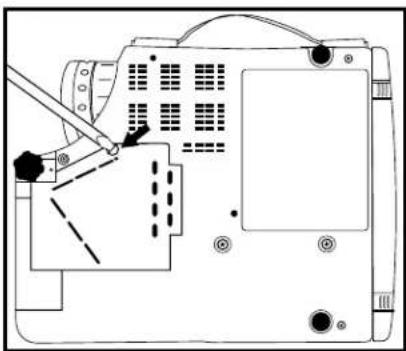

2. Loosen screw and remove the lamp cover. If the lamp is hot, avoid burns by waiting 45 minutes until lamp has cooled.

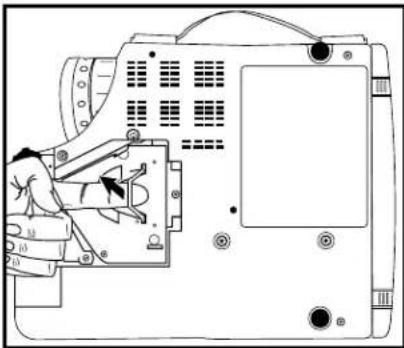

3. Loosen two screws designated by arrows below. (It is strongly recommended to use a magnetic-headed screwdriver, if possible. Pull the handle to remove lamp housing. If the screws are not loosened completely, they could damage your fingers. Do not insert your hand into the box after the lamp is removed. If the optical parts inside are touched by hand, it could cause color unevenness, etc.
4. Replace the lamp with the new one, insert into projector, and tighten the screws. Firmly tighten the lamp screws. Loose screws may cause a bad connection, which may result in a malfunction.
5. Re-install the lamp cover and tighten the screw. Do not turn on the power with lamp cover removed. Whenever the lamp has been replaced, reset the total operation time of the lamp. Do not reset if the lamp was not replaced, as this could cause breakage.

Technical diagram of a computer monitor with no visible text, numbers, or symbols

Technical diagram of a mechanical device with labeled components and arrows indicating assembly or movement (no readable text or symbols)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

√ Note: For maximum lamp life, do not shock, handle or scratch the lamp glass when it is hot. Also, do not use an old or previously used lamp as a replacement lamp.

Caution

• To reduce the risk of cuts to fingers and/or decreasing image quality by touching the lens, do not insert hand into the empty lamp compartment when the lamp has been removed.
• This lamp contains mercury. Consult your local hazardous waste regulations and dispose of this lamp in a proper manner.
• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.
• To reduce the risk of cuts to fingers and damage to internal components, use caution when removing lamp glass that has failed and shattered into sharp pieces.

Maintenance

Caution

It is very important to use the correct part when replacing the lamp! If the incorrect lamp is used, the projector could suffer permanent internal damage and require service.

Lamp Ordering

When ordering a lamp, use the part number that references the projector model number.

√Note: To determine projector model number, look at the bottom cover label only.

Projector Model Number	Lamp Part Number
76307P80	78-6969-9036-1
76307P80	78-6969-9297-9

Maintenance

Resetting the Lamp Hours

Please do the following within 10 minutes from turning power on if you replace the lamp after 1500 hours.

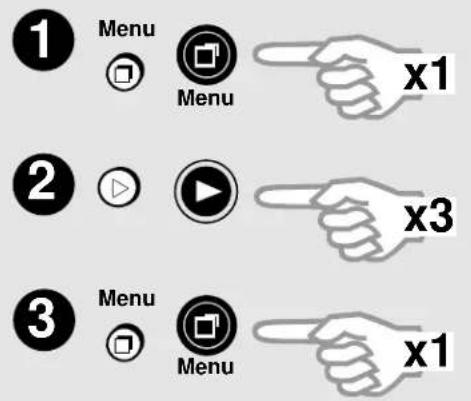

1. Press the Menu button and use Keystone buttons to select the Control sub-menu. Then press the Menu button until the Lamp Hour item is selected.

1. Press - Keystone + to display the lamp usage on the bottom of the screen. Press again to select "Reset."

Lamp

0 Hr.

Reset

Cancel

1. Press the Menu button to reset the time usage.
2. Press the Auto button to save the setting and exit the menu system.

Troubleshooting

SMELBORP SNOITULOS
REWOPON	✓ Plug the power cord into the AC inlet.✓ Plug the power cord into the power inlet.✓ Wait 2 minutes after turning off the projector before turning it back on.
ERUPION	✓ Check that you have selected the proper input source to project.✓ Ensure that all cables are connected properly.✓ Adjust the brightness and contrast.✓ Remove the lens cap.
IMAGE ISN'T SQUARE ON NEERCS	✓ Reposition the unit to improve its angle to the screen.✓ Is the vertical offset properly corrected using the keystone function?
ROLOBR	✓ Select the correct video system.✓ Adjust the brightness, contrast, and saturation.
IMAGE IS BLURRED	✓ Adjust the focus.✓ Reposition the unit to improve its angle to the screen.✓ Ensure that the distance between the unit and the screen is within the adjustment range of the lens.
LORTNERKROSEOD	✓ Replace the batteries with new ones.OKUMER sure there are no obstacles between the remote control and the unit.Operate remote control within 4 meters (13 feet) of the unit.Make sure nothing blocks the receiver on the control pad.
DNUOSO	✓ Check the audio cable connection from audio input source.✓ Adjust the audio source.✓ Press VOLUME (+) button.✓ Press MUTE button.

Troubleshooting

Status Indicator Lights and Messages

deyalpsiDegasseM)elbacilppafi,noituloSdna(gninaeM
SEARCHING	Projector cannot identify input signal.
INPUT SIGNAL DETECTED, ACTIVATING AUTO IMAGE	Projector has identified input signal.
SYNC IS OUT OF RANGE	The input signal's horizontal frequency exceeds the range of the projector's.
CHANGE THE LAMP AND RESET THE LAMP TIMER	The lamp has been operated for over 1200 hours and needs to be replaced soon.
CHANGE THE LAMP, THE POWER WILL TURN OFF.BDH02REAF	The lamp has been operated for 1479 hours and the power will shut off after 20 more hours. Replace the lamp as soon as possible.
CHANGE THE LAMP!(blinking, with LED lighting red)	The lamp has been operated for over 1500 hours. Power will automatically shut off in 10 minutes. Replace the lamp immediately.

Service Information

Accessories

Description Part Number

Power Cord (EU)...... DY-0205-1354-4

Power Cord (US) DY-0205-1356-9

Power Cord (UK) DY-0205-1355-1

Adapter, PS/2 Mouse....78-8118-8395-4

Adapter, ADB (Apple Desktop Bus) Mouse 78-8118-8397-0

Adapter, Serial Mouse 78-8118-8396-2

General Cable 78-8118-8394-7

VGA Cable 78-8118-3401-5

Mac Adapter (switchable) 78-8118-3308-2

150W Lamp 78-6969-9036-1

Remote Control 78-8118-8398-8

Soft-side Carrying Case 78-6969-9034-6

Lens Cover 78-8118-8399-6

Not Included with Basic Packet

Description Part Number

NTSC Optional Video Module (RCA with Tuner) 78-6969-9038-7

PAL Optional Video Module (SCART) 78-6969-9104-7

3-Conductor Video/Audio Cable 78-8118-3234-0

Stereo Mini-Jack Cable 78-8118-8290-7

S-Video Cable 78-8118-3538-1

SCART-RCA Adapter DY-0205-1011-0

Ordering Parts or Getting Information

For product information, product assistance, service information, or to order accessories, please contact 3M Customer Service at the following number:

• In U.S. or Canada: 1-800-328-1371
- In other locations, contact your 3M Sales office.

The contents of this manual are subject to revision without prior notice.

3M assumes no responsibility for the infringement of special rights of a third party or other rights that may arise out of the information contained in this manual.

Reproduction of this manual in any form without prior permission is strictly prohibited.

3M will replace the manual if any pages are missing or collated incorrectly.

Important Notice

All statements, technical information, and recommendations related to 3M's products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M's current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized officer of 3M.

Warranty and Limited Remedy. This product will be free from defects in material and manufacture for a period of two years from the date of purchase. Exclusion to Warranty: The lamps are considered a consumable item and are warranted for 90 days or 180 hours, whichever occurs first. 3M MAKES NO OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M's option, to replace or repair the 3M product or refund the purchase price of the 3M product.

Limitation of Liability. Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether direct, indirect, special, incidental or consequential regardless of the legal theory asserted.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

http://www.3m.com/meetings e-mail: [e-mail]

3M Austin Center

Building A145-5N-01

6801 River Place Blvd.

Austin, TX 78726-9000

3M Canada

P.O. Box 5757

London, Ontario

N6A 4T1

3M Mexico, S.A. de C.V.

Copyright © 2001 3M IPC.

All Rights Reserved

78-6970-9063-3 Rev. A
