USER MANUAL OZZY WIKO

Black Wiko smartphone with app interface (no visible text or symbols on device body)

Wiko Google Microsoft Office Windows Server Windows Platform

Wiko

SHARE YOUR IDENTITY

Guide Rapide

OZZY™

Copyright © 2013 WIKO

www.wikomobile.com

Diagram of a smartphone with an attached plug and a red arrow indicating a component (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line and a solid black rectangle below (no text or labels)

D-32825 Blomberg, Germany

www.phoenix-testlab.de

Phone [phone] / Fax [phone]

CE 0700

Warning sign with a yellow triangle containing an orange circular exclamation mark and a lightning bolt symbol inside.

The contents of this manual may differ in certain respects from the description of your phone depending on its software version and your telephone operator.

CONGRATULATIONS!

You have just purchased your WIKO OZZY mobile phone. This guide contains all the information needed to use the phone so that you can quickly familiarise yourself, we hope, with the world of WIKO.

Copyright © 2013 WIKO

www.wikomobile.com

The information provided in this manual may not be transmitted, reproduced or distributed in any form whatsoever without the written consent of WIKO.

Registered Trademarks

WIKO is a registered trademark of WIKO.

Notice

WIK0 reserves the right to modify the information contained in this guide at any time.

This guide has been produced with the utmost care. However, the information and advice herein do not represent a guarantee of any kind.

Limitation of Liability

The entire content and services accessible through this device are the exclusive property of third parties and are therefore protected in law (copyright, patents, licences and other intellectual property laws). These services are reserved for your personal use and not for commercial use. This content or these services may not be exploited without submitting a written request to the content owner. You may in no way copy, publish, transfer, sell or operate on any medium the content or services published by means of this device or generate derivative forms thereof.

THIRD PARTY SERVICES AND CONTENT ARE DELIVERED «AS IS». WIKO DOES NOT GUARANTEE THE CONTENT AND SERVICES SO DELIVERED, EITHER EXPRESSLY OR IMPLICITLY, FOR ANY PURPOSE WHATSOEVER AS WELL AS WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. WIKO DOES NOT GUARANTEE THE ACCURACY, VALIDITY, LEGALITY OR EXHAUSTIVENESS OF THE CONTENT OR SERVICES PROVIDED BY THIS DEVICE. WIKO SHALL NOT BE LIABLE FOR NEGLIGENCE, WHETHER IN CONTRACT OR IN TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL OR SPECIAL DAMAGES, LEGAL FEES, EXPENSES OR ANY OTHER DAMAGE ARISING FROM USE OF THE CONTENT OR SERVICES BY YOURSELF OR BY A THIRD PARTY EVEN IF WIKO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH INCONVENIENCES. AS SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTY OR LIMITATIONS ON THE LEGAL RIGHTS OF CONSUMERS, IT IS POSSIBLE THAT THESE EXCLUSIONS AND LIMITATIONS MAY NOT APPLY TO YOU.

Third party services may be interrupted or terminated at any time. WIKO makes no representations or warranties over time regarding the availability of any content or service. WIKO has no control over the content and services transmitted by third parties via networks or transmission devices.

WIKO expressly disclaims all liability for any interruption or suspension of a service or content provided by this device without restricting the general scope of this limitation of liability.

WIKO may in no circumstances be liable for the customer service associated with the content and services. Any questions or inquiries concerning the content or services should be sent directly to the supplier of the relevant content or services.

What's in the Box :

1. WIKO OZZY mobile phone
2. AC adaptor
3. Micro USB cable
4. Battery
5. Hands-free kit
6. Quick guide

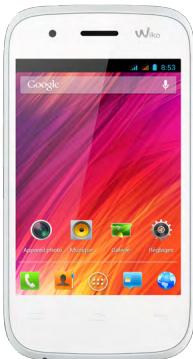

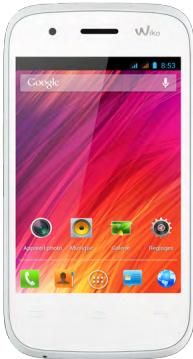

Getting to Know Your Phone

Earpiece Volume +/- Touch screen Home Menu Front camera On-Off /Lock Return

3,5 mm headphone jack Camera lens Micro USB port W/O

\~ The buttons on your phone

Button	Function
On/Off	Press and hold the button to turn the phone on or off. Press the button lightly to lock the touch screen.
Home ⇌	Returns to the home screen and opens the list of recent applications (press and hold the button).
Menu ⇌+	Displays the options menus available on the active application.
Return ⇌+	Returns to the previous screen.Closes the onscreen keyboard.
VOLUME+/-	Increases or decreases the call volume, the ringtone, music, games and other audio functions. Switch the ringtone to silent mode when the phone rings. Press and hold on Volume- to enable the meeting profile.

Getting Started

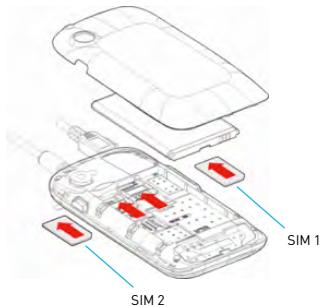

\~ Inserting the SIM Cards

OZZY is a dual SIM card Android mobile phone. You must insert the SIM card before using the phone. Use the small notch at the base of the phone to open the cover. Insert the SIM cards as shown in the diagram below.

\~ Installing the Battery

Note: only use batteries, chargers and accessories approved by WIKO.

Put the battery into its slot by aligning the phone and battery contacts, then press lightly on the battery to fit it into place.

SIM 1 SIM 2

\~ Charging the Battery

Your phone is powered by a rechargeable battery.

The status light changes colour to indicate the charging level of the phone. Connect the charger to a power outlet and the micro USB connector to the phone's USB port.

For more information, refer to the Safety Information section.

Diagram of a smartphone with an attached plug and a red arrow indicating a component (no text or symbols present)

\~ Installing the Memory Card

Your phone takes a MicroSD memory card of up to 32GB. To install a memory card, turn the phone off then remove the back cover and take the battery out. Now insert the memory card in the slot.

\~ Turning the Phone On and Off

To turn the phone on, press and hold the ON/OFF button. If your SIM card is locked, you must enter the correct PIN code to unblock the SIM card when the phone is powered up. Your PIN is supplied by your operator; if you did not receive it or have lost it, please contact them.

When the PIN is entered incorrectly three times, the mobile phone is blocked and has to be unblocked using your PUK (this is supplied with the SIM card; if this is not the case, you should contact your phone operator).

To turn the phone off, press and hold the ON/OFF button

until the menu opens, then press on Switch Off. Now press OK to confirm.

The phone vibrates when it is shut down completely.

Basic Operations

A welcome guide appears when you turn on your phone for the first time. A series of screens then guides you through the setup process.

If you already have a Gmail or email account or an account for any social network, press on the advanced settings icon.

\~ SIM Management

When you turn on your phone for the first time or change SIM card, various items of information about the SIM card(s) are displayed. You are asked whether you want to modify the settings for calls, messages and the internet connection.

If you are happy with the default settings, press on Close. If not, press on Select and the SIM management menu will be brought up. Now you can:

1. Personalise the information on the SIM cards in SIM INFO. The background colour serves to differentiate the two SIMs in the menus using the SIMs.

2. Set the default SIM* for voice and video calls, SMS/MMS and internet data connection.

*You can still choose a different SIM when performing an action, such as before making a call or sending an SMS/MMS: drag the notifications panel to the bottom of the screen and press on the SIM you want. The default SIM will be underlined. If you choose «always ask», an icon will appear next to the signal strength when you go to the SMS/MMS and call menu.

\~ Network Connection

The first time the phone is turned on, or when you change SIM card(s) and re-start the phone, the Access point settings menu will be brought up. Press on Select.

Press on the name of the SIM card to display the list of access points. Choose the one that matches your opera-

tor's by pressing on the button on the right, then press on RETURN ← to go back to the previous menu.

- APN Not Available

If your operator does not appear in the list or the list is empty, ask your operator how to configure the APN manually. To do this, press on the menu button, then New APN and enter the information provided by your operator. Press on the MENU button again and choose Save. Return to the previous menu, then choose the APN that you have just saved.

• Enabling Data Connection

To check your data connection settings:

1. Go to Settings → WIRELESS & NETWORKS → More... → Mobile networks → Access point names, then enable the access point according to your operator/package.

2. Return to the previous mobile network settings menu,

then press on Data connection and press on the name of your SIM card to enable it.

*You can also drag the notifications panel downwards to enable a data connection.

- 3G Service

If you have two SIM cards inserted, only one of them can be enabled to receive the 3G service. You are advised to enable SIM1 for the best performance. If you want to change SIM, go to Settings → WIRELESS & NETWORKS → More... → Mobile networks → 3G service → Enable 3G.

- Data Roaming

Note that for roaming SIM cards, you must enable the data roaming in the Settings → SIM management → BASIC SETTINGS → Roaming menu. Otherwise, the internet connection will be disabled by default.

\~ Notifications

Notification icons on the status bar

Signal strength

G

Connected to GPRS

E

Connected to EDGE

3G

Connected to 3G

H

Connected to HSPA (3G+)

H+

Connected to HSPA+ (3G++)

No signal

R

Roaming

Wi-Fi available

Connected to Wi-Fi

Bluetooth enabled

GPS in use

Voice call in progress

Call waiting

Missed call

Synchronising

New mail

Alarm on

Silent mode on

New voicemail

Vertical arrangement of icons including battery, battery, smiley face, and airplane, with a downward arrow above the battery symbol.

Downloading

Connected to computer

Battery level

New SMS or MMS

Airplane mode on

Depending on the application, notifications may be accompanied by a beep, vibration or a flashing LED.

Notifications Panel

Drag the status bar downwards to see details of all your notifications: information about new messages received, upcoming calendar events, download status, etc. will then be displayed. The name of the operator is shown at the bottom of the panel.

Press o 5 to clear all temporary notifications (applications that are running are still listed). Drag a notification to the left or right to clear it.

Press on 📁 to access the quick settings panel.

To close the panel, drag it upwards or press on RETURN ←.

\~ Using the Menus

The menus on your phone take the form of a contextual menu or an options menu.

Contextual Menu

To bring up a contextual menu, press and hold on an item on the screen: the contextual menu then suggests various actions associated with the item.

For example, if you press and hold on an SMS, the options for the message are displayed.

Note: not all items have a contextual menu. When you press and hold on an item that does not have a menu, nothing will happen.

Options Menu

To bring up an options menu, press on the MENU ☐ but-

ton. The options menu suggests actions or settings for the current screen or application but not for a specific item as is the case for the contextual menu.

Note: some screens do not have options menus.

Safety Information

Please read this safety information carefully so that you can use your phone in complete safety:

1. Children: Be very careful with children and your phone. A mobile phone contains a number of detachable parts. Exercise great care when children are in close proximity to the phone. The phone contains small parts that could be swallowed or cause choking.

If your phone is equipped with a camera or lighting device, do not use it too near children or animals.

1. Hearing: Prolonged listening at full power using a lightweight headset or headphones can damage your hearing. Reduce the volume to the lowest possible level when listening to music or conversations. Avoid high volumes over extended periods.

2. Driving: Exercise care when driving. Driving requires maximum attention at all times in order to minimise the risk of accidents. Using a mobile phone can distract the

user and result in an accident. You must fully comply with the local regulations and laws in force regarding the use of cell phones whilst driving. You are not allowed to use the phone whilst driving. A hands-free kit should not be regarded as an alternative solution.

Flying : Turn your phone off when flying.

Remember to turn your phone off when you are in a plane (GSM + Bluetooth) as it may cause interference.

1. Hospitals: Turn your phone off near any medical devices. It is extremely dangerous to leave a phone switched on near medical devices as it may cause interference. You must observe any instructions or warnings in hospitals and treatment centres.

Remember to turn your phone off in service stations. Do not use your device in a petrol station near fuel.

It is dangerous to use your phone inside a professional garage.

1. Electronic implants and pacemakers: Users who wear

a pacemaker or who are fitted with an electronic implant must hold the phone on the opposite side to their implant as a precaution when making a call.

If you notice that your phone is causing interference with a pacemaker, switch it off immediately and contact the manufacturer of the pacemaker for advice on what action to take.

1. Fire hazard: Do not leave your device near heat sources such as radiators or cookers.

Do not leave your phone charging near flammable materials as there is a real risk of fire.

1. Contact with liquid: Do not expose the phone to liquid or touch it with wet hands: any damage caused by water may be irreparable.

2. Use only WIKO-approved accessories. The use of unauthorised accessories may damage your phone or cause a safety risk.

3. Do not destroy the batteries and chargers.

Never use a battery or charger that has been damaged. Keep batteries away from magnetic objects as the latter

might cause a short-circuit between the positive and negative terminals of your batteries and permanently destroy the battery or phone.

As a general rule, you should not expose the batteries to very high or low temperatures (below 0^ C or above 45^ C). Differences in temperature may reduce battery autonomy and service life.

1. Shocks and impact: Handle and use your phone with the utmost care.

Protect your phone : shocks and impact may damage it. Some parts of your phone are made from glass and might break if the phone is dropped or is subject to severe impact. Avoid dropping your phone. Do not touch the screen with sharp objects.

1. Electric shock: Do not try to dismantle your phone as there is a very real risk of electric shock.

2. Maintenance: If you want to clean your handset, use a dry cloth (do not use a solvent, such as benzene, or alcohol).

3. Recharge your phone in a well ventilated area. Do not

recharge your device when it is resting on a soft surface.

1. Damage to magnetic strips: Keep your phone away from credit cards as they may damage the data on the magnetic strips.

\~ Important operating guidelines

Batteries - SIM - Emergency calls - SAR - Repairs

1. To increase the life of your battery, only use WIKO chargers and batteries. Replacing the battery with a non-compliant model may result in the latter exploding.
2. Never throw batteries on a fire and follow the guidelines in force for recycling used batteries and phones.
3. Be careful not to crush or damage the battery, as this could cause an internal short circuit and overheating.
4. Do not take the battery apart.
5. The battery can be recharged several hundred times before needing to be replaced. When it shows signs of losing its power, it can be replaced.
6. If you do not use your mobile phone for an extended

period, remember to recharge the battery to optimise its use time.

1. Do not throw batteries away with household waste: recycle them in accordance with the manufacturer's guidelines. If the battery is damaged, contact the after-sales service or the nearest authorised WIKO dealer.
2. Unplug the charger from the wall socket when the battery is fully charged in order to reduce your energy consumption.
3. Do not leave the battery being charged for more than a week as this might result in an overload and reduce the life of the product.
4. Handle the SIM cards with care: wipe them with a soft cloth if they appear dirty.
5. Emergency calls: the emergency numbers may not be accessible on all mobile telephone networks, in isolated areas or areas where there is no coverage; check first with your operator.
6. Radio Frequency Exposure :

Your mobile phone has been designed and manufactured

in accordance with the international guidelines (ICNIRP ^1 ) on exposure to radio frequencies. These guidelines, which are based on various studies and research, have been developed by independent scientific organisations to ensure the safety of everyone who uses a mobile phone.

The safety information on exposure to radio waves uses a unit of measurement known as SAR (Specific Absorption Rate). The international guidelines have set this limit at 2W/kg*. The phone is used in standard operating positions when being tested for its SAR.

^1 International Commission on Non-Ionising Radiation Protection

Although the SAR is determined using the highest power level, the phone's real rate of specific absorption whilst in operation may be well below the maximum value.

A phone is designed to operate at different power levels so that it only uses the power it needs to be connected to the network.

In addition, all models of phone must undergo tests before being marketed to ensure compliance with the European R&TTE directive.

This directive publishes strict rules for guaranteeing the safety of users and for preventing any risks to health.

The maximum SAR value tested on this device is 0.592W/Kg. It complies with the rules on exposure to radio frequencies when used in its normal position at the ear or at a minimum distance of 1.5cm from the body. The device uses a high-quality network connection for transmitting files, data and messages. On occasion, the transmission of files or messages may be delayed until the connection is available. When this is the case, be sure to follow the instructions regarding the separation distance for establishing the transmission. If you use a case, belt-clip or holder for carrying the phone, it must not contain any metal and should be kept at a minimum distance of 1.5 cm from your body.

*The SAR limit for mobile devices is 2.0 watts / kilogram (W/kg) averaged over ten grams of body tissue. SAR values

may vary according to the standards for reporting information that are in force in different countries.

Tips for Reducing Exposure Levels

We recommend that you use your phone in good reception conditions in order to reduce the amount of radiation received. It is advisable to limit the amount of time you use the phone in underground car parks and when travelling by car or train, etc.

Reception conditions are indicated by the bars that are displayed on your phone: the more bars there are, the better the reception quality.

We recommend that you use the hands-free kit to reduce exposure to radiation.

To reduce the adverse effects of prolonged radiation exposure, we advise teenagers to hold the phone away from their lower abdomen, and that pregnant women hold the phone at a distance from their stomach.

1. Only qualified service personnel should repair your device. If you give your device to non-qualified personnel for

repair, the phone will not be covered by WIKO's warranty.

Data Use Agreement

Registering your WIKO phone is a free service offered by WIKO that allows our engineers to connect to your phone's physical data so that they can tell what your model and hardware specifications are in real time. In return, the engineers can keep you informed of updates that are available for your system and warn you in case of a recognised technical failure on a model or series. In addition, this service allows us to alert you instantly if there is a malfunction so that we can provide a technical solution as soon as possible.

By registering your phone, you acknowledge that WIKO and its engineers are able to collect, store, analyse and use diagnostic, technical and usage data (and related data) including, without limitation, data regarding your WIKO device, your software system and your applications. We will collect this information on a regular basis to facilitate the provision of software updates and product support and miscellaneous services offered to customers (where applicable) relating to the software on your device.

WIKO may use this information without revealing the identity of the customer in order to offer and improve its products or services for the user.

This service will not give us access to your content and personal files.

You need to be connected to the mobile internet network for a short time to register your WIKO phone. This may result in connections costs, at your expense, depending on the nature of your contract with your mobile operator. We recommend that you use a Wi-Fi connection, as with this type of connection there is no data limit (if your phone service limits the exchange of data) and the connection is quicker. The information obtained is processed electronically in order to access the physical data on your phone. The data recipient is WIKO SAS.

In accordance with the French Data Protection Act (the Loi

Informatique et Libertés of January 6, 1978, amended in 2004), you have the right to access and correct personal information submitted during registration. You may exercise this right by writing to WIKO SAS at 1, rue Capitaine Dessemond, 13007 Marseilles, FRANCE.

You may also, for legitimate reasons, oppose the processing of your personal data.

NOTE

WIKO's warranty does not cover normal wear and tear (batteries, screens, keyboards, camera lenses, etc.).

\~ Recycling

Symbol of a trash bin crossed with a diagonal line and a solid black rectangle below (no text or labels)

The symbol of a crossed-out wheelie-bin, as found in this manual, indicates that the item is subject to European Directive 2002/96/EC, which states that electrical and electronic equipment, batteries, accumulators and accessories must undergo selective waste management.

Make sure that, when your phone is no longer usable, you put it in a suitable waste bin or return it to a mobile phone retailer. In this way you will help to reduce environmental and health hazards.

Local councils, retailers and national manufacturing associations will give you the necessary information on how to dispose of your old device.

STATEMENT OF COMPLIANCE

We, WIKO SAS - 1, rue Capitaine Dessemond - 13007 - Marseilles - FRANCE, here by declare that the OZZY mobile phone complies with the standards and provisions of the Directives.

The procedure for the Statement of Compliance, set out in Article 10.5 of Directive 1999/5/EC, was conducted under the supervision of the following organisation:

PHOENIX TESTLAB GmbH, Königswinkel 10

D-32825 Blomberg, Germany

www.phoenix-testlab.de

Phone [phone] / Fax [phone]

CE 0700

The full text of the device's Statement of Compliance is available on written request to the following address:

(Name and signature of the authorised official)

Wiko

SHARE YOUR IDENTITY

WIKO SAS

Warning sign with a yellow triangle containing an orange circular exclamation mark and a lightning bolt symbol inside.

Prolonged listening to the music player at full power may damage the user's hearing.

Wiko Google Microsoft Office Windows Server Windows Platform

Wiko

SHARE YOUR IDENTITY

OZZY™

Guida rapida

Copyright © 2013 WIKO

www.wikomobile.com

Illustration of a smartphone with an attached plug and a red arrow indicating a specific component (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Laurent DAHAN/Presidente

(Data)

Warning sign with a yellow triangle, black lightning bolt, and a yellow circular exclamation mark containing an ear symbol.

Copyright © 2013 WIKO

www.wikomobile.es

Illustration of a smartphone with an attached plug and a red arrow indicating a process (no text or symbols present)

Warning sign with a yellow triangle containing an orange circular exclamation mark and a lightning bolt symbol inside.

Copyright © 2013 WIKO

www.wikomobile.pt

Illustration of a smartphone with an attached plug and a red arrow indicating a component (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

D-32825 Blomberg, Germany

www.phoenix-testlab.de

Phone [phone] / Fax [phone]

CE 0700

Warning sign with a yellow triangle, black lightning bolt, and a yellow circular exclamation mark containing an ear symbol.

Copyright © 2013 WIKO

www.wikomobile.com

Diagram of a smartphone with a USB cable inserted, showing internal components and a red arrow indicating direction (no text or symbols present)

Warning sign with a yellow triangle containing an orange circular exclamation mark and a lightning bolt symbol inside.

Copyright © 2013 WIKO

www.wikomobile.com

Diagram of a smartphone with an attached USB port and a red arrow indicating a component (no text or symbols present)

Nieuw voicemailbericht

Downloads

Aangesloten op de

Batterijniveau

Nieuwe SMS of MMS

Vliegtuig-modus Aan

Warning sign with a yellow triangle containing an orange circular exclamation mark and a lightning bolt symbol inside.

Diagram of a smartphone with an attached plug and a red arrow indicating a component (no text or symbols present)

Vertical sequence of icons representing basic communication and device symbols, including wireless, Bluetooth, phone, and smart glasses.

Warning sign with a yellow triangle containing an orange eye and black lightning bolt, indicating sound or noise hazard.
