RS502 - Electric guitar YAMAHA - Free user manual and instructions

Product type	Electric guitar
Brand	YAMAHA
Model	RS502
Number of strings	6
Pickup configuration	2 humbucker pickups
Bridge	Fixed
Body material	Wood (mahogany or alder)
Neck material	Maple
Fretboard	Rosewood or maple
Number of frets	22
Length (approx.)	98 cm
Width (approx.)	33 cm
Thickness (approx.)	4.5 cm
Weight (approx.)	3.5 kg
Power supply	None (passive)
Controls	Volume, tone, 3-position selector
Main functions	Lead playing, rhythm, sound expression
Maintenance and cleaning	Clean with a soft, dry cloth after use
Storage	In a case, away from humidity and shocks
Safety	No electrical risk; use with caution to avoid falls
Spare parts and repairability	Contact an authorized Yamaha dealer or after-sales service
General information	Electric guitar from the RS series, manufactured by YAMAHA

Frequently Asked Questions - RS502 YAMAHA

How to tune the Yamaha RS502 guitar?

Use a chromatic tuner. Tune the strings from low E to high E (E, A, D, G, B, E). Turn the tuning pegs until you get the correct note.

What type of strings to use for the RS502?

Use strings of gauge 9-42 or 10-46 for standard playing. Nickel strings are recommended.

How to clean the guitar?

Wipe the body and neck with a soft, lint-free cloth after each use. Do not use abrasive products. For the fretboard, apply a special oil from time to time.

Does the guitar need a battery?

No, the Yamaha RS502 is a passive guitar. It does not require a battery to operate.

How to adjust the string height?

Adjust the bridge screws with an Allen key. Turn clockwise to increase height, counterclockwise to decrease. Check intonation after adjustment.

The pickup produces no sound, what to do?

Check the cable and amp. Make sure the pickup selector is in an active position. If the problem persists, consult a technician.

How to change the strings?

Remove the old string, thread the new one through the bridge hole, wrap it around the tuning peg and tighten. Then tune the guitar.

What is the best position for the pickup selector?

Position 1: bridge pickup (bright sound), position 2: both pickups (balanced sound), position 3: neck pickup (round sound). Choose according to playing style.

How to maintain the frets?

Clean the frets with a slightly damp cloth after each session. If they are oxidized, use a specific fret product.

Where to find spare parts?

Contact an authorized Yamaha dealer or customer service. Original parts are recommended to maintain quality.

USER MANUAL RS502 YAMAHA

Before using, please read this assembly manual, and use this product in a safe and proper manner.

• Please keep this manual in a safe place for future reference.

WARNING If this symbol is ignored and the equipment is used improperly, fatal injury to persons or serious damage could occur.

·Do not let small children assemble or set up this product by themselves, or they may be injured. Always assemble this product with adult supervision.

·Be careful with the edges of the Cymbal Holders and the Tom Holders. The sharp holder ends may result in injury.

·If this product is used with a Rack System or Cymbal Stand, make sure all bolts are tightened firmly. Also, when adjusting the height or angle, do not suddenly loosen the bolts. Loose bolts may result in the rack overturning or parts dropping, causing injury.

·Always set the product on a flat and solid surface. Placement on a sloping, unstable surface or on steps may result in the product being unstable and subject to overturning.

·Do not alter the product. Doing so may result in injury or damage/deterioration to the product.

·Do not sit or step on the rack. The rack may overturn or be damaged, resulting in injury.

CAUTION If this symbol is ignored and the equipment is used improperly, there is a danger or injury to persons handling the equipment, and material damage could occur.

·Watch your fingers when adjusting clamps. They may become pinched, resulting in injury.

·Be careful around pipe ends, inside the pipe and screw ends. Metal shavings, etc. may injure your fingers.

·Do not attach acoustic drums to the electronic drum rack. Clamps may be damaged and drums may drop, causing injury.

NOTICE

• Do not step on or place heavy objects on the product. It may result in damage.
• Do not use or keep the product in places with extremely high temperature (places in direct sunlight, close to a heater, in a closed car, etc.) or high humidity (bathroom, outside on a rainy day, etc.). Doing so may result in deformation, discoloration, damage or deterioration.
• When cleaning the product, do not use benzine, thinner or alcohol as it may result in discoloration or deformation. Please wipe with a soft cloth or a damp cloth that has been wrung out thoroughly. If the product is soiled or sticky, use a neutral detergent on a cloth then wipe with a damp cloth that has been wrung out thoroughly to remove any remaining detergent. Also pay close attention so as not to let the water and detergent come into contact with the cushions used in the product; doing so may result in deterioration.

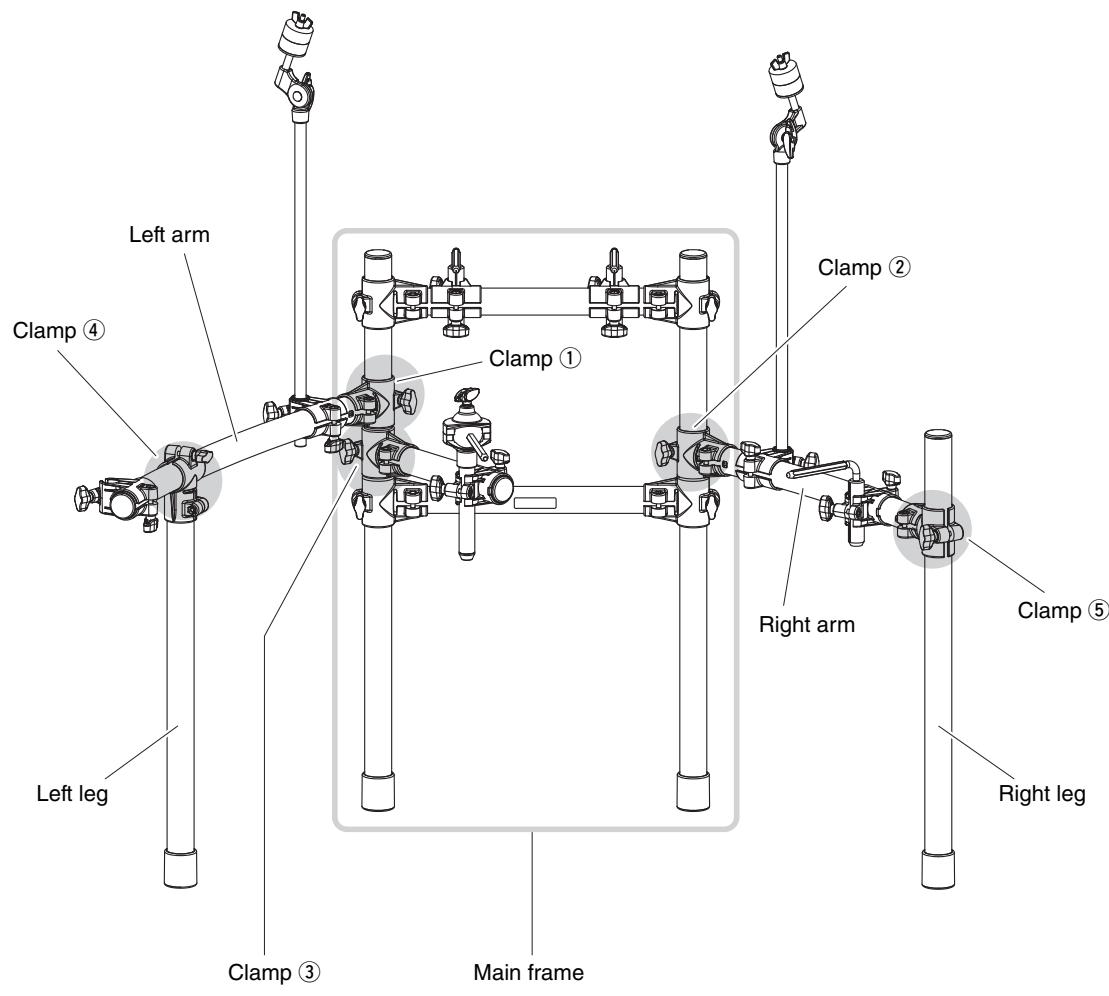

Package Contents

After opening up the package containing your electronic drum rack, please verify that all of the following components are present.

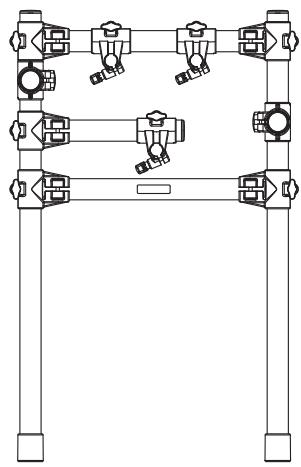

Main frame (x1)

Left arm (x1)

Right arm (x1)

Left leg (x1)

Right leg (x1)

Tom holder (x3)

Cymbal holder (x2)

Snare holder (x1)
Owner's Manual (this booklet)

Assembling the Rack

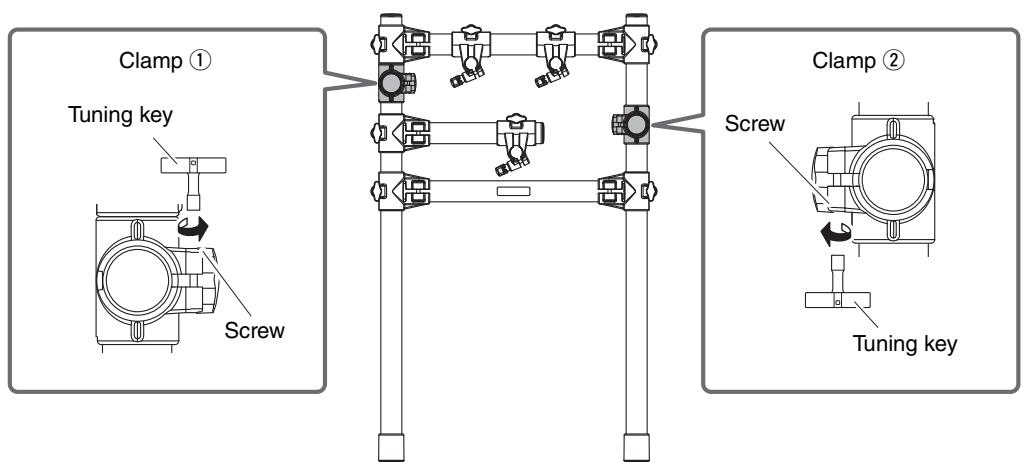

1. Lay the main frame down on a solid, level surface and loosen the screws in clamps ① and ② using the tuning key.

NOTE

The tuning key can be found in the pad set package.

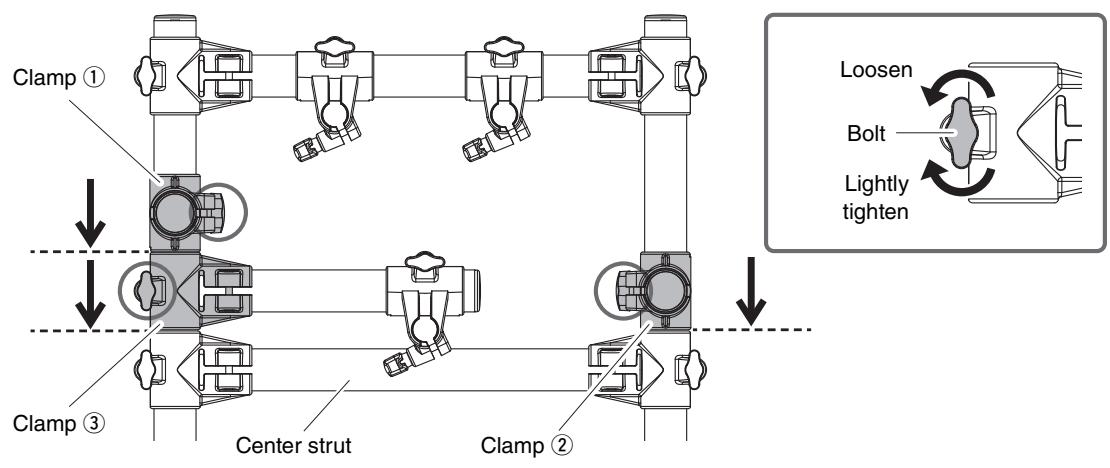

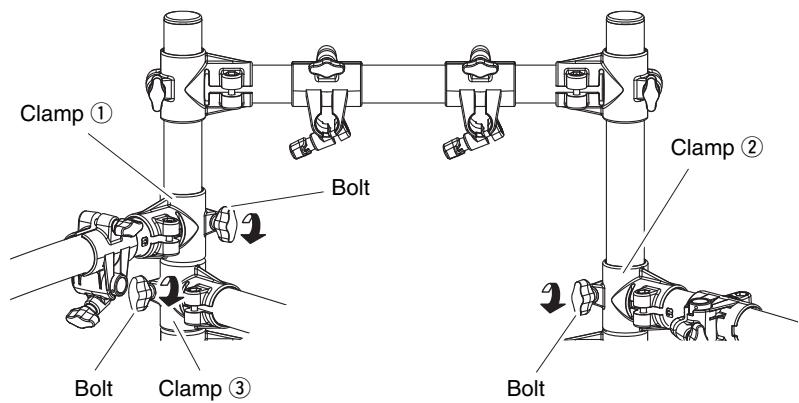

1. Loosen the bolts on clamps ①, ②, and ③ and move the clamps all the way down to the center strut. Following this, lightly tighten the clamp bolts.

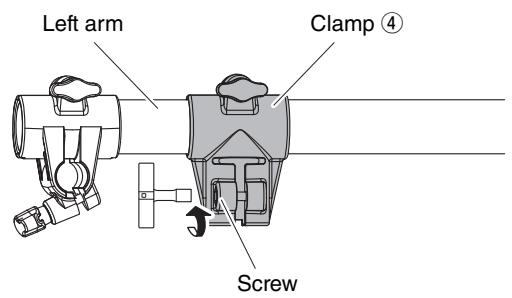

1. Take the left arm from the package and loosen the screw in clamp ④ using the tuning key.

The left and right arms look very alike, but the left arm is longer. Take care not to mix them up when assembling the rack.

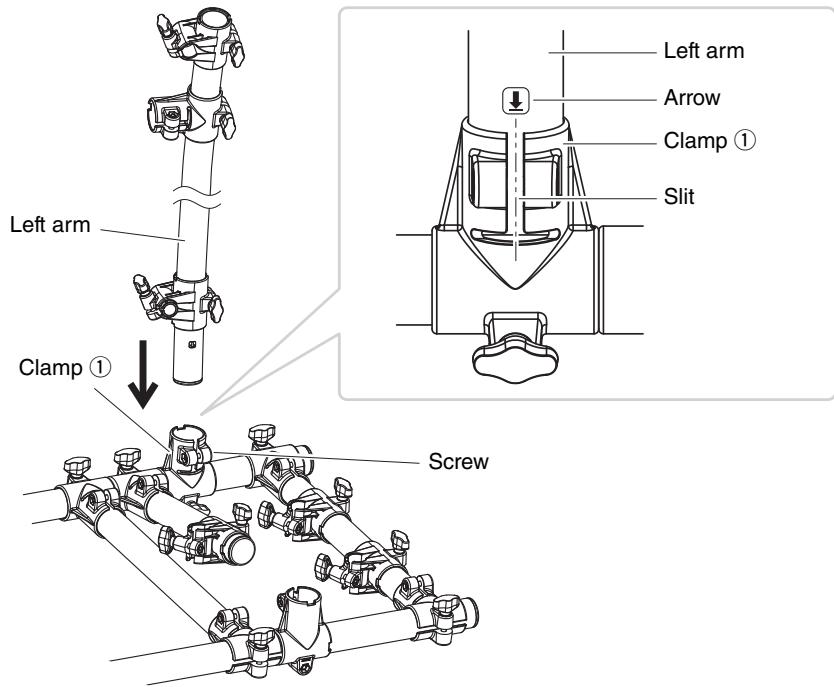

1. Push the left arm as far as it will go into clamp ① on the main frame.

When inserted, ensure that the arrow sticker () on the left arm is lined up with the slit in clamp ①.

1. Securely tighten the screw in clamp ① using the tuning key.

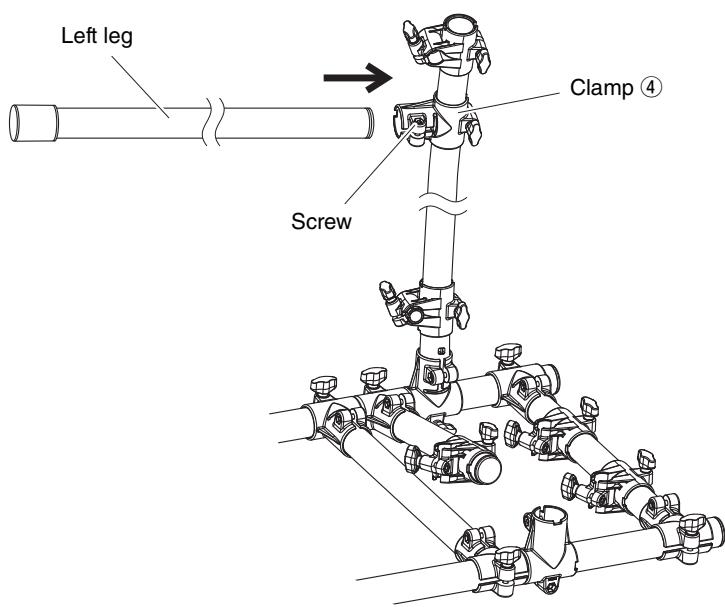

2. Take the left leg from the package and push it as far as it will go into clamp ④.

The left and right legs look very alike, but the left leg is shorter. Take care not to mix them up when assembling the rack.

1. Securely tighten the screw in clamp ④ using the tuning key.

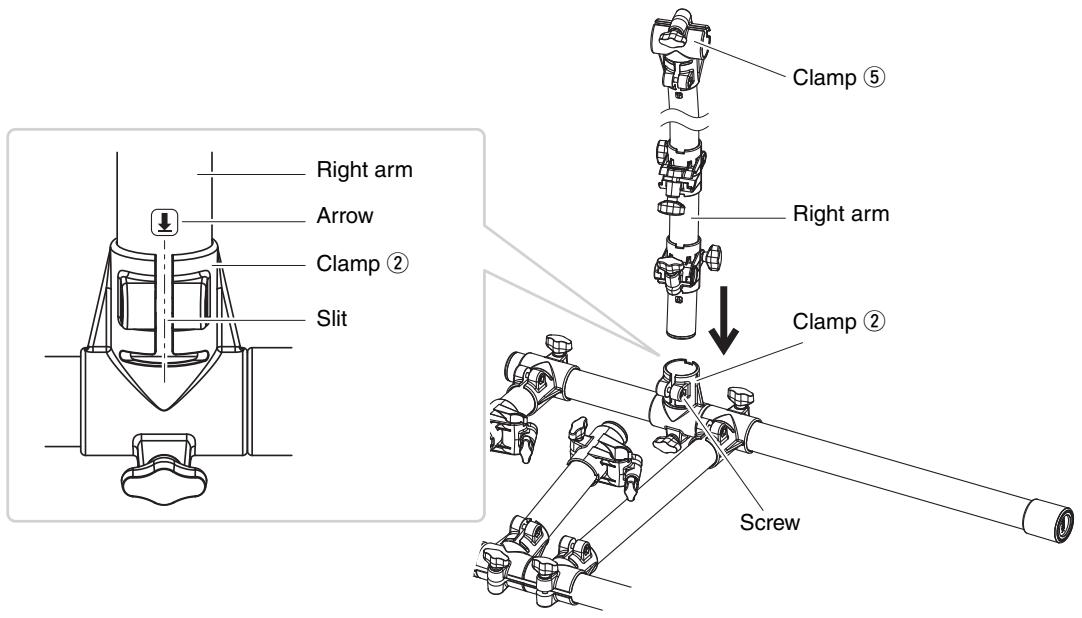

2. Take the right arm from the package and push it as far as it will go into clamp ② When inserted, ensure that the arrow sticker () on the right arm is lined up with the slit in clamp ②

1. Securely tighten the screw in clamp ② using the tuning key.
2. Loosen the bolt on clamp ⑤.

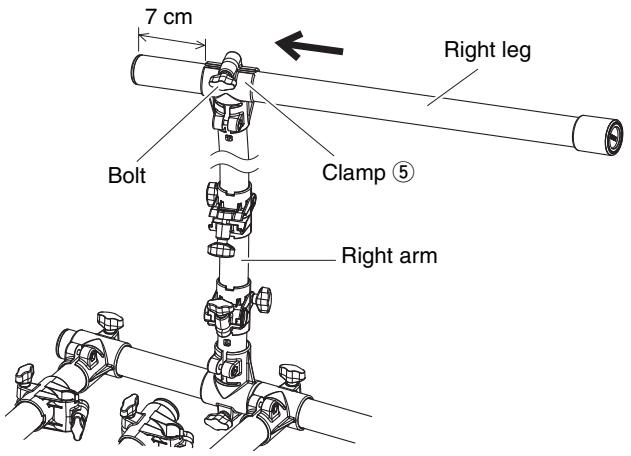

1. Take the right leg from the package and insert it into clamp ⑤. When inserted, ensure that the right leg protrudes from the clamp by approximately 7cm

1. Securely tighten the bolt on clamp ⑤.

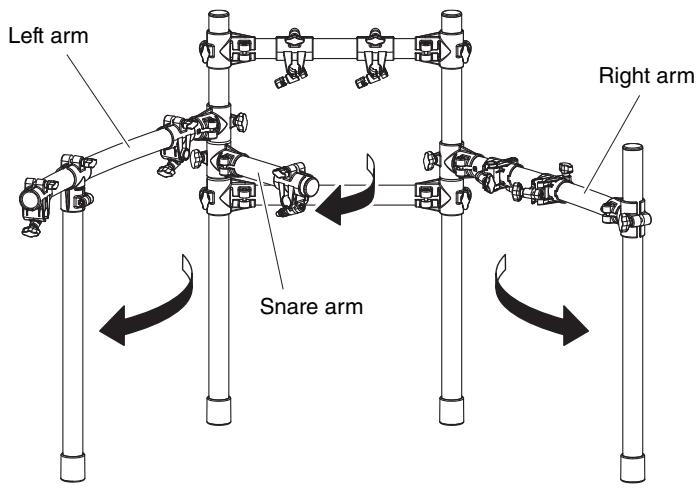

2. Lift up the main frame and open up the left arm, the right arm, and the snare arm.

CAUTION

Do not open up the rack's left and right legs any more than shown in the figure below. Failure to observe this precaution can lead to the rack toppling over and causing injury.

1. Securely tighten the bolts on clamps ①, ②, and ③.

1. Check all bolts and screws once again and ensure that they are tightly fastened.

Attaching the Holders

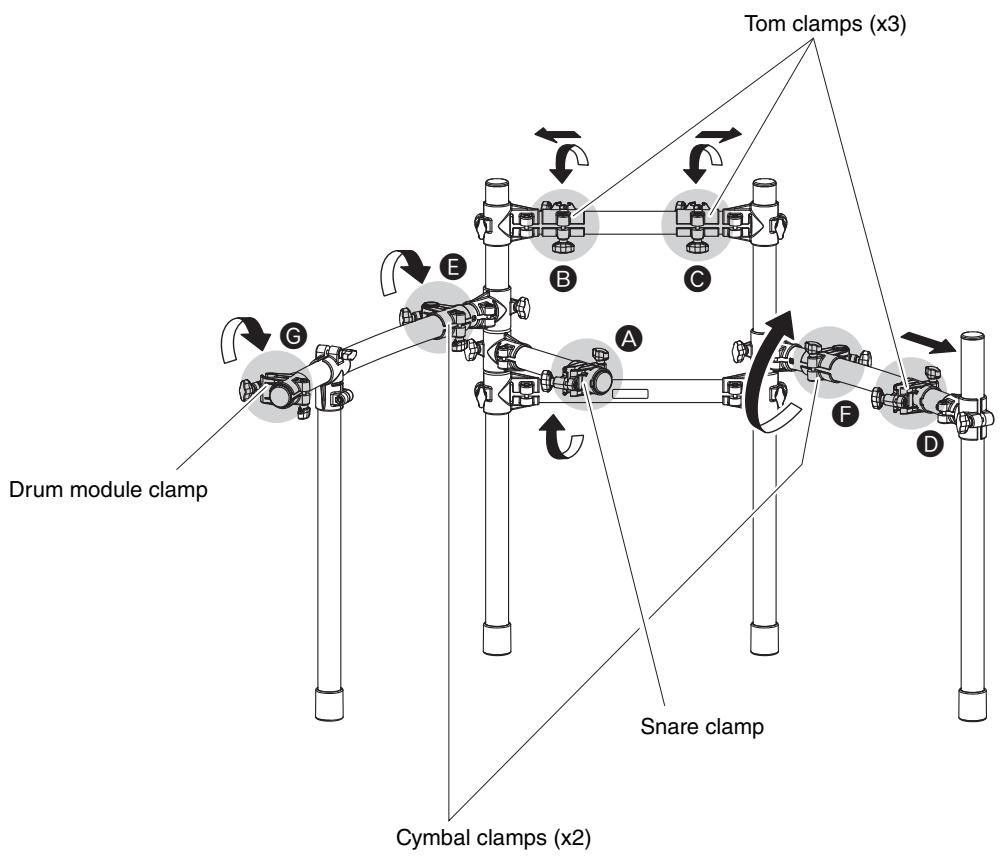

1. Loosen the bolts on the following seven clamps (A to G) and rotate or move the clamps to the positions shown below. Following this, securely tighten all of the bolts to lock the clamps in place.

2. One snare clamp (A)

3. Three tom clamps (B, C, and D)
4. Two cymbal clamps (E and F)
5. One drum module clamp (6)

NOTE

Tom clamp should be moved but not rotated. (All other clamps are rotated.)

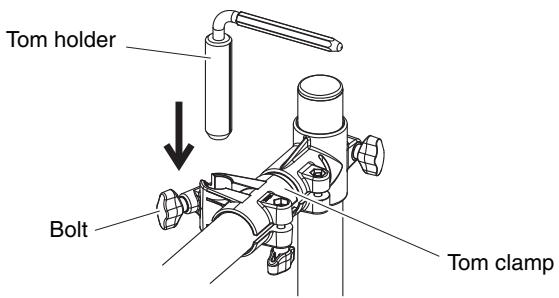

1. Attach a tom holder to each of the three tom clamps.

CAUTION

Take special care with tom holders as they have sharp tips that could cause injury.

2-1. Loosen the bolt on the tom clamp.
2-2. Insert the tom holder.
2-3. Securely tighten the bolt on the tom clamp.

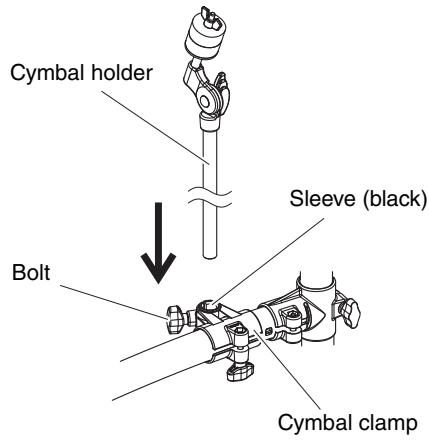

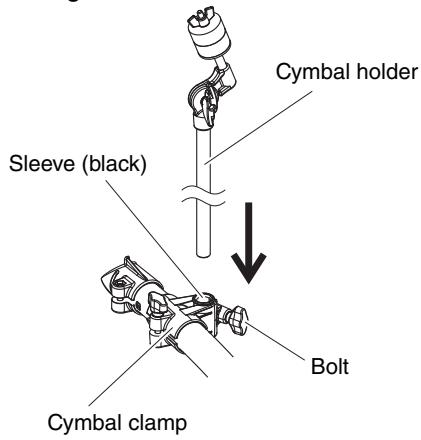

1. Attach a cymbal holder to each of the two cymbal clamps.

- On the left arm

- On the right arm

3-1. Loosen the bolt on the cymbal clamp.
3-2. Insert the cymbal holder.
3-3. Securely tighten the bolt on the cymbal clamp.

NOTE

When tightening the bolt, ensure that the black sleeve is positioned inside the clamp's mounting hole and securely held.

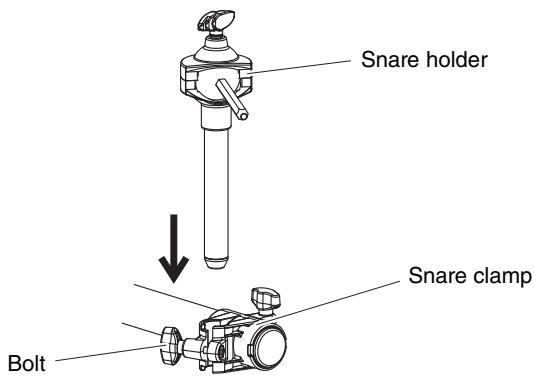

1. Attach the snare holder to the snare clamp.

CAUTION

Take special care with the snare holder as the rod has a sharp tip that could cause injury.

4-1. Loosen the bolt on the snare clamp.
4-2. Insert the snare holder.
4-3. Securely tighten the bolt on the snare clamp.

If going on to assemble a Yamaha electronic drum kit, please refer to the Assembly Manual booklet that came with your pad set.

Troubleshooting

• The rack is unstable even though placed on a level surface.

Check whether the arrow stickers are lined up with the slits in the clamps. (See Step 4 and Step 8 of Assembling the Rack on pages 6 and 7, respectively.) If they are not, loosen each of the clamp bolts, adjust the arms to align the arrow stickers with the slits, and then retighten the bolts.

Specifications

• Size (assembled): 1,196 (w) × 528.3 (d) × 812.3 (h) mm
  Weight: 8.3 kg

*: Specifications and descriptions in this Owner's Manual are for information purposes only. Yamaha Corporation reserves the right to change or modify products or specifications at any time without prior notice. As specifications, hardware, and optional extras may not be the same in every region, please check with your Yamaha dealer for details.
