USER MANUAL SLG110S YAMAHA

È— L SILENT Gate SLG110S Owner’s Manual English Thank you for purchasing the Yamaha Silent Guitar. In order to obtain the maximum performance and enjoyment from your Silent Guitar. we urge you to read this Owner's Manual thoroughly before using the instrument. Please keep this Owner’s Manual in a safe place for later reference. 7 Contents — Fan : Pi Precautions Main Body/Accessories Nomenclature Attaching the Frame. M About the Strap Pin Power Supply... M Supplying AC Power. M installing the Battery. Using the Soft Case … Connecting External Devices M AUX IN jack M Output Jacks (LINE OUT Jack/Headphone Jack). Using the Controls M Using the LINE OUT jack M Using the stereo earphones Specifications œ œ @ N U B © ( 02-sg110s_enindd 1 a 10/10/20 AL

This produet uilzes bateies or an external power supply (adaptor). DO NOT connect His product 19 an power supply or aaptor oüher than one described in the manual, on the mame plate, or specfically recommended by Yamaha. This produet should be used only with the components supplied or: a cart, rack, or stand that is recommended by Yamaha. a cat, lei uned, please observe al safety markings and instructions that accompany the accessory product SPECIFICATIONS SUBJECT TO CHANGE: The information contained in his mama is eleve Lo be correct at 1e time of printing. Her, Yamaha reserves the right 0 change or modif any fe speciictons without notice or Gbligation 1 update existing unis Do not attempt to service his product beyond hat described in the ue maintenance instructions AU other servicing should be referred to qualifie service personnel This product, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing los. DO NOT aperate for long periods of time a a high Volume level or at a level that is uncomfortable. I You experience any hearing Loss or ringing in the ears, you should consul an audiologist IMPORTANT The louder the sound, the shoster he time period before dam NOTICE: Service charges incured due 19 a lack of knowledge relating 0 how a function or effect works (when ie unit is operating as designed) are ot covered by lhe manufacturers warranty, and are therefore (he owners re- sponsbility. Please study this manual careflly and consult your dealer before

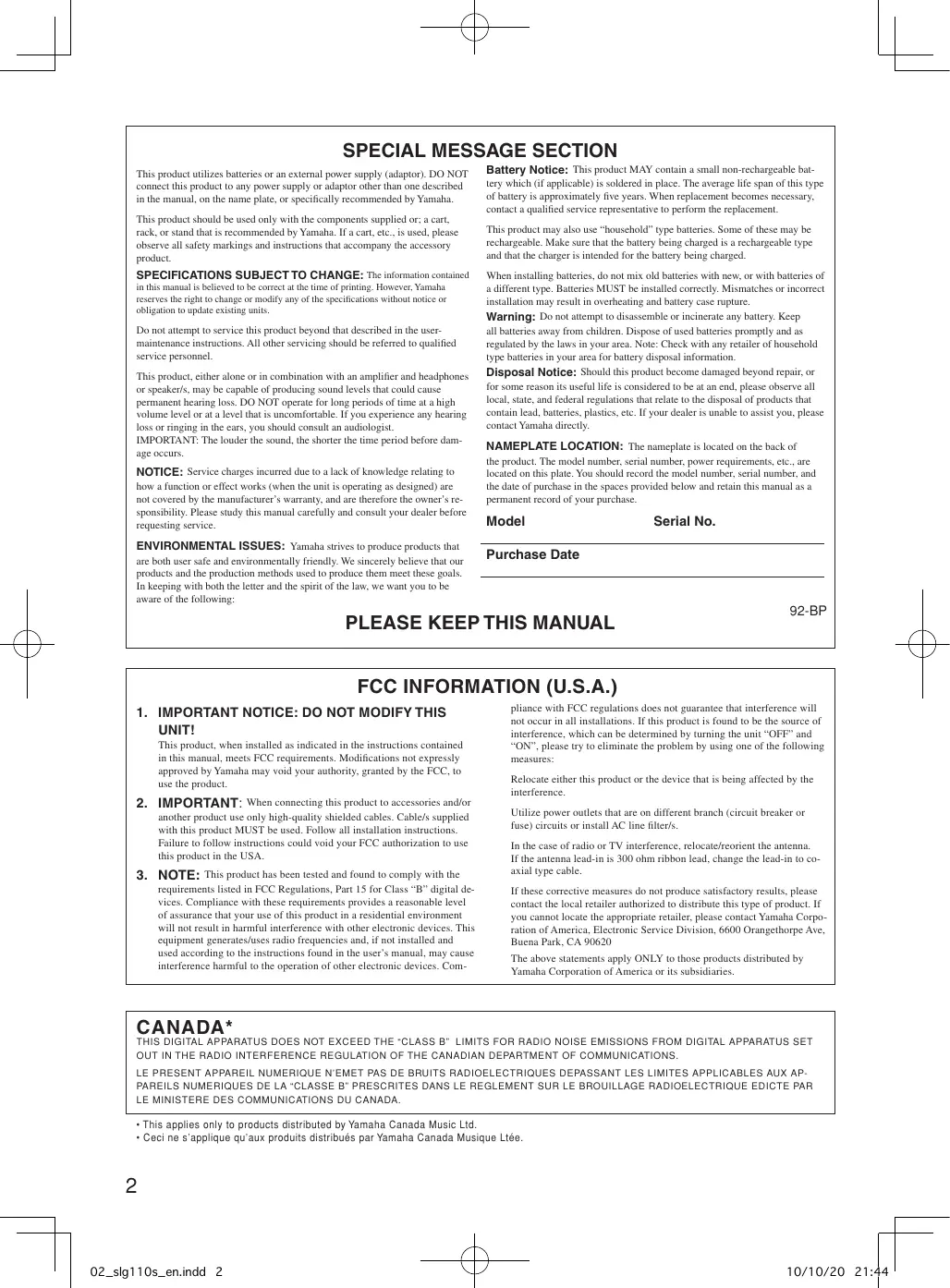

SPECIAL MESSAGE SECTION

Battery Notice: This produet MAY contain a small non-rechargeable bat Lery which (i applicable) is soldered in place. The average life span Of this type of batery is approximately five years. When replacement becomes necessary, “contact a qualiied service representative to perform the replacement. “This product may also use “household” ype bateries. Some of hese may be rechargeable. Make sure that he battery being charged is a rechargeable type and that he charger s intended for the butery being charge Wien instlling attries, do not mix old batteries with new, or with bateries of a different type. Batteries MUST be installed correct, Mismatches or incorrect installation may result in overheating and battery case ruplur.

Warning: Do not atempi Lo disassemble or incinerate any batesy. Keep

all batteries away from children. Dispose of used bateries prompily and as regulated by the laws in your area. Note: Check with any retail of household es in your area for battery disposal information. Disposal Notice: Should hi product become damaged beyond repair, or For some reason its eful if is considered to be at an end, please observe all Local, state, and federal regulations that relate Lo the disposal of products that contain lead. bateies, plastcs, et. I your dealer is umable 1 assis you, please contact Yamaha direct, NAMEPLATE LOCATION: The mumeplae is located on 1he back of the product, The model mumber, serial number, power requirements, ee. are located on this plate. You should record the model number serial number, and Ahe date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase. UNIT! This product, when installed as indicated in he instructions contained in his manual, mects FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, 10 use he product.

2. IMPORTANT: Wien connecting his product Lo accessories and/or

another product use only high-quality shiclded cables. Cable supplied with is product MUST be uxed. Follow all installation instructions. Failur to follow instructions could void your FCC authorization 10 use His product in the USA,

8. NOTE: This produet has been tested and found to comply with he

requirements listed in FCC Regulations, Part 15 for Class *B” digital de- vices. Compliance with these requirements provide à reasomable level of assurance that your use of this produet in a residential environment ill not result in harmful interference with ler clectromie devices. This. equipment gencratesAses radio Frequencies and, if not installed and used according Lo the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Com. requesting enice Model Serial No. ENVIRONMENTAL ISSUES: Yamaha sives 1 produce product hat are bo user safe and environmental friendly. We sincerely believe hat our PUrChaSe Date products and he production method used L produce (hem mcct these goas. Tu keine with Both he leer and he spirit of he Lay, we want you 1 be are of ie Following: 92-BP

PLEASE KEEP THIS MANUAL

FCC INFORMATION (U.S.A.)

4. IMPORTANT NOTICE: DO NOT MODIFY THIS pliance with FCC regulations does not guarantee dat inteference ill

ot oceur in al installations. I this product s Found 0 be the source of interference, which ean be determined by tuming the uit “OFF” and “ON”, please 1y 10 eliminate the problem by using one of he following Relocate either this product interference. he device that is being affected by he Uülize power outlets that are on different branch (eireuit breaker or use) circuits or install AC line filer. In the case of radio or TV interference, relocate/reorient1he antenna. Lie antenna leadin is 300 oh ribhon Lead, change the Lead axial iype cable If these corrective measure do not produce satisfactory results, please contact he local retailer authorized to disribute Ii 1ype of product I ou cannot ocate {he appropriate retailer, please contact Yamaha Corpo ration of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA 90620 ‘The above statements apply ONLY Lo those products distributed by Yamaha Corporation of America or it subridiares. CANADA* THIS DIGITAL APPARATUS DOES NOT EXCEED THE -CLASS B° LE MINISTERE DES COMMUNICATIONS DU CANADA. LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS SET OUT IN THE RADIO INTERFERENCE REGULATION OF THE CANADIAN DEPARTMENT OF COMMUNICATIONS. LE PRESENT APPAREIL NUMERIQUE N'EMET PAS DE BRUITS RADIOELECTRIQUES DEPASSANT LES LIMITES APPLICABLES AUX AP. PAREILS NUMERIQUES DE LA “CLASSE 8" PRESCAITES DANS LE REGLEMENT SUR LE BROUILLAGE RADIOELECTRIQUE EDICTE PAR : This applies only to products distributed by Yamaha Canada Music Ltd + Geci ne s'applique qu'aux produits distribués par Yamaha Canada Musique Ltée.

Your Silent Guitar will give you years of reliable service if you follow the simple rules given below: M Location Do not expose it to the following conditions to avoid deformation, discoloration, or more serious damage. + Direct sunlight (e.g. near a window). High temperatures (e.g. near a heat source, outside, or in a car during the daytime). Excessive humidity. Excessive dust Strong vibrations. 1m Power Supply Turn the power switch OFF when not in use. If you use an AC power adaptor, unplug the adaptor from the AC outlet if not to be used for an extended period of time. If you use an AC power adaptor, make sure that the AC outlet you are using is easily accessible. Do not install this equipment in a confined space such a book case or similar unit. If some trouble or malfunction occurs, immediately turn off the power switch and unplug ihe adaptor from the outlet. This product is not disconnected from the AC power source as long as the adaptor is connected to the outlet, even if the power switch is turned off. Avoid plugaing the AC power adaptor into the same AC outlet as appliances with high power consump- tion, such as electric heaters or ovens. AÏso avoid using mult-plug adaptors since these can result in reduced sound quality and possible damage. I the instrument is not going to be used for an extended period of time, or when battery power is depleted, we recommend that the batteries be removed in order to avoid power consumption or leakage. Unplug the AC power adaptor during electric storms. + Never dismantie the batteries and never dispose batteries in fire. + Never touch any fluid that may leak from the battery. Ifthe fluid should come in contact with the eyes, mouth, or skin, wash immediately with water and consult a doctor. M Turn Power OFF When Making Connections To avoid damage to the Silent Guitar and other devices to which it is connected (a sound system, for example), turn the power switches of all related devices OFF prior to connecting or disconnecting audio cables. M Handling and Transport Never apply excessive force to the controls, connec- tors or other parts. Alays unplug cables by gripping the plug firmly, not by puling on the cable Disconnect all cables before moving the unit. Physical shocks caused by dropping, bumping, or placing heavy objects on the unit can result in scratches and more serious damage. M Cieaning Clean the guitar body with a dry soft cloth. A slightiy damp cloth may be used to remove stub- born grime and dirt. + Never use cleaners such as alcohol or thinner. M Electrical Interference This unit contains electric circuitry and may cause interference if placed too close to radio or television receivers. If this occurs, move it further away from the affected equipment. YAMAHA is not responsible for damage caused by improper handling or operation.

Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. [For business users in the European Union] If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. 02-sg110s_enindd 3 10/10/20 21:44

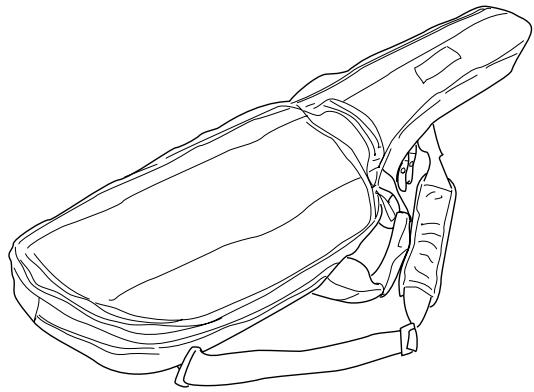

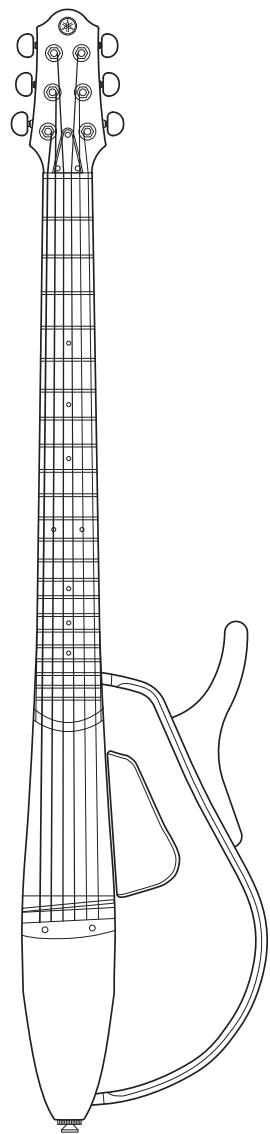

Main Body/Accessories | After opening the packaging, please check that all the parts listed below are in- cluded. + Main body + Left frame + Stereo earphones + AC adaptor PA-D02{A), PA-130(A), PA-D09 *_ Product numbers may vary according to the region. Additional, instruments sold in some countries may not be sup- plied with an AC adaptor. + Soft case ( 02-sg110s_enindd 4 a

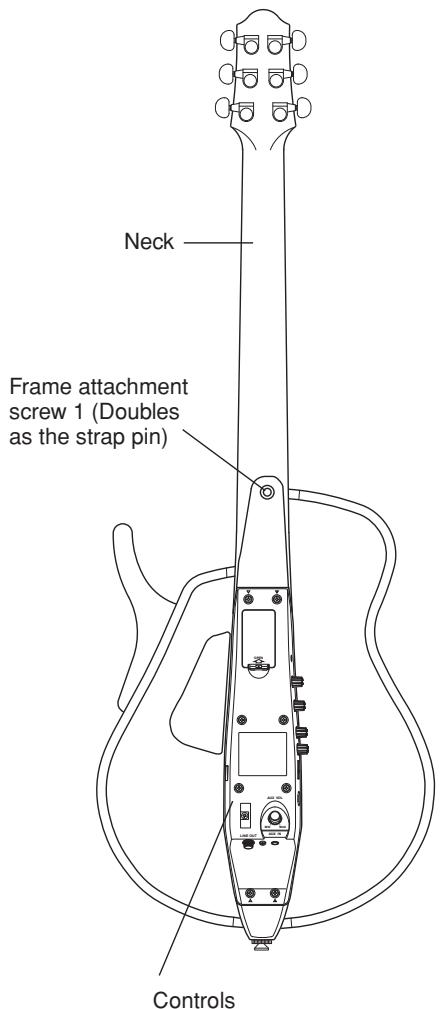

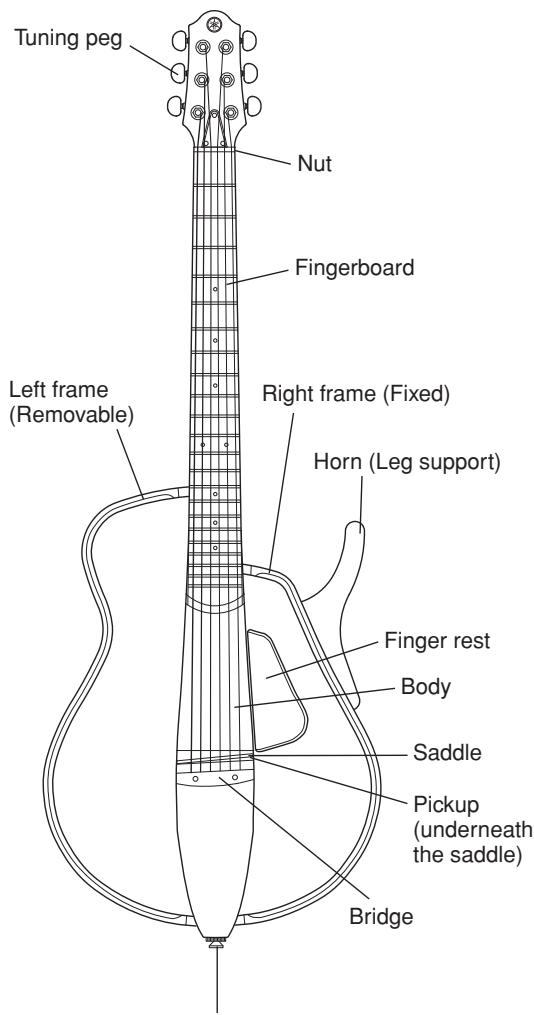

Tuning peg Left frame (Removable) Nomenclature @ Front © Rear ee 56Ù ï ‘ Nut [| Fingerboard Right frame (Fixed) Neck Frame attachment screw 1 (Doubles as the strap pin) Horn (Leg support) \ Finger rest Body Saddle ]]— Pickup }] (underneath Ÿ the saddie) 77 Bridge Frame attachment screw 2 {Doubles as the strap pin) ( 02-sg110s_enindd 5

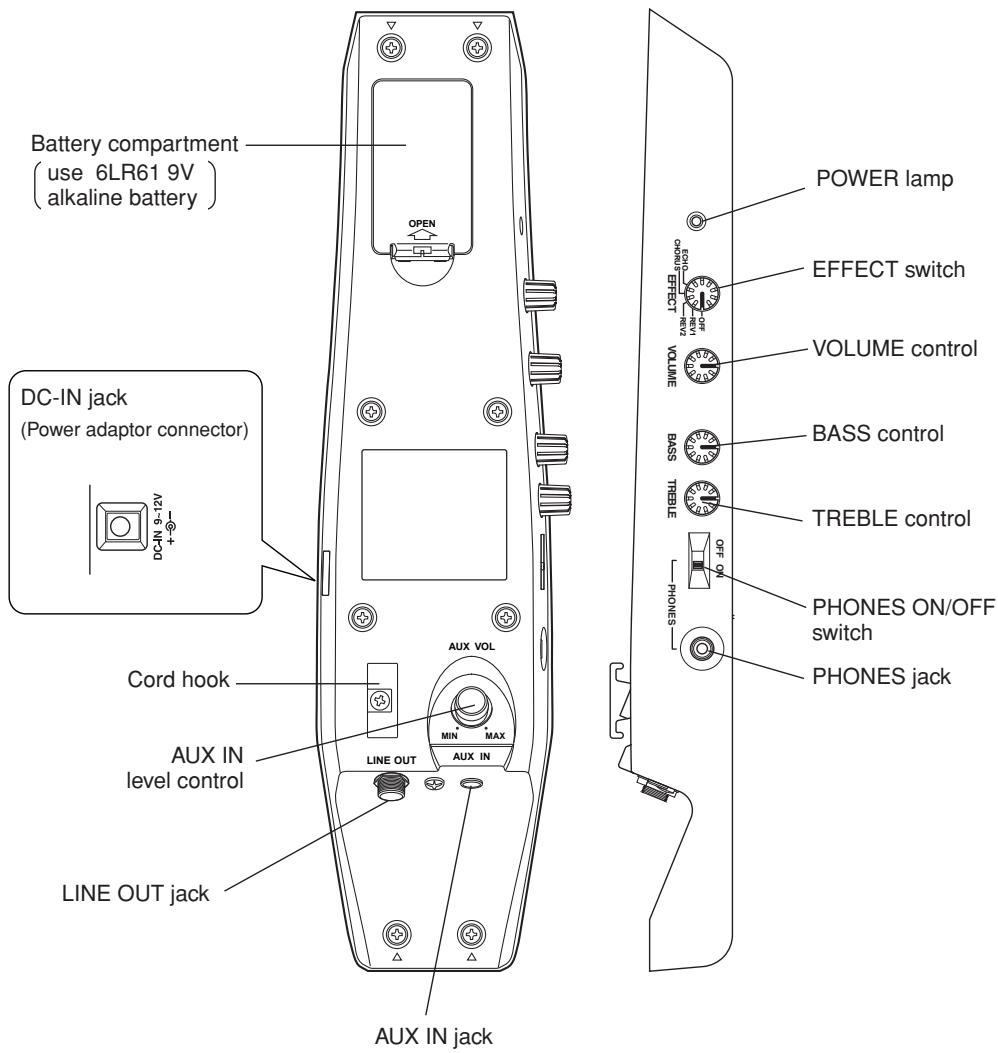

Nomenclature @ Controls Battery compartment use 6LR61 9V akaline battery DC-IN jack (Power adaptor connector) Cord hook AUX IN level control LINE OUT jack AUX IN jack

Attaching the Frame When shipped from the factory, the left frame is not attached to the Silent Guitar's main body. Before using the instrument, please properly attach the left frame using the proce- dure described below. f. Pully loosen [frame attachment screw 1] located in the Frame attachment screw 1 area behind the 12” fret, and [frame attachment screw 2] located at the end of the Silent Guitar's main body.

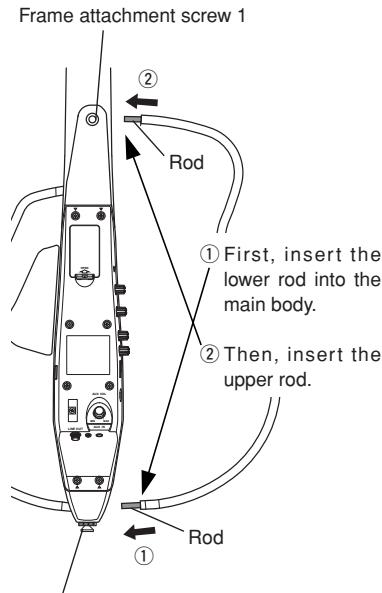

Insert the lower rod of the left frame fully into the bracket hole on the Silent Guitar’s main body. Next, insert the upper rod fully into the bracket hole. + Make sure that the upper and lower ends of the left frame are not reverse. + Do not place any excess force on the frame’s rods. The rods may become damaged. First, insert the lower rod into the main body. Then, insert the upper rod After confirming that both rods of the left frame are fully inserted, turn the attachment screws clockwise and | secure the left frame to the Silent Guitar’s main body. Fan make sure that your fingers or hand do not become pinched in the parts. Do not tighten the attachment screws when the frame is removed. It will re- suit in the damage of parts, which will Frame attachment screw 2 cause problems when re-attaching the frame. T C1) + When moving any movable parts, Attachment of the frame is now complete. To remove the frame, simply reverse the order of the procedure described above, removing the upper rod from tha main body before removing the lower rod. After the frame is attached, make sure attachment screws 1 and 2 are tightened firmly. Using the instru- ment with the screws loose wil result in rattle or other noise during performance. When transporting the instrument, please carry the instrument by its neck or main body. Holding the instrument by only its left or right frame will result in damage of the frame or the frame's fixed parts. H About the Strap Pin The frame attachment screw can be used as a strap pin for a separately purchased guitar strap. + Make sure that the strap is firmiy hooked onto the strap pin so the instrument does not drop during performance.

Power Supply The Silent Guitar operates either on battery power or with an AC adaptor however, it will consume more power when the reverb function is in use. For that reason, we recommend that it be powered with the supplied AC power adaptor for normal use. Always turn the PHONES ON/OFF switch OFF before making AC power connections or replacing the battery. Æ Supplying AC Power f. Plug the adaptor's DC output cable into the Silent Guitar's DC IN jack, making sure the plug is firmly inserted into the jack.

2. Plug the AC adaptor into a convenient wall AC power socket.

Battery power is automatically disconnected when the AC adaptor is connected. When the AC adaptor is used, the batteries may leak. To prevent leakage we recommend that you re- move the batteries from the instrument. When the AC adapter is used. When using an AC adaptor, make sure you use only one of the following recommended adaptors (Rec- ‘ommended Adaptors: PA-D012(A), PA-130(A), PA-D09, PA-3C). The use of any other adaptor may result in damage to the instrument or cause fire, etc. Please use with caution. H Installing the Battery f. Be sure to use a 9-volt alkaline battery 6LRGI. (not supplied) + When using a battery, please use an alkaline battery. Use of a manganese battery will result in an extremely shorter battery life depending upon the type of battery used. Remove the battery compartment cover, located on 6LR61 9V the back side of the Silent Guitar, by sliding the Alkaline battery tab labeled “OPEN” toward the head of the guitar. Battery compart- ment cover

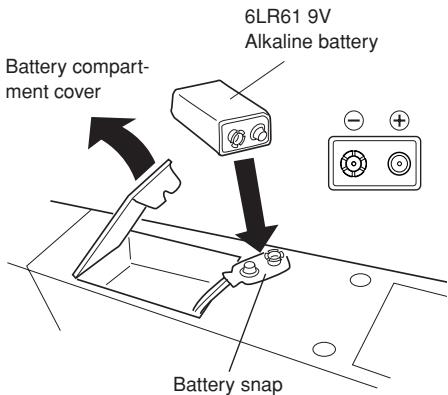

3. Attach the 9-volt battery 6LR61 to the battery

snap, and place it in the battery case. Take careful note of the polarity markings (+/-) as shown in the illustration when connecting the bat- tery. (Reversed polarity may damage the circuit.) ÎL, Close the battery compartment cover. Battery snap When battery power becomes low, the effect does not operate, the lamp will not light, and noise will be present. Replace the battery with a new alkaline battery as soon as possible. + Always follow the +/- signs when inserting the battery. Improper insertion may result in fire. + If the instrument is not going to be used for an extended period of time, or when battery power is depleted, we recommend that the batteries be removed in order to avoid power consumption or leakage.

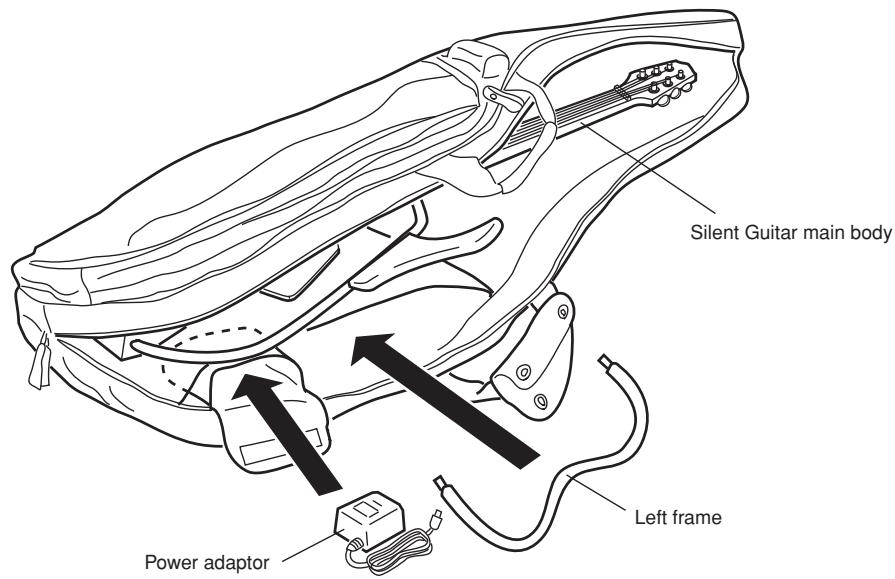

Using the Soft Case When putting the Silent Guitar into the supplied soft case, remove the left frame from the Silent Guitar, and then place in the individual parts in the case as shown in the illustration below. +_ Put the left frame into the case's larger pocket. +_Putthe power adaptor into the smaller pocket in the case and secure the cover using the Velcro® tape. +_ When laying the case down with the instrument packed inside, make sure that the case is placed with the guitar bridge side facing up. Silent Guitar main body KES Left frame Power adaptor ual parts. The soft case is designed for st not position the instrument with its bridge side facing down in the case, and do not cause any damage to the instrument by placing any objects on top of the case, hitting it, etc.

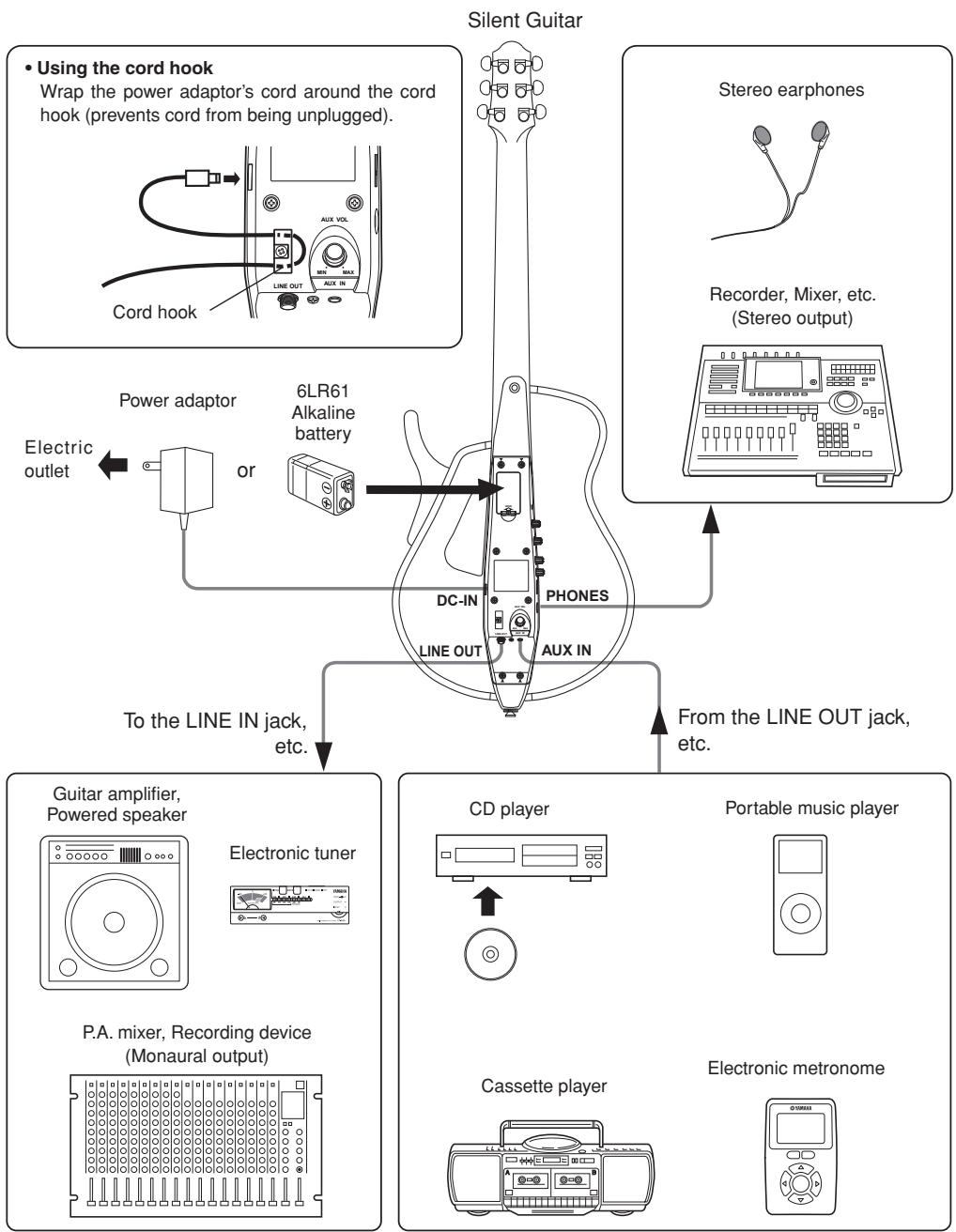

—— In Connecting External Devices Silent Guitar + Using the cord hook is] % 650 Stereo earphones Wrap the power adaptors cord around the cord hook (prevents cord from being unplugged). sp 9

| Recorder, Mixer, etc. (Stereo output) Cord hook Power adaptor AEAO ° rs Or eme | parent SE battery Electric — outlet « = From the LINE OUT jack, To the LINE IN jack, etc. etc. Portable music player Guitar amplifier, Powered speaker CD player Electronic tuner = tr] PA. mixer, Recording device Electronic metronome (Monaural output) Cassette player When connecting the instrument to external audio equipment, check the jack size and make sure to use a plug size that corresponds to the jack being used, and properly connect the cable to the jack.

Connecting External Devices EH AUX IN jack + The AUX IN jack can be used to connect an external stereo signal source to the Silent Guitar. Connecting the audio output of a CD player, portable music player, etc, to the instrument allows you to play along with the external audio source. + The AUX IN jack's signal level can be controlled with the AUX IN level control. M Output Jacks (LINE OUT Jack/Headphone Jack) + The LINE OUT jack can be connected to an external input jack on a device such as à itar amplifier, powered speaker, mixing console, etc. using a separately purchased standard monaural phone cable. This allows monitoring or recording of the Silent Guitar's sound via an external device. Connecting the LINE OUT jack to the INPUT jack on an electronic tuner, allows tuning of the instrument in the same manner as other electronic instruments. + When using the supplied stereo earphones, insert the earphone plug into the headphones jack (PHONES) and turn the headphone ON/OFF switch to its “ON” position. + The LINE OUT jack is a monaural type jack while the headphones jack is stereo. + Before connecting the Silent Guitar to any external devices, make sure that the power of all related devices is turned OFF. Set the volume level of any external audio sources to the minimum level before connecting anything. High volume settings could cause damage to the equipment and your hearing. + Be careful not to step on the cord. The cord may break, equipment may be damaged, and this may cause a substantial shock to your ears. + The signal from the Silent Guitar’ output jacks must NEVER be returned to the AUX IN jack, either directly or through external equipment. Doing so will result in feedback which may cause damage to the internal electronics.

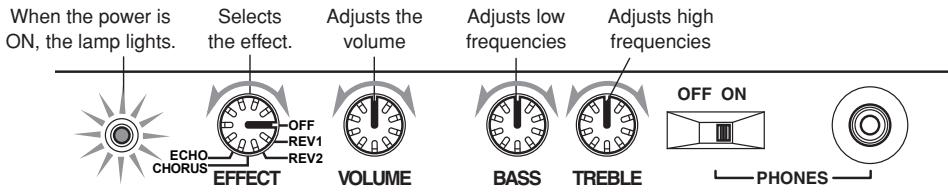

Using the Controls Œ Using the LINE OUT jack (Using with a guitar amplifier or powered speaker, etc.) f. Use a standard phone plug cable to connect the Silent Guitar's LINE OUT jack to the input jack on the guitar amplifier or powered speaker, etc. serted into the LINE OUT jack, power will be supplied to the Silent Guitar and the power lamp will light. When the cable’s plug ik + Before making any connections, make sure that the output volume on the guitar amplifier or pow- ered speaker, etc. is turned down or its power is switched OFF. + When the guitar is not being used, disconnect the cables plug to save battery. Rotate the VOLUME knob while playing, and adjust the volume to a suitable level. +_Ifthe sound is distorted when playing vigorously, turn the VOLUME knob slightiy to the left.

3. Rotate the BASS and TREBLE control knobs to adjust the sound quality.

Rotate the BASS knob to the right to increase the low frequencies, and to the left to decrease the low frequencies. Rotate the TREBLE knob to the right to increase the high frequencies, and to the left to decrease the high frequencies. IL. You can add different effects to the guitar’s tone using the EFFECT function. OFF …Disengages the effect function. Only the original non-processed guitar sound is heard. REVI. .Adds reverb similar to what you would normally experience in a room. REV2. .Adds reverb similar to what you would normally experience in a hall. CHORUS........The chorus effect makes it sound as if two guitars are being played. ECHO......…..Adds an echo effect to the guitar's sound. +_ Power consumption is slightiy lower when the EFFECT switch is set to the “OFF” position compared to the other EFFECT setting positions. Noise may be produced when changing the setting with the EFFECT switch. +_ A time lag may occur when switching to another effect causing a delay until the next effect is produced. Whenthe poweris Selects Adjusisthe Adjustsiow Adjusts high ON, the lamp lights. the effect. volume frequencies frequencies L L OFF ON Co]

Using the Controls H Using the stereo earphones (or stereo output to an external device) When using the instrument with the supplied stereo earphones or a separately purchased pair of headphones, or when you want to send the instrument’ stereo output to an external device, use the headphones (PHONES) jack for connecting the earphones or external device.

1. Set the headphones ON/OFF switch, located on the right side of the control panel, to its “ON” position

to supply power to the Silent Guitar. The power lamp will light. + When using the LINE OUT jack, audio output is delivered to the headphones jack regardiess of the headphones ON/OFF switch position. Insert the earphone plug into the headphone jack. When connecting the instrument to an external de- vice, connect the external device to the PHONES jack using a cable with a stereo plug. The remaining procedures are the same as described above in the “Using the LINE OUT jack” tion’s steps 2 through 4. + When using a pair of headphones, do not operate at high volume levels for long periods of time. Doing so can lead to irreparable damage to your hearing. +_Do not disconnect or connect the plug when the headphones are placed over your ears.

Specifications Neck Body Fingerboard Bridge Frame Unit Strings Sensors Connectors/Controls Power Supply Battery Life String Length Mahogany Maple Rosewood Rosewood Maple Steel Strings for Acoustic Guitar LR-Baggs + AUX IN AUX IN Level Control LINE OUT jack (monaural) PHONES jack (stereo) Volume BASS control TREBLE control EFFECT switch (OFF/REV1/REV2/CHORUS/ECHO) PHONES switch (ON/OFF) the jack switches the power on) LINE OUT Jack with POWER Switch (Inserting a plug into AC Adaptor/battery (6LR61 or 6F22) xt dual power source

• Recommended AC Adaptors: PA-DO12(A), PA-130(A), PA- DO9, PA-3C
• Recommended Battery: 6LR61 alkaline battery Continuous Use + Using Alkaline battery : approximately 20 hours + Using Manganese battery : approximately 9 hours With the effect activated + Using Alkaline battery : approximately 13 hours + Using Manganese battery : approximately 5 hours 634 mm (24-15/16") Dimensions (with the left frame attached and to the end of the strap pin) Weight 985 (L) x 355 (W) x 80 (H) mm 38-3/4" (L) x 14° (W) x 3-1/8° (H) approximately 1.9 kg (4 lbs. 3 oz.)

• Design and specifications are subject to change without notice.
