USER MANUAL TP70S YAMAHA

The model number, serial number, power requirements, etc., may be found on or near the name plate, which is at the bottom of the unit. You should note this serial number in the space provided below and retain this manual as a permanent record of your purchase to aid identification in the event of theft.

Model No.

Serial No.

(bottom)

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[For business users in the European Union]

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

(weee_eu)

PRECAUTIONS Please read carefully before proceeding.

The purpose of the precautions detailed below is to ensure that this product is used safely without fear either of accidental injury to you or other people or of damage to property. As a means, furthermore, of indicating the severity and immediacy of any risk of injury or damage associated with incorrect operation, these precautions are classified as either WARNING or CAUTION. The instructions presented together with precautions are extremely important in terms of ensuring safety, and therefore, they should be fully observed.

After reading this Owner's Manual, ensure that it is kept in a safe, convenient location for future reference.

CAUTION	Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property.These precautions include, but are not limited to, the following:
Do not place the product in an unstable position where it might accidentally fall over.
If this product is used with a Rack System or Cymbal Stand, make sure all bolts are tightened firmly. Also, when adjusting the height or angle, do not suddenly loosen the bolts. Loose bolts may result in the rack overturning or parts dropping, causing injury.
Please be careful when children are close to or touching the product. Careless movement around the product may result in injury.
When setting the product, please pay close attention to the handling and setting of cables. Carelessly placed cables may cause the user and others to trip and fall.
Do not alter the product. Doing so may result in injury or damage/deterioration to the product.

NOTICE

• Do not step on or place heavy objects on the product. It may result in damage.
• Do not use or keep the product in places with extremely high temperature (places in direct sunlight, close to a heater, in a closed car, etc.) or high humidity (bathroom, outside on a rainy day, etc.). Doing so may result in deformation, discoloration, damage or deterioration.
• Never leave any materials which are easily color-transferable, such as rubber items, on the drum pad surface. Otherwise, the color of the material may be transferred to the drum pad surface. Be especially careful of this when you store the drum pads.
• When cleaning the product, do not use benzine, thinner or alcohol as it may result in discoloration or deformation. Please wipe with a soft cloth or a damp cloth that has been wrung out thoroughly. If the product is soiled or sticky, use a neutral detergent on a cloth then wipe with a damp cloth that has been wrung out thoroughly to remove any remaining detergent. Also pay close attention so as not to let the water and detergent come into contact with the cushions used in the product; doing so may result in deterioration.
• Make sure you hold onto the plug, not the cable, when connecting or disconnecting the cable. Also, never place any heavy or sharp objects on the cable. Applying excessive force to the cable may result in damage to the cable, such as the wires being severed, etc.
• Do not push or scrape the playing surface of your pad with drum sticks as this may make it less sensitive and/or more difficult to play.

Welcome

First of all, thank you for purchasing the Yamaha TP70S—a drum pad designed for use with products from the DTX series of Yamaha electronic drum sets. In order to get the most out of your new accessory, please be sure to read this owner's manual carefully. And after doing so, be sure to store the manual in a safe place so that you can refer back to it again as needed.

Package Contents

① TP70S pad (x1)
② S wing bolt (x1)
③ Stereo audio cable (×1)
④ Owner's Manual (x1; this booklet)

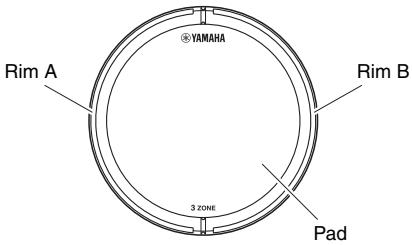

*: Rim A and Rim B of the TP70S contain switches in the groove sections. As a result, your drum module can produce different sounds depending on where you strike the pad.

1

Rim A ©YAMAHA Rim B 3 ZONE Pad

2

3

Line drawing of a U-shaped tube with connectors and a small protrusion (no text or symbols)

Simple 3D illustration of a blank rectangular block with no text or symbols

Setting Up

As shown in the figures, set up your pad on an electronic drum rack or a standard tom stand (such as a Yamaha WS series product).

1. Take the snare pad (①) and the S wing bolt (②) from the package and lightly tighten the S wing bolt (②). (Five or six turns is sufficient.)

Diagram of a device with labeled parts, showing a tool pressing a component on a circular base.

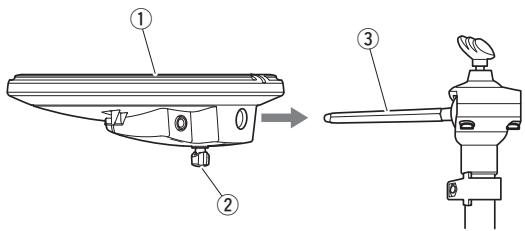

1. Slide the pad (①) onto the tom holder or hexagonal bolt (③) from the rack or tom stand, and then tighten the S wing bolt (②) to secure it in place.

CAUTION

If the wing bolt and other fasteners are not sufficiently tightened, your pad may fall, possibly causing injury. It is important, therefore, that you mount your pad securely on the drum rack or stand. In addition, you should avoid placing your rack or stand on an uneven surface as this may cause it to fall over, again increasing the risk of injury.

Technical diagram showing three labeled components of a mechanical device, with arrows indicating transformation or assembly.

Pads and Trigger Input Jacks

The functions that the pad can perform will depend on which of your drum module's trigger input jacks it is connected to. A chart showing the correspondence between pad functionality and input jack types can be accessed via the web site shown below.

http://download.yamaha.com/

Connecting

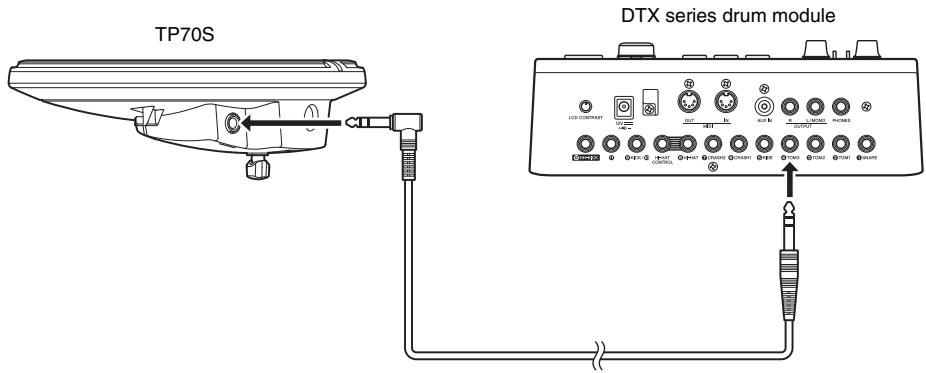

Using the stereo audio cable provided, connect the TP70S pad's output to a suitable input jack on your DTX series drum module. At this time, ensure that the L-shaped end of the cable is plugged into the [OUTPUT] jack on the TP70S.

TP70S DTX series drum module

Troubleshooting

If the pad produces no sound, proceed as follows.

- Ensure that the pad is correctly connected to a suitable input jack on your DTX series drum module using the stereo audio cable provided. If you use a mono audio cable for connection, you will be unable to produce the sounds assigned to the rims.

For more troubleshooting tips, refer to the Owner's Manual that came with your DTX series drum module. If you still cannot find the information you need to resolve a problem, please contact your Yamaha dealer or a customer support center for assistance.

Specifications

■ TP70S Drum Pad

● External dimensions: 220 (dia.) x 68 mm (not including S wing bolt)
● Weight: 0.9 kg (including S wing bolt)
- Sensor System : Trigger sensor (piezo) x 1, rim switch (2zones) x 1
● Output jack: Standard stereo-audio jack

*: Specifications and descriptions in this Owner's Manual are for information purposes only. Yamaha Corporation reserves the right to change or modify products or specifications at any time without prior notice. As specifications, hardware, and optional extras may not be the same in every region, please check with your Yamaha dealer for details.
