Product Type	Split System Air Conditioner
Model	LS-C096QGA0
Brand	LG
Cooling Capacity	9,000 BTU/h
Heating Capacity	9,000 BTU/h (Reverse Cycle)
Energy Efficiency Ratio (EER)	11.5
Refrigerant Type	R32
Indoor Unit Dimensions (WxHxD)	837 x 285 x 189 mm
Outdoor Unit Dimensions (WxHxD)	660 x 421 x 267 mm
Indoor Unit Weight	8.5 kg
Outdoor Unit Weight	26.5 kg
Power Supply	220-240V, 50Hz, 1Ph

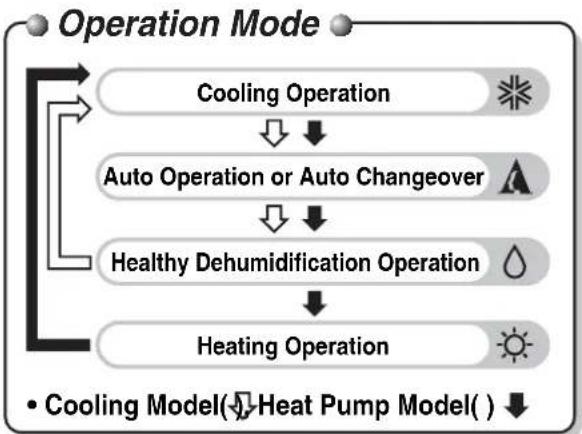

Operating Modes	Cool, Heat, Fan, Dehumidify, Auto
Airflow Rate (High)	10.5 m³/min
Noise Level Indoor (Low/High)	30 / 40 dB(A)
Noise Level Outdoor	52 dB(A)
Filter Type	Washable / Anti-Bacterial
Maintenance	Clean filter every 2 weeks
Safety Features	Auto Restart, Overheat Protection, Child Lock
Spare Parts Available	Filters, Remote Control, Fan Motor
Repairability Index	7.5 / 10
Warranty	1 Year (Parts & Labor)

Frequently Asked Questions - LS-C096QGA0 LG

How often should I clean the air filter?

Clean the air filter every two weeks or more frequently in dusty conditions. A dirty filter reduces efficiency and may cause freezing.

What does the auto restart function do?

Auto restart saves your current settings (mode, temperature, fan speed) and automatically resumes operation after a power outage.

Can I use the air conditioner for heating in winter?

Yes, the LS-C096QGA0 is a reverse cycle unit that provides heating as well as cooling. It works efficiently in moderate winter temperatures.

How do I set the timer?

Press the Timer button on the remote to set a delay for start or stop. Use the + and - buttons to set the time up to 24 hours.

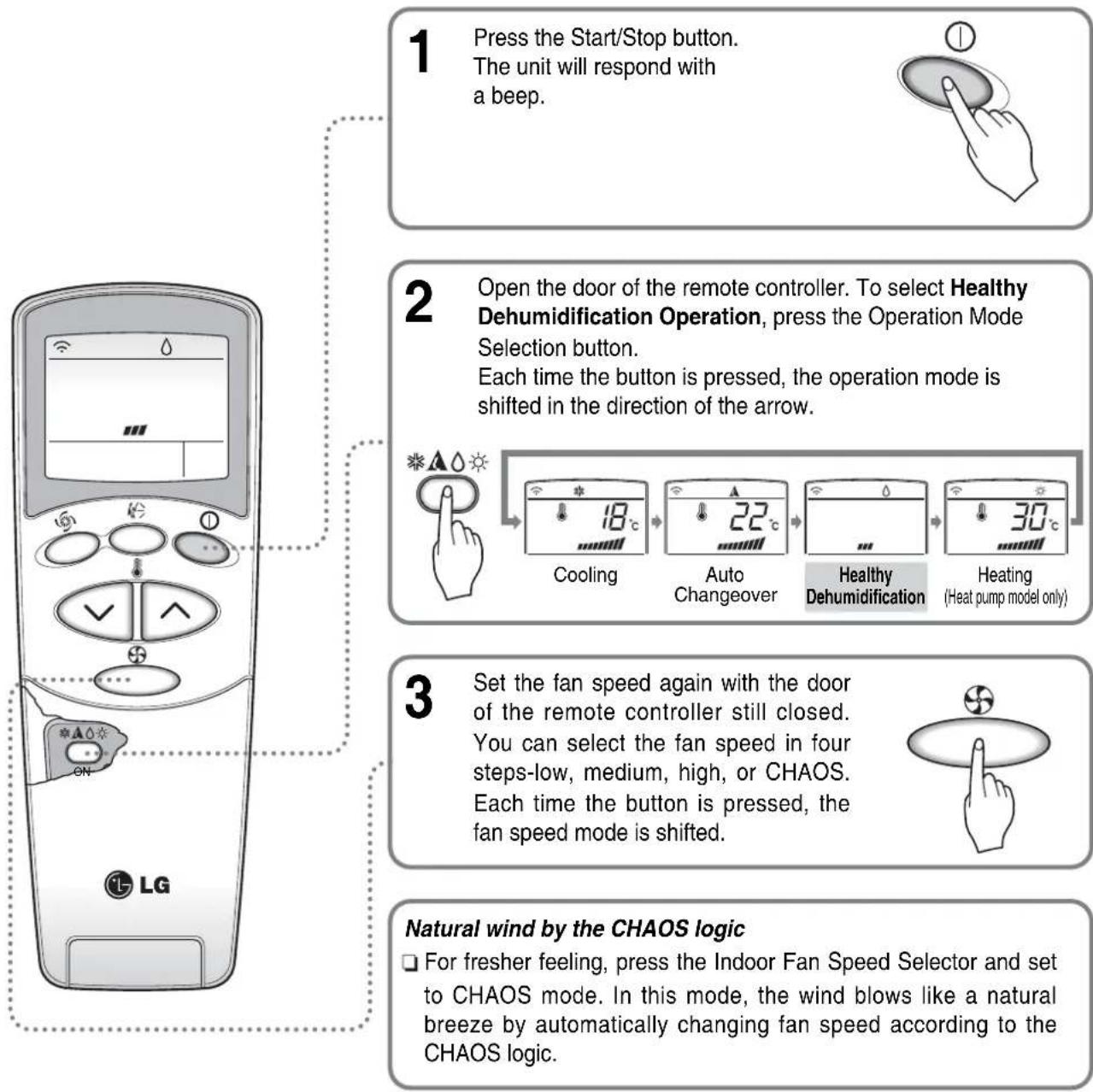

What does the 'Dry' mode do?

Dry mode dehumidifies the room by running the fan at low speed while the compressor cycles on and off to remove moisture without significant cooling.

Why is my air conditioner leaking water indoors?

Indoor water leakage may be due to a clogged condensate drain or a dirty filter causing ice formation. Clean the filter and check the drain line.

How do I reset the remote control?

Remove the batteries, press any button for 5 seconds, then reinsert the batteries. This resets the remote to factory defaults.

What is the recommended temperature setting for energy saving?

Set the thermostat to 24-26°C (75-78°F) for cooling and 20-22°C (68-72°F) for heating. Each degree adjusts energy use by 6-8%.

How do I clean the outdoor unit?

Turn off power. Gently rinse the coil with a garden hose from top to bottom. Avoid using high pressure or harsh chemicals to prevent damage.

What should I do if the unit does not cool?

Check if the filter is dirty, the temperature setting is correct, the outdoor unit is obstructed, and the circuit breaker is on. If issue persists, contact service.

USER MANUAL LS-C096QGA0 LG

Prior to installation, this air-conditioning unit must be submitted for approval by the utility service which provides electricity (EN 61000-2, EN 61000-3 Norm).

IMPORTANT

• Please read this owner's manual carefully and thoroughly before installing and operating your room air conditioner.
• Please retain this owner's manual for future reference after reading it thoroughly.

TABLE OF CONTENTS

Safety Precautions....3

Prior to Operation 9

Introduction 10

Electrical Safety 11

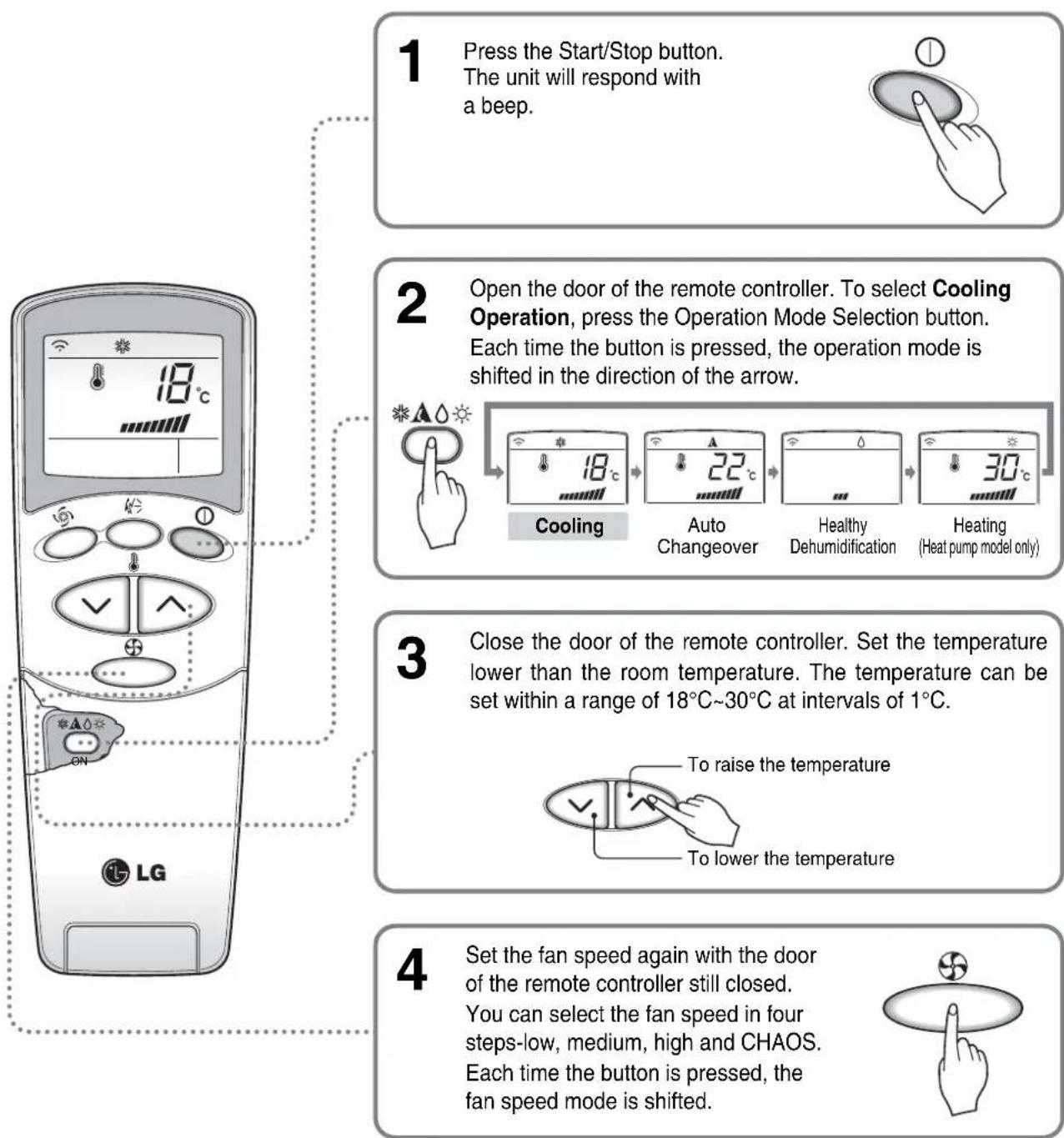

Operating Instructions......13

Maintenance and Service .....26

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■ Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.
  • Installation work must be performed in accordance with the National Electric Code by qualified and authorized personnel only.

Simple line drawing of people enjoying a picnic at a table with sun, palm tree, and cups (no text or symbols)

Safety Precautions

To prevent the injury of the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to properties only.

■ The meanings of the symbols used in this manual are as shown below.

	Be sure not to do.
	Be sure to follow the instruction.

WARNING

■ Installation

Do not use damaged power cords, plugs, or a loose socket.

• There is risk of fire or electric shock.

For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center.

• There is risk of fire or electric shock.

Always use the power plug and socket with the ground terminal.

• There is risk of electric shock.

Cartoon illustration showing a phone emitting a 'no' symbol to an electrical plug, with wings and lightning indicating electric shock.

Illustration of a person reading a book with a cartoon character inside a car, no text or symbols present

Illustration of a smiling air conditioner and a smiling notebook with a warning symbol (no text or labels)

Install the panel and the cover of control box securely.

• There is risk of fire or electric shock.

Do not modify or extend the power cord.

• There is risk of fire or electric shock.

Do not install, remove, or re-install the unit by yourself (customer).

• There is risk of fire, electric shock, explosion, or injury.

Illustration of a smiling computer monitor and a technician pointing at a device with an exclamation mark (no text or symbols)

Illustration of a battery pack with an electric plug and a prohibition sign (no text or symbols)

Illustration of a person using a smartphone to interact with a wall-mounted device, no text or symbols present

Be cautious when unpacking and installing the product.

- Sharp edges could cause injury. Be especially careful of the case edges and the fins on the condenser and evaporator.

Illustration of a person using a vacuum cleaner to clean air from a building, with no text or symbols present.

Be sure the installation area does not deteriorate with age.

- If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury.

Cartoon illustration of a person holding a book with a 'No' symbol, standing beside a building (no text or symbols on the figure itself)

For installation, always contact the dealer or an Authorized Service Center.

• There is risk of fire, electric shock, explosion, or injury.

Illustration of a person using a phone to call into a computer monitor, with an exclamation mark symbol nearby (no text or symbols present)

Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open.

- Moisture may condense and wet or damage furnishings.

Diagram showing a person cleaning a wall with a 'No' symbol, indicating no proper action or absence of the mechanism.

Do not install the product on a defective installation stand.

- It may cause injury, accident, or damage to the product.

Technical line drawing of a mechanical device with no visible text or symbols

Operation

Take care to ensure that power cords could not be pulled out or damaged during operation.

- There is risk of fire or electrical shock.

Safety warning illustration showing a hand holding a plug with a warning symbol and a crossed-out device, indicating no hazard or caution.

Do not place anything on the power cord.

• There is risk of fire or electric shock.

Safety warning illustration showing a car air conditioner with a 'No' symbol and a sign reading 'No Air Condition'

Do not turn the air-conditioner ON or OFF by plugging or unplugging the power plug.

• There is risk of fire or electrical shock.

Hand inserting a plug into an electrical outlet with a prohibition symbol (no text or labels)

Use a dedicated outlet for this appliance.

• There is risk of fire or electrical shock.

Grasp the plug to remove the cord from the outlet. Do not touch it with wet hands.

- There is risk of fire or electrical shock.

Do not place a heater or other appliances near the power cable.

• There is risk of fire and electric shock.

Illustration of a person inside an electric shock absorber with a prohibition symbol below (no text or labels)

Illustration showing a person using a device with a prohibition symbol, accompanied by a cartoon character holding a bottle.

Illustration showing a cartoon character holding a 'No' sign above an air conditioner unit, with a digital display showing 100 units.

Do not allow water to run into electric parts.

- It may cause There is risk of fire, failure of the product, or electric shock.

Do not store or use flammable gas or combustibles near the air conditioner.

- There is risk of fire or failure of product.

Do not use the product in a tightly closed space for a long time.

- Oxygen deficiency could occur.

Illustration of a worker using a tool to interact with a smiling refrigerator (no text or symbols present)

Wax Thinner

Illustration of a shower inside a room with a bottle and no warning symbol (no text or labels)

When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on. DO NOT use the telephone or turn switches on or off.

• There is risk of explosion or fire.

Unplug the unit if strange sounds, odors, or smoke comes from it.

- There is risk of electrical shock or fire

Stop operation and close the window in storm or hurricane. If possible, remove the air conditioner from the window before the hurricane arrives.

• There is risk of property damage, failure of product, or electric shock.

Illustration of a fire extinguisher emitting exhaust smoke from a stove, with no visible text or symbols

Illustration showing a person at a phone with a 'no' symbol, surrounded by a broken-out air conditioner and warning signs.

Illustration of a car with exhaust flames and a warning symbol (no text or labels)

Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.)

• There is risk of physical injury, electric shock, or product failure.

Cartoon illustration of a person using a refrigerant air conditioner with a 'no' symbol above (no text or labels)

When the product is soaked (flooded or submerged), contact an Authorized Service Center.

• There is risk of fire or eletric shock.

Illustration of a person using a telephone with an exclamation mark (no text or symbols on the device)

Ventilate the product from time to time when operating it together with a stove, etc.

• There is risk of fire or electrical shock.

Illustration of a person cleaning a window with a heater and a cartoon character, no text or symbols present.

Unplug the appliance before performing cleaning or maintenance.

• There is risk of electrical shock.

Illustration of a woman holding a solar panel with a child nearby, next to a mouse and a warning symbol (no text present)

When the product is not be used for a long time, disconnect the power supply plug or turn off the breaker.

• There is risk of product damage or failure, or unintended operation.

iteration.

Take care to ensure that nobody could step on or fall onto the outdoor unit.

• This could result in personal injury and product damage.

Illustration showing a person standing on a device with a 'no' symbol above, indicating no smoking or no smoking.

CAUTION

■ Installation

Always check for gas (refrigerant) leakage after installation or repair of product.

- Low refrigerant levels may cause failure of product.

Diagram illustrating a hand using a tool to clean or spray equipment, with an exclamation mark and warning symbol nearby.

Install the drain hose to ensure that water is drained away properly.

- A bad connection may cause water leakage.

Illustration of two connected appliances with a warning symbol (no text or labels)

Keep level even when installing the product.

• To avoid vibration or water leakage.

Cartoon illustration of a smiling computer with wings and a 90-degree angle indicator (no text or symbols on the device itself)

Do not install the product where the noise or hot air from the outdoor unit could damage the neighborhoods.

- It may cause a problem for your neighbors.

Use two or more people to lift and transport the air conditioner.

- Avoid personal injury.

Do not install the product where it will be exposed to sea wind (salt spray) directly.

- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation.

Illustration of a person reacting to a photo frame with a 'no' symbol above (no text or symbols on the image itself)

Illustration of two people handling a large rectangular device, with a warning symbol (no text or labels)

Illustration of a fire incident near a fire truck with smoke and a prohibition sign (no text or symbols on the diagram itself)

Operation

Do not direct airflow at room occupants. (Don't sit in the draft.)

• This could damage your health.

Illustration of a person opening a high-voltage air conditioner with a 'no' symbol above (no text or symbols on the diagram itself)

Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

• There is risk of damage or loss of property.

Illustration of a cartoon airplane with a sleeping face, a potted plant, and a prohibition sign (no text or symbols)

Do not block the inlet or outlet of air flow.

- It may cause product failure.

Illustration showing a hand holding a bag with a 'No' symbol, surrounded by stacked boxes and debris.

Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.

• There is risk of fire, electric shock, or damage to the plastic parts of the product.

Illustration of a person using a hairdryer to interact with a mouse, with a warning symbol above (no text or labels)

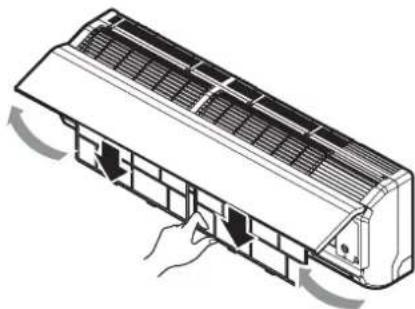

Do not touch the metal parts of the product when removing the air filter. They are very sharp!

• There is risk of personal injury.

Illustration of a person reacting to a large indoor air conditioner unit with a prohibition symbol (no text or labels)

Do not step on or put anything on the product. (outdoor units)

• There is risk of personal injury and failure of product.

Cartoon illustration of stacked boxes with a 'no' symbol below, no text or symbols present

Always insert the filter securely. Clean the filter every two weeks or more often if necessary.

- A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.

Do not insert hands or other objects through the air inlet or outlet while the air conditioner is plugged in.

• There are sharp and moving parts that could cause personal injury.

Do not drink the water drained from the unit.

• It is not sanitary and could cause serious health issues.

Illustration of a person reacting to a wall-mounted air conditioner unit with a warning symbol (no text or labels)

Illustration of a person using an air conditioner to clean the ceiling, with no text or symbols present.

Illustration of a person reacting to a large car crash with a no-smoking symbol above (no text or labels)

Use a firm stool or ladder when cleaning or maintaining the air conditioner.

- Be careful and avoid personal injury.

Illustration showing a child standing on a stool with a book and a prohibition symbol, likely depicting a social or religious scene.

Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.

• There is risk of fire or explosion

Diagram showing a device with warning symbols and arrows indicating process steps

Disuse

Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.

• They may burn or explode.

If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.

- The chemicals in batteries could cause burns or other health hazards.

Illustration of a cigarette emitting smoke next to a cigarette pack and a no-smoking symbol (no text or labels)

Illustration of hands washing a faucet with water and rolled documents, no text or symbols present

Prior to Operation

Preparing for Operation

1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement part.

Usage

1. Being exposed to direct airflow for a long time may be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for a long time.
2. Due to the possibility of oxygen deficiency, ventilate the room when using the appliance together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purpose (e.g. preserving precision devices, food, pets, plants, or art objects). Such use may damage your properties.

Cleaning and Maintenance

1. Do not touch the metal parts of the unit when removing the filter. Injury can occur.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a very high speed during operation. There is a possibility of injury if the unit's power is triggered while cleaning inner parts of the unit.

Service

For repair and maintenance, contact your authorized service dealer.

Introduction

Symbols used in this Manual

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that may cause harm to the air conditioner.

NOTICE

This symbol indicates special notes.

Features

WARNING

This appliance should be installed in accordance with national wiring regulations. This guide acts as a guide to help to explain product features.

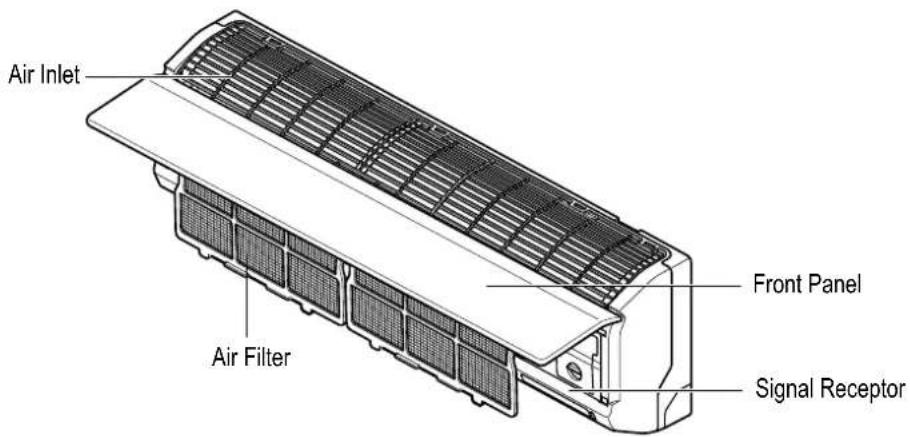

INDOOR

Air Inlet Front Panel Air Filter Signal Receptor

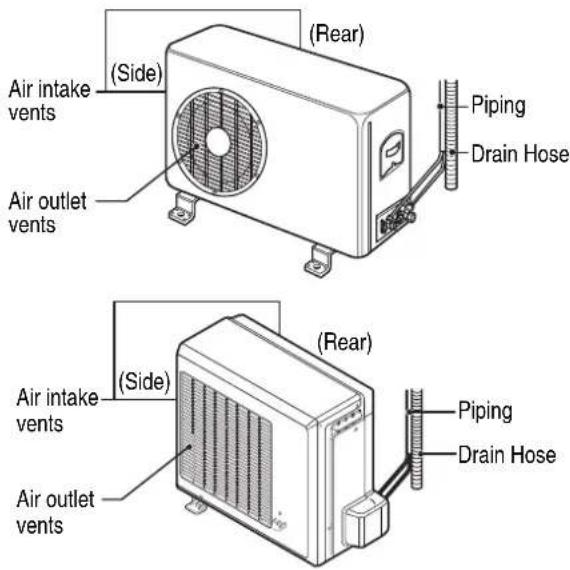

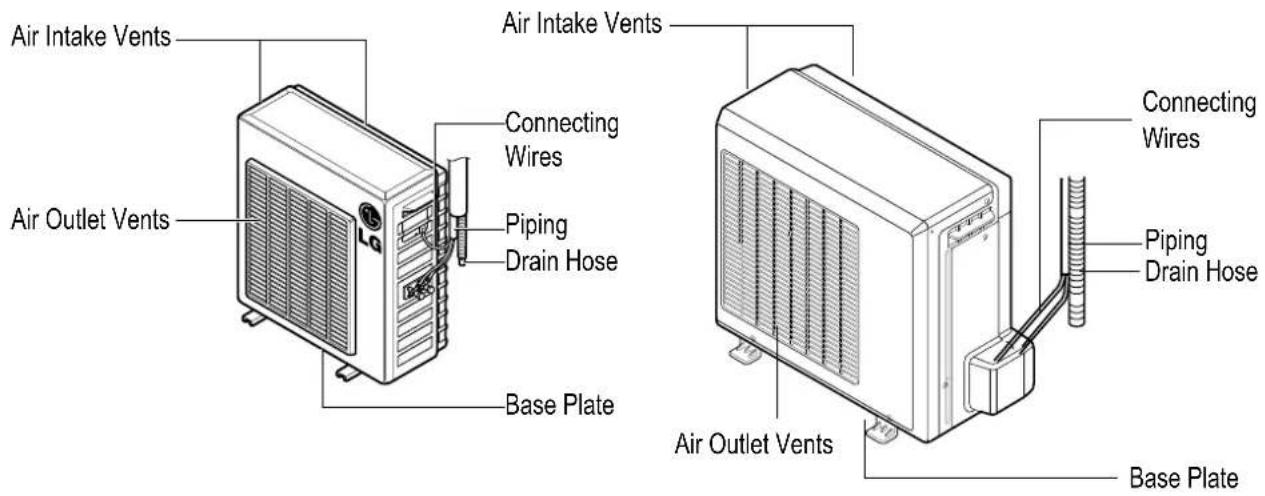

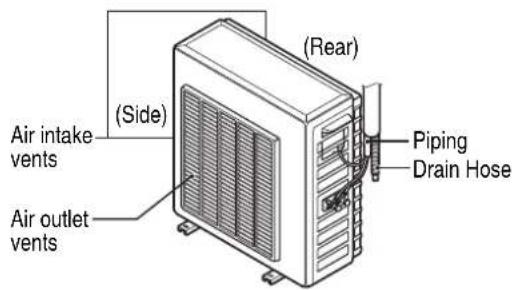

OUTDOOR

Air Intake Vents Air Outlet Vents Connecting Wires Piping Drain Hose Base Plate Air Intake Vents Connecting Wires Piping Drain Hose Air Outlet Vents Base Plate

Electrical Safety

WARNING: This appliance must be properly grounded.

To minimize the risk of electric shock, you must alway plug into a grounded outlet.

Preferred method

Line drawing of a three-pin electrical plug (no text or symbols)

Simple line drawing of a 3-pin electrical outlet with two slots (no text or symbols)

Ensure proper ground exists before use

WARNING: Do not cut or remove the grounding prong from the power plug.

WARNING: Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring.

WARNING: If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle and circuit checked by a qualified electrician.

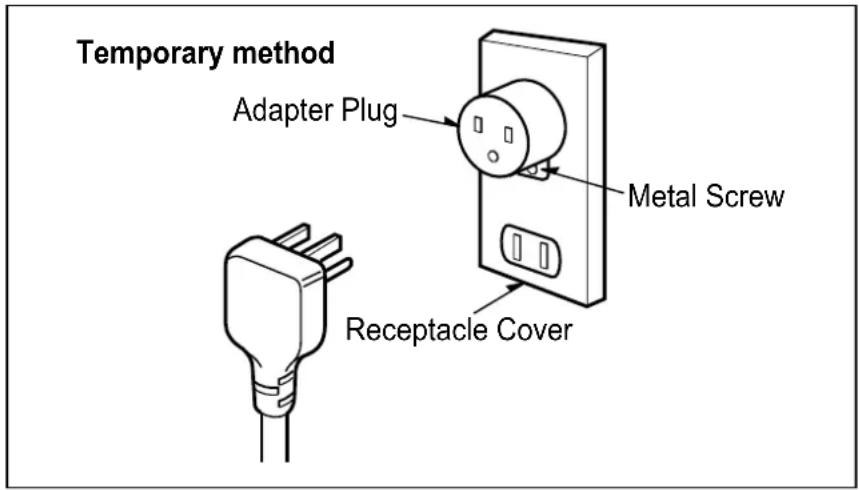

Temporary Use of an Adapter

We strongly discourage the use of an adapter due to potential safety hazards. For temporary connections, use only a UL-listed adapter, available from most local hardware stores. Ensure that the large slot in the adapter is aligned with the large slot in the receptacle for a proper polarity connection. To disconnect the power cord from the adapter, use one hand on each to avoid damaging the ground terminal. Avoid frequently unplugging the power cord as this can lead to eventual ground terminal damage.

Temporary method Adapter Plug Metal Screw Receptacle Cover

WARNING: Never use the appliance with a broken adapter.

Temporary Use of an Extension Cord

We strongly discourage the use of an extension cord due to potential safety hazards. For temporary situations, use only CSA certified and UL listed 3-wire grounded extension cords, rated 15 A, 125 V.

Operating Instructions

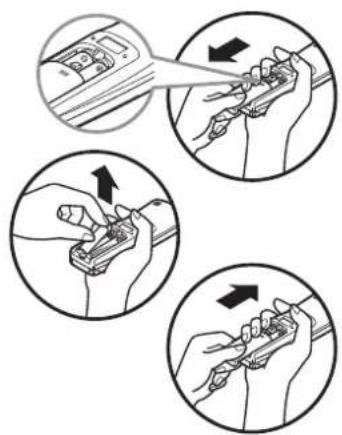

How to insert the Batteries

1. Remove the battery cover by pulling it according to the arrow direction.
2. Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTICE

Use 2 AAA(1.5volt) batteries. Do not use rechargeable batteries.

Illustration showing three-step tool application steps for a mechanical or electrical component, with arrows indicating direction of movement.

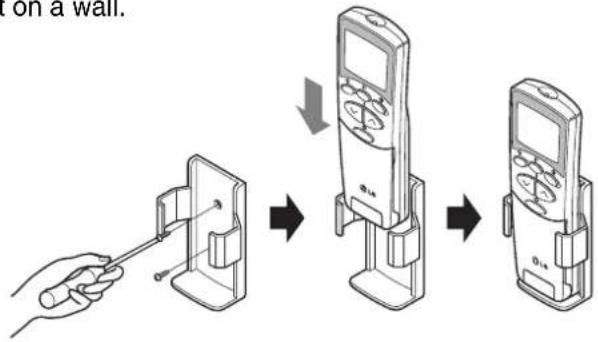

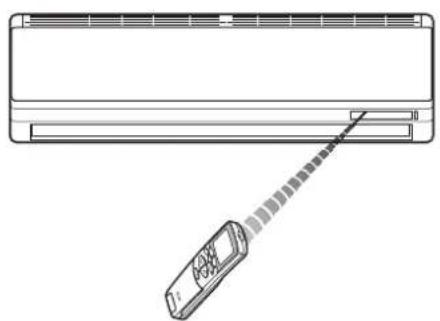

Storage and Tips for using the Remote Controller

- The remote controller may be stored by mounting it on a wall.

• To operate the room air conditioner, aim the remote controller at the signal receptor.

on a wall.

Line drawing of a car air conditioner unit with a cable inserted into the air gap (no text or symbols)

Signal Receptor

Receives the signals from the remote control.(Signal receiving sound: two short beeps or one long beep.)

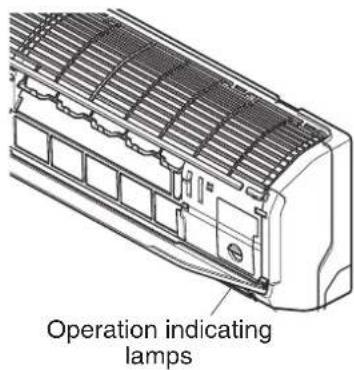

Operation Indication Lamps

1	On/Off : Lights up during the system operation.
☆	Sleep Mode : Lights up during Sleep Mode Auto operation.
L	Timer : Lights up during Timer operation.
OUTDOOR	OUTDOOR UNIT : Lights up during outdoor unit operation.
	OPERATION (Cooling model only)
	Defrost Mode : Lights up during Defrost Mode or *Hot Start operation (Heat pump model only)
*
◇
∅	OUTDOOR UNIT : Lights up during outdoor unit operation.
	OPERATION (Cooling model only) (Optional)
###	Plasma : The function illustrates its dynamic mode by using a multiple lighting system. (Optional)
88	Power Display : Indicates the setting temperature and ope

Operation indicating lamps

Operation indicator	Cooling heating dehumidifi-cation	A.I operation mode						Jet (Cool, Heat)	Test operation
		Standard T	Too hot Hot C	Cold Too cold	Comfortable
Shape of display	Setting temp.	A1	-2	-1	0	1	2	Po	Lo

*Hot Start operation: Stops the indoor fan in Heating Operation to prevent cold air from blowing out from unit.

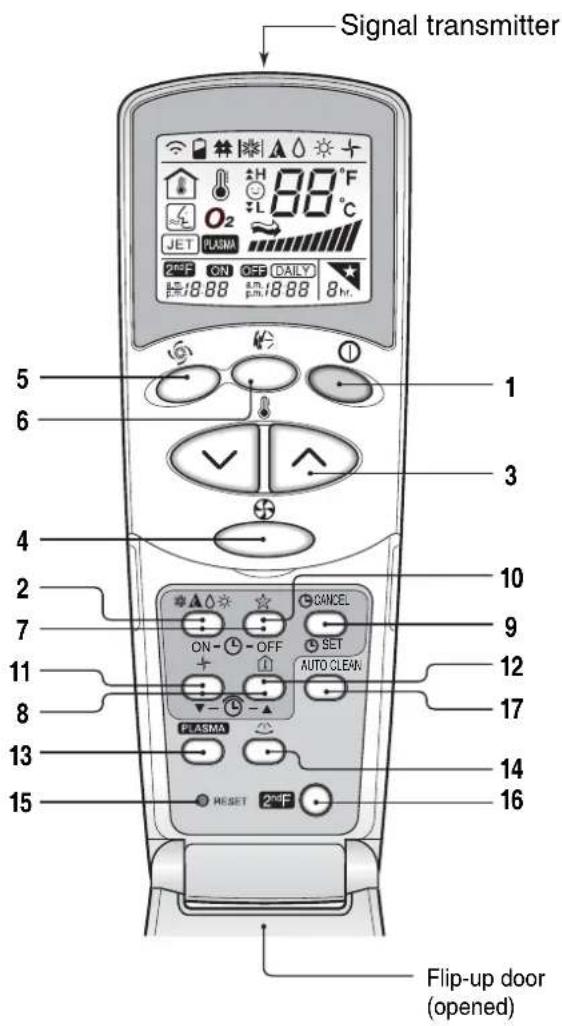

Remote Control Operations

The controls will look like the following.

Controls

Signal transmitter 5 6 1 3 4 2 7 10 9 11 8 12 13 14 15 16 FLASMA RESET CANCEL SET AUTO CLEAN Flip-up door (opened)

1. START/STOP BUTTON

Operation starts when this button is pressed and stops when the button is pressed again.

1. OPERATION MODE SELECTION BUTTON Used to select the operation mode.

3. ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

4. INDOOR FAN SPEED SELECTOR

Used to select fan speed in four steps low, medium, high and CHAOS.

5. JET COOL

Used to start or stop the speed cooling.(speed cooling operates super high fan speed in cooling mode.)

6. CHAOS SWING BUTTON

Used to stop or start louver movement and set the desired up/down airflow direction.

7. ON/OFF TIMER BUTTONS

Used to set the time of starting and stopping operation. (See page 22)

8. TIME SETTING BUTTONS

Used to adjust the time. (See page 22)

9. TIMER SET/CANCEL BUTTON

Used to set the timer when the desired time is obtained and to cancel the Timer operation. (See page 22)

10. SLEEP MODE AUTO BUTTON

Used to set Sleep Mode Auto operation. (See page 22)

11. AIR CIRCULATION BUTTON

Used to circulate the room air without cooling or heating. (See page 23)

12. ROOM TEMPERATURE CHECKING BUTTON

Used to check the room temperature.

13. NEO PLASMA(OPTIONAL)

Used to start or stop the plasma-purification function. (See page 20)

14. HORIZONTAL AIRFLOW DIRECTION CONTROL BUTTON (OPTIONAL)

Used to set the desired horizontal airflow direction.

15. RESET BUTTON

Used prior to resetting time.

16. 2nd F Button

Used prior to using modes printed in blue at the bottom of buttons. (See page 21)

17. AUTO CLEAN (OPTIONAL)

Used to set Auto Clean mode.

Cooling operation

Natural wind by the CHAOS logic

☐ For fresher feeling, press the Indoor fan speed selector and set to CHAOS mode. In this mode, the wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

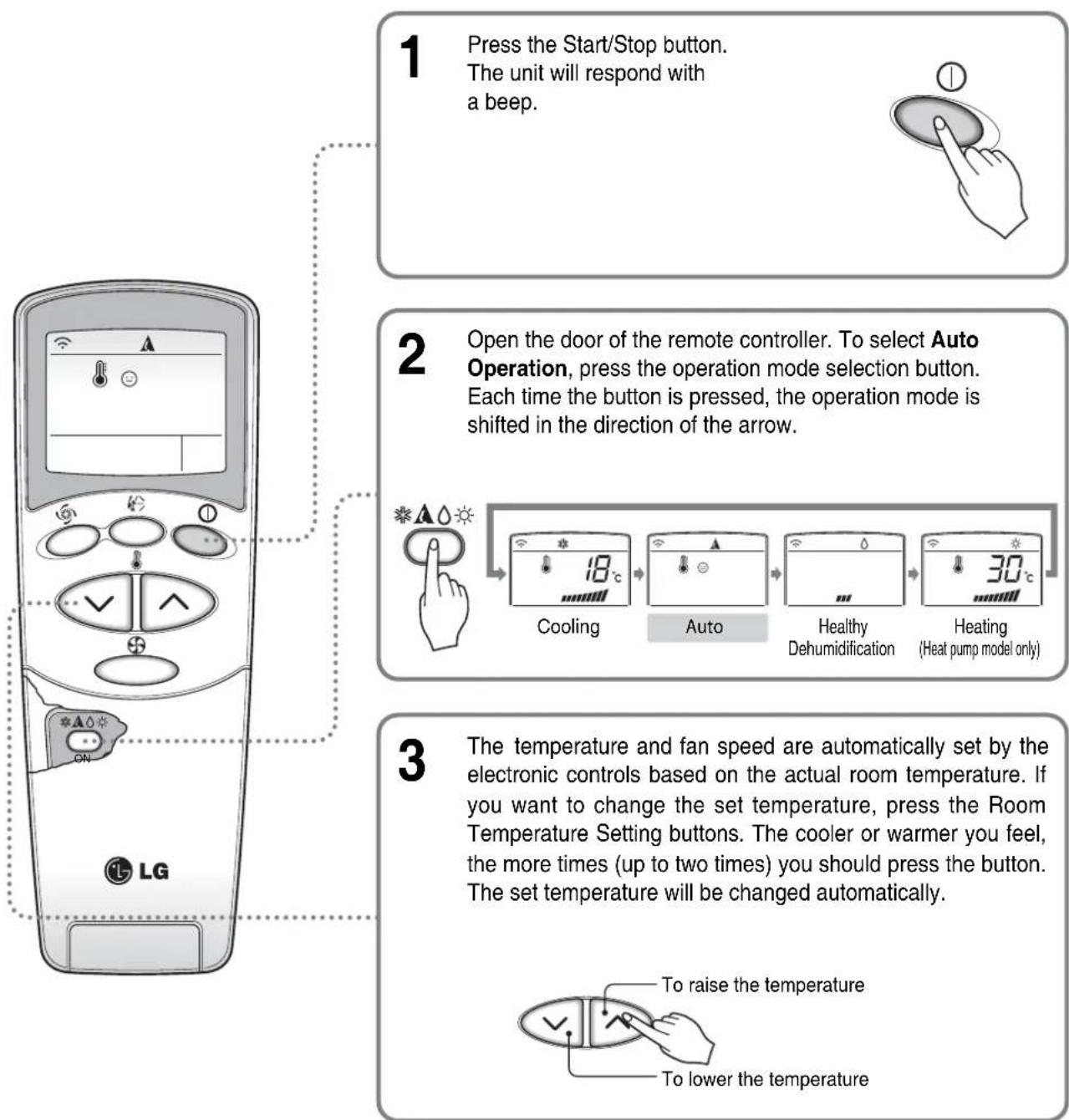

Auto operation (Optional)

During Auto Operation

☐ You cannot control the indoor fan speed. It has already been set by the Fuzzy rule.
☐ If the system is not operating as desired, manually switch to another mode. The system will not automatically switch from the cooling mode to the heating mode, or from heating mode to cooling mode, it must be done by manually resetting.
☐ During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and down automatically. If you want to stop auto-swing, press the chaos swing button again.

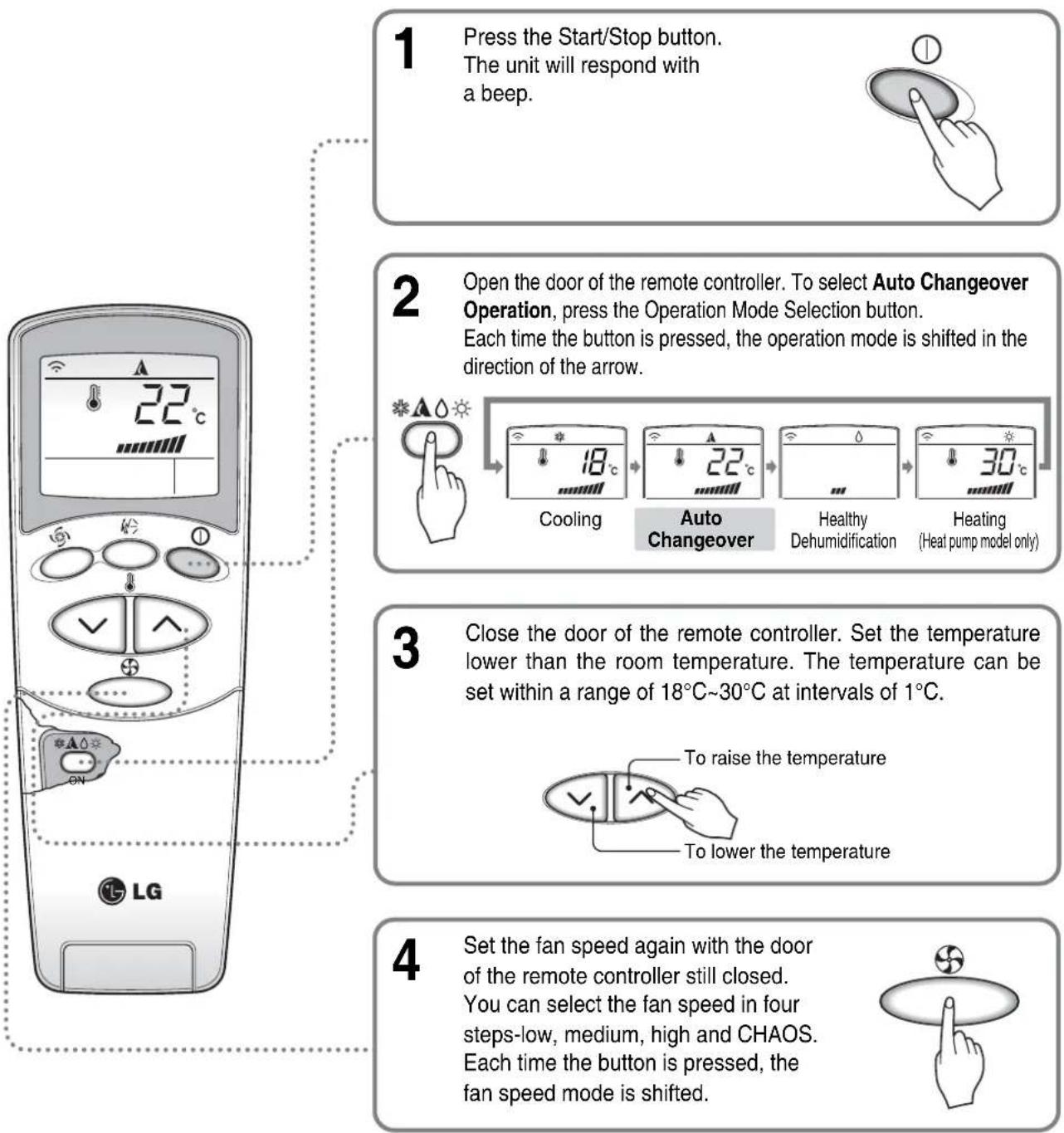

Auto changeover operation(Optional)

1 Press the Start/Stop button. The unit will respond with a beep. 2 Open the door of the remote controller. To select Auto Changeover Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow. 3 Close the door of the remote controller. Set the temperature lower than the room temperature. The temperature can be set within a range of 18°C~30°C at intervals of 1°C. 4 Set the fan speed again with the door of the remote controller still closed. You can select the fan speed in four steps-low, medium, high and CHAOS. Each time the button is pressed, the fan speed mode is shifted.

During Auto changeover Operation

The air conditioner changes the operation mode automatically to keep indoor temperature. When room temperature vary over ±2^ with respect to setting temperature, air conditioner keeps the room temperature within ±2^ with respect to setting temperature by auto changeover mode.

Healthy dehumidification operation

During Healthy Dehumidification Operation

☐ If you select the dehumidification mode on the operation selection button, the product starts to run the dehumidification function. It automatically sets the room temp. and airflow volume to the best condition for dehumidification, based on the sensed current room temp.

In this case, however, the setting temp. is not displayed on the remote controller and you are not able to control the room temp. either.

During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temp. status, so that the room condition is kept healthy and comfortable even in the very humid season.

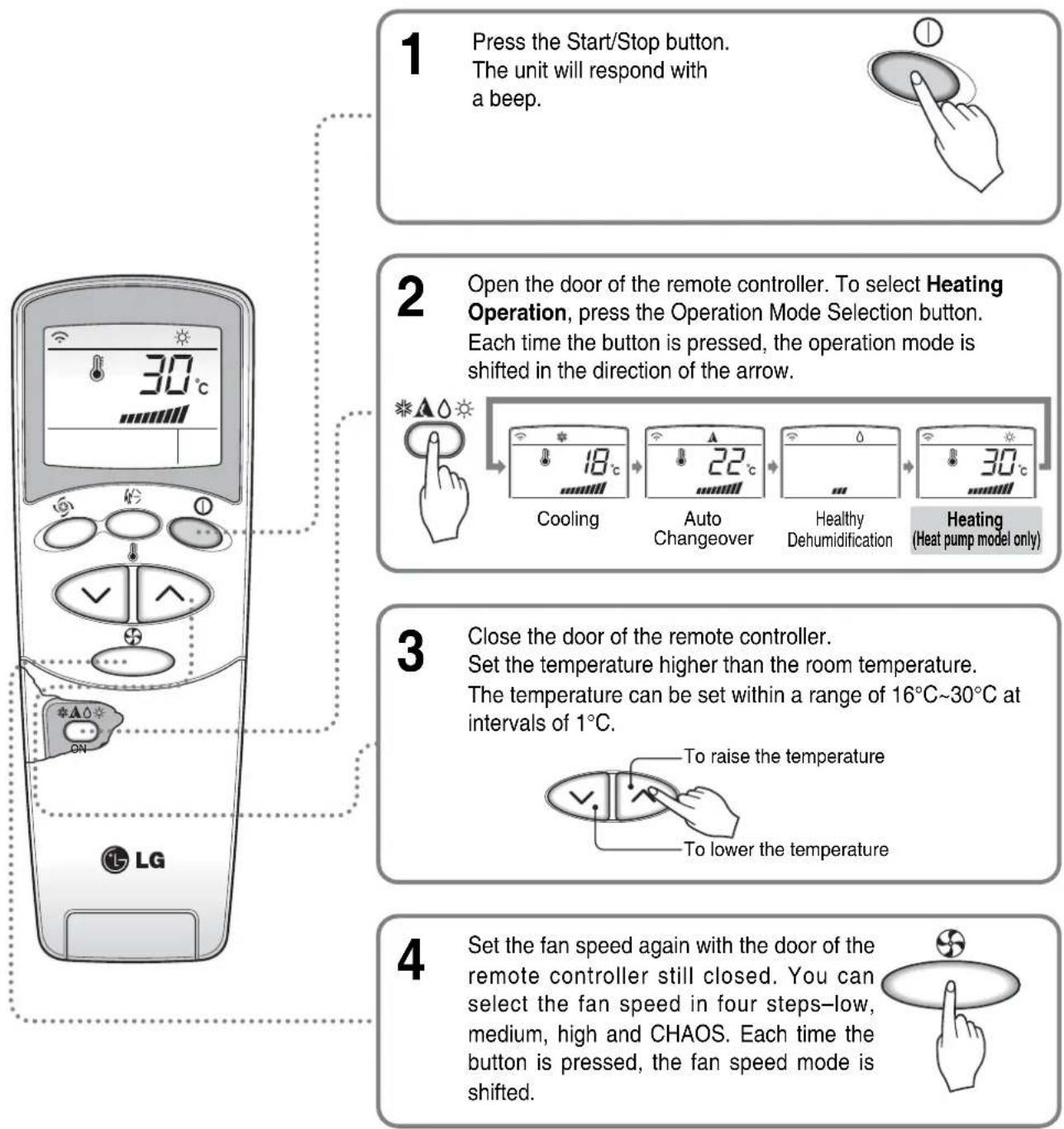

Heating operation (Heat pump model only)

Natural wind by the CHAOS logic

☐ For fresher feeling, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

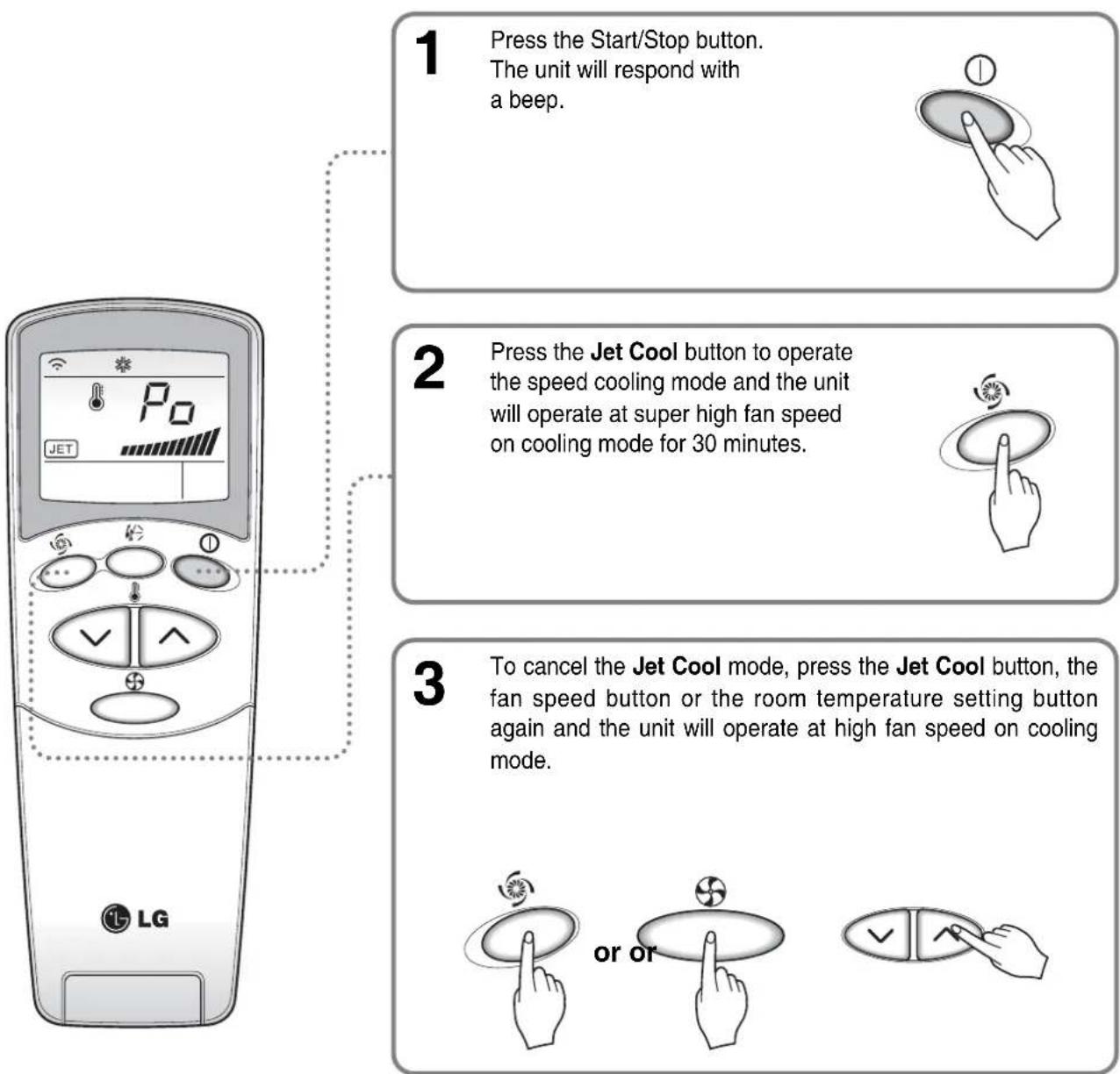

Jet cool operation

NOTICE

During the JET COOL function at any moment, the A/C starts to blow the cool air at extremely high speed for 30 minutes setting the room temp. automatically to 18^ . It is especially used to cool the room temp. quickly in a hot summer.
In heat pump mode or auto changeover mode, however, the JET COOL function is not available.
☐ In order to return to the normal cooling mode from the JET COOL mode, just press the operation mode selection button, airflow volume selection, temp. setting button or the JET COOL button again.

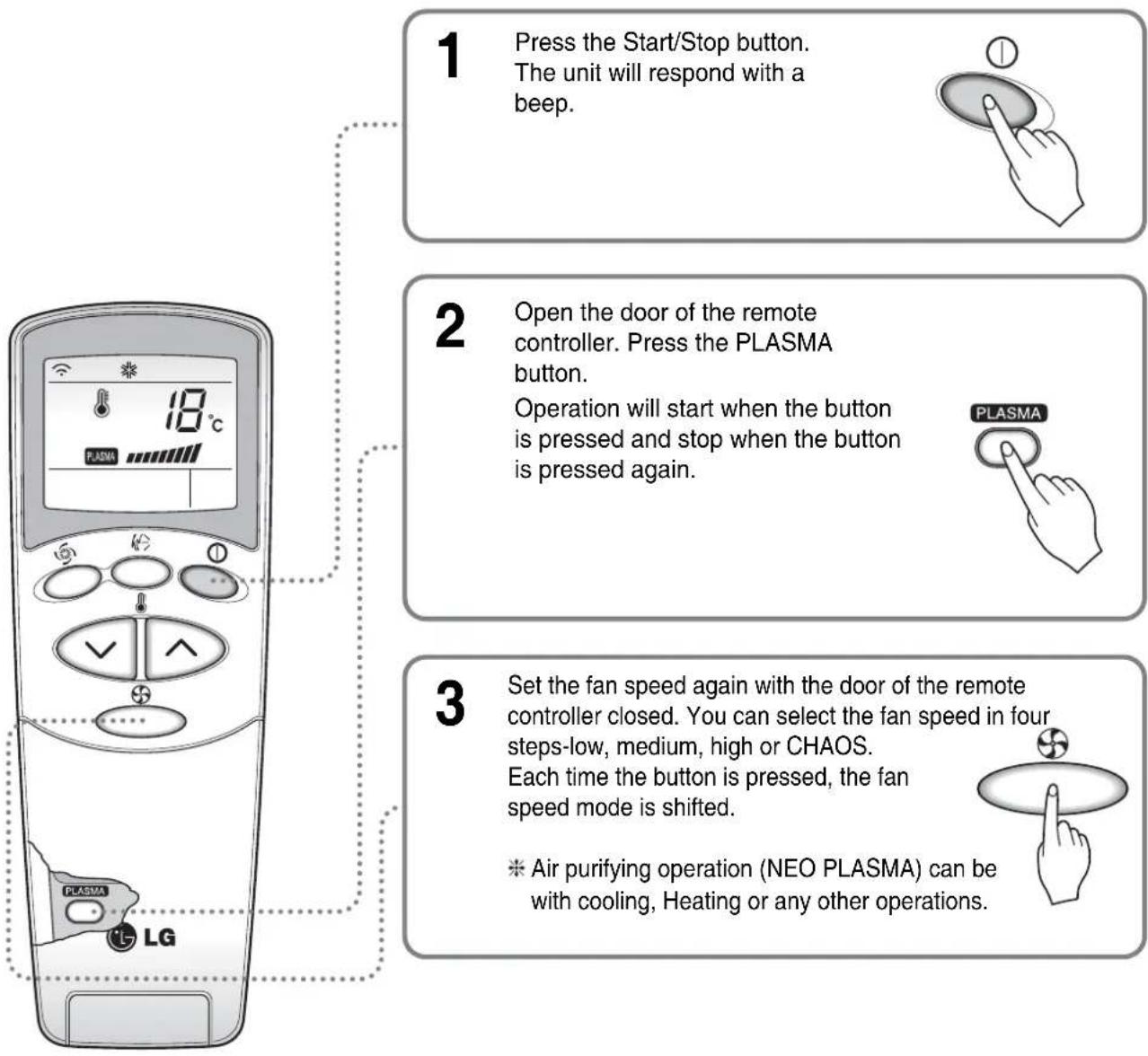

NEO PLASMA purification operation(Optional)

NEO PLASMA Air Purifying Operation only

If you press the only PLASMA button, only PLASMA purification function operates. Then, fan speed is low. You can select the fan speed in four steps-low, medium, high or CHAOS.

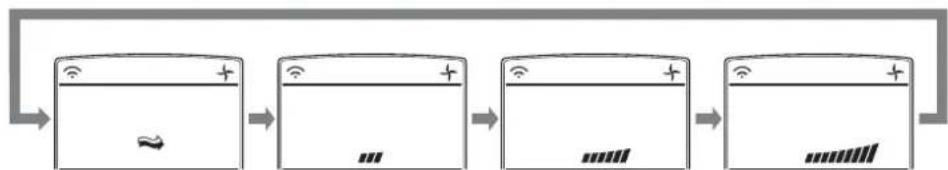

Each time the Indoor Fan Speed Selector button is pressed, the fan speed mode is shifted.

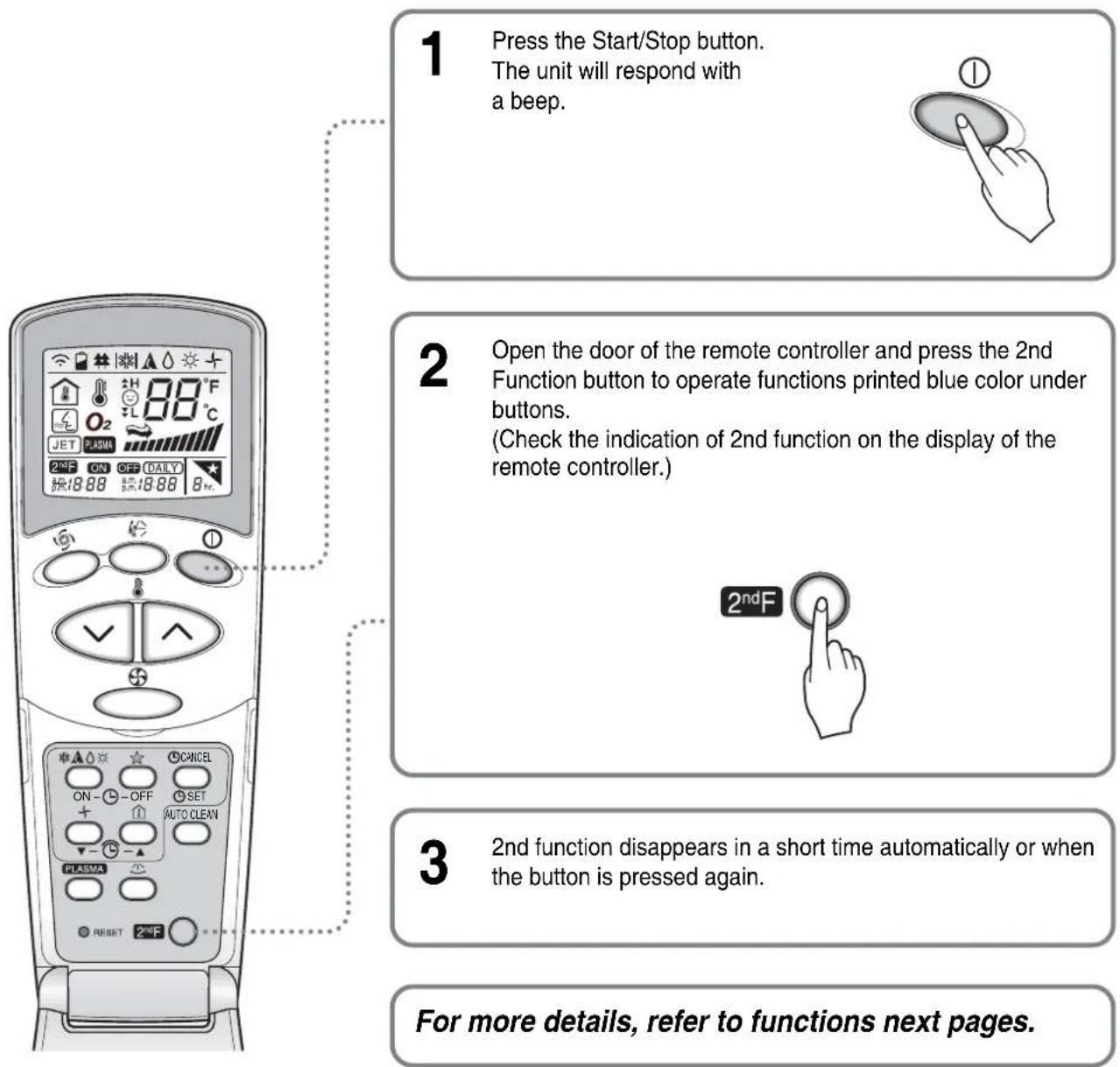

2nd F operation

Additional Features

Sleep mode

1. Press the Sleep Mode Auto button to set the time you want the unit to stop automatically.
2. The Timer is programmed in one-hour increments by pressing the Sleep Mode Auto button 1 to 7 times. The sleep mode is available for 1 to 7 times. To alter the time period in steps of 1 hour, press the Sleep Mode Button while aiming at air conditioner.
3. Make sure the Sleep Mode Auto LED lights up.
   To cancel the Sleep Mode, press the sleep Mode Auto button several times until the star (☆) disappears from the operation display.

NOTICE

The Sleep Mode will be operated at slow fan speed (cooling) or medium fan speed (heat pump only) for a comfortable sleep.

In cooling mode or healthy dehumidification mode:

The setting temperature will automatically rise by 1^ C over the next 30 minutes and by 2^ C in 1 hour for a comfortable sleep.

Setting the time

1. Time can be set only when you press the Reset button. Having replacing the batteries, you should press the reset buttons to reset the time. Press the Start/Stop button.

1. Press 2nd F button and check if 2nd F icon is on.

2. Press the Time Setting buttons until the desired time is set.

3. Press the Timer SET button.

NOTICE

Check the indicator for A.M. and P.M.

Delay start/Pre-set stop

1. Make sure the time is set correctly on the display of the remote controller.
2. Press 2nd F button.
3. Press the ON/OFF Timer buttons to turn Timer on or off.
4. Press the Time Setting buttons until the desired time is set.
5. To set the selected time, press the Timer setting button aiming the remote controller at the signal receptor.

To cancel the timer setting

Check if 2nd F icon is off.

Press the Timer Cancel button aiming the remote controller at the signal receptor.

(The timer lamp on the air conditioner and the display will go out.)

NOTICE

Select one of the following four types of operation.

with the unit running

OFF a.m. 12:00 ON a.m. 6:00 ON OFF a.m. 3:30 a.m. 3:00 ON OFF a.m. 3:00 a.m. 3:30

Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer

Vertical Airflow Direction Control

The up/down airflow (Vertical Airflow) can be adjusted by using the remote control.

3D rendering of a rectangular air conditioner unit with mesh grille and curved arrow indicating rotation (no text or symbols)

1. Press the Start/Stop button to start the unit.

2. Press Chaos Swing button and the louvers will swing up and down. Press the Chaos Swing button again to set the vertical louver at the desired airflow direction.

NOTICE

☐ If you press the Chaos Swing button, the horizontal airflow direction is changed automatically based on the CHAOS algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable, as if enjoying a natural breeze.

□ Always use the remote control to adjust the up/down airflow direction. Manually moving the vertical airflow direction louver by hand, could damage the air conditioner.

☐ When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.

Horizontal Airflow Direction Control (Optional)

The left/right(Horizontal Airflow) can be adjusted by using the remote control. Press the Start/Stop button to start the unit.

Open the door on the remote control. Press the Horizontal Airflow Direction button and the louvers will swing left and right. Press the Horizontal Airflow Direction Control Button again to set the horizontal louver at the desired airflow direction.

Illustration of a hand pressing a button on an air conditioner panel with curved arrows indicating motion (no text or symbols)

Air circulation mode

Circulates the room air without cooling or heating.

1. Press the Start/Stop button. the unit will respond with a beep.
2. Open the door on the remote control. Press the Air Circulation button. Close the door on the remote control. Now each time that you press the Indoor Fan Speed Selector button, the fan speed is shifted from low to CHAOS and back to low again.

Fan speed is on low. Fan speed is on medium. Fan speed is on high. CHAOS Air

NOTICE

CHAOS Air economizes power consumption and prevents overcooling. The fan speed is automatically changed from high to low or vice versa, depending on the ambient temperature.

Auto clean (Optional)

AUTO CLEAN

1. Whenever you press the AUTO CLEAN button, Auto Clean Function will be reserved and cancelled.
2. Auto Clean function works before and after cooling or dehumidification mode. For details, refer to the below points.
3. When the unit is started after the reservation of Auto Clean, the Cool Start function operates and indoor Fan is started after 20 seconds.
4. When you press Start/Stop button to turn off the unit after the you have reserved Auto Clean function, the air-conditioner circulates the indoor air in the Auto Clean mode with no more Cooling or Dehumidification operation. It lasts for 30 minutes.
5. If you press the AUTO CLEAN button again during the product operation, Auto Clean function will be cancelled.

NOTICE

☐ During Auto Clean function, moistures left in indoor units after Cooling Operation or Healthy Dehumidification Operation can be removed.
☐ During Auto Clean function, only Start/Stop button, Plasma button and AUTO CLEAN button are available.

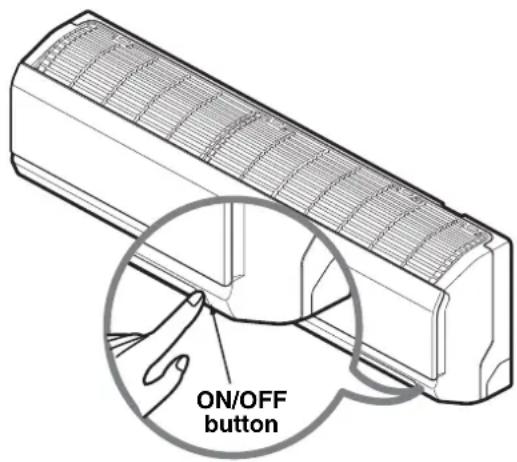

Forced operation

Operation procedures when the remote control can't be used. The operation will be started if the ON/OFF button is pressed. If you want to stop operation, re-press the button.

ON/OFF button

	Cooling Model	Heat pump Model
		Room Temp. ≥ 24°C	21°C ≤ Room Temp. < 24°C	Room Temp. < 21°C
Operating mode	Cooling Cooling	Healthy Dehumidification	Heating
Indoor FAN Speed	High High	High High
Setting Temperature	22°C 22°C	23°C 24°C

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and resets in 18 minutes.

During test operation, if remote controller signal is received, the unit operates as remote controller sets.

If you want to use this operation, Press and hold the ON/OFF button for 3\~5 seconds, then the buzzer sound 1 "beep".

If you want to stop the operation, re-press the button.

Auto restart

In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate procedures automatically to the previous operating conditions.

So there is no need of activating this function by pressing any key or button.

In the initial mode, the fan operates at a low speed and the compressor starts 2.5\~3 minutes later.

As the compressor starts, the fan speed also resumes its previous setting mode.

Helpful information

Fan speed and cooling capacity.

The cooling capacity indicated in the specification is the value when the fan speed is set to high, and the capacity will be lower at low or medium fan speed.

High fan speed is recommended when you wish to cool the room quickly.

High Speed

NOTICE

Auto restart function has set enable as factory default.

But customer can set up by following this instruction.

To be disable function

- Press and hold the ON/OFF button for 6 seconds, then the buzzer sound 2 "beep" and the indicator lamp (1) blinks 4 times.

To be enable function

- Press and hold the ON/OFF button for 6 seconds, then the buzzer sound 2 "beep" and the indicator lamp (1) brights 4 times.

Maintenance and Service

CAUTION

Before performing any maintenance, turn off the main power to the system.

Indoor Unit

Grille, Case, and Remote Control

Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.

NOTICE

Supply power must be disconnected before cleaning the indoor unit.

Air filters

The air filters behind the front grille should be checked and cleaned once in every 2 weeks or more often if necessary.

1. Pull the both sides and remove front panel.
2. Pull the filter tab slightly forward to remove the filter.

3. Clean the filter with a vacuum cleaner or warm, soapy water.

4. If dirt is conspicuous, wash with a solution of detergent in lukewarm water.

5. If hot water (40°C or more) is used, it may be deformed.

6. After washing with water, dry well in the shade.

7. Re-install the air filter.

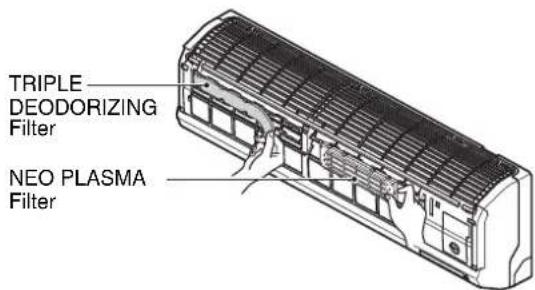

NEO PLASMA filter (Optional)

The NEO PLASMA filter behind the air filters should be checked and cleaned once in every 3 months or more often if necessary.

1. After removing the air filters, pull slightly forward to remove the NEO PLASMA filter.
2. Clean NEO PLASMA filter with the vacuum cleaner. If it is very dirty, wash it with water.
3. Note the cuts of electric discharge lines.
4. Re-install the NEO PLASMA filter to the original position.

TRIPLE DEODORIZER filter (Optional)

1. After removing the air filters, pull slightly forward to remove the TRIPLE DEODORIZER filter.
2. Dry in the sunlight for two hours.
3. Re-install the TRIPLE DEODORIZER filter to the original position.

CAUTION

Don't touch this NEO PLASMA Filter within 10 seconds after opening he inlet grille, it may cause an electric shock.

Never use any of the followings:

• Water hotter than 40^ C Could cause deformation and/or discoloration.
• Volatile substances Could damage the surfaces of the air conditioner.

Air outlet vent Air filters (behind front panel) Vertical louver Horizontal louver

Illustration of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

TRIPLE DEODORIZING Filter NEO PLASMA Filter

Benzene Gasoline

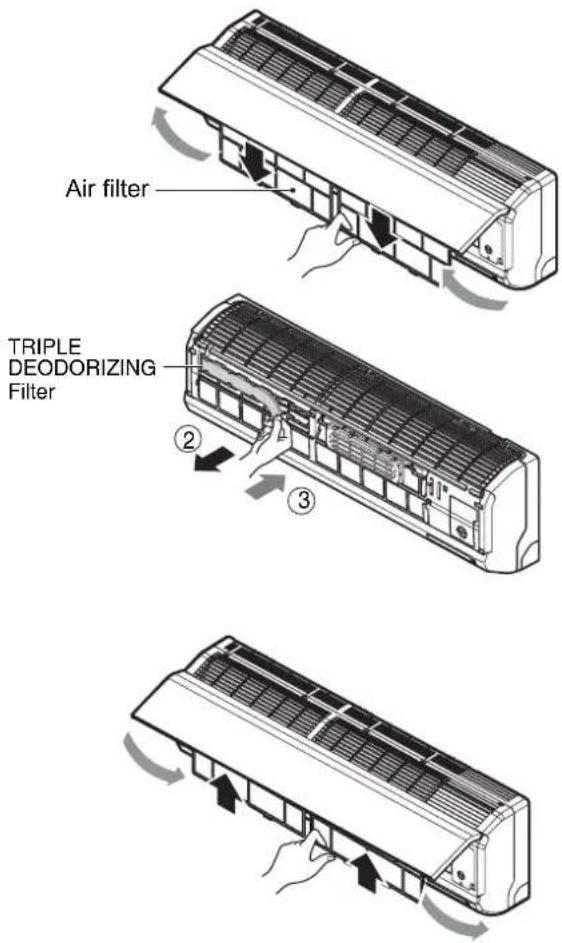

Replacement of purifying filter (Optional)

Recommended use period : About 2 years

1. Remove front panel and air filters.

2. Remove air purifying filters.

3. Insert new air purifying filters.

4. Reinsert air filters and close front panel.

Air filter TRIPLE DEODORIZING Filter ② ③

Outdoor Unit

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly.

If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned.

NOTICE

Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.

(Side) (Rear) Air intake vents Air outlet vents Piping Drain Hose

Air intake vents (Side) (Air outlet vents) (Rear) Piping Drain Hose (Air intake vents (Side) (Air outlet vents) (Rear) Piping Drain Hose

Common Problems and Solutions

Before calling for service

If you have problems with your air conditioner, read the following information and try to solve the problem. If you cannot find a solution, turn off the air conditioner and contact your dealer.

Air conditioner does not operate

1. Ensure that the air conditioner is plugged into a proper outlet.
2. Check the fuse or circuit breaker.
3. Check whether the voltage is unusually high or low.

Air does not feel cold enough on the cooling setting

1. Ensure that the temperature settings are correct.
2. Check to see if the air filter is clogged with dust. If so, replace the filter.
3. Ensure that the air flow from the outside is not obstructed and that there is a clearance of over 20" between the back of the air conditioner and the wall or fence behind it.
4. Close all doors and windows and check for any source of heat in the room.

Before calling for service, please review the following list of common problems and solutions.

The air conditioner is operating normally when:

• You hear a pinging noise. This is caused by water being picked up by the fan on rainy days or in highly humid conditions. This feature is designed to help remove moisture in the air and improve cooling efficiency.
• You see water dripping from the rear of the unit. Water may be collected in the base pan in highly humid conditions or on rainy days. This water overflows and drips from the rear of the unit.
• You hear the fan running while the compressor is silent. This is a normal operational feature.

Troubleshooting

The air conditioner may be operating abnormally when:

Problem		What To DoPossible Cau
Air conditioner does not start	■ The air conditioner is unplugged.	· Make sure the air conditioner plug is pushed completely into the outlet.
	■ The fuse is blown/circuit breaker is tripped.	· Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
	■ Power failure.	· If power failure occurs, turn the mode control to Off.When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
Air conditioner does not cool as it should	■ Airflow is restricted.	· Make sure there are no curtains, blinds, or furniture blocking the front of the air conditioner.
	■ The air filter is dirty.	· Clean the filter at least every 2 weeks. See the care and Maintenance section.
	■ The room may have been hot.	· When the air conditioner is first turned on, you need to allow time for the room to cool down.
	■ Cold air is escaping.	· Check for open furnace floor registers and cold air returns.
	■ Cooling coils have iced up.	· See Air Conditioner Freezing Up below.

* You can refer to the Energy Star program in detail at www.energystar.gov.

LG AC Ruang.

BUKU PANDUAN PEMILIK

Sebelum dipasang, unit AC

Cartoon illustration showing a phone with wings and a prohibition symbol, likely related to electric shock hazard.

Illustration of a person reading a book with a cartoon character inside, next to an air conditioner unit (no text or symbols)

Illustration of two cartoon characters holding books with a speech bubble and an exclamation mark (no text or symbols present)

Illustration of a person using a tool to interact with a smiling computer monitor (no text or symbols present)

Illustration of a battery pack with open fuse and plug, plus a prohibition sign (no text or symbols)

Cartoon illustration of a person using a smartphone to clean air conditioner (no text or symbols)

Diagram illustrating household air conditioner installation with a person using a device and a prohibition symbol below.

Illustration of a person standing on a building with a 'No' symbol and smoke, holding a large book (no text or symbols present)

Illustration of a person using a phone to call into a computer monitor, with an exclamation mark and speech bubble (no text or symbols on the main image)

Safety warning illustration showing a person using a shower mask to clean air by a barrier, with no signage or text present.

Technical line drawing of an air duct system with no visible text or symbols

■ Pengoperasian

Safety warning illustration showing a hand holding a plug with a stop sign, indicating no hazard or caution.

Safety warning illustration showing a car air conditioner unit with a 'No' symbol and a pressure gauge, likely for emergency or emergency response.

Hand inserting a plug into an electrical outlet with a prohibition symbol (no text or labels)

Illustration of a person inside an air conditioner with a prohibition symbol below (no text or labels)

Illustration showing a person using a device to stop a cigarette with a 'no' symbol below, indicating no smoking or anti-smoking.

Illustration showing a cartoon car being charged to an air conditioner, with a 'No' symbol indicating no prohibition.

Illustration of a person using a power tool to interact with a server unit, with a warning symbol above (no text or labels)

Wax Thinnet

Illustration of a person cleaning a wall-mounted air conditioner unit with a no-smoking symbol (no text or labels)

Illustration of a car with a child inside and a cooking pot nearby, accompanied by a prohibition sign (no text or symbols on the diagram itself)

Illustration showing a person at a phone with a thought bubble and a no-smoking symbol, suggesting a public health or noise disturbance.

Illustration of a car with exhaust flames and a person running away, no text or symbols present

Illustration of a person holding a large wall-mounted device with a child nearby, no text or symbols present

Illustration of a woman holding a grid device with a mouse nearby, no text or symbols present

Jika produk terendam (karena banjir atau tenggelam), hubungi Pusat Servis Resmi.

Illustration of a person using a vintage telephone with an exclamation mark (no text or symbols on the device)

Illustration of a person standing next to a child holding a car, with an exclamation mark and backpack nearby (no text or symbols)

Illustration of a kitchen appliance with a fan, a refrigerator, and a person holding a window; includes a prohibition symbol (no text or labels)

Illustration showing a person falling off a large refrigerator with a 'no alcohol' symbol above, indicating no alcohol consumption.

PERHATIAN

Pemasangan

Illustration of a hand using a tool to clean or install a device, with an exclamation mark and a battery nearby (no text or symbols)

Illustration of two connected appliances with a warning symbol (no text or labels)

Cartoon illustration of a smiling computer with wings and a 90-degree angle indicator (no text or symbols on the device itself)

Illustration of a person reacting to a wall-mounted device with a 'no' symbol above, no text or labels present.

Illustration of two people handling a large TV or electronic device, with a warning symbol (no text or labels present)

Illustration of a fire incident with smoke and a prohibition sign (no text or symbols on the fire itself)

■ Pengoperasian

Illustration showing a child hanging from an air conditioner with a prohibition symbol, accompanied by a person interacting with the window.

Illustration showing a hand holding a 'No' sign next to stacked boxes with Chinese characters, indicating no smoking or rejection.

Illustration of a person opening a large air conditioner with a prohibition symbol (no text or labels)

Illustration of stacked boxes with a 'no' symbol below, no text or labels present

Illustration of a person cleaning a wall-mounted air conditioner with a warning symbol (no text or labels)

Illustration of a person using an air conditioner to clean the ceiling, with no text or symbols present.

Illustration of a person reacting to a large electric shock device with a prohibition symbol above (no text or labels)

Illustration showing a child sleeping on a bed next to a book and a person standing on a stool with a prohibition symbol nearby.

Diagram showing a device with battery and warning symbol, indicating battery status or warning.

Illustration of a cigarette emitting smoke next to a no-smoking symbol and a lit cigarette pack (no text or labels)

Illustration of hands washing a faucet with water and rolled documents nearby (no text or symbols)

Line drawing of a three-pin electrical plug (no text or symbols)

Simple line drawing of a rectangular electrical outlet with three slots (no text or symbols)

Pastikan ground telah dipasang dengan benar sebelum dipakai

Illustration showing four steps of a hand tool application, with arrows indicating direction of movement.

Line drawing of a car air conditioner with a screwdriver inserted (no text or symbols)

Penerima sinyal

Sleep Mode : Lights up during Sleep Mode Auto operation.

Technical line drawing of a car air conditioner unit showing internal structure and ventilation duct (no text or labels)

1. TOMBOL "CHAOS SWING"

1. TOMBOL "ON/OFF TIMER"

1. TOMBOL "SLEEP MODE AUTO"

Digunakan untuk menyetel operasi Sleep Mode Auto (Lihat halaman 22)

1. TOMBOL "AIR CIRCULATION"

PLASMA PLASMA

with the unit running

OFF a.m. 12:00 ON a.m. 6:00 ON OFF a.m. 3:30 a.m. 3:00 ON OFF a.m. 3:00 a.m. 3:30

Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer

Illustration of a rectangular air conditioner with heat sink and cooling effect indicated by an arrow (no text or symbols)

Illustration of a hand pressing a button on a wall-mounted air conditioner (no text or symbols)

Mode sirkulasi udara

Tombol Power

	Model Pendinginan	Model Pompa Panas
		Suhu Ruang ≥ 24°C	21°C ≤ Suhu Ruang < 24°C	Suhu Ruang < 21°C
Mode operasi Pendinginan Pendinginan Dehumidifikasi			Sehat Pemanasan
Kecep. Kipas Unit-dalam	Tinggi Tinggi Tinggi Tinggi
Penyetelan Suhu	22°C 22°C 23°C 24°C

Operasi pengujian

Illustration of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

Filter NEO PLASMA (Opsional)

Illustration of a car air conditioner unit being handled with arrows indicating airflow direction (no text or symbols)

Outdoor Unit
