USER MANUAL P1 VMV

Line drawing of a high-resolution headphone amplifier (no text or symbols on the device body)

感谢选择P1

注意:

本机很重请务必双手拿稳!

安全注意事项

注意

触电危险，请勿打开。

注意：

Simple diagram with a circle and label 'Model: PC-1' at the bottom (no text or symbols within the diagram itself)

Thank you for choosing P1

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)

The lightning lash with arrowhead symbol, with in an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point whithin an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safe use only under elevation 2000m.

Safe use only in the non-tropical climate conditions.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Feature

• Every detail is a High-End design;
- Fully balanced design, built-in 4 channels amplifiers, for its ultra-low crosstalk level;
- TI's high-end electronic volume control system, avoiding pot's noise and keep the same volume level for left and right all the time;
- New discrete component output stage circuit has extremely low distortion and the current is 5 times larger than the previous amp;
- Preamplifier and power amplifier are independently powered, avoiding the crosstalk between low and high current parts;
• A lot of audio grade components ensure it's high quality;
- Stylish aluminum uni-body, separated power, and isolation vibration disturbance for the audio circuit;
• NORATEL customized low-noise power transformer;
• All-aluminum special remote control, support all functions;
• Japan Audio Association (JAS) Hi-Res certification.

Specifications

• Input : Unbalanced (RCA) x 2, Balanced (XLR) x 1
  • Output : 6.35mm headphone jack, balanced headphone jack
• Output power:

• Frequency response: 1Hz \~ 200kHz(-3dB)
- THD+N: 0.00028%(Unbalanced) 0.00019% (Balanced)
• SNR(A-WTD): 117dB(Unbalanced) 120dB(Balanced)

• Power Consumption: 18W

- Standby power: 0.5W

- Dimensions(W*H*D): 265x215x50mm

- Packing Dimensions(W*H*D): 415x360x145mm

• Weight: 4kg

about remote control

① If the remote control is still ineffective when it is close to the P1, please replace it with a new battery.

2 If the remote control is not used for a long time, take out the battery of the remote control.

③ Disposal of waste batteries according to the local regulation of battery disposal.

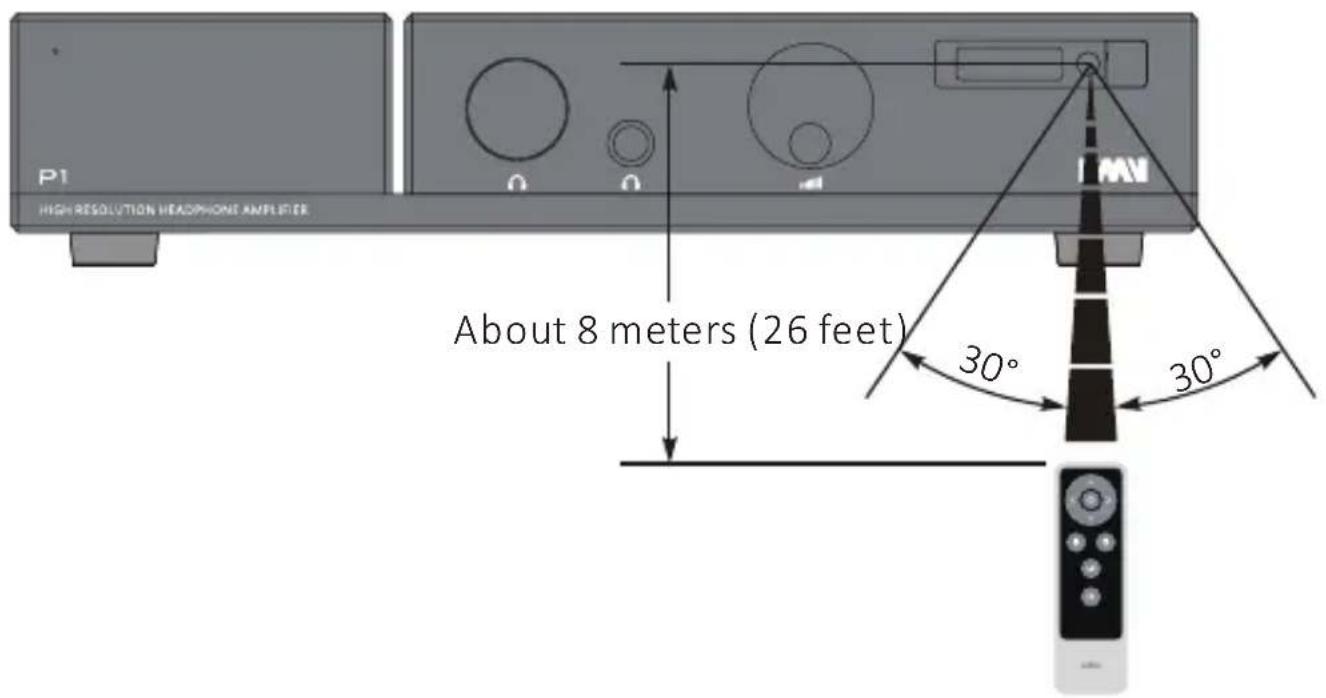

Use range of remote control

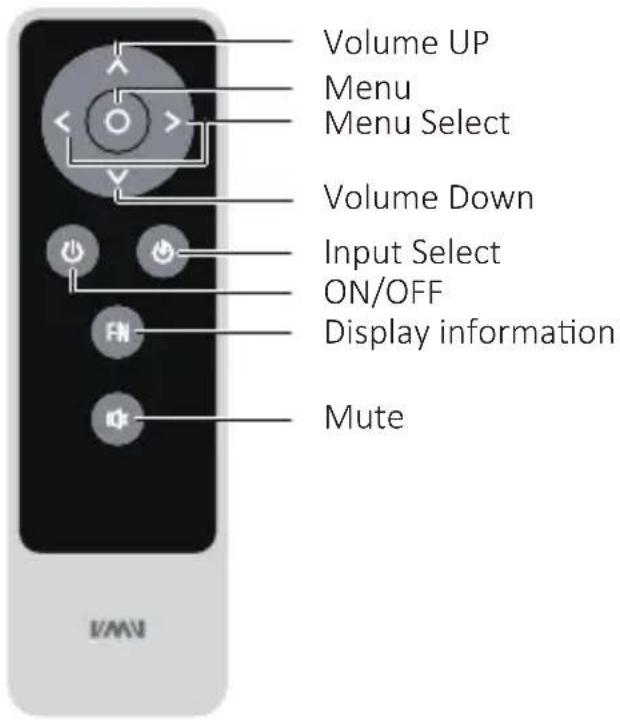

Remote control

Blank white rectangular panel with a single circular hole, no text or symbols visible

① Find the battery component on the back of your Remote.
② Turn the battery door counterclockwise until the door opens.
③ Remove the old battery.
4 With the positive side facing up toward you, put in the new CR2032 or BR2032 lithium 3V coin battery.

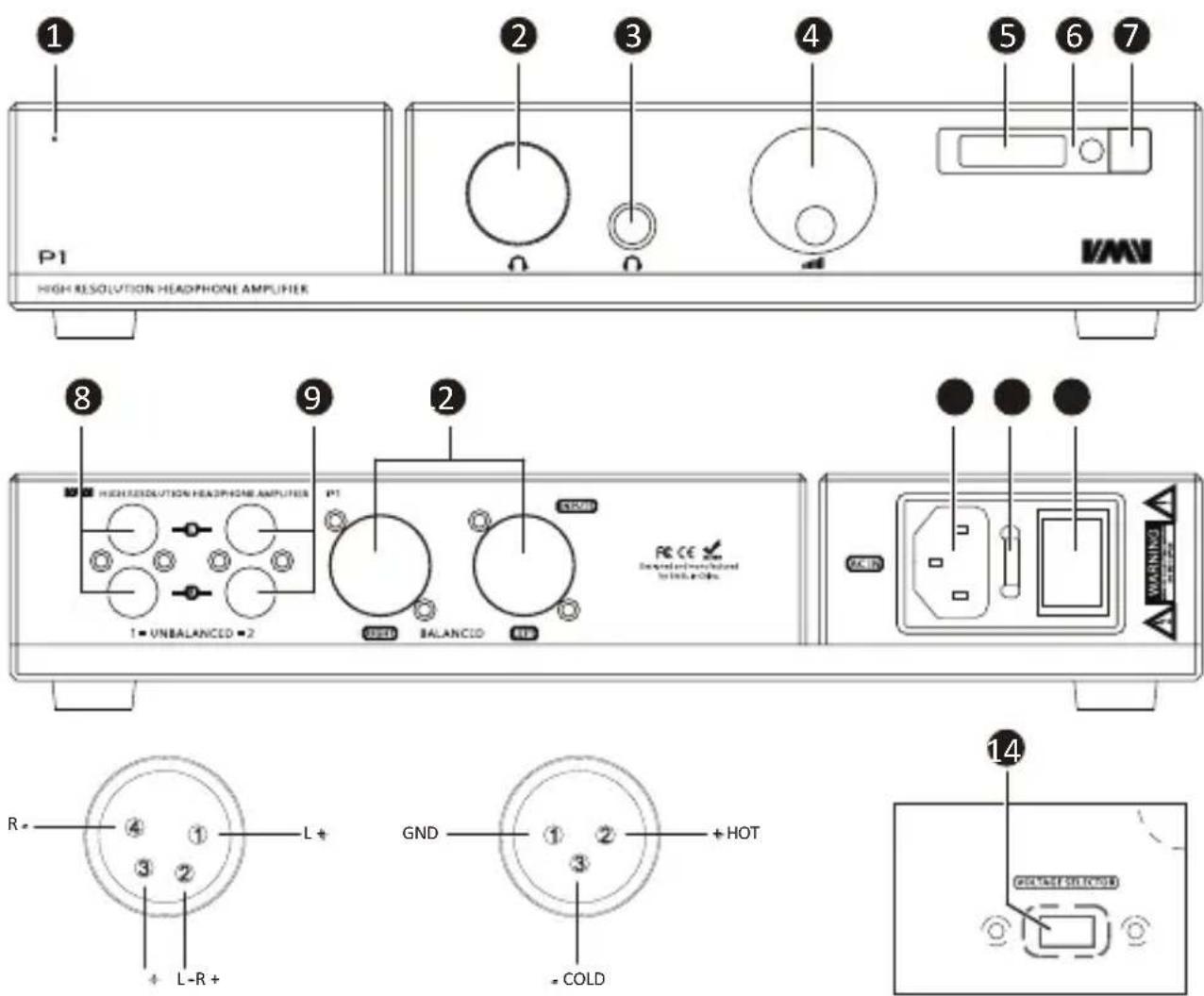

Parts names and functions

1 Power indicator
② XLR headphone jack
3 6.35mm headphone jack
4 Knob
⑤ Display
6 Remote window
7 Button

8 Unbalanced input 1
9 Unbalanced input 2
10 Balanced input
11 Power input
12 Fuse(T500mAL/250V)
13 Power switch
14 Voltage selector switch (Note)

Note:

• This Voltage Selector has been preset before leaving the factory!
- DO NOT change it before you confirm you mains AC voltage, or it will cause damage to the unit or fire.

Settings

Instructions

BUTTON

Outside the menu : Volume control

In the menu : Control of menu items

There are 4 pages of settings in this menu.

A Current page name
B Current page position
© Current page settings

Input menu:

• Line 1
• Line 2
• Bal in

Settings

OUTPUTS

214

HP Both

Output menu:

• HP Both (Both jacks output together)Note
- HP UNBAL
HP BAL

Note: This option is output for both output interfaces at the same time, just for convenience. For best performance, it is not recommended to connect two headphones at the same time.

DISP MODE

3/

Inputs

Main interface display menu

• Inputs
• Outputs
• Volume

DIMMER

4/4

Auto Display Off

Dimmer

• Auto Display off
• Brightness 1
• Brightness 2
• Brightness 3
• Brightness 4

Factory Reset

Connect the power cord when pressing the power button, until screen shows logo.

Warranty terms

1. The Term of Service

Foshan Shuangmusanlin Technology Co., Ltd promises to offer good-quality products. If the product is broken in 7 days after purchasing when you use it normally, you can choose to send it back for return, replacement or repairing (only the product does not affect the second sales can be returned). Repairing for free in one year if you use it normally.

1. Date of purchase is in accordance with the date on invoice or receipt issued by seller, and if you buy it on line, you can show the screenshot of trade.
2. If an inappropriate usage causes the unit damaged, the warranty will be void. As below.

a. All damages by inappropriate use, including using it under non-normal working environment or without following the instructions.
b. Dismantling, refitting, repairing by user in private.
c.Causing damage by using some fittings instead of the designative or accredited ones.
d. Cannot provide credible proof of purchase.
e.Products not from S.M.S.L(e.g. counterfeits).

1. Sending it back to our company for repairing.

2. Contact your S.M.S.L Audio reseller for a Return or replacement.

Foshan Shuangmusanlin Technology Co., Ltd.

Address: Rm205, 14th Building, Zhifu Industrial Park, Erhuan Rd, Xingtan,

Shunde, Foshan, Guangdong, CN

Tel: [phone]

http://www.smsl-audio.com/
