39PF5025 - Television VESTEL - Free user manual and instructions

Product Type	LED Television
Screen Size	39 inches (99 cm)
Resolution	1920 x 1080 (Full HD)
Dimensions (with stand)	88.4 x 54.8 x 20.0 cm (W x H x D)
Dimensions (without stand)	88.4 x 51.8 x 8.5 cm
Weight (with stand)	6.5 kg
Weight (without stand)	6.0 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption (max)	65 W
Energy Class	A+
Tuner	DVB-T2/C/S2
Connectivity	2x HDMI, 1x USB, 1x RF, 1x CI+
Audio	2 x 8W speakers, Dolby Digital
Smart TV	Yes (Vestel Smart)
Remote Control	Included (IR)
Wall Mount	VESA 200 x 200 mm
Maintenance	Clean with soft, dry cloth. Do not use solvents.
Safety	Do not block vents. Keep away from heat. Use only supplied power cord.
Spare Parts	Available through authorized Vestel service centers.
Repairability	Repairs should be performed by qualified technicians.

Frequently Asked Questions - 39PF5025 VESTEL

How do I scan for channels?

Press the Menu button, go to Settings > Channel > Auto Scan. Select your input source (Antenna or Cable) and start the scan.

Can I connect headphones?

Yes, you can connect headphones via the 3.5mm headphone jack on the side of the TV. If your TV supports Bluetooth, you can also pair Bluetooth headphones.

How do I reset to factory settings?

Go to Menu > Settings > System > Factory Reset. Confirm your choice and the TV will restart with default settings.

Does it support USB playback?

Yes, you can play video, music, and photos from a USB drive. Insert the USB into the port, then select the Media Player app from the home screen.

Can I mount the TV on a wall?

Yes, the TV supports VESA 200 x 200 mm wall mounts. Use a compatible bracket and ensure it is securely attached to a wall stud.

Why is there no picture on the screen?

First, check that the TV is plugged in and turned on. Ensure the correct input source is selected. If using an external device, verify the cable connections are secure.

How do I update the TV software?

Go to Menu > Settings > System > Software Update. If an update is available, follow on-screen instructions. Ensure a stable internet connection via Ethernet.

Does this TV have built-in Wi-Fi?

No, this model does not have built-in Wi-Fi. It has an Ethernet port for wired internet. You can use a USB Wi-Fi adapter for wireless connectivity if needed.

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn smudges, slightly dampen the cloth with water. Never use cleaning agents.

What is the warranty period?

The standard warranty is 2 years from the date of purchase. Warranty terms may vary by region; check with your local dealer or Vestel support.

USER MANUAL 39PF5025 VESTEL

SATELLITE 39PF5025 39" LED TV

KULLANIM KILAVUZU OPERATING INSTRUCTIONS

İçindekiler

Hazırlık.... 1

Kullanım Amacı 1

Güç kaynağı.... 1

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

SCART LNB Uydu Anten veya Ka Switch

Açma/Kapatma

TV'yi Açma

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a trash bin crossed with two diagonal lines (no text or symbols)

PAL/SECAM B/G D/K K' I/I' L/L'

DİJİTAL ALGILAMA

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S / S2 MPEG2

DVB-S / S2 MPEG4 HD

ALINAN KANALLAR

VHF (BANT I/III)

UHF (U BANDI)

HYPERBAND

ÖNCEDEN AYARLANABİLEN KANAL SAYISI

10000

KANAL GÖSTERGESİ

Ekran Görüntüsü

RF ANTEN GİRİŞİ

75 Ohm (dengesiz)

ÇALIŞMA GERİLİMİ

220-240V AC, 50 Hz.

SES

Alman + Nicam Stereo

SES ÇIKİŞ GÜCÜ (W _RMS. ) (10% THD)

2×6

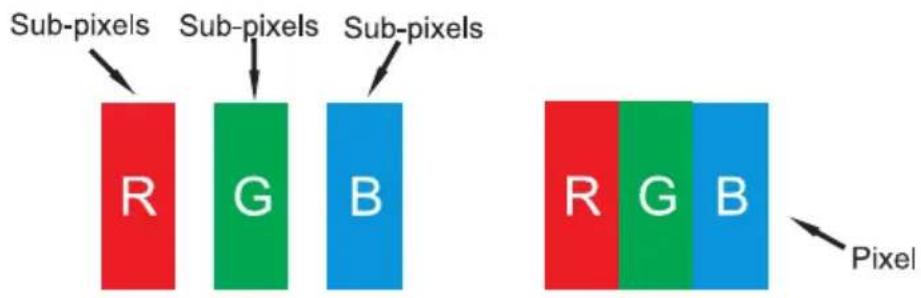

PANEL

Positioning the TV 22

Power cord and plug.... 23

Moisture and Water 23

Ventilation 23

Heat sources and Flames.... 23

Headphone Volume 23

Wall Mounting (optional) 23

LCD Screen 23

Cleaning.... 23

Environmental Information 23

Repair Information 23

Accessories included.... 24

TV - Features 24

Viewing the TV 24

TV Control buttons & Operation 24

Operation with the Remote Control 24

Input Selection 24

Changing Channels and Volume 24

Viewing remote control 25

Installing the Batteries to the Remote.... 27

Connect Power & Antenna/Cable/Satellite 27

Switching On/Off 27

Switching the TV On 27

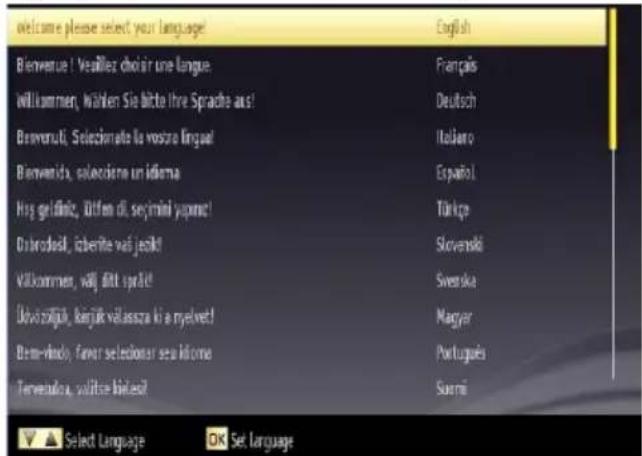

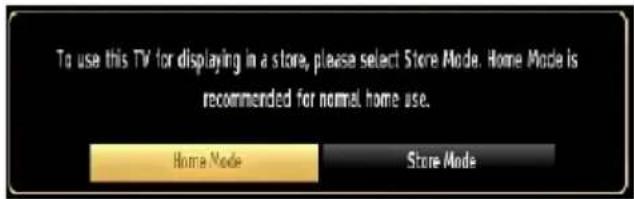

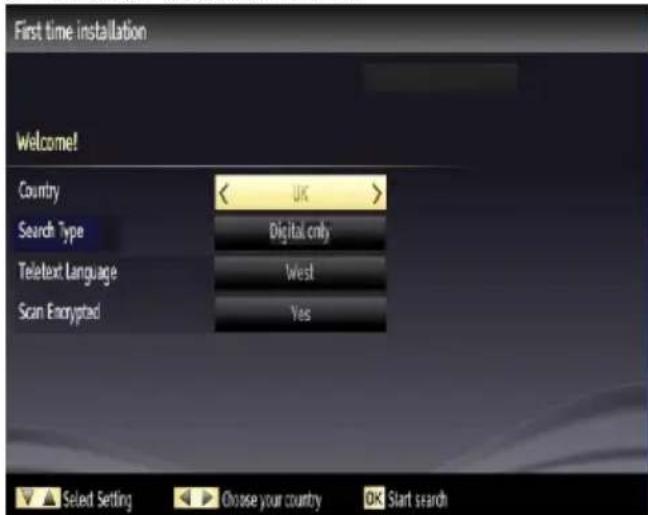

First Time Installation.... 27

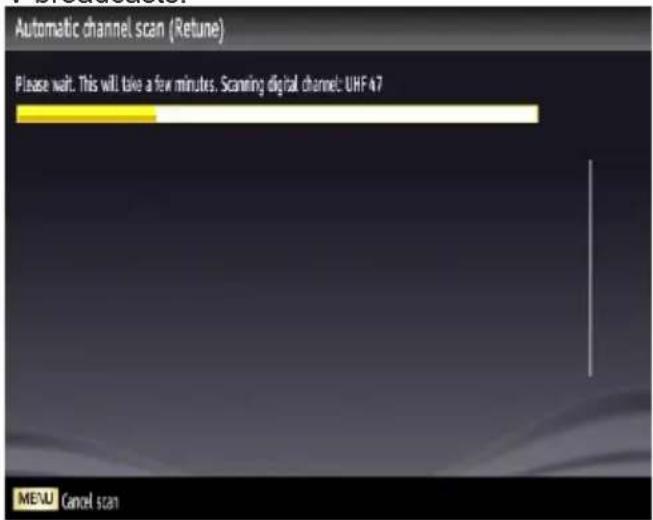

Aerial Installation 28

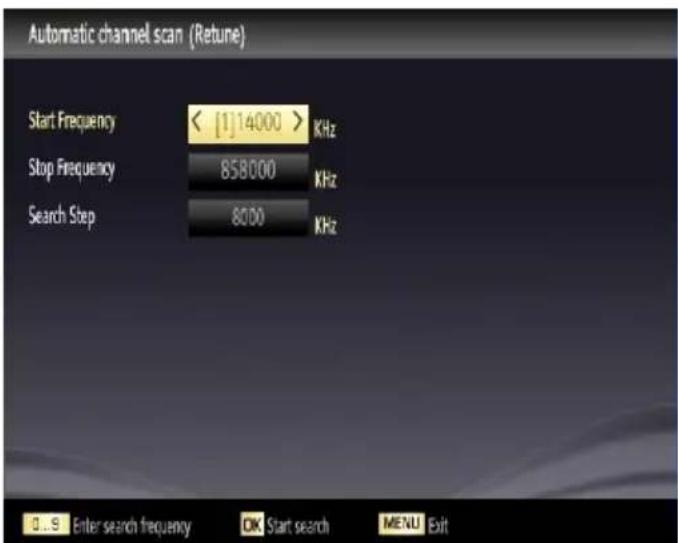

Cable Installation 28

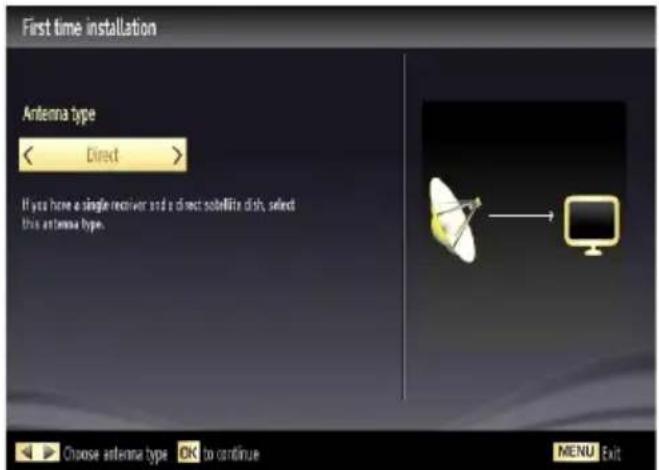

Satellite Installation.... 29

Media Playback via USB Input 29

Media Browser Menu.... 29

Changing Image Size: Picture Formats.... 30

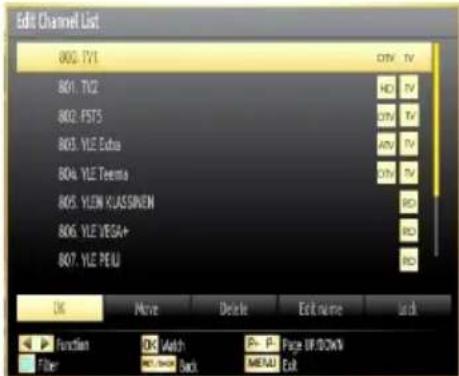

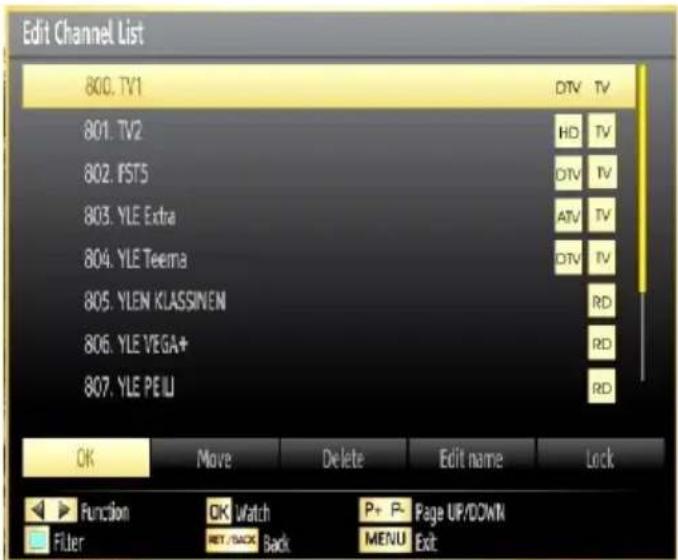

Using the Channel List 30

Menu Features and Functions.... 31

Menu Features and Functions.... 32

Menu Features and Functions.... 33

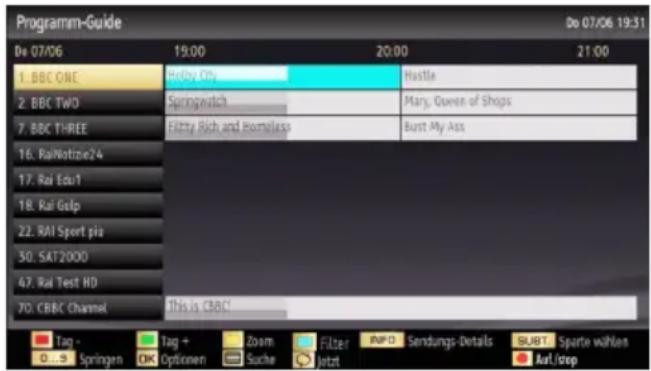

Electronic Programme Guide (EPG) 35

Recording a Programme 35

Timeshift Recording 36

Instant Recording 36

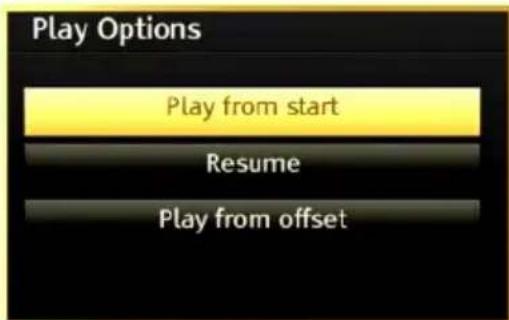

Watching Recorded Programmes 36

Recordings Library.... 36

Recording Configuration.... 36

Teletext 36

Digital Teletext (If available).... 37

Software Upgrade.... 37

Troubleshooting & Tips 37

PC Typical Display Modes 38

Safety Precautions

Please read these instructions fully before installing or operating.

Preparation

Place the device on a solid even surface. For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 5°C up to 45°C, 85% rel. humidity max. (not blocking ventilation openings).

Intended Use

This device is used to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (various external devices). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LCD TV in extreme ambient conditions may cause the damage of the device.

WARNING: Never let people (including children) with physical, sensory or mental abilities or lack of experience and / or knowledge unsupervised use electrical device!

Children may not recognize dangers right! The swallowing of batteries can be fatal. Keep batteries always out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging films out of reach of children. Risk of suffocation.

Power source

The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

Warning: Do not leave your TV in standby or rating mode when you leave your house.

Positioning the TV

For ventilation, please leave a clear space of at least 10cm all around the TV.

Do not • block the ventilation openings.

Do not• place the TV on sloping or unstable surfaces, the TV may tip over.

- To prevent damage to the TV, do not place any objects on top of the TV.

- Only use the TV in moderate climates.

Power cord and plug

The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Do not • place the TV, furniture, etc. on the power cord or pinch the cord.

- Handle the power cord by the plug, do not unplug the TV by pulling the power cord.

Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

Never make a knot in the power cord or tie it with other cords.

Power cords should be placed in such a way that they are not likely to be stepped on or driven over.

A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Moisture and Water

Do• not use this TV in a humid or damp place (avo bathrooms, the sink in the kitchen, and near the washing machine).

Do not expose this TV to rain or water, as this may be dangerous.

• Do not place objects filled with liquids, such as flower vases, on top of the TV. Avoid from dripping or splashing.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.

- To prevent overheating, these openings must not be blocked or covered in anyway.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.
• The TV should not be placed near to open flames and sources of intense heat such as an electric heater.
• Ensure that no open flame sources, such as lighted candles, are placed on top of the TV.

Headphone Volume

- Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

LCD Screen

Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Take care not to scratch the screen with fingernails • or other hard objects.

Cleaning

Before cleaning, unplug the TV from the wall socket.

- Do not use liquid or aerosol cleaners. Only use a soft, dry cloth.

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture Settings menu. If you set Power Save Mode as Eco, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

If you set power save mode as Picture off, a message will appear on the screen and backlight will be off within three seconds. Press any button on the remote controller to activate the picture again.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time.

It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. Also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

Accessories included

Remote Control

Batteries: 2 x AAA

Instruction Book

Wall Mount Kit

Side AV Connection Cable.

TV - Features

Fully integrated digital/cable/satellite TV (DVB-T/C/S-S2).

HDMI connectors for digital video and audio. • USB input.

• Programme recording.
• Programme timeshifting.

10000 programmes.

OSD menu system.

Scart socket for external devices.

Stereo sound system.

Teletext, fastext, TOP text.

Headphone connection.

Automatic programming system.

Forward or backward manual tuning.

Automatic power down after up to six hours.

Sleep timer.

• Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
  • AVL (Automatic Volume Limiting).
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
• Game Mode.
• Picture off function.
• Pixellence.

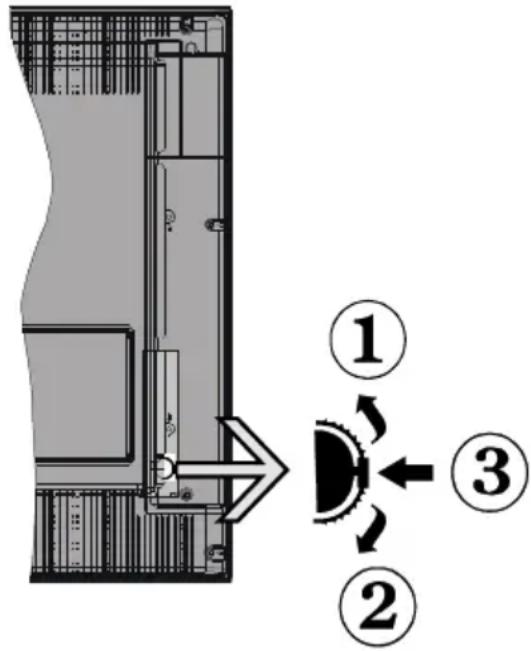

TV Control buttons & Operation

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

1. Up direction
2. Down direction
3. Programme/Volume / AV / Standby-On selection switch

You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. To select desired source, move the switch upward or downward and release. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via the control button.

Operation with the Remote Control

Press MENU button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right / Up / Down to select or set an item. Press BACK or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press SOURCE button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the V+/- and P+/- buttons on the remote.

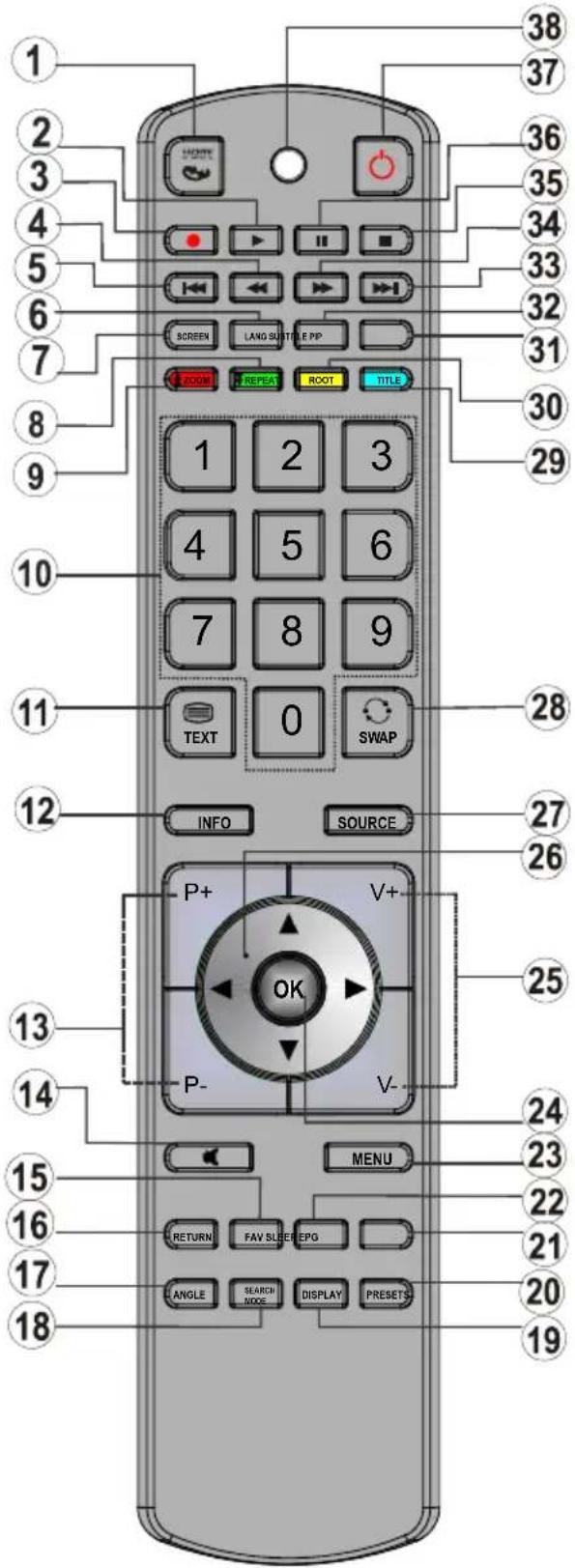

Viewing remote control

No function1.

Play (in Media Browser&Playback mode)2.

Programme recording3.

Fast rewind (in Media Browser mode)4.

No function5.

Mono/Stereo - Dual I-II / Current Language (*) 6.

Image size7.

Green button8.

Red button9.

Numeric buttons10.

Teletext / Mix11.

Info / Reveal (in TXT mode)12.

Programme Down - Page up / Programme Up - 13. Page down

1. Mute
2. Favourite mode selection
3. Back to previous menu / Index page (in TXT mode)
4. Media Browser No function18.
5. Recordings Library
6. Picture mode selection
7. Electronic programme guide
8. Sleep Timer
9. Menu on-off
10. OK / Select / Hold (in TXT mode)
11. Volume up / down
12. Navigation buttons
13. AV / Source
14. Previous programme Blue button29.
15. Yellow button No function31.
16. Subtitle on-off / Subtitle (in Media Browser mode). No function33.
17. Fast forward (in Media Browser&PVR mode)
18. Stop (in Media Browser&PVR mode)
19. Pause / Timeshift recording
20. Standby
21. Operation LED light

1 2 3 4 5 6 7 8 9 10 11 12 INFO SOURCE P+ V+ OK P- MENU RETURN FAV SLISET EPG ANGLE SEARCH MODE DISPLAY PRESETS 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19

Viewing the Connections

Connector	Type	Cables	Device
	Scart Connection (back)
	VGA Connection (back)		(NCRSuppldea)
	PC/YPbPrAudio Connection (side)
	HDMI Connection (back)
SPDIFF	SPDIFF Connection (back)
	SideAV Connection (side)
	Headphone Connection (side)
	USB Connection (side)
	CI Connection (side)

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the supplied SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. You can use the VGA input for connecting a YPbPr device. To do this, you need a YPbPr to PC cable (Not supplied).

Installing the Batteries to the Remote

1. Lift the cover on the back of the remote upward gently.

2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity.

3. Replace the cover.

Two black electronic devices with visible internal components, no text or symbols present

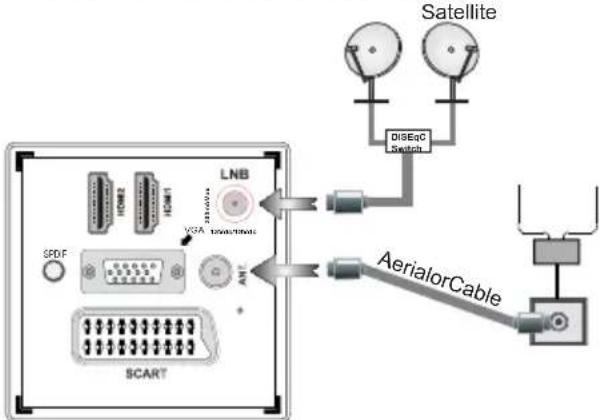

Connect Power & Antenna/Cable/Satellite

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Switching On/Off

Switching the TV On

With power cord plug connected to the mains power socket, the TV is in 'Standby' mode.

To switch the TV on from standby mode:

Press the "button and the TV will switch to standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:

a. Press the "button, P+ / P- or a numeric button on the remote control.

b. Press the middle of the "button" on the TV. By either method the TV will switch on.

Switching the TV Off

Press the "button on the remote control or

press the standby "button, so the TV will switch to standby mode.

To turn off the TV completely, remove the power cord plug from the mains power socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the "language selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

Welcome please select your language! Blenvenue! Veallier choisir une langue Wilkommen, Wahlen Sie bitte ihre Sprache aus! Brownuti, Selezionate la voszra lingue! Benvenido, selezione un idiema Hirg gelatiniz, Diften di, sejmini yapune! Drobodisi, izberite nei jesici! Välkommer, välj ditt spräe! Üdovstilgih, kärjik välassza ki a nyelvet! Bem-vindo, favor seleccionar seu kilone Terveuloua, valitse biltes! English Français Deutsch Italiano Español. Türige Slovenski Sweska Magyar Portugals Suomi Select Language OK Set Language

Press the “^” or “” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “<” or “>” button to set the required country, and press “” button to select Search Type (optional).

Use “<” or “>” to set the desired search type. Available search types are Digital and analog, digital only and analog only.

When set, press " " to select Teletext Language. Use " " or " " to select the desired Teletext Language. Next, select Scan Encrypted and set as Yes if you want to scan coded stations.

First time installation Welcome! Country UK Search Type Digital only Teletext Language West Scan Encrypted Yes Select Setting Choose your country OK Start search

Press OK button on the remote control to continue and the following message will be displayed on the screen.

To use this TV for displaying in a store, please select Store Mode. Home Mode is recommended for normal home use. Home Mode Store Mode

You can activate Store mode option by using “” or “>” button. If Store Mode is selected, Store mode option will be available in other settings menu and your TV’s features will be illustrated on the top of the screen. A confirmation screen will be displayed after selecting the Store Mode. Select YES to proceed.

Store Mode Selected Are You Sure? Yes No

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button on the remote control to continue and the following message will be displayed on the screen..

Please Select Digital Search Type Aerial Cable Satellite

You must select a search type to search and store broadcasts from the desired source.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

Automatic channel scan (Retune) Please wait. This will take a few minutes. Scanning digital channel: UHF 47 MENU Cancel scan

NOTE: You can press MENU button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN(*), please select "Yes" and then press OK.

Edit Channel List 800. TV1 DTV TV 801. TV2 HD TV 802. FST5 DTV TV 803. YLE Extra ATV TV 804. YLE Teema DTV TV 805. YLEN KCLASSINEN RD 806. YLE VEGA+ RD 807. YLE PE II RD OK Move Delete Edit name Lock Function OK Watch P+ P- Page UP/DOWN Filter RET/BACK Back MENU Exit

Press OK button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

Do you want to start an automatic channel scan? Yes No

To continue please select YES and press OK. To cancel operation, select NO and press OK.

Automatic channel scan (Retune) Start Frequency < [1]14000 > KHz Stop Frequency 858000 KHz Search Step 8000 KHz 0...9 Enter search frequency OK Start search MENU Exit

You can select frequency ranges from this screen. For highlighting lines you see, use " " or " " button.

You can enter the frequency range manually by using the numeric buttons on the remote control.

Set Start and Stop Frequency as desired by using numeric buttons on the remote control.

After this operation, you can set Search Step as 8000 KHz or 1000 KHz.

If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

Satellite Installation

If you select Satellite option from the Search Type screen, you can set a satellite and watch satellite channels. When you select Satellite installation, Antenna Type menu will be displayed.

There are three types of antenna selection. You can select Antenna type as Direct, Unicable or DiSEqC switch by using “<” or “>buttons.

First time installation Antenna type < Direct > If you have a single receiver and a direct satellite dish, select this antenna type. Choose antenna type OK to continue MENU Exit

Direct: If you have a single receiver and a direct satel dish, select this antenna type. After selecting Direct, another menu screen will be displayed. Select an available satellite and press OK to scan for services.

Unicable: If you have multiple receivers and a unicable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the screen. Press OK to scan for services.

DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. After selecting DiSEqC switch, another menu screen will be displayed. You can set four DiSEqC options (i available). Press GREEN button to scan all satellites or press YELLOW button to scan only the highlighted satellite. To save and exit press OK button.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Connect a USB disk to one of the USB inputs located on the side of the TV.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection OSD will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1. Select a device by using “” or “” button and press OK.

Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

You can set your Media Browser preferences by using the Settings dialog.

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press SCREEN button repeatedly to change the image size. You can shift the screen up or down by using “” or “” buttons while in 14:9 Zoom, Cinema or Subtitle.

Using the Channel List

Edit Channel List B02. TV1 B01. TV2 B02. FSTS B03. YLE Extra B04. YLE Teema B05. YLEN KUASSINEN B06. YLE VEGA+ B07. YLE PEU OK Move Delete Exit name Salt Function DX Watch P- P4 Page 8F/DCW& Filter NC Back META Exit

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using “^” or “√” button. Press OK button to continue. You can select a network type option from the list by using “<” or “> and OK buttons.

Menu Features and Functions

Picture Menu Contents
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast	Sets the lightness and darkness values of the screen.
Brightness	Sets the brightness value for the screen.
Sharpness	Sets the sharpness value for the objects displayed on the screen.
Colour	Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, “Environmental Information” in this manual for further information on Power Save Mode.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp	Sets the desired colour tone.
Picture Zoom	Sets the picture size to Auto, 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3 or Cinema.
HDMI True Black(optional)	While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode (optional)	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Adjust the desired skin tone.
Colour Shift	Adjust the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset	Resets the picture settings to factory default settings
Pixelence Demo Mode	While Mode option is highlighted in picture menu, Pixellence demo mode will be displayed bottom of the menu screen.Pixelence Demo Mode function optimizes the TV's video settings and helps to acquire a better image quality. Pixellence Demo Mode thus includes contrast, sharpness, colour enhancement and skin tone correction along with the skin tone detection.Press OK to start Pixellence Demo Mode for experiencing Pixellence quality. Throughout the demo mode, the screen is splitted into two sections, one displaying the Pixellence II active area; the other displaying the normal broadcast. Press OK button to quit the demo mode.

Menu Features and Functions

Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Menu Features and Functions

Sound Menu Contents
Volume	Adjusts volume level.
Equalizer:	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance	This setting is used for emphasizing left or right speaker balance.
Headphone	Sets headphone volume.
Sound Mode	You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Dynamic Bass (optional)	Enables or disables the Dynamic Bass.
Digital Out	Sets digital out audio type.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options.Digital Aerial: Searches and stores aerial DVB stations.Digital Cable: Searches and stores cable DVB stations.Analogue: Searches and stores analogue stations.Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.Satellite: Searches and stores satellite stations.
M an ua I C ha nn el Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions in the Initial Installation section for more information on this process.

Menu Features and Functions

Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	Configures language settings.
Parental	Configures parental settings.
Timers	Sets timers for selected programmes.
Recording Configuration	Displays recording configuration menu.
Date/Time	Sets date and time.
Sources	Enables or disables selected source options.
Satellite Settings	Displays satellite settings.
Other Settings: Displays other setting options of the TV set:
Menu Timeout	Changes timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version	Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off	You can set the timeout value of auto off feature. After the timeout value is reached and the Tv is not operated for selected time , the TV will go off.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter BISS key on a broadcast, you can use Biss Key setting located in the Other Settings menu. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Store Mode	If you are displaying the TV in a store, you can activate this mode. While Store Mode is enabled, some items in the TV menu may not be available to be set. Your TV's features will be illustrated on the top of the screen.
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the EPG button to view the EPG menu.

Programm-Guide Do 07/06 19:31 De 07/06 19:00 20:00 21:00 1. BBC ONE Rugby City Hostile 2. BBC TWO Springwatch Mary, Queen of Shops 7. BBC THREE Filatty Rich and Homeless Burst My Ass 16. Rai/Notizio24 17. Rai Edu1 18. Rai Gelp 22. RAI Sport pie 30. SAT2000 47. Rai Test HD 70. CBRC Channel This is CBC

Info bar commands:

RED button: Previous day.

GREEN button: Next day.

YELLOW button: Zooms to the selected programme.

BLUE button - Next day: displays filtering options.

BLUE: displays filtering options.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Note: Switching to a different broadcast or source is not available during the recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Record" option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option "Delete Rec. Timer". The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Set Timer on Event" option and press OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record or set timer for two or more individual events at the same time interval.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.

For using recording function, you should connect a USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is not supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not sufficient, recording may fail and timeshifting feaute may not be available.

Recordings of HD programmes can occupy bigger size on the USB disk depending on the broadcast's resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.

Do not plug out the USB/HDD during the recording. This may harm the connected USB/HDD.

Multipartiton support is available. Maximum two different partitions are supported. If the disk have more than two partitions, crash may occur. First partition of the usb disk is used for PVR ready features. It also must be formatted as primary partition to be used for PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.

Record, Play, Pause, Display (for PlayListDialog) keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast for switching to timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to watch the paused programme from the stopped moment. You will see the timeshift gap between the real and the timeshifted programme in the info bar.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording. Press (STOP) button to cancel instant recording. Switching to a different broadcast or source and viewing Media Browser are not available during the recording.

Watching Recorded Programmes

In the main menu, use “” or “” buttons to select Media Browser. Highlight Recordings Library item by using “” or “” button and press OK button to enter. Recordings Library will then be displayed. Select a recorded item from the list (if previously recorded) by using “▼”/“▲” button. Press OK button to view Play Options. Select an option by using “▼”/“▲” or OK buttons.

Play Options Play from start Resume Play from offset

Available playback options:

Play from start: Plays the recording from the • beginning.

Resume: Recommences the recordings.

Play from offset: Specifies a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

If you press || (PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use ▶ button to slow forward. Pressing ▶ button consecutively will change slow forwarding speed.

Recordings Library

To view the list of recordings, select “Recordings Library” and press the OK button. Recordings Library will then be displayed with available recordings. All the recordings are kept in a list in the recordings library.

▶ (Resume): Recommences the recordings.

RED button (Delete) : Erases the selected recording.

GREEN button (Edit): Makes changes on the selected recording.

BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.

OK button: Activates play options menu:

INFO (Details): Displays the short extended programmes in detail.

Recording Configuration

Select Recording Configuration item in the Settings menu to configure recording settings.

Format Disk: You can use Format Disk feature for formatting the connected USB disk. IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

Note: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Teletext

“☐” Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO"Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected

by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “▼ or “▲ commands will request the next or previous page respectively.

Digital Teletext (If available)

- Press the “button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the 📄 button is pressed again, the TV returns to television broadcasting.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) Background search and upgrade mode

- While TV is connected to Internet, in background it searches for critical software upgrades. If a critical software upgrade is found it downloads the upgrade silently. When download completes with success message is displayed for reboot operation to activate new software. Press OK to continue with the reboot operation.

3) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plug is connect to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?.
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the aerial connected properly?
3. Are the plugs connected tightly to the aerial socket?
4. Is the aerial cable damaged?
5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the "button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.

Recording Unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off.

USB Is too Slow

If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Manufactured under license from Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DIGITAL PLUS

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index	Resolution	Frequency
1	640x350p 60	Hz
2	640x400p 60	Hz
3	1024x768 60	Hz
4	1280x768 60	Hz
5	1360x768 60	Hz
6	720x400 60	Hz
7	800x600 56	Hz
8	800x600 60	Hz
9	1024x768 60	Hz
10	1024x768 66	Hz
11	1280x768 60	Hz
12	1360x768 60	Hz
13	1280x1024 60	Hz
14	1280x960 60	Hz
15	1280x1024 60	Hz
16	1400x1050 60	Hz
17	1920x1080 60	Hz
18	1600x1200 60	Hz

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S / S2 MPEG2

DVB-S / S2 MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W _RMS. ) (10% THD)

2x6

PANEL

16:9 display, 39" Screen Size

"In conformity with the AEEE Regulation."

Supported File Formats for USB Mode

Media	File Extension	Format		Remarks
		Video	Audio	(Maximum resolution/Bit rate etc.)
Movie	.mpg .mpeg	MPEG1,2	MPEG Layer 1/2/3	MAX 1920x1080 @ 30P 20Mbit/sec
	.dat	MPEG1,2	MPEG2
	.vob	MPEG2
	.mkv	H.264, MPEG1,2,4	EAC3/ AC3
	.mp4	MPEG4Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2H.264	PCM/MP3
	.avi	MPEG2, MPEG4
		Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2H.264	PCM
Music	.mp3	-	MPEG 1 Layer 1 /2 (MP3)	32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg	Baseline JPEG	-	max WxH = 15360x8640 4147200bytes
	.	Progressive JPEG	-	max WxH = 9600x6400 3840000bytes
	.bmp	-	-	max WxH = 9600x6400 3840000bytes
Subtitle	.sub .srt	-	-	-

Dear Customer;

This appliance is manufactured with TFT LCD Display technology.

An image is created with colour light points call LCD pixels in TFT-LCD appliances.

Each pixel consists of 3 sub-pixels [fixed colour (red, green, blue) light points].

Sub-pixels R G B Sub-pixels Sub-pixels R G B Pixel

As a requirement of production technologies, the abovementioned sub-pixels may cause "sub-pixel errors" by way of lighting continuously or remaining dim continuously.

Please consider the following explanation about a possible sub-pixel error.

This problem can be encountered during the production phase as well as during use.

Sub-pixel errors are mainly 2 types.

Type 1 : The sub-pixel lighting continuously (may be red, green or blue)

Type 2 : The sub-pixel which is continuously dim (seems black)

The sub-pixel errors determined according to the ISO 13406-2 standard are given in the following table.

Type	Explanation	Quantity	Note
Type 1	Random (at 5 mm or higher intervals)	2	Within the compass of the criterion, not intervened
	Adjacent 2 pixels	1	Within the compass of the criterion, not intervened
	Adjacent 3 or more pixels		Off-criterion
Type 2	Random (at 5 mm or higher intervals)	7	Within the compass of the criterion, not intervened
	Adjacent 2 pixels	2	Within the compass of the criterion, not intervened
	Adjacent 3 or more pixels		Off-criterion
Type 1 and Type 2 Total		7	Within the compass of the criterion, not intervened

IMPORTANT WARNINGS

1. Rights reserved by the manufacturer:

The manufacturer reserves the right to change the features stated in the product or in the user's manual of the product without giving any information, when required by the improvements in technology.

2. Warnings about Screen Technology:

Due to TFT and Plasma technologies, there may be inactive or continuously shining white, red or blue pixels in the screen. This does not affect the performance of the product, and it is not a failure. The related details are given in the related pages of the user's manual. The manufacturer does not have any responsibility in the cases within the compass of the criteria.

3. A continuous fixed image on the screen:

Due to TFT and Plasma technologies, “burning” effect may arise in the screen after a continuous fixed image on the screen, displaying the same background continuously or watching a 4:3 video on a 16:9 television for a long time. In order to avoid this effect, it is highly recommended that you follow the followings.

• Do not watch a fixed image continuously.
• Do not watch videos in the format of 4:3 in your television which supports the format of 16:9.
• Try to use contrast and brightness at a minimum level.

4. In Full HD products;

The expected performance may not be achieved in TV broadcasts and the broadcasts of satellite receivers which are not supported by other sources in terms of high definition, DVD players or cable television; and in these broadcasts, mosaic images may occur, sharpness and resolution of the image may be low; some effects may arise on the screen. This is not a failure. It is advisable to watch high definition broadcasts for your TV which supports high definition (1920x1080) to work with a high performance as a requirement of the Full HD technology. The expected performance may not be achieved in TV broadcasts and the broadcasts of satellite receivers which are not supported by other sources in terms of high definition, DVD players or cable television; and in these broadcasts, mosaic images may occur, sharpness and resolution of the image may be low; some effects may arise on the screen. This is not a failure. If your appliance supports high definition, it is recommended that you use high definition broadcast sources in order to achieve a high screen performance as a requirement of the high definition (HD) technology.

5. About Working Sound of the Appliance:

A working sound may be generated in the electronic circuits in your appliance as a requirement of its technology depending on the current on it while running or in standby status. This sound can sometimes be heard depending on the sensitivity of human ear and watching distance although it is within the compass of the standards. This sound does not affect the performance of your appliance and it is not a failure.

6. Make sure that the panel (screen) of your appliance is never subjected to any external mechanical impact:

The panels (screens) of the TFT-LCS televisions are not only a piece of glass; on the contrary they are composed of layers. If your appliance is damaged in its panel (screen) which is the front part by an external impact, the inner layer of the screen might be broken / cracked even when no break/crack arises in the layer of the screen which is the closest to the outer environment. This can be technically detected by the authorized service. Therefore, make sure that the panel (screen) of your appliance is never subjected to any external mechanical impact. Otherwise, as any damage “caused by an external hit” is considered as a usage error, the manufacturer will not have any legal responsibility.

7. About the use of the appliance:

The appliance you purchased was produced for home-type use, and it can be used only at home and for the specified purposes, not for commercial or collective use. Otherwise, the manufacturer and the dealer will not be responsible for the failures within the period of warranty and free repair, which is determined in the provisions of the Act on the Protection of Consumers.
